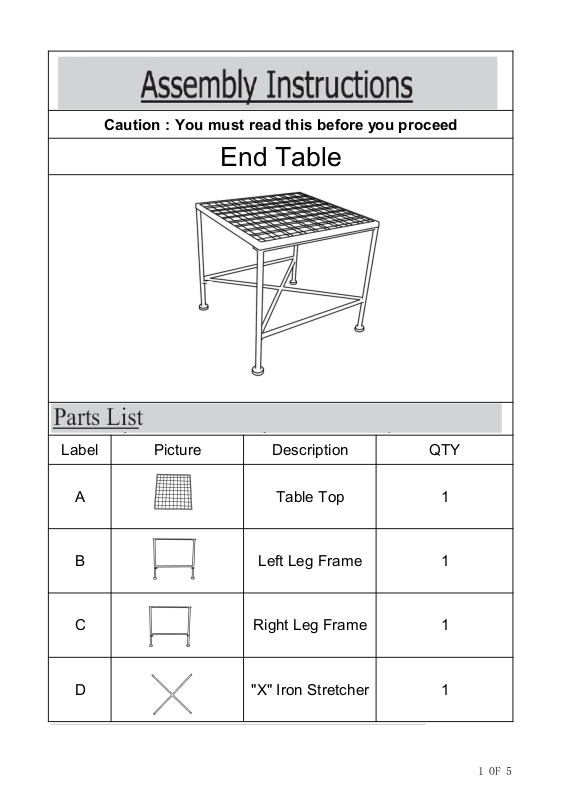

Page 1
Caution : You must read this before you proceed
End Table
Label Picture Description QTY
A Table Top 1
B Left Leg Frame 1
C Right Leg Frame 1
D "X" Iron Stretcher 1
1 OF 5
Page 2
Label Picture Description QTY
①
Nut 9
②
Wrench 1
Before
Beginni
ng
Assemb
ly:
Overview
This End Table has multiple parts and may require up to 30 minutes to assemble. To
give you an overview of the Table parts, the above picture is to help you put the various
parts into perspective. Please read through the instructions below to familiarise yourself
with the parts and steps before assembly.
FRONT FACING
Table Top (A)
Right Leg Frame (C)
Left Leg Frame (B)
"X" Iron Stretcher (D)
2 OF 5
Page 3
Step 1
Open the carton and place all parts on a clean, non-marring surface.
Step 2
Place the Table Top(A) face down on the clean and soft surface.
2.1) Insert Left Leg Frame(B) into Table Top(A) as shown above.
2.2) Attach Left Leg Frame(B) to Table Top(A) using Nuts(①) with Wrench(②) as shown
above.
Do not fully tighten the Nuts.
Step 3
Repeat Step 2, to attach Right Leg Frame(C) to Table Top(A).
Do not fully tighten the Nuts.
3 OF 5
Page 4
Step 4
Attach the "X" Iron Stretcher(D) to Left Leg Frame(B) and Right Leg Frame(C) using the
Nuts(①) with Wrench(②).
Do not fully tighten the Nuts.
Step 5
Stand the Table right way up. Place the Table on a LEVEL SURFACE to check for
wobbles.
If it wobbles, lift the table some 20cm to 30cm high from the ground.
Keep your feet and toes well away from the drop zone.
Drop the table freely and vertically with all four legs, hitting the ground, at the same time.
This Drop Test will help to ensure that all Nuts and gaps reach full alignment status.
Test again for evenness on a LEVEL SURFACE.
If no wobbles are found, slowly and carefully, turn the Table facedown.
Then, proceed to tighten all Nuts in a sequential manner.
When tightening the Nuts, tighten sequentially.
DO NOT tighten any Nut fully and then towards the next one.
This could cause the frame to warp. If there are still wobbles, loosen the Nuts and
execute the same drop test.
If the Table is not stable, it could lead to damage to the product.
Your End Table is ready for use.
This Table can only be used on a flat, level surface.
4 OF 5

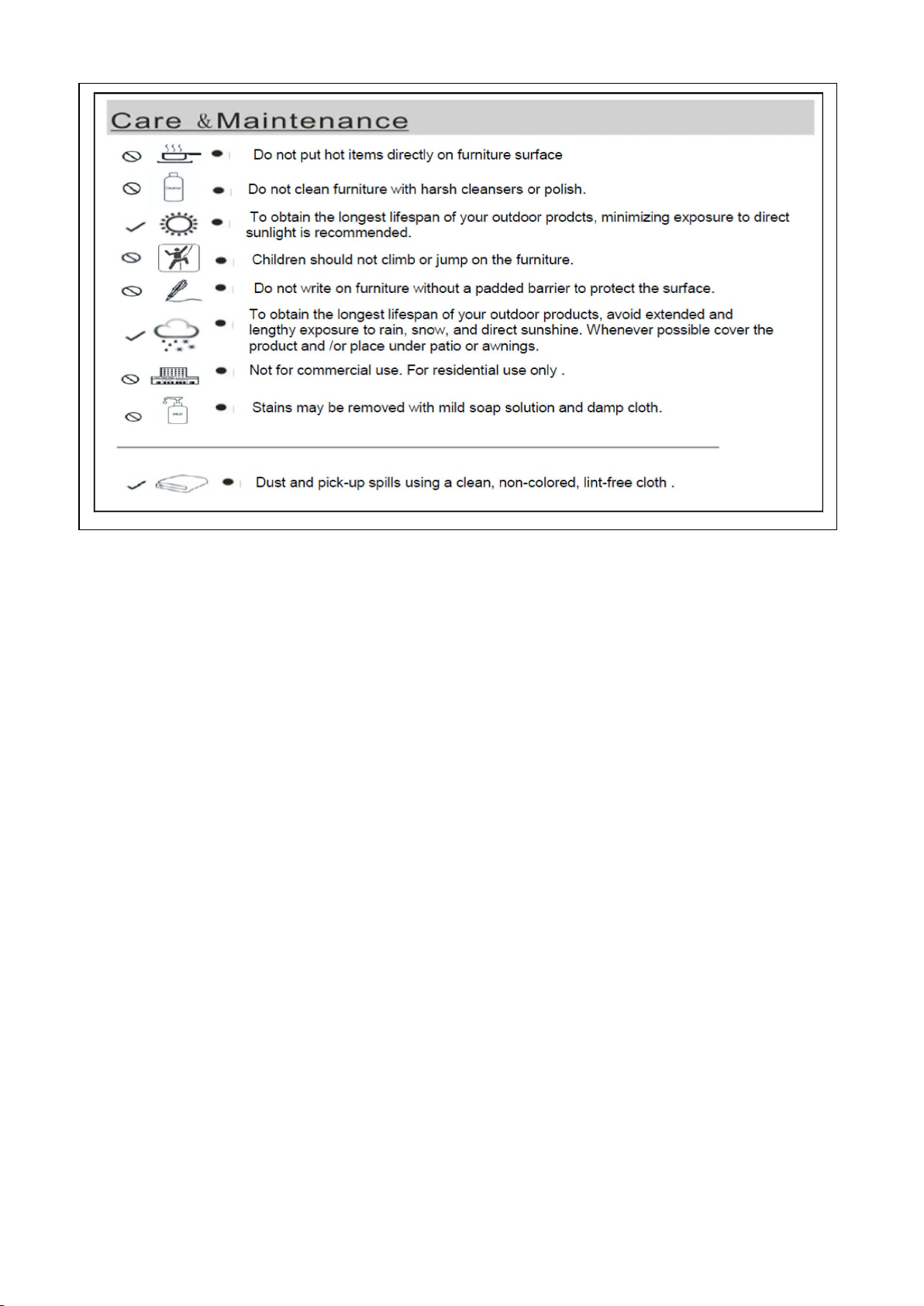

Page 5
5 OF 5
