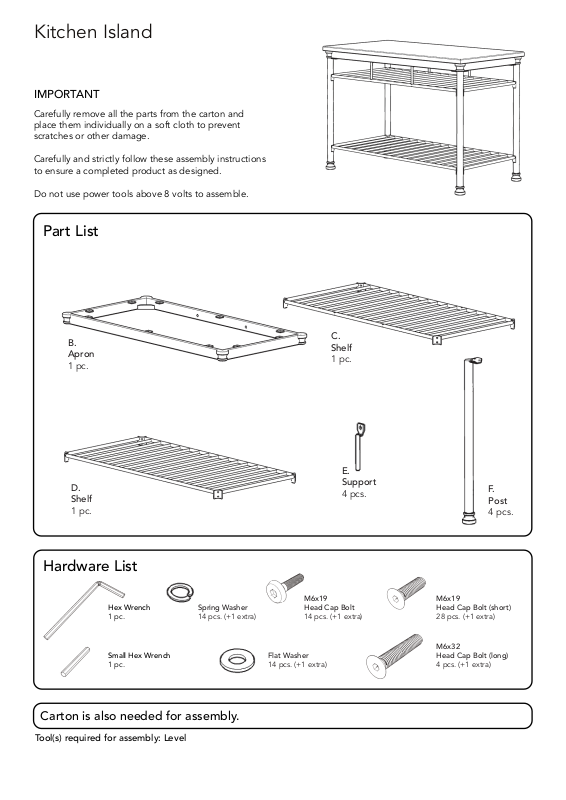

Kitchen Island
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
B.
Apron
1 pc.
D.
Shelf
1 pc.
Hardware List
Hex Wrench
1 pc.
Spring Washer
14 pcs. (+1 extra)
C.
Shelf
1 pc.
E.
Support
4 pcs.
M6x19
Head Cap Bolt
14 pcs. (+1 extra)
F.
Post
4 pcs.
M6x19
Head Cap Bolt (short)
28 pcs. (+1 extra)
Small Hex Wrench
1 pc.
Carton is also needed for assembly.
Tool(s) required for assembly: Level
Flat Washer
14 pcs. (+1 extra)
M6x32
Head Cap Bolt (long)
4 pcs. (+1 extra)
Assembly Instructions 2/3
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the bolts until each part is properly assembled.
The unit must be level to work properly. Use the included adjustable levelers to level.
Keep Hex Wrench in a safe place as the bolts may need to be tightened up in the future.
STEP 1
Head Cap Bolt
Spring Washer
Flat Washer
Place Top (A) upside down on a soft cloth.
Attach Apron (B) to Top (A) with
Flat Washers, Spring Washers and
Head Cap Bolts, tightening bolts
only half way. (See Figure 1)
Tighten all Head Cap Bolts used
in this step.
Figure 1
B
A
Figure 3Figure 2
E
Flat Washer
Spring Washer
Head Cap Bolt
E
C
E
E
Head Cap Bolt (long)
STEP 2
Attach Supports (E) to unit with
Flat Washers, Spring Washers
and Head Cap Bolts,
tightening bolts only half way.
(See Figure 2)
Attach Shelf (C) to unit with
Head Cap Bolts (long),
tightening bolts only half way.
(See Figure 3)
Assembly Instructions 3/3
STEP 3
Attach Posts (F) to unit with Head Cap Bolts (short), tightening
bolts only half way. (See Figures 4 and 5)
Figure 4 Figure 5
Head Cap Bolt
(short)
F
F
D
STEP 5
Attach Posts (F) to unit with
Head Cap Bolts (short),
tightening bolts only half way.
STEP 4
Attach Shelf (D) to unit with Head Cap Bolts (short),
tightening bolts only half way.
Head Cap Bolt
(short)
Head Cap Bolt
(short)
Figure 6
F
Tighten all Head Cap Bolts used
in Steps 2, 3, 4 and 5.
Turn unit over to its’ upright position.
Level unit by adjusting levelers on bottom
of unit. (See Figure 6)
Note: Unit must be level to work properly.
F
CARE INSTRUCTIONS
NEVER
allow liquids to remain on furniture.
Absorption causes parts to warp
and split and finishes to delaminate.
Do not use power tools
above 8 volts to assemble.
PREVENT
CRACKING
Do not place
in direct sunlight.
PREVENT
FADING
NEVER
use glass cleaners on
finished furniture. Ammonia
chemically attacks the finish.
Do not write
directly on surface.
PREVENT
MARKING
Do not place hot
objects on surface.
PREVENT
FINISH DAMAGE
Do not use rubber
based placemats.
PREVENT
DISCOLORING
CLEAN
with a soft cloth moistened
in lukewarm soap and water.
Buff with a dry clean cloth.
Do not use commercial
waxes and polishes.
PREVENT
YELLOWING
