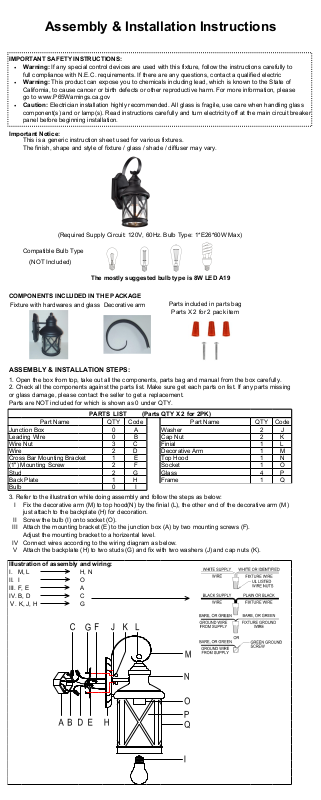

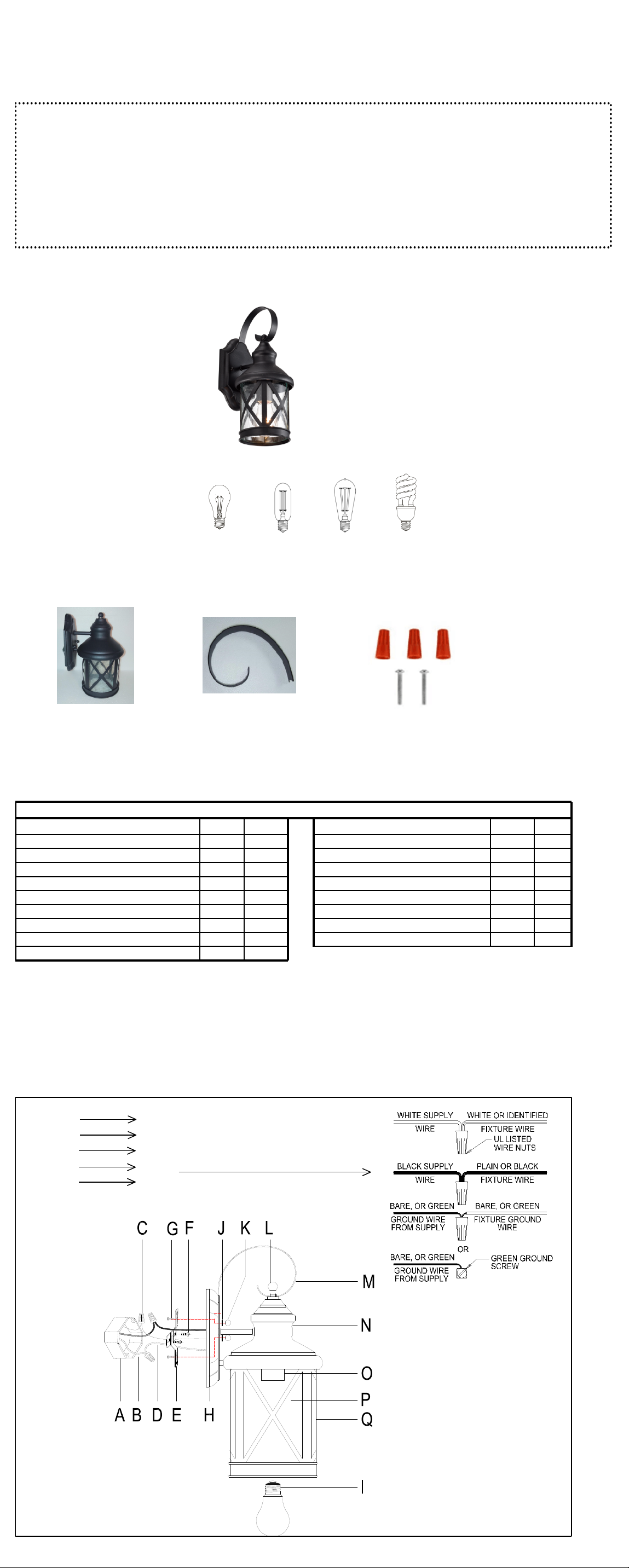

Assembly & Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS:
•
Warning: If any special control devices are used with this fixture, follow the instructions carefully to
full compliance with N.E.C. requirements. If there are any questions, contact a qualified electric
•
Warning: This product can expose you to chemicals including lead, which is known to the State of
California, to cause cancer or birth defects or other reproductive harm. For more information, please
go to www.P65Warnings.ca.gov
•
Caution: Electrician installation highly recommended. All glass is fragile, use care when handling glass
component(s) and or lamp(s). Read instructions carefully and turn electricity off at the main circuit breaker
panel before beginning installation.
Important Notice:
This is a generic instruction sheet used for various fixtures.
The finish, shape and style of fixture / glass / shade / diffuser may vary.
(Required Supply Circuit: 120V, 60Hz. Bulb Type: 1*E26*60W Max)
Compatible Bulb Type
(NOT Included)
The mostly suggested bulb type is 8W LED A19
COMPONENTS INCLUDED IN THE PACKAGE
Fixture with hardwares and glass
Decorative arm
Parts included in parts bag
Parts X 2 for 2 pack item
ASSEMBLY & INSTALLATION STEPS:
1. Open the box from top, take out all the components, parts bag and manual from the box carefully.
2. Check all the components against the parts list. Make sure get each parts on list. If any parts missing
or glass damage, please contact the seller to get a replacement.
Parts are NOT included for which is shown as 0 under QTY.
PARTS LIST (Parts QTY X 2 for 2PK)
Part Name
QTY
Code
Part Name
QTY
Code
Junction Box
0
A
Washer
2
J
Leading Wire
0
B
Cap Nut
2
K
Wire Nut
3
C
Finial1L
Wire2D
Decorative Arm
1
M
Cross Bar Mounting Bracket
1
E
Top Hood
1
N
(1") Mounting Screw
2
F
Socket
1
O
Stud2G
Glass4P
Back Plate
1
H
Frame
1
Q
Bulb0I
3. Refer to the illustration while doing assembly and follow the steps as below:
I
Fix the decorative arm (M) to top hood(N) by the finial (L), the other end of the decorative arm (M)
just attach to the backplate (H) for decoration.
II
Screw the bulb (I) onto socket (O).
III
Attach the mounting bracket (E) to the junction box (A) by two mounting screws (F).
Adjust the mounting bracket to a horizental level.
IV
Connect wires according to the wiring diagram as below.
V
Attach the backplate (H) to two studs (G) and fix with two washers (J) and cap nuts (K).
Illustration of assembly and wiring:
I. M, L
H, N
II. IOIII. F, E
A
IV. B, D
C
Ⅴ. K, J, H
G
