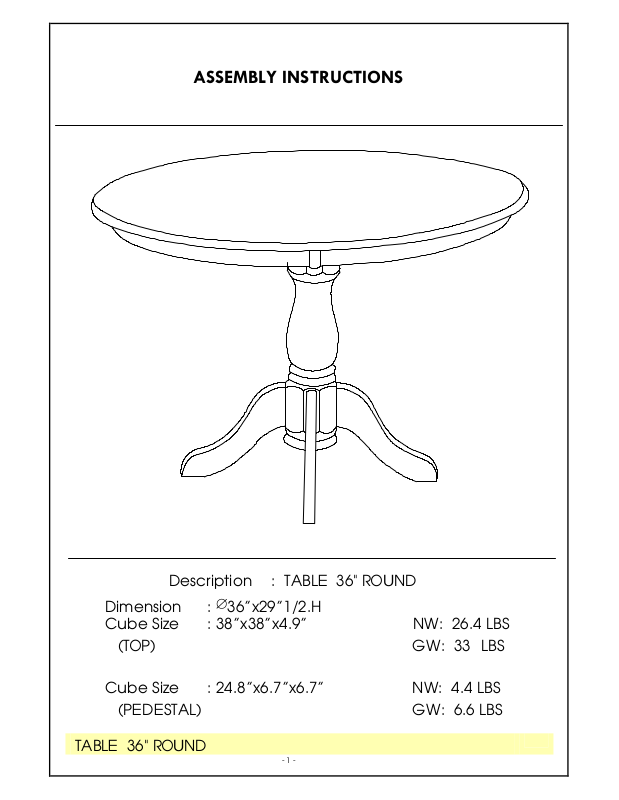

ASSEMBLY INSTRUCTIONS
Description : TABLE 36" ROUND
Dimension : ∅36”x29”1/2.H
Cube Size : 38”x38”x4.9” NW: 26.4 LBS
(TOP) GW: 33 LBS
Cube Size : 24.8”x6.7”x6.7” NW: 4.4 LBS
(PEDESTAL) GW: 6.6 LBS
TABLE 36" ROUND
- 1 -
Page 2
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for
durability. Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
Please separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being
scratched.
emove all wrapping material, including staples & packing straps before you start to assemble.
- R
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have the following parts:
NO Description Qty Sketch NO Description Qty Sketch
A Top 1 B Leg 4
C Pedestal 1 D Cross piece 1
HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have all of the following hardware:
NO Description Qty Sketch NO Description Qty Sketch
Large flat
1
( Φ8.5xΦ19mm)
Hexagon nut
3
(M8x13mm)
Small flat
5
( Φ6.5xΦ13mm)
7
(M6x35mm)
Medium flat
9
( Φ6.5xΦ16mm)
washer
washer
Bolt
washer
4 2
4 4
4 6
12 8
8
Large lock
washer
( Φ8.5xΦ11mm)
Wrench
(M13mm)
Small lock
washer
( Φ6.5xΦ9mm)
Allen key
(M4)
4
1
12
1
TABLE 36" ROUND
- 2 -
Page 3
STEP 1
Attach legs (B) to the pedestal (C) with washers (1), (2) and nuts (3). Tighten with wrench (4).
B
x4
1
2
3
4
C
STEP 2
Put the cross piece (D) on top of the pedestal, and attach with bolts (7), washers (5), (6). Tighten with
Allen key (8).
8
D
7
6
5
x4
TABLE 36" ROUND
- 3 -
Page 4
STEP 3
Carefully place the cross frame (from Step 2) on bottom side of the table top (A), attach with bolts
(7), washers (9), (6). Tighten with Allen key (8).
8
7
6
9
x8
TABLE 36" ROUND
A
- 4 -
Page 5
ASSEMBLY INSTRUCTIONS
Description: PARSON CHAIR Product
Dimension: 25”Wx19.25"Dx40.5"H
Cube Size : 42.2”x20”x18.5”
PARSON CHAIR
- 1 -
NW: 39.6 LBS
GW: 46.2 LBS
Page 6
BEFORE ASSEMBLY
NOT INCLUDED
Thank you for purchasing our product. This product has been designed for easy assembly and long
lasting use. Please take the time to read and follow the assembly instructions carefully
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
Please separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being
scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
eep all hardware parts out of reach of children.
- K
ASSEMBLY TOOLS REQUIRED
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have the following parts:
NO Description Qty Sketch NO Description Qty Sketch
A
C
Chair back 1
Front Leg 2
B
Seat Frame 1
PARSON CHAIR
- 2 -
Page 7
HARDWARE LIST
∅
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have all of the following hardware:
NO Description Qty Sketch NO Description Qty Sketch
1
3
5
7
Long bolt
(M6x60mm)
Short bolt
(M6x40mm)
Flat Washer
(∅6.5x19)
Dowel
(∅10x30)
4
3
11
1
2
4
6
Medium bolt
(M6x55mm)
Lock Washer
6.5x9)
(
Allen Key
(4mm)
4
11
1
STEP 1
Remove bottom out seat frame (B ) as shown below. After attach Dowel (7) to seat frame (B).
PARSON CHAIR
- 3 -
Page 8
STEP 2
O
t
h
e
r
w
i
s
e
,
t
h
e
c
h
a
i
r
w
i
l
l
b
e
w
o
b
b
l
y
.
Attach frame (B) to the back (A) by using bolts (2) and (3) and washers (4) and (5). Tighten with Allen
Key (6). Squeeze frame seat and Chair back when assembly
Note: DO NOT tighten any of the bolts, until the chair is assembled.
STEP 3
Attach front legs (C) to the seat frame. Use bolts (1), washers (4) and (5).Tighten with Allen Key (6).
.
C
e
h
d
e
g
c
e
k
s
t
a
o
r
m
e
a
f
l
u
k
e
s
h
s
o
u
r
r
e
PARSON CHAIR
a
l
t
i
w
g
n
o
e
d
.
C
- 4 -
Page 9
STEP 4
Put the chair on a flat level surface to make sure the chair is level and then tighten the all bolts.
STEP 5
Attach the bottom cover (removed on step 1) back on the seat frame and finish the assembly.
PARSON CHAIR
- 5 -
