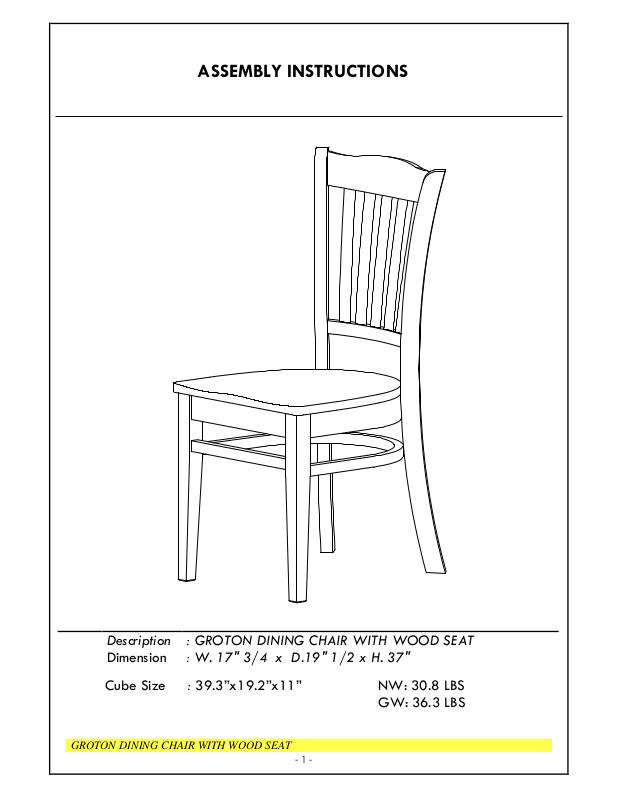

Page 1
ASSEMBLY INSTRUCTIONS
Description
mension
:
GROTON DINING CHAIR WITH WOOD SEAT
Di
: W. 17" 3/4 x D.19" 1/2 x H. 37"
Cube Size : 39.3”x19.2”x11” NW: 30.8 LBS
GROTON DINING CHAIR WITH WOOD SEAT
GW: 36.3 LBS
- 1 -
Page 2
BEFORE ASSEMBLY
NOT INCLUDED
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for
durability. Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
Please separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being
scratched.
emove all wrapping material, including staples & packing straps before you start to assemble.
- R
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
ASSEMBLY TOOLS REQUIRED
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have the following parts:
NO Description Qty Sketch NO Description Qty Sketch
A
C-R
C-L
Chair back 1
1
Front Leg
1
Seat Frame 1
B
U Stretcher 1
D
Front Stretcher
E
1
GROTON DINING CHAIR WITH WOOD SEAT
- 2 -
Page 3
HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have all of the following hardware:
NO Description Qty Sketch NO Description Qty Sketch
Bolt
1
3
5
(M6x60mm)
Lock Washer
(Ф6.5X9)
Allen Key
(4mm)
4
10
1
2
4
6
Bolt
(M6x50mm)
Flat Washer
(Ф6.5x19)
Screw
(M4x40mm)
6
10
4
STEP 1
Attach front legs (C-L) and (C-R) to the seat frame. Use bolts (1), washers (3) and (4) .Tighten with Allen
Key (5).
Place front stretcher (E), U stretchers (D) between front legs, use the screw driver to tighten the screws
(6) as shown below.
Note: DO NOT tighten any of the bolts, until Place front stretcher (E) between front legs the
chair is assembled, then tighten the bolts and the screws.
C-R
C-L
E
D
B
GROTON DINING CHAIR WITH WOOD SEAT
- 3 -
Page 4
STEP 2
Attach frame from step 1 to the chair back (A) by using bolts (2) and washers (3) and (4). Tighten with
Allen Key (5) as shown below.
Note: DO NOT tighten any of the bolts, until the chair is assembled, then put on a flat level surface to
make sure the chair is level and then tighten the bolts.
X4
5
3
X2
2
3
4
5
A
GROTON DINING CHAIR WITH WOOD SEAT
- 4 -
