ALR-11283A-SCNAA
MADE IN MALAYSIA
1
C
5
4
3
6
STEP 1
STEP 2
STEP 3
M6x 40mm JCBC Bolt
M6x70mm JCBC Bolt
M6x13mm Lock Washer
M6.5x16.5mm Flat Washer
M4 x 2.1/2" Allen Key
8 x 1" Pan Head Screw
6 pcs
2 pcs
8 pcs
10 pcs
10 pcs
1 pce
NO Parts List Q'TY
Chair Back
Box Seat
Cushion
Front Leg
1 pce
1 pce
1 pce
2 pcs
A
B
C
D
NO Hardware List Q'TY
1
2
3
4
5
6
3
4
5
6
B
A
5
4
2
6
D
STEP 4
Do not fully tighten the bolt
Do not fully tighten the bolt
Levelling solution: Loosen each bolt in the seat box (front legs, back
corner blocks and back apron) to the point where it can be turned
Chair/Stool back and seat frame are well connected. Sit in the
Chair/Stool,but do not lean against the Chair/Stool back. Gently sway
back and forth, left and right. Carefully turn the Chair/Stool upside
down, and tighten each bolt. The Chair/Stool will now be levelled.
Important Note
Do not use power tool for assembly.
All bolt must fasten either by wrench or Allen Key.

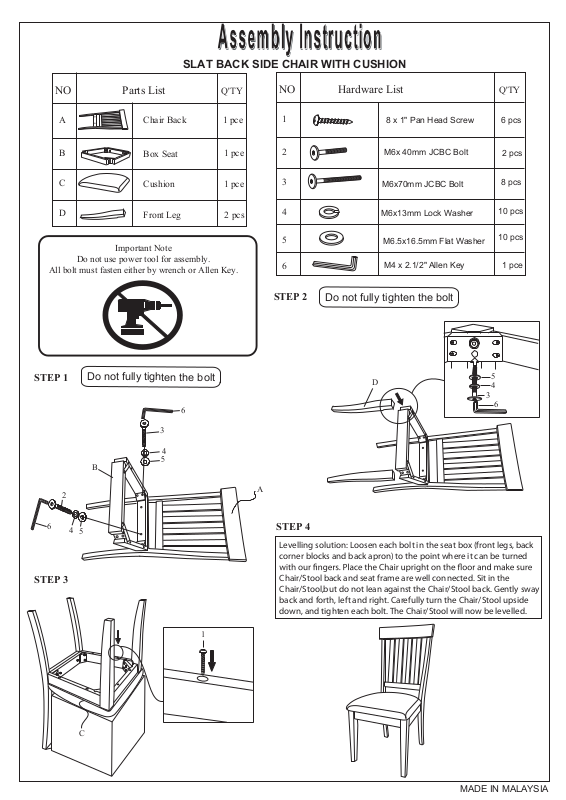

SLAT BACK SIDE CHAIR WITH CUSHION
MRP-WG/RW-2-65-K
