ASSEMBLING & INSTALLATION INSTRUCTIONS PRODUCT
OUTDOOR POST MOUNT LIGHT FIXTURE
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
ASSEMBLING THE FIXTURE (Fig.1).
1. Carefully unpack new fixture and lay all the parts on a
clear surface. Take care not to lose any small parts
necessary for installation.
2. Install the light bulbs(no included) in accordance with
the fixture’s specifications. DO NOT EXCEED THE
MAXIMUM WATTAGE RATING!
3. Raise the glass shade into the lamp body(C). Attach the
cover(A) to the lamp body(C), lock it securely with the
hex nut(B).
4. Attach the assembly lamp body onto the post(no
included) and lock it securely with the screw.
Wiring (Fig.2)
1. Connect the electrical wires as follows. Connect the
black wire from the fixture to the black house (hot)
wire. Connect the white wire from the fixture to the
white (neutral) house wire. Make sure all wire nuts are
secured. You may wrap the connections with electrical
tape. If your outlet box has a ground wire (green or
bare copper) connect fixture’s ground wire to it.
Otherwise attach the bare copper fixture wire to the
green ground screw on the circular strap.
2. Tuck the wire connections neatly into the junction
box.
Your installation is now complete. Return power to the
junction box and test the fixture.

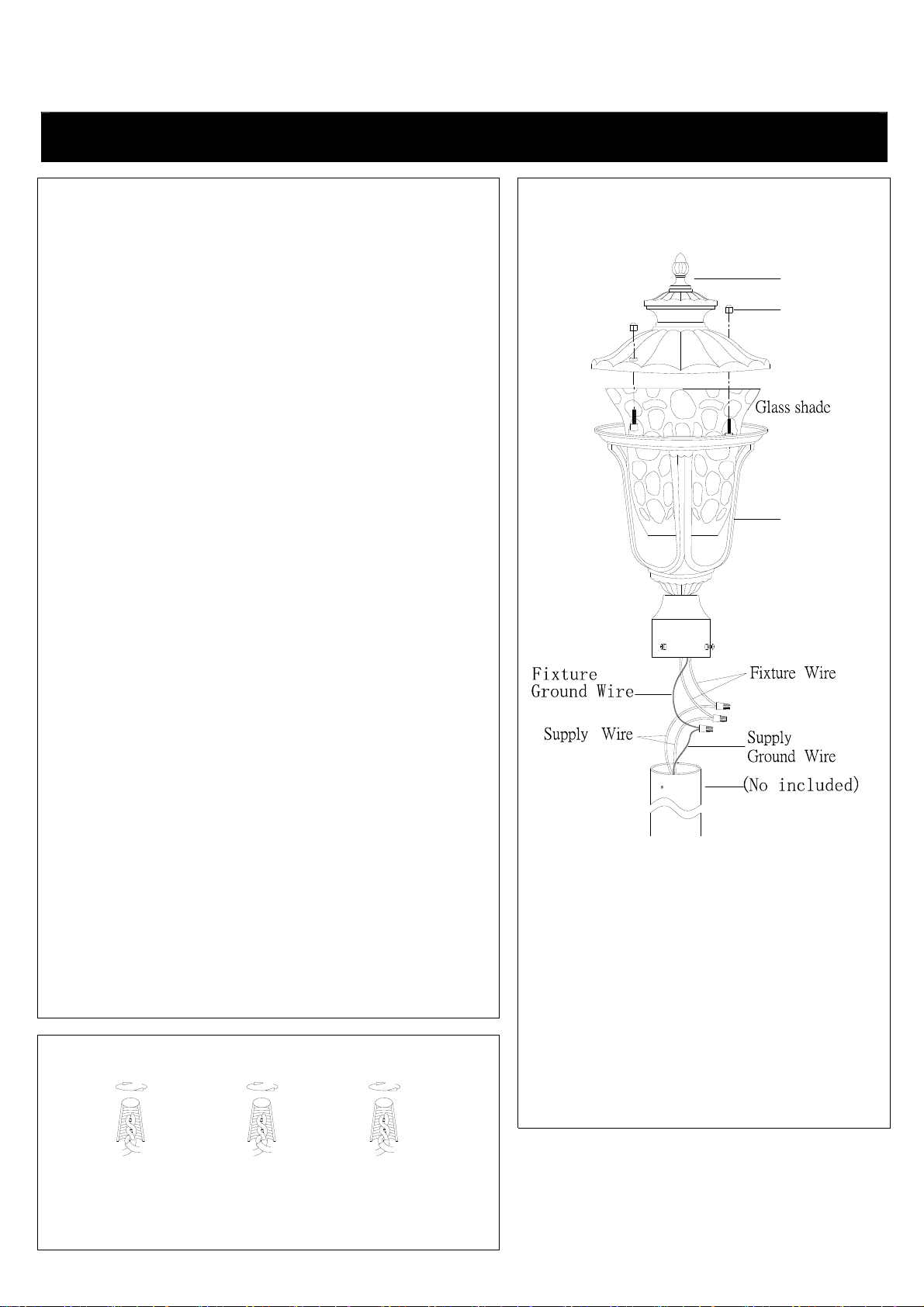

Fig.1
A
B
C
Fig.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
