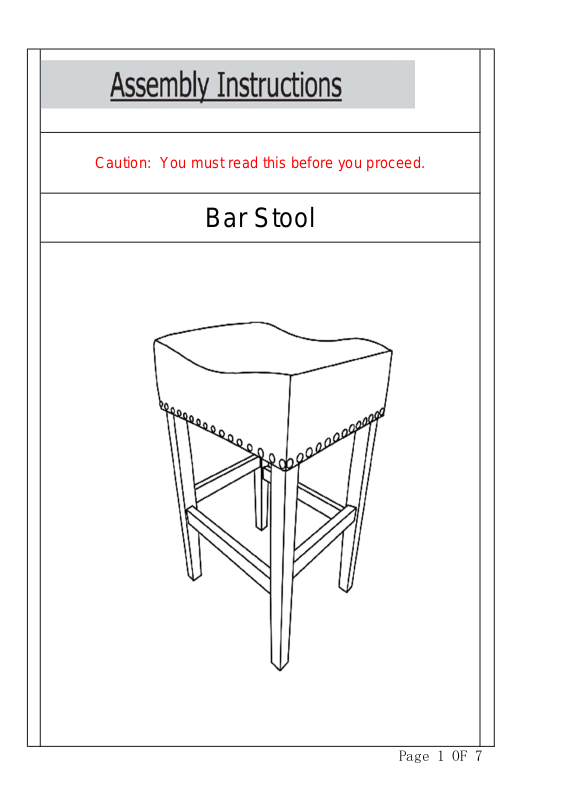

Bar Stool
Page 1 OF 7
Page 2
Part NO. Picture Description QTY
A Bar Stool Seat 1 PC
B 'H'Leg Frame 2 PCS
C Side Rails 2 PCS
Label Picture Description QTY
1
2
3
4 Allen Key 1 PC
5
50mm Long
9 PCS
Bolt
Flat Washer
9 PCS
Ring
Spring
9 PCS
Washer Ring
Screw
5 PCS
（4*50mm ）
6 Screwdriver 1 PC
Page 2 OF 7
Page 3
Before Beginning Assembly:
Unpack ang
place all parts
for clear
visibility
Pack A for
assembling
the Leg
Frame(B) to
the Chair
Seat(A)
Pack B for
assembling
the Side
Rails(C) to the
Leg Frame(B)
9pc of 50mm
Long Bolts + 9pc
of Flat Washer
Ring + 9pc of
Spring Washer
+one Allen Key
1pc of
Screwdriver +
5pcs ￠4*50mm
Screws
Page 3 OF 7
Page 4
Step 1
A.Bar Stool Seat
B.'H'Leg Frames-when assembling， the BOLT
points must be INWARD facing.
Place the Bar Stool Seat(A)onto a soft surface to avoid any
scratches ordamages to the product.
REMOVE the Seat Base Cover from the underside of the Bar
Stool Seat (A), take out the Side Rails(C)and hardware.
C.Side Rails
Step 2
Page 4 OF 7
Page 5
Insert the 'H'Frame Legs(B)into the Seat Frame (A)use "PACK
A"to connect these.
Insert the Side Rail(C)with the bottom side up into the Leg
Frame(B).
WARNING !! DO NOT OVER TIGHTEN. OVER TIGHTENING
COULD LEAD TO DAMAGE OF THE PRODUCT. TIGHTEN
ONLY UNTIL SECURE.
Step 3
Next, place the chair onto the side of a table as seen in Picture
1.
You will now have the chair bottom and legs facing skywards.
Insert the other'H'Leg Frame (B)into the Seat Frame(A).
Then insert the Side Rail(C)into the Leg Frame(B).
The mounting points on these Side Rails shall be be floor facing,
after fully assembled.
WARNING!! DO NOT POSITION THE FRONT LEG AS SHOWN
IN PICTURE 2 .
THIS PICTURE SHOWS THE CHAIR BACK STAYS AGAINST
THE GROUND and THE LEGS HORIZONTAL IN MIDAIR.
Use "PACK A" to assemble the "H" Leg Frame(B) to the Seat
Frame (A),
Then use "PACK B" to hold the Side Rails to each leg.
WARNING!! DO NOT OVER TIGHTEN. OVER TIGHTENING
COULD LEAD TO DAMAGE OF THE PRODUCT. TIGHTEN
ONLY UNTIL SECURE AND STABLE.
Page 5 OF 7
Page 6
Step 4
Place the chair on a LEVEL SURFACE to see if it wobbles.
If it wobbles, lift the chair to some 30cm to 50cm height from the
ground.
Keep your feet and toes well away from the drop zone.
Drop the chair freely and vertically with the four legs, hitting the
ground, at the same time.
This Drop Test will help to ensure that all the bolts and gaps to
all reach full alignment status.
Test again for evenness on a LEVEL SURFACE.
If no wobbles found, proceed to tighten all the bolts.
CAUTION : When tightening these bolts, tighten sequentially.
DO NOT tighten any screw fully and then towards the next one.
This would cause the frame to warp.
If there is still wobbles, loosen the bolts and execute this same
drop tests.
WARNING!! IF CHAIR IS NOT STABLE , IT COULD LEAD TO
DAMAGING THE PRODUCT.
Step 5
Place the Seat Base Coverr back underneath the chair seat (as
shown in picture) from where it was originally removed from.
Smooth down the 4 velcro edges with your hand,The bar stool
is now ready for use.
