Alcott Hill LVX3033 Installation & Assembly

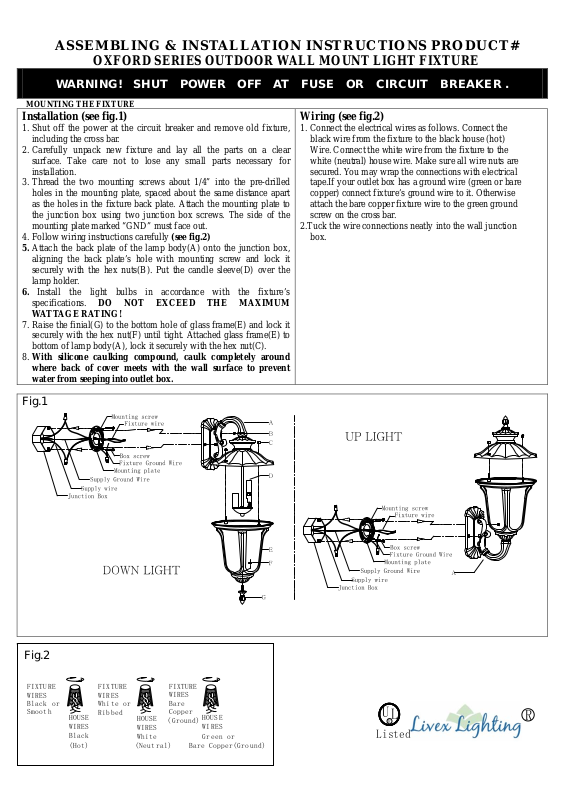

ASSEMBLING & INSTALLATION INSTRUCTIONS PRODUCT#

OXFORD SERIES OUTDOOR WALL MOUNT LIGHT FIXTURE

WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .

MOUNTING THE FIXTURE

Installation (see fig.1)

1. Shut off the power at the circuit breaker and remove old fixture,

including the cross bar.

2. Carefully unpack new fixture and lay all the parts on a clear

surface. Take care not to lose any small parts necessary for
installation.

3. Thread the two mounting screws about 1/4” into the pre-drilled

holes in the mounting plate, spaced about the same distance apart
as the holes in the fixture back plate. Attach the mounting plate to
the junction box using two junction box screws. The side of the
mounting plate marked “GND” must face out.

4. Follow wiring instructions carefully (see fig.2)

5. Attach the back plate of the lamp body(A) onto the junction box,

aligning the back plate’s hole with mounting screw and lock it
securely with the hex nuts(B). Put the candle sleeve(D) over the
lamp holder.

6. Install the light bulbs in accordance with the fixture’s

specifications. DO NOT EXCEED THE MAXIMUM

WATTAGE RATING!

7. Raise the finial(G) to the bottom hole of glass frame(E) and lock it

securely with the hex nut(F) until tight. Attached g lass frame(E) to
bottom of lamp body(A), lock it securely with the hex nut(C).

8. With silicone caulking compound, caulk completely around

where back of cover meets with the wall surface to prevent

er

wat from seeping into outlet box.

Fig.1

Wiring (see fig.2)

1. Connect the electrical wires as follows. Connect the
black wire from the fixture to the black house (hot)
Wire. Connect the white wire from the fixture to the
white (neutral) house wire. Make sure all wire nuts are
secured. You may wrap the connections with electrical
tape.If your outlet box has a ground wire (green or bare
copper) connect fixture’s ground wire to it. Otherwise
attach the bare copper fixture wire to the green ground
screw on the cross bar.

2.Tuck the wire connections neatly into the wall junction
box.

Fig.2

FIXTURE
WIRES

Black or
Smooth

HOUSE
WIRES
Black

(Hot)

FIXTURE
WIRES
White or
Ribbed

HOUSE
WIRES
White

(Neutral)

FIXTURE
WIRES
Bare
Copper

(Ground)

HOUSE
WIRES
Green or

Bare Copper(Ground)

U

L

R

Listed

R
