Caution : You must read this before you proceed
NOTE: It is recommended that you have a partner to assist during the entire assembly process.
Bookcase

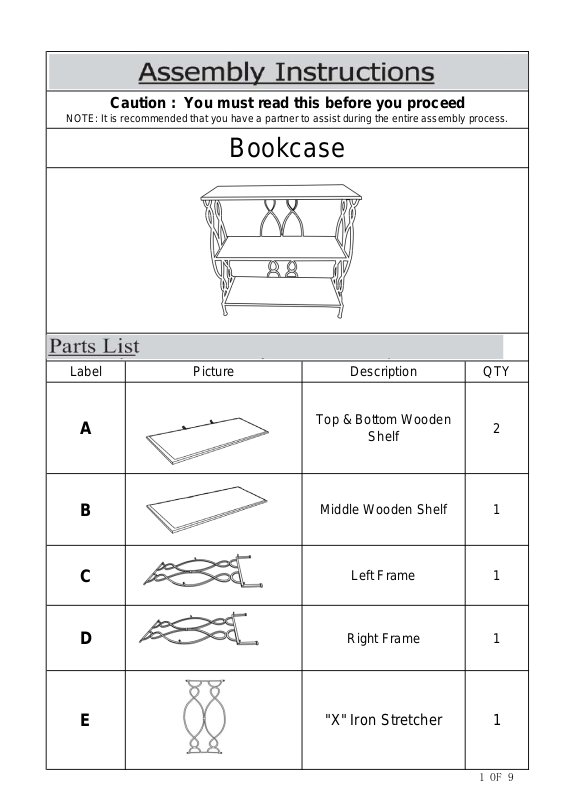

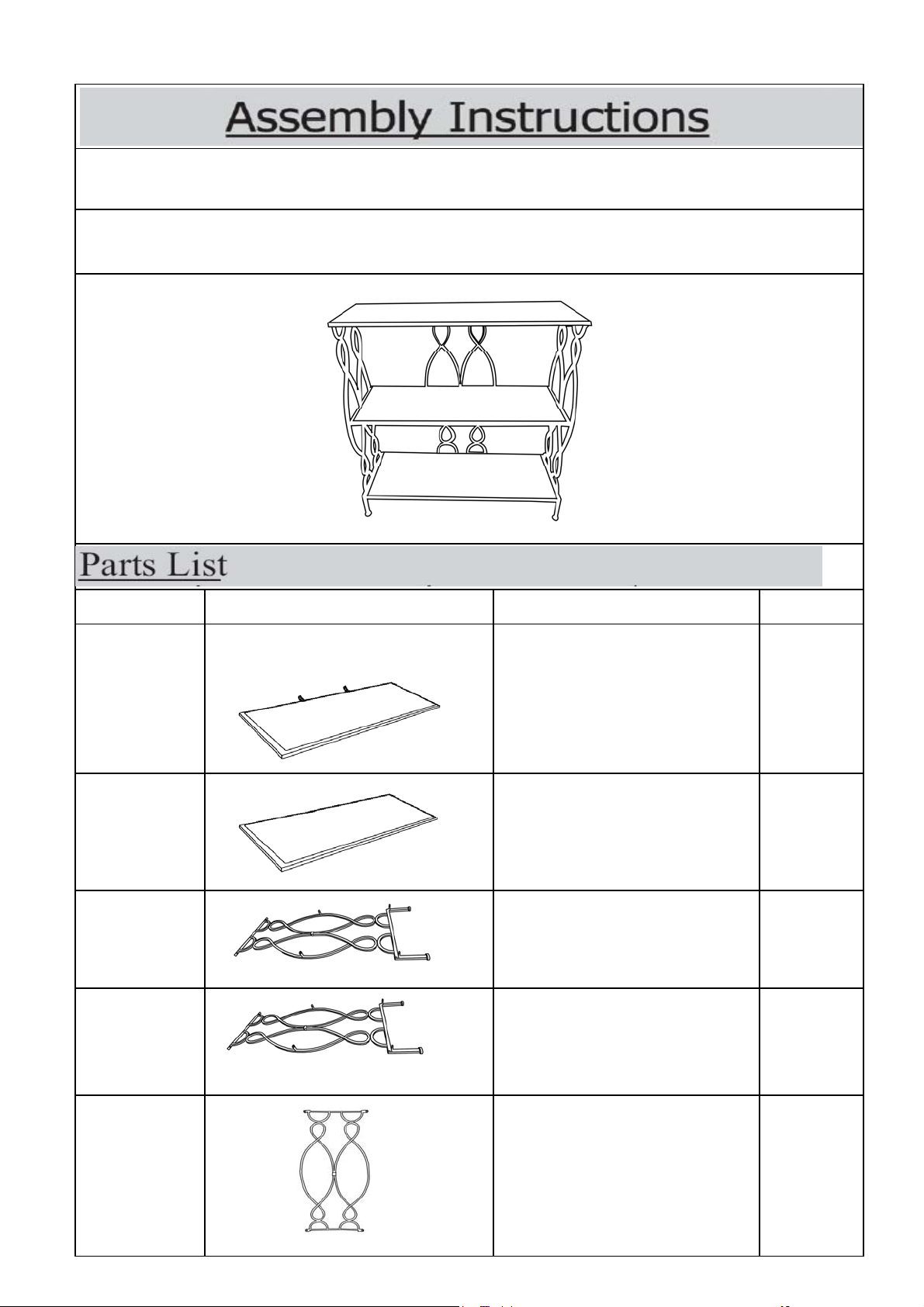

Label Picture Description QTY
A
B
C
D
Top & Bottom Wooden
2
Shelf
Middle Wooden Shelf 1
Left Frame 1
Right Frame 1
E
"X" Iron Stretcher 1
1 OF 9
Page 2

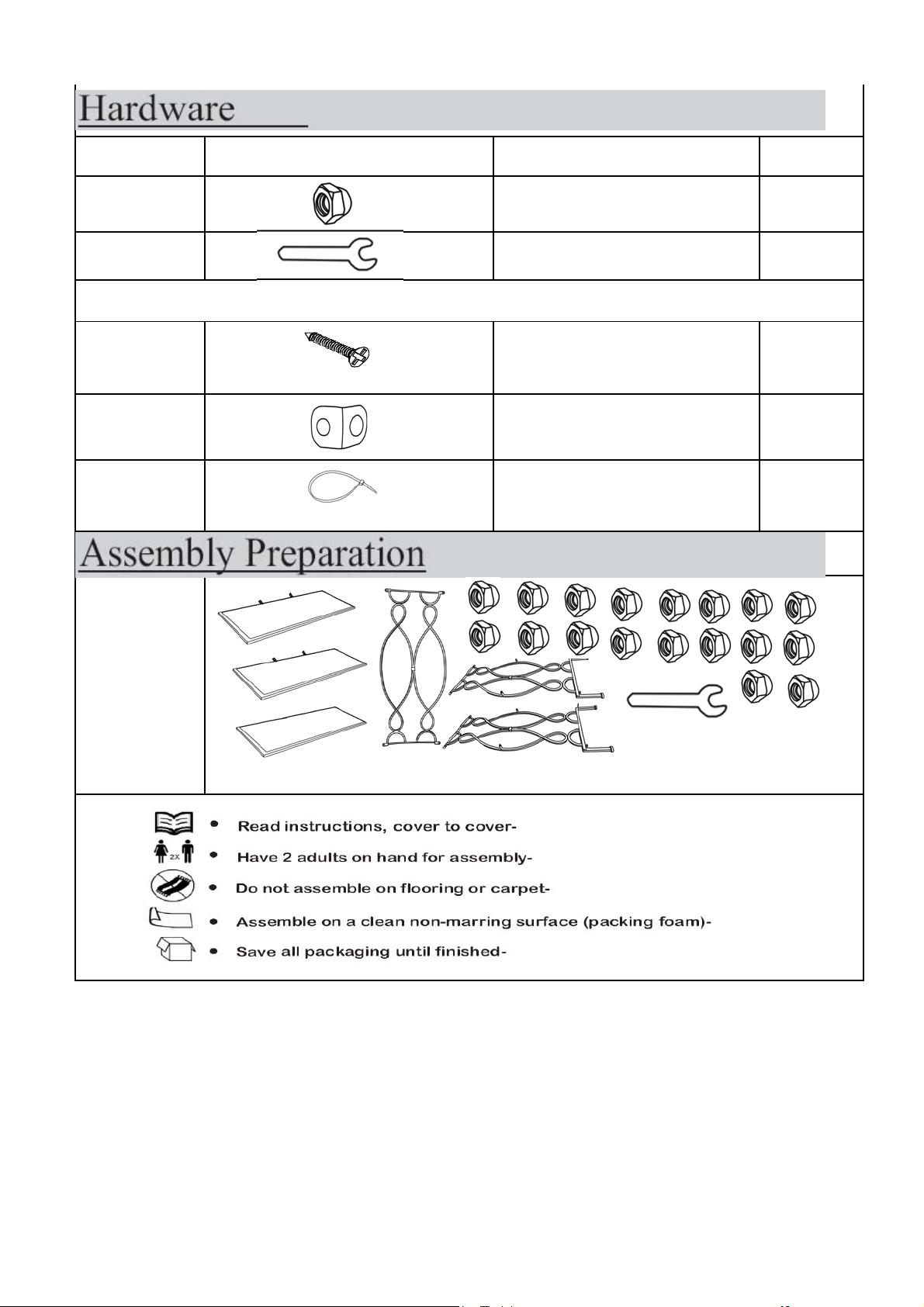

Label Picture Description QTY
①
②
Cabinet Restraint Device Hardware
⑥
⑦
⑧
Before
Beginning
Assembly:
Nut 18
Wrench 1
Self Tapping Screw 2
Metal Bracket 2
Cabinet Restraint Strap 2
2 OF 9
Page 3

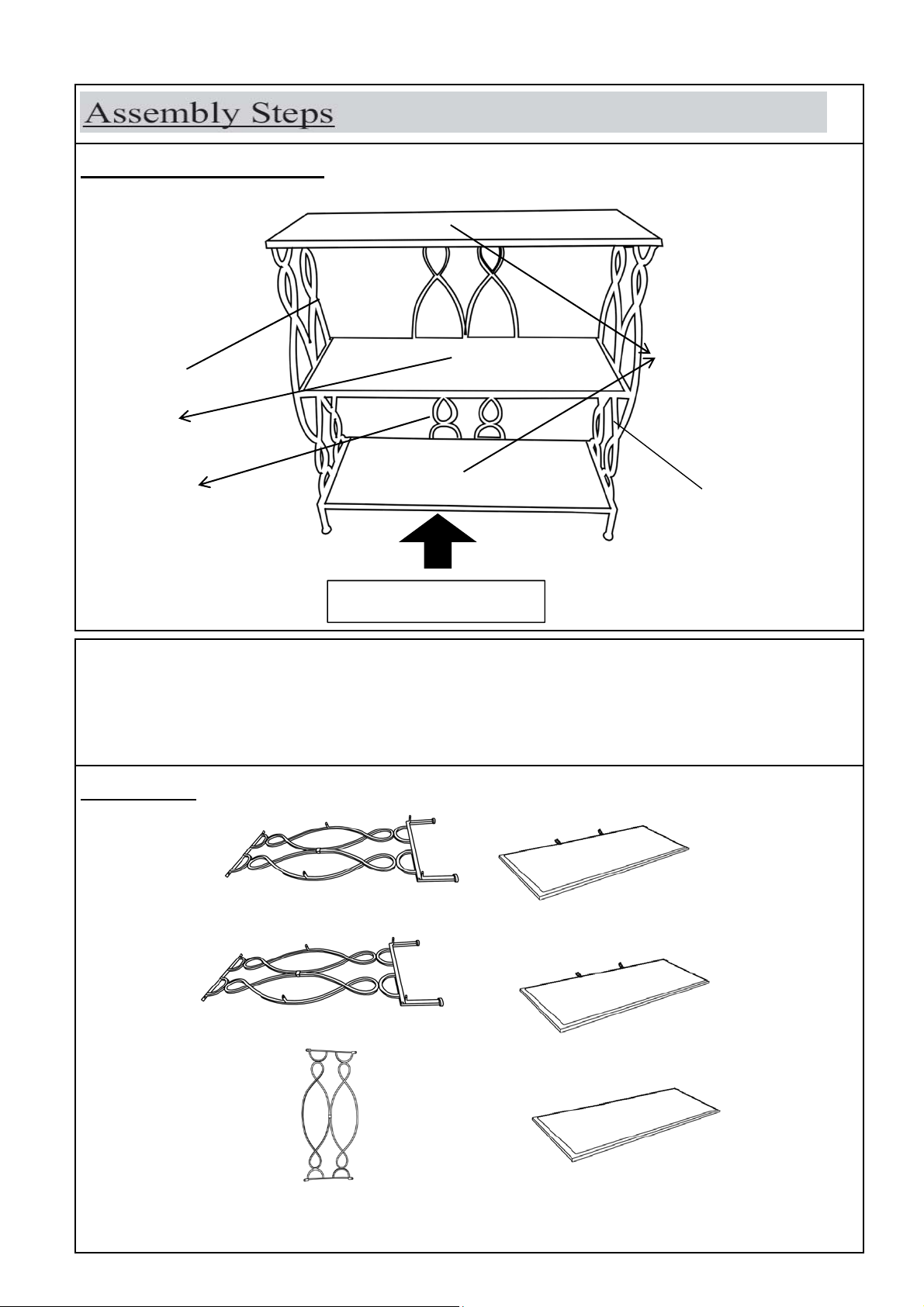

Parts Introduction
LeftFrame(C)
MiddleWooden
Shelf(B)
"X"Iron
Stretcher(E)
Top&Bottom
Wooden
Shelf(A)
RightFrame(D)
FRONT FACING
This Bookcase has multiple parts and may require up to 30 minutes to assemble.
To give you an overview of the Bookcase parts, the above picture is to help you put the
various parts into perspective.
Please read through the instructions below to familiarise yourself with the parts and steps
before assembly.
Step 1.1
3 OF 9
Page 4
Step 1.2
②
②
①
(C)
(A)
①

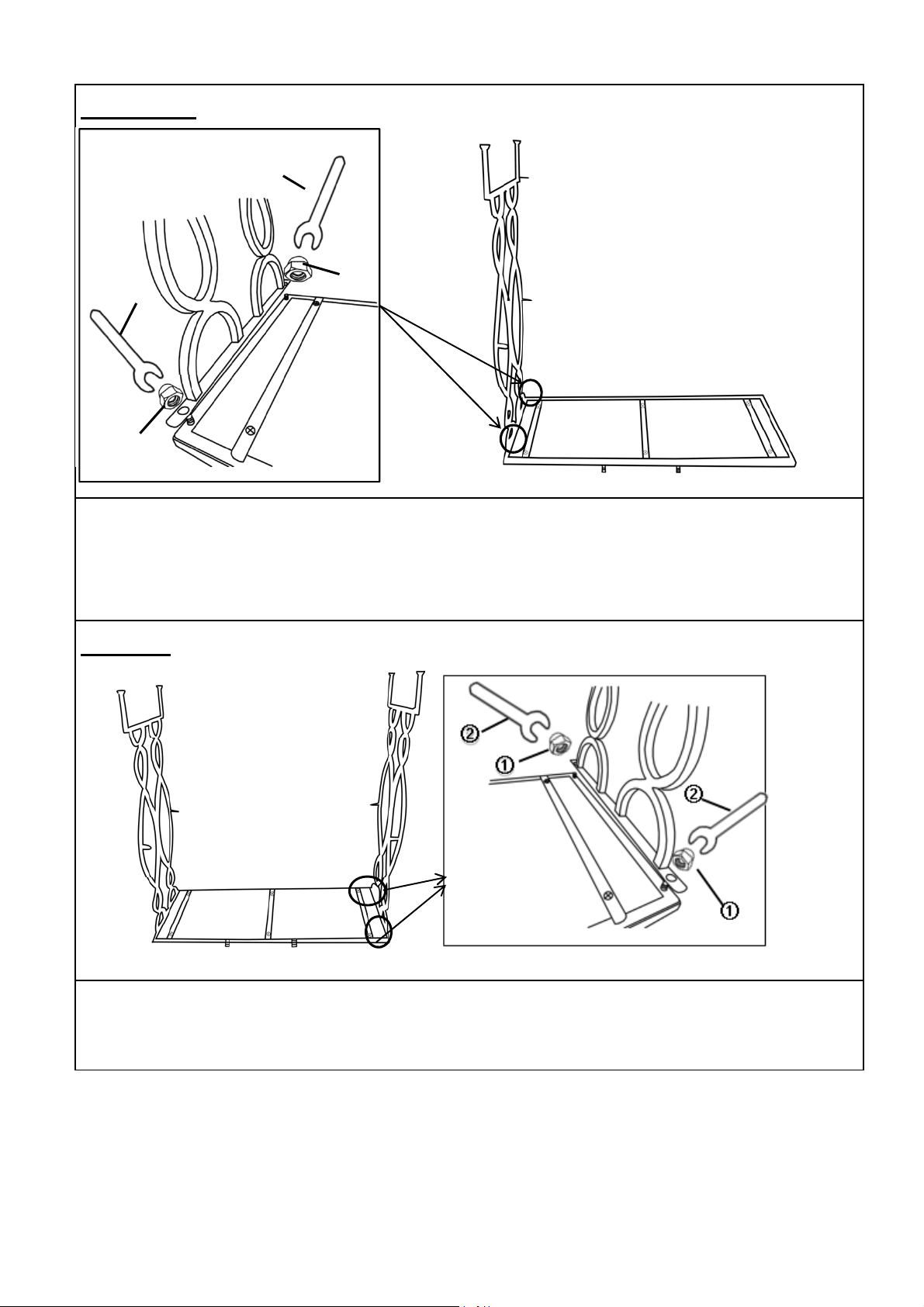

1.1:Open the carton and place all parts onto a clean, non-marring surface.
1.2:Place the Left Frame(C) on it's side as shown.
Attach Top Wooden Shelf(A) to Left Frame(C) using Nuts(①) with Wrench(②).
Do not fully tighten Nuts.
Step 2
(D)
(C)
(A)
Attach Right Frame(D) to Top Wooden Shelf(A) using Nuts(①) with Wrench(②).
Do not fully tighten Nuts.
4 OF 9
Page 5
Step 3
(B)
(C) (D)
(A)
Attach Middle Wooden Shelf(B) between Left Frame(C) and Right Frame(D) using Nuts(①)
with Wrench(②).
Do not fully tighten Nuts.
Step 4
(A)
(B)
(A)
(A)
(D)
(C)
Attach Bottom Wooden Shelf(A) between Left Frame(C) and Right Frame(D) using Nuts(①)
with Wrench(②).
Note: The Wooden Shelf(A) and Wooden Shelf(B) 's pre-attached screw are front us.
Do not fully tighten Nuts.
Step 5
(E)
(B)
(C)
(A)
(D)
②
①
②
①
5 OF 9
Page 6

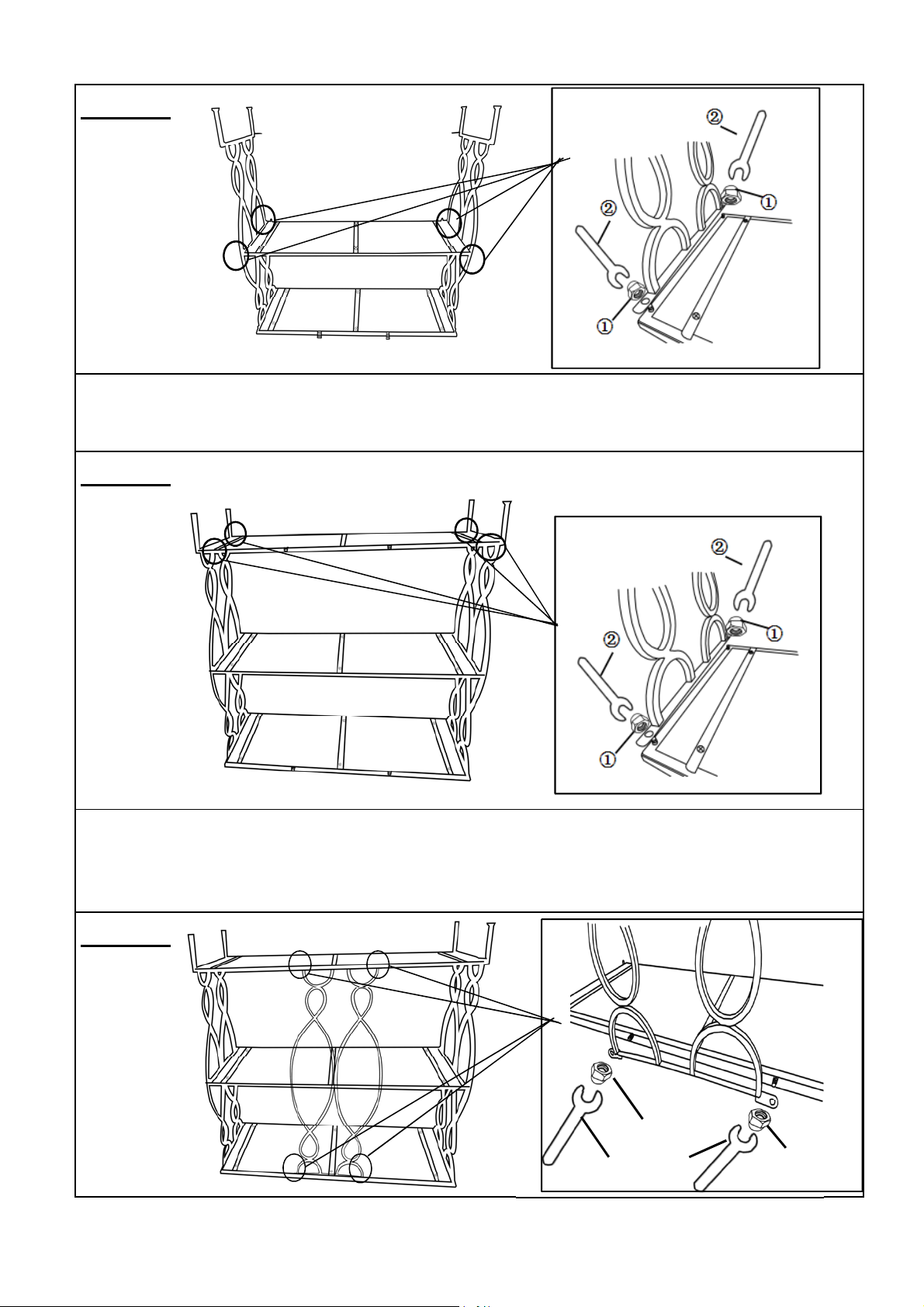

Align the "X" Iron Stretcher(E) to the four threaded stems on the Top and Bottom Shelves(A).
Attach "X" Iron Stretcher to the Bookcase using Nuts(①) with Wrench(②).
Do not fully tighten Nuts.
Step 6
(A)
(E)
(B)
(C)
(A)
(E)
(B)
(C)
(A)

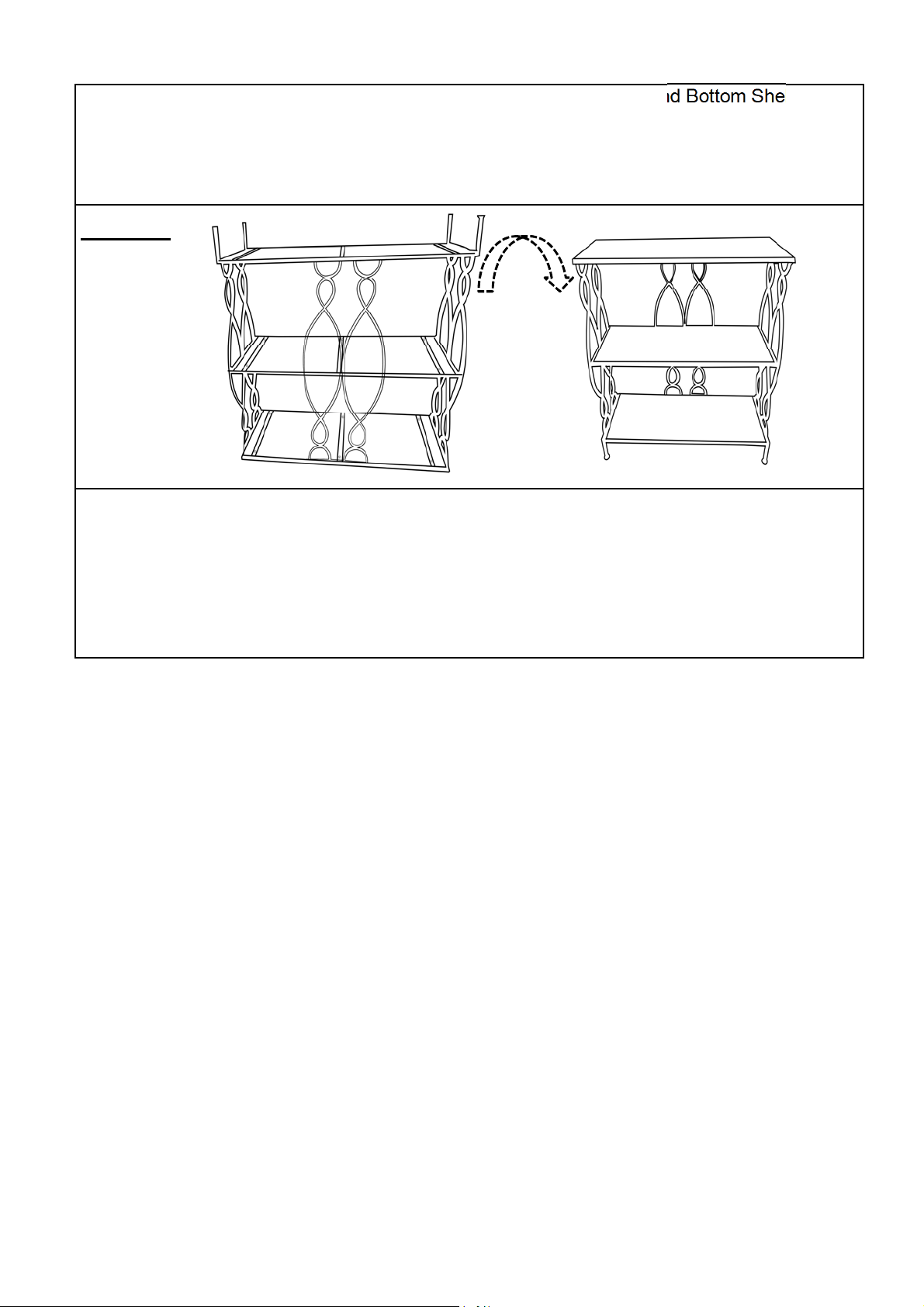

Check for stability and Tighten all Nuts, then stand the Bookcase up.
DO NOT fully tighten a NUT in oneand then move on to the next.
Rather, in a sequential manner, gradually tighten each Nut until all Nuts are evenly secured.
This methodology will ensure maximum evenness once all Nuts are fully tightened.
Note: This step is done best with the assistance of a second adult.
(D)
(A)
(D)
6 OF 9
Page 7
Step 7

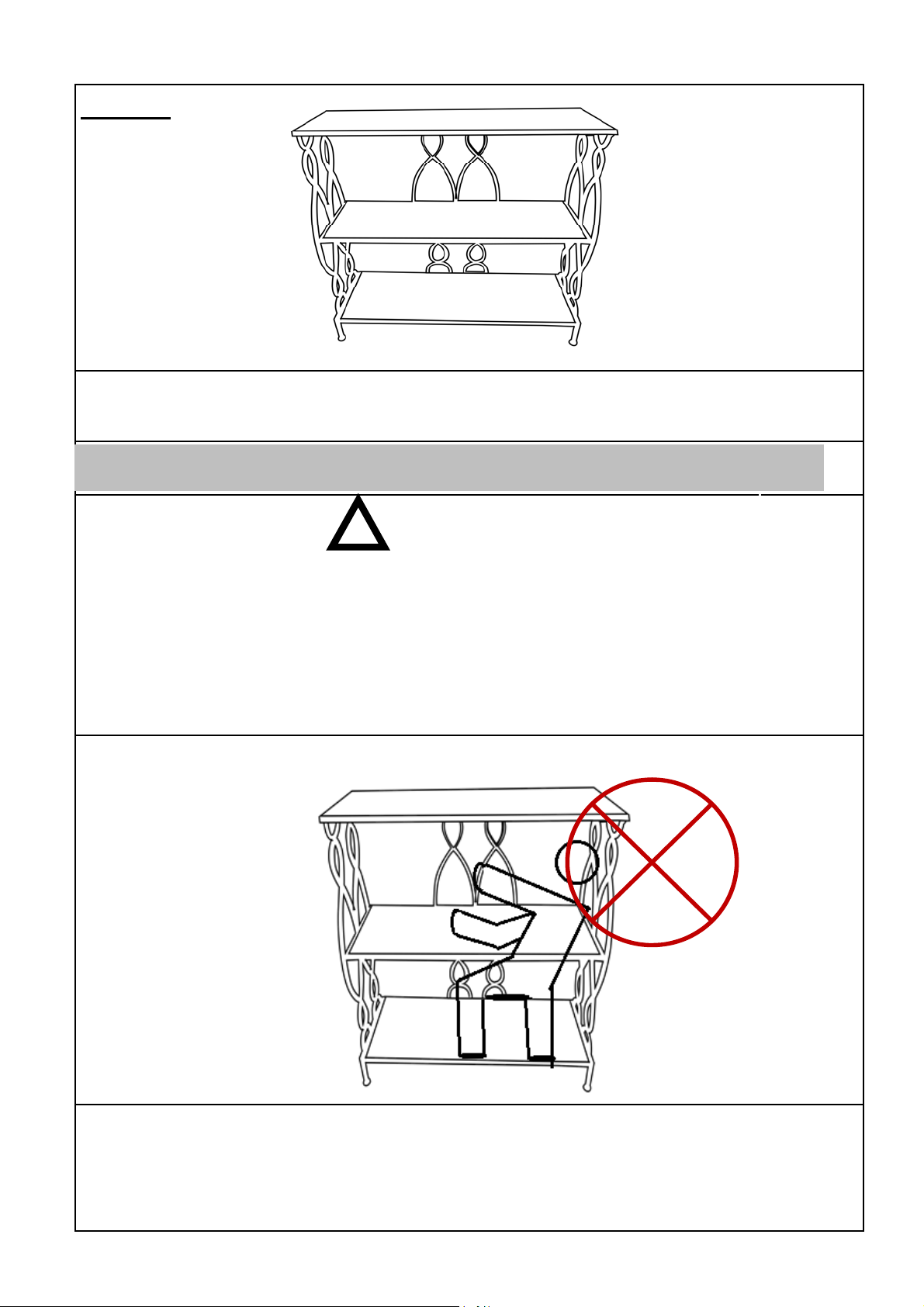

Your Bookcase is ready for use.
This Bookcase can only be used on a flat, level surface.
Cabinet Restraint Device Installation Instructions
！ WARNING
Serious or fatal crushing injuries can occur from tipping furniture.
To help prevent tip-over: ALWAYS secure this furniture to the wall
using Cabinet Restraint Device.
See product instructions for more ways to help prevent furniture
tip-over.
Usage For Cabinet Restraint Device
Please follow the below instructions for installing the Cabinet Restraint
Device
7 OF 9
Page 8

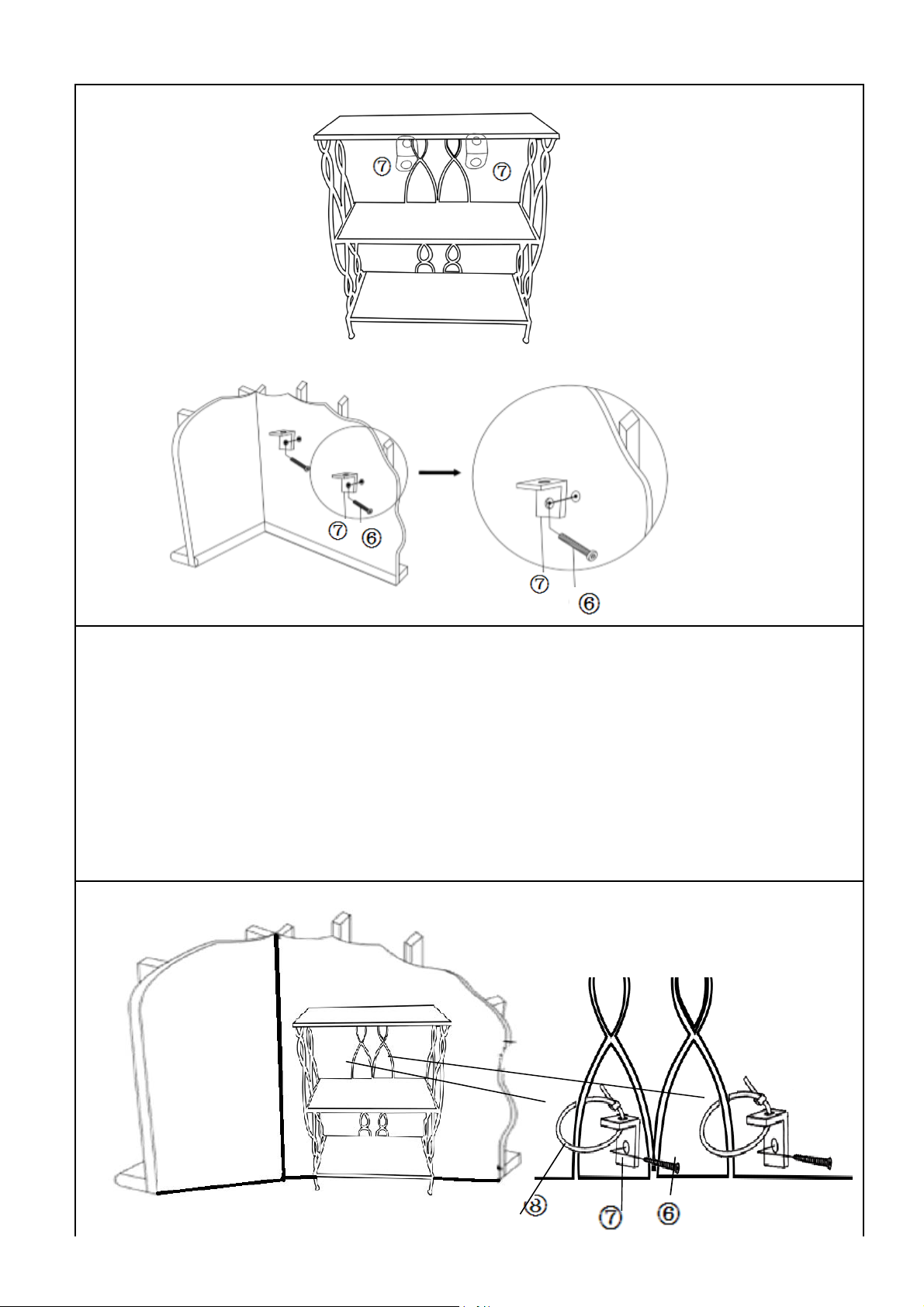

First, Place the Bookcase against the wall where desired and mark the
location of the Metal Brackets(⑦).
Note: The Metal Brackets need to be secured to solid, load
bearing surface.
Please use a Stud Finder(not supplied) if needed to locate the
Wall Frame.
Then secure Metal Brackets(⑦) at the places you previously marked
using Self Tapping Screws(⑥) with Screwdriver(not supplied).
8 OF 9
Page 9
Move the Bookcase against the wall and center it with the Metal
Brackets(⑥).
Then pull the Bookcase Restraint Strap(⑧) through two Metal
Brackets and around the "X" Iron Stretcher(E) one by one.
Pull the Bookcase Restraint Strap(⑧) firmly until it is secure.
This Bookcase can only be used on a flat, level surface.
9 OF 9
