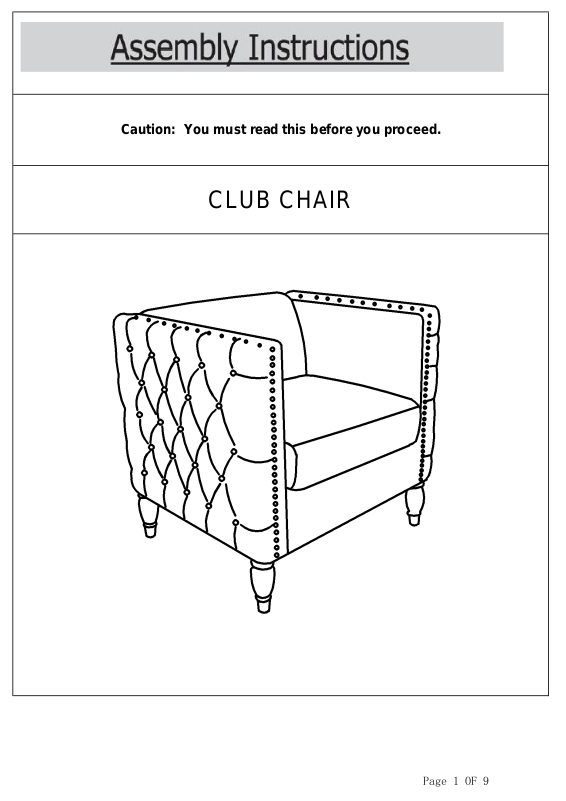

CLUB CHAIR
Caution: You must read this before you proceed.
Page 1 OF 9
Label Picture Description QTY
A Backrest 1
B Left Armrest 1
C Right Armrest 1
D Seat Cushion 1
E
Seat 1
F
Leg 4
Page 2 OF 9
Label Picture Description QTY
① Bolt (M8*60MM) 10
② Washer 10
③ Gasket 7
④ Allen Key 1
⑤ Spring Washer 10
Before
Beginning
Assembly:
Page 3 OF 9
This Club Chair has multiple parts and may require up an hour to assemble. To give
you an overview of the Club Chair, the above picture is to help you put the various parts
into perspective. Please read through the instructions below to familiarise yourself with
the parts and steps before assembly.
FRONT FACING
Left Armrest(B)
Right Armrest(C)
Backrest (A)
Leg(F)
Seat Cushion(D)
Leg(F)
Seat (E)
Overview
Page 4 OF 9
Step 1
Place the Seat(E) upright on a clean, non-marring surface.
Attach Seat(E) to Left Armrest(B) and Right Armrest(C) using Bolts(①), Spring
Washers(⑤), and Washers(②) with Allen Key(④).
DO NOT fully tighten a BOLT in one go and then move on to the next.
Rather, In a sequential manner, gradually tighten each Bolt until all bolts are
evenly secured.
This methodology will ensure maximum evenness once all Bolts are fully
tightened.
①
⑤
②
Left Armrest(B)
Right Armrest(C)
Seat (E)
Page 5 OF 9
Lift the Backrest(A) up, make sure the Backrest(A) is vertical and aligned to the Seat
and Armrests from Step 1.
Align the Tapered Connectors on the Backrest(A) with those on the Left Armrest(B) and
Right Armrest(C).
Your may need to push the Armrests inwards to the Backrest(A) to allow for better
alignment.
Slip and Slide the Backrest, in a gradual and in a balanced manner into the Tapered
Connectors .Push the Backrest(A) downwards until it is fully slotted and locked into
position.
Note: Make sure the Tapered Connectors on the Backrest(A) lock into the
Tapered Connectors on Left Armrest(B) and Right Armrest(C).
Fully locked postion :Check and assess that the base of the Armrests(B&C) and
Seat(E) are aligned and level.
Step 2
Tapered
Connectors
on Armrest
Tapered
Connectors on
Backrest(A)
Backrest(A)
Left Armrest(B)
Right Armrest(C)
Seat (E)
Page 6 OF 9
Step 4
Attach Seat(E) to Backrest(A) using Bolt(①), Spring Washer(⑤), and Washer(②) with
Allen Key(④) as pictured above.
Tighten the Bolt fully.
Step 3
Use Gasket (③
) to achieve stability
Left Armrest(B)
Right Armrest(C)
Seat (E)
Gasket (③)
Leg(F)
Leg(F)
Leg(F)
Page 7 OF 9
Step 5
Place the Seat Cushion(D) onto the Club Chair.
Your Club Chair is ready for use.
This Club Chair can only be used on a flat, level surface.
Install the Leg(F) at the bottom of the Club Chair by placing one Gasket(③) on the
threaded stem.
Then insert threaded stem into the threaded mounting postion at the corner of the Club
Chair.
Tighten by turning the Leg clockwise.
Repeat the same step to install the remaining three Legs.
Note: The use of Gaskets are OPTIONAL and are especially useful to help
alleviate slight wobbleness. Some Legs may need more than one whilst some
legs may not need any.
Seat Cushion(D)
Page 8 OF 9
Page 9 OF 9
