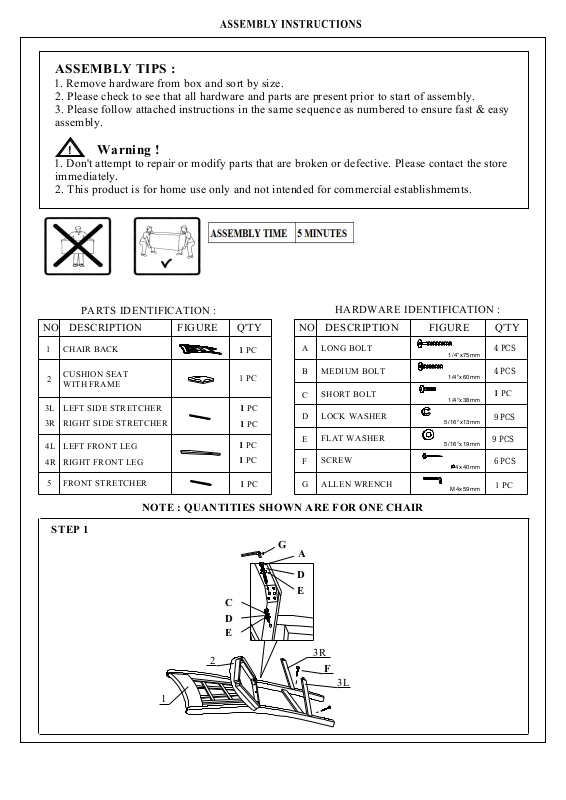

Page 1
ASSEMBLY TIPS :
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to ensure fast & easy
assembly.
! Warning !
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishmemts.
PARTS IDENTIFICATION :
NO DESCRIPTION FIGURE Q'TY
CHAIR BACK
1
CUSHION SEAT
2
WITH FRAME
LEFT SIDE STRETCHER
3L
RIGHT SIDE STRETCHER3R
LEFT FRONT LEG
4L
RIGHT FRONT LEG4R
FRONT STRETCHER
5
1 PC1
1 PC
1 PC1
1
1 PC11
1 PC11
1 PC11
1 PC1
NOTE : QUANTITIES SHOWN ARE FOR ONE CHAIR
STEP 1
C
D
E
HARDWARE IDENTIFICATION :
NO DESCRIPTION FIGURE Q'TY
A LON G BOLT
B
MEDIUM BOLT
SHORT BOLT
C
LOCK WASHER
D
FLA T WASHER
E
SCR EW
F
ALLEN WRENCH
G
1/4" x75m m
1/4"x 60m m
1/4"x 38m m
5/16 "x13 mm
5/16 "x19m m
4x4 0mm
M4x 59mm
G
A
D
E
4 PCS
4 PCS
1 PC1
9 PCS
9 PCS
6 PCS
1 PC
2
3R
F
3L
1
Page 2

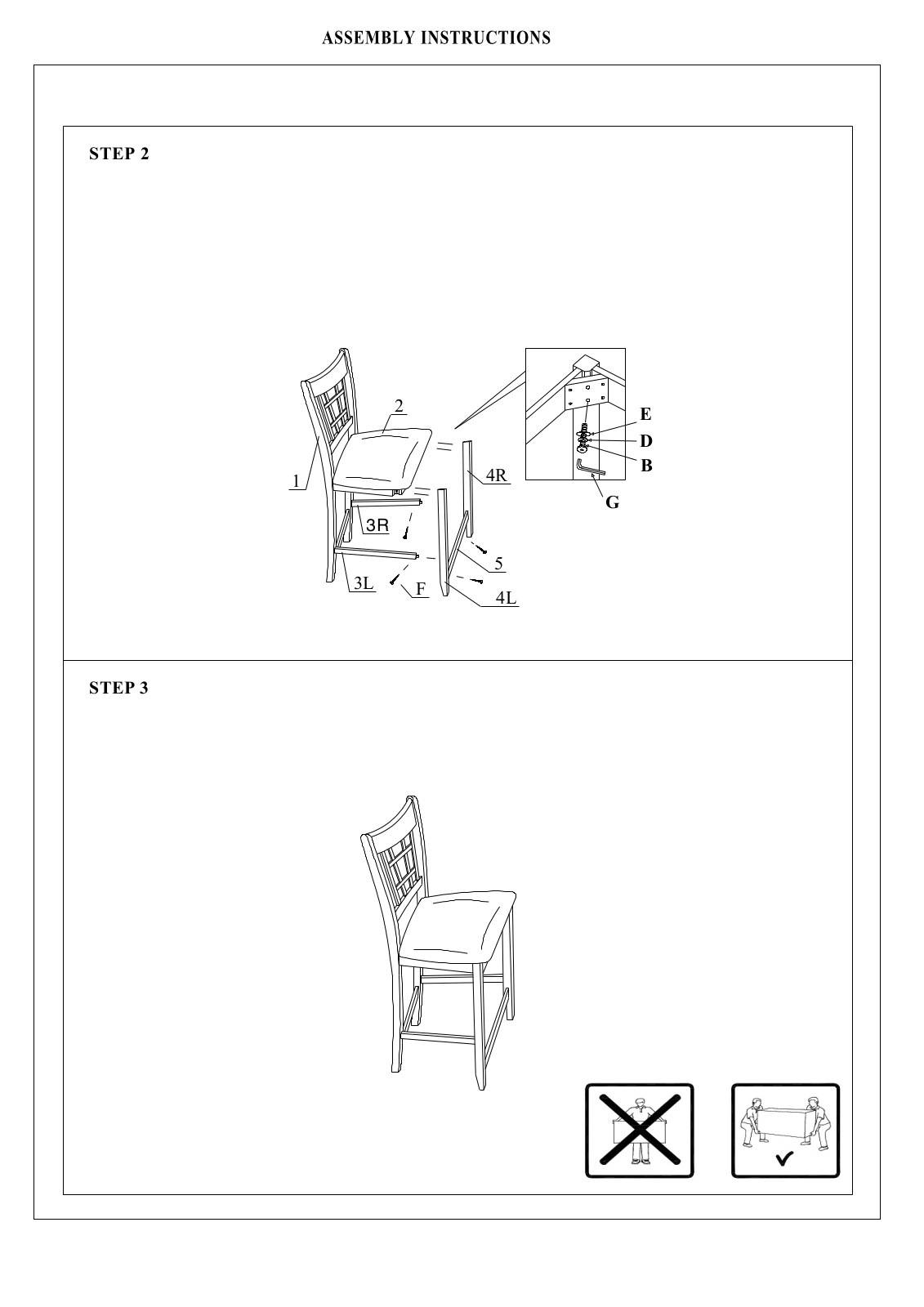

STEP 2
STEP 3
2
E
D
1
4R
B
G
3R
5
3L
F
4L
