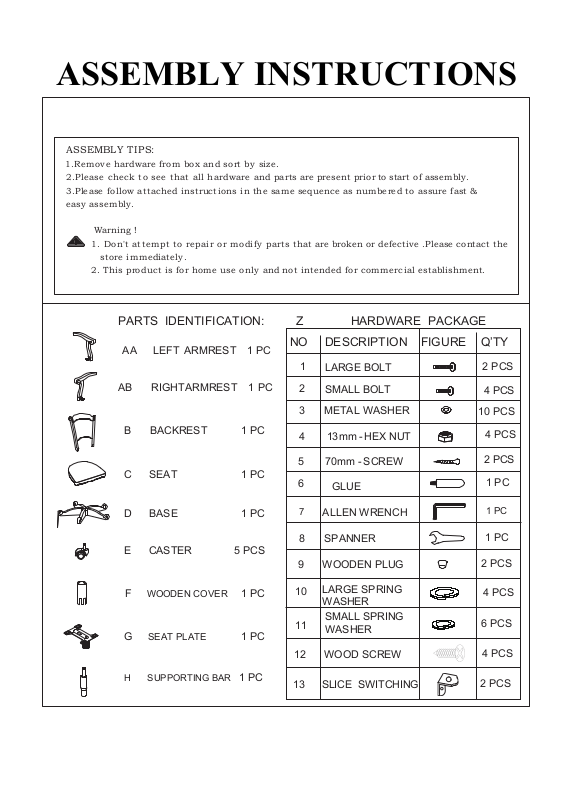

ASSEMBLY INSTRUCTIONS
ASSEMBLY TI PS:
1.R emove hardware from box and so rt by siz e.
2.Please check to see t hat all hardware and parts are present prior to start of assembly .
3.Ple ase foll ow attache d instruct io ns in the same sequence as numbered to assure fast &
easy assem bly .
Warning !
1. Do n't attempt to repai r or modi fy parts that are broken or defective .Please contact the
store im mediately .
2. This product i s fo r ho me use only and no t inte nded for com me rc ial establishment.
PARTS IDENTIFICATION:
AA LEFT ARMREST 1 PC
AB RIGHT ARMREST 1 PC
B BACKREST 1 PC
C SEAT 1 PC
D BASE 1 PC
E CASTER 5 PCS
F
WOODEN COVER
G SEAT PLATE
1 PC
1 PC
Z HARDWARE PACKAGE
NO DESCRIPTION FIGURE Q’TY
1
LARGE BOLT
2
SMALL BOLT
3 METAL WASHER
4
13mm - HEX NUT
5 70mm - SCREW
6
7
8 SPANNER
9
10
11
GLUE
ALLEN WRENCH
WOODEN PLUG
LARGE SPRING
WASHER
SMALL SPRING
WASHER
2 PCS
4 PCS
10 PCS
4 PCS
2 PCS
1 PC
1 PC
1 PC
2 PCS
4 PCS
6 PCS
H SUPPORTING BAR 1 PC
12
13
WOOD SCREW
SLICE SWITCHING
4 PCS
2 PCS
STEP 1:
Insert the Casters (E) into the Base (D) , then
insert the Supporting Bar (H) into the Base (D)
center with a plastic hammer , insert the Wooden
Cover (F) through the Supporting Bar (H) .
F
H
D
E
3
11
2
Knob
G
C
STEP 2:
Attach the Seat Plate (G) to the Seat (C)
with Bolt (2),Small Spring Washer (11) and
Metal Washer (3).
(The Knob on the Seat Plate (G)
facing forwards)
AB
AA
STEP 3:
AB
13
12
Attach the Backrest (B)
B
B
B
13
12
9
5
AA
Washer (3), Small Spring Washer (11) and Large
Bolt (1), then attach the Armrests (AA,AB) to the
Seat (C) with Washer (3), Large Spring Washer
(10) and Nut (4) and to the Backrest (B) with
Screw (5).
Use Wood Screw (12) through Slice Switching
(13) to Backrest (B) and Armrests(AA,AB).
(Put Wooden Plug (9) into the interface)
to the Seat
(C) with
3
11
1
C
3
10
4
STEP 4:
Place the Seat (C) onto the
Supporting Bar (H) through the
hole under the Seat Plate (G) .
C
G
H
F
D
