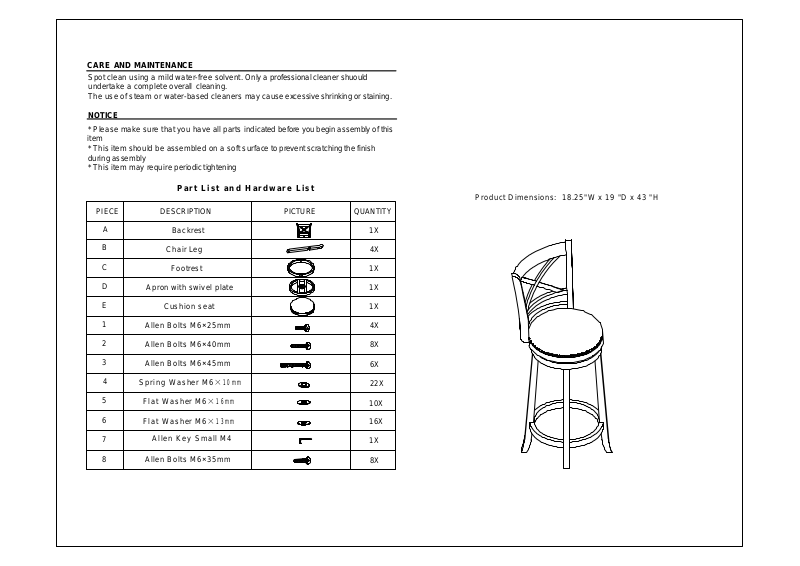

CARE AND MAINTENANCE
Spot clean using a mild water-free solvent. Only a professional cleaner shuould
undertake a complete overall cleaning.
The use of steam or water-based cleaners may cause excessive shrinking or staining.
NOTICE
* Please make sure that you have all parts indicated before you begin assembly of this
item
* This item should be assembled on a soft surface to prevent scratching the finish
during assembly
* This item may require periodic tightening
Part List and Hardware List
PIECE DESCRIPTION PICTURE QUANTITY
A
B
C
D
E
1
2
3
4
5
6
7
8
Spring Washer M6× 10mm
Flat Washer M6×16mm
Flat Washer M6×13mm
Backrest
Chair Leg
Footrest
Apron with swivel plate
Cushion seat
Allen Bolts M6× 25mm
Allen Bolts M6× 40mm
Allen Bolts M6× 45mm
Allen Key Small M4
Allen Bolts M6× 35mm
1X
4X
1X
1X
1X
4X
8X
6X
22X
10X
16X
1X
8X
Product Dimensions: 18.25"W x 19 "D x 43 "H
PREPARATION
Before beginning assembly of product make sure all parts are present.Compare parts with package contents list
and hardware contents list.
If any part is missing or damaged,do not attempt to assemble the product.
Estimated Assembly Time:10 minutes.
Tools Required for Assembly(included):Allen Key
c
8x
6
4
8
7
B
6
D
4
Step 1
Begin assembly by attaching the Legs (B) to the Footrest
(C) by using 2 Allen Bolt (8), 2 Spring Washer (4) and
2 Flat Washer (6) per leg.
Attach the Legs (B) to the Apron with Swivel Plate (D)
by using 2 Allen Bolts (2), 2 Spring Washers (4) and 2
Flat Washers (6) per leg.
8x
2
6x
5
4
3
7
E
A
Step 2
Next attach the Backrest (A) to the Seat (E) with 6
Allen Bolts (3), 6 Spring Washers (4) and 6
Flat Washers (5).
4x
E
A
Step 3
Attach the Apron with Swivel Plate (D) to the Seat (E) by
using 4 Allen Bolts (1) and 4 Flat Washers (5).
Tighten all screws with the Allen Wrench (G) provided.
The assembly is now complete.
