ASSEMBLY INSTRUCTIONS

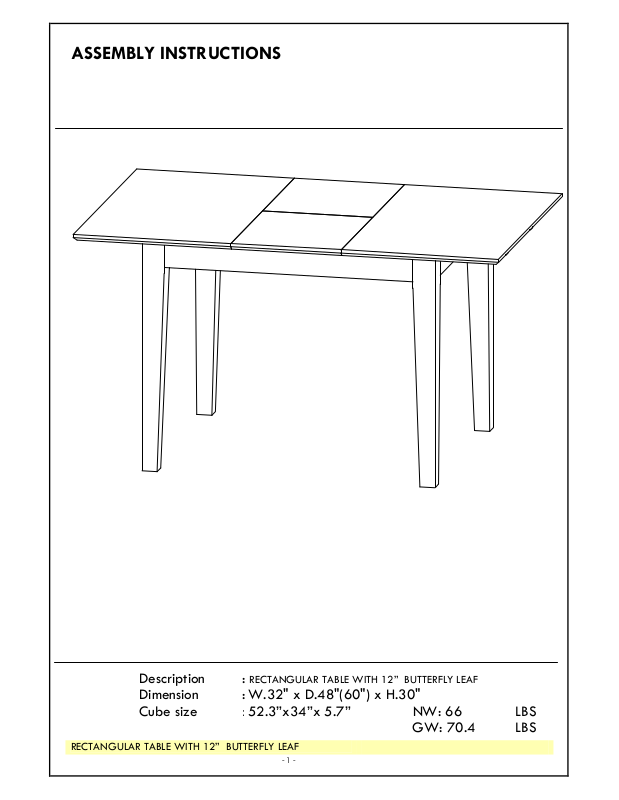

Description :
RECTANGULAR TABLE WITH 12” BUTTERFLY LEAF
Dimension : W.32" x D.48"(60") x H.30"
Cube size
:
52.3”x34”x 5.7” NW: 66 LBS
GW: 70.4 LBS
RECTANGULAR TABLE WITH 12” BUTTERFLY LEAF
- 1 -
PART
LIST
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for
durability. Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
Please separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being
scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have the following parts:
NO Description Qty Sketch NO Description Qty Sketch
A Top 1
B Leg 4
HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have all of the following hardware:
NO Description Qty Sketch NO Description Qty Sketch
Lock washer
2
( Φ8.5xΦ13mm)
4
Allen key
(4mm)
8
1
1
(M8x70mm)
Flat washer
3
( Φ8.5xΦ19mm)
Bolt
8
8
RECTANGULAR TABLE WITH 12” BUTTERFLY LEAF
- 2 -
STEP 1
Place legs (B) in position as shown below. Use bolts (1) and washers (2),(3) to attach legs, tighten with the Allen
key (4).
4
A
STEP 2
Stand the table, unlock the table top underneath and pull the 2 side tops to outside direction.
RECTANGULAR TABLE WITH 12” BUTTERFLY LEAF
- 3 -
STEP 3
Fold the center leaf top and put it underneath, or spread it as your demand, then lock the top as
below image.
x4
RECTANGULAR TABLE WITH 12” BUTTERFLY LEAF
- 4 -
