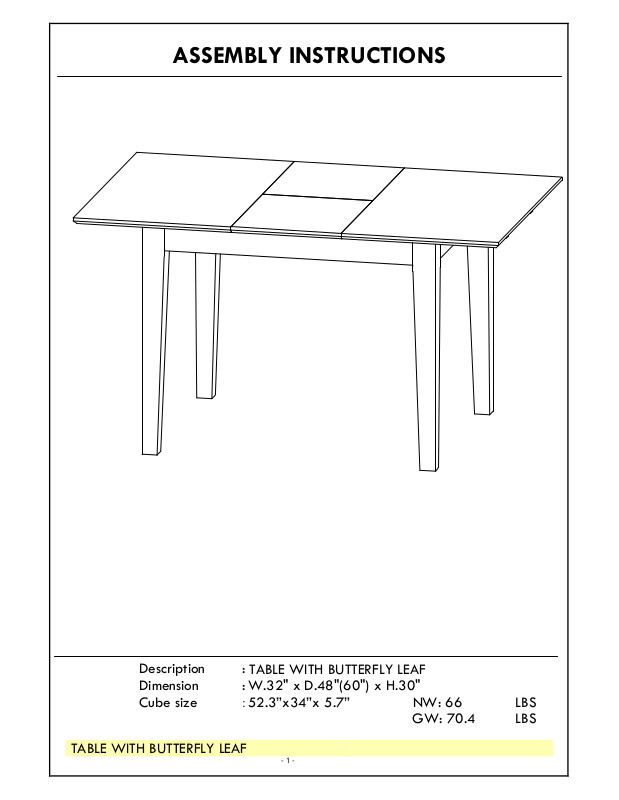

Page 1
ASSEMBLY INSTRUCTIONS
Description :
TABLE WITH BUTTERFLY LEAF
Dimension : W.32" x D.48"(60") x H.30"
Cube size
:
52.3”x34”x 5.7” NW: 66 LBS
TABLE WITH BUTTERFLY LEAF
GW: 70.4 LBS
- 1 -
Page 2
NO Description
Qty Sketch
NO
Description
Qty Sketch
HARDWARE LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take
the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please
separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following
parts:
A Top 1
B Leg 4
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the
following hardware:
1
(M8x70mm)
Flat washer
3
( Φ8.5xΦ19mm)
Bolt
8
8
2
( Φ8.5xΦ13mm)
4
Lock washer
Allen key
(4mm)
8
1
TABLE WITH BUTTERFLY LEAF
- 2 -
Page 3
STEP 1
Place legs (B) in position as shown below. Use bolts (1) and washers (2),(3) to attach legs, tighten with the Allen key (4).
4
A
STEP 2
Stand the table, unlock the table top underneath and pull the 2 side tops to outside direction.
TABLE WITH BUTTERFLY LEAF
- 3 -
Page 4
STEP 3
Fold the center leaf top and put it underneath, or spread it as your demand, then lock the top as below image.
x4
TABLE WITH BUTTERFLY LEAF
- 4 -
