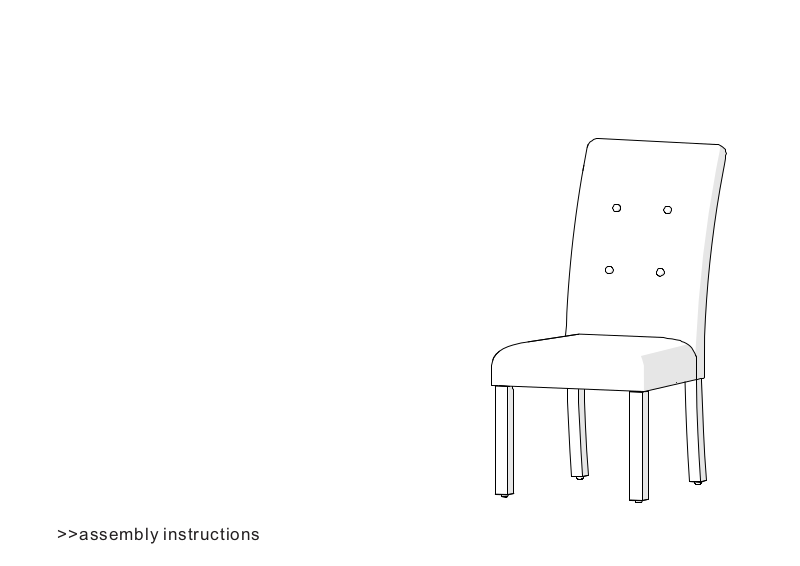

>>assembly instructions
Congratulations on your latest purchase.
Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you.
All you need to do is follow our simple instructions and you’ll be on your way to transforming your
room in no time. Good luck --though we’re confident you won’t need it.
before you begin
1. Check for damaged or missing parts. Customers can email or call us to order missing supplies.
2. Use the carton as a working surface to prevent product damage during assembly.
3. Gather all tools prior to assembly.
2
table of contents
..............................................
introduction
hardware
parts list
assembly
2
4
5
6 - 10
QUESTIONS?
Just email or c all us parts and s ervice. For f ast service , have the styl e number and ar ticle numbe r ready when ca lling.
3
hardware
............................................................................
(A) x 4
5/16" x 90mm
round hex screw
(D) x 10
Φ 8mm lo ck washer
(B) x 4
5/16" x 55mm
round hex screw
(E) x 10
Φ 22mm fl at washer
(C) x 2
5/16" x 50mm
round hex screw
(F) x 1
5mm Ba ll end
Hex wrench
4
ITEM DESCRIPTI O N QUANT I T Y
............................................................................
1
2
3
chair back
seat cushion
leg
1
1
2
1
2
3
3
5
step 1.
............................................................................
1 2
3
3
O
pen the v
el
c
ro
.
(B) x 4
5/16" x 55mm
round hex screw
6
2
Please do not assemble with power tools
(D) x 4
Φ 8mm lo ck washer
(E) x 4
Φ 22mm fl at washer
F
D
B
(F) x 1
5mm Ba ll end
Hex wrench
E
step 2.
............................................................................
Do not tighten these two bolts
1 2
1
until the next step.
F
C
D
E
(C) x 2
5/16" x 50mm
round hex screw
7
Please do not assemble with power tools
(D) x 2
Φ 8mm lo ck washer
(E) x 2
Φ 22mm fl at washer
(F) x 1
5mm Ba ll end
Hex wrench
step 3.
............................................................................
1
Now you may tighten all 6 bolts.
F
A
D
E
(A) x 4
5/16" x 90mm
round hex screw
8
until all screws are lined up with the frame. Please do
Please do not assemble with power tools
(D) x 4
Φ 8mm lo ck washer
(E) x 4
Φ 22mm fl at washer
(F) x 1
5mm Ba ll end
Hex wrench
step 4.
............................................................................
1
.
o
cr
el
he v
e t
os
Cl
9
until all screws are lined up with the frame. Please do
step 5.
............................................................................
A friendly reminder from us:
Please keep the Allen wrench.
After a period of time, there may be a chance the
KD furniture may become loose, please use an
Allen wrench to tighten the loose bolts.
Level the furniture, use leveling feet if needed.
10
Adjustable leveling feet
( This pa rt i s already a tt ached on th e en d cap of 4 legs . )
