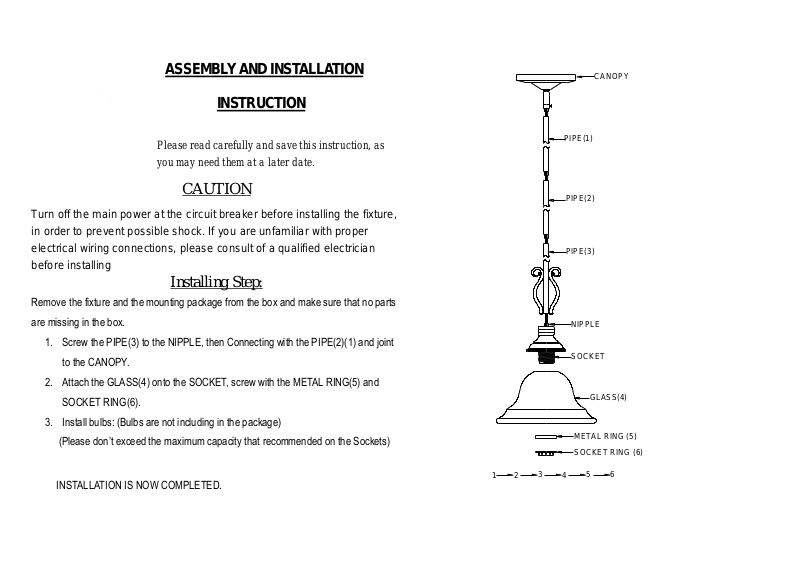

ASSEMBLY AND INSTALLATION
NIPPLE
METAL RING (5)
SOCKET RING (6)
GLASS(4)
SOCKET
PIPE(3)
PIPE(2)
PIPE(1)
CANOPY
21
3
4
5 6
INSTRUCTION
Please read carefully and save this instruction, as
you may need them at a later date.
CAUTION
Turn off the main power at the circuit breaker before installing the fixture,
in order to prevent possible shock. If you are unfamiliar with proper
electrical wiring connections, please consult of a qualified electrician
before installing
Installing Step:
Remove the fixture and the mounting package from the box and make sure that no parts
are missing in the box.
1. Screw the PIPE(3) to the NIPPLE, then Connecting with the PIPE(2)(1) and joint
to the CANOPY.
2. Attach the GLASS(4) onto the SOCKET, screw with the METAL RING(5) and
SOCKET RING(6).
3. Install bulbs: (Bulbs are not including in the package)
(Please don’t exceed the maximum capacity that recommended on the Sockets)
INSTALLATION IS NOW COMPLETED.
