Page 1

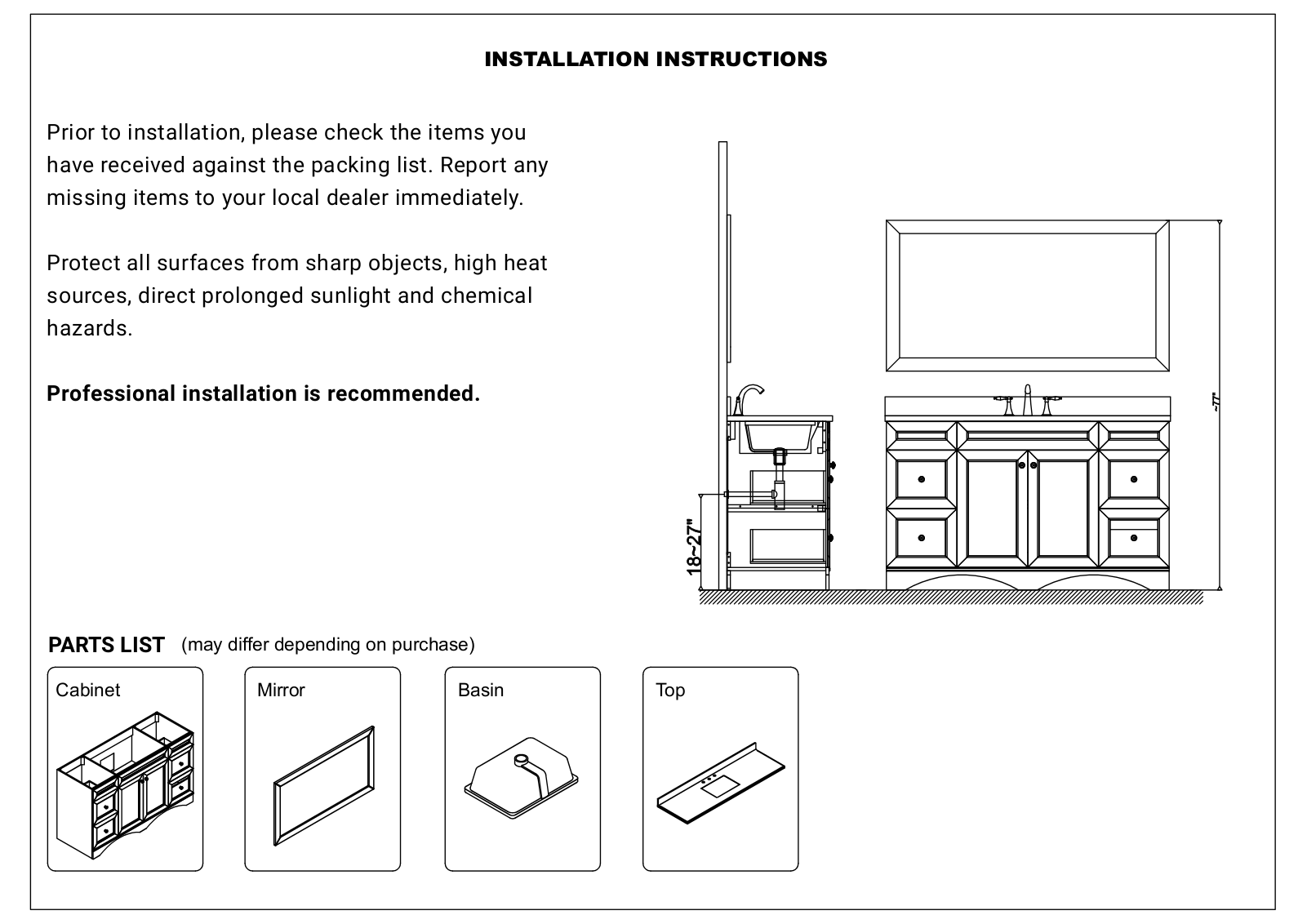

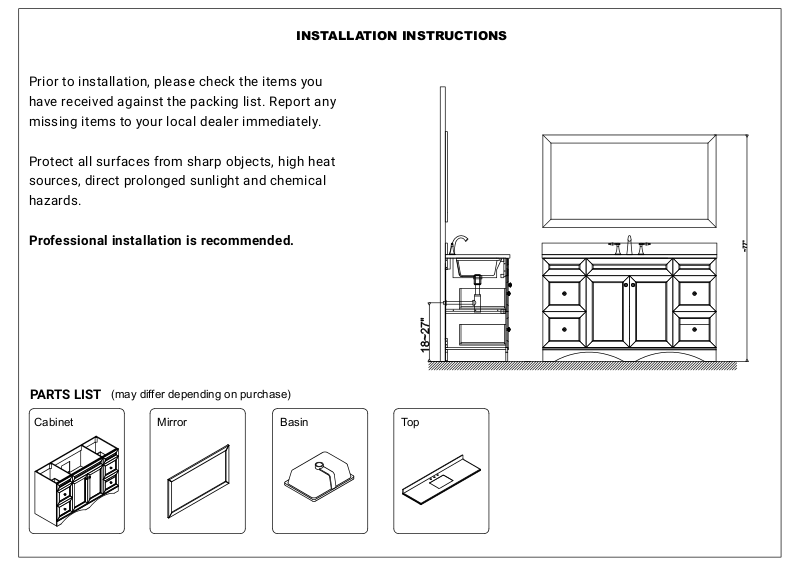

INSTALLATION INSTRUCTIONS
Prior to installation, please check the items you
have received against the packing list. Report any
missing items to your local dealer immediately.
Protect all surfaces from sharp objects, high heat
sources, direct prolonged sunlight and chemical
hazards.
Professional installation is recommended.
PARTS LIST
(may differ depending on purchase)
TopBasinCabinet Mirror
Page 2

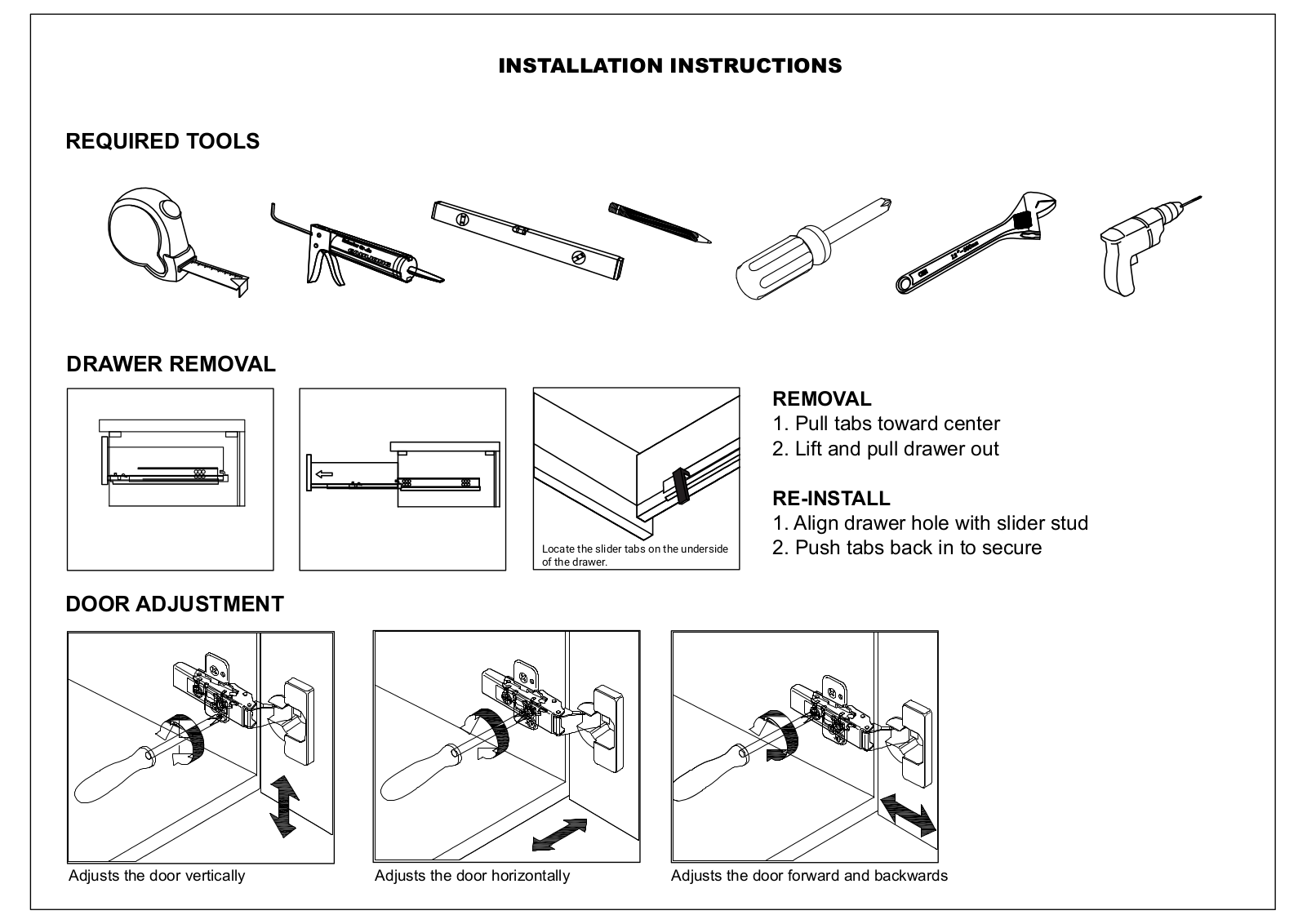

REQUIRED TOOLS
DRAWER REMOVAL
INSTALLATION INSTRUCTIONS
REMOVAL
1. Pull tabs toward center
2. Lift and pull drawer out
RE-INSTALL
1. Align drawer hole with slider stud
Locate the slider tabs on the underside
of the drawer.
2. Push tabs back in to secure
DOOR ADJUSTMENT
Adjusts the door vertically Adjusts the door horizontally Adjusts the door forward and backwards
Page 3

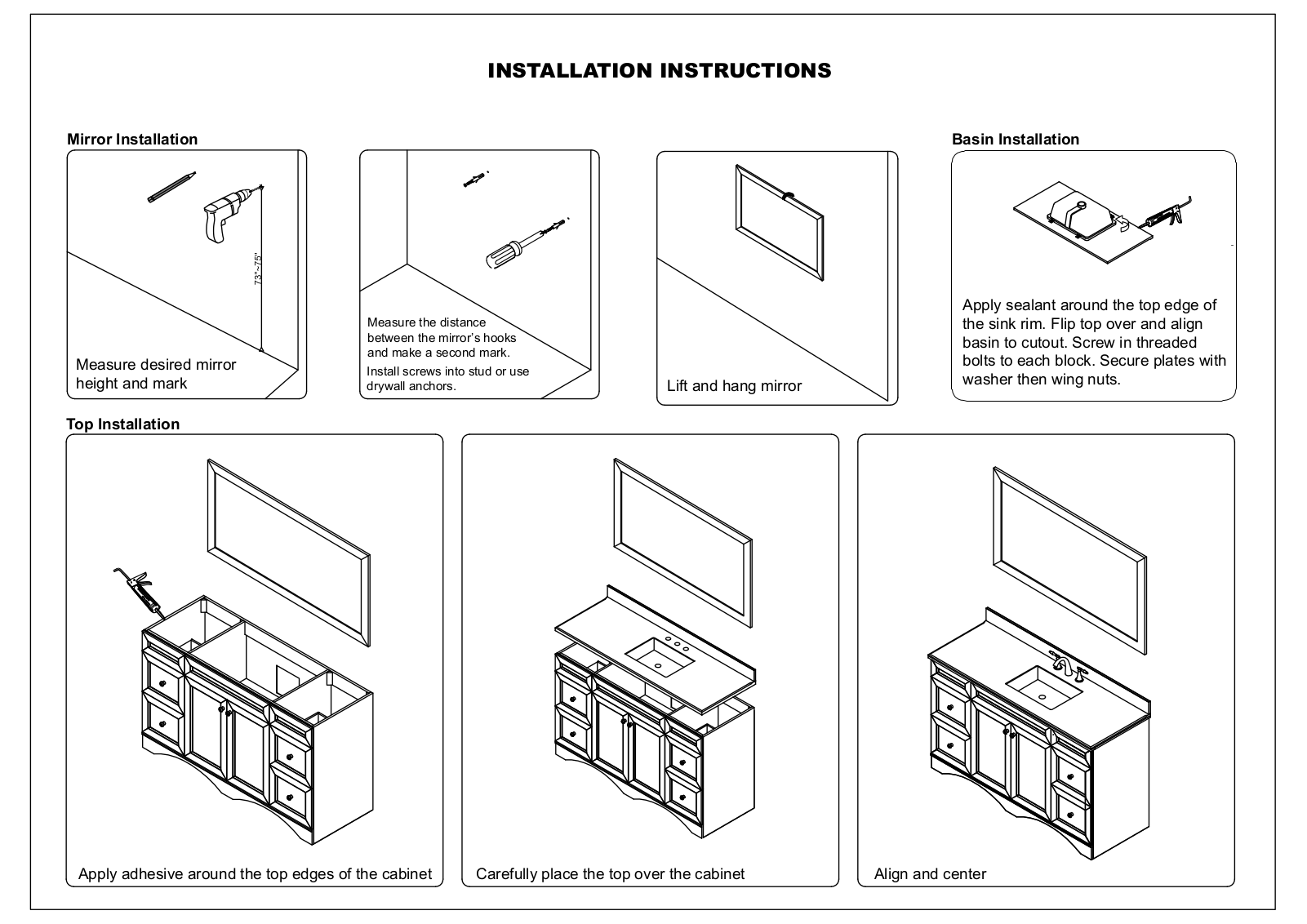

Measure desired mirror
height and mark
Top Installation
INSTALLATION INSTRUCTIONS
Measure the distance
between the mirror’s hooks
and make a second mark.
Install screws into stud or use
drywall anchors.
Lift and hang mirror
Basin InstallationMirror Installation
Apply sealant around the top edge of
the sink rim. Flip top over and align
basin to cutout. Screw in threaded
bolts to each block. Secure plates with
washer then wing nuts.
Apply adhesive around the top edges of the cabinet Carefully place the top over the cabinet
Align and center
