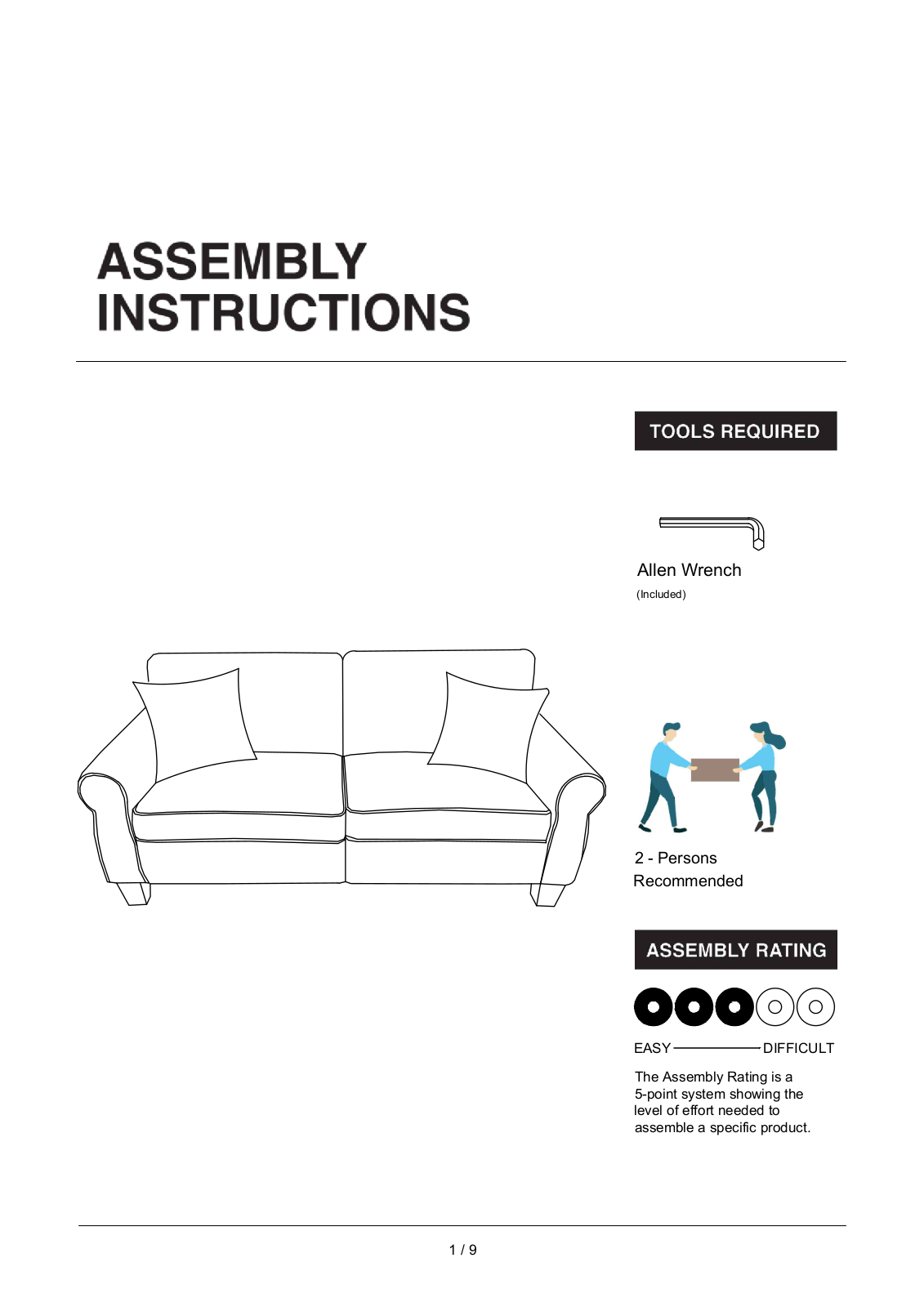

Page 1
1 / 9
(Included)
Allen Wrench
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
EASY DIFFICULT
2 - Persons
Recommended
Page 2

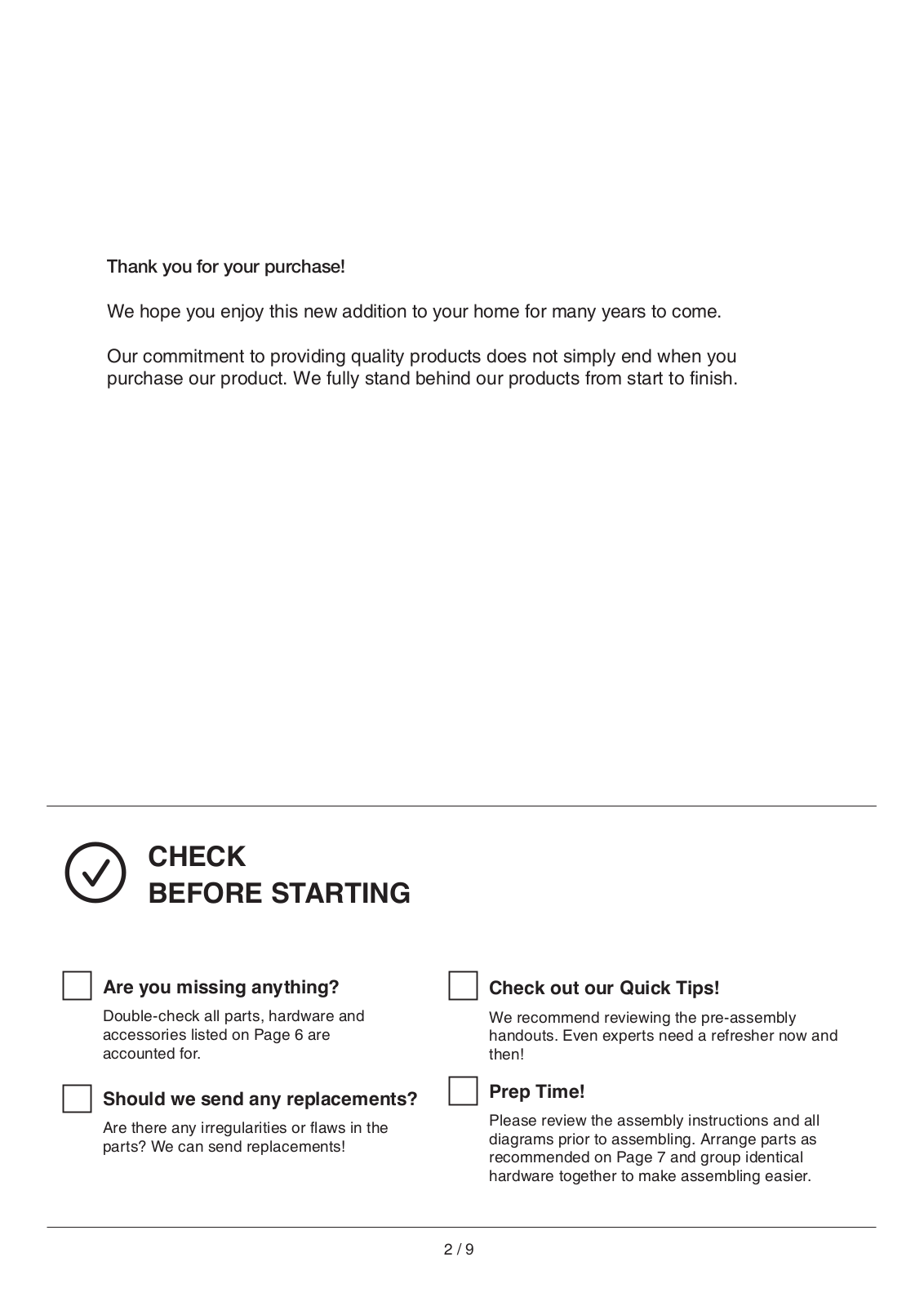

Thank you for your purchase!
We hope you enjoy this new addition to your home for many years to come.
Our commitment to providing quality products does not simply end when you
purchase our product. We fully stand behind our products from start to finish.
CHECK
BEFORE STARTING
Are you missing anything?
Double-check all parts, hardware and
accessories listed on Page 6 are
accounted for.
Should we send any replacements?
Are there any irregularities or flaws in the
parts? We can send replacements!
Check out our Quick Tips!
We recommend reviewing the pre-assembly
handouts. Even experts need a refresher now and
then!
Prep Time!
Please review the assembly instructions and all
diagrams prior to assembling. Arrange parts as
recommended on Page 7 and group identical
hardware together to make assembling easier.
2 / 9
Page 3

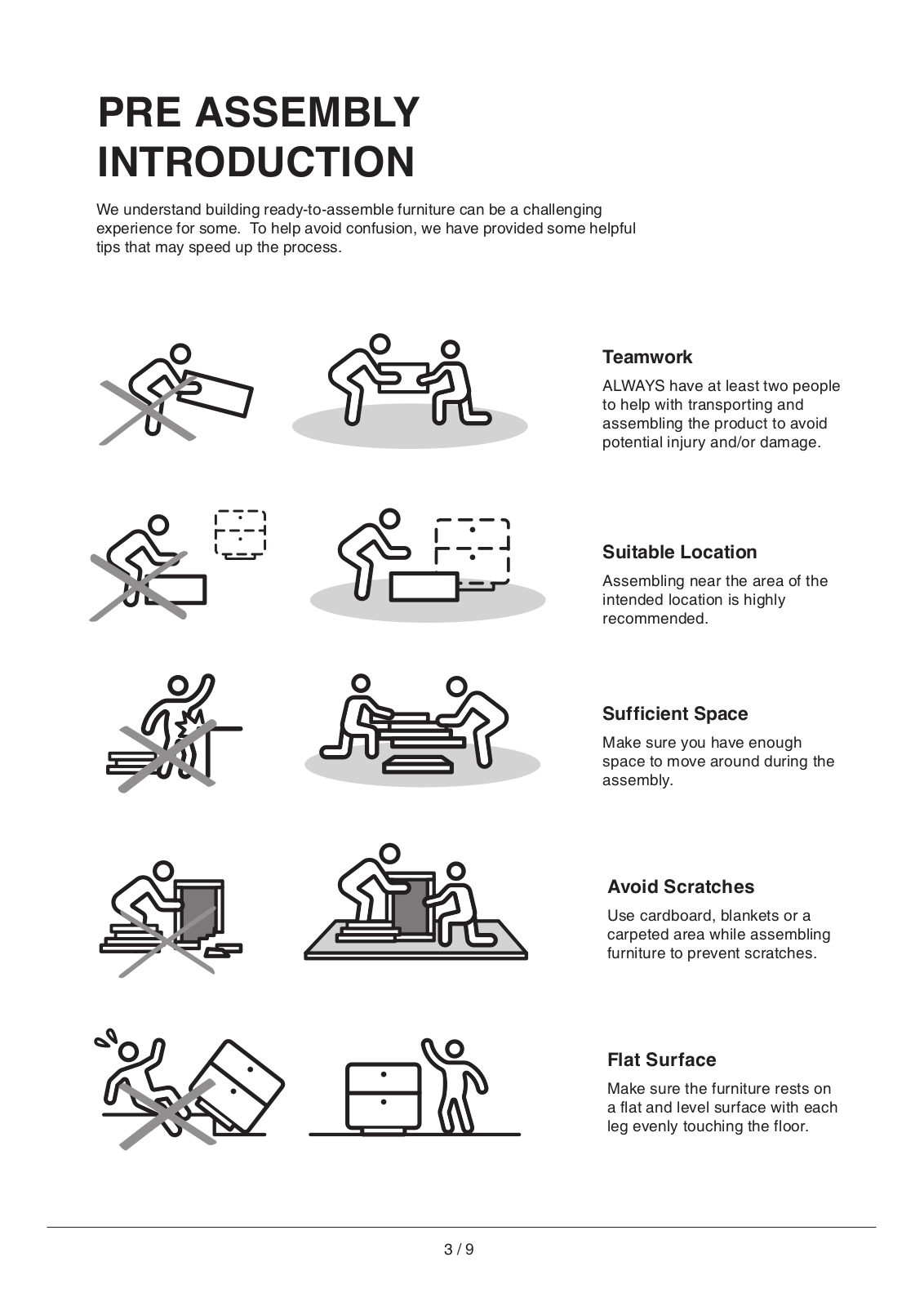

PRE ASS EM BLY
INTRODUCTION
We understand building ready-to-assemble furniture can be a challenging
experience for some. To help avoid confusion, we have provided some helpful
tips that may speed up the process.
Teamwo rk
ALWAYS have at least two people
to help with transporting and
assembling the product to avoid
potential injury and/or damage.
Suitable Location
Assembling near the area of the
intended location is highly
recommended.
Sufficient Space
Make sure you have enough
space to move around during the
assembly.
Avoid Scratches
Use cardboard, blankets or a
carpeted area while assembling
furniture to prevent scratches.
3 / 9
Flat Surface
Make sure the furniture rests on
a flat and level surface with each
leg evenly touching the floor.
Page 4
4 / 9
Page 5

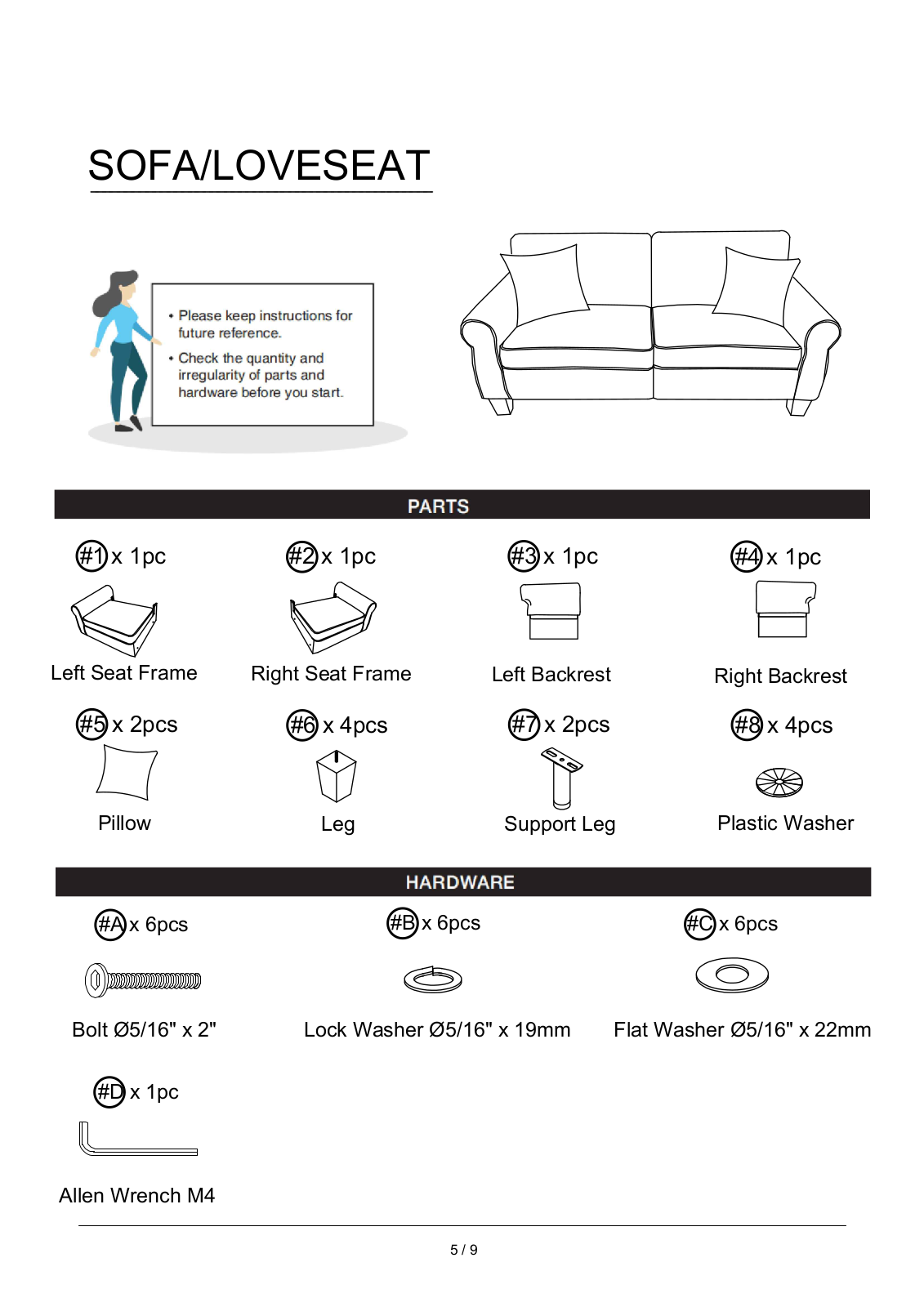

SOFA/LOVESEAT
5 / 9
#1 x 1pc
#2 x 1pc
#3 x 1pc
#5 x 2pcs
#A x 6pcs
#B x 6pcs
#C x 6pcs
#D x 1pc
Bolt Ø5/16" x 2" Lock Washer Ø5/16" x 19mm Flat Washer Ø5/16" x 22mm
Allen Wrench M4
#4 x 1pc
#6 x 4pcs
#7 x 2pcs
#8 x 4pcs
Right Seat Frame
Left Backrest
Right Backrest
Pillow
Leg
Support Leg
Plastic Washer
Page 6

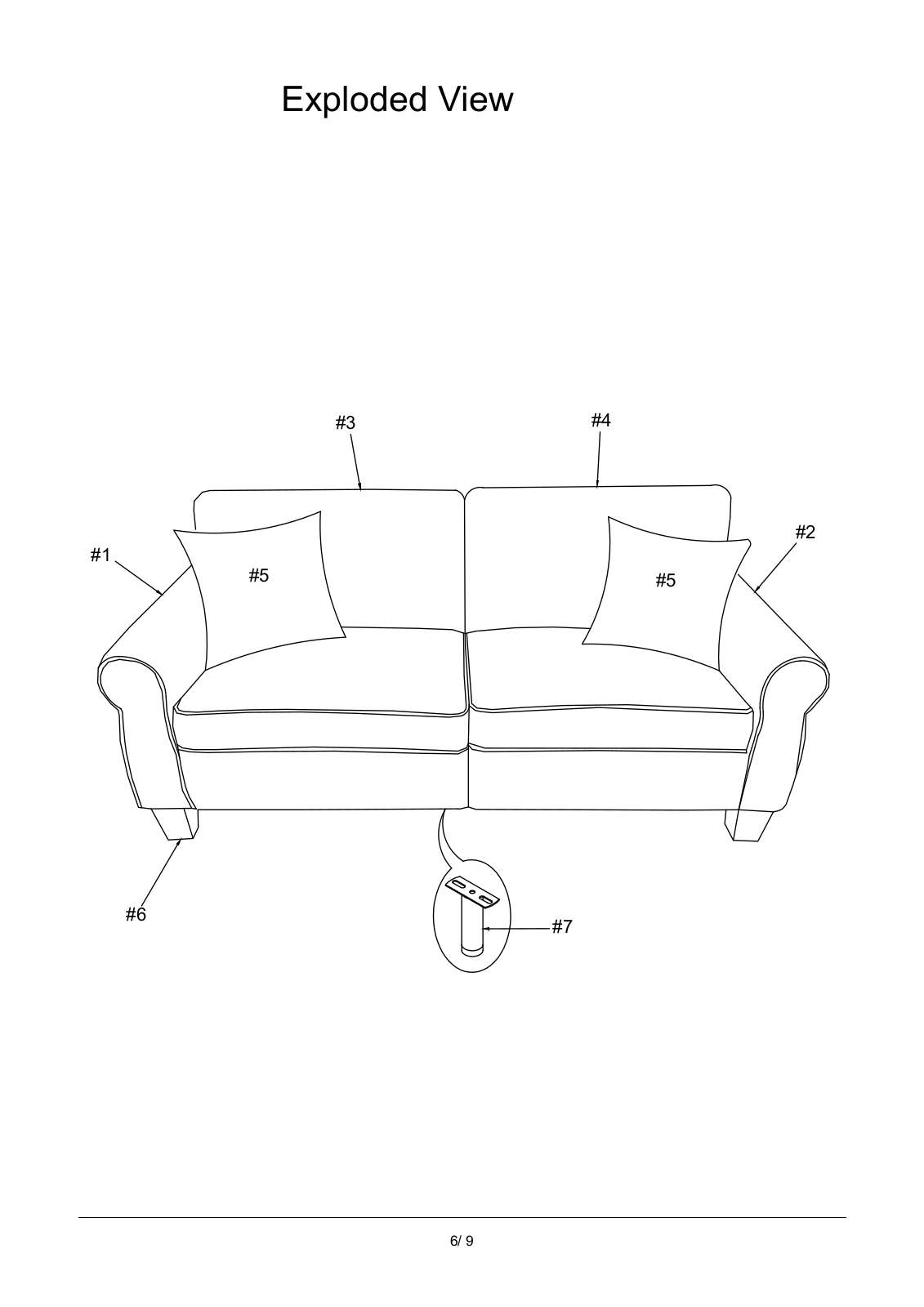

Exploded View
6/ 9
#1
#2
#3
#4
#5
#5
#6
#7
Page 7

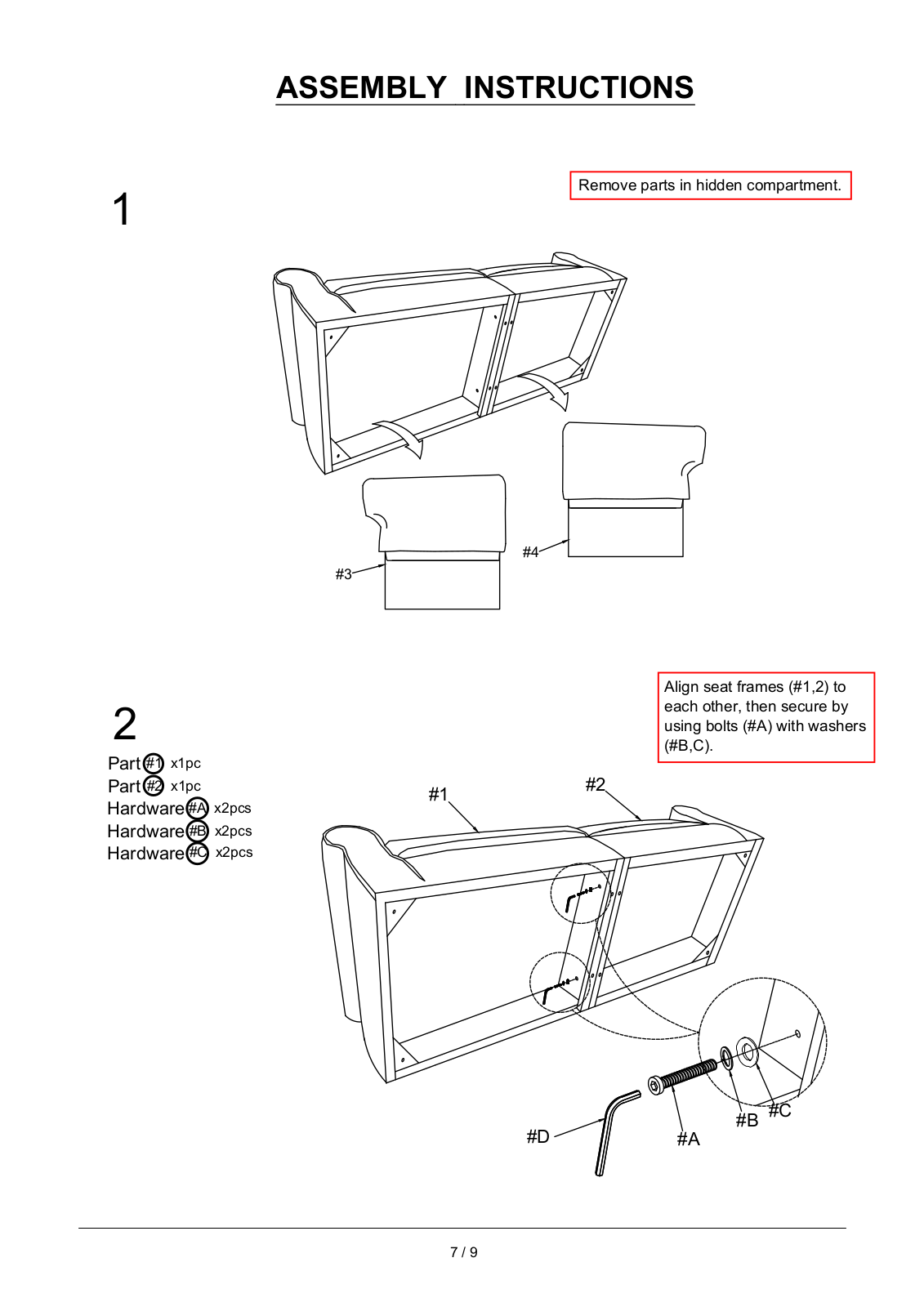

ASSEMBLY INSTRUCTIONS
1
2
7 / 9
#3
#4
#1
#2
#A
#C
#B
#D
Part
#1 x1pc
Hardware
#A x2pcs
Hardware
#B x2pcs
Hardware
#C x2pcs
Part
#2 x1pc
Remove parts in hidden compartment.
Align seat frames (#1,2) to
each other, then secure by
using bolts (#A) with washers
(#B,C).
Page 8
Part
#3 x1pc
Part
#4 x1pc
#3 #4

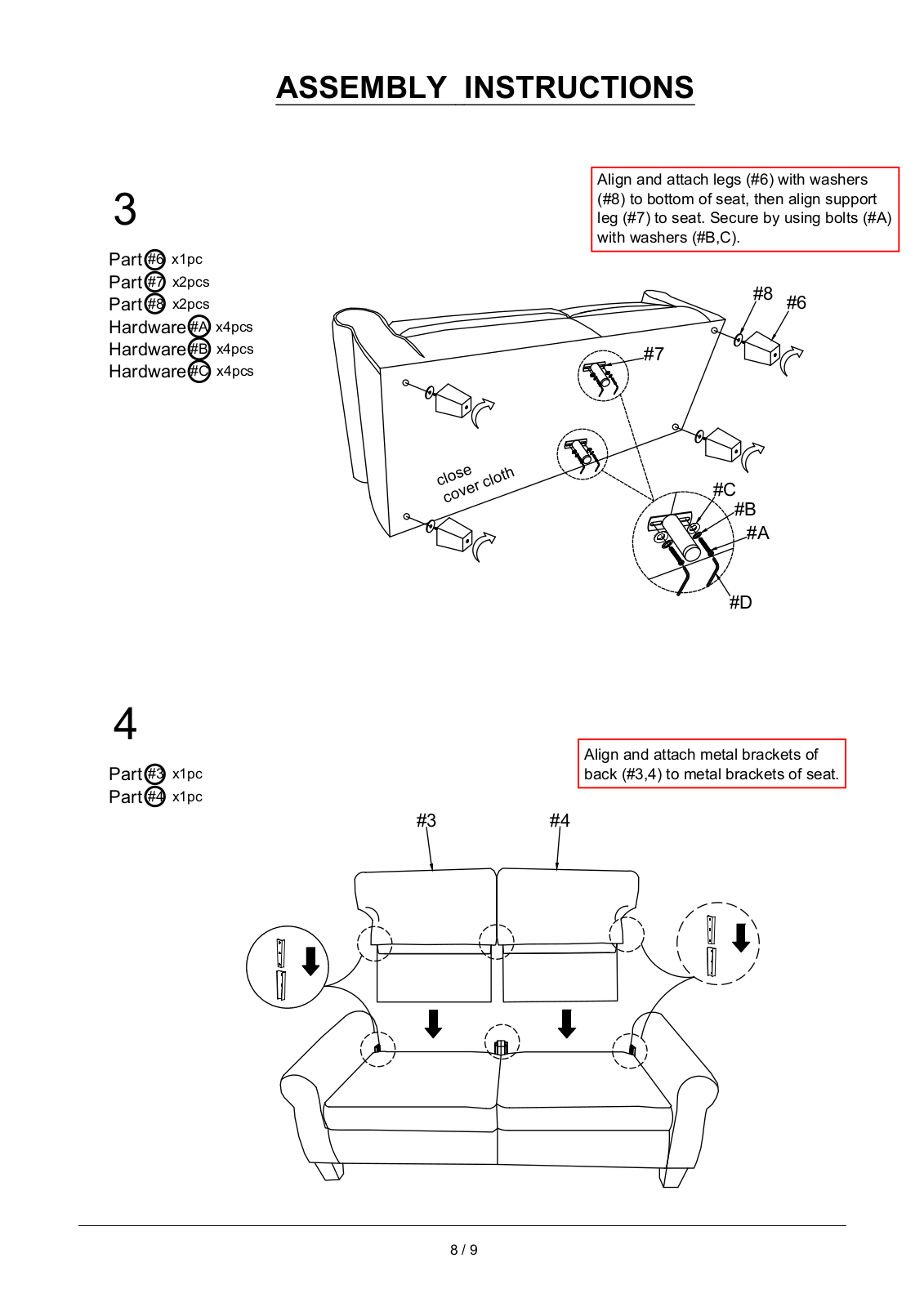

ASSEMBLY INSTRUCTIONS
3
4
8 / 9
Part
#6 x1pc
Hardware
#A x4pcs
Hardware
#B x4pcs
Hardware
#C x4pcs
Part
#7 x2pcs
close
cover cloth
#6
#8
#7
#D
#A
#C
#B
Part
#8 x2pcs
Align and attach legs (#6) with washers
(#8) to bottom of seat, then align support
leg (#7) to seat. Secure by using bolts (#A)
with washers (#B,C).
Align and attach metal brackets of
back (#3,4) to metal brackets of seat.
Page 9

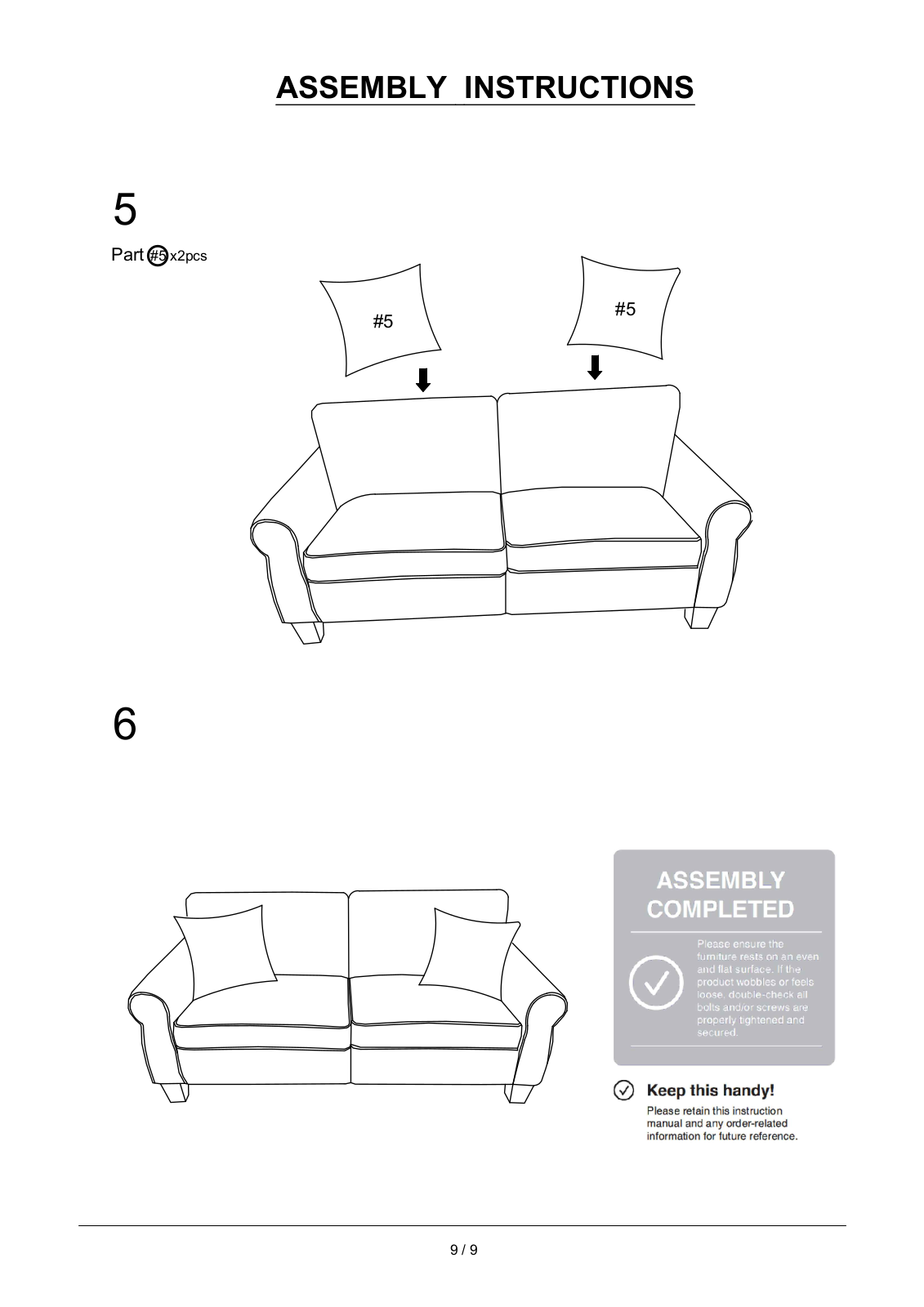

ASSEMBLY INSTRUCTIONS
5
6
9 / 9
Part #5 x2pcs
#5
#5
