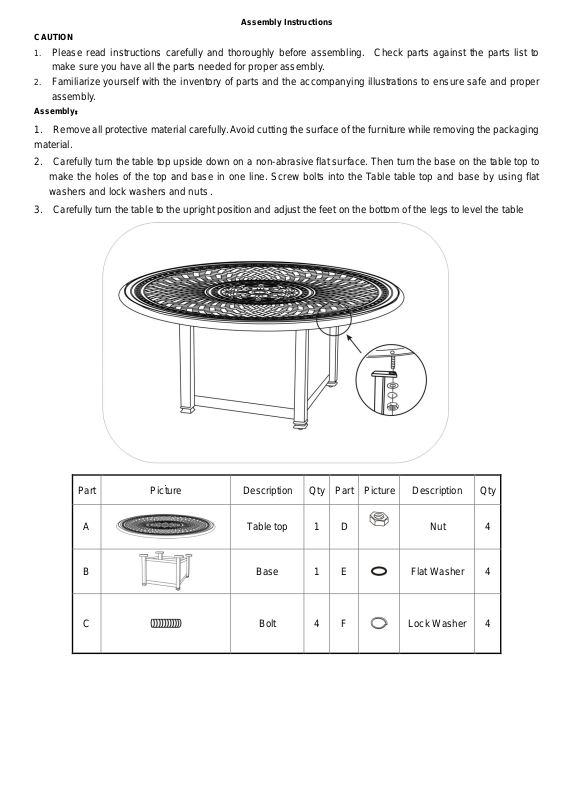

Assembly Instructions
Part
Description
Qty
Part
Description
Qty
A Table top
1
D Nut
4
B Base
1
E Flat Washer
4
C Bolt
4
F Lock Washer
4
CAUTION
1. Please read instructions carefully and thoroughly before assembling. Check parts against the parts list to
make sure you have all the parts needed for proper assembly.
2. Familiarize yourself with the inventory of parts and the accompanying illustrations to ensure safe and proper
assembly.
Assembly：
1. Remove all protective material carefully. Avoid cutting the surface of the furniture while removing the packaging
material.
2. Carefully turn the table top upside down on a non-abrasive flat surface. Then turn the base on the table top to
make the holes of the top and base in one line. Screw bolts into the Table table top and base by using flat
washers and lock washers and nuts .
3. Carefully turn the table to the upright position and adjust the feet on the bottom of the legs to level the table
Instruction of the table:
1. Open the door with the attached handle carefully
and pull down the support bar for the propane tank.
2. Insert the propane tank laying on its side as seen
in the photo then raise the support bar back into an
upward position.
3. Attach the end of the hose that goes to the propane
tank then attach the other end that goes to the burner.
4. First turn on the propane tank and then light the burner
and its ready to use.
IMPORTANT!
DO NOT MAKE THE FIRE GLASS OR FIRE STONE COVER THE PART SHOWN IN THE FOLLOWING PICUURE, OTHERWISE
THE FIFE WILL GO OUT!
