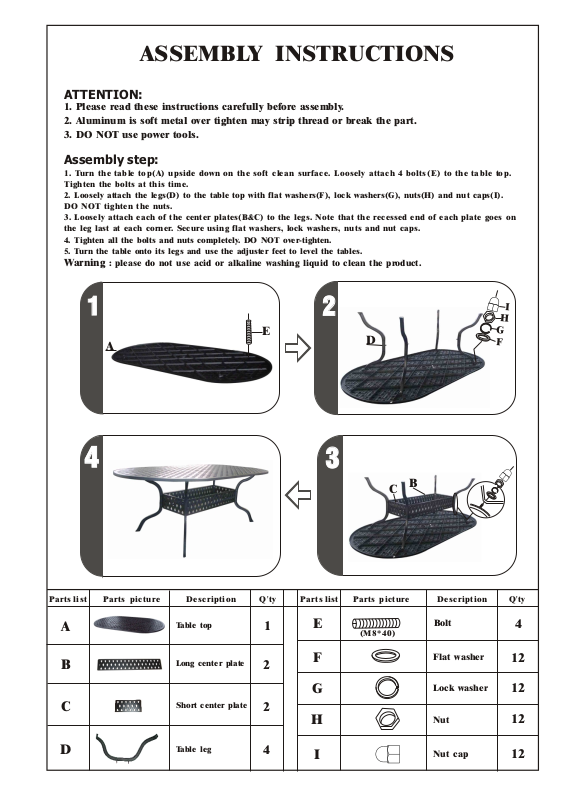

ASSEMBLY INSTRUCTIONS
ATTENTION:
1. Please read these instructions carefully before assembly.
2. Aluminum is soft metal over tighten may strip thread or break the part.
3. DO NOT use power tools.
Assembly step:
1. Turn the table to p(A) upside down on the soft clean surfac e. Loosely attach 4 bolts (E) to th e table top.
Tighten the bolts at this time.
2. Loosely attach the legs(D) to the table top with flat washers(F), lock washers(G), nuts(H) and nut caps(I).
DO NOT tighten the nuts.
3. Loosely attach each of the center plates(B&C) to the legs. Note that the recessed end of each plate goes on
the leg last at each corner. Secure using flat washers, lock washers, nuts and nut caps.
4. Tighten all the bolts and nuts completely. DO NOT over-tighten.
5. Turn the table onto its legs and use the adjuster feet to level the tables.
Warning : please do not use acid or alkaline washing liquid to clean the product.
11
A
44
Par ts list Par ts pictur e Descrip ti on
E
Q'ty
22
D
33
B
C
Par ts list Par ts pictur e Descrip ti on
I
H
G
F
Q'ty
A
B
C
D
Table top
Long center plate
Short center plate
Table leg
1
2
E
F
(M8*40)
G
Bolt
Flat washer
Lock washer
4
12
12
2
H
4
I
Nut
Nut cap
12
12
