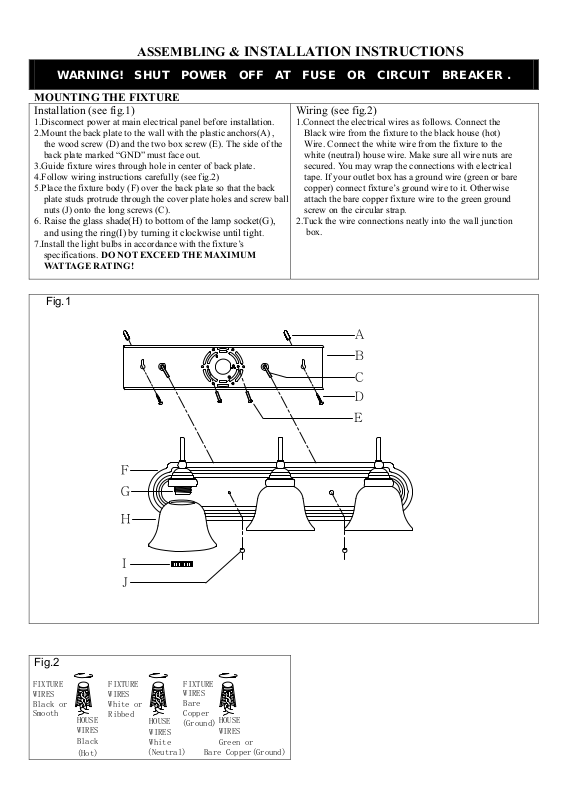

ASSEMBLING & INSTALLATION INSTRUCTIONS
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
MOUNTING THE FIXTURE
Installation (see fig.1)
1.Disconnect power at main electrical panel before installation.
2.Mount the back plate to the wall with the plastic anchors(A) ,
the wood screw (D) and the two box screw (E). The side of the
back plate marked “GND” must face out.
3.Guide fixture wires through hole in center of back plate.
4.Follow wiring instructions carefully (see fig.2)
5.Place the fixture body (F) over the back plate so that the back
plate studs protrude through the cover plate holes and screw ball
nuts (J) onto the long screws (C).
6.
Raise the glass shade(H) to bottom of the lamp socket(G),
and using the ring(I) by turning it clockwise until tight
.
7.Install the light bulbs in accordance with the fixture’s
specifications. DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!
Fig.1
Wiring (see fig.2)
1.Connect the electrical wires as follows. Connect the
Black wire from the fixture to the black house (hot)
Wire. Connect the white wire from the fixture to the
white (neutral) house wire. Make sure all wire nuts are
secured. You may wrap the connections with electrical
tape. If your outlet box has a ground wire (green or bare
copper) connect fixture’s ground wire to it. Otherwise
attach the bare copper fixture wire to the green ground
screw on the circular strap.
2.Tuck the wire connections neatly into the wall junction
box.
E
Fig.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
