CHAIR
4 of 4

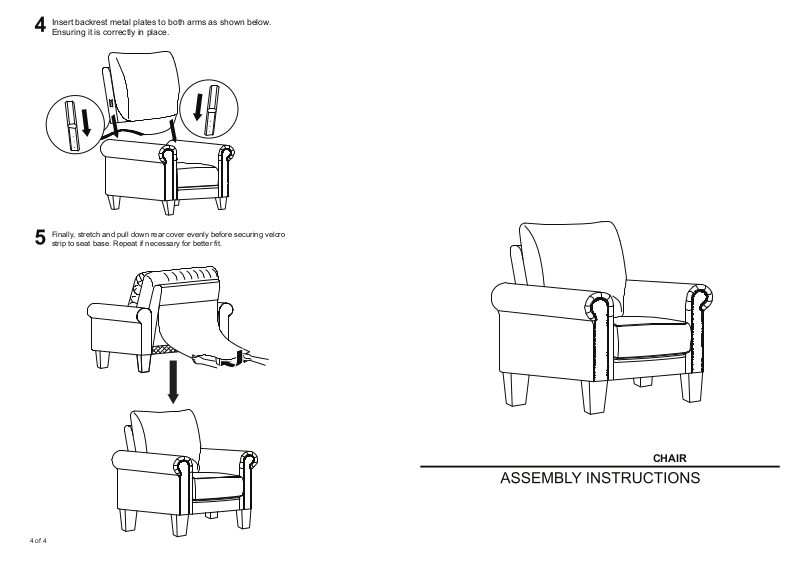

Finally, stretch and pull down rear cover evenly before securing velcro
strip to seat base. Repeat if necessary for better fit.
Insert backrest metal plates to both arms as shown below.
Ensuring it is correctly in place.
3 of 4
ASSEMBLY INSTRUCTIONS
CAUTION:
At least two adults are required to safely complete performing this task.
Other lifting attempts may risk back injury due to large and heavy part(s).
Carefully unpack parts/hardware from storage of seat body and place on a clean flat surface.
Leg
4x
2 of 4
PARTS AND HARDWARE
Avoid using sharp objects such as a knife to open packing as you may accidentally damage the upholstery.
Arm
1 Pair
M10 Washer
(Outer Dim. 45mm)
4x
Place both arms as shown below, secure two legs and plastic wahsers into pre-drilled
holes on the bottom of arms. Please avoid overtightening.
Carefully lift and turn assembled arms onto its legs.
Insert seat body metal plates to both arms as shown below. Ensure it is
correctly in place.
Seat Body
1x
Backrest
1x
Storage
