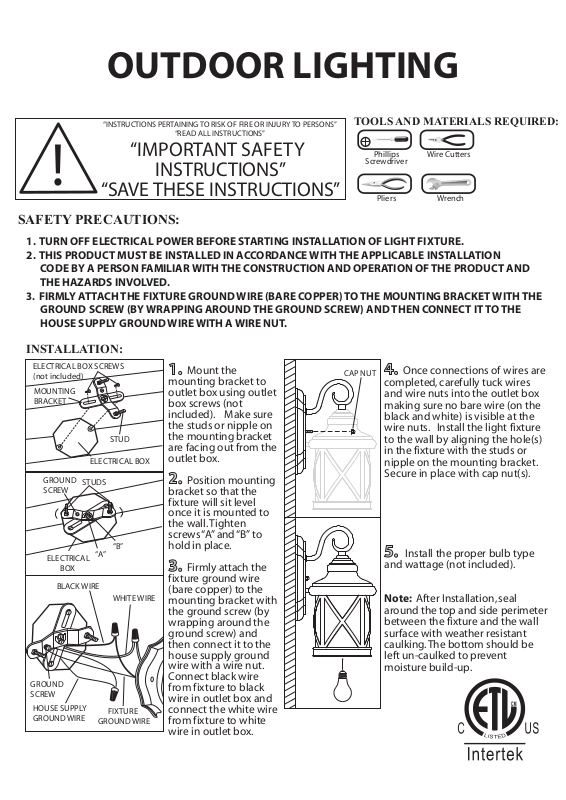

OUTDOOR LIGHTING
“INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS”
“READ ALL INSTRUCTIONS”
“IMPORTANT SAFETY
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
INSTRUCTIONS”
!
“SAVE THESE INSTRUCTIONS”
SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION
CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED.
3.
FIRMLY ATTACH THE FIXTURE GROUND WIRE (BARE COPPER) TO THE MOUNTING BRACKET WITH THE
GROUND SCREW (BY WRAPPING AROUND THE GROUND SCREW) AND THEN CONNECT IT TO THE
HOUSE SUPPLY GROUND WIRE WITH A WIRE NUT.
INSTALLATION:
ELECTRICAL BOX SCREWS
(not included)
MOUNTING
BRACKET
STUD
ELECTRICAL BOX
GROUND
SCREW
ELECTRICAL
BOX
GROUND
SCREW
HOUSE SUPPLY
GROUND WIRE
STUDS
“A”
BLACK WIRE
FIXTURE
GROUND WIRE
“B”
WHITE WIRE
1. Mount the
mounting bracket to
outlet box using outlet
box screws (not
included). Make sure
the studs or nipple on
the mounting bracket
are facing out from the
outlet box.
2. Position mounting
bracket so that the
fixture will sit level
once it is mounted to
the wall. Tighten
screws “A” and “B” to
hold in place.
3. Firmly attach the
fixture ground wire
(bare copper) to the
mounting bracket with
the ground screw (by
wrapping around the
ground screw) and
then connect it to the
house supply ground
wire with a wire nut.
Connect black wire
from fixture to black
wire in outlet box and
connect the white wire
from fixture to white
wire in outlet box.
CAP NUT
Pliers Wrench
4. Once connections of wires are
completed, carefully tuck wires
and wire nuts into the outlet box
making sure no bare wire (on the
black and white) is visible at the
wire nuts. Install the light fixture
to the wall by aligning the hole(s)
in the fixture with the studs or
nipple on the mounting bracket.
Secure in place with cap nut(s).
5. Install the proper bulb type
and wattage (not included).
Note: After Installation, seal
around the top and side perimeter
between the fixture and the wall
surface with weather resistant
caulking. The bottom should be
left un-caulked to prevent
moisture build-up.
