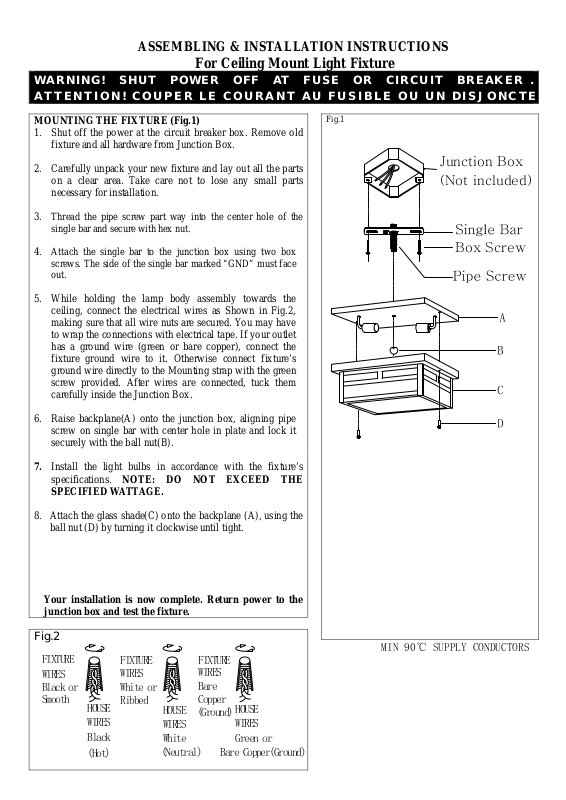

ASSEMBLING & INSTALLATION INSTRUCTIONS
For Ceiling Mount Light Fixture
ARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTE
MOUNTING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old
fixture and all hardware from Junction Box.
2. Carefully unpack your new fixture and lay out all the parts
on a clear area. Take care not to lose any small parts
necessary for installation.
3.
Thread the pipe screw part way into the center hole of the
single bar and secure with hex nut.
Attach the single bar to the junction box using two box
4.
screws. The side of the single bar marked “GND” must face
out.
5. While holding the lamp body assembly towards the
ceiling, connect the electrical wires as Shown in Fig.2,
making sure that all wire nuts are secured. You may have
to wrap the connections with electrical tape. If your outlet
has a ground wire (green or bare copper), connect the
fixture ground wire to it. Otherwise connect fixture’s
ground wire directly to the Mounting strap with the green
screw provided. After wires are connected, tuck them
carefully inside the Junction Box.
6. Raise backplane(A) onto the junction box, aligning pipe
screw on single bar with center hole in plate and lock it
securely with the ball nut(B).
7. Install the light bulbs in accordance with the fixture’s
specifications. NOTE: DO NOT EXCEED THE
SPECIFIED WATTAGE.
8. Attach the glass shade(C) onto the backplane (A), using the
ball nut (D) by turning it clockwise until tight.
Your installation is now complete. Return power to the
junction box and test the fixture.
Fig.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
Fig.1
Junction Box
(Not included)
Box Screw
MIN 90℃ SUPPLY CONDUCTORS
