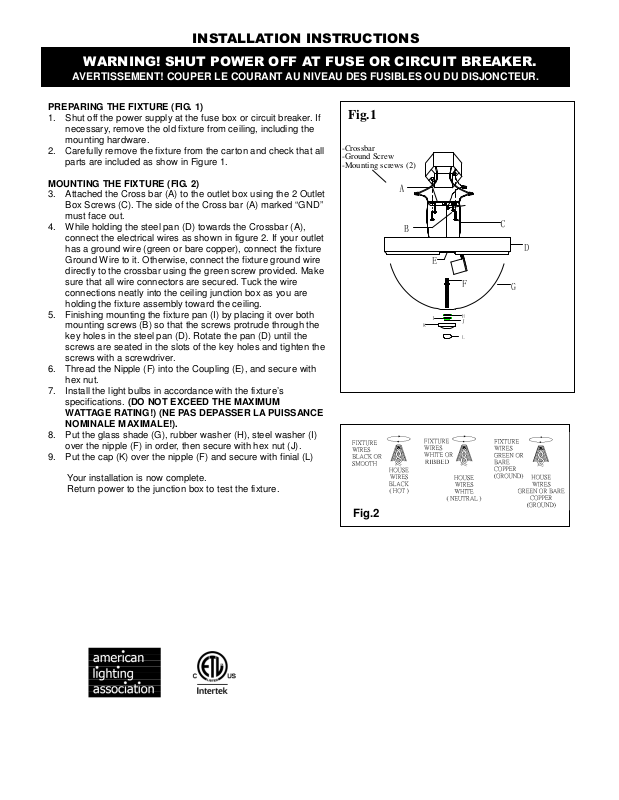

PREPARING THE FIXTURE (FIG. 1)
INSTALLATION INSTRUCTIONS
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
AVERTISSEMENT! COUPER LE COURANT AU NIVEAU DES FUSIBLES OU DU DISJONCTEUR.
1. Shut off the power supply at the fuse box or circuit breaker. If
necessary, remove the old fixture from ceiling, including the
mounting hardware.
2. Carefully remove the fixture from the carton and check that all
parts are included as show in Figure 1.
MOUNTING THE FIXTURE (FIG. 2)
3. Attached the Cross bar (A) to the outlet box using the 2 Outlet
Box Screws (C). The side of the Cross bar (A) marked “GND”
must face out.
4. While holding the steel pan (D) towards the Crossbar (A),
connect the electrical wires as shown in figure 2. If your outlet
has a ground wire (green or bare copper), connect the fixture
Ground Wire to it. Otherwise, connect the fixture ground wire
directly to the crossbar using the green screw provided. Make
sure that all wire connectors are secured. Tuck the wire
connections neatly into the ceiling junction box as you are
holding the fixture assembly toward the ceiling.
5. Finishing mounting the fixture pan (I) by placing it over both
mounting screws (B) so that the screws protrude through the
key holes in the steel pan (D). Rotate the pan (D) until the
screws are seated in the slots of the key holes and tighten the
screws with a screwdriver.
6. Thread the Nipple (F) into the Coupling (E), and secure with
hex nut.
7. Install the light bulbs in accordance with the fixture’s
specifications. (DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!) (NE PAS DEPASSER LA PUISSANCE
NOMINALE MAXIMALE!).
8. Put the glass shade (G), rubber washer (H), steel washer (I)
over the nipple (F) in order, then secure with hex nut (J).
9. Put the cap (K) over the nipple (F) and secure with finial (L)
Your installation is now complete.
Return power to the junction box to test the fixture.
Fig.1
-Crossbar
-Ground Screw
-Mounting screws (2)
Fig.2
D
E
F
H
I
K
J
L
G
