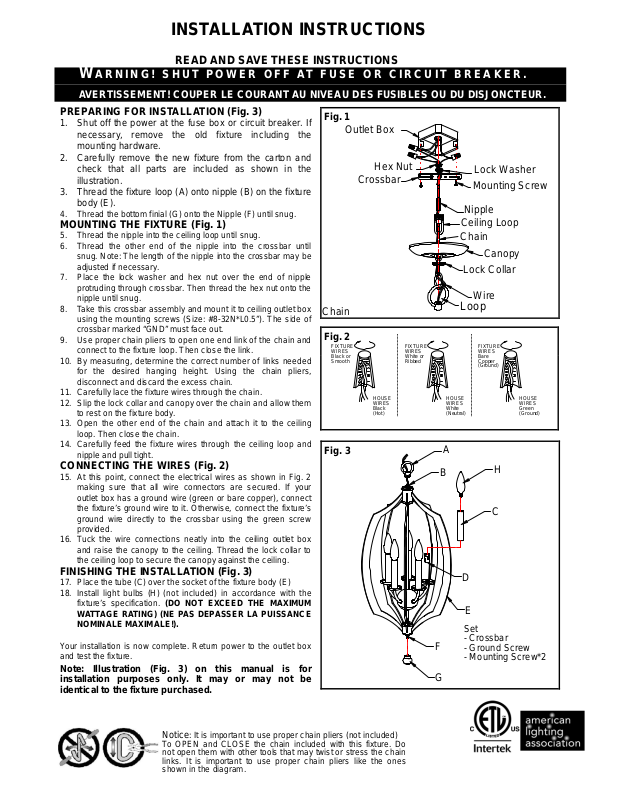

INSTALLATION INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.

AVERTISSEMENT! COUPER LE COURANT AU NIVEAU DES FUSIBLES OU DU DISJONCTEUR.

PREPARING FOR INSTALLATION (Fig. 3)

1. Shut off the power at the fuse box or circuit breaker. If
necessary, remove the old fixture including the
mounting hardware.

2. Carefully remove the new fixture from the carton and
check that all parts are included as shown in the
illustration.

3. Thread the fixture loop (A) onto nipple (B) on the fixture
body (E).

4. Thread the bottom finial (G) ont o the Nipple (F) until snug.

MOUNTING THE FIXTURE (Fig. 1)

5. Thread the nipple into the ceiling loop until snug.

6. Thread the other end of the nipple into the crossbar until
snug. Note: The length of the nipple into the crossbar may be
adjusted if necessary.

7. Place the lock washer and hex nut over the end of nipple
protruding through crossbar. Then thread the hex nut onto the
nipple until snug.

8. Take this crossbar assembly and mount it to ceiling outlet box
using the mounting screws (Size: #8-32 N*L0.5”). The side of
crossbar marked “GND” must face out.

9. Use proper chain pliers to open one end link of the chain and
connect to the fixture loop. Then close the link.

10. By measuring, determine the correct number of links needed
for the desired hanging height. Using the chain pliers,
disconnect and discard the excess chain.

11. Carefully lace the fixture wires through the chain.

12. Slip the lock collar and canopy over the chain and allow them
to rest on the fixture body.

13. Open th e other end of the chain and attach it to the ceili ng
loop. Then close the chain.

14. Carefully feed the fixture wires through the ceili ng loop and
nipple and pull tight.

CONNECTING THE WIRES (Fig. 2)

15. At this point, connect the electrical wires as shown in Fig. 2
making sure that all wire connectors are secured. If your
outlet box has a ground wire (green or bare copper), connect
the fixture’s ground wire to it. Other wise, connect the fix ture’s
ground wire directly to the crossbar using the green screw
provided.

16. Tuck the wire connections neatly into the ceiling outlet box
and raise the canopy to the ceili ng. Thread the lock collar to
the ceiling loop to secure the canopy against the ceiling.

FINISHING THE INSTALLATION (Fig. 3)

17. Place the tube (C) over the socke t of the fixture body (E)

18. Install light bulbs (H) (not included) in accordance with the
fixture’s specification. (DO NOT EXCEED THE MAXIMUM

WATTAGE RATING) (NE PAS DEPASSER LA PUISSANCE
NOMINALE MAXIMALE!).

Your installation is no w complete. Return power to the outlet box
and test the fixture.

Note: Illustration (Fig. 3) on this manual is for
installation purposes only. It may or may not be
identical to the fixture purchased.

Fig. 1

Chain

Fig. 2

FIXTURE
WIRES
Black or
Smooth

Fig. 3

Outlet Box

Crossbar

Hex Nut

HOUSE
WIRES
Black
(Hot)

FIXTURE
WIRES
White or
Ribbed

Lock Washer

Mounting Screw

Nipple

Ceiling Loop

Chain

Canopy

Lock Collar

Wire

Loop

FIXTURE
WIRES
Bare
Copper
(Ground)

HOUSE
WIRES
White
(Neutral)

A

B

D

E

Set

- Crossbar

F

- Ground Screw

- Mounting Screw*2

G

C

H

HOUSE
WIRES
Green
(Ground)

Notice: It is important to use proper chain pliers (not included)

To OPEN and CLOSE the chain included with this fixture. Do
not open them with other tools that may twist or stress the chain
links. It is important to use proper chain pliers like the ones
shown in the diagram.
