Alcor Meet User Manual

User Manual

Meet

2

Declaration

z The information hereof has been carefully checked to prevent mistakes

before publication. But due to different comprehension or translation it all
up to our explanatio n and please contact with our customer se rvice center
for help.

z Please read this manual carefully before using. Use only the battery and the

accessories the original factory provides, in order to avoid unanticipated
damages, once use this system not following the instruction or connect the
device with incompatible components, the damages might even threaten
your personal safety and should not be covered by our warranty for which
the company hereof holds no liability.

z Specifications are subject to change without prior notice. We reserve the

right of final interpretation of this user manual.

3

z All pictures hereof are for your reference only, please subject to the real

product.

Remarks

1) Storage

z Please avoid placing the device under direct sun irradiation,

sharply-changed temperature (below 0℃ or above 60℃) env ironment or in
high pr e ssure, dusty or humid envi r o nment.

z Please Avoid dropping or impacti ng upon t he device
z Keep away from caustic liquid or electromagnetic radiation.
z Please avoid placing the device in the radiation produced by other

4

electronic device.

［NOTE］ Please put the device with your luggage for X-ray detection at the
airport. Do not directly use magnetic detector on the device or else will destroy
the system.

2) Clean up

z Clean with dry and soft cloth gently at po wer-off condit ion.
z Please wipe the screen gently by soft cloth with light glass cleaner.

3) Battery
z When start using the units, Please fully charge and discharge the battery

2~3 times while first use to assure longer battery life and power capacity

z Please do not dispose the unit into fire to avoid the battery exploding

5

z Any unauthorized disassembly of the device will terminate official warranty.

4) Usage
a, Please do not use wet hand to plug/unplug or contact with device for
preventing shock or damage.
b, Please do not judder, otherwise the device maybe damaged.
C, Please ensure that the SD card has enough space to save new files.
D, Files or data stored in the device can not completely avoid being destroyed
or lost due to improper use or other reasons. Please copy the files and data to
your computer when necessary

Catalog

1, Introduction

1.1 Feature

6

1.2 Packing checklist

1.3 Buttons and Functions
2, Usage on the computer

2.1 Data Transferring

2.2 Disconnection
3, Basic Operation

3.1 Battery

3.2 Power Button

3.3 Restart

3.4 Use in car

3.5Touch pen

3.6 SD/MMC Card
4, Mode operation

4.1 Navigation

7

4.1.1 Function Feat ures

4.1.2 Key instructions

4.1.3 Operation steps

4.2 Music

4.3 Photo

4.4 EBook

4.5 V i deo

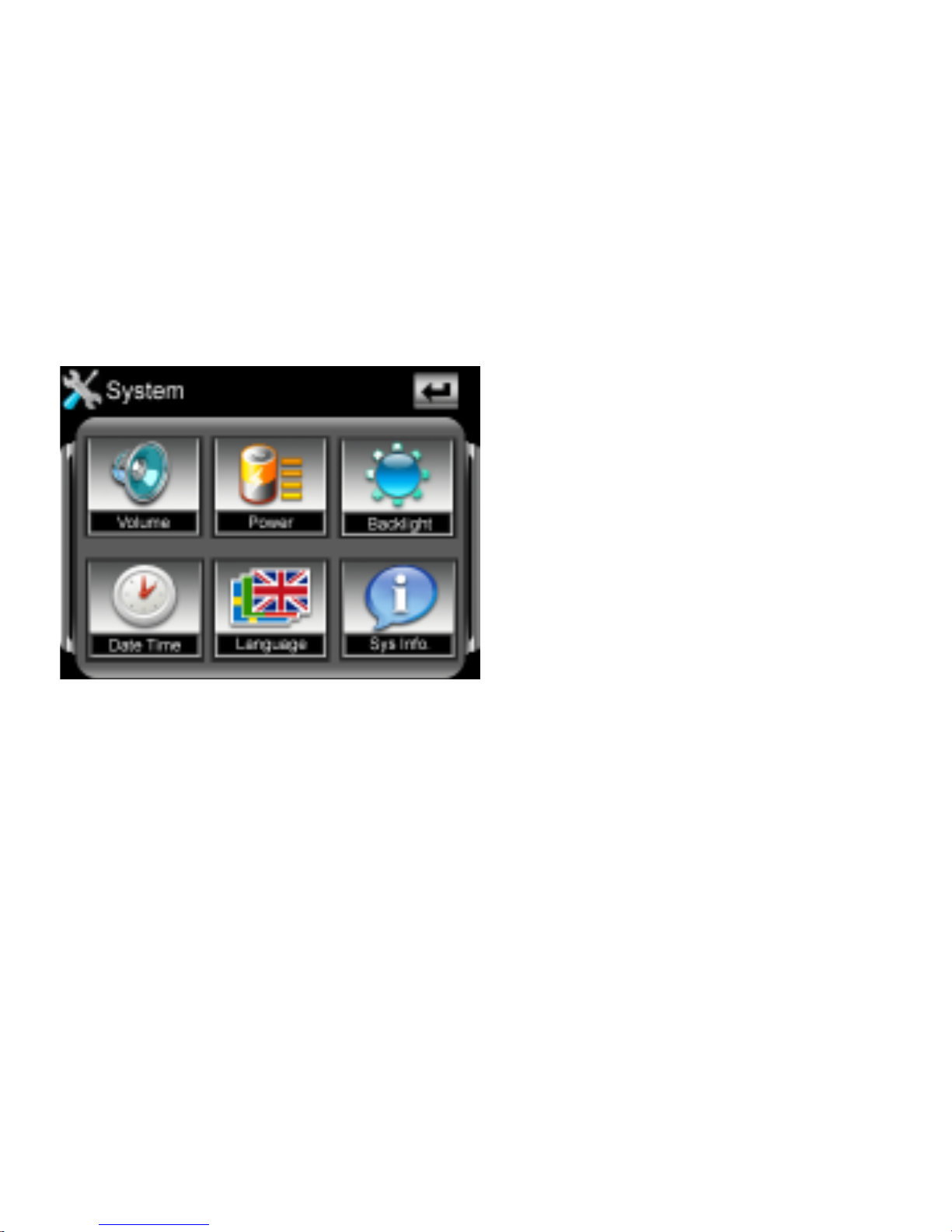

4.6 System

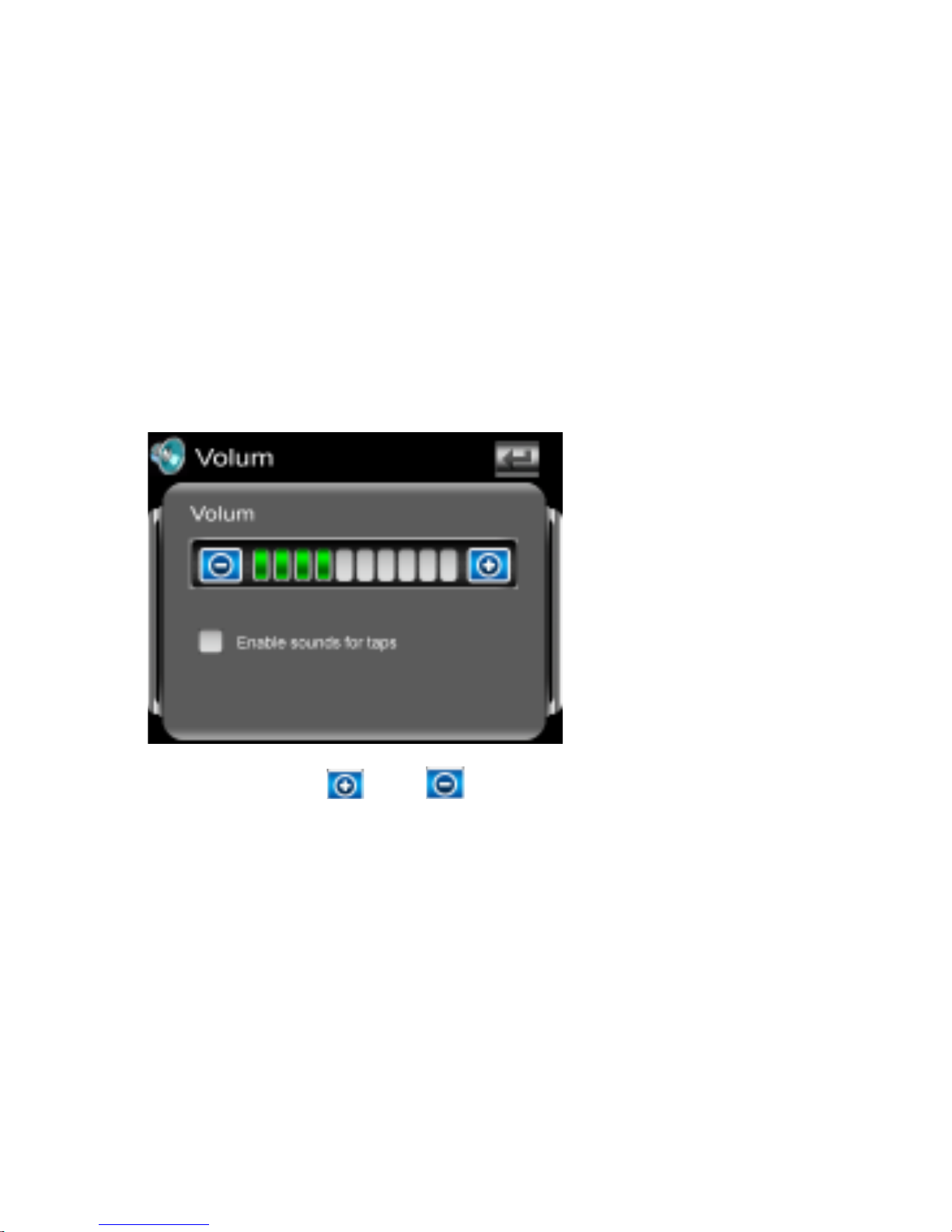

4.6.1 Vo lume

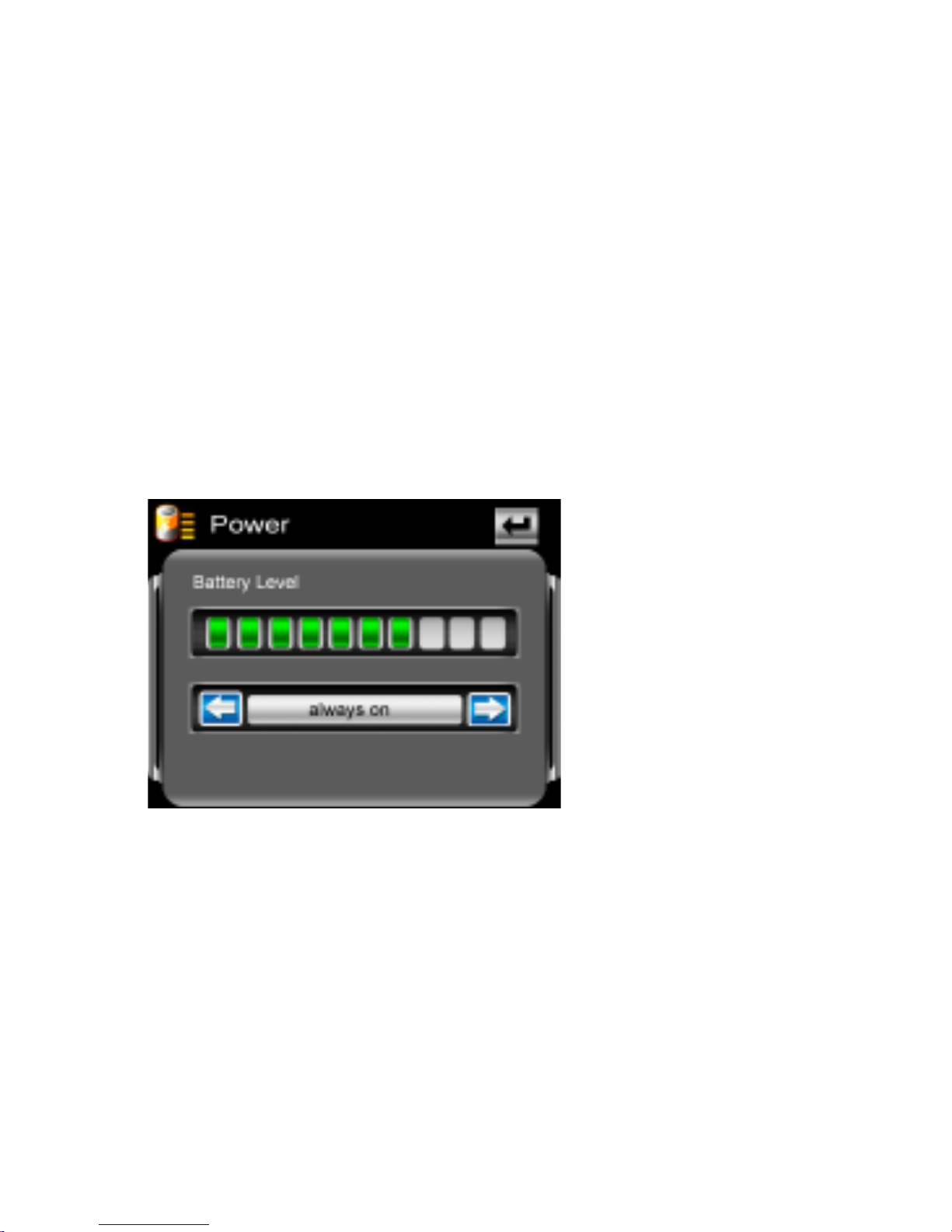

4.6.2 Power

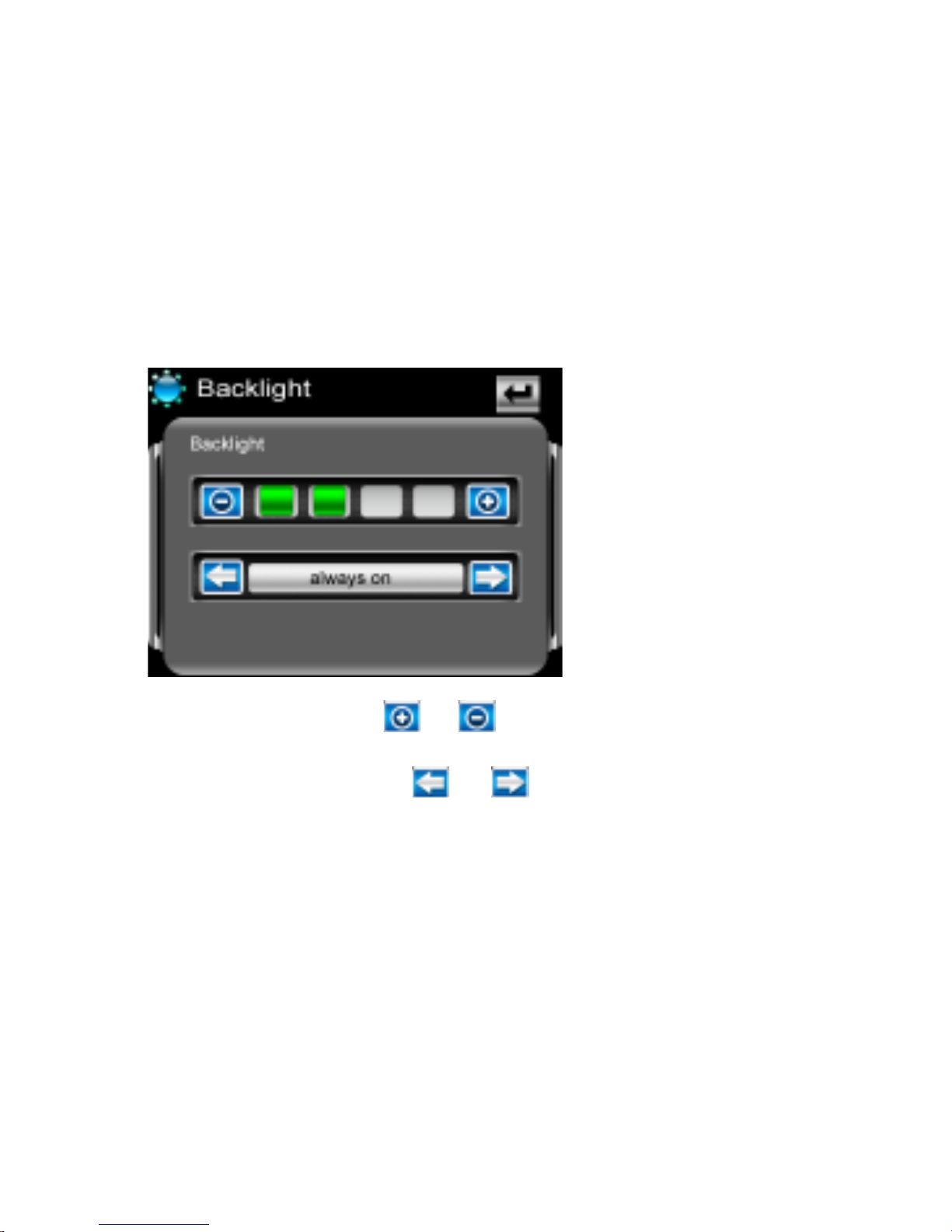

4.6.3 Backlight

4.6.4 Date time

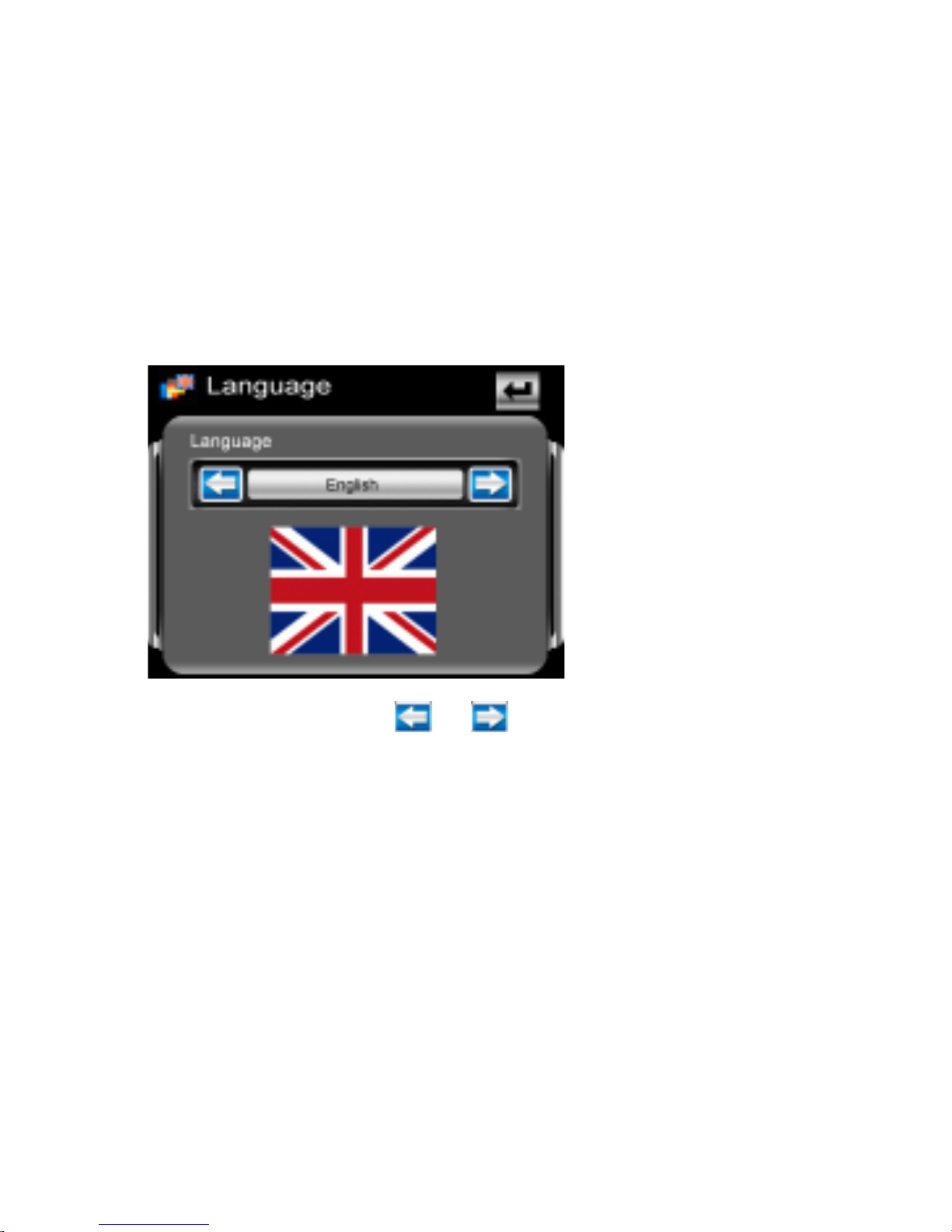

4.6.5 Language

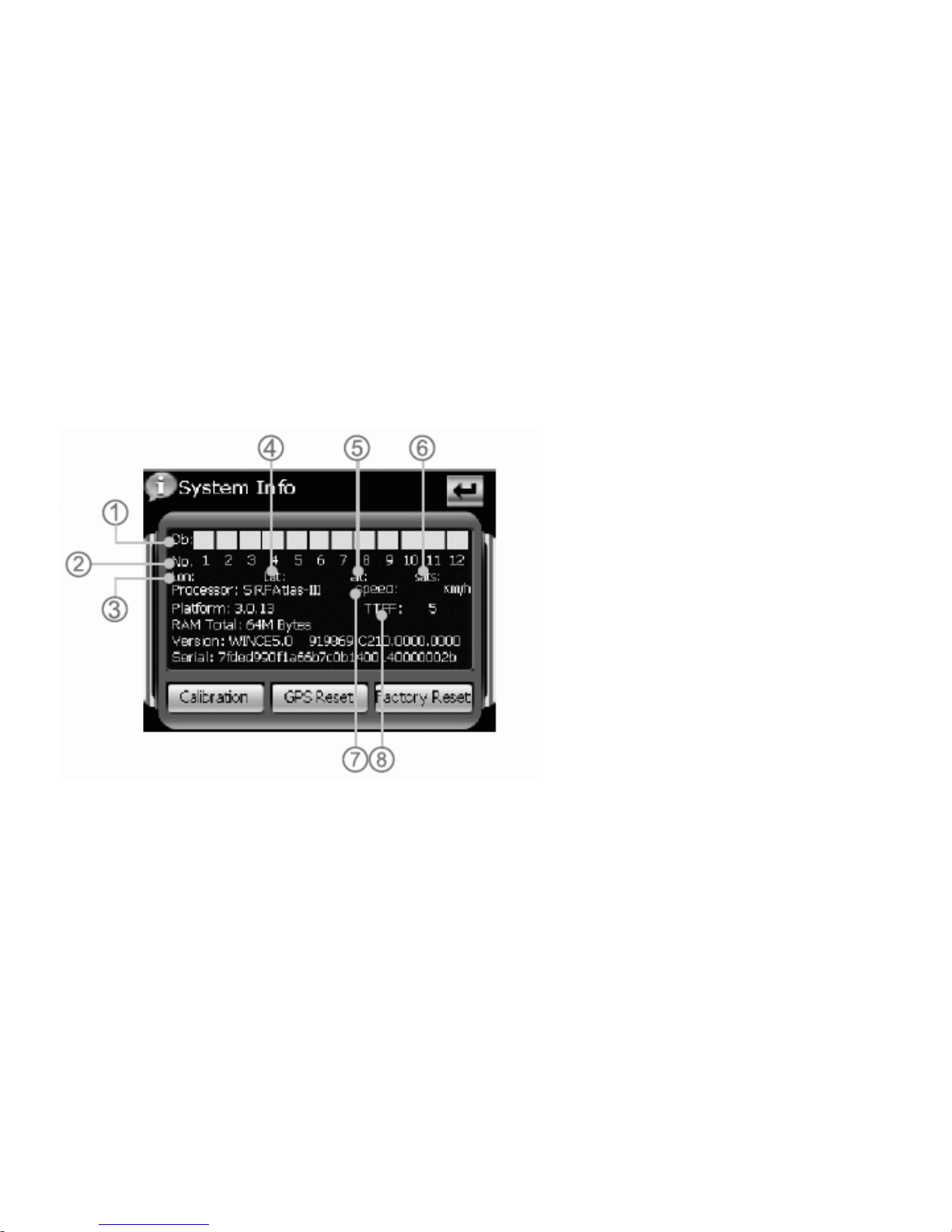

4.6.6 Sys info.

8

5 Specifications

6. FAQ

1. Introduction

Thanks for Purchasing the car/portable GPS navigator, It is new type of portable
GPS navigator, which Combine s digit al movie & music pl aying, photo browse an d
eBook reading, Before using it, please read the use manual thoroughly, this
manual is applicable for this device only.

1.1 Features

z Support GPS navigation

9

z Support ASF, AVI, WMV, MP4, 3GP video file (this function is optional)
z Support WMA, MP3, WAV format audio file (this function is optional)
z Support JPEG, BMP, PNG format picture browse
z Support TXT format e-book reading
z Support SD/MMC Card
z Built-in speaker
z Mini USB port

1.2 Package

Please check if you have all below items. Any miss please contact with the local
agent or distributor.

z Car/Portable navigator
z AC adapter
z Car adapter

10

z User manual
z USB cable
z Touch pen
z Holder

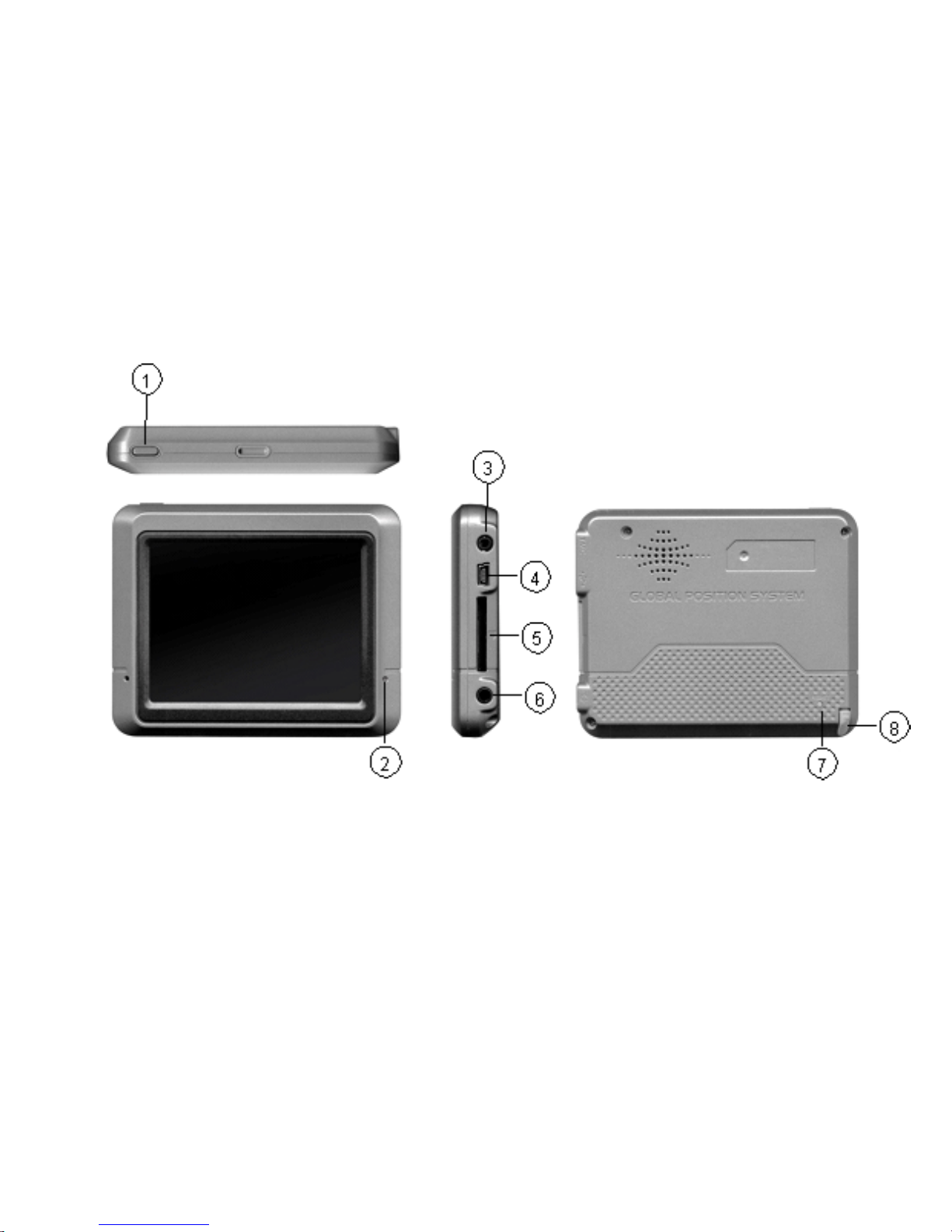

1.3 Buttons and Functions

11

12

1. Power button Start up / shut down

2. LED Display charging state MINI
3, External TMC antenna port (optional) connect to TMC antenna
4, USB port Connect to PC through MINI USB cable/charging device by power
adapter
5, SD/MMC Card slot Insert the SD/MMC Card into it

6. Earphone Jack Connect to stereo Earphone
7, Reset hole Reboot the system
8, Rope race Used to hang the touch pen on it.

2. Usage on the Computer

2.1 Data Transferring
Link the device with the computer through USB ca ble connecti on to do data
transferring between the device and PC.

13

z Make sure the power-on condition of the device.
z Mini USB port to the device and standard USB port to the PC USB host.

Data transferring

z Connect the device with the computer through USB cable.
z Double click ‘My Computer’ icon then find two ‘Removable Disk’. The first

one represents the device, and another represents SD/MMC card.

z Double click any one of the ‘Removable Disk’ to enter the fold er then you c an

do copy, delete or edit data.

［

NOTE］Please do not pull out the USB cable while doing data transferring

or else the data will be lost.

2.2 Disconnection

Please do according to the system notice to remove the USB cable.
z Left click USB icon on the taskbar in PC, then click the pop-up notice

14

z After seeing the safety notice, remove the USB cable.

［

NOTE］While connecting with the computer, other functions of the GPS

device will pause.

3 Basic Operation

3.1 Battery

When the GPS Navigator is use d f or the f irst time, you h ave to use the a dapter to
charge the battery completely, this models uses the built-in lithium battery,
Please connect the navigator with AC adapter for charging, or connect car
adapter with cigar-lighter adapter of car to charge for the battery.

［

NOTE］The LED indicator will be red alight while charging and it will turn

15

green after completely charging. Please do not unplug the adapter while
charging.

z AC adapter – Insert the DC port of the adapter into the adapter jack connect

another side of the adapter to electrical outlet.

z Car adapter – Insert the DC port of the car adapter into the adapter Jack,

Connect another side of the car adapter to the cigar-lighter adapter on the
car for power.

［

NOTE］Please use the car adapter after cranking up or else the current

will destroy the GPS device.

3.2 Power Button

To enter the sleeping mode to save the power, please press the power button for
1 seconds and there is a message “entering sleeping mode” displayed, then

16

screen would be shut off, but the red light is on.
To start up the system, please press the power button again, the screen will
display the last picture showed before sleep automatically in the time of starting
up.
To shut down the system, please press the power button for 2 seconds and there
is a message “power off” displayed, then screen would be shut off

［

NOTE］The device can be normally charged while powered off, and

please keep power-off if no use for a long time.

3.3 Restart

In case the GPS navigator does not response to any operation, poke the reset
hole on the back of the device to reboot the system.

［

NOTE］The data maybe lost when you poke the reset hole to restart the

17

system, please copy the files and data to your computer when necessary

3.4

Use in car

While use the GPS device in your car please use the Window mounting kit and
fixing clip provided in the package to set the device on panel under the
windshield.

［

NOTE］Please carefully choose the GPS device setting posi tion.

z Do not disturb the eye sight of the driver.
z Make sure well fixing.
z Keep away from SRS airbag place

3.5 Touch Pen

The touch pen is an important tool, please keep it carefully.

18

z Single click: click the screen once with the pen point to choose the wanted

item

z Double click : quickly click the screen twice with the pen point
z Drag : choose one place with pen point and drag the touched item to the

desired direction.

［

NOTE］ Please use touch pen to write on the LCD screen rather than other

sharp objects when use the hand writing function.

3.6 SD/MMC Card

The SD/MMC card use on the device saved map software and data, and it can
also be used as mass st orag e to ke ep files. Just insert ing it t o t he car d slot on t he
device. But while file reading, please do not take out the card.

［

NOTE］Please keep the card away from corrosive, over high or low

temperature and direct sunlight. And insert the card from right direction.

19

4. Mode operation

There are 6 menus in main menu: Navigation. Music, Video. E-book, Photo,

System.

4.1 Navigation

4.1.1 Function Feature
This GPS Navigator uses intelligent navigation system which can pinpoint

the position of mobile device by GPS satellite signal receiv er and show it on
the electronic map, the sy stem will figure out an optional path automati cally
after the users set the destination and help them reach the destination
safely and quickly, The system makes you fully enjoy the charm of it in
many aspects such as visual map, real time animation, voice and letter
reminding and enjoy a comfortable and happy trip.

4.1.2 Key instruction

20

z About Map – please do according to the instruction or manual provided by

the Map Company. You are persuaded to consider about the actual traffic

condition and observe local rules.

z About Navigation – the routes recommended are for reference and it all up to

your choice to do according to that or not.

z About signal receiving – some factors may affect the signal receiving, such

as weather, tall or dense buildings (in tunnel, underground parking and
viaduct) and no satellite signal.

4.1.3 Operation Steps

Please do according to the instructions sh own on the Map Use Manual.

21

4.2 Music

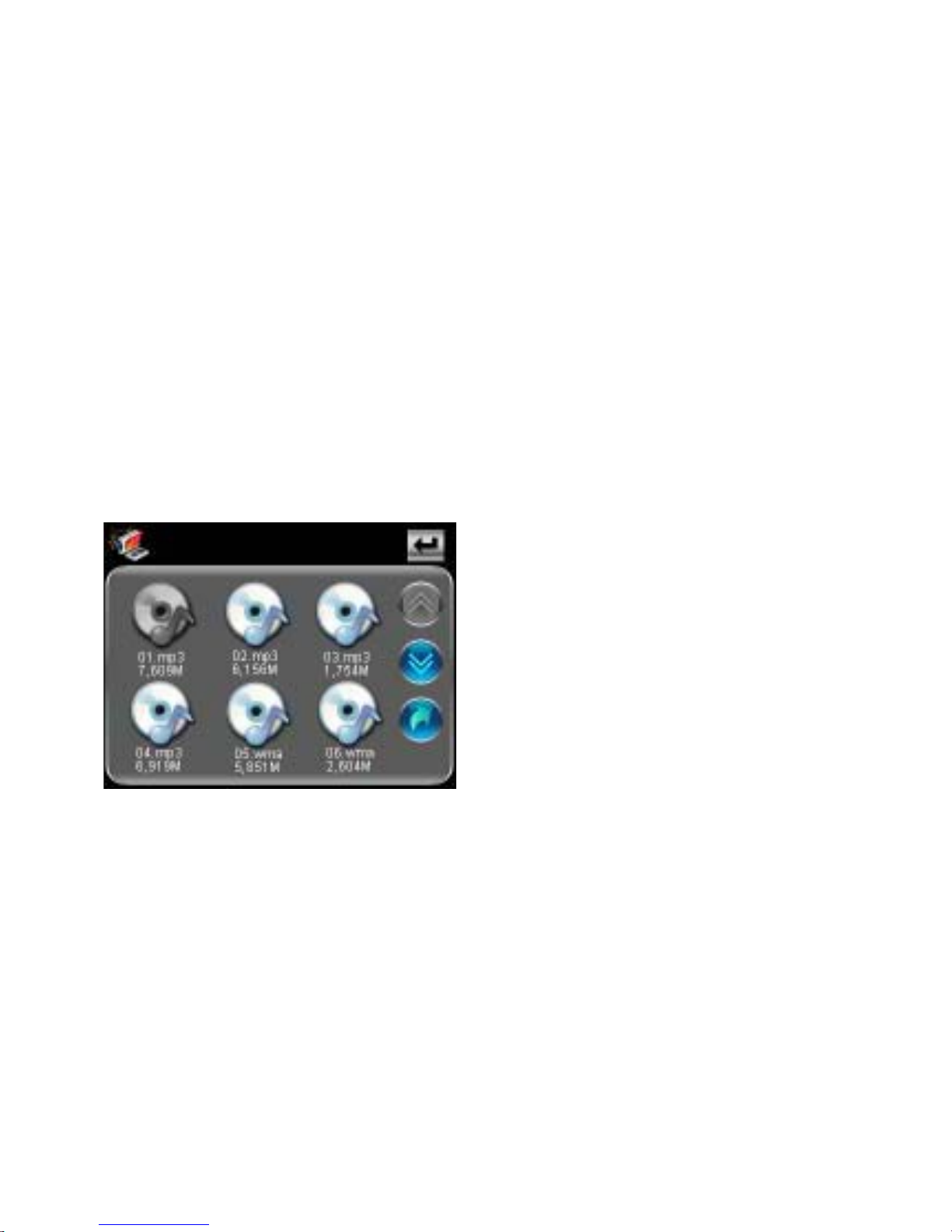

1, Click “music” icon in main menu to open the audio folder.

22

Back Turn back to the main menu

Last Turn to the previous page

Next Turn to the next page

Return to the parent folder

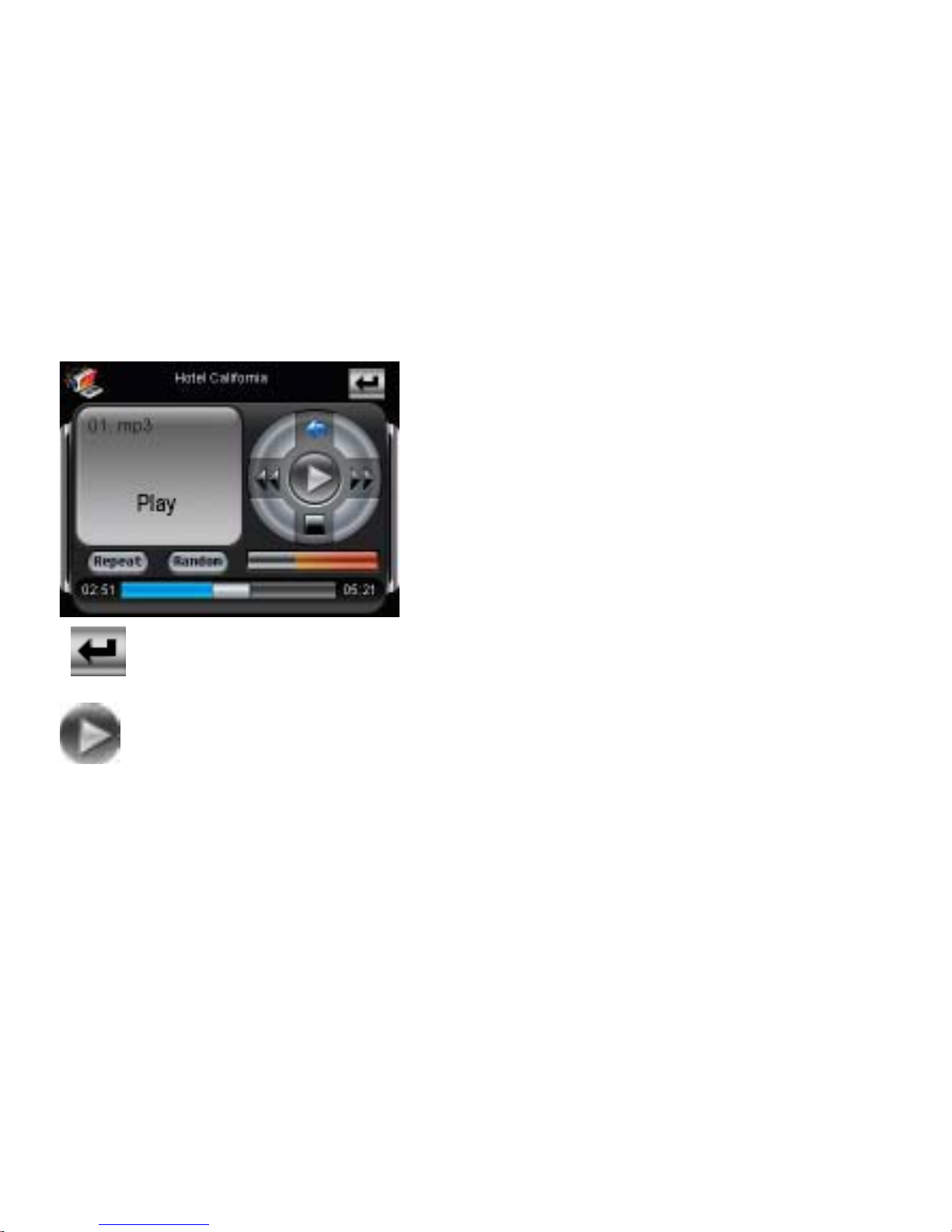

2, Select an audio file and click it to open the audio player

23

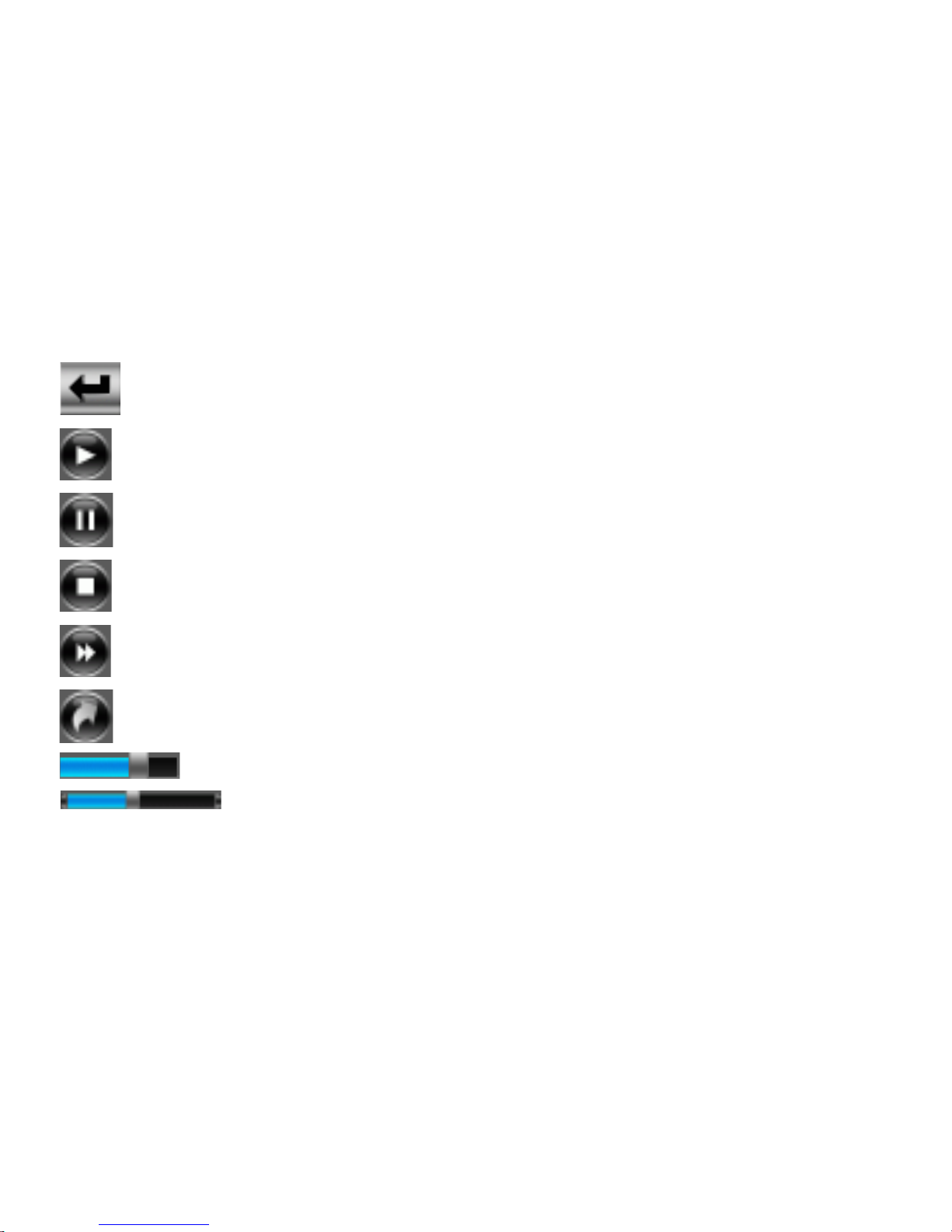

Back Turn back to the main menu

Play Play/Continue the selected audio file

24

Pause Pause the playing audio file

Stop stop playing the current audio file

Repeat Sequential playing

Random Random playing

Previous Play the pre v ious audio fi l e

Next Play the next audio file

Volume Control Drag the slider to adjust the volume

Progress control Adjust the playing progress

25

Upward Return to the parent folder

Lyric show Display the lyric of the playing musi c

Music information Show the information of the playing music

26

4.3 Photo

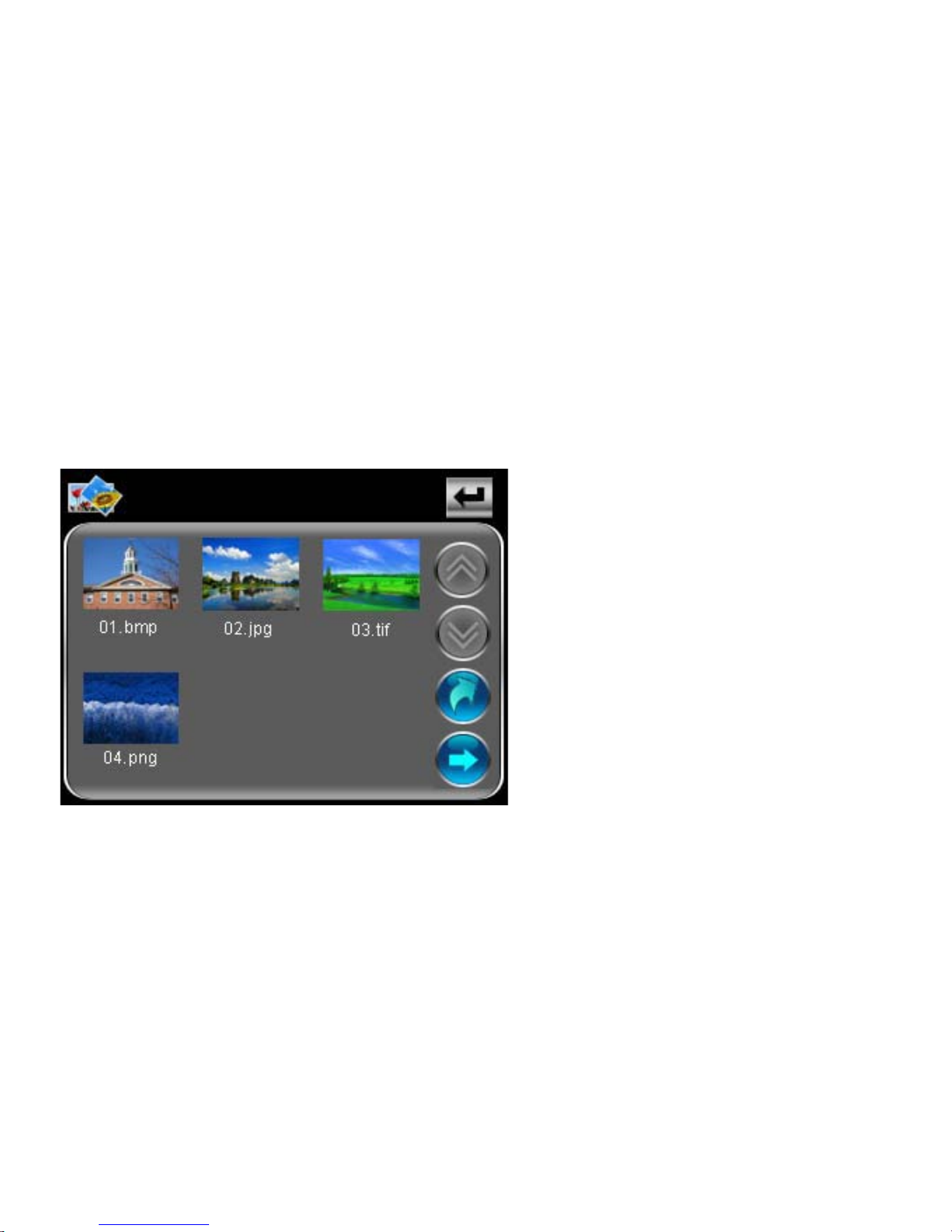

1, Click “ photo” icon in main menu to open the photo folder

27

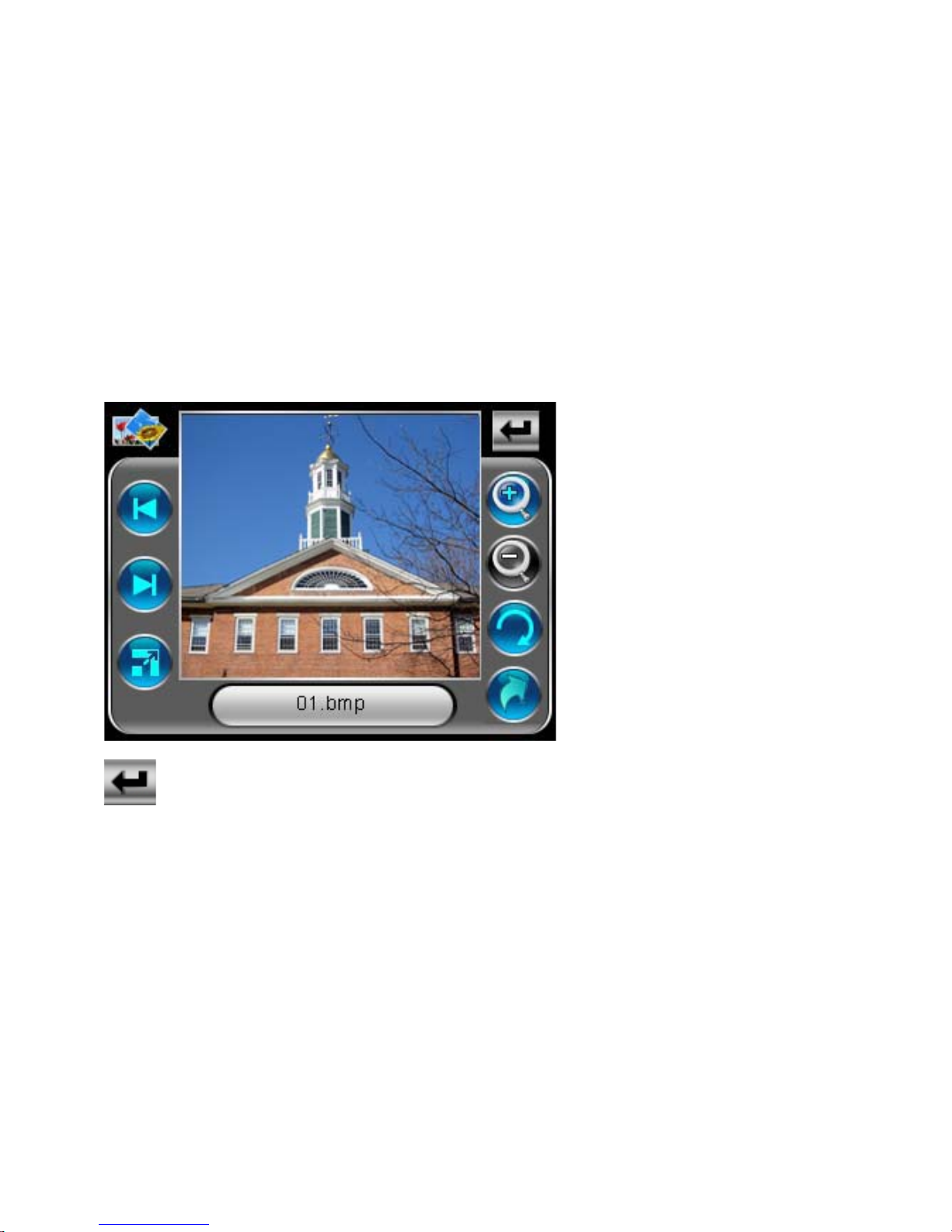

2 ：Select a picture file and click it to open the photo browser

Back Turn back to the main menu

28

Zoom in Scaling up the current picture

Zoom out Scaling down the current picture

Rotate Rotate the current photo by 900

Auto play play all pictures in the selected folder with full screen from the

current picture

previous show the previous picture

Next Show the next picture

29

Return Return to the parent folder

4.4 Ebook

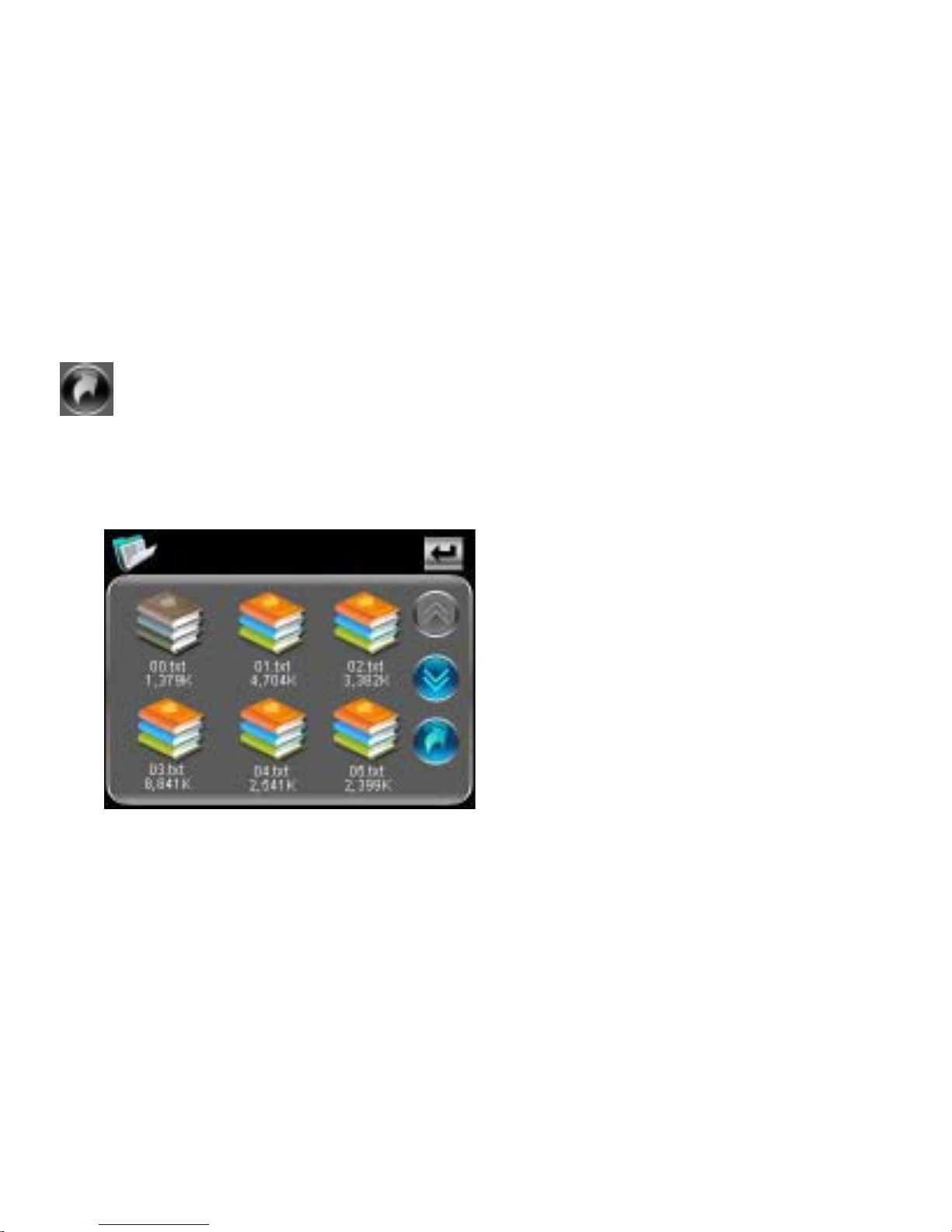

1, click “ Ebook” icon in main menu to open the e-book f older

30

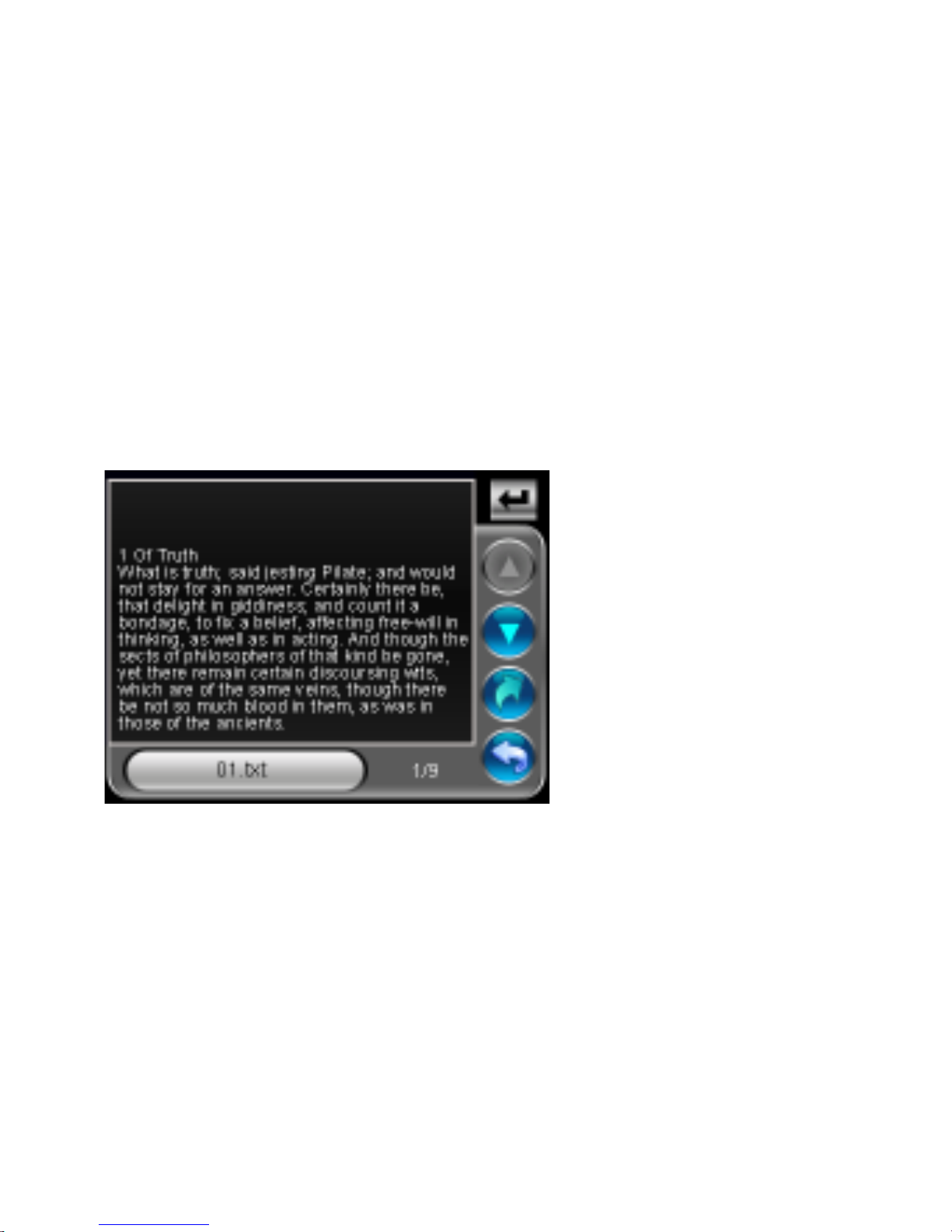

2, Select a TXT file and click it to open the e-book browser

31

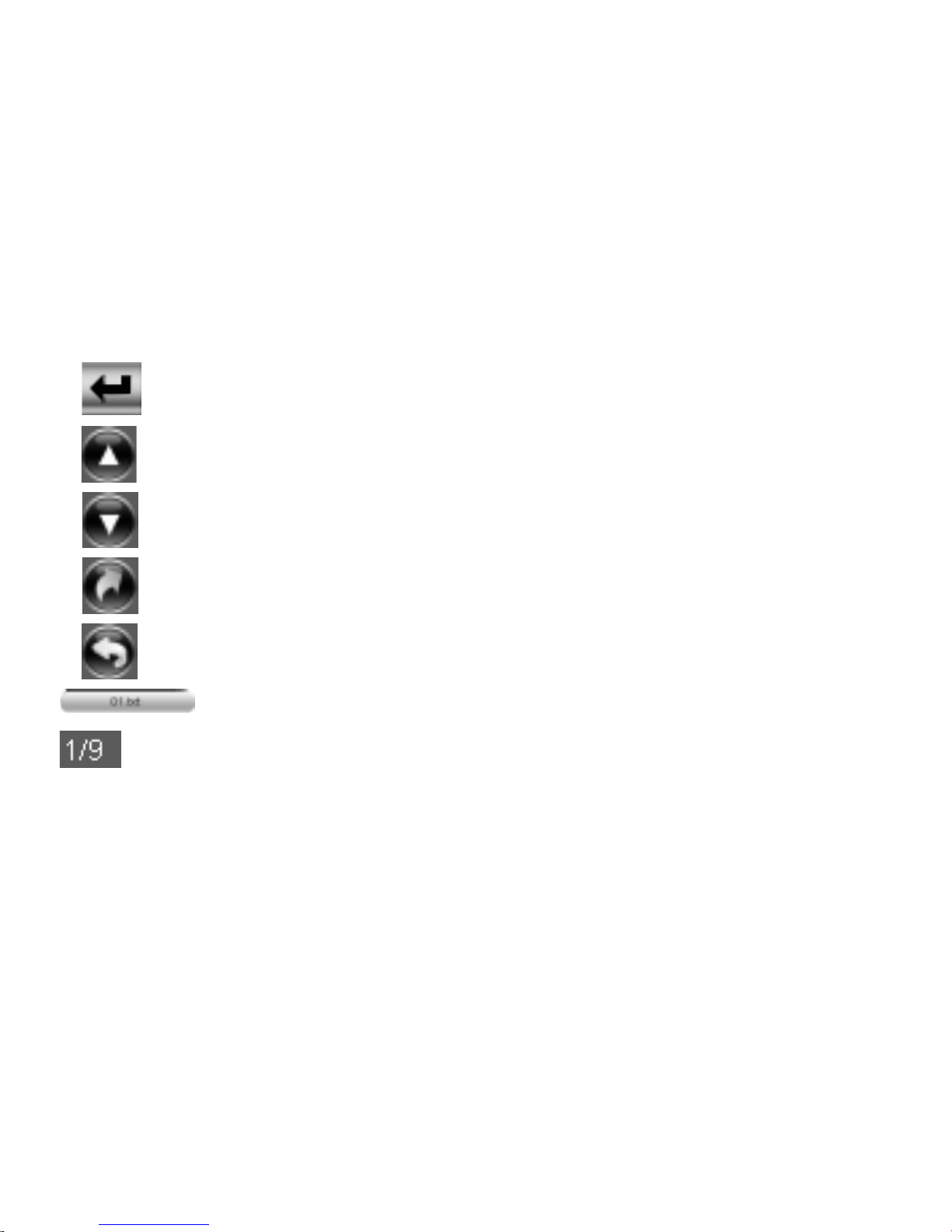

Back Turn back to the main menu

Previous page show the previous page of the current one

Next page show the next page of the current one

Upward Return to the parent folder

Page Selector Display the page selector panel

File’s name Show the current file’s name

Page Number show the current page/ total page

32

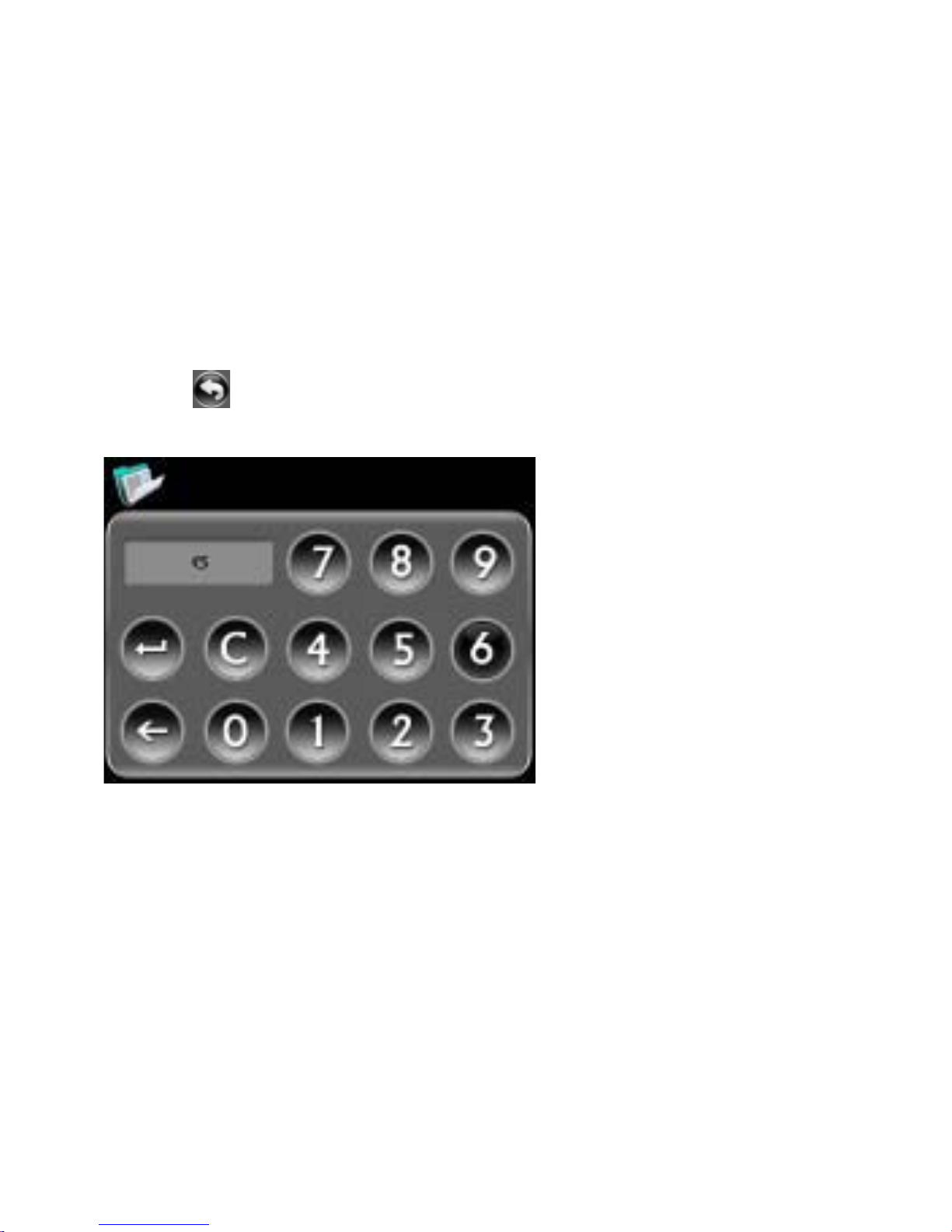

3, Click button to select page number in the page selector and turn to

the page you want to read

33

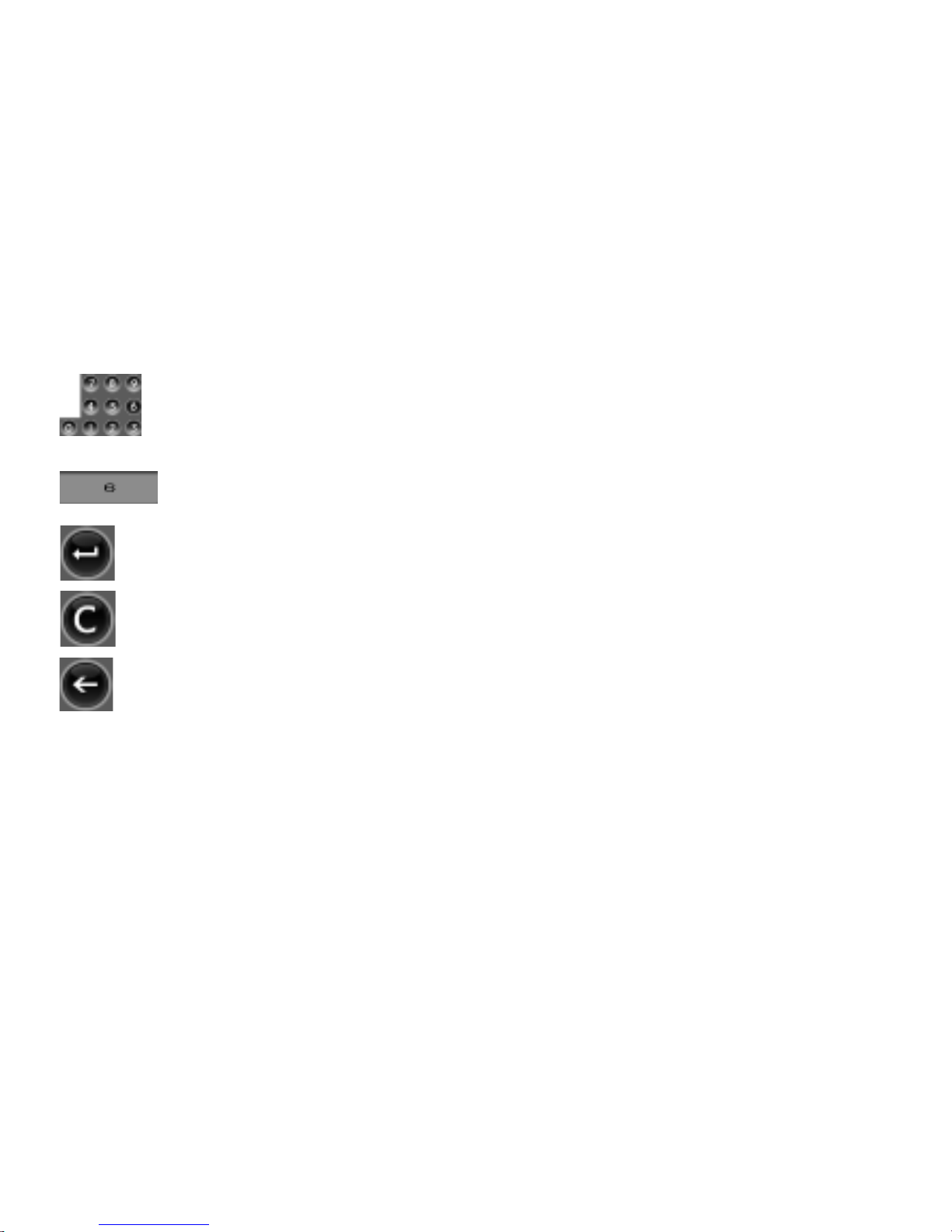

Number Key Used to input the page number

Number display area Display the inputted Number

Delete Delete the last inputted number

Clear clear all inputted number

Turn page turn to the selected page

34

4.5 Video
1, Click “ video” icon in main menu to open the video folder

35

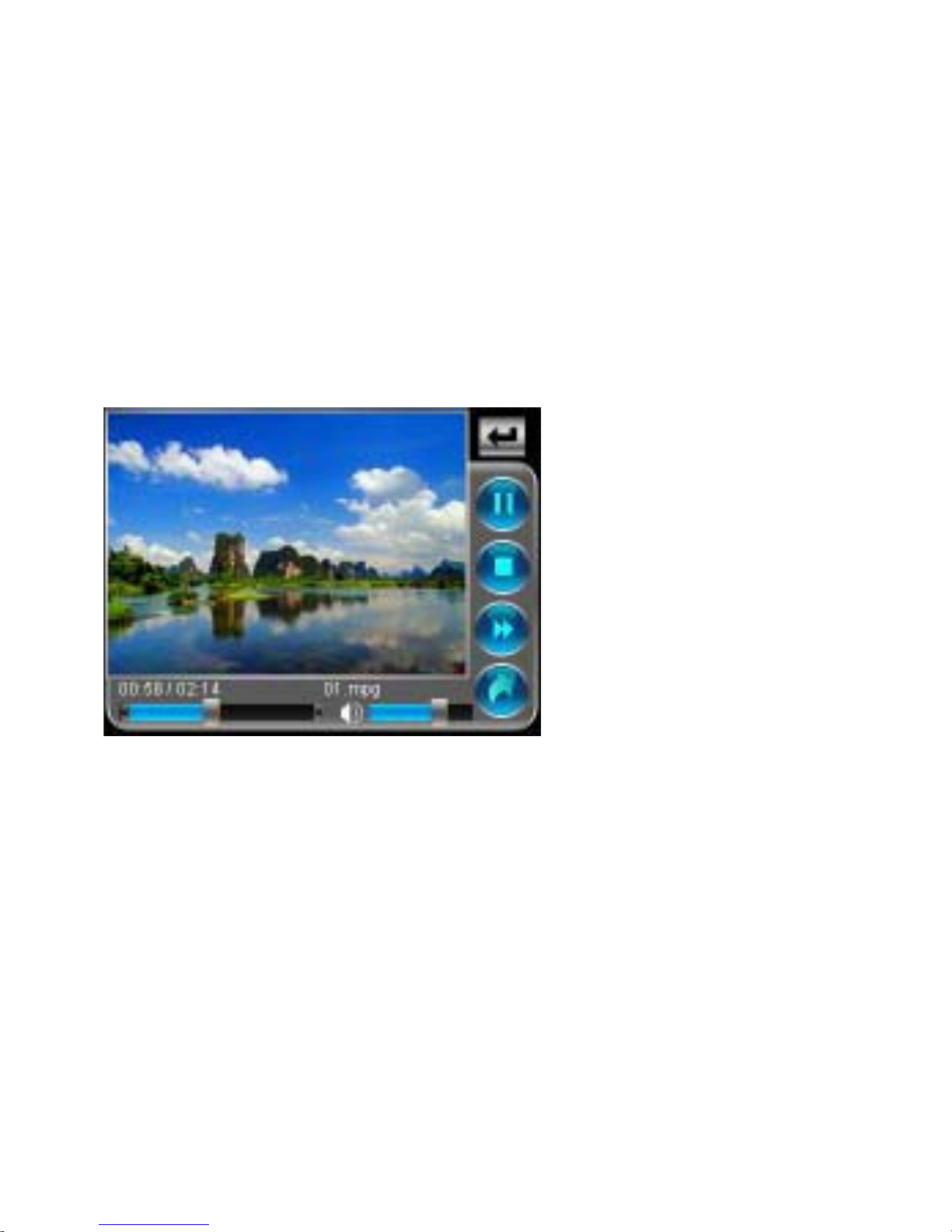

2, Select a video file and click it to open the video player

36

Back turn back to the main menu

Play Play the selected video file

Pause Pause the playing video

Stop Stop playing the current video

Fast forward increase the play speed

Upward Return to the parent folder

Volume control Drag the slider to adjust the volume

Progress control Adjust the playing progress

37

Time Show the played time / total time

Name Show the name of the current video file

4.6 System

Click “ system “ icon in main menu and enter into the system setting menu, in
this menu, you can set “ Volume” “ power “ Backlight “ “date & time”
“ Language “ sy stem info”

38

39

4.6.1 Volume
1, Click the “ volume “ icon to enter the volume setting interface

2, Click the icon

and to set the volume level

40

3, You can set the sounds for taps by selecting the check box below the
volume bar

4.6.2 Power
1, click “ power” icon to enter the power setting interface

41

2, The “ battery level “ bar shows the current battery power and you
can set the time to shut down automatically by clicking the two icons

&

4.6.3 Backlight
1, Click “ backlight” icon to enter the backlight setting interface

42

2, Click the two icons

& to set the brightness level

3, Click the two icons

& to set the time to shut off the

43

backlight automatically

4.6.4 Date time

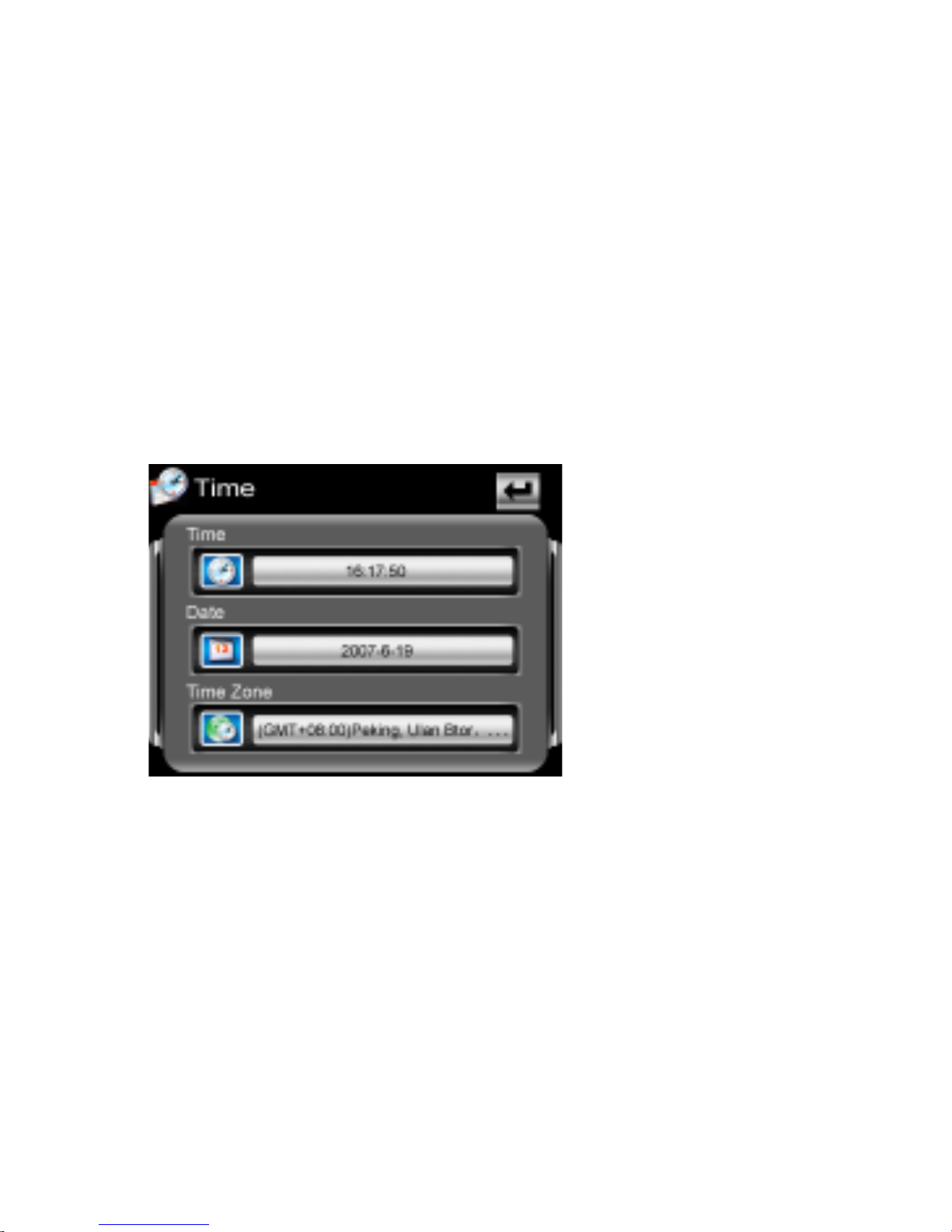

1, Click “ Date time” icon to enter the time setting interface

2, Click the three icons on the screen and enter the setting interface of

44

time, date and time zone respectively, you can set the current time,

date or time zone by click the icons

&

4.6.5 Language
1, Click “ language” icon to enter the language setting interface

45

2, Click the icons of

& to choose a language, the system

provides 19 languages for choice

46

4.6.6. System Information

Click “System” icon to view the detailed system informati on.

1. Click Screen “Calibration” icon at the left corner of information box to adjust

47

the touch screen.
Choose to move the cursor through middle, left, right, up,down steps.
Repeat click the middle of cursor until the calibration is successful.

2. Click “Factory setting” icon at the right corner of
information box, the system will automatically return to
the factory setting.

3. Click “GPS Reset” icon in the middle of information box, the system will
automatically clear up the Signal-to-Noi se data received.

Signal-to-Noise data

Channel

48

Longitude

Latitude

Altitude

Satellite no

Speed

Positioning time

49

5, Specifications

OS System

Microsoft Window CE Net 5.0 Core

Capacity of SD
/MMC Card

128MB-2GB

Loudspeaker

1.5W

Audio

WMA, MP3, WAV

Video

ASF, AVI, WMV, MP4, 3GP


JPEG, BMP, PNG

E-book file

TXT

Sensitivity

<15m

Antenna

0.1m/sec

50

Working
Temperature

-10~60

Storage and
Transportation
Temperature

-20 to 70

Relative
humidity under
working

20% to 80% (40)

Atmospheric
Pressure

86pa to 106kpa

Operating
System

Windows 98/me/ 2000/xp, Mac OS 9x or above. Linux

2.4 x or above.

Screen

3.5” TFT touch panel with 320*240 pixel

51

FAQ

Response Reasons Analysis Remedy

Fail to power on Low power Charge battery through

adapter

Power off shortly

while power on

Low power Change battery

through adapter

No sound output The volume is 0 Turn up the volume

The earphone isn’t
connected

Connect earphone
correctly

No response to

clicking icons

The screen isn’t calibrated

Calibrate the screen.

Refer to 4.6.6

52

Fail to copy file

1, Check the system

whether be accordance

with requirements 2,
Format SD/MMC card

and try again

No GPS signal

Please take the

navigator to outdoors ,

it needs about 1 minute

to receive the signal

and it depends on the

strength of local GPS

signal

The map is lost 1, Copy the map file

53

from the attached CD.

2, Contact the local

agent, the password

needs to be input when

using the navigation

function again.

Distributor: Infopatika Ltd.
Angol str. 38. H-1149 Budapest, Hungary
www.infopatika.hu
Made in China
