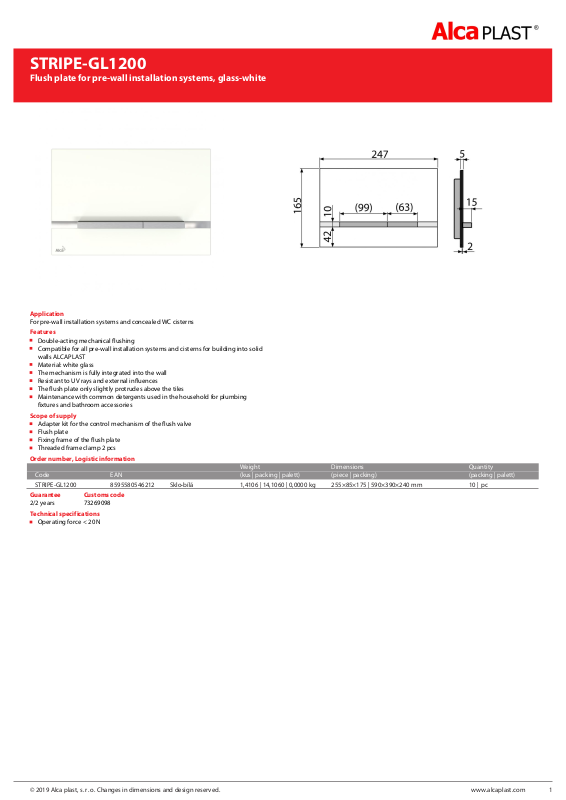

STRIPE-GL1200
Flush plate for pre-wall installation systems, glass-white
Application
For pre-wall installation systems and concealed WC cisterns
Features
Double-acting mechanical flushing
Compatible for all pre-wall installation systems and cisterns for building into solid
walls ALCAPLAST
Material: white glass
The mechanism is fully integrated into the wall
Resistant to UV rays and external influences
The flush plate only slightly protrudes above the tiles
Maintenance with common detergents used in the household for plumbing
fixtures and bathroom accessories
Scope of supply
Adapter kit for the control mechanism of the flush valve
Flush plate
Fixing frame of the flush plate
Threaded frame clamp 2 pcs
Order number, Logistic information
Code EAN (piece | packing)(kus | packing | palett) (packing | palett)
STRIPE-GL1200 8595580546212 Sklo-bílá 1,4106 | 14,1060 | 0,0000 kg 255×85×175 | 590×390×240 mm 10 | pc
Guarantee
2/2 years
Technical specifications
Operating force < 20 N
Customs code
73269098
Weight Dimensions Quantity
© 2019 Alca plast, s. r. o. Changes in dimensions and design reserved. www.alcaplast.com 1
