A6100 WiFi USB Mini Adapter
User Manual
September 2013
202-11274-01
350 East Plumeria Drive
San Jose, CA 95134
USA
A6100 WiFi USB Mini Adapter
Support
Thank you for choosing NETGEAR.
After installing your device, locate the serial number on the label of your product and use it to register your product
at
https://my.netgear.com. You must register your product before you can use NETGEAR telephone support.
NETGEAR recommends registering your product through the NETGEAR website. For product updates and web
support, visit
Phone (US & Canada only): 1-888-NETGEAR.
Phone (Other Countries): Check the list of phone numbers at
http://support.netgear.com/general/contact/default.aspx.
NETGEAR recommends that you use only the official NETGEAR support resources.
http://support.netgear.com.
Trademarks
NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of
NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change
without notice. Other brand and product names are registered trademarks or trademarks of their respective
holders. © NETGEAR, Inc. All rights reserved.
2
Contents
Chapter 1 Getting Started
Chapter 2 Maintenance
Set Up the Mini Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
View Network Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Join a Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Join a Network Using WPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Join a Network Using NETGEAR genie . . . . . . . . . . . . . . . . . . . . . . . . .11
Join a Hidden Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Join a Network Using a Standalone Driver. . . . . . . . . . . . . . . . . . . . . . . 19
View Connection Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Update the Mini Adapter’s Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Get Diagnostic Information for the Mini Adapter. . . . . . . . . . . . . . . . . . . . . 24
View Additional Information About the Mini Adapter . . . . . . . . . . . . . . . . .26
Uninstall the Mini Adapter’s Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Chapter 3 Troubleshooting and
Frequently Asked Questions
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Appendix A Factory Default Settings and
Technical Specifications
Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Appendix B Notification of Compliance
3
1. Getting Started
The A6100 WiFi USB Mini Adapter wirelessly connects your notebook or desktop computer to an
11ac network for applications such as lag-free video streaming throughout your home, online
gaming, and secure and reliable Internet connections.
In addition, Beamforming+ technology boosts the speed, reliability, and range of WiFi
connections. The mini adapter automatically uses NETGEAR Beamforming+ technology to
enhance WiFi performance with 802.11ac WiFi devices. Because it's automatic, you don't have
to turn on Beamforming+ or configure it. When you connect to the WiFi network, Beamforming+
focuses on your location for even better WiFi performance and speed. Beamforming+ locks onto
your laptop, tablet, or smartphone and follows as you move from place to place, so you keep
your optimal WiFi connection.
This chapter describes how to set up the A6100 WiFi USB Mini Adapter, which involves these
high-level steps:
• Set Up the Mini Adapter
• View Network Details
• Join a Network
• View Connection Details
1
Note: Software updates with new features and bug fixes are made
available from time to time on
products can regularly check the site and download new software,
or you can check for and download new software manually. If the
features or behavior of your product do not match what is described
in this guide, you might need to update your software.
http://support.netgear.com. Some
4
A6100 WiFi USB Mini Adapter
Set Up the Mini Adapter
Before you begin using your mini adapter, set up the mini adapter using the resource CD that
came in the package.
To set up your mini adapter:
1. Insert the resource CD in your computer CD drive.
Note: If your computer does not have a CD drive, or if you do not have
your resource CD, download the resource CD driver by visiting
http://support.netgear.com. Click the Support for Home Products
button and enter A6100 in the search field.
If the NETGEAR Resource CD screen does not display, browse the files on the CD and
double-click Autorun.exe.
The NETGEAR Resource CD screen displays:
2. Click the Setup button.
Getting Started
5
A6100 WiFi USB Mini Adapter
The Software Update Check screen displays:
3. Install the setup software.
Choose an option based on whether you are connected to the Internet:
• Connected to the Internet. If you are connected to the Internet, click the Check for
Updates button.
After the software checks for software updates, the Update Check
Complete screen displays. Click the Continue button. The Welcome screen displays:
• Not Connected to the Internet. If you are not connected to the Internet, click the
Install from CD button.
Note: If you are not connected to the Internet, the software cannot check for
software updates.
Getting Started
6
A6100 WiFi USB Mini Adapter
The Welcome screen displays:
4. Click the I agree radio button to accept the license agreement and click the Next button.
A message displays asking you to wait while the software is installed. After a few
minutes, NETGEAR genie prompts you to insert your mini adapter.
Getting Started
7
A6100 WiFi USB Mini Adapter
5. Insert the mini adapter into a USB port on your computer.

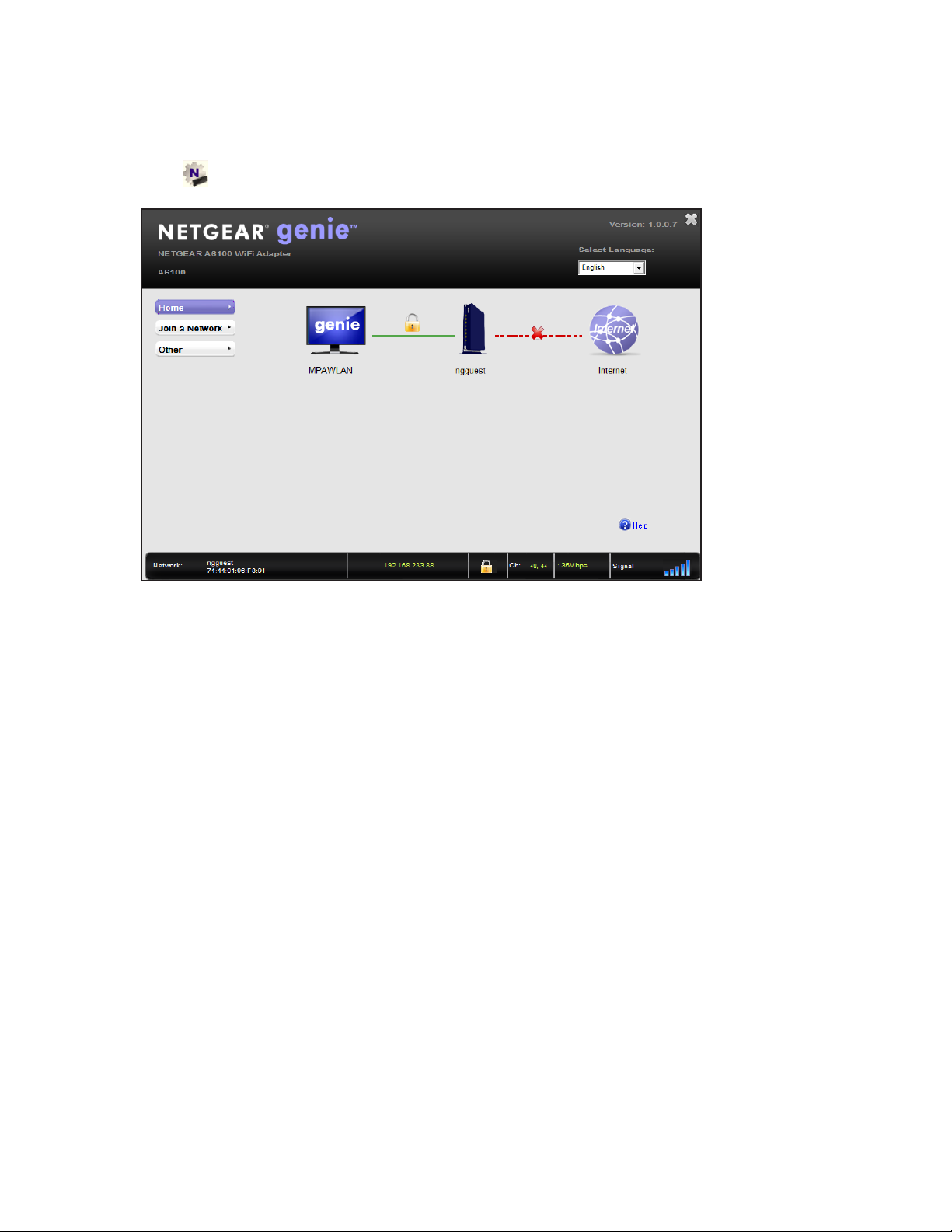

The NETGEAR genie screen displays:
The NETGEAR genie icon also displays in the Windows system try and on the desktop.
The color of the icon indicates the strength of your wireless connection:
• White.
• Y
ellow. 1–2 bars (weak connection)
• Red.
3–5 bars (strong connection)
0 (zero) bars (no connection)
Note: If you remove your mini adapter, NETGEAR genie is not available, and the
icon is not displayed. When you insert the mini adapter again, the icon returns.
6. (Optional) In NETGEAR genie, from the Select Language drop-down menu, select a
language.
NETGEAR genie screens are displayed in the language that you select.
Getting Started
8
A6100 WiFi USB Mini Adapter
View Network Details
Before you join a network, you can view details to help you determine which network to join:
• Network name (SSID).
measure, some wireless access points do not broadcast their SSIDs. In such cases, the
network is hidden. The name (SSID) field is blank even though the rest of the information
is displayed.
• Channel.
that you choose a network that uses a different channel from that of neighboring
networks.
ireless Mode. The wireless technology used for the router or access point, such as N,
• W
A, G, B, or AC.
• WPS support. Identifies whether the router or access point for this network supports
WPS (Wi-Fi Protected Setup).
• MAC address.
information. Typically, the wireless device is a wireless router or access point.
To view network details:
1. Insert the adapter into a USB port on your computer
2. Click the NETGEAR genie icon that displays on the Windows systems tray or on the
desktop.
The NETGEAR genie Home screen displays.
3. Click the Join a Network button.
The channel on which the wireless network operates. NETGEAR recommends
The unique hardware address of the wireless device broadcasting this
The name assigned to a wireless network. As a security
.
The Join a Network screen displays:
4. Click a network name.
Getting Started
9
A6100 WiFi USB Mini Adapter
The Details button and Connect button display.
5. Click the Details button.
The Details pop-up window displays:
6. Click the OK button to close the Details pop-up window.
Join a Network
The mini adapter can join a network using the Wi-Fi Protected Setup (WPS) method, through
the mini adapter’s NETGEAR genie, or by installing the mini adapter’s standalone driver. You
can also join hidden networks. For more information, see Join a Hidden Network on page 14.
Getting Started
10
A6100 WiFi USB Mini Adapter
Join a Network Using WPS
Wi-Fi Protected Setup (WPS) is a standard for easily adding computers and other devices to
a home network while maintaining security. Before you use the WPS method to join a
network, make sure that your router or access point supports WPS.
Note: If the security type on your router or access point is set to WEP, you
cannot use WPS to connect the mini adapter to the network.
To use WPS to join a wireless network:
1. Insert the adapter into a USB port on your computer
2. Press and hold the WPS button on the mini adapter for two seconds.
The WPS LED blinks.
.
WPS
button
3. Within two minutes, press the WPS button on your wireless router or access point.
The mini adapter joins the network, which can take a few minutes. Your settings are
saved in a profile.
Note: After the mini adapter joins the network, it automatically saves the
network connection information to a Windows profile. Windows
profiles can be used by genie and the Windows utility. If the network
information does not change, the next time you launch NETGEAR
genie, it automatically connects to the network you previously
joined.
Join a Network Using NETGEAR genie
You can use the mini adapter’s NETGEAR genie to join a network.
Getting Started
11
A6100 WiFi USB Mini Adapter
To join a network using NETGEAR genie:
1. Insert the adapter into a USB port on your computer.
2. Click the NETGEAR genie icon that displays on the Windows systems tray or on the
desktop.
The NETEGAR genie Home screen displays.
3. Click the Join a Network button.
The Join a Network screen displays:
4. Click a network name.
The Details button and Connect button display
.
Getting Started
12
