Beacon Power Management System Installation Manual

This Installation manual is made up of the following separate Installation Instructions for the Power Supply and Advanced Power Distribution Module.

52-296 - Installation Instructions for Beacon Power Supply - pp. 2-28 52-325 - Installation Instructions for Beacon Power Supply - Addendum A - p. 29 52-254 - Installation Instructions for APD Module - pp. 30-53

Model Numbers: Order Numbers:

BN4-003-APD8F-UL 10009 BN4-003-APD8-UL 10007 BN4-004-APD8F-UL 10010 BN4-004-APD8-UL 10008

BN6-003-APD8F-UL 10021 BN6-003-APD8-UL 10019 BN6-004-APD8F-UL 10022 BN6-004-APD8-UL 10020

Model Numbers: Order Numbers:

BN8-003-APD8F-UL 10031 BN8-003-APD8-UL 10030 BN8-004-APD16F-UL 10029 BN8-004-APD16-UL 10028

BN10-003-APD8F-UL 10040 BN10-003-APD8-UL 10039 BN10-004-APD16F-UL 10038 BN10-004-APD16-UL 10037

Model Numbers: Order Numbers:

APD8F-BD 02828 APD8-BD 02827 BN4-000-UL 10001 BN6-000-UL 10013 BN8-000-UL 10025 BN10-000-UL 10034

Model Numbers: Order Numbers:

BN4-004-APD16-UL 10058 BN10-004-APD16-UL 10061 BN64-013-APD16-UL 10077 BN64-0013-APD16F-UL 10078

*May also be used for any Beacon Power Management System that includes any combination of the following boards:

Beacon Power Supply Installation Instructions

2.8.2012

Beacon Power Supply

Operating and Installation

Instruction Manual

Model: BNx000

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 1 of 27

Beacon Power Supply Installation Instructions

2.8.2012

I. Warnings and Notices

I. WARNING - To reduce the risk of fire or electric shock, do not expose this

product to rain or moisture.

II. WARNING – Risk of electric shock. Installation and service should be made by

qualified service personnel and should conform to all local codes.

III. WARNING – Read the instruction manual to avoid personal injury or property

damage

IV. NOTICE - This equipment shall be installed in a manner which prevents

unintentional operation from employees or other personnel working about the premises, by falling objects, by building vibration and by similar causes

V. NOTICE - This equipment is not intended for use within the patient care areas

of a Health Care Facility

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 2 of 27

Beacon Power Supply Installation Instructions

Section

Page

I. Warnings and Notices

Introduction

2 Applicable Standards / Documents

System Overview

6-13

3.1 Electrical Ratings and Specifications

3.2 BNx000 Con

nector Descriptions and Electrical Ratings

3.2.1

Terminal and

Connector

Illustration

3.3 AC Input Connection

9-10

3.4 A

ccessory

oard

Connectors

(ABC)

3.5

ABC Buss Voltage Selection

10-113.6

Output Terminals

113.7FAI Input Terminals

123.8Fault Reporting Terminals

134 Installation

14-164.1 Mounting

144.2 Wiring

15-165

Operating the BNx000

17-20

5.1 Output Voltage Selection

175.2 Jumper Settings

17-18

5.3 Visual Indicators

18-195.4 Troubleshooting

206 Specifications

216.1 Electrical Specifications

216.2 Temperature Specifications

216.3 Mechanical Specifications

21Appendix A

FAI Input

22-23

Appendix

B–About the Accessory Board Connector

24-26

Glossary

2.8.2012

Table of Contents

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 3 of 27

Beacon Power Supply Installation Instructions

2.8.2012

Section 1 Introduction

The Beacon Line of power supplies (BNx000) is an of off-line switching power supply product line designed for use in the access control and fire industries by the Systems Integrator. They accept several accessory boards designed to increase the functionality of the basic power supply.

 Field selectable output voltage of 12V or 24VDC  Units provide twice the current capability when set to 12VDC as at 24VDC. This is to

compensate for the typically double current draw of 12V devices such as mag locks.

 Expandable with accessory boards via the ABC connector  All units can charge up to 38AH of battery while supplying full rated load  Full fault detection, including battery presence detection, and reporting via two form-C

relay contacts; AC fault and System Fault

 Flexible FAI input for egress control or other functions. Accepts contact closure (NO or

NC), voltage input, reverse polarity voltage, or open collector input

 FAI activation is transmitted to ABC connector for activation of FAI on compatible

accessory boards

 Fault conditions monitored include:

 Low or missing AC  High or low output / battery  Blown fuse  Missing battery  Reversed Battery  Internal Power Supply failure

 Visual indicators include:

 AC Presence (Green)  DC Output Presence (Green)  FAI Activated (Red)  Reversed Battery Fault (Yellow)  AC Fault (Yellow)  System Trouble (Yellow)

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 4 of 27

Beacon Power Supply Installation Instructions

2.8.2012

Section 2 Applicable Standards / Documents

NFPA Standards

NFPA 72 National Fire Alarm Code NFPA 70 National Electrical Code NFPA 731 Standard for the Installation of Electronic Premises Security Systems

US Standards

UL 294 Access Control System Units UL 1481 Power Supplies for Fire Protective Signaling System

Other Standards

MEA Listed California State Fire Marshal (CSFM) Listed Applicable Local and State Building Codes Requirements of the Local Authority Having Jurisdiction (LAHJ)

Other Applicable AlarmSaf Documents

52-351: CMB8(F) Accessory Board Installation Manual 52-352: MB8(F) Accessory Board Installation Manual 52-254: APD8(F) Accessory Board Installation Manual 52-326: PD8(F) Accessory Board Installation Manual 52-350: SPS4 Accessory Board Installation Module

Listing Compliance Note

This product carries an ETL Listing from Intertek for one or more of the standards listed above. Intertek is recognized by the Occupational Safety and Health Administration (OSHA) as a Nationally Recognized Testing Laboratory (NRTL) and accredited by the Standards Council of Canada as a Testing Organization and Certifying Body. The ETL Listed Mark is recognized, acknowledge and accepted by local inspectors and Authorities Having Jurisdiction (AHJs) throughout North America as an accepted alternative to UL and as proof of product compliance. For more information about the NRTL program, we encourage you to visit the OSHA Web site at www.osha.gov.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 5 of 27

Beacon Power Supply Installation Instructions

2.8.2012

Section 3 System Overview

3.1 Electrical Ratings and Specifications

Manufactured By

AlarmSaf 65A Industrial Way Wilmington, MA 01887 Tel: 978.658.6717; 800.987.1050 www.alarmsaf.com

Model Numbers (Board Only)

BN4000, BN6000, BN8000, BN10000 Full product list available at www.alarmsaf.com

Electrical Ratings

Input Voltage All Models: 102-138VAC (120VAC Nominal) or 240VAC nominal (with proper

jumper selection, see page 18)

Input Power BN4000: 125W maximum

BN6000: 190W maximum BN8000: 250W maximum BN10000: 330W maximum

Output 12 or 24VDC nominal at:

BN4000: 4A (24V out) or 8A (12V out); 110W BN6000: 6A (24V out) or 12A (12V out); 165W BN8000: 8A (24V out) or 16A (12V out); 220W

BN10000: 10A (24V out) or 20A (12V out); 276W Efficiency ~90% Ripple <0.5% @ 12V output Output Fuse Type BN4000: ATC10 (10 Amp)

BN6000: ATC15 (15 Amp)

BN8000: ATC20 (20 Amp)

BN10000: ATC25 (25 Amp) Buss Select Fuse Type ATM15 (15 Amp) Miniature Automotive Blade Fuse

Product Use

When installed in accordance with all standards listed in Section 2 of this document, the Beacon Line provides power for use with (but not limited to) fire or access control equipment such as mag locks, door strikes, door holders, smoke dampers, four wire smoke detectors, card readers, keypads, etc.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 6 of 27

Beacon Power Supply Installation Instructions

Terminal /

System Fault Relay

Normally

Closed

2.8.2012

3.2 BNx000 Connector Descriptions and Electrical Ratings

Connector

5-Pin AC Line connector AC PWR CONNECT

P2 Accessory Board Connector (ABC) Output

TB1 - DC1 and DC2 Outputs

DC1+ DC1 Positive Output

DC1- DC1 Common Output

DC2+ DC2 Positive Output

DC2- DC2 Common Output

TB2 - DC3 and BAT Outputs

DC3+ DC3 Positive Output

DC3- DC3 Common Output

BAT+ Battery Positive Connection

BAT- Battery Common Connection

Description Rating

102-138VAC (120VAC Nominal) or 240VAC Nominal with appropriate jumper setting (see page 18)

12 or 24VDC @ 14A Maximum or to maximum rating of power supply

Full output current of supply - See Section

3.1 for ratings. Output is constant, regardless of FAI input state

Full output current of supply - See Section

3.1 for ratings. Output deactivates upon FAI Activation

Full output current of supply - See Section

3.1 for ratings. Output activates upon FAI Activation

12 or 24VDC nominal - 38AH Maximum

TB3 - FAI Input

V+ Auxiliary Voltage Output 12VDC Nominal @ 15mA Maximum L+

L+

LL-

Positive FAI Activation Terminals

Common FAI Activation Terminals

V- Auxiliary Voltage Common System DC Common

TB4 - Fault Contacts

SYS FLT - COM System Fault Relay - Common SYS FLT - NC SYS FLT - NO System Fault Relay - Normally Open AC FLT - NO AC Fault Relay - Normally Open AC FLT - NC AC Fault Relay - Normally Closed AC FLT - COM AC Fault Relay - Common

9-33VDC @ 15mA Maximum

1A @ 24VDC

0.5A @ 120VAC

1A @ 24VDC

0.5A @ 120VAC

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 7 of 27

Beacon Power Supply Installation Instructions

2.8.2012

3.2.1 BNx000 Terminal and Connector Illustration

Figure 3.2.1

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 8 of 27

Beacon Power Supply Installation Instructions

2.8.2012

3.3 AC Input Connection

The AC input for the BNx000 is made through a fully shrouded pluggable cable which plugs into the AC PWR CONNECT plug (P1). The cable allows connection to either 120 VAC or 240 VAC nominal input. The BNx000 power supply must be configured for proper VAC input prior to connection or damage to the system will occur (see section 3.3.3, AC Input Safety Precautions).

PWR

ACF

AC PWR CONNECT

Figure 3.3.1

3.3.1 Configuring VAC Input

All BNx000 power supplies are factory set for 120 VAC input (102-138VAC at 50 or 60Hz). To verify 120 VAC input setting:

 Locate the VAC SELECT jumper (J5)  Verify that J5 is in the UP position for 120 VAC input

The BNx000 will also operate with a 240 VAC (195-264VAC at 50 or 60Hz) input. For 240 VAC input:

 Reposition the VAC SELECT jumper (J5) in the DOWN position or remove it before

energizing the power supply.

3.3.2 Wiring the AC Input Power Cable:

The AC Input Power Cable (part #00518) is included. Connection to the harness should be made via wire nut to an appropriate power source. AC mains wiring should be no smaller than 14 AWG. Wire the cable as follows:

WIRE FOR 120 VAC FOR 240 VAC

Black Line Line 1 White Neutral Line 2 Green or Green/Yellow Earth Ground Earth Ground

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 9 of 27

Beacon Power Supply Installation Instructions

2.8.2012

3.3.3 AC Input Safety Precautions

1. CAUTION: Verify that the main AC power is not energized prior to connecting the BNx000.

2. CAUTION: Verify VAC Select jumper (J5) is set properly on the power supply for either 120

VAC or 240 VAC input prior to connecting the cable and energizing the power supply or damage to the system or personal property and/or injury will occur.

3. CAUTION: The Green or Green/Yellow earth ground wire should always be connected first

or disconnected last for safety.

4. The AC input connector is a convenient and safe means for AC disconnect as the connector is fully shrouded when disconnected.

5. All wiring should be installed in accordance with NEC760, NFPA70, NFPA72, and all local code requirements. See section 4.2 for more information.

3.4 Accessory Board Connector (P2)

3.4.1 General Information

The Accessory Board Connector (ABC) supplies the output voltage and FAI control to compatible accessory boards for increased functionality including additional voltage(s), power distribution and/or power management and control for access control and fire applications. See page 26 for a list of available accessory modules. For more detailed information on the ABC expansion port, see Appendix B, “About the Accessory Board Connector”.

3.4.2 ABC Cable Types

Order # Model # Description Used With/Notes

1. Used with BNx000 Power Supply, REV AO2 or earlier

00519 ABC-01 6 PIN – 6 PIN, 8”

00520 ABC-02 6 PIN – 6 PIN, 18”

00521 ABC-03 8 PIN – 8 PIN, 8”

00522 ABC-04 8 PIN – 8 PIN, 18”

00523 ABC-05 8 PIN – 6 PIN, 8”

00524 ABC-06 8 PIN – 6 PIN, 18”

2. Used to interconnect EDB-10 & LDB-8 accessory boards in certain proprietary systems

1. Used with BNx000 Power Supply, REV AO2 or earlier

2. Used to interconnect EDB-10 & LDB-8 accessory boards

3. Increased length for connection over longer distance

1. Used with BNx000 Power Supply, REV A03A or later for

connection to PD8(F), MB8(F) & CMB8(F) accessory modules

1. Used with BNx000 Power Supply, REV A03A or later for connection to PD8(F), MB8(F) & CMB8(F) accessory modules

2. Increased length for connection over longer distance

1. Used with Bx000 Power Supply, REV A03A or later for

connection to SPS4, EDB-10 & LDB-8 accessory modules

1. Used with Bx000 Power Supply, REV A03A or later for connection to SPS4, EDB-10 & LDB-8 accessory modules

2. Increased length for connection over longer distance

CAUTION: The ABC-01 and ABC-02 cables are used on older BNx000 boards (PCB#: 38-118 REV

A02 or earlier) that have a 6-pin ABC connector.

DO NOT USE

these cables on newer BNx000 boards (PCB # 38-118 REV A03A or later) that have an 8-pin ABC connector or damage to the system could occur.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 10 of 27

Beacon Power Supply Installation Instructions

Makes the power supply voltage available on the Accessory Board Connector (P2).

2.8.2012

3.5 ABC Voltage Selection

The output voltage of the BNx000 must be carried through the Accessory Board Connector (P2) when using the BN x000 power supply with Beacon Accessory Modules that connect to P2 using ABC cables. The Buss Select Fuse (See Figure 3.5.1.1) determines if the voltage is available on the Accessory Board Connector (P2).

Figure 3.5.1.1

3.5.1 Adjusting the Buss Select Fuse

The Buss Select Fuse is factory set for proper operation. The Fuse setting options are:

SETTING/POSITION DESCRIPTION

B1 – DOWN

This is the required setting when connecting a Beacon Accessory Module.

B2 - UP Removes voltage from the Accessory Board Connector (P2).

Because older BNx000 boards (PCB#: 38-118 REV A02 or earlier) do not have a Buss Select Fuse, always check the position of this fuse setting when installing a new BNx000 Board (PCB # 38-118 REV A03A or later) into an existing system.

3.6 Output Terminals

The BNx000 has three sets of output terminals:

 The DC1 output provides constant power, regardless of the state of the FAI input  The DC2 output provides power which DROPS upon activation of the FAI input  The DC3 output provides power ONLY upon activation of the FAI input

All three sets of output terminals on the BNx000 provide the same output voltage, 12VDC or 24VDC, as selected by the voltage select switch (S1). See Section 5.1 for more information.

DC2 DC3

DC1

D13

TB2 TB1

-BAT+ -DC3+ -DC2+ -DC1+

Figure 3.6.1

CAUTION: Observe polarity of the BNx000 output terminals as indicated on the board with respect to the load or damage to the load may occur.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 11 of 27

Beacon Power Supply Installation Instructions

An internal voltage source for use with dry

2.8.2012

3.7 FAI Input Terminals

The FAI input connection for the BNx000 is made through TB3. The FAI input allows complete flexibility in connection options:

 Normally Open Contact (switching positive voltage)  Normally Open Contact (switching DC common)  Normally Closed Contact (Fail-Safe)  Open collector  Isolated or non-isolated voltage input  Reverse Polarity voltage input  Latching Input

There are six terminals on the BNx000 FAI input:

Terminal Description Use

V+ Auxiliary Voltage Output

contacts or open collectors These terminals are the positive input/return for

L+

Positive FAI Activation Terminals

L+

the FAI loop. Only one is required for activation of the BNx000. The second is for continuing the loop for activating other devices or BNx000 supplies. Polarity is shown for activation of the FAI input

L-

Common FAI Activation Terminals

L-

These terminals are the common input/return for the FAI loop

V- Auxiliary Voltage Common Common or return for the internal voltage source

See Appendix A for FAI input connection examples.

DC1

VOLTAGE

SELECT

JP3

FAI

INPUT

VL-

L+ V+

VL-

L+ V+

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

FAI

Figure 3.7.1

REV BAT

52-296 Rev B05

Page 12 of 27

Beacon Power Supply Installation Instructions

2.8.2012

3.8 Fault Reporting Terminals

The Fault Reporting relay connection is made through TB4. Separate Form C relays are provided for AC Faults and System Faults. Connections are marked on the PCB. Six Fault terminals are available:

1. SYS FLT Common (COM)

2. SYS FLT Normally Closed (NC)

3. SYS FLT Normally Open (NO)

4. AC FLT Normally Open (NO)

5. AC FLT Normally Closed (NC)

6. AC FLT Common (COM)

JP1

BPD

SYS

TBL

SYS FLT AC FLT

NCNCCOM COMNO NO

Figure 3.8.1

Fault Condition SYS FLT Relay Output AC FLT Relay Output

Normal Condition - No Faults No Fault No Fault Loss of / Low AC - Battery Charged No Fault Fault Loss of / Low AC - Battery Low Fault Fault Missing Battery (Battery Presence Enabled) Fault No Fault High or Low Battery Fault No Fault High or Low Output Voltage Fault No Fault Blown AC Fuse - Battery Charged No Fault Fault Blown AC Fuse - Battery Low Fault Fault Blown DC1, DC2/DC3, or Battery Fuse Fault No Fault Blown Buss Select Fuse Fault No Fault Reversed Battery Connection Fault No Fault Internal Fault Fault No Fault / Fault

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 13 of 27

Beacon Power Supply Installation Instructions

2.8.2012

Section 4 Installation

4.1 Mounting

The BNx000 is for wall mounting only, using #8 hardware minimum in four locations. Use an appropriate fastening system for the mounting surface.

CAUTION: Remove all power from the system before installation

Cabinet Mounting:

1. Mark and pre-drill two holes for the top keyhole mounting screws

2. Install two fasteners in the mounting wall leaving screw heads protruding approx. ¼ inch

3. Using the two upper keyholes, mount the cabinet over the two screws

4. Mark the two lower holes, remove the cabinet and drill the lower mounting holes

5. Mount the cabinet, install the remaining fasteners, and tighten all fasteners

ABC

Figure 4.1.1

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 14 of 27

Beacon Power Supply Installation Instructions

2.8.2012

4.2 Wiring

4.2.1 Wire Routing

Wiring must be installed in accordance with NFPA70, NFPA72, and all local code requirements. Power Limited wiring requires that power limited and non-power limited wiring remain physically

separated. Any power limited circuit entering the enclosure must remain at least one quarter inch (¼”) away from any non-power limited circuit wiring. Any power limited circuit wiring must enter and exit the enclosure through different knockouts than non-power limited circuit wiring.

Wiring within the enclosure should be routed around the perimeter of the cabinet. It should not be routed across the circuit boards.

4.2.2 AC Input

Connection should be made via wire nut. AC mains wiring should be no smaller than 14 AWG. See Section 3.3 for details.

4.2.3 ABC Connector

See section 3.4

4.2.4 Output Wiring

Locate the output terminals to be used (DC1, DC2, or DC3). These terminals are nonremovable and accept wire sizes between #12 and #22 AWG. Polarity is indicated on the PCB.

4.2.5 Battery Wiring

Locate the battery terminals. These terminals are non-removable and accept wire sizes between #12 and #22 AWG. Polarity is indicated on the PCB.

 For 12VDC connect one battery to the terminals  For 24VDC connect two batteries in series to the terminals

Note: Connecting batteries in parallel does not allow the BNx000 to supervise the entire battery set for presence.

CAUTION: A lead-acid battery has the capability of producing extremely high current. Personal or property damage can occur if the batteries are shorted or improperly connected.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 15 of 27

Beacon Power Supply Installation Instructions

2.8.2012

4.2 Wiring (continued)

4.2.6 FAI Wiring

Locate the FAI Input terminal block (TB3) and remove the terminal block from the header. Connect the wiring for the FAI input to the terminal block. The PC board is labeled with the connections and polarity (See also section 3.2). Replace the terminal block on the header.

4.2.7 Fault Relay Wiring

Locate the Fault Relay Output terminal block (TB4) and remove the terminal block from the header. Connect the wiring for the fault outputs to the terminal block. The PC board is labeled with the connections for each relay (See also section 3.2). Replace the terminal block on the header.

Note: The relay is labeled in the non-powered (fault) state. Under a no-fault condition, the relay is powered (i.e. Common to Normally Open connected).

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 16 of 27

Beacon Power Supply Installation Instructions

2.8.2012

Section 5 Operating the BNx000

5.1 Output Voltage Selection

Before powering a system containing a BNx000, the output voltage switch (S1 - Voltage Select) must be set for the proper output voltage or damage to the system could occur. Do not change the switch setting while the unit is powered or damage to the system may occur. Set the switch UP for 24V, DOWN for 12V (the PC board is labeled with the voltage settings).

4000 6000

8000

10000

VOLTAGE

SELECT

Figure 5.1.1

5.2 Jumper Settings

For proper operation, the jumpers on the BNx000 should be set appropriately. All jumpers should be verified or set before powering the unit.

Jumper Description Settings Default

JP1 (BPD) Battery Presence JP2 (SPV) N/A Up Up

JP3 (D/E) FAI Filtering

J5 (VAC SELECT) Input Voltage Configuration

Up (D) - Disable Down - Enable

Left (D) - Disable Right (E) - Enable Up (120) - 120VAC Input Down (240) or Removed- 240 Input

Down - Enable

Left (D) - Disable Up (120) - 120VAC

Note: Jumper positions are referenced with the output wiring terminal blocks (TB1&2) on the bottom

5.2.1 JP1 (BPD) - Battery Presence

Allows disabling of the battery presence detection for applications where no backup battery set is used.

5.2.2 JP2 (SPV)

This jumper serves no user function and, if present, should be left in the up position.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 17 of 27

Beacon Power Supply Installation Instructions

2.8.2012

5.2 Jumper Settings (continued)

5.2.3 JP3 (D/E)

This jumper enables or disables FAI input filtering. FAI input filtering is used if the FAI input is connected to a coded source (i.e. pulsing input).

5.2.4 J5 (VAC SELECT)

This jumper selects the AC input voltage to be used to power the BNx000. The power supply is factory set for 120 VAC input (J5 in the UPposition). Move the jumper to the

DOWN

position

or remove it to operate the power supply with 240 VAC input.

CAUTION: J5 MUST be set properly before powering the unit or damage to the system will occur.

5.3 Visual Indicators

The BNx000 contains seven visual status indicators:

LED Description Color Conditions

AC PWR (D20) AC Power Green Lights when AC Power Present ACF (D50) AC Fault Yellow Lights on low / missing AC Power SYS TBL (D33) System Trouble Yellow Lights when a system trouble present REV BAT (D27) Reverse Battery Yellow Lights when battery connection reversed DC1 (D13) DC1 Available Green Lights when DC1 output is available DC2 / DC3 (D24) DC2 & DC3 Available Green Lights when DC2 & DC3 output is available FAI (D4) FAI Active Red Lights when a valid FAI input signal is received

5.3.1 AC PWR (D20)

For safety reasons, this LED lights any time there is AC voltage present at the AC input, regardless of the AC fault status, battery state of charge, or power supply condition.

CAUTION: Always check for AC presence with a volt meter before servicing

5.3.2 ACF (D50)

This LED lights when AC power is low or missing. It does not necessarily indicate that the power supply is not operating. See the chart in Section 5.3.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 18 of 27

Beacon Power Supply Installation Instructions

2.8.2012

5.3 Visual Indicators (continued)

5.3.3 SYS TBL (D33)

This LED lights whenever a fault condition (except AC Faults) occurs. See the chart in Section

5.3. Fault conditions detected include:

 High or Low battery voltage  High or Low output voltage  Internal Power Supply Fault  Blown Fuse (F2, F3, F4)  Missing battery (If Battery Presence is enabled)

5.3.4 REV BAT (D27)

This LED lights when a battery set is connected to the BNx000 in a reverse polarity. This LED will be accompanied by the SYS TBL LED and a blown battery fuse (F4 - BAT)

5.3.5 DC1 (D13)

This LED lights when there is DC power available at the DC1 output.

5.3.6 DC2 / DC3 (D24)

This LED lights when there is DC power available to the DC2 and DC3 outputs.

5.3.7 FAI (D4)

This LED lights when a valid FAI activation signal is received at the FAI input. When lit, the DC2 output switches OFF, the DC3 output switches ON, and the FAI buss on the ABC connector is activated for activation of compatible accessory boards.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 19 of 27

Beacon Power Supply Installation Instructions

2.8.2012

5.4 Troubleshooting

Condition Possible Cause Solution

Incorrect switch setting Verify proper switch setting Excessive loading on output

The output voltage of the BNx000 is incorrect

AC trouble Verify presence of AC voltage

Bad / Incorrect Battery Set

Verify that output current is less than rated current

Verify that a good battery set of the proper voltage is connected to the BNx000

The yellow “SYS TBL” LED (D33) is lit

The yellow “ACF” LED (D50) is lit

FAI LED is lit

No battery presence detection

DC2 / DC3 has no output

No voltage on ABC and/or accessory board

Blown output or battery fuse (F2, F3, or F4))

Excessive loading on output Improper ABC cable connection Verify proper connection of the ABC cable(s)

Bad, Incorrect, or Missing Battery Set

Internal problem with BNx000 Contact AlarmSaf Low or Missing AC Verify the presence of at least 102VAC

Blown AC fuse An FAI activation signal was

received at the FAI input BPD Jumper (JP1) set

incorrectly No Problem Internal problem with BNx000 Contact AlarmSaf

Check FAI Input

Blown Fuse Check F2 Incorrect Buss Select Fuse

Setting Blown Buss Select Fuse Replace fuse with fuse of same type and rating

Verify all fuses are intact - Check wiring integrity before replacing fuse(s)

Verify that output current is less than the rated current

Verify that a good battery set of the proper voltage is connected to the BNx000

This fuse in not replaceable in field - Contact AlarmSaf

This is normal

Verify correct setting of BPD jumper Detection of a missing battery takes 3-5

seconds

DC2 supplies power ONLY when the FAI input is not active. DC3 supplies power ONLY when the FAI input is active.

Verify proper fuse setting as described in section 3.5, page 10-11

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 20 of 27

Beacon Power Supply Installation Instructions

2.8.2012

Section 6 Specifications

6.1 Electrical Specifications

6.1.1 Input Voltage 102-138VAC (120VAC Nominal) or

195.5-264.5 (240VAC Nominal) @ 50-60Hz

6.1.2 Input Power Model dependent - See Sec. 3.1

6.1.3 Output Voltage 12 or 24VDC Nominal

6.1.4 Output Current Model dependent - See Sec. 3.1

6.2 Temperature Specifications

6.2.1 Ambient Temperature Range 0ºC to 49ºC (32ºF to 120ºF)

6.2.2 Ambient Humidity 93% at 32ºC (90ºF) Maximum

6.3 Mechanical Specifications

6.3.1 Weight (PCB Only) 2.52lbs.

6.3.2 Size (PCB Only) 8.85”L x 6.45”W x 3.10”H Max.

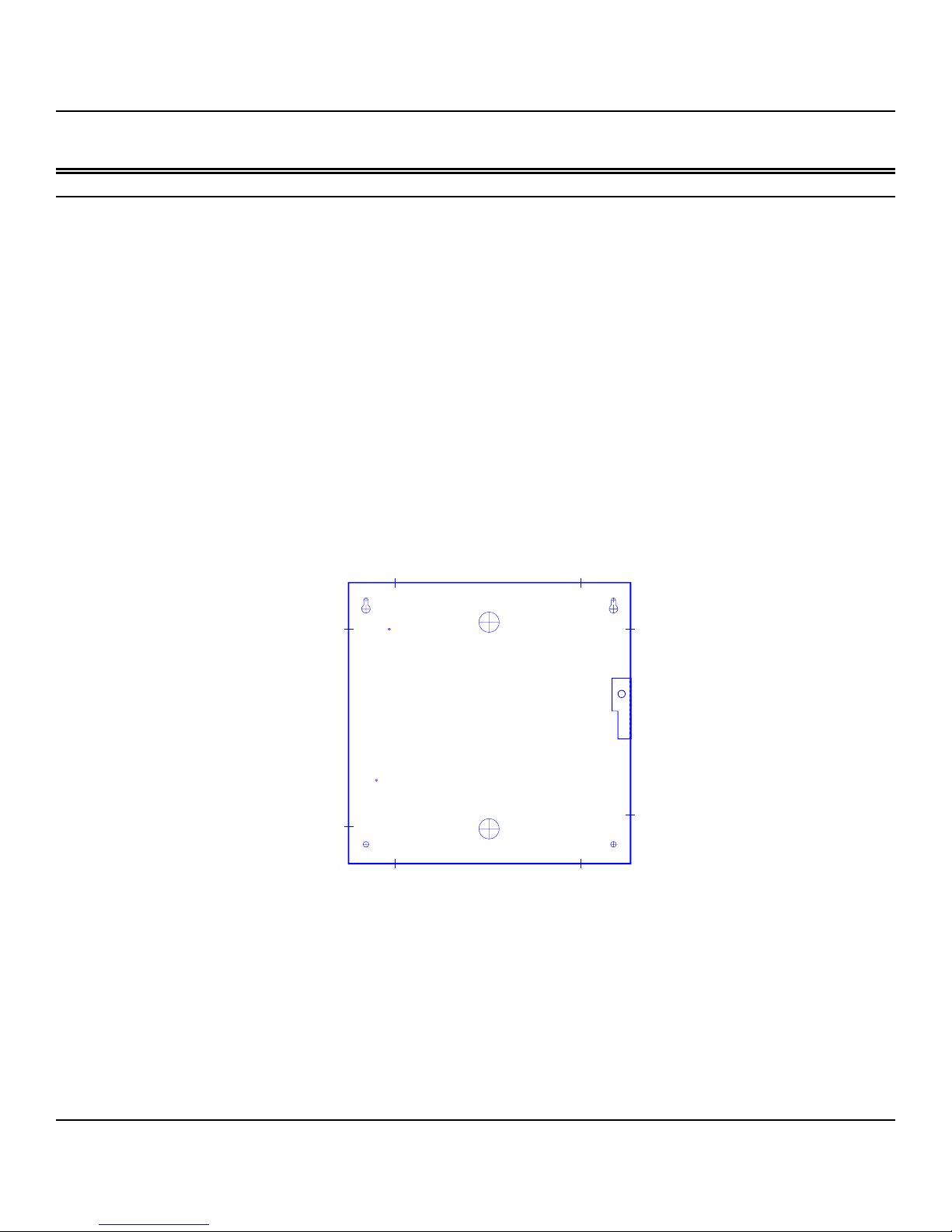

6.3.3 CAD Drawing

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Figure 6.3.1

52-296 Rev B05

Page 21 of 27

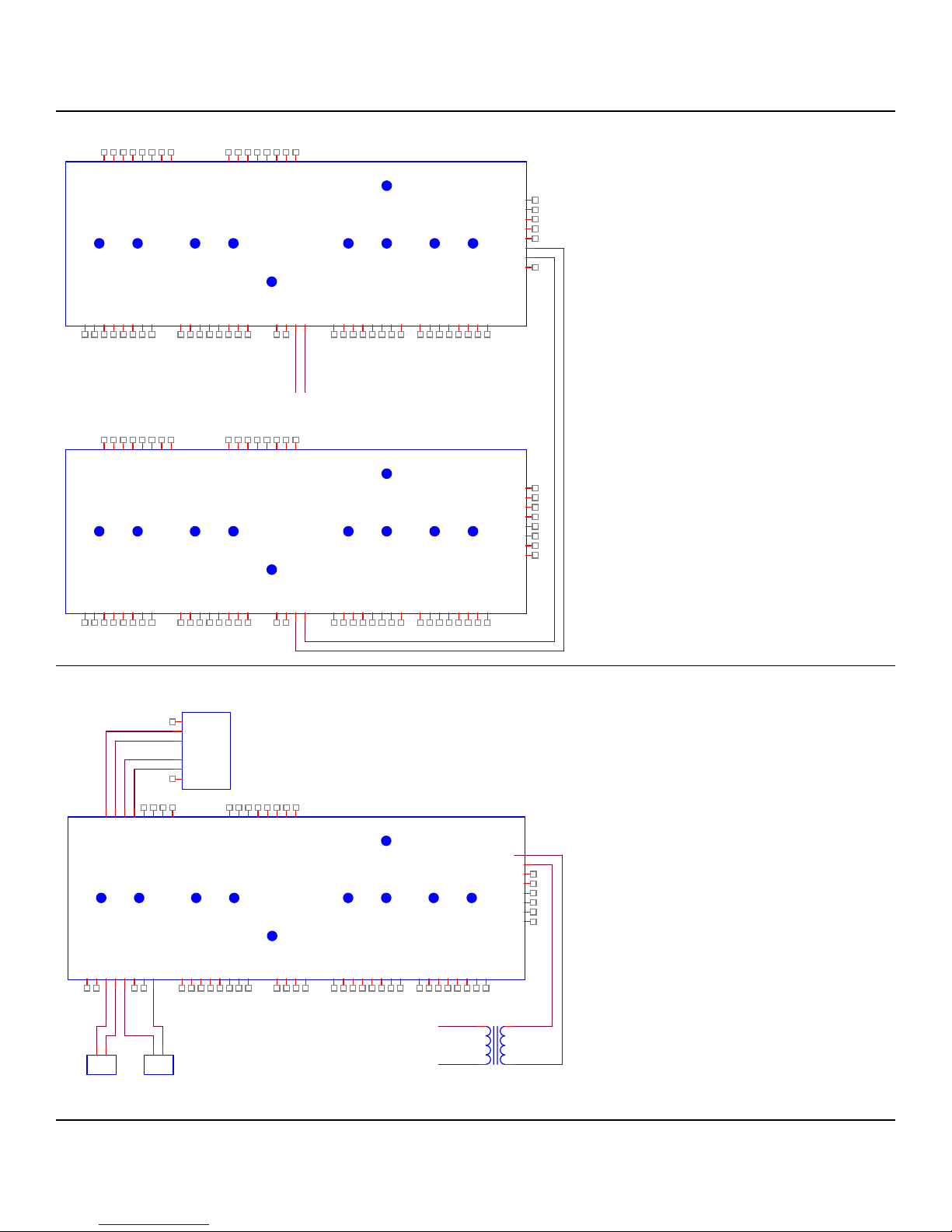

FAI Input Connection Methods

Relay contact transfer using internal voltage

Open collector connection:

FAI ACTIVATES ON CLOSE

2.8.2012

APPENDIX A, PAGE 1

FAI Input Connection Methods

The Beacon FAI input is the most flexible we have yet seen in the industry. It may be activated by any common means found in the access and fire industry. When activated, this input will disable the Beacon DC2 output and enable the DC3 output. The MB8 and CMB8 accessory boards will follow the Beacon FAI input. Methods of activation include:

source:

a. Normally closed. b. Normally open.

2. Power from external voltage source: a. Switched positive. b. Switched negative.

Relay contact using internal voltage source

FAI

INPUT

JP3

JUMPER

V-

L-

L+

V+

JUMPER

TB3

REV BAT

FAI ACTIVATES ON OPEN

a. Internal voltage source b. External voltage.

4. Direct to NAC loop: a. DC polarity reversal b. DC polarity reversal with horn/strobe

synchronization

V-

L-

L+

V+

JUMPER

TB3

REV BAT

FAI

INPUT

JP3

Normally closed Normally open

FAI ACTIVATES ON CLOSE

FAI

INPUT

JP3

V-

L-

L+

V+

TB3

REV BAT

Normally open Normally closed

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Power from External voltage source

V-

EXTERNAL PWR -

EXTERNAL PWR +

FAI

INPUT

JP3

L-

L+

V+

REV BAT

VL-

L+ V+

TB3

FAI ACTIVATES ON OPEN

EXTERNAL PWR -

EXTERNAL PWR +

52-296 Rev B05

Page 22 of 27

FAI Input Connection Methods

EXTERNAL POWER -

FROM NAC LOOP

TO NAC LOOP

FROM NAC LOOP

TO NAC LOOP

2.8.2012

APPENDIX A, PAGE 2

FAI Input Connection Methods (continued)

"Open collector" connection

V-

L-

OPEN

L+

V+

TB3

REV BAT

COLLECTOR

Internal source External source

NAC connection

FAI

INPUT

JP3

FAI

INPUT

JP3

V-

L-

L+

V+

TB3

REV BAT

EXTERNAL POWER -

OPEN

COLLECTOR

EXTERNAL POWER +

V-

L-

L+ V+

REV BAT

L-

L+ V+

TB3

FAI

INPUT

JP3

NAC LOOP POLARITEIS SHOWN IN THE

ALARM CONDITION

DC polarity reversal DC polarity reversal with sync

NOTE FAI JUMPER

LOCATION

V-

L-

L+ V+

REV BAT

L-

L+ V+

TB3

FAI

INPUT

JP3

NAC LOOP POLARITEIS SHOWN IN THE

ALARM CONDITION

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 23 of 27

ABC Buss General Information

2.8.2012

APPENDIX B, PAGE 1

About the Accessory Board Connector

The AlarmSaf Accessory Board Connector (ABC) allows plug-in system expansion using compatible AlarmSaf accessory boards. The ABC is capable of carrying both primary and secondary voltages (if applicable), DC common, fault status, and fire alarm interface status. Products can be daisy-chained together, maintaining voltage, fault, FAI, and DC common continuity throughout the chain.

NOTE: There are 6-pin and 8-pin versions of the ABC. The 6-pin version carries ONLY a single voltage while the 8-pin version can carry two independent voltages for dual voltage systems.

CAUTION: The ABC-01 and ABC-02 cables are used on the older Beacon Power supply boards (PCB#: 38-118 REV A02 or earlier) that have a 6-pin ABC connector. cables on newer Beacon Power supply boards (PCB # 38-118 REV A03A or later) that have an 8-pin ABC connector or damage to the system could occur.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

6-Pin and 8-Pin Accessory Board Connectors

DO NOT USE

these

52-296 Rev B05

Page 24 of 27

ABC Buss General Information

2.8.2012

APPENDIX B, PAGE 2

About the Accessory Board Connector (continued)

Voltage Busses (B1 and B2)

The voltage busses (B1 and B2) are carried on pins 5-8 of the ABC. B1 is the primary voltage, and should typically be the higher of the two voltages in a dual voltage system. The B1 and B2 (if used) voltages are distributed through the accessory boards connected to the ABC. See the documentation for the particular accessory boards being used for details on how to utilize the B1 and/or B2 voltages. Note that 6-pin ABC connectors can carry only the B1 voltage, while 8pin ABC connectors can carry both B1 and B2. In order for the B2 voltage to be present, a second power supply must be included in the system (AC to DC or DC to DC).

CAUTION: If more than one power supply is connected to any of the voltage busses, the system will not operate properly and damage to the system could occur. Verify that only one power supply is connected to each voltage buss before powering the system.

Fault Status Buss

The fault status buss carries the DC Fault status between accessory boards and power supplies. Any product with fault detection and/or reporting capability can report a fault to or from the ABC chain. Unless otherwise noted in a product’s documentation, AC faults are not transmitted through the fault status buss.

Some accessory boards have a jumper to split the fault buss. This allows the separation of faults between two power supplies in some dual voltage systems. If the buss is not split, any fault on either power supply or any accessory board will show on both power supplies. If the buss is split, faults on each side of the jumper will go to their respective power supply only, allowing easier troubleshooting fault conditions, but requiring monitoring of the fault outputs of both power supplies. Note that only one split should be used in the fault status buss. See the documentation for the accessory boards in the system to determine which, if any, have a fault buss split jumper.

NOTE: Not all accessory boards have fault detection or reporting capability; however the fault status is still carried through these accessory boards to maintain continuity through the chain.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 25 of 27

ABC Buss General Information

2.8.2012

APPENDIX B, PAGE 3

About the Accessory Board Connector (continued)

Fire Alarm Interface (FAI) Status Buss

The FAI status buss carries FAI activation signals on systems utilizing a Fire Alarm Interface. This buss is used to control outputs on compatible accessory boards. See the documentation for the accessory boards in the system to determine FAI capability.

Some accessory boards have a jumper to split the FAI buss, allowing independent control of groups of accessory boards and power supplies with multiple FAI input sources. If the buss is not split, all power supplies and accessory boards with FAI capability will change state upon activation of input source will only activate accessory boards or power supplies up to the split. Products after the split require their own FAI input source.

Note: Not all accessory boards have FAI capability; however the FAI status is still carried through these accessory boards to maintain continuity through the chain.

any

FAI input source in the chain. If the buss is split, FAI activation of any FAI

DC Common

The DC Common (ground) for the system is maintained through the entire ABC chain. Any power supplies or accessory boards connected to the chain are common grounded through the ABC.

Accessory Boards

ACCESSORY MODULE

MODULE DESCRIPTION

ORDER MODEL# ORDER MODEL#

10041, 10042 PD8(F) 8 outputs 00521 ABC-03 10067, 10068 MB8(F) 8 outputs w/FAI & voltage selection 00521 ABC-03 10069, 10070 CMB8(F) 8 outputs w/FAI; 4 Relay Controlled 00521 ABC-03

10066 SPS4 Secondary Power Source Module: 5-18V @ 4A 00523 ABC-05 03207 FAIM Fire Alarm Input Module (used w/PS5-M) 00521 ABC-03 97471 EDB-10 Power Distribution Module for proprietary systems 00523 ABC-05 97472 LDB-8 Power Distribution Module for proprietary systems 00523 ABC-05

ABC CABLE

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 26 of 27

Glossary

2.8.2012

Glossary

ABC See “Accessory Board Connector” Accessory Board Connector Connector present on some AlarmSaf power supplies and accessory boards, allowing

plug-in expansion of the system

Accessory Board An AlarmSaf product for use with AlarmSaf power supplies containing an ABC connector.

These boards allow plug-in expansion of the functionality of the system. Examples of accessory boards include, but are not limited to, voltage distribution (simple and controlled), secondary DC-DC power supplies, and NAC Circuit expanders.

AC-DC Converter A DC power supply whose voltage input is either direct from the AC line or though a

step-down AC transformer

Buss 1 (B1) The primary DC voltage in a system. Typically the higher of the two voltages in dual

voltage systems Buss 2 (B2) The secondary DC voltage in a system. Only dual voltage systems use this voltage. Class 2 Power Limited A voltage output or wiring which conforms to NEC Article 725. Controlled Distribution Voltage distribution providing on/off control for the outputs. Control can be from FAI, an

access control panel, card reader, or other device. The MB8(F) and CMB8(F) accessory

boards, and the APD8(F) are examples of controlled distribution. DC-DC Converter A DC power supply whose voltage input comes from another DC source. DC-DC

converters allow multi-voltage system backup with a single battery set. FAI See “Fire Alarm Interface” Fire Alarm Interface Input present on some AlarmSaf products allowing control of output(s) in the system.

Typically used for dropping power to mag locks on egress doors during a fire alarm

condition, but can also be used for other control functions, such as resetting smoke

detectors Negative Trip An input which is activated upon the switching of a DC Common to its terminals. The DC

Common may either be from an external (common grounded) source, or may be

provided as one of the terminals of the input, depending on the product. This input type

is used with a dry contact or open collector input. Positive Trip An input which is activated upon the switching of a positive DC voltage to its terminals.

The positive voltage may either be from an external (common grounded) source, or may

be provided as one of the terminals of the input, depending on the product. This input

type is used with a dry contact or voltage input. Power Limited A voltage output or wiring which conforms to NEC Article 725. PTC A resettable overcurrent protection device, similar to a fuse or circuit breaker. Rack Mount A product which has an enclosure that allows mounting in a standard 19 inch equipment

rack Simple Distribution Voltage distribution without any control function for the distributed outputs. Power is

always available to the outputs. The PD8(F) accessory board is an example of simple

distribution. Voltage Distribution Splitting a bulk power supply output into multiple, current limited outputs to prevent a

single circuit failure from talking down an entire system. The multiple terminal outputs

also simplify wiring by providing a pair of terminals for each circuit, rather than wiring

several circuits to a single pair of terminals.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-296 Rev B05

Page 27 of 27

Compatible Fire Device List

The following Fire devices have been determined to be compatible with the AlarmSaf Beacon Line of power supplies. Access Control devices used must be verified for a compatible voltage range.

Page 1 of 1 Document 52-325 Rev A.01 9/27/05

Beacon Power Supply Installation Instructions - Addendum A

17-3124Door HolderSDH-8DSiemens

17-3124Door HolderSDH-7DSiemens

17-3124Door HolderSDH-6DSiemens

17-3124Door HolderSDH-5DSiemens

17-3124Door HolderSDH-4DSiemens

17-3124Door HolderSDH-3DSiemens

17-3124Door HolderSDH-2DSiemens

20-29244-Wire Duct SmokeDH100ACDCFire-Lite

20-29244-Wire Smoke2424THFire-Lite

20-29244-Wire Smoke2424ATFire-Lite

20-29244-Wire Smoke2424AITFire-Lite

20-29244-Wire Smoke2424Fire-Lite

Voltage Range

(VDC)

Nominal Voltage

(VDC)Device TypeModelManufacturer

AlarmSaf

65A Industrial Way, Wilmington, MA 01887-3499, USA, Voice 978-658-6717, Fax:978-658-8638, www.alarmsaf.com

+IN 1- +IN 2- +IN 3- +IN 4-

SET S1 THRU S8

FOR EITHER POSITIVE,

NEGATIVE, OR

ISOLATED TRIP

+IN 5- +IN 6- +IN 7- +IN 8-

TB6

+IN 1- +IN 2- +IN 3- +IN 4- +IN 5- +IN 6- +IN 7- +IN 8-

N NI N P PI P

N NI NN P PI P

N NI

PP PI P

N NI NN

PI P

N NI

PP PI P

N NI NN

PI P

N NI

PP PI P

N NI N

S1 S2 S3 S4 S5 S7 S8

CDXXDCCDXXDCCDXXDCXDC

REPLACE FUSE ONLY W I TH FUSE OF SAME TYPE AND RATING

F1 F2 F3 F4 F5 F6 F7 F8

AlarmSaf

Wilmington, MA

APD8

NO C NC COM

OUT 1

NO C NC COM

COMNCCNO

OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8

NO C NC COM

COMNCCNO

NO C NC COM

NCCNO

COM

T+ T-

FACP

NO C NC COM

COMNCCNO NO C NC COM

COMNCCNO

NO C NC COM COMNCCNO

Model APD8(F)

XDC

JP8JP7JP6JP5JP3JP2JP1 JP4

J2J1

POWER

L0CK CTRL

NO C NC COMCOMNCCNO

L0CK CTRL

FACP AUX

Eight-Zone Advanced Power Distribution

Operating and Installation Instructions

52-254 Rev B01

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

I. Warnings and Notices

y WARNING - To reduce the risk of fire or electric shock, do not expose this product

to rain or moisture

y WARNING - This installation and all servicing should be made by qualified service

personnel and should conform to all local codes

y NOTICE - This equipment shall be installed in a manner which prevents

unintentional operation from employees or other personnel working about the premesis, by falling objects, by building vibration and by similar causes

y NOTICE - This equipment is not intended for use within the patient care areas of a

Health Care Facility

Symbol Definitions

 WARNING - Read the instruction manual to avoid personal injury or

property damage

Ꮨ WARNING - Risk of electric shock. Service to be performed by a qualified

service person

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 2 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Table of Contents

Section Page I. Warnings and Notices 2 1 Introduction 4

2 Applicable Standards / Documents 5

3 System Overview 6

3.1 Electrical Ratings and Specifications 6

3.2 Connector Descriptions and Electrical Ratings 7

3.3 Control Power and Lock Power Input Connections 8

3.4 Zone Inputs 9

3.5 Zone Outputs 9

3.6 FACP Input 10

3.7 FACP AUX Output 10

3.8 Fusing 11

4 Installation 12

4.1 Mounting 12

4.2 Wiring 13

5 Operating the APD8(F) 14

5.1 Power Separation Jumper Settings 14

5.2 Zone Input Configuration Switch Settings 14

5.3 Output Configuration Jumper Settings 15

5.4 Visual Indicators 15

5.5 Troubleshooting 16

6 Specifications 17

6.1 Electrical Specifications 17

6.2 Temperature Specifications 17

6.3 Mechanical Specifications 17

Appendix A

Configuring the Zone Inputs For Any Application 18

Appendix B

Using The Zone Outputs 20

Appendix C

Using the FACP Input and FACP AUX Output Terminals 21

Appendix D

Sample Applications 22

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 3 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Section 1 Introduction

The APD8(F) is an access control power distribution system providing eight relay controlled, individually protected outputs. The ADP8 provides Class-2 power limited outputs via PTC protection, while the APD8F uses fuse protected outputs. Either system can be operated from 12V or 24V AC or DC and features independently programmable outputs, a variety of input option modes, Fire Alarm Interface and visual status indication.

Systems Integrator applications include mag lock and door strike control, reader power, request to exit device power, and system power. The diversity, flexibility and level of system isolation provided by the APD8(F) make this unit a universal toolbox for access control applications.

y Eight outputs - each individually programmable for fail-safe, fail-secure, form-C dry contact,

continuous output voltage, and FAI controlled

y Eight inputs - each individually programmable for negative trip, positive trip, open collector / dry

contact trip, or isolated trip

y Fire Alarm Interface - latching or non-latching y Available with Class-2 Power Limited outputs y Output voltage can be isolated from control voltage y Visual status indication

y Input Activation (Red) y Control Voltage Present (Green) y FAI Status (Red)

y Removable field wiring terminal strips

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 4 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Section 2 Applicable Standards / Documents

NFPA Standards

NFPA 72 National Fire Alarm Code NFPA 70 National Electrical Code NFPA 731 Standard for the Installation of Electronic Premises Security Systems

US Standards

UL 294 Access Control System Units

Canadian Standards

CAN/CSA-C22.2 No. 107.1-01 General Use Power Supplies

Other

Applicable Local and State Building Codes Requirements of the Local Authority Having Jurisdiction (LAHJ)

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 5 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Section 3 System Overview

3.1 Electrical Ratings and Specifications Manufactured By

AlarmSaf 65A Industrial Way Wilmington, MA 01887

Model Numbers (Board-Level)

APD8, APD8F

Electrical Ratings

10 - 30V AC or DCInput Voltage

0.4A@12VDC/0.2A@24VDC maximum control current + 8A maximum output currentInput Power 8A maximum output current or rating of power source - whichever is lessTotal Output Current APD8 - 1.6A maximum ; APD8F - 3.0A maximum Zone Output Current Dependant on input voltageZone Output Voltage

0.03A per inputInput Trip Current

0.01A @ 24VDCFAI Trip Current

Tel: 800 987 1050 Tel: 978 658 6717 Fax: 978 658 8638 www.alarmsaf.com

Product Use

When installed in accordance with all standards listed in Section 2 of this document, the APD8(F) provides power distribution for use with typical 12 or 24VDC devices used in the access control or security industries such as, but not limited to, mag locks, door strikes, door holders, card readers, keypads, etc.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 6 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

3.2 APD8(F) Connector Descriptions and Electrical Ratings

TB7 - Power Inputs and FACP AUX Output

Control Power Positive InputCTRL+

Control Power Common InputCTRL-

Lock Power Positive InputLOCK+

Lock Power Common InputLOCK-

FACP Relay Output - Normally OpenFACP AUX NO

FACP Relay Output - CommonFACP AUX C

FACP Relay Output - Normally ClosedFACP AUX NC

TB8 - FACP Input

FAI Voltage Input PositiveFACP +

FAI Voltage Input CommonFACP -

FAI Dry Contact Input PositiveFACP T+

FAI Dry Contact Input CommonFACP T-

TB5 & TB6 - Zone Inputs

Zone x Positive InputIN x +

Zone x Common InputIN x -

RatingDescriptionTerminal / Connector

10V-30V AC or DC - 0.4A at 12VDC, 0.2A at 24VDC Maximum

10V-30V AC or DC - 8A Maximum - depending on output current

and voltage rating of power source

1A @ 24VDC Maximum

9VDC-30VDC - 0.01A @ 24VDC

0.01A @ 12VDC Nominal

12VDC Nominal @ 0.03A

TB1, TB2, TB3, & TB4 - Zone Outputs

+IN 1- +IN 2- +IN 3- +IN 4-

+IN 1- +IN 2- +IN 3- +IN 4- +IN 5- +IN 6- +IN 7- +IN 8-

N NI N P PI P

S1 S2 S3 S4 S5 S7 S8

F1 F2 F3 F4 F5 F6 F7 F8

AlarmSaf

Wilmington, MA

Zone x Output Normally OpenOUT x NO Zone x Output Relay CommonOUT x C

Zone x Output Normally ClosedOUT x NC

Zone x Output Power CommonOUT x COM

SET S1 THRU S8

FOR EITHER POSITIVE,

NEGAT IVE, OR

ISOLATED TRIP

N NI NN P PI P

N NI

PP PI P

REPLA CE FUSE ONLY WIT H FUSE O F S AME TYPE AND RATING

+IN 5- +IN 6- +IN 7- +IN 8-

TB6

N NI NN

PI P

N NI

PP PI P

N NI NN

PI P

Output voltage determined by Lock Input Voltage

APD8 - 1.6A per zone maximum

APD8F - 3.0A per zone maximum

N NI

PP PI P

N NI N

APD8

CDXXDCCDXXDCCDXXDCXDC

XDC

JP8JP7JP6JP5 JP3JP2JP1 JP4

J2J1

POWER

L0CK CTRL

FACP AUX

NO C NC COM

OUT 1

NO C NC COM

COMNCCNO

OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8

NO C NC COM

Note - Wire should be sized appropriately for voltage drop and current carrying capability. All terminals are labelled for polarity where appropriate.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

COMNCCNO

NO C NC COM

NCCNO

COM

Figure 3.2.1

T+ T-

NO C NC COM

T+ T-

FACP

COMNCCNO NO C NC COM

COMNCCNO

NO C NC COM COMNCCNO

NO C NC COMCOMNCCNO

52-254 Rev B01

Page 7 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

3.3 Control Power and Lock Power Input Connections

The APD8(F) has two separate power inputs - a control power input, and a lock power input. Using two separate power inputs allows total separation of lock and control power sources. Typically, this is not required, and jumpers J1 and J2 should remain in. See Section 5.1 for more information on configuring the APD8(F) for using separate power inputs.

Note - If J1 and J2 are out, BOTH power inputs must be wired to a power source. If J1 and J2 are in place, either the control input or the power input may be used. Note - If J1 and/or J2 are missing, the control power and lock power inputs can be connected together with wire jumpers if isolated power sources are not required.

3.3.1 Control Power Input If J1 and J2 are removed, this input provides power to the internal relays and related circuitry of the APD8(F). The Control Power common is tied to the zone input common connections (unless the zone input is set as an insolated input). If J1 and J2 are removed, the Control Power input or Zone Inputs have NO connection to the Lock Power input or the Zone Outputs.

3.3.2 Lock Power Input If J1 and J2 are removed, this input provides power to the zone outputs of the APD8(F). The Lock Power common is tied to the zone output common connections. If J1 and J2 are removed, the Lock Power input or Zone Outputs have NO connection to the Control Power input or Zone Inputs.

Note - All wiring should be installed in accordance with (NEC760) NFPA70, NFPA72, and all local code requirements. Power limited wiring requires that power limited and non-power limited wiring

remain physically separated. All power limited circuits must remain at least one quarter inch (¼”)

away from any non-power limited circuit wiring. All power limited circuit wiring must enter and exit the cabinet through different knockouts than non-power limited wiring.

SYSTEM / CONTROL POWER

ISOLATION JUMPERS

CONTROL POWER

INPUT VOLTAGE TERMINALS

LOCK POWER

INPUT VOLTAGE TERMINALS

FACP AUXI LIAR Y

RELAY TERMINA LS

Fig. 3.3.1

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 8 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

3.4 Zone Inputs

Each Zone Output has a corresponding Zone Input. Each Zone Input provides on/off control for its associated output. Inputs are programmable for a variety of input types, including:

y Normally Closed Dry Contact - Positive Switchingy Normally Open Dry Contact - Positive Switching y Normally Closed Dry Contact - Negative Switchingy Normally Open Dry Contact - Negative Switching y Non-Isolated Positive Tripy Non-Isolated Negative Trip y Open Collector Inputy Isolated Voltage Trip

See Appendix A for specific information and example wiring diagrams for connecting the Zone Inputs.

3.5 Zone Outputs

Each Zone Output of the APD8(F) can be used as a dry contact output, or as either a fail-safe or fail-secure voltage output. Jumpers JP1 through JP8 select the type of output for each zone (see Section 5.1 for jumper information). See Appendix B for more information on the Zone Outputs.

3.5.1 If the Zone Output is configured as a dry contact output, the following connections apply:

y NO Normally Open relay contact y C Relay Common y NC Normally Closed relay contact

3.5.2 If the Zone Output is configured as a voltage output, the following connections apply:

y NO Outputs voltage when the zone relay is active y C Always outputs voltage, regardless of relay condition y NC Outputs voltage when the zone relay is incative y COM This terminal is the DC common associated with the output

INPUT ZONE

TRIP TERMINALS

OUTPUT RELAY

STATUS

OUTPUT ZONE

TERMINALS

Fig. 3.4

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 9 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

3.6 FACP Input

The APD8(F) has two FAI inputs, one which accepts a voltage input, and one that accepts a dry contact input. Consult the appropriate section below for Terminal Connections for the type of connection being used. See Appendix C for more information and specific wiring diagrams for the FACP Input.

3.6.1 Voltage FACP Input

y FACP + FACP Input Positive y FACP - FACP Input Common

3.6.2 Dry Contact FACP Input

y FACP T+ One leg of the FACP Dry Contact Input (This terminal is positive with respect

to DC Common)

y FACP T- The other leg of the FACP Dry Contact Input

NOTE - If the APD8(F) is being used with a power supply which has its own FAI Input, the supply’s FAI input may be used to control the APD8(F) board. See Appendix D for more information.

3.7 FACP AUX Output

The FACP AUX output is a relay output which follows the FACP Input state. Typically, this output is used to activate the FACP Input on additional APD8(F) boards. See Appendix C and Appendix D for wiring details.

FIRE A LARM

INPUT INDICATOR

FIRE ALARM OVER RIDE

TRIP TERMINALS

Fig. 3.6

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 10 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

3.8 Fusing

The APD8F contains eight replacable fuses - one for each output zone. When replacing these fuses, only the equivalent type and rating are to be used. The APD8F utilizes commonly available automotive blade-type fuses (Type ATC). All fuses are rated at 3A (ATC-3).

Only the APD8F contains fuses. The APD8 uses output PTCs.

+IN 1- +IN 2- +IN 3- +IN 4-

SET S1 THRU S8

FOR EITHER POSITIVE,

NEGATIVE, OR

ISOLATED TRIP

+IN 5- +IN 6- +IN 7- +IN 8-

TB6

+IN 1- +IN 2- +IN 3- +IN 4- +IN 5- +IN 6- +IN 7- +IN 8-

N NI N P PI P

S1 S2 S3 S4 S5 S7 S8

N NI NN P PI P

N NI

PP PI P

N NI NN

PI P

N NI

PP PI P

N NI NN

PI P

N NI

PP PI P

N NI N

CDXXDCCDXXDCCDXXDCXDC

REPLACE FUSE ONLY WITH FUSE OF SAME TYPE AND RATING

F1 F2 F3 F4 F5 F6 F7 F8

AlarmSaf

Wilmington, MA

APD8

NO C NC COM

COMNCCNO

NCCNO

COM

T+ T-

COMNCCNO NO C NC COM

NO C NC COM COMNCCNO

XDC

JP8JP7JP6JP5JP3JP2JP1 JP4

J2J1

POWER

L0CK CTRL

FACP AUX

NO C NC COM

OUT 1

NO C NC COM

OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8

NO C NC COM

T+ T-

FACP

NO C NC COM

COMNCCNO

Fig. 3.8

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

NO C NC COMCOMNCCNO

52-254 Rev B01

Page 11 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Section 4 Installation

4.1 Mounting

The APD8(F) line is available in either board-level or cabinet level versions.

NOTE - For UL compliance, if the APD8(F) is mounted in an unprotected area, a Tamper Switch must be used.

4.1.1 Mounting a Cabinet-Level Version If the APD8(F) is provided in a wall mount enclosure, use #8 hardware minimum in four locations. Use an appropriate fastening system for the mounting surface.

Cabinet Mounting:

1. Mark and predrill two holes for the top keyhole mounting screws

2. Install two fasteners in the mounting wall leaving screwheads protruding approximately ¼

inch

3. Using the two upper keyholes, mount the cabinet over the two screws

4. Mark the two lower holes, remove the cabinet and drill the lower mounting holes

5. Mount the cabinet, install the remaining fasteners, and tighten all fasteners

ABC

Figure 4.1.1

4.1.2 Mounting a Board-Level Version Board-level units can be mounted either with the provided double-sided tape or by using nylon standoffs and hardware (not included). Replacement boards for a listed unit must reuse the existing hardware to maintain the listing.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 12 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

4.2 Wiring

4.2.1 Wire Routing All wiring must be installed in accordance with NFPA70, NFPA72, and all local code requirements.

Power Limited wiring requires that power limited and non-power limited wiring remain physically separated. Any power limited circuit entering the enclosure must remain at least one quarter inch

(¼”) away from any non-power limited circuit wiring. Any power limited circuit wiring must enter

and exit the enclosure through different knockouts than non-power limited circuit wiring. Wiring within the enclosure should be routed around the perimeter of the cabinet. It should not be routed across the circuit boards.

4.2.2 Control and Lock Power Inputs Locate the power input terminal block (TB7) and remove the terminal block from the header. Connect one or both power inputs as appropriate for the settings of J1 and J2 (See Sections 3.3 and 5.1). Power input wiring should be sized appropriately for the total current draw from the outputs of the APD8(F). See Section 3.3 for details. Replace the terminal block on the header.

4.2.3 Zone Input Wiring Locate the terminal block for the zone input to be wired and remove the terminal block from the header. Connect the input in the manner appropriate for the type of input signal being applied. See section 3.4 and Appendix A for more information. Replace the terminal block on the header.

4.2.4 Zone Output Wiring Locate the terminal block for the zone output to be wired and remove the terminal block from the header. Connect the output in the manner appropriate for the application. See section 3.5 and Appendix B for more information. Zone Output wiring should be sized appropriately for the total current draw from the output. Replace the terminal block on the header.

4.2.5 FACP Input Locate the FACP Input terminal block (TB8) and remove the terminal block from the header. Connect the proper input in the manner appropriate for the type of input signal being applied. See Section 3.6 and Appendix C for more information. Replace the terminal block on the header.

4.2.6 FACP AUX Output Locate the FACP AUX Output terminal block (TB7) and remove the terminal block from the header. Connect the FACP AUX Output as needed. See Section 3.7, Appendix C, and Appendix D for more information. Replace the terminal block on the header.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 13 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Section 5 Operating the APD8(F)

5.1 Power Separation Jumper Settings

The APD8(F) gives the installer the ability to electrically isolate the Control power from the Zone Output power. This can be helpful in installations where noise-sensitive devices would be affected by lock noise.

To isolate the LOCK power input from the CTRL power input, jumpers J1 and J2 must BOTH be removed.

5.2 Zone Input Configuration Switch Settings

Each zone of the APD8(F) has a set of DIP switches associated with its input. These switches configure the input for use with a variety of signal types, however three basic configurations will cover a majority of applications. See Appendix A for information on configuring additional input types.

Note - Only switches 1 through 6 are used for each input - switches 7 & 8 are unused.

Note - The factory configuration of these switches (Negative Trip Mode) should work for most

applications.

5.2.1 Negative Trip Mode Negative Trip Mode will cover applications including Dry Contact (NO or NC) and Open Collector (including Casi-Rusco). To set the APD8(F) for Negative Trip Mode, Switches 1, 2, and 3 should be ON (Closed), and all other switches should be OFF (Open).

5.2.2 Positive Trip Mode Positive Trip Mode covers applications where a positive voltage is applied to the input for activation. To set the APD8(F) for Positive Trip Mode, Switches 4, 5, and 6 should be ON (Closed), and all other switches should be OFF (Open).

5.2.3 External 12VDC Trip (Isolated) External Trip Mode covers applications with a completely isolated 12V source as an activation source. The source may or may not be common-grounded with the rest of the system. To set the APD8(F) for External Trip Mode, Switches 2 and 5 should be ON (Closed), and all other switches should be OFF (Open).

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 14 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

INPUT ZONE

CONFIGURATION SWITCH

Ext. TripPos. TripNeg. TripSwitch #

OFF (Open)OFF (Open)ON (Closed)1 (N)

ON (Closed)OFF (Open)ON (Closed)2 (NI)

OFF (Open)OFF (Open)ON (Closed)3 (N) OFF (Open)ON (Closed)OFF (Open)4 (P)

ON (Closed)ON (Closed)OFF (Open)5 (PI)

+IN 1-

N NI N P PI P

OFF (Open)ON (Closed)OFF (Open)6 (P)

Table 5.2

5.3 Output Configuration Jumper Settings

Each Zone Output has a configuration jumper which must be set for one of three modes for proper operation. y ‘C’ Position - The output is ‘C’onstant, regardless of the FACP input. Only the Zone Input can

change the state of the output.

y ‘D’ Position - The output will ‘D’rop power when a valid FACP input is received, regardless of the

state of the Zone Input.

y ‘X’ Position - The output is set as a dry contact output.

OUTPUT ZONE

CONFIGURATION

XDC

JP1

Figure 5.3

5.4 Visual Indicators

The APD8(F) contains ten visual status indicators as described below.

ConditionsColorDescriptionLED

Lights when the internal power source is presentGreenControl VoltageCV (D33)

Lights when there is no FACP input presentGreenFire OverrideFO (D1)

Each LED lights when its associated Zone Output relay is powered.RedZone Relay(D10-D17)

5.4.1 CV (D33) This LED lights when the APD8(F)’s internal power source is operating properly.

5.3.2 FO (D1) This LED illuminates there is not a valid FACP signal being received. This LED extinguishes when an FACP signal is received and output power is dropped to zones set for ‘D’.

5.3.3 Zone Output Relay LEDs (D10-D17) Each Zone Output relay has an associated LED which lights when the relay is activated.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 15 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

5.5 Troubleshooting

No power on output(s)

Output not dropping power on a

FACP input

No power input

Zone Output wired incorrectly

Output Configuration Jumper set

incorrectly

Blown Fuse / Tripped PTC

FACP Input active

Output Configuration Jumper set

incorrectly

SolutionPossible CauseCondition

See Section 5.1J1 and J2 set incorrectly

Verify power is present on the power

input terminals. If J1 and J2 are

removed, BOTH power inputs must

be powered.

Verify the input is configured properlyZone Input in the wrong state

Verify the output is configured

properly

See Section 5.3

Verify output integrity and replace

fuse, or remove output load to reset

PTC.

Verify that the FACP input is not

activated.

Contact AlarmSafOther Problem

See Section 5.3

Verify the FACP Input configurationFACP Input wired incorrectly

Verify the Zone Output wiringZone Output wired incorrectly

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 16 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Section 6 Specifications

6.1 Electrical Specifications

6.1.1 Input Voltage 10-30V AC or DC

6.1.2 Input Power 0.4A@12VDC / 0.2A@24VDC maximum control

6.1.3 Output Voltage Dependent on Input Voltage

6.1.4 Total Output Current 8A Maximum

6.1.5 Zone Output Current APD8 - 1.6A Maximum

6.1.6 Input Trip Current 0.03A per input

6.1.7 FAI Trip Current 0.01A at 24VDC

6.2 Temperature Specifications

6.2.1 Ambient Temperature Range 0ºC to 49ºC (32ºF to 120ºF)

6.2.2 Ambient Humidity 93% at 32ºC (90ºF) Maximum

6.3 Mechanical Specifications

6.3.1 Weight (PCB Only) 0.70lbs.

6.3.2 Size (PCB Only) 7.75”L x 4.75”W x 1.25”H Max.

6.3.3 CAD Drawing

current + 8A maximum output current

APD8F - 3.0A Maximum

7.75"

7.45"

+IN 1- +IN 2- +IN 3- +IN 4-

+IN 1- +IN 2- +IN 3- +IN 4- +IN 5- +IN 6- +IN 7- +IN 8-

3.20"

N NI N P PI P

S1 S2 S3 S4 S5 S7 S8

F1 F2 F3 F4 F5 F6 F7 F8

AlarmSaf

Wilmington, MA

N NI NN P PI P

REPLACE FUSE ONLY WITH FUSE OF SAME TYPE AND RATING

4.75"

NO C NC COM

OUT 1

COMNCCNO

NO C NC COM

OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8

NO C NC COM

SET S1 THRU S8

FOR EITHER POSITIVE,

NEGATIVE , OR

ISOLATED TRIP

N NI

PP PI P

COMNCCNO

NO C NC COM

+IN 5- +IN 6- +IN 7- +IN 8-

TB6

N NI NN

PI P

NCCNO

COM

NN PP PI

PI P

APD8

T+ T-

FACP

N NI

PP PI P

NO C NC COM

N NI N

COMNCCNO NO C NC COM

CDXXDCCDXXDCCDXXDCXDC

NO C NC COM COMNCCNO

COMNCCNO

XDC

J2J1

JP8JP7JP6JP5 JP3JP2JP1 JP4

POWER

L0CK CTRL

FACP AUX

NO C NC COMCOMNCCNO

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

Figure 6.3.1

52-254 Rev B01

Page 17 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Appendix A Configuring The Zone Inputs For Any Application

Each zone of the APD8(F) has a set of DIP switches associated with its input. These switches configure the input for use with a variety of signal types, including:

Note - Only switches one through 6 are used for each input - switches 7 & 8 are unused.

NO Dry

Contact

Positive

NO Dry

Contact

Negative

NC Dry

Contact

Positive

NC Dry Contact

Negative

Non Isolated

Negative Trip

Non Isolated

Positive Trip

Isolated

Voltage Trip

Open

Collector

Input

On (Closed)Off (Open)Off (Open)On (Closed)On (Closed)Off (Open)On (Closed)Off (Open)Switch 1 On (Closed)On (Closed)Off (Open)On (Closed)On (Closed)Off (Open)On (Closed)Off (Open)Switch 2 On (Closed)Off (Open)Off (Open)On (Closed)On (Closed)Off (Open)On (Closed)Off (Open)Switch 3

Off (Open)Off (Open)On (Closed)Off (Open)Off (Open)On (Closed)Off (Open)On (Closed)Switch 4 Off (Open)On (Closed)On (Closed)Off (OpenOff (Open)On (Closed)Off (Open)On (Closed)Switch 5 Off (Open)Off (Open)On (Closed)Off (Open)Off (Open)On (Closed)Off (Open)On (Closed)Switch 6

y NO Dry Contact Positive - This configuration will activate the zone’s output relay when the normally open contact

connected to the input closes. The NO contact is in series with the positive leg of the internal zone output relay coil.

y NO Dry Contact Negative - This configuration operates the same as the NO Dry Contact Positive configuration,

except that the NO contact is in series with the ground side of the internal zone output relay coil. This is the most common configuration.

y NC Dry Contact Positive - This configuration holds the zone output relay active. The zone output relay deactivates

when the NC contact opens. The NC contact is in series with the positive leg of the internal zone output relay coil.

y NC Dry Contact Negative - This configuration operates the same as the NC Dry Contact Positive configuration,

except that the NC contact is in series with the ground side of the internal zone output relay coil.

y Non-Isolated Negative Trip - The positive source for the zone output relay coil is provided internally. A DC

common connected to the input’s ‘-’ terminal will activate the zone output relay. No connection is required to the input’s ‘+’ terminal. The DC common used to activate the zone must be common grounded with the control power input’s DC common.

y Non-Isolated Positive Trip - The DC common for the zone output relay coil is provided internally. A positive 12VDC

voltage connected to the input’s ‘+’ terminal will activate the zone output relay. No connection is required to the input’s ‘-’ terminal. The positive voltage used to activate the zone must be common grounded with the control power input’s DC common. Do not use a 24V source to activate the input or damage to the zone output relay will occur.

y Isolated Voltage Trip - Connection of a 12VDC source across the input’s ‘+’ and ‘-’ terminals will activate the zone

output relay. When used in this mode, the zone input is completely isolated from the control power input and the lock power input. Do not use a 24V source to activate the input or damage to the zone output relay will occur.

y Open Collector Input - This configuration is identical to the “NO Dry Contact Negative configuration, except that

the dry contact is replaced with the open collector output.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 18 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Open CollectorNC ContactNO Contact

+IN 1-

N NI N P PI P

EXTERNAL

12VDC

+IN 1-

N NI N P PI P

+IN 1-

N NI N P PI P

The trip source MUST be common grounded to the APD8(F)’s control

power source.

Isolated Voltage TripNegative TripPositive Trip

EXTERNAL

12VDC

+IN 1-

N NI N P PI P

The trip source MUST be common

grounded to the APD8(F)’s control

power source.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

+IN 1-

N NI N P PI P

The trip source MUST be common

grounded to the APD8(F)’s control

power source.

+IN 1-

N NI N P PI P

The power source does not need to be common grounded to the APD8(F)’s control power source.

52-254 Rev B01

Page 19 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Appendix B Using The Zone Outputs

The APD8(F)’s outputs can be used in a variety of configurations, allowing flexibility and compatability with virtually any application. Each output can individually be set up for disconnect on FAI, no action on FAI, or Dry Contact Output (no action on FAI) by setting the Zone Output Configuration jumpers for each zone (See Section 5.3). In addition to the jumper settings, each output may be wired in a variety of configurations to suit the required application.

y Dry Contact Output - ‘X’ - When the zone output configuration jumper is set in the ‘X’ position,

the zone output is disconnected from all voltage sources and acts as a dry contact output. The C, NC, and NO terminals act as a normal relay which is controlled by the zone’s input terminals. The terminal labelled ‘COM’ is connected internally to the DC common of the Lock Power Input. When used as a dry contact output, the rating of the output is 3A.

Note - When configured as a dry contact output, the zone output protection (fuse / PTC) is not in the output circuit. Note - The FACP input has no effect on a dry contact output.

y Voltage Output - Constant - ‘C’ - When the zone output configuration jumper is set in the ‘C’

position, the zone output will supply the voltage applied to the Lock Power Input. Internally, the Lock Input voltage is connected to the zone output relay’s C terminal. Depending on the state of the zone output relay, the voltage is output via the NC or NO terminal as follows:

y NO - Voltage is output on this terminal when the zone output relay is activated y C - Voltage is always present on this terminal, regardless of the state of the zone output

relay

y NC - Voltage is output on this terminal when the zone output relay is NOT active y COM - This terminal is the DC common (‘-’)for the zone output. It is connected internally

to the Lock Input ‘-’ terminal.

Note - The FACP input has no effect on an output whose zone output configuration jumper is set for ‘C’.

y Voltage Output - Disconnect - ‘D’ - When the zone output configuration jumper is set in the ‘D’

position, the zone output will function exactly the same as when it is set for ‘C’, with the exception that power will be removed from the NO, C, and NC terminals when a valid input is received at the FACP input.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 20 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Appendix C Using The FACP Input and FACP AUX Output Terminals

The APD8(F) has two FACP inputs which can be used to drop power to selected outputs when activated. One of the FACP inputs is for connection to a voltage source trip, while the other is for connection to a NO contact trip or open collector trip. See Section 3.6 for more information. The FACP voltage input incorporates an on-board blocking diode for connection to a polarity-reversing source.

The FACP AUX relay output follows the FACP input and can be used to activate additional APD8(F) FACP inputs, to latch the FACP input on, or for other functions. See Section 3.7 and Appendix D for more information.

Isolated VoltageOpen CollectorNO Contact

T+ T-

FACP

+VDC

T+ T-

FACP

SWITCHED +VDC

+VDC COM

FACP

T+ T-

Closure of the NO contact will activate

the FACP input.

Activation of the open collector output

will activate the FACP input.

Applying voltage in the polarity shown

will activate the FACP input.

Latching the FACP for Canadian Applications

FACP AUX

FACP

+VDC

+VDC COM

T+ T-

NO C NC COM

T+ T-

FACP

COMNCCNO NO C NC COM

OUT 5 OUT 6 OU T 7 OUT 8

NO C NC COM COMNCCNO

COMNCCNO

RESET

NO C NC COMCOMNCCNO

Activation of the FACP’s output causes the APD8(F)’s FACP voltage input to be activated. This causes the APD8(F)’s FACP AUX relay to activate, which provides a closure across the APD8(F)’s FACP dry contact input, holding the APD8(F) in FACP

mode. Opening the reset contact will unlatch the FACP mode as long as the FACP’s output is deactivated.

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 21 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Appendix D Sample Applications

Using a Beacon Power Supply’s FAI Input to activate the APD8(F)’s FACP Input

Beacon

24V

AC Power

12V

Accessory Board Mounting Position

SysFlt Com

SysFlt NC

SysFlt NO

ACFlt NO

ACFlt NC

ACFlt Com

IN1A

IN1B

IN2A

IN2B

IN3A

IN3B

IN4A

IN4B

IN5A

IN5B

IN6A

IN6B

IN7A

IN7B

IN8A

IN8B

OUT1

OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

NO1C1NC1

COM1C2NC2

COM2

NO2

NO3C3NC3

COM3

NO4C4NC4

FACP

COM41+2-3+4-

NO5C5NC5

COM5

NO6C6NC6

ABC Connector (P2)

APD8(F)

COM6

NO7C7NC7

COM7

NO8C8NC8

FACP AUX

CTRL+

CTRL-

LOCK+

LOCK-

COM8

Using a NO or NC contact to control a Maglock

Access Control Panel Outputs

NC NO

IN1A

IN1B

IN2A

IN2B

IN3A

IN3B

IN4A

IN4B

OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

OUT1

NO1C1NC1

COM1C2NC2

COM2

NO2

NO3C3NC3

COM3

NO4C4NC4

IN5A

IN5B

IN6A

IN6B

COM41+2-3+4-

IN7A

FACP

IN7B

IN8A

IN8B

NO5C5NC5

N/A

NO NC

Batt-

COM5

DC3-

Batt+

NO6C6NC6

DC3+

COM6

FAI V-

FAI L- In

FAI L- Out

FAI L+ Out

FAI L+ In

FAI V+

DC2-

DC2+

APD8(F)

NO7C7NC7

To provide greater flexibility of options for

NO Contact

FAI trip options, the APD8(F) can be slaved to a Beacon Power Supply’s FAI action.

Any acceptable method of FAI connection can be used on the Beacon power supply. Consult the Beacon Power Supply’s installation manual for acceptable

DC1-

DC1+

connection methods.

Activating the FAI terminals of the Beacon power supply causes the Beacon’s DC3 output to activate, which in turn activates the APD8(F)’s FACP voltage input.

The APD8(F)’s FACP AUX terminals may be used to daisychain to the next APD8(F), if used.

Zone 1 is configured to maintain power to a maglock. Release is by closure of the access control panel’s NO relay contact, activating

CTRL+ LOCK+

FACP AUX

CTRL-

LOCK-

N/A

NO NC

the Zone Output relay.

Zone 2 is also configured to maintain power to a maglock. Release is by the opening of

the access control panel’s NC relay contact, deactivating the Zone Output relay.

COM7

NO8C8NC8

COM8

Setting the Zone Output Configuration jumper to the ‘D’ position will also allow the FACP input to release the outputs when used for egress.

MAG1

MAG2

Mag Lock

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 22 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

Using an output as a constant power source

Egress PIR

Keypad

Power +

Power -

U1 APD8(F)

IN1A

IN1B

IN2A

IN2B

IN3A

IN3B

IN4A

IN4B

OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

OUT1

NO1C1NC1

COM1C2NC2

COM2

NO2

Door Strike

Fail-Safe

NO3C3NC3

COM3

NO4C4NC4

IN5A

IN5B

IN6A

IN6B

COM41+2-3+4-

IN7A

IN7B

IN8A

IN8B

FACP

External Power Source

NO5C5NC5

COM5

NO6C6NC6

Latching FAI Input with Remote / Flexible Reset

Remote Reset Switch

or Relay Contact

U1 APD8(F)

IN1A

IN1B

IN2A

IN2B

IN3A

IN3B

IN4A

IN4B

OUT1

OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

NO1C1NC1

COM1C2NC2

COM2

NO2

NO3C3NC3

COM3

NO4C4NC4

IN5A

IN5B

IN6A

IN6B

COM41+2-3+4-

IN7A

IN7B

FACP

IN8A

IN8B

NO5C5NC5

COM5

NO6C6NC6

COM6

NO CNCPower +

Power -

COM6

NO7C7NC7

Door Strike

Fail-Safe

NO7C7NC7

COM7

NO8C8NC8

COM7

NO8C8NC8

FACP AUX

CTRL+

CTRL-

LOCK+

LOCK-

N/A

COM8

CTRL+ CTRL-

LOCK+

LOCK-

COM8

N/A

Zone 2 is connected to release a doorstrike when an egress PIR sees a valid target. Zone 1 provides constant power to the egress PIR through the ‘C’ terminal. The Zone Input is set for NC Dry Contact Negative (See Appendix A) and the Zone Output Configuration jumper is set for ‘C’,

since fire override is not required for a failsafe doorstrike.

Output 7 is used to control a doorstrike powered from an external power source on command by the keypad connected to Zone Input 7 and powered by Zone Output 8. The Zone Output Configuration jumper is set for ‘X’, for a dry contact output.

In this application, FAI latch release is provided via Zone Input 8. Configuring the Fire Override in this manner is preferred in installations where the reset switch is located far away from the APD8(F) board.

This configuration also allows any type of input source to reset the FAI latch, including, NC contact, NO contact, open collector, and voltage source.

The zone input should be configured along with the zone output for the type of input being used (See Appendix A).

FAI

Activation

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 23 of 24

APD8(F) Installation Instructions 10/9/2007, 12:19:29 PM

“Daisy-Chaining” FACP Inputs Between Multiple APD8(F) boards

U1 APD8(F)

IN1A

IN1B

IN2A

IN2B

IN3A

IN3B

IN4A

IN4B

OUT1

OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

NO1C1NC1

COM1C2NC2

COM2

NO2

NO3C3NC3

COM3

NO4C4NC4

IN5A

IN5B

IN6A

IN6B

IN7A

IN7B

FACP

COM4

1+2-3+4-NO5C5NC5

FAI

Activation

IN8A

IN8B

COM5

NO6C6NC6

COM6

NO7C7NC7

COM7

NO8C8NC8

CTRL+

LOCK+

LOCK-

FACP AUX

COM8

CTRL-

N/A

NO NC

Activating the FACP input of the top APD8(F) transfers its FACP AUX output. These contacts then activate the FACP dry contact input of the bottom APD8(F).

Any valid FACP Input activation method can be used on the top APD8(F). See Appendix C for more information.

IN1A

IN1B

IN2A

IN2B

IN3A

IN3B

IN4A

IN4B

OUT1

OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

NO1C1NC1

COM1C2NC2

COM2

NO2

NO3C3NC3

COM3

NO4C4NC4

IN5A

IN5B

IN6A

IN6B

IN7A

IN7B

FACP

COM4

1+2-3+4-NO5C5NC5

IN8A

IN8B

Powering and Controlling AC Devices

Access Control Panel Outputs

NO C NC

IN1A

IN1B

IN2A

IN2B

IN3A

IN3B

IN4A

OUT1

NO1C1NC1

AC Strike

IN4B

OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

COM1C2NC2

COM2

NO2

AC Strike

NO3C3NC3

COM3

NO4C4NC4

IN5A

IN5B

IN6A

IN6B

COM41+2-3+4-

IN7A

IN7B

FACP

IN8A

IN8B

U2 APD8(F)

COM5

U1 APD8(F)

NO5C5NC5

COM5

NO6C6NC6

COM6

NO7C7NC7

COM7

NO8C8NC8

COM6

NO7C7NC7

COM7

NO8C8NC8

120VAC 12VAC

CTRL+

CTRL-

LOCK+

LOCK-

N/A

FACP

AUX

COM8

CTRL+

CTRL-

LOCK+

LOCK-

N/A

FACP

AUX

COM8

TRANSFORMER

If there are more than two APD8(F) boards which need to activate on FAI, the FACP AUX output of the second APD8(F) board would be connected to the next APD8(F)’s FACP dry contact input. This can be repeated for as many APD8(F) boards as necessary.

A little known application for the APD8(F) is for powering and controlling AC devices. This application shows an APD8(F) controlling two AC strikes in an apartment complex. Zone 1’s input is configured to accept a NC contact, while Zone 2’s input is configured for a NO contact. Note the different output wiring for each application.

If the strikes are not failsafe, the FACP input may be used with a zone output configuration jumper setting of ‘D’.

Also note that the APD8(F) has an internal rectifier and regulator for it’s own relay power, eliminating the need for a separate DC power source for powering the APD8(F).

AlarmSaf 65A Industrial Way, Wilmington, MA 01887 978 658 6717 www.alarmsaf.com

52-254 Rev B01

Page 24 of 24

Alarm SAF BN4-004-APD8-UL, BN4-003-APD8F-UL, BN4-003-APD8-UL, BN4-004-APD8F-UL, BN6-003-APD8F-UL Operating And Installation Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
