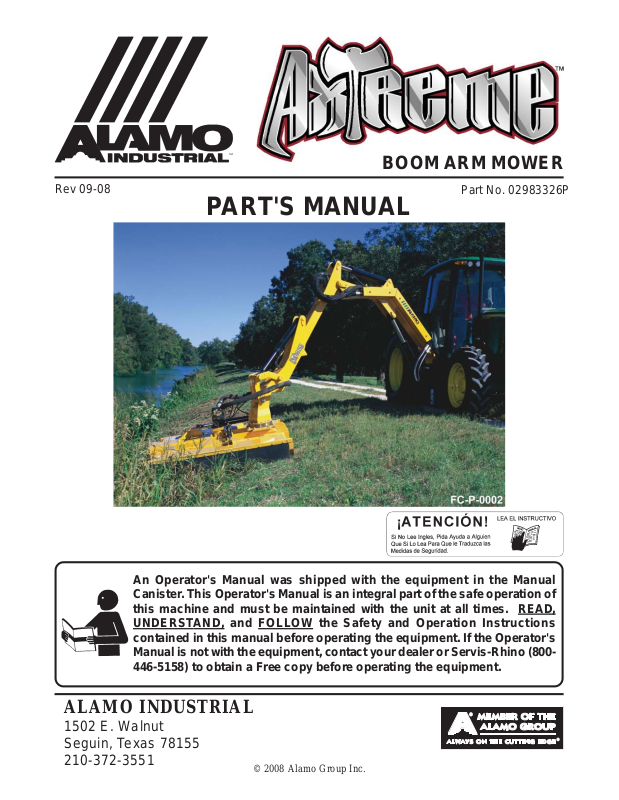

Alamo FC-P-0002 User Manual

BOOM ARM MOWER

Rev 09-08

Part No. 02983326P

PART'S MANUAL

An Operator's Manual was shipped with the equipment in the Manual Canister . This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment. If the Operator's Manual is not with the equipment, contact your dealer or Servis-Rhino (800446-5158) to obtain a Free copy before operating the equipment.

ALAMO INDUSTRIAL

1502 E. Walnut Seguin, Texas 78155 210-372-3551

TO THE OWNER/OPERATOR/DEALER

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.

BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.

Observe the rules of safety and common sense!

FAILING TO FOLLOW SAFETY MESSAGES AND OPERATING INSTRUCTION CAN CAUSE

SERIOUS BODILY INJURY OR EVEN DEATH TO OPERATOR AND OTHERS IN THE AREA.

1. 2.NO RIDERS. NO

READ

1. Study and understand Operator’s Manuals, Safety Decals, and Instructional Decals for tractor and implement to prevent misuse, abuse, and accidents. Practice before operating in a confined area or near passersby.

¥ Learn how to stop engine suddenly in an emergency. Be alert for passersby and especially children.

2. Allow no children on or near folding mower or tractor. Allow no riders on tractor or implement. Falling off may cause serious injury or death from being run over by tractor or mower or contact with rotating blades.

3. Operate only with tractor having Roll-Over Protective Structure (ROPS) and with seat belt securely fastened to prevent injury and possible death from falling off or tractor overturn.

¥ Personal Protective Equipment such as Hard Hat, Safety Glasses, Safety Shoes, & Ear Plugs are recommended.

4. Block up or support raised machine and all lifted components securely before putting hands or feet under or working underneath any lifted component to prevent crushing injury or death from sudden dropping or inadvertent operation of controls. Make certain area is clear before lowering or folding.

5. Before transporting, put Lift Lever in detent or full-lift position. Install Transport Safety Devices securely on folding mowers. Put Booms securely in Transport Rest.

¥ Folding and Boom Mowers have raised center of gravity. Slow down when turning and on hillsides.

6. Make certain that SMV sign, warning lights, and reflectors are clearly visible. Follow local traffic codes.

7. Never operate with Cutting Head or Folding Section raised if passersby,bystanders, or traffic are in the area to reduce possibility of injury or death from objects thrown by Blades under Guards or mower structure.

8. Before dismounting, secure implement in transport position or lower to ground.

¥ Put tractor in park or set brake, disengage PTO, stop engine, remove key, and wait until noise of rotation has ceased to

prevent crushing by entanglement in rotating parts which could cause injury or death.

¥ Never mount or dismount a moving vehicle. Crushing form runover may cause serious injury or death.

MANUAL

CHILDREN OPERATORS.

3. USE SAFETY SHOES,

HARD HAT, SAFETY GLASSES, SEAT BELTS, ROPS & OPS.

4. BLOCK UP SECURELY

BEFORE WORKING UNDER.

5. TRANSPORT SAFELY,

LOCK UP.

6. USE SMV, LIGHTS, &

REFLECTORS.

7. DO NOT OPERATE

WITH CUTTER OR WING RAISED

8. DO NOT MOUNT OR

DISMOUNT WHILE MOVING.

02967827

WARRANTY INFORMATION:

Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card and on the Warranty Form that you retain. The use of "will-fit" parts will void your warranty and can cause catastrophic failure with possible injury or death.

PARTS

SECTION

Parts Section – 1

PARTS ORDERING GUIDE

The following instructions are offered to help eliminate needless delay and error in processing purchase orders for the equipment in this section.

1. The Parts Section is prepared in logical sequence and grouping of parts that belong to the basic machine featured in this manual. Part Numbers and Descriptions are given to help locate the parts and quantities required.

2. The Purchase Order must include the name and address of the person or organization ordering the parts, who should be charged, and if possible, the serial number of the machine for which the parts are ordered.

3. The Purchase Order must clearly list the quantity of each part, the complete and correct part number (be sure to include all periods), and the basic name of the part.

4. The Manufacturer reserves the right to substitute parts where applicable.

5. Some parts are unlisted items which are special production items not normally stocked and are subject to special handling. Request a quotation for such parts before sending a Purchase Order.

6. The Manufacturer reserves the right to change prices without prior notice.

NOTE: Please refer to The Safety Section in the front of this Manual for the proper

Part Number when ordering Replacement Safety Decals.

For maximum safety and to guarantee optimum product reliability, always use genuine Servis-Rhino Parts. The use of inferior replacement parts may cause premature or catastrophic failure which could result in serious injury or death. Direct any questions regarding parts to:

ALAMO INDUSTRIAL

1502 E. Walnut Seguin, Texas 78155 830-379-1480

Parts Section – 2

PART NAME INDEX

48 IN FLAIL - HEAD ASY (SOLID MNT) (PART 1).................................................................................................................................. 5

48 IN FLAIL - HEAD ASY (SOLID MNT) (PART 2)................................................................................................................................. 7

48 IN FLAIL - HEAD ASY (SWIVEL MNT) (PART 1).............................................................................................................................. 9

48 IN FLAIL - HEAD ASY (SWIVEL MNT) (PART 2)............................................................................................................................ 11

48 IN FLAIL - HEAD ASY (SWIVEL MNT) (PART 3)............................................................................................................................ 13

48 IN FLAIL - HEAD ASY DECALS......................................................................................................................................................... 15

60 IN ROTARY - BLADE BAR ASY......................................................................................................................................................... 17

60 IN ROTARY - HEAD ASY (SOLID MNT)........................................................................................................................................... 19

60 IN ROTARY - HEAD ASY (SWIVEL MNT)....................................................................................................................................... 21

60 IN ROTARY - HEAD SUB-ASY (SOLID MNT).................................................................................................................................. 23

60 IN ROTARY - HEAD SUB-ASY (SWIVEL MNT).............................................................................................................................. 25

60 IN ROTARY - MOTOR (PARTS) - PN 02961747................................................................................................................................ 27

60 IN ROTARY - MOTOR (W-FITTINGS) - PN 02961747...................................................................................................................... 29

BOOM ASY - 18 FT BOOM - PN 02982733 (PART 1)............................................................................................................................. 31

BOOM ASY - 18 FT BOOM - PN 02982733 (PART 2)............................................................................................................................. 33

BOOM ASY - 22 FT BOOM - PN 02982736 (PART 1)............................................................................................................................. 35

BOOM ASY - 22 FT BOOM - PN 02982736 (PART 2)............................................................................................................................. 37

BOOM ASY - 25 FT BOOM - PN 02982739 (PART 1)............................................................................................................................. 39

BOOM ASY - 25 FT BOOM - PN 02982739 (PART 2)............................................................................................................................. 41

COMMON CRATE COMPONENTS - ELECT VALVE (PART 1).......................................................................................................... 43

COMMON CRATE COMPONENTS - ELECT VALVE (PART 2).......................................................................................................... 45

COMMON CRATE COMPONENTS - MAN VALVE (PART 1)............................................................................................................. 47

COMMON CRATE COMPONENTS - MAN VALVE (PART 2)............................................................................................................. 49

COUNTER WEIGHT W-DECALS............................................................................................................................................................. 51

CUTTER CONTROL VALVE BLOCK - PN 02982553............................................................................................................................ 52

DECALS - 18-22-25 FT BOOM.................................................................................................................................................................. 53

DECALS - 60 IN ROTARY HEAD - SOLID MNT................................................................................................................................... 54

DECALS - 60 IN ROTARY HEAD - SWIVEL MNT................................................................................................................................ 55

DECALS - HYD TANK & PUMP - ELECT VALVE................................................................................................................................ 56

DECALS - HYD TANK & PUMP - MAN VALVE................................................................................................................................... 57

DECALS - JOYSTICK OPERATION - PN 02983489............................................................................................................................... 58

DECALS - SAFETY BOOK LISTING....................................................................................................................................................... 59

DECALS - VALVE MAN HANDLE OPERATION - PN 02983408......................................................................................................... 61

DIVERTER VALVE - DOOR & SWIVEL - PN 02977622....................................................................................................................... 62

FILTER ASY - RETURN - PN 02964748................................................................................................................................................... 63

FILTER ASY - PRESSURE - PN 02976066............................................................................................................................................... 64

FILTER ASY - PRESSURE - PN 02985280............................................................................................................................................... 65

HOSE ROUTING - 18 FT BOOM............................................................................................................................................................... 67

HOSE ROUTING - 22 FT BOOM............................................................................................................................................................... 69

HOSE ROUTING - 25 FT BOOM............................................................................................................................................................... 71

PART NAME INDEX

HOSE ROUTING - SWING CYL (18-22-25 FT BOOM).......................................................................................................................... 73

HYD CYL ASY - DIPPER (18 FT BOOM) - PN 02979920....................................................................................................................... 75

HYD CYL ASY - HEAD SWIVEL (OPTIONAL) - PN 02981315............................................................................................................ 76

HYD CYL ASY - LIFT (18-22-25 FT BOOM) - PN 02981279................................................................................................................. 77

HYD CYL ASY - SWING W/ SPHERICAL ROD END - PN 02981275A............................................................................................... 78

HYD CYL ASY - SWING W/ TUBE ROD END - PN 02981275.............................................................................................................. 79

HYD CYL ASY - TILT (18-22-25 FT BOOM) - PN 02981280................................................................................................................. 80

HYD OIL COOLER & FAN ASY - PN 02981377..................................................................................................................................... 81

HYD SCHEMATIC - SOLID MNT HEAD (STD) - 18-22-25 FT BOOM................................................................................................ 82

HYD SCHEMATIC - SWIVEL MNT HEAD (OPT) - 18-22-25 FT BOOM............................................................................................. 83

HYD TANK SUB-ASY - PN 02982882...................................................................................................................................................... 85

HYD TANK W-PUMP & ELECT VALVE ASY - P/N 02983488............................................................................................................. 87

HYD TANK W-PUMP & MAN VALVE ASY - P/N 02983487................................................................................................................ 89

HYD VALVE CABLE & MOUNTING KIT.............................................................................................................................................. 91

JOYSTICK CONSOLE ASY - PN 02983014............................................................................................................................................. 93

PUMP ASY (PARTS) - PN 02982575......................................................................................................................................................... 95

PUMP-TANK-VALVE COVER - PN 02981381........................................................................................................................................ 97

UNDER MOUNT FRAME ASY - PN 02981779....................................................................................................................................... 99

VALVE ASSEMBLY - ELECTRO-HYDRAULIC VALVE - P/N 02982576......................................................................................... 101

VALVE ASSEMBLY - MANUAL-HYDRAULIC VALVE - P/N 02985870......................................................................................... 102

WIRE HARNESS (ELECT-HYD VALVE OPT) - PN 02982923............................................................................................................ 103

WIRE HARNESS (MAN-HYD VALVE STD) - PN 02982922............................................................................................................... 105

WIRE HARNESS - JOYSTICK RESISTER (OPT) - PN 02981990........................................................................................................ 107
