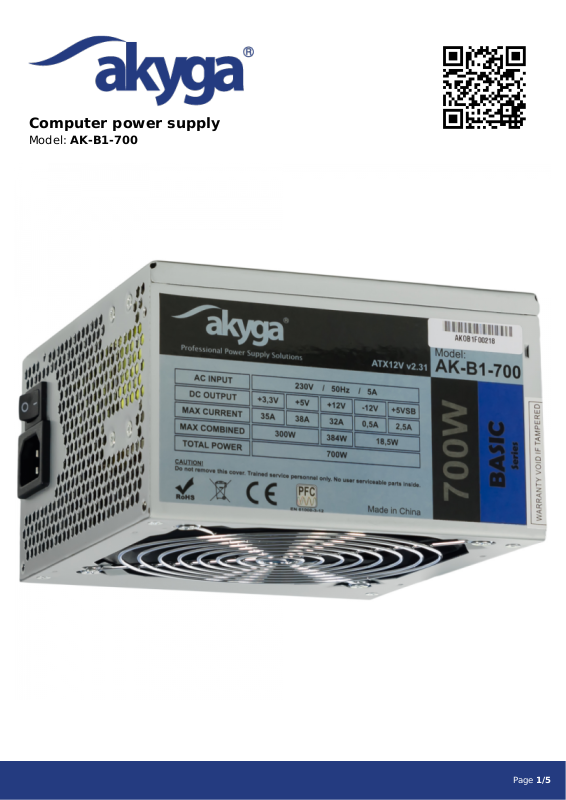

Akyga AK-B1-700 USER MANUAL

Computer power supply

Model: AK-B1-700

Page 1/5

Product code AK-B1-700

Product type Computer power supply

Format ATX 2.31

Series Basic

Supply voltage 230 V

Power consumption < 5 A

Efficiency > 70 %

80 PLUS compatibility No

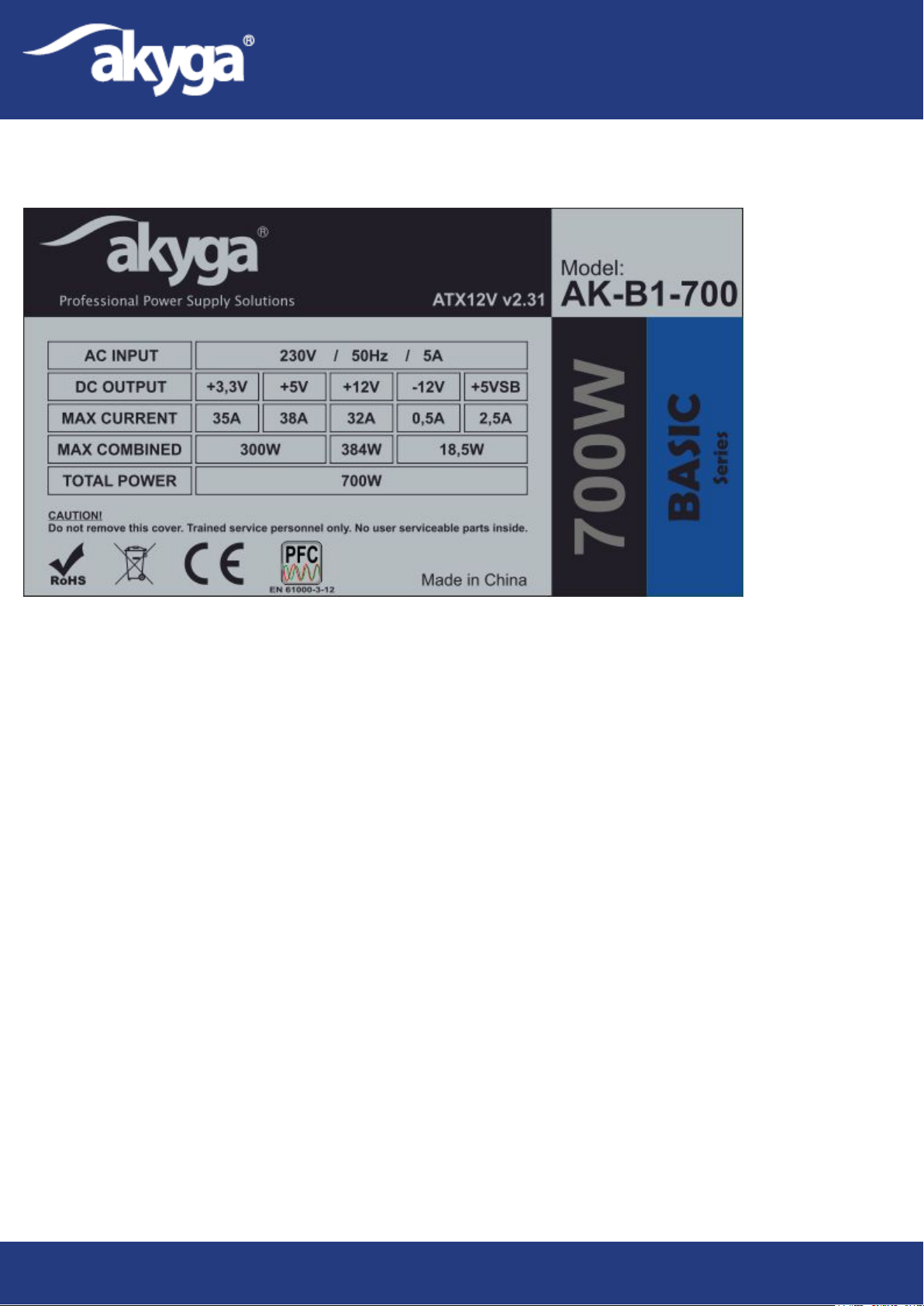

Current on the +3.3V rail 35 A

Current on the +5V rail 38 A

The combined power of +3.3V and +5V 300 W

Current on the +12V rail 32 A

Computer power supply

Type: AK-B1-700

Maximum load on 12V line 384 W

Maximum power 700 W

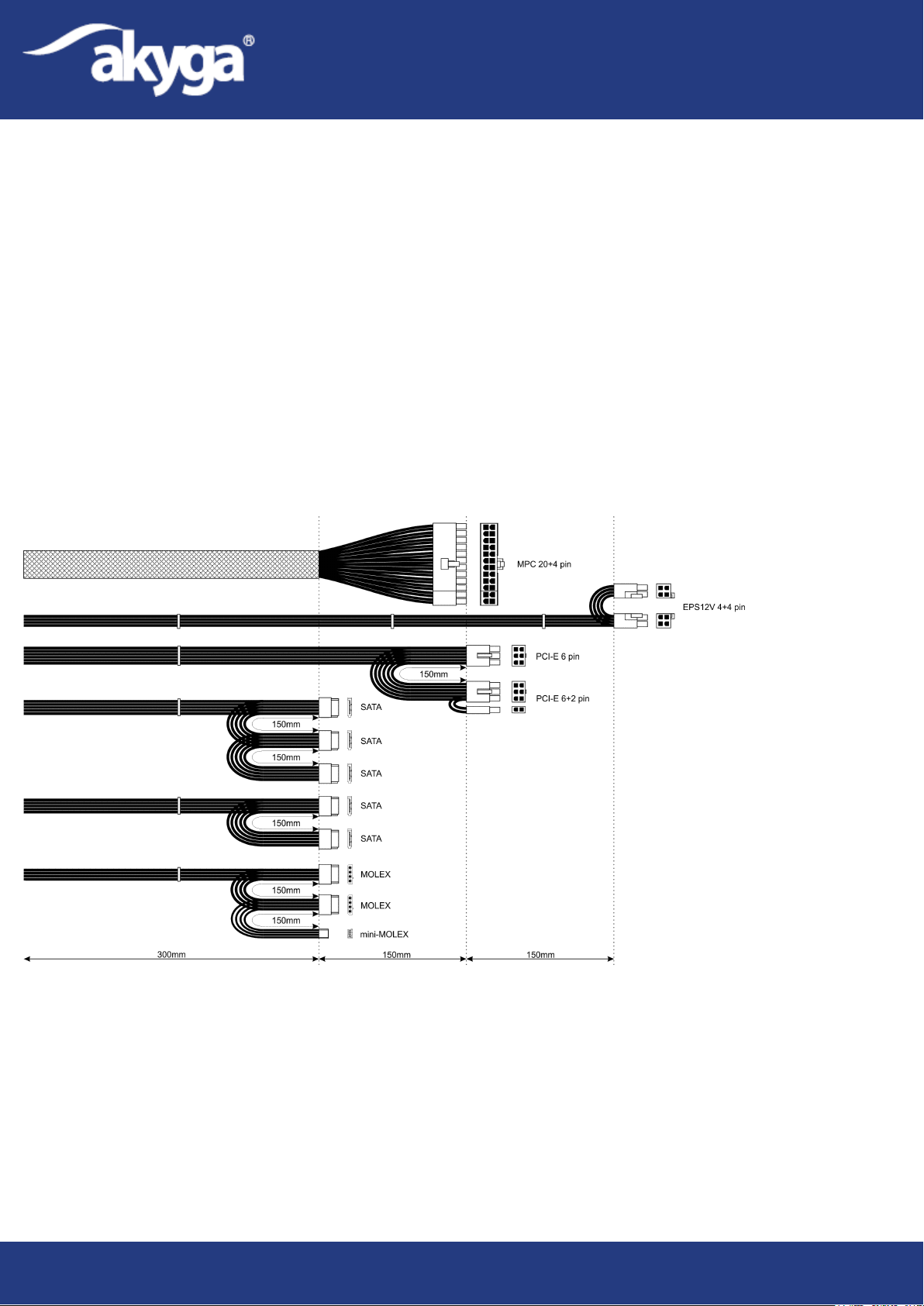

Mainboard Power Connector 20+4 pin

Power connector ATX12V P4 None

Power connector EPS12V 8 pin 1 pc ( 4 + 4 pin )

Power connector PCI-E 6 pin 1 pc

Power connector PCI-E 6+2 pin 1 pc

Power connector PCI-E 8 pin None

Molex connector 2 pcs

Mini- Molex connector 1 pc

SATA connector 5 pcs

PFC filter Passive

Mechanical switch Yes

Ground wire Yes

OVP Yes

OCP Yes

OPP Yes

OTP Yes

SCP Yes

UVP Yes

Power supply connector IEC C14

Fan size 120 mm

Fan adjustments Automatic

Cable length 30 - 60 cm
