1 Welcome
Thank you for purchasing Akuvox VP-R47P Multimedia VoIP Phone. The VP-R47P
is an innovative smart desk phone loaded with tremendous value for business
communications as well as unprecedented power for advanced custom business
applications development and personalization. Featuring Android 4.2 system, a 7
inch capacitive touch screen TFT LCD, a 2M CMOS sensor camera, Bluetooth,
integrated PoE and Wireless, VP-R47P provides excellent user experiences such as
high quality video phone, smooth internet surfing, various 3rd party applications and
daily information. Built with advanced security protection for privacy, this
Multimedia VoIP Phone also features broad interoperability with most 3rdparty SIP
based devices, IPPBX and major IMS platforms. The VP-R47P represents the future
multimedia terminal in modern Internet age.
This user manual is designed to help you understand how to configure and
manage the VP-R47P Multimedia VoIP Phone. Besides demonstrating how to install
this unit with ease, this manual will explain how to fully utilize the phone’s voice
calling features as well as explore all the built-in feature-rich applications.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. This device
complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
7
interference to radio communications. However, there is no guarantee that
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
the receiver is connected.
8
2 Product Overview
2.1 Instruction
VP-R47P is an Android-based multimedia terminal with a 7 inch touch screen and a
2M CMOS sensor camera. It supports H.264/H.263 codec with adaptive bandwidth
adjustment. The 7 inch touch screen offers excellent user experiences such as high
quality videophone, smooth internet surfing, various Android Apps and daily
information.
VP-R47P provides 2 Ethernet ports, 1USB, 1HDMI, and one 3.5mm headset/audio
port.
9
2.2 Technical Specification
Model
VP-R47P
Graphic Display
7 inch capacitive touch screen TFT LCD, 800x480 pixels, 16:9 wide
screen aspect ratio
Camera
2 mega pixels CMOS camera, free rotation
Network Protocol
SIP RFC3261,TCP/UDP/IP,PPPOE,RTP/RTCP
Operation System
Android 4.2
Voice Codec
G.711A/U, G.723, G.729a/b, G.722, iLBC，
AMR-NB, AMR-WB, OPUS
Video Codec
H.263, H.264
DTMF Modes
Inband, RFC2833, SIP INFO
Audio Features
VAD, CNG, Echo Canceller G.165/G.168
Video Features
QCIF, QVGA, CIF, 4CIF, VGA
Video bitrate: 64kbps~2Mbps
PIP
Full Screen
local video ON/OFF control
Others
Download content from the specified server
Information receiving, storing, and rendering capabilities
Web browser
Contacts and Call records management
Support playing local or online video
Network Interface
Dual switched 10/100Mbps port, optional PoE
Wi-Fi
IEEE802.11 b/g/n
Expansion
Interface
USB 2.0, 3.5mm headset jack, HDMI
IP assignment
Static IP, DHCP, PPPoE
Management
LCD Menu Configuration,TR069, WebUI
Dimension
218×230×93.7mm
10
2.3 Equipment Appearance And Interface Description
Figure 1-1 R47P Front View
Figure 1-2 R47P Rear View
11
Figure 1-3 R47P Profile View
2.3.1 Interface Description
Interface
Description
Camera
Adjustable camera shooting angle, rotate down the camera to "off"
angle.
USB interface
External USB storage device
Headset
Connect to 3.5mm stereo headphone, headset device
HDMI
Use HDMI cable to output the video to a TV screen
LAN
Network interface can be connected to a hub, switch or other network
access devices. It also supports POE(Power over Ethernet) .
PC
Share the network access from LAN port, and for PC and other
equipment connection
Power
Connect to 12V adapter, Power supply
Handset
Connect to handset
Lock
Lock the video phone with a Laptop lock
2.3.2 Keypad Description
Interface
Description
Power
Turn on/off the LCD, Reboot, Silent mode
Suspend
Turn on/off the LCD, Reboot, Silent mode
Note: If Power over Ethernet is being used, do not plug in the AC adapter.
12
Volume
Press + or – for the phone volume adjustment
Standard Keypad
Input the number or symbol
Function Key
Delete
Delete a character before the cursor
OK
Same function with soft keyboard "Enter" key
Message
Optional
Contact
Enter Into the contacts list, you can view the local contact
Conference
The first party is held in the case, according to a
conference key, the first party can be combined to achieve
a tripartite meeting
Hold
To hold a call during the call
Transfer
To transfer the current call to the third party
Mute
The other party cannot heard the voice during the call
Home
Return to the main screen, and long press, it will display
recently used applications
Menu
To call up the System or program setup menu
Back
Return to the previous menu
Speaker
Speaker
2.4 Indicators
Indicator Name
Icon
Status
Description
Power
ON
System is under working
OFF
System is not working
Network Connection
ON
Network（LAN Port）is connected
OFF
Network（LAN Port）is disconnected
Information
Flashing
Contains Miss Calls or Unread Message
OFF
Normal status
13
3 Installation
3.1 Equipment Packaging
Name
Quantity
Main Case
1
Handset
1
Phone Cord
1
Power Adapter
1
Ethernet Cable
1
Quick Start Guide
1
3.2 Connecting Video Phone
Connection diagram
14
Connecting to Network
Use the matched network cable to connect the LAN Port of the video phone to the
Connecting to PC
3.3 Installation Considerations
Do not use this product near water, such as: bath, washbasin, kitchen sink and
Place the device in a place away from heat;
Place the device away from traffic areas to prevent collisions;
Please use the equipment with the matching power adapter or POE;
Router or Switch. Viewing the top right corner of the screen, if the indicator light
is on, network cable is connected properly.
Use the matched network cable to connect the PC Port of the video phone to the
PC’s Ethernet port. The PC can access to the internet network via PC Port of the video
phone.
This product is a desktop product, and here are some safety recommendations about
the installation and the usage:
other damp places and so on;
15
4 Getting Started
4.1 Basic Operation
4.1.1 Main Screen Instruction
Status bar, at the top of the screen, displaying the status of system information.
Do Not Disturb plug-in, When enabled DND, prohibit incoming calls in; Incoming
call will be normal when DND is closed
Favorite contacts plug-in, add more commonly used contacts from the address
Extended Screen Prompt, Display the location of current screen page; and show
Shortcuts, at the bottom of the screen, user can drag a shortcut to this region to
4.1.2 Status And Notifications Instruction
book, click the plug-in to add a contact, you can choose audio or video call out
directly.
how many pages extended.
achieve the replacement of the shortcut. Supports max four shortcuts.
The status bar in main screen is divided into two zones, notification area and status
area, as shown below:
16
Status Area
Icon
Description
Network is connected
Network is not connected
Mute mode
Alarm clock is set
PPPOE is connected
PPPOE is failed
Icon
Description
SIP account is registered
Missed call, number means how many missed calls
downloading
uploading
Receives a new email
An event is coming
4.1.3 Using The Touchscreen
Tap
Touch and Hold
Notification Area
To select items on the screen (e.g., setting options, apps); to press onscreen
buttons; to type letters and symbols using the onscreen keyboard.
Touch the item on the screen and hold it without lifting your finger from the
screen till an action occurs.
For example, touch and hold on a picture to bring up operation options.
17
Drag
Touch and hold an item for a few seconds first. Once the item has a red frame
Slide
Double-click
Pinch
4.1.4 Startup And Shutdown
Startup
Shutdown
Reboot
4.1.5 View / Turn Off Notifications
activated, or a move option shows up, keep your finger on the screen and move
it until the target position is reached. Then lift your finger up to release.
Move your finger fast across the screen to slide. To view different idle screens or
menu pages, slide left or right; to view the status bar on top of the screen, place
your finger on the bar and slide it down. If your finger stays on the screen for too
long, the item may be selected and sliding won’t occur.
Click on the screen twice in quick succession, for example, when user surfs in
browser, you can quickly click twice on the page, the page can be enlarged.
Place two fingers on the screen, then pinch them together (zoom out) or spread
them apart (zoom in). This could be used in a picture.
Connect to the power supply, the system automatically starts up.
If you do not use the device, directly remove the power supply, to save
electricity.
If you need to restart the device, according to the following steps:
1) Press and hold the "Power" button until the pop-up "Options" menu.
2) Click the "Reboot"

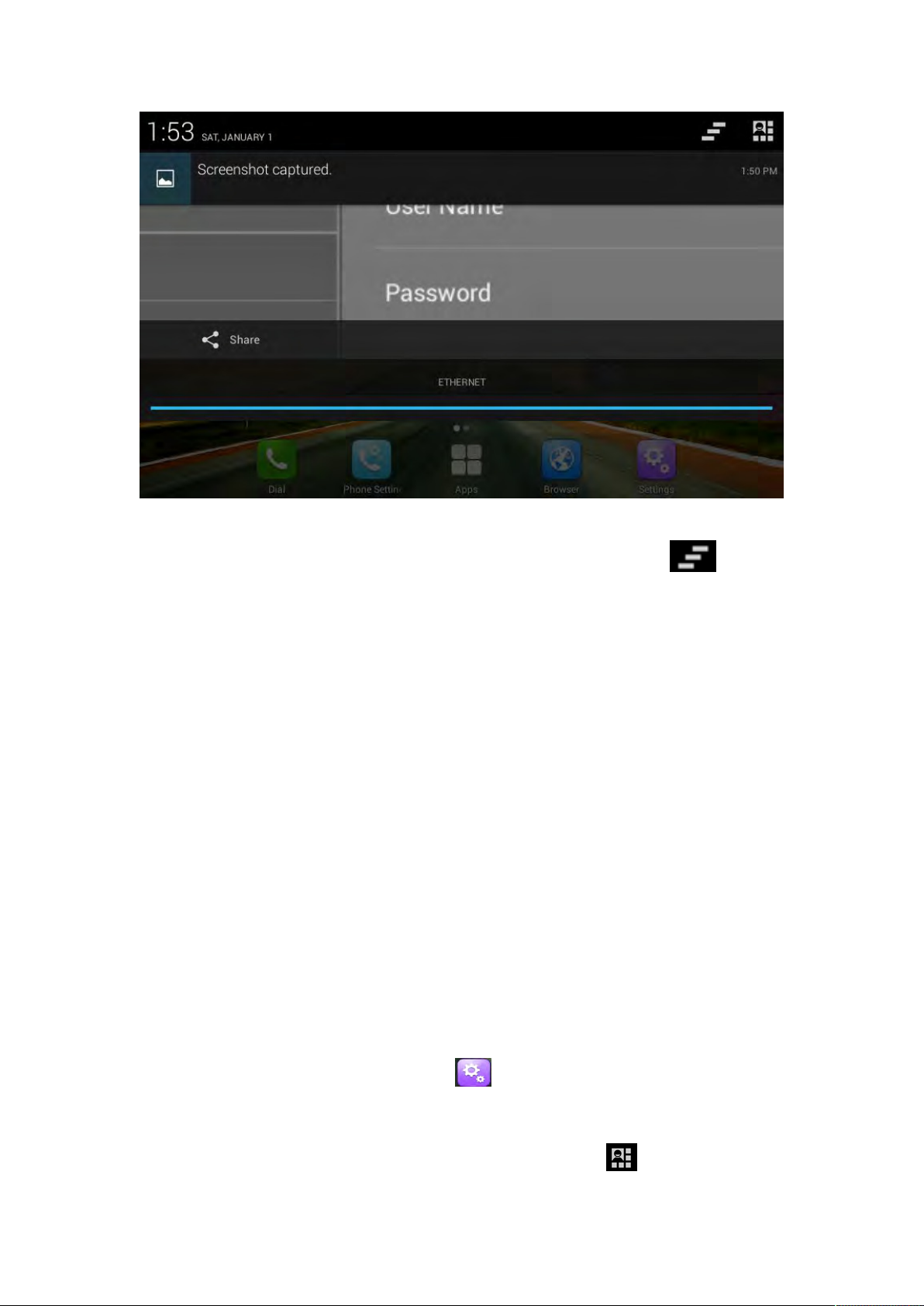

When viewing notifications, simply press and hold the status bar, drag down, as
shown below:
18
To turn off notifications, simply hold the notice at the bottom of the screen and then
4.2 Connecting To Network And Wi-Fi
4.2.1 Configuring Static IP
Mode 1: In the main screen, press "Menu" key on the hard keyboard-> System
Mode 2: In the main screen, tap -> Settings-> Wireless & Networks->
Mode 3: Drag down the status bar, click shortcut icon on the status bar
drag up or press the "Back" on the hard keyboard. Click on the icon
up the notice
VP-R47P supports a variety of network connections (Ethernet, Wireless) and device
connections Network connections includes four modes, Static IP, DHCP, PPPOE, Wi-Fi
access. DHCP is the default configuration. Device connections include EHS headset,
USB and Bluetooth device.
You can select one of the following methods to enter the static IP configuration:
to clear
Settings-> Wireless & Networks-> Ethernet- > Using static IP.
Ethernet -> Using static IP.
19
->SETTINGS-> ->Wireless & Networks-> Ethernet->Use static IP.
Mode 4: In the main screen, tap
->Network Settings->LAN
Parameter
Specification
IP address
set the IP address of the device
Subnet Mask
set the subnet mask of the device
Default Gateway
set the default gateway
DNS Server
set the DNS address
Alternative DNS Server
set the backup DNS address
4.2.2 Configuring DHCP
Mode 1: In the main screen, press "Menu" key on the hard keyboard-> System
Mode 2: In the main screen, tap -> Settings-> Wireless & Networks->
Connecting->Static IP.
Configuration page is shown as below：
Configuration parameter specification：
You can select one of the following methods to enter the DHCP configuration:
Settings-> Wireless & Networks-> Ethernet- >uncheck Using static IP.
Ethernet -> uncheck Using static IP.
20
Mode 3: Drag down the status bar, click shortcut icon on the status bar
->SETTINGS> ->Wireless & Networks-> Ethernet-> uncheck Use static IP.
Mode 4: In the main screen, tap
->Network Settings->LAN
4.2.3 Configuring PPPOE
Mode 1: In the main screen, press "Menu" key on the hard keyboard-> System
Connecting->DHCP.
Configuration page is shown as below：
Note:
1) If DHCP acquired IP, it will display dynamic IP address information on the location
of static IP configuration, cannot be modified, and there is a item of Use static DNS at
the bottom the alternative DNS server, when checked, you can modify the primary
DNS address and Secondary DNS address.
2) If DHCP is failed, the IP address will show as: 0.0.0.0.
You can select one of the following methods to enter the PPPOE configuration:
Settings-> Wireless & Networks -> Ethernet ->More ->PPPOE.
21
Mode 2: In the main screen, tap
-> Settings-> Wireless & Networks->
Ethernet -> More ->PPPOE.
Mode 3: Drag down the status bar, click shortcut icon on the status bar
Mode 4: In the main screen, tap ->Network Settings->LAN
Parameter
Specification
Use PPPOE
Check is to enable PPPOE，otherwise, disable.
User Name
PPPOE account, provided by ISP
Password
PPPOE password, provided by ISP
->SETTINGS ->Wireless & Networks-> Ethernet-> More ->PPPOE.
Connecting->PPPOE
Configuration page is shown as below：
Parameter specification
：
Proceed as follows:
1) Check Use PPPOE
2) Enter the correct user name and password of PPPOE
22
Note:
4.2.4 Configuring Wi-Fi
Mode 1: In the main screen, press "Menu" key on the hard keyboard-> System
Mode 2: In the main screen, tap -> Settings-> Wireless & Networks->
Mode 3: Drag down the status bar, click shortcut icon
on the status bar
1) After dialing, can display the acquired IP address, server IP, the primary DNS,
Secondary DNS information, status as connected
2) Not Dial, IP address information will be 0.0.0.0
3) There is a redial entry under Alternate DNS, click redial, then re-launch a PPPOE
dial-up process, re-dial.
You can select one of the following methods to enter the Wi-Fi configuration:
Settings-> Wireless & Networks-> Ethernet- >Wi-Fi.
Ethernet -> Wi-Fi.
->
Configuration page is shown as below：
23
1) When the Wi-Fi switch is turned on, the video phone can list and display all Wi-Fi
Proxy Settings
AP searched in the environment;
2) When connects to available AP in the environment, if a Wi-Fi AP is without
password protection, there is no lock icon on Wi-Fi signal, it will automatically
connect when clicked;
3) If a Wi-Fi AP is encryption, Wi-Fi signal will be added the lock icon, and when
checked, it will pop up a dialog box to enter a password. If the password is incorrect,
the connection will not be successful, as shown below:
4）check Show advanced options, you can set Proxy server and IP mode.
24
IP settings(Static IP):
5）Long press on the connected Wi-Fi AP, it will pop-up a dialog box, you can forget
the network or modify the network. Long press on the non-connected Wi-Fi AP, it will
pop up a dialog box, and you can click and connect to network.
6）Click WPS button, if the wireless router has WPS function, and the router WPS
button is pressed, the video phone will be able to connect to the Wi-Fi without
entering a password.
7）Press “+ ”symbol，you can add a SSID manually.
25
8）Click Menu, you can do the operations such as: Scan(scan the new wi-fi AP), WPS
a. Check Network notification, it will notify you when an open network is available;
b. Check Avoid poor connections, it will prompt that don’t use a WiFi network
c. View the Wi-Fi Mac address and IP address;
4.3 SIP Account Configuration
Mode 1: In the main screen, Click -> then click .
Mode 2: In the main screen, click ->then Click ->and then click .
Mode 3: Directly pick up the handset or press Speaker -> then click .
Mode 4: click Browser, input IP address to enter login interface. Input username:
Pin Entry(enter the PIN on the Router, the phone will no need to input the wi-fi
password), Wi-Fi Direct and Advanced.
9）In Advanced Menu, shown as below:
unless it has a good internet connection;
You can select one of the following methods to enter the SIP account configuration:
admin, password is admin, click Login into web, then click Account-Basic;
26
4.3.1 Add Account
Click an account to enter Account Editor
27

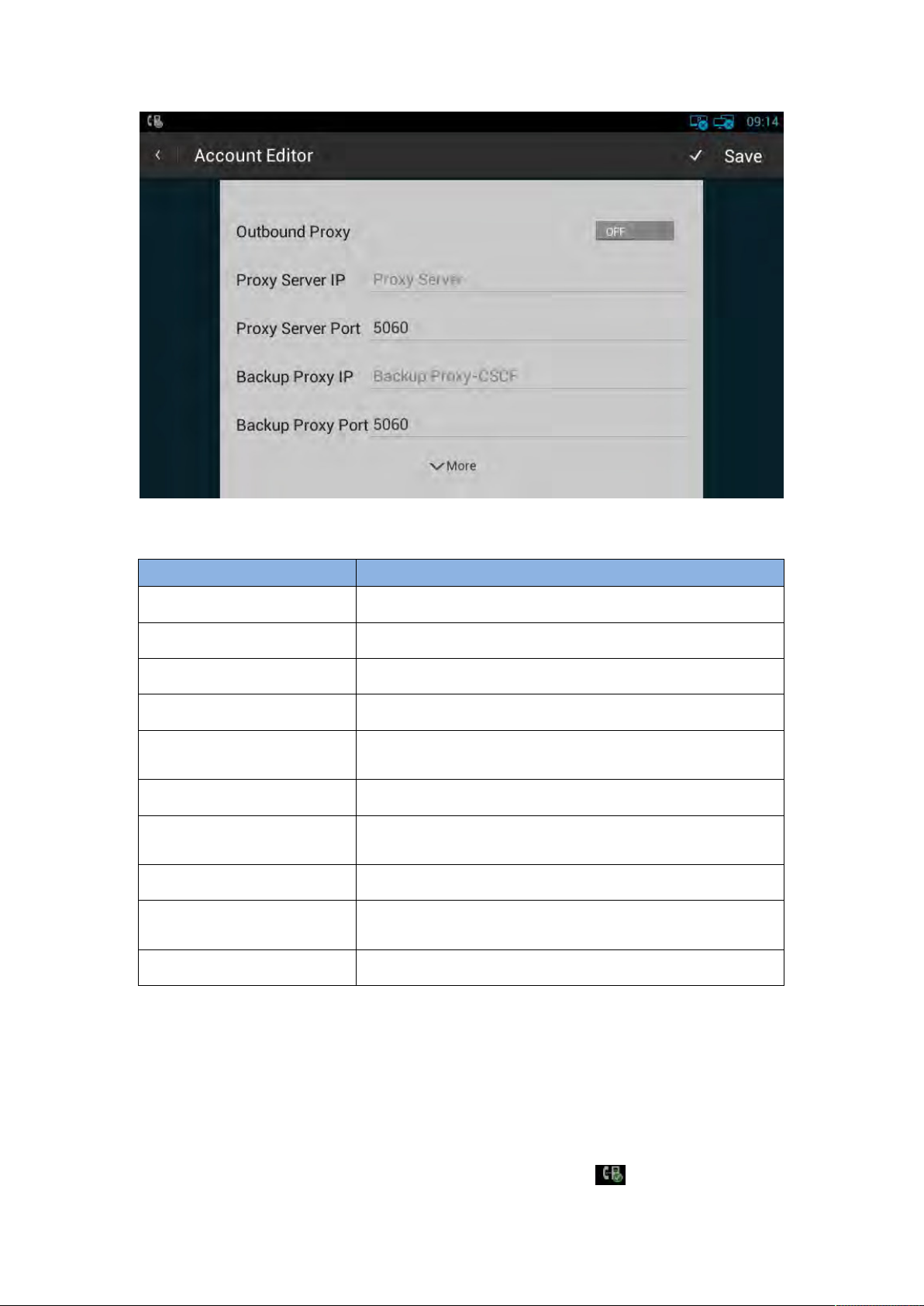

Configuration parameters are described as follows:
Parameter
Specification
Register Name
SIP Accout ID provided by ISP
User Name
SIP User Name provided by ISP
Password
SIP Password provided by ISP
Display Name
SIP Display name
Reg Server IP
SIP Register Server, format: domain/IP, for example:
194.168.1.2
Reg Server Port
The default port is 5060.
Proxy Server IP
SIP Proxy Server, format: domain/IP, for example:
194.168.1.2
Proxy Server Port
The default port is 5060.
Backup Proxy IP
SIP Backup Proxy Server, format: domain/IP,for example:
194.168.1.2
Backup Proxy Port
The default port is 5060.
4.3.2 SIP Account ON/OFF
After all the parameters are configured, Click "save" button to save the
configurations, then the sip account is added successfully. Then active the account.
After SIP account is configured and registered successfully, it will display the
prompt ”Registered” in the Account Manager, and the icon
will be displayed on
28

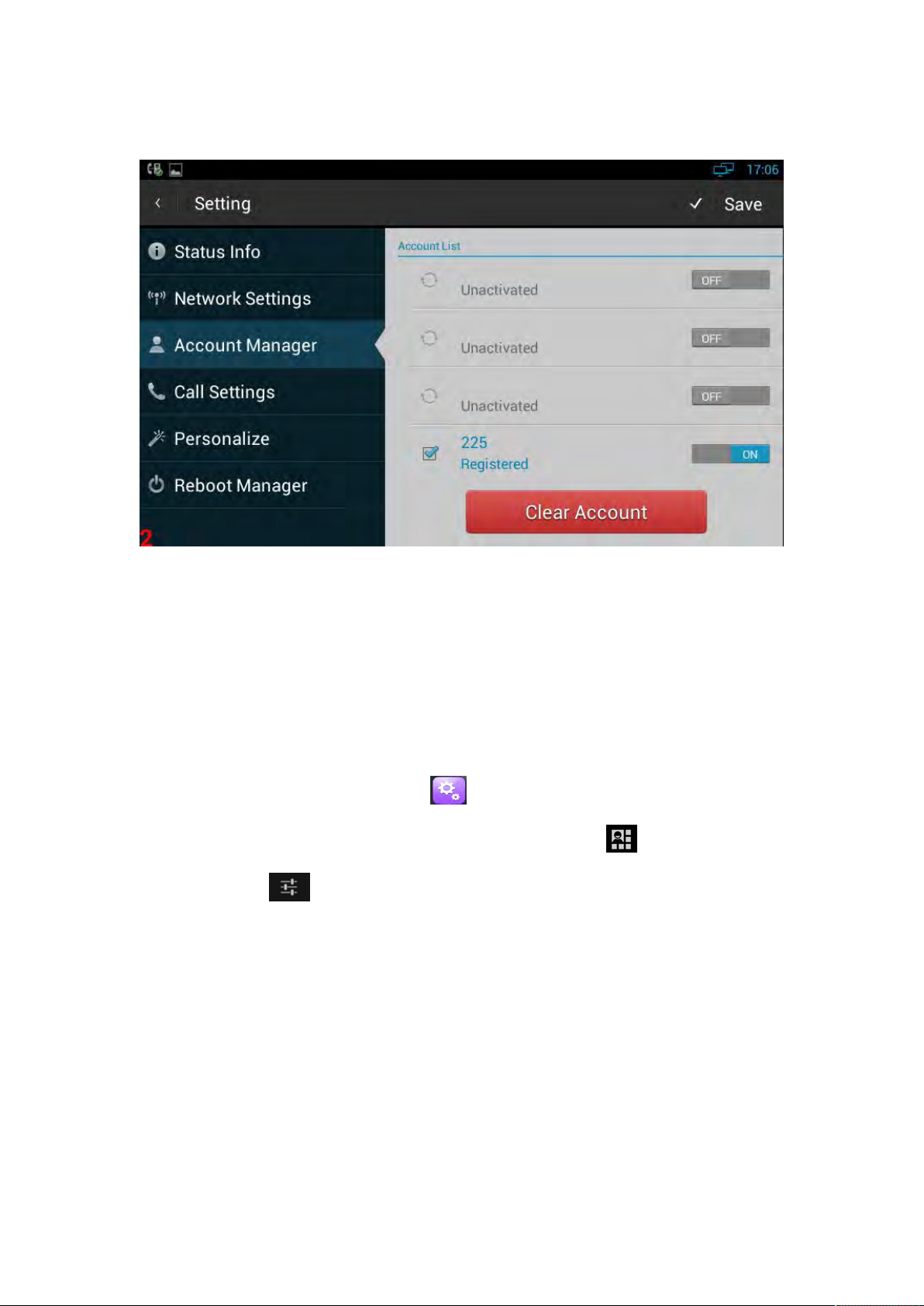

the status bar. See the below picture：
a. If you want to disable the account, please click
b. If the sip account is failed to register, the failure code will be displayed under the
4.3.3 Modify/Remove SIP Account
account, and then you can check with the account configuration or network
connection. See the below picture:
1）Modify the sip account: Directly click the account to modify;
29
2）Remove the sip account: Click the box of the account which you want to delete,
4.4 Sound
Mode 1: In the main screen, press "Menu" key on the hard keyboard-> System
Mode 2: In the main screen, click -> Settings -> Sound.
Mode 3: Drag down the status bar, click shortcut icon
on the status bar
and then press “Clear Account”.
You can select one of the following methods to enter the Sound configuration:
Settings-> Sound.
->SETTINGS ->Sound.
Configuration page is shown as below：
30
Including Volume, Ringtone and Notification, Dial pad touch tones and Touch sound.
4.4.1 Silent Mode
Long press the Power button, then choose Silent mode in the pop-up menu. In
addition to the media and the alarm sound, the rest sound is mute. As shown in the
picture below:
31
4.4.2 Volumes
In Sound configuration page, click “Volumes”, the volume configure is shown as
Volume options include ringtones and notifications, Media, Alarm clock.
You can hold and drag the slide button or just directly click a volume location to
The volume settings, you can also press the keyboard "volume+ -"
4.4.3 Ringtone
4.4.4 System Sound
below：
adjust the volume. Finally click "OK" button to save.
button to increase or decrease the volume. Usually, "volume + -" button is
to adjust for ringtone or notification volume, but in
the broadcast media, pressing "volume + -" button is to adjust for media volume.
The ringtone settings, including the default ringtone and default notification tone.
In the sound interface, select the default ringtone or default notification tone, and
then click the ringtone you want to set, after the selection, it will be a short play ring.
Finally, click "OK".
If you want to enable Dial pad touch tones and Touch sounds, please go to Sound
32
configuration page to click the correspond sound. Dial pad touch tones and Touch
4.5 Call Settings
4.5.1 Do Not Disturb
sounds are enabled in default configuration.
DND function is to prevent foreign phone from disturbing, if open DND, external
33
phone call is unable to call in, turned off by default.
1.Phone Settings->Call Settings->Call Forwarding
2.Select the desired account.
3.Enable Do not Disturb.
4.5.2 Call Waiting
1.Phone Settings->Call Settings->Other Call Settings
2.Enable Call Waiting.
4.5.3 Always forwarding&Forwarding Number
1. Phone Settings->Call Settings->Call Forwarding
2. Select the desired account.
3. Enable Always Number.
4. Input the number you want to forward.
4.5.4 Call forwarding busy&Forwarding Number
1. Phone Settings->Call Settings->Call Forwarding.
2. Select the desired account.
3. Enable Call Forwarding Busy.
4. Input the number you want to forward.
Configuration on the phone:
Open call waiting, if enable call waiting, after establishment of a conversation, there
are a third party call in, then video phone will have a new call tips, you can choose to
answer or reject the call. If you close the call waiting, then the third party cannot call
in, will prompt a busy tone, turned on by default.
Configuration on the phone:
All the incoming calls will be the Switched unconditionally to specified number.
Configuration on the phone:
The incoming calls will be the Switched to specified number when the phone is busy.
Configuration on the phone:
34
4.5.5 No Answer Forwarding&Forwarding Number
The incoming calls will be the Switched to the specified number when the ring tone is
1. Phone Settings->Call Settings->Call Forwarding.
2. Select the desired account.
3. Enable No Answer Forwarding.
4. Input the number you want to forward.
4.5.6 Time out
4.5.7 Playtone
4.5.8 Intercom
4.6 Dial Plan
time out without answer.
Configuration on the phone:
Setup the no answer forwarding time. When the call is beyond the time(the default is
30 seconds)without answer ,it will transfer to the target number.
The caller will hear the tone when waiting.
It is used to answer the incoming call automatically after users set up the intercom
function. In default situation, the IP phone Akuvox R47P will answer the intercom
incoming calling automatically and make a noise. You can set the phone to enable
silent mode when picking up the intercom call so that the other will not hear you.
Rule: Allow user to select Replace rule or Dial-now to display or edit.
Rules Modify: Allow user to modify selected rules information, for replace rule, you can
modify related accounts, prefix and replace.
Area Code: Area codes are also known as NPAs (Numbering Plan Areas). They usually
indicate different geographical areas within one country. If entered numbers match the
predefined area code rule, the IP phone will automatically prefix outgoing number with area
code.
35
Note: There is only one area code rule supported.
4.7
Personalize
4.7.1 Log Level
The Log level is divided into seven levels: EMERG, ALERT, CRIT, ERR, WARNING,
NOTICE, INFO, DEBUG, log class is from low to high. The default setting is
EMERG, which is the lowest grade log.
36
4.8
Reboot Manager
4.8.1 Reboot time
User can setup the reboot date and hour you want .
4.8.2 Status of time
4.8.3 Status of active
4.8.4 Reboot settings
4.9 Date & Time
Mode 1: In the main screen, press "Menu" key on the hard keyboard-> System
If the status is enable ,users can edit the reboot time you want.
Enable/disable the reboot function
Click the icon to reboot.
You can select one of the following methods to enter Date & Time configuration:
37
Settings-> Date & time.
Mode 2: In the main screen, tap
-> Settings-> Date & time.
Mode 3: Drag down the status bar, click shortcut icon on the status bar
->SETTINGS> -> Date & time.
The configuration page is shown as below:
If you want to manually set the date and time, firstly, remove the click ”Automatic
data & time”, and then set the date, time, select a time zone. Check Use 24-hour
format, and then “1:00 PM” will change to “13:00”.
Click "Set date", pop-up date set interface, as shown below:
38
You can increase or decrease the corresponding value by dragging upper or lower,
also can directly input corresponding value in input flied, and then click the "Done"
button.
Click "Set time, time settings, as shown below:
In the figure, uncheck Use 24-hour format, you can increase or decrease the
corresponding time value by dragging upper and lower. Click "AM" button, it will
change to "morning", and then click "PM" button, then changed back to "afternoon".
If check Use 24-hour format, time setting interface as shown below:
39
4.10 Personalization Settings
According to personalized settings, you can make the equipment more characteristic.
4.10.1 Wallpaper
In the main screen, Press "Menu" on the keyboard-> wallpaper, it will
pop up wallpaper selection interface to select a wallpaper source.
In the main screen, Press on the blank part of desktop, it will pop up
menu option, select "wallpaper".
In “Wallpapers”, click the picture you want to set as wallpaper, and then
click "Set wallpaper".
Click "Gallery", In the library, click the corresponding picture folder,
select the picture you want to set as wallpaper, then press and hold the
clip frame picture, drag the clip box, crop the picture finally click "OK".
You can use the following three ways to change your favorite wallpaper.
Mode 1:
1) You can choose one of the following steps to enter into the choice of wallpaper
source:
2) Perform one of the following steps:
40
When clipping, if want to change clip size of the box, press clipping
frame, the border follows the direction of the arrow to be shown in the
figure, you can drag it to the border or outside the borders, to change
the size of the crop box.
Mode 2:
4.10.2 Widgets
4.10.2.1 Add A Widget
Browse pictures in the gallery, and then follow the second step in mode 1 to set the
wallpaper.
Mode 3:
1) Browse a picture In a browser (or pictures on the page), press and hold the
picture.
2) Pop-up a new operation window, click on the "Set as wallpaper" and wait for a
short time, you can set the picture as wallpaper.
Applet can be convenient for your use, you can select from the available options
1) In the main screen, Click , left-slide the screen, choose and add a widget. The
41
following window:
4.10.2.2 Modify An Added Widget
2) Each widget has indicated the name and the location, press and hold
the component, put it to the designated location on the desktop.
If you want to modify the location of added widgets on the desktop, hold the widget
until the icon
appears on the upper left corner of the screen, you can drag the
widget to the corresponding position of the desktop.
If you want to change the space size of added widgets on the desktop, press and hold
the widget until the icon appears on the upper left corner of the screen, do
not move, fingers away from the screen, the widget will appear frame border, as
shown below:
42
At this time, you can press the arrow button to drag the border to change the size of
4.10.2.3 Delete A Widget
4.10.3 Shortcuts
4.10.3.1 Add A Shortcut
the widget frame. And then only need to press “Back” button on the keyboard to
save the change.
Hold the widget until the icon appears on the upper left corner of the screen,
you can drag the widget to to delete the widget.
You can add the shortcuts such as Application, Webpage bookmarks and so on to the
main screen desktop.
In the main screen, Click , left-slide the screen, choose and add a shortcut, press
and hold the component, put it to the designated location on the desktop
43
4.10.3.2 Modify A Shortcut
If you want to modify the location of shortcut on the desktop, hold the shortcut until
4.10.3.3 Delete A Shortcut
4.10.4 Modify Extended Bar
4.10.5 Ringtone
the icon
shortcut to the corresponding position of the desktop.
Hold the shortcut until the icon appears on the upper left corner of the screen,
you can drag the shortcut to
You can modify the quick start program on the extended bar at the bottom of the
screen. The default extended bar as shown below:
appears on the upper left corner of the screen, you can drag the
to delete the shortcut.
In the main screen, hold the shortcut until the icon appears on the upper left
corner of the screen, you can drag the shortcut to to delete the shortcut or
replace with another shortcut.
You can select the ringtone provided by video phone, and you can also download
music from the Internet, and then set the favorite music as a ringtone.
If you choose the ringtone provided by video phone, please refer to Sound settings.
If you choose the music downloaded from the Internet as a ringtone, please follow
the below steps:
44
1) Click -> Music(App).
4.11 Backup & Reset
1) Click Setting ;
2) Click “Backup & reset”;
3) Click “Factory data reset”;
4) Click “Reset Multimedia Terminal”
5) Click “Erase everything”.
2) See the music list in App, select and press a music, and then In the pop-up menu
options, select "Ringtone" -> "Phone"
45
5 Function
5.1 Call Function
Video phone supports voice calls and video calls. Please ensure that the device has
5.1.1 Make A Call
5.1.1.1Dial Out Directly
Directly pick up the handle.
Press “Speaker” button on the keypad.
In the main screen, Click .
In the main screen, select -> .
been configured SIP account successfully before using the call function. SIP account
configuration refers to section 3.3.
You can directly dial from the keypad, from the contact or from call records.
1) You can choose one of the following steps to enter into the dialing interface:
Dialing interface is shown as below:
46
1) By pressing the number keys on the dial interface or directly pressing the number
on keypad. To delete a number, press the
on the dial interface, or press
Delete button on the keypad.
2) If you want to make an audio call, please click "Audio Call"; if you want to make a
video call, please click "Video Call".
3) If you have registered a multiple of available SIP accounts, when finishing dialing,
you can click line
button to choose the outgoing account for the number, as
shown below:
47
5.1.1.2 Dial Out From Contact
You can choose one of the following steps to enter into the contacts:
In dialing interface, Click the icon
1) Click the contact in Contacts, and you can view the details on the right side.
2) You can click to make an audio call, click to make a video call, or
5.1.1.3 Contacts Fuzzy Matching Query
Contact is shown as below：
Contact supports rapid locating the contact through first letter.
As shown in below picture：
click to send the message.
Video phone supports contacts fuzzy matching queried, intuitive, concise dialing
interface for the intelligent input, greatly reducing the number of buttons, achieve
rapid, effective positioning search, avoid duplication of invalid operation, saving time.
For example, to find Terry, only press the number keys 81 to locate the contact
48
quickly.
5.1.2 Receive A Call
5.1.2.1 Answer A Call
1) Answer an audio call
2) Answer a video call
When input no number, displaying the current call records; when input numbers, list
the current matching results. Click the contact, and it will enter the telephone
number to dial automatically.
Incoming calls include audio and video calls. If the caller has been stored in the
contacts, it will show the contact name, otherwise the caller number will be
displayed.
When receiving an audio call, as shown below：
Click “Audio” or pick up the phone to answer.
When receiving an video call, as shown below：
49
Click "Audio" to establish the audio call, and video is not visible; click "Video" to
3) Answer a video invite
5.1.2.2 Reject A Call
establish the video call, and video is visible. Pick up the handle is to answer the call
as a video call.
During an audio call, if a video invite is requested, it will pop up the following
window:
Click “Accept” to accept the video invite, and then the call will change to video call;
Click “Reject” to reject the video invite, audio call will retain. 10s without any
operation, the video invite will terminate.
If you want to reject a call, click in calling interface.
If you want to reject a call from a number, you can add the number to the blacklist,
please refer to the specific operation 4.2
50
5.1.3 Call Options
Call options as shown below:
Click the button to hold the current call.
Click the button to resume the current call.
Mute
Click to switch to video call
Click to switch to audio call
Click to switch to Speaker
Click to switch to handset
Extended function
Function under development
5.1.3.1 Dialing Interface
5.1.3.2 Video Options
Switch to full screen
Call options are described as below:
Click the " keyboard” in the conversation, screen will appear the soft keyboard. Input
the number by soft keyboard or keypad on the phone.
During video call you can switch picture through the button on the video interface.
51
View local video
View the other part video
5.1.3.3 Multiple Calls
The Phone supports more than 3 line calls. The line information is on the
right side of call interface.
During a call, you can click on the button
to add a new call. And when
click on this button, the current call will be
hold.
During a call, you can click on any line in the
list to resume the call.
5.1.4 Call Records
5.1.4.1 View Call Records
When got a missed call, the screen will display the missed call notification in above
status bar. You can hold the status bar and drag down to open the notification, and
then click the missed call notification to view call records.
You can also directly through the dialing interface to view call records:
1) In the main screen, click or in the main screen, click - > 。
2) Click
:
52
1) you can click the drop-down list to choose the call record
5.1.4.2 Call From Call Records
Click a contact or a number in the list
If you want to initiate an audio call directly, please click the icon in call
If you want to initiate an audio call directly, please click the icon
in call
If you want to send a message directly, please click the icon
in call
types, it supports for all call, missed call, received call, dialed call and forwarded call
five types of call information.
2) Call records are shown on the left, and show the total number in the bracket. Click
the number or contact, and you can view all the call records details on the right.
In Missed Call, Received Call, Dialed Call or Forwarded Call, you can choose one of
the following steps to initiate a call:
records;
records
records;
53
5.1.4.3 Delete Call Records
1) If you want to delete one call record, steps as below:
Long press the call record you want to delete;
Pop-up a menu, press “Confirm” to confirm the deletion.
2) If you want to delete multiple call records, steps as below:
Press the icon
on the top right corner;
Click the call records you want to delete;
Click
3) If you want to delete all call records, steps as below:
Press the icon
on the top right corner;
Click
to select all records;
Click
5.1.4.4 Add A Contact From Call Records
If you want to save a contact from the call records, or merge the contact into
Click the number in the call records list;
If you want add a new contact, click “New Contact” , A new
If you want to merge the contact into the existing contact,, click “Add to
5.2 Contacts
the existing contact, you can do the following operations:
contact page will pop up. Refer to Chapter 6.2.1.1 for details
Contacts” ,Choose the existing contact and then click
"OK".
You can choose the following method to enter into Contacts interface:
54
Enter the dialing interface, and then click the icon
5.2.1 Contacts
You can view, audio call, video call, add, edit, delete the contacts.
5.2.1.1 Add A New Contact
1) Click the icon on the top right corner, and click “New Contact” in the
2) The new contact interface is as shown:
drop-down window;
55
Edit the contact photo, Browse the image from “Take Photo” or “Choose
photo from Gallery”
Delete the note
Cancel the edit
Save the contact
Some more information
If you want to add some more information, please click ，it will pop up the
page of contact details, as shown:
56
Click to save the contact.
5.2.1.2 Modify The Contact
1) Select the contact you need to modify in the contact list;
2) Click ;
3) Enter into contact edit page, you can edit the contact information.
5.2.1.3 Delete The Contact
Long press the contact you need to delete from your contact list, and tap
Select the contact, click
, select "Remove", click “the contact” and
You can choose one of the following methods to delete the contacts:
“Confirm” in the pop-up Remove Contact dialog box;
“Confirm” to delete.
57
5.2.2 Group
Group, it will be convenient for you to have contact group management. Contacts
5.2.2.1 Add A New Group
1) Click ;
2) Choose “New group”;
3) Input a new group name in pop-up dialog box;
4) Click “Confirm” to save.
5.2.2.2 Rename A Group
1) Click the group you want to rename in contact page;
2) Click ;
3) Input the new name you want directly;
should at least belong to a group, the default is no group.
In the contact page, click “My Groups” to view the groups, as shown:
(Note：the system default group cannot be renamed)
58
4) Click “Confirm” to save.
5.2.2.3 Remove A Group
1) In Contact page, click the group you need to delete, and then click ;
2) Click “Remove Group”, and then click “OK”.
(Note：the system default group cannot be deleted)
5.2.2.4 Edit A Group
1) In Contact page, click the group you need to edit.
2) Click and display the tool bar
Exit the group edit.
Add contacts to the group, click the contacts in left list, and then click
“OK” to add.
Remove contacts from the group, click the contacts in right list, and
then click “OK” to remove.
5.3 Conference
1. Create talking with first party;
2. Press to create a new talking;
3. Input the number of second party and press the Video Call or Auido Call to make
You can use the conference feature to hold a 3-way conference by pressing the
Conference soft key to invite the current talking and one line talking held to attend
conference.
4.3.1 Create 3-way conference
a call;
59
4. When the second party answers your call, press the Conference softkey or the
Conference key on the keypad to start 3-way conference.
60
5.4 Transfer
4.4.1 Blind Transfer
1. When the IP phone blind transfers a call.
2. Pick up a call, press transfer key on the keypad or click .
3. Drag down the current call into the gray box
4. Press to enter the target number, then click Confirm.
5. Click Blind to transfer the number.
1. Pick up a call, press transfer key on the keypad or click .
2. Drag down the curent call into the gray box
3. Press to enter the target number, then click Confirm.
4. Click Attended to transfer the number.
4.4.2 Attended Transfer
61
62
5.5 Keypad Input
Only numbers, * and # can be input by keypad. The default Input method is Android
5.6 Webpage Browser
Mode 1: In the main screen, click ;
Mode 2: In the main screen, click -> .
5.6.1 Open The Webpage
5.6.1.1 Browser Address Bar
5.6.1.2 Bookmark And Browsing History
keyboard. You can also download your preferred input method from the internet.
This section describes the default web browser in the video phone, and you can also
download your preferred browser through the internet.
You can use one of the following methods to run the browser:
Run the browser, enter the URL in the address bar or direct input the information to
search. After the input, you can click “Go” on the soft keyboard to complete.
Run the browser, click to view the “bookmark”:
63
Add a new webpage
View the bookmark and browsing history
Others
5.7 Camera
Open the camera: in the main screen, click -> 。
5.7.1 Photograph Mode
5.7.1.1 Basic Setting
You can view your photos and videos in “Gallery”
Turn on the camera, and the default mode is photograph mode.
Click on the upper right corner or long press on the screen to pop up the
64
menu
Setting
White balance setting
5.7.1.2 Mode Switch
Panoramic camera mode
Video mode
Photo mode
5.7.1.3 Take A Photograph
Click on the lower right corner to switch the mode.
You can click on the center button on the right side to take pictures.
It supports automatic focusing, if you want to adjust the focal length, please use two
fingers to press on the screen, shrinkage or expansion to adjust the focal length.
65
5.7.1.4 Take A Video
Click -> to swith to video mode.
5.8 Gallery
5.8.1 View Photo & Picture & Video
Click
the video recording and save.
You can use Gallery to view photos or videos, and you can also view the picture
or video downloaded from the Internet. You can edit the photo or picture and set it
as wallpaper.
You can follow the below method to enter into the gallery:
In the main screen, click
，video starts when the icon turns to . And click to stop
->
Enter the gallery, and you can view all photos, pictures in the device, as shown
below:
66
Click the icon on the upper left corner, and you can view photos and videos in groups
5.9 Bluetooth
In the main Screen, press button -> System Settings -> Wireless &
in the drop-down list. Click on the folder to view all the photos.
While viewing photos, you can use two fingers to press on the screen,
shrinkage or expansion to shrink or enlarge the image.
Bluetooth is a proprietary, open wireless technology standard for exchanging data
over short distances from fixed and mobile devices, creating personal area networks
with high levels of security. On VP-R47P, users could use Bluetooth to transfer files,
share contact information with other Bluetooth portable devices by installing
Bluetooth Application, or use Bluetooth headset for making calls.
To connect to a Bluetooth device, turn on VP-R47P’s Bluetooth radio first. The first
time when using a new Bluetooth device with the VP-R47P, “pair” the device with
VP-R47P so that both devices know how to connect securely to each other. After that,
users could simply connect to a pared device. Turn off Bluetooth if it’s not used.
Bluetooth related settings are under VP-R47P’s Settings application → Wireless &
networks. Users could access it via the following two ways:
67
Networks;
Press on screen and click on -> Wireless & Networks.
5.9.1 Turning Bluetooth On /Off
Go to VP-R47P’s Settings;
Click on Wireless & Networks;
Click or untick the option for Bluetooth.
5.9.2 Changing Bluetooth Device Name
Go to VP-R47P’s Settings;
Click on Wireless & networks;
Click on Bluetooth, and click Bluetooth to turn it on;
Click on Bluetooth settings → Rename, and enter a new name. Once done, click
5.9.3 Paring VP-R47P With A Bluetooth Device
Go to VP-R47P’s Settings;
Click on Wireless & networks;
Click on Bluetooth, and tick Bluetooth to turn it on;
Click on SEARCH FOR DEVICE;
The VP-R47P scans and displays the IDs of all available Bluetooth devices in
The VP-R47P uses “VP-R47P” as Bluetooth device name by default. The device name
will be visible to other devices when connecting them. Follow the steps below to
change the name:
“OK”.
Before connecting VP-R47P with other Bluetooth device, users must pare them first.
They will stay paired afterwards unless they are unpaired.
range. If the device you would like to pair with does not show up in the list,
68
ensure that the other device is turned on and set to be discoverable;
If the VP-R47P stops scanning before the other device is ready, touch SEARCH
The discovered device will show in the available devices list with device ID. If it’s
5.9.4 Un-pairing A Bluetooth Device
5.10 USB
Insert USB storage device into USB port at the right side of video phone;
It will take a few seconds for the video phone to prepare the connection;
To access USB storage, click on the screen
-> Explorer -> USB, to access
FOR DEVICE;
unpaired, it will show “Pairing” under the device ID. Make sure the Bluetooth
device is active in pairing mode. Then tap on the device ID on the VP-R47P to
pair them. Confirm the passkey in the prompted message (if any). Or if PIN is
required, please refer to the device’s documentation or other procedures to
obtain the PIN.
After successfully pared, the VP-R47P will show item “PAIRED DEVICES” above the
Bluetooth device ID in the scan list.
Once it’s connected, users could also tap on to the Bluetooth device ID needed to be
unpair, then tap on Unpair in the prompted message.
The video phone supports USB connection for keyboard and USB storage devices. To
use USB keyboard, simply plug it into the USB port on the right side of the video
phone and it will be ready to use.
To connect and access USB storage device:
and manage your data.
69
5.11 Calendar
To start the calendar：
In the main screen，click -> Calendar;
5.11.1 Add An Account
As shown below：
If one day has activity, color will appear on the calendar to remind.
While using the calendar at the first time, it will remind you to add an account.
Click ”Add account” to add an account, and then synchronize all the schedules of the
account to the calendar.
70
5.11.2 View Calendar
The calendar will display weekly by default, and you can slide the calendar up and
5.11.3 New Activities
1) While Calendar is displaying as daily or weekly, you can use the following
Click on the date, and then click on the time period;
Click on
2) Input the details of the activity, as shown below:
down to view the different weeks. In order to view the activities or create the new
activities, you can also make the calendar display daily or monthly. While using daily
or monthly displaying, you can slide the calendar left and right to view the different
day or month.
Click the date on the upper left corner, it will display the drop-down list
, Calendar displaying mode can be selected as daily, weekly or
monthly.
methods to create a the new activity:
71
3) Click “Done” to finish.
5.11.4 Edit Activities
5.11.5 Delete Activities
You can click on schedule needed to be modified to edit the schedule.
While viewing the activity, you can click “DELETE” on the upper right corner to delete
72
the activity.
5.12 Clock
In the main screen, click -> Clock;
Alarm
Countdown timer
Stopwatch
Time zone
Others
5.12.1 Alarm
Enter the Clock:

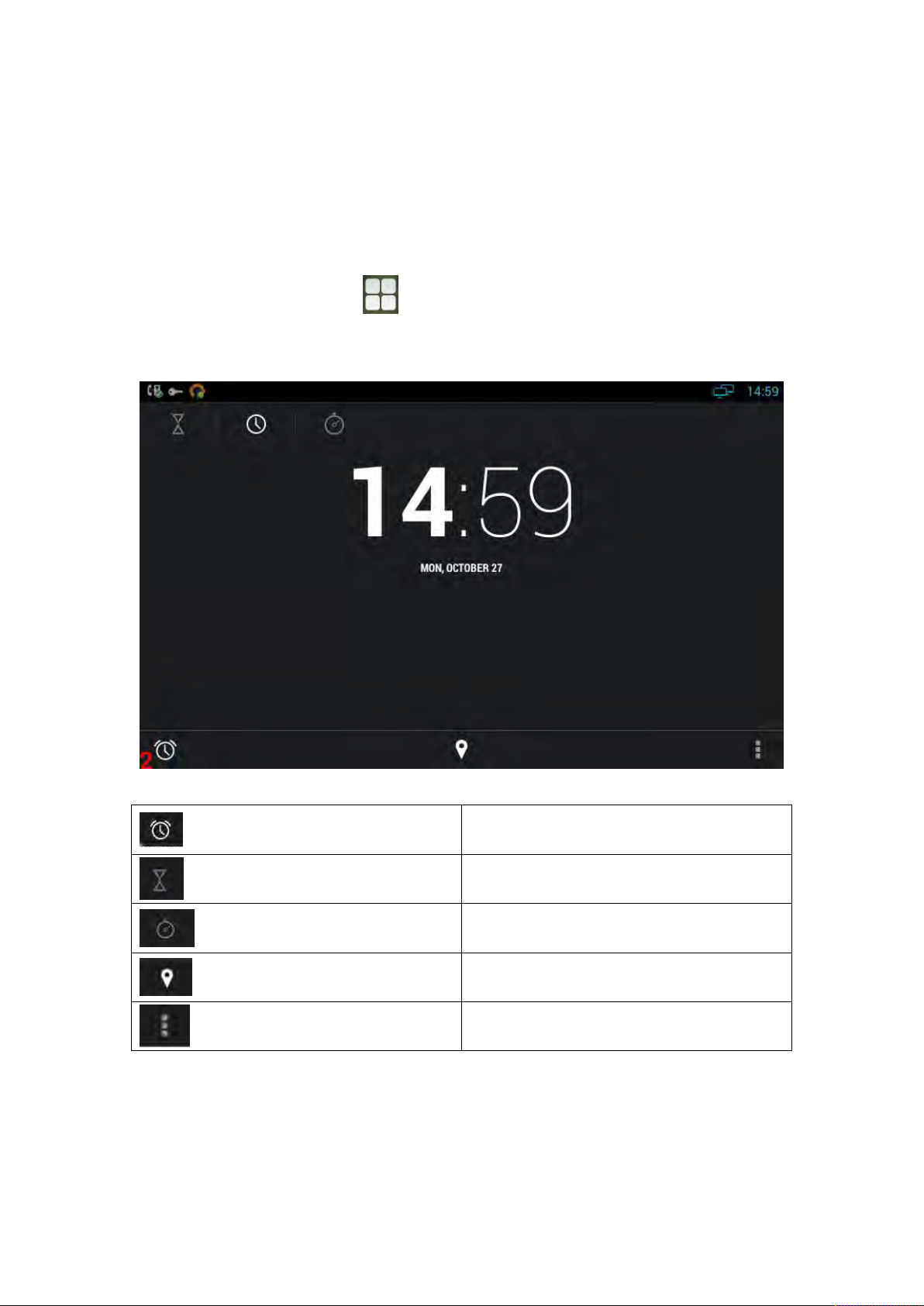

As shown below:
Description:
You can add one or multiple alarms:
73
1) Click ;
2) Click ;
3) Input the time of alarm:
4) If you want to repeat the alarm in some days of a week, please click “REPEAT”;
5) You can choose the ringtone of the alarm.
5.12.1.1 Enable/Disable Alarm
You can click ON/OFF to enable or disable the alarm.
Note: if power off the phone, the alarm will also be off.
74
5.12.1.2 Modify Alarm
If you want to modify the status of the alarm, including time, repeat data, alarm
5.12.1.3 Delete Alarm
Press and hold the alarm, after pop-up the dialog box, click
, and then
5.12.2 Countdown Timer
1) Click
2) Click the number to set the countdown time.
3) Click “START”
Add one minute to countdown timer
Delete the current countdown timer
ringtone, you can directly click on the alarm.
In Alarm page, you can use the following method to delete the alarm:
click “OK”
Click on the time in the page of countdown timer can stop or continue the time, and
the other buttons are described as followed:
75
5.12.3 Stopwatch
1) Click ;
2) Click “START” or “STOP” to start or stop the stopwatch;
3) Click the time icon to start a new time;
4) When the time is on hold, click to reset the timer.
5.13 Email
Email Application can let you use POP3 or IMAP service to send and receive e-mail.
In the main screen, click ->Email
5.13.1 Add A New Email Account
1) Please choose one of the following methods to start:
If you haven’t added an e-mail account yet, while starting the e-mail
Start Email：
Make sure the email account has enabled POP3 or IMAP service, and you can add
many accounts.
application, you will be asked to set up your account, as shown below

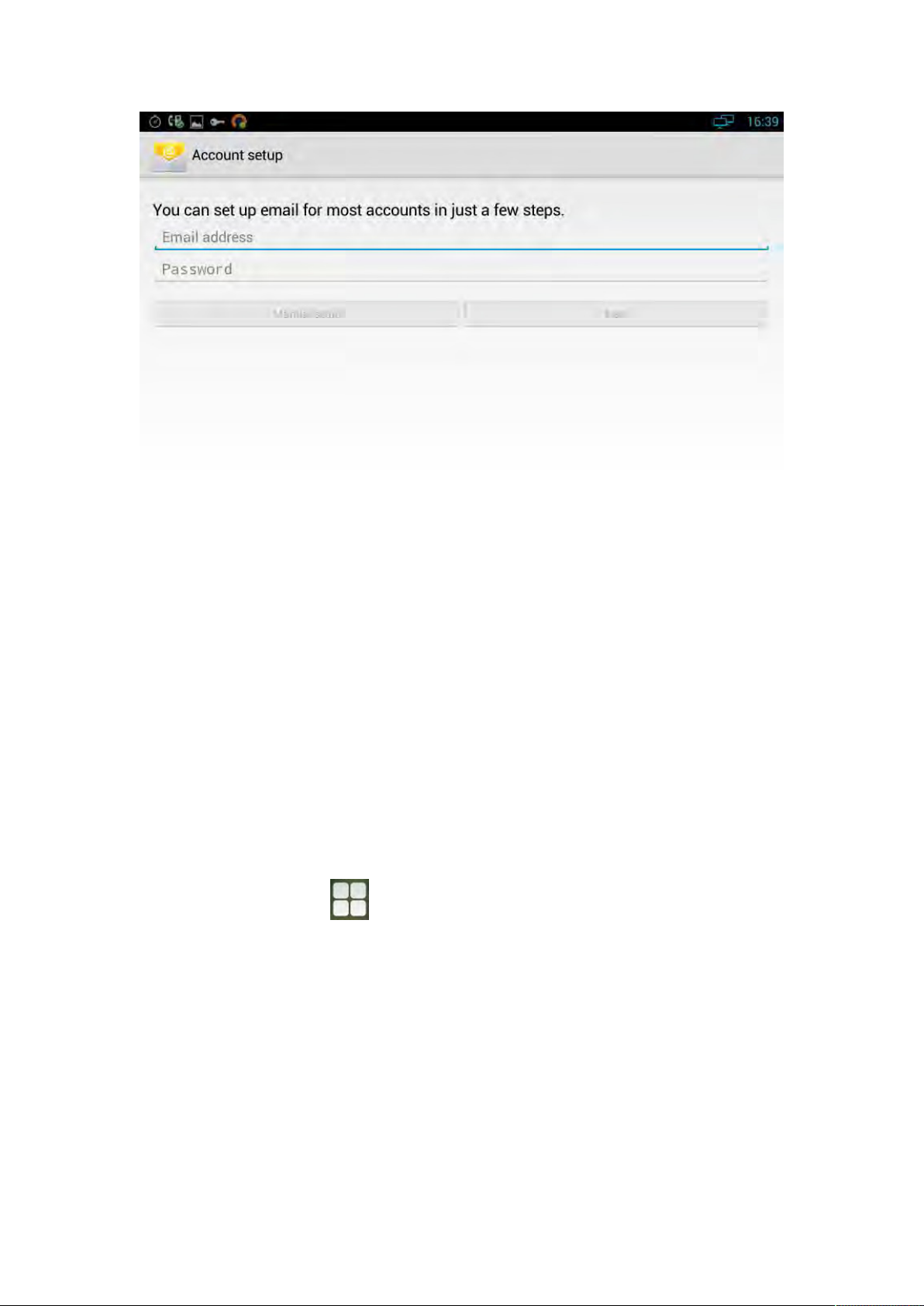

76
If you have already set up an email account, In the main Email page, Press
“Menu” button, and then click “Account”, and last press ”Menu” to “Add
2) Input the email account and password, and then click “Next”;
3) Input the account name and your name, click OK.
5.14 Music
Account”.
If there is no account type in the equipment database you want to set, the device will
require you to enter more detailed information (the receiving server settings
and outgoing server settings).
In the main screen, click ->Music.
The music page is shown as below:
77
You can click the labels of Artists, Albums or Songs to view all songs. You can also
5.15 Explorer
view or play the songs from the playlists.
To view the currently playing song, please click the "now playing" label
You can use explorer to manage the files in the device.
In the main screen, click
-> Explorer, as shown below:
78
Home Page
Upper Layer
Multiple Choices, And the selected file will change to blue
color.
Editor, you can do Copy, Delete, Move, Paste, Rename, Send,
Create shortcut operations.
New Folder
Previous File
Next File
If you insert a SD card, you can view the files in SD card.
(Optional)
View the internal files of the device
View the files in inserted USB device
5.16 Video Player
You can use video player to play local videos.
To run the video player: In the main screen, click
After entering, you can click on the list of videos to watch. As shown below:
-> Video
79
Bookmark
Screen Brightness Adjustment
The previous video, and long press to make
video fast backward.
Hold/Play
The next video, and long press to make
video fast forward.
Screen size adjustment, four type of video
sizes: original size, full screen, 16:9, 4:3
Floating browse mode
Others
5.16.1 Floating Browse Mode
Click on during playing a video to enter the floating browse mode. As
shown：
80
You can click on to play the video, click to shrink the floating
5.17 BLF
window. And use two fingers to press on the screen, shrinkage or expansion to adjust
the window size.
If you want to close the floating window, please long press the floating window until
it displays icon in the center, click on the icon to close the floating window.
Busy Lamp Field (BLF) is used to monitor a specific user for status changes on IP
phones. For example, you can configure a BLF key on a supervisor’s phone to monitor
the phone user status (busy or idle). When the monitored user places a call, a busy
indicator on the supervisor’s phone indicates that the user’s phone is in use.
To setup BLF: web-> phone-> Extkey. Set the Type as BLF ,and configure the value and
account.
81
5.18 BLF List
BLF List：While using BroadSoft platform, the accounts which are monitored by the
5.19 Intercom
sip phone will reply the subscribe news in the form of xml list to improve efficiency.
BLF List Code：While using BroadSoft platform，when press BLF List key configured
the BLF LIST CODE，can Pick up call or Barge in call.
Note: BLFListCode is supported by Broadsoft platform, Please consult your
administrator further information.
To configure Intercom via web interface:
PATH: Phone-> Ext Key. Configure the type as Intercom, and setup the value and
account
82
1. Press the Intercom key when the phone is available. The phone will connect the
extension number of remote user automatically.
2. Answer the intercom incoming calling.
3. In default situation, the IP phone Akuvox R47P will answer the intercom
5.20 Call Return
incoming calling automatically and make a noise. You can set the phone to
enable silent mode when picking up the intercom call so that the other will not
hear you.
The features of intercom：
This function can be used to call the latest dialed call record automatically.
To configure Intercom via web interface:
PATH: Phone-> Ext Key. Configure the type as Call Return
83
5.21 Others
5.21.1 Apk Installer
You can use Apk Installer to install the apk application
5.21.1.1 Install
In the main screen, click
->Apk Installer. As shown below:
You can click “Install”, and then browse the path:
84
The system will list all the Apk applications under the path, click the Apk to install.
5.21.1.2 Manage
5.21.2 Ping Tool
5.21.2.1 Ping Query
You can click on "Manage" button to browse the Apk installed in the system.
You can use the Ping tool for Ping query, network packet capture and view the
log information.
Ping query interface is as shown：
You can input the address you want to Ping, click the Ping button, you can view the
Ping query results. If you take a long Ping query, in the input box, please manually
85
enter the Ping + address, such as: , and then click the
5.21.2.2 Tcpdump
5.21.2.3 Logcat
Ping button.
Log captured tool interface is as shown:
You can choose what type protocol and specified port you need to capture
the logs. Press “Start Tcpdump” to start the log captured.
If you want to finish the log captured, you can press “Stop Tcpdump” to stop
the capture, and the system will prompt the file saved path. You can use Wireshark
and other tools on PC to read the logs.
Logcat interface is as shown:
86
You can use to search the log information, and select the log level
through the drop-down list.
Or click to see more options.
if you need to save the log, please click , select "Save"
If you need to highlight the log information, please click , select "highlight", and
then the log will be showed as different color.
87
88
6 Software Upgrade
6.1 Immediate Update
Choose one way below to enter the system upgrade interface:
In the main screen, press “Menu” on board -> System Settings -> System ->
In the main screen, tap on settings icon -> System -> Multimedia
About Multimedia Terminal -> System Upgrade -> System Update Now
Terminal -> System Upgrade -> System Update Now
Update interface as shown:
Figure 5-1
Three ways to update immediately: Select other upgrade package, Local Update,
Remote Upgrade, as shown:
89
6.1.1 Select Other Upgrade Package
1) Via USB to Upgrade
Put upgrade package into USB, insert USB, then click “Select other upgrade package”,
2) Via Internal Memory to Upgrade
6.1.2 Local Update
1) Via USB to Upgrade
find “/mut/usb_storage”, find the upgrade package, then click “OK” to upgrade.
Use USB to copy the upgrade package into Internal Memory, then press “Select other
upgrade package”, find “/mnt/sdcard”， find upgrade document, then click “OK” to
upgrade.
Change the name of upgrade package into upgrade.zip, then copy it into USB, insert
USB, enter the upgrade interface, you will find the path of upgrade package, because
video phone has searched it automatically, click “Local Update” to start upgrading, as
shown:
90
2) Via built-in SD Card to upgrade
First, change the name of upgrade package into upgrade.zip, then copy it into USB,
6.1.3 Remote Update
and then use USB to copy the upgrade package into Internal Memory, enter the
upgrade interface, you will find the path of upgrade
package:/mut/sdcard/upgrade.zip, because video phone has searched it
automatically, press “Local Update” to start upgrading.
1) Enter the interface in figure 5-1, click “Server Address”, and input the server
address that contains upgrade package. As shown:
91
2) Click “Remote Upgrade”, video phone will check the new version automatically. If
6.2 Auto Update Period
exist a new version, it will prompt. Press “OK” to download upgrade document.
3) After finish downloading, it prompts “Download update image success! You need
to restart system for update! ”, press reboot now, and then system will upgrade
automatically. As shown:
Auto Update Period includes four modes: None, One Day, One Week, and One Month.
92
The terminal will detect the new version automatically in time, if there is, the status
6.3 Upgrade on the web
bar will show “There is a new version, please update!”. Click and download the image
for upgrade.
As shown:
1.Click Upgrade->Basic
2.Choose the software you want to update from the computer.
3.Click
.
93
6.4 Check Update After System Power On
Click “Check Update After System Power On” in figure 5-1. Every time you power on,
the system will check the new version automatically. If there is a new one, the status
bar will notice: “System has new version, please update now!”, click and download
the image for upgrade.
As shown:
7 System Maintenance
7.1 System State Inspection
Mode 1: In the main screen, press "Menu" key on the hard keyboard-> System
7.2 IP Query
Settings-> About Multimedia Terminal
Mode 2: In the main screen, click -> -> About Multimedia Terminal
It will display phone status, software version and hardware version in this item.
Mode 1: In the main screen, press "Menu" key on the hard keyboard-> System
Settings-> Ethernet
Mode 2: In the main screen, click
Mode 3: Press Speaker button or pick up to enter the dialing interface, click
on upper right corner -> enter the setting interface, check Status Info;
Mode 4: Slide down the top-left
check Status Info;
Mode 1 and Mode 2 can check IP address, subnet mask, gateway, DNS server etc. in
Ethernet:
-> -> Ethernet
, click the account, enter the setting interface,
94
95
Mode 3 and Mode 4 can check the corresponding network information in setting
7.3 SIP Account Registration Query
interface.
You can choose one of the following methods to enter the SIP account registration
query: If the account is successfully registered, the icon will be light up in notification
area of phone.
96
Mode 1: Press Speaker button or pick up to enter the dialing interface, click
7.4 Backup & Reset
on upper right corner, check Account Manager.
Mode 2: Slide down the top-left
check Account Manager.
Mode 1: In the main screen, press "Menu" key on the hard keyboard-> System
Settings-> Backup & reset
Mode 2: In the main screen, click
Click “Factory data reset”, click “Reset Multimedia Terminal”, then the phone will
restore to factory settings.
, click the account, enter the setup interface,
-> -> Backup & reset
97
7.5 Failure Process
Failure 1: Power LED is off
Please check whether the adapter fits this product requirement;
Please check whether the outlet is working properly.
Please check whether the connection of handset and base is working properly;
Please adjust the volume + key on keyboard when off-hook the phone, Observe
Please check whether there is at the top-right of screen. If not, please
Please check the IP address of phone via configuration (go to 5.2, “network
If it’s now in LAN, please check whether the IP address of phone is conflict with
If the network connection is properly, please check whether the icon of
Please make sure the handle is completely hung on the base
Please adjust the volume + key on keyboard when on-hook the phone, Observe
Failure 2: No voice when pick up the handle
the display of “volume” prompt. Please pay attention that the volume key in
on-hook and off-hook situation is to adjust the ring volume and media volume
(call volume) separately. These two adjustments are unrelated. Adjust the
volume won’t change call volume when on-hook the phone.
Failure 3: Phone can’t dial properly
check whether the cable in LAN port is loose;
configuration”);
other IP address in LAN.
successful registration is in the notification area. If there is no explanation of
configuration failure, please contact network administrator to recover it.
Failure 4: No ringing when incoming a call
the display of “volume” prompt. Please pay attention that the volume key in
on-hook and off-hook situation is to adjust the ring volume and media volume
98
(call volume) separately. These two adjustments are unrelated. Adjust the
volume won’t change ring volume when off-hook the phone.
99
8 Web Interface
8.1 Web login
1. Open the browser on your computer.
2. Input the IP address in the address bar.
3. Enter the user name and password (user name: admin, password: admin), then
click .
8.2 Status->Basic
Click Status->Basic to check the phone information.
100
Sections
Description
Product Information
To display the device’s information such as Model name,
MAC address (IP device’s physical address),Hardware Model,
Firmware version and Hardware firmware.
Network Information
To display the device’s Networking status(LAN Port),such as
Port Type(which could be DHCP/Static/PPPoE), Link Status, IP
Address, Subnet Mask, Gateway, Primary DNS
server, Secondary DNS server.
Account Information
To display device’s Account information and Registration
status (account username, registered server’s address,
Register result).
8.3
Account->Basic
1.Click Account->Basic.
2.Select the desired account(from account 1 to account 6),then enable the Account
Active.
3.Filled the registration parameters you need.
4.Click
.
Loading...
