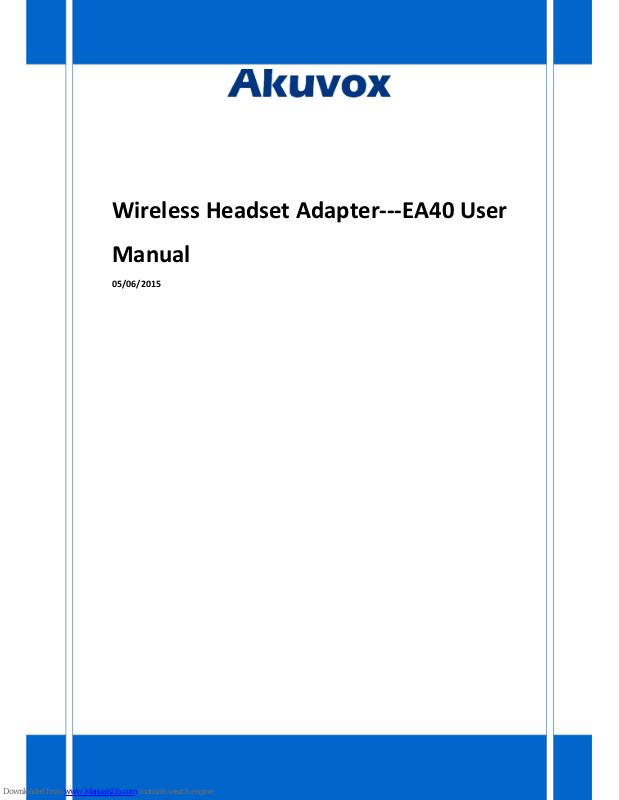

Wireless Headset Adapter---EA40 User
Manual
05/06/2015
Content
Overview
..............................................................................................
3
Introduction
............................................................................................................
3
Features
..................................................................................................................
3
Packaging Contents
.............................................................................
4
Port Description
...................................................................................
5
Cord Description
..................................................................................
5
Connecting IP Phone and Headset
.....................................................
6
Overview
Introduction
The Wireless Headset Adapter——EA40, is perfect for connecting Akuvox SIP- R59P
IP phones and wireless headsets, such as Jabra(GN Netcom)、Plantronics 、
Sennheiser.
Features
Main Features
Fully compatible with Jabra, Plantronics and Sennheiser wireless headsets
Answer, Talk and Hangup calls remotely
Plug and Play
Powered by Akuvox IP phone SP-R59P
Physical Features
1 x RJ12(6P6C) port connected to Akuvox IP phone SP-R59P
1 x 3.5mm Jack for Plantronics headset
1 x RJ45(8P8C) Jack for Jabra and Sennheiser headset
Dimensions (H x L x D): 23 x 67.5 x 45mm
Gift Box Size: 160 x 85 x 30mm
G.W.: 0.15Kg
QTY/Carton: 20pcs
Carton Meas: 360 x 350 x 122mm
Packaging Contents
Port Description
Port ①: Connect this port and the IP phone EXT/EHS port or Expansion Module EXT
port (the expansion module has been connected to the phone) using the RJ12 cord.
Port ② : Connect this port and Wireless headset using the RJ45 cord.
Port ③ : Connect this port and Wireless headset using the 3.5 mm DC Jack.
Cord Description
In addition to the cords mentioned in the Port Description section,the RJ9 Cord is
provided.
RJ9 Cord: For the audio connection between the IP phone headset port and the
wireless headset.
Connecting IP Phone and Headset
This section introduces the connection between SIP-R59P IP phone and the wireless
headset.
Working with Jabra(GN Netcom) wireless headset.
Working with Plantronics wireless headsets.
Working with Sennheiser wireless headsets.
