Akura AV42720-HDID User's Manual

Download

Page 1

Customer Help Line: 01422 263313

Opening Hours: Mon-Fri 8am-8pm, Sat 9am-4pm, Sun 11am-4pm

Or visit our website at www.ekey.co.uk

AV42720-HDID

Page 2

Contents

Remote Control Buttons .............................................................................................................................. 2

LCD TV ....................................................................................................................................................... 3

Preparation .................................................................................................................................................4

Safety Precautions .....................................................................................................................................4

Before Switching On Your TV.................................................................................................................... 6

Switching The TV ON/OFF ......................................................................................................................... 6

Navigating the Menu System ......................................................................................................................6

Initial Settings..............................................................................................................................................7

Basic Operations ........................................................................................................................................ 8

Everyday Operation ...................................................................................................................................8

IDTV Menu System ................................................................................................................................... 10

Analogue TV Menu System ...................................................................................................................... 16

Other Features ......................................................................................................................................... 21

Teletext ..................................................................................................................................................... 22

Connecting Peripheral Equipment ............................................................................................................. 23

Tips .......................................................................................................................................................... 25

Specifications ...........................................................................................................................................25

Appendix A: Aerial Connection ................................................................................................................. 26

Appendix B: Connect Peripheral Equipment..............................................................................................26

Peripheral Equipment Connections ........................................................................................................... 27

Important Instruction ................................................................................................................................. 28

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:161

English - 1 -

Page 3

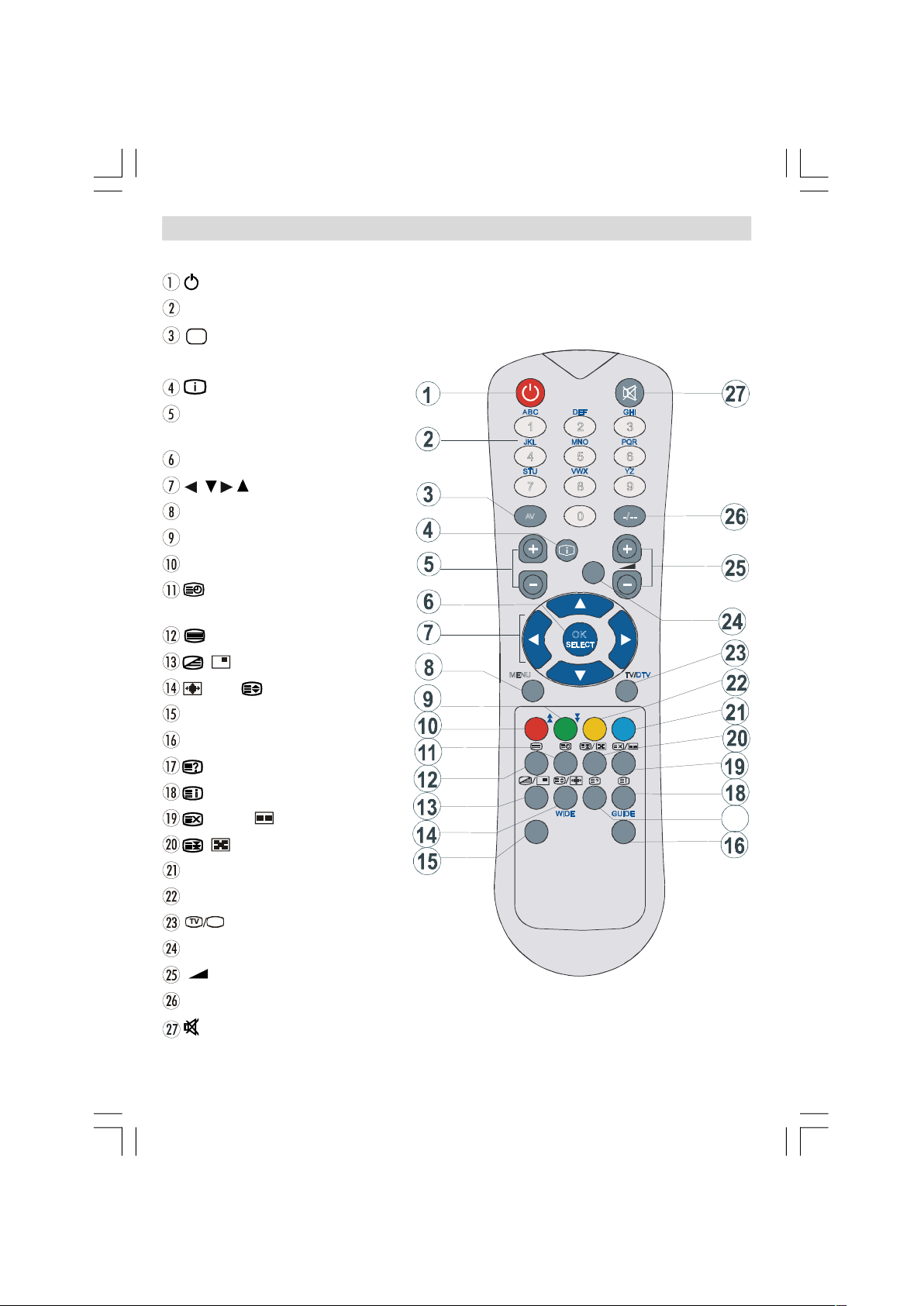

Remote Control Buttons

TV/DTV

GUIDE

DTV

= Stand By

0 - 9 =Direct Programme

/SOURCE = External Source

(TV, DTV, EXT1, EXT2, FAV, HDMI, YPBPR)

/ INFO = Info

P/Ch+ = Programme Up/

P/Ch- = Programme Down

OK/SELECT = Okay(Store)

, , , = Cursor buttons

Menu = Menu

Green button* = Picture -

Red button* = Sound

= Time /

Subtitle On / Off in the Digital mode

= Teletext

ABC DEF GHI

1 2

JKL MNO PQR

STU VWX

7 8

SOURCE

INFO

P/CH

I-II

-/--

EXIT

/ = Mix / No Function /WIDE / = Image size / Expand

P<P/SWAP =Previous Programme

PP =Colour Temperature

= Reveal

/ Guide = Index Page = Update, = No Function / = Hold / No Function

Blue button* Yellow button*

= TV / DTV Mode

I-II = Mono-stereo/ Dual I-II

- + = Volume + / Volume -

-/-- / EXIT = No function

= Mute

WIDE

P<P/SWAP PP

English - 2 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:162

Page 4

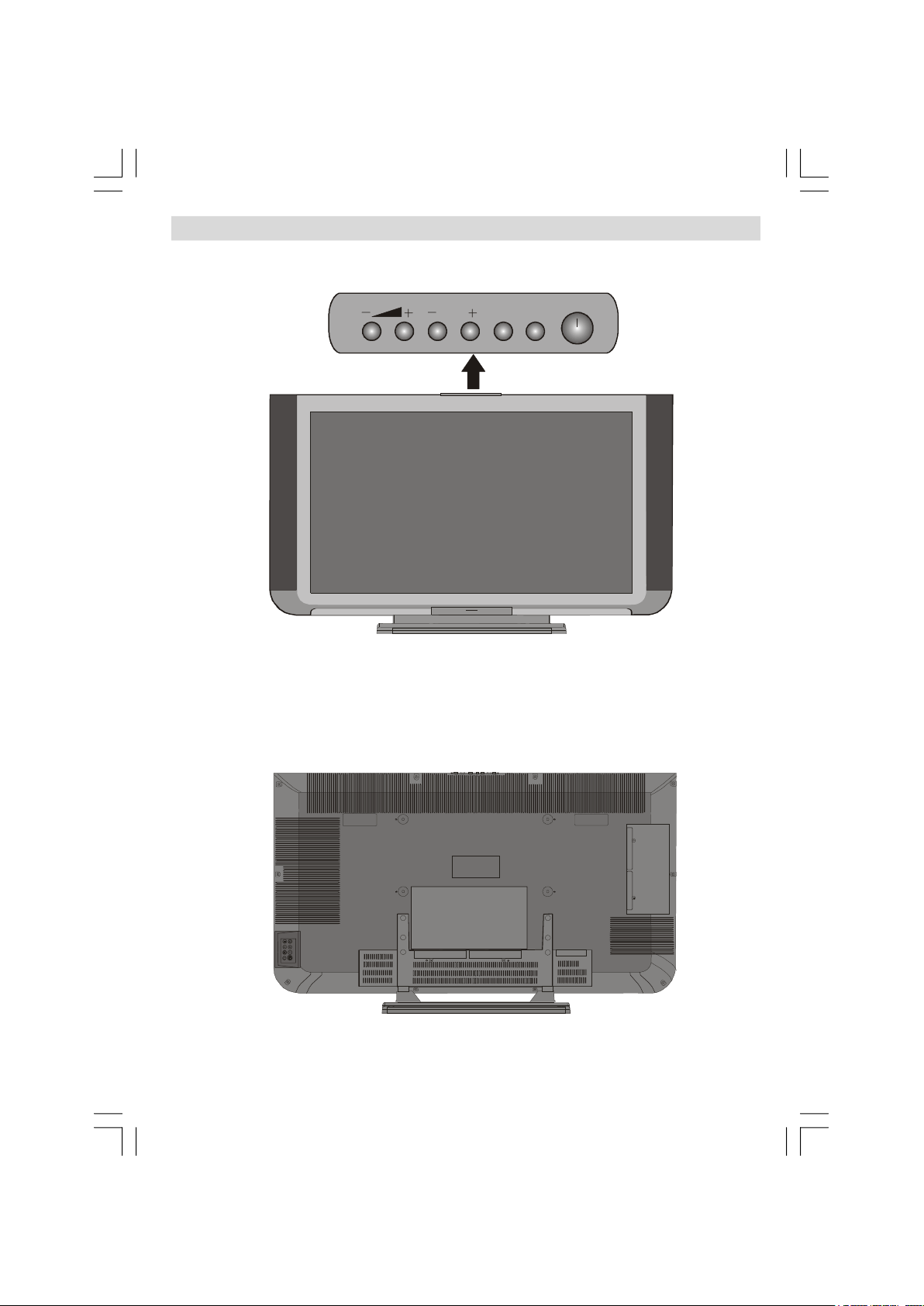

LCD TV

P/CH

TV/AV

English - 3 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:163

Page 5

Preparation

For ventilation, leave a space of at least 10 cm free all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.

Use this apparatus in moderate climates.

Features

• Remote controlled colour LCD TV.

• Fully integrated Digital TV (DVB-T)

• 100 programmes from VHF, UHF bands or cable channels can be preset.

• It can tune cable channels.

• Controlling the TV is very easy by its menu driven system.

• It has 2 Scart sockets for external devices (such as video, video games, audio set, etc.)

• Stereo sound system (Virtual dolby).

• Full function Teletext (1000 pages).

• Fastext, TOP text.

• Headphone connection.

• A.P.S. (Automatic Programming System).

• All programmes can be named.

• Forward or backward automatic tuning.

• Sleep timer.

• Child Lock.

• Automatic sound mute when no transmission.

• NTSC Playback.

• AV in are available.

• It has an HDMI connector for Digital Video and Audio. This connection is also designed to accept High Definition signals.

• AVL (Automatic Volume Limiting)

• When no valid signal is detected, after 5 minutes the TV switches itself automatically to stand-by mode.

• PLL (Frequency Search)

• Audio Line Out

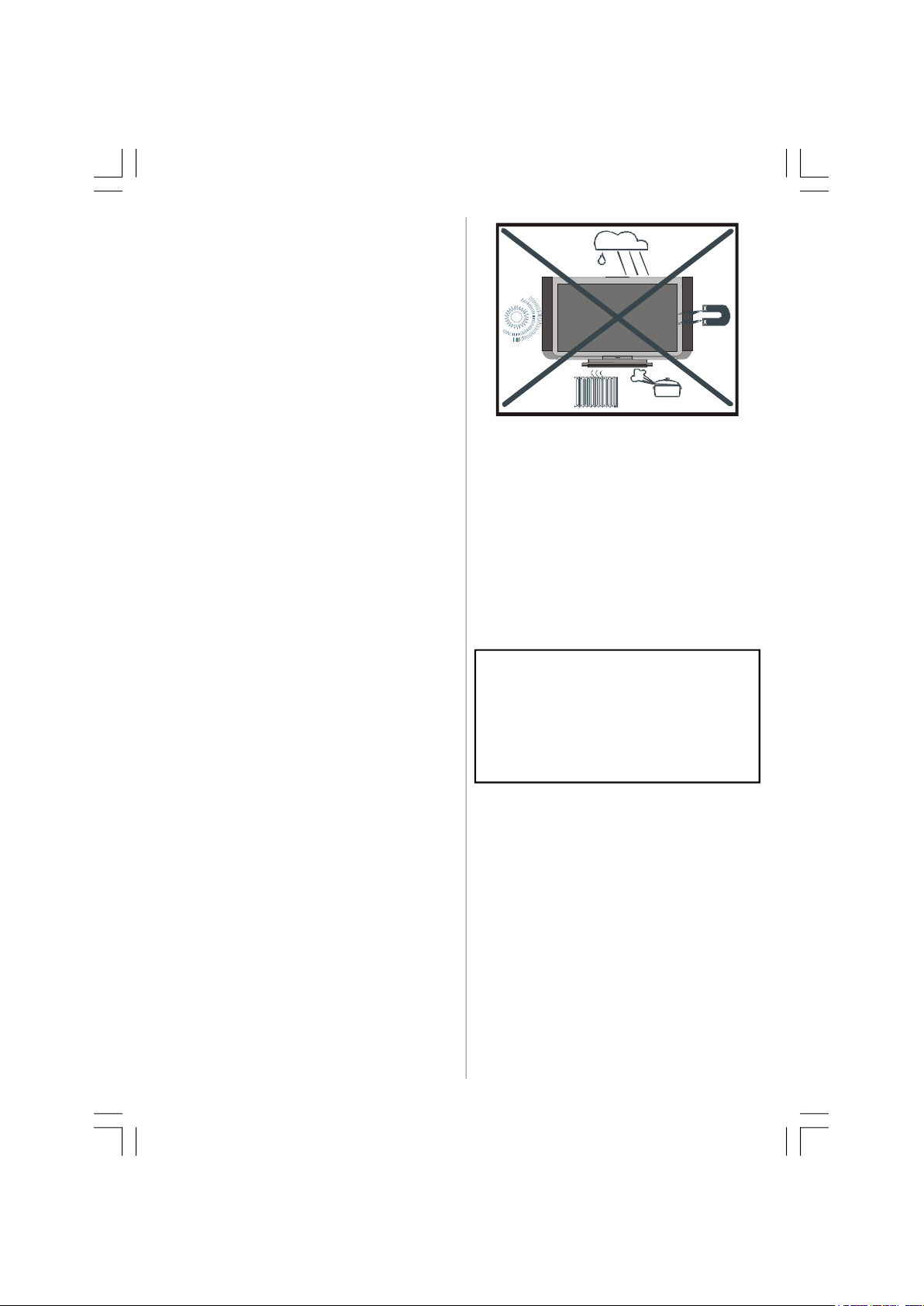

Safety Precautions

Please read the following recommended safety precautions carefully for your safety.

1.Power Source

The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.

2.Power Cord

Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be changed, it should be done by qualified personnel.

3.Moisture and Water

Do not use this equipment in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this equipment to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top. Avoid from dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

4.Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

5. Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

6. Heat and Flames

The set should not be placed near to naked flames and sources of intense heat, such as an electric heater. Ensure that no naked flame sources, such as lighted candles, are placed on top of the TV. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

7. Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:164

English - 4 -

Page 6

8. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock, or other hazards.

9. Servicing

Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.

10. Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and

should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.

• Battery, including those which are heavy metal-free,

should not be disposed of with household waste. Please dispose of used battery in an environmentally sound manner. Find out about the legal regulations which apply in your area.

• Cold cathode fluoresant lamp in LCD PANEL con-

tains a small amount of mercury; please follow local ordinates or regulations for disposal.

11. Disconnect Device

The mains plug is used to disconnect TV set from the mains and therefore it shall remain readily operable.

12.

Excessive sound pressure from earphones and headphones can cause hearing loss.

13.

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

“The LCD panel is a technologically advanced product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.”

“DO NOT LEAVE YOUR TV AT STAND-BY OR OPERATING WHEN YOU LEAVE YOUR HOUSE”

LICENSE NOTICE

Manufactured under license from Dolby Laboratori

es.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of

Dolby Laboratories.

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:165

English - 5 -

Page 7

Before Switching On Your TV

To Confirm Choices









Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

• After unpacking, allow the TV set to reach the ambien

t room temperature before you connect the set to

the mains.

Connections To The Aerial Input Socket

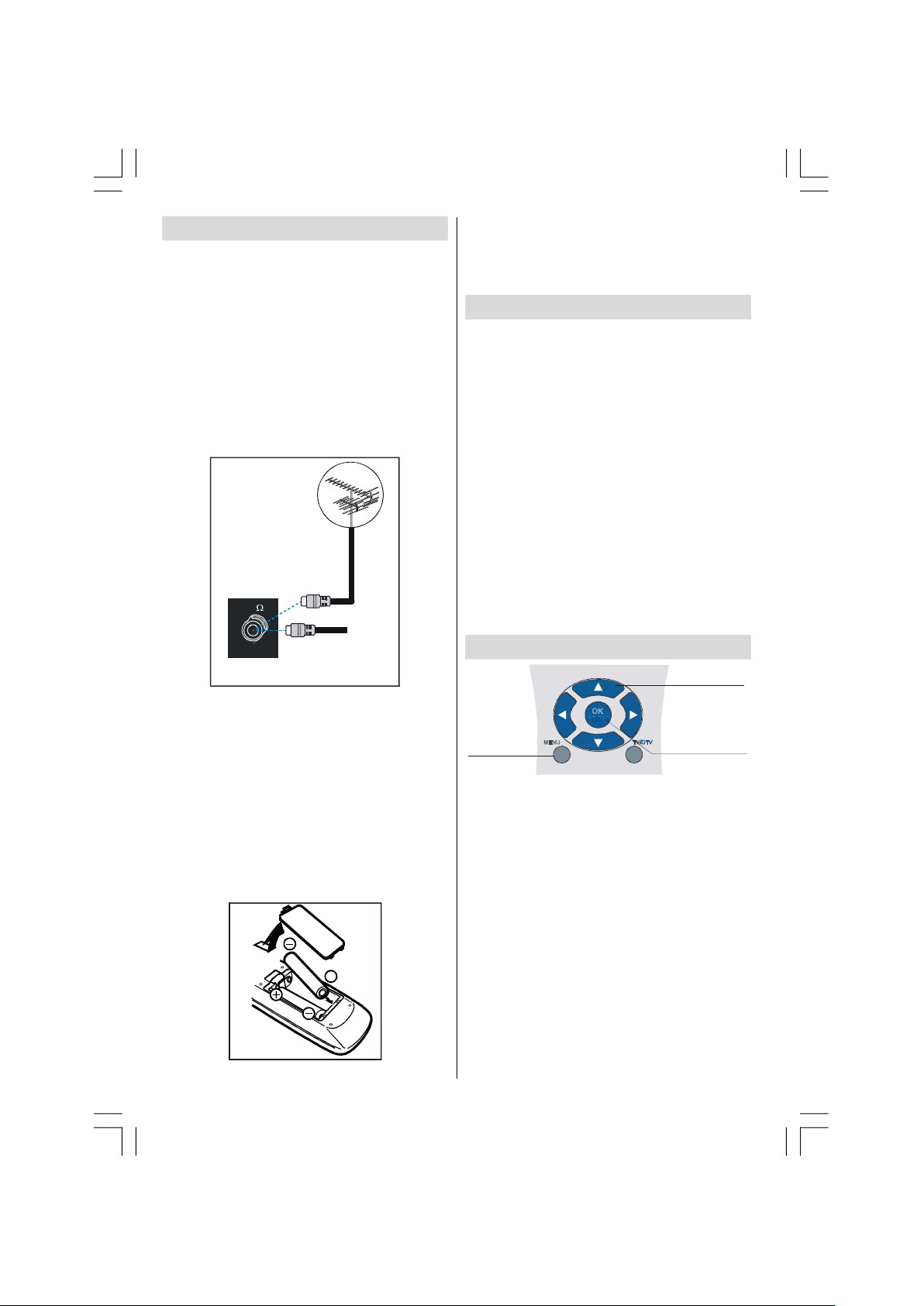

• Connect the aerial or cable TV plug to the Aerial input socket located at the rear of the TV and connect the cable plug coming out from the TV out socket located on the devices (VCR, DVB etc.) to this socket as well.

Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of battery.

Switching The TV ON/OFF

To switch the TV on:

Your TV will switch on in two steps: 1- Connect the power to 220-240V AC 50 Hz. Press

stand-by button.Then the TV switches itself to

stand-by mode (Optional). 2- To switch on the TV from stand-by mode either: Press a digit button on the remote control so that a

channel number is selected, or Press the -P/CH or P/ CH+ button on the TV or press the Ch+ or Ch- button on the remote control, so that last mode switched off is selected.

By either method the TV will switch on.

To switch the TV off:

Press stand-by button on the remote control or standby button on the TV so the TV will switch to standby mode. To power down the TV completely, unplug the power cord from the mains socket.

VHF/UHF

REAR OF THE TV

CABLE TV

Inserting Batteries In The Remote Control Handset

WARNING : Remote control is battery included. A plas-

tic protector is used to disconnect the batteries in order to prevent the battery life from reducing. Please remove the plastic protector before the first use.

• Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.

• Insert two AAA/R03 or equivalent type batteries. Pla

ce the batteries in the right directions and replace

the battery cover. (observing polarity)

English - 6 -

Navigating the Menu System

For Navigation

For Displaying Menu Options

1- Press “MENU” to display the menu. 2- Press “

“

” for more options.

3- Use “ 4- Press “

Press OK to set as default.

5- To exit the menu or return from sub-menu screen,

ess “MENU”.

These explanations are available for the navigation of

the whole Menu System. To select options that are explained in the following parts, refer to “Navigating The Menu System”.

MENU TV/DTV

” or “” button to select an icon. Press

” or “” button to highlight.

” or “” buttons to change the settings.

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:166

Page 8

Initial Settings

Searching UHF channels 30. Please wait. This will take a few minutes

Cancel

PLEASE CHECK ANTENNA CABLE



Cancel

DTV

When the TV is turned on for the first time, it is in the digital mode.

Because this is the first time the TV is used, there are no channels stored in the memory and the following message appears on the screen.

Please ensure aerial is plugged in. Do you want to start first time installation?

Yes

• To start installation process, select “Yes”, to cancel select “No”.

• To select an option “Yes or No”, highlight the item by usi

or buttons and press the “SELECT” but-

ton. T

he IDTV will automatically tune to the UHF transmision channels 21 to 68 looking for digital terrestrial TV broadcasts and displaying the names of channels found. This process will take about five minutes. To cancel searching, you can press the "M" button at any time du

ring the process.

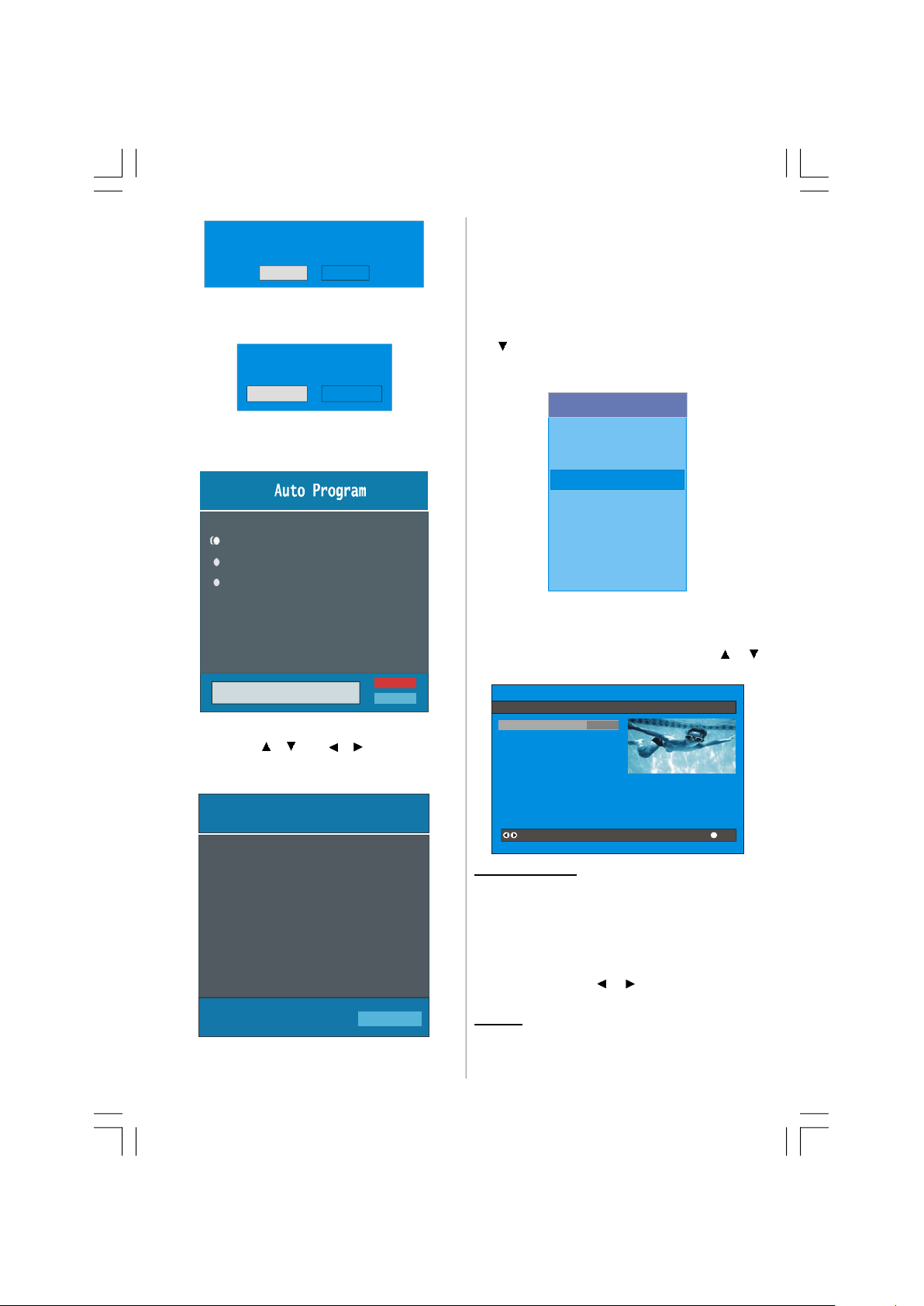

AUTOMATIC SEARCH

Channels:

BBC ONE BBC TWO BBC CHOICE

Country

Language

TXT Language

AUTO PROGRAMMING SYSTEM

By pressing “ ” or “ ” button, adjust the Country item and press “

Use “

” or “ ” button to set “Language”. Use “ ”

or “

” buttons to select “TXT Language” and set it

by using

” to highlight “Language” item.

” or “ ” buttons. Press “OK” button to

continue:

APS is running...

12 %

Cancel searching

After Automatic Search process is completed, the following message asking for analogue channel search appears on the screen. TV switches to the analogue TV mode.

Do you want to search for analogue channels?

Yes

To seach for analogue channels, select “Yes”. The menu below is displayed to search for analogue channels.

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:167

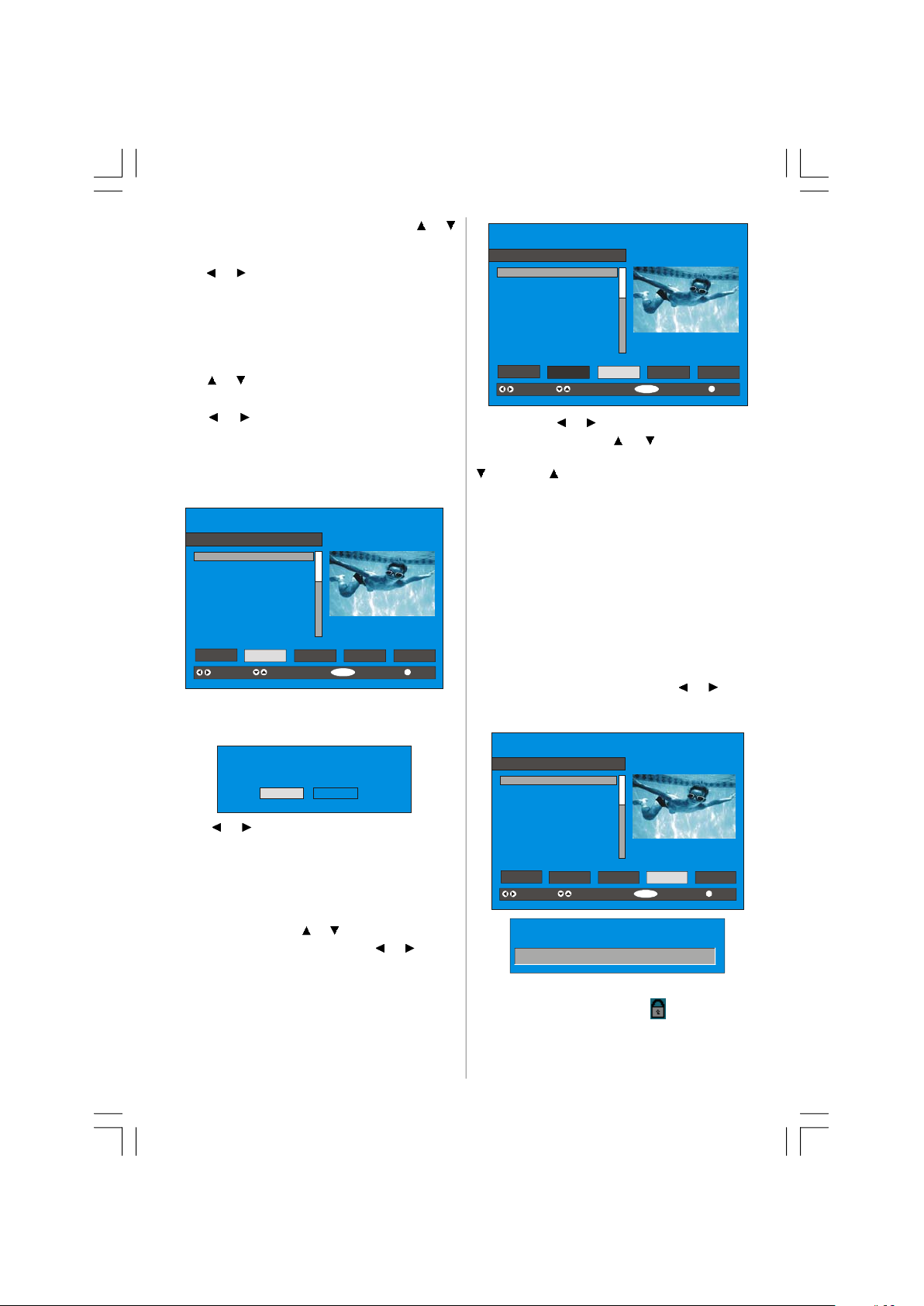

After APS is finalized, a programme list will appear on the screen. In the programme list you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and / or the programme names of programmes, you can change them in Insall Menu. For details see “Install Menu” section.

o display channel list in IDTV, switch to the IDTV via

pressing the “ button to enter main menu, Channel List will be high- li

ghted. Press the “SELECT” button to enter the menu.

English - 7 -

P 03 - C 04

63.75 MHz

” button. Then press the "M"

Page 9

Basic Operations

DTV

You can operate your TV using both the remote control and onset buttons.

Operation with the buttons on the TV

Volume Setting

• Press “ -” button to decrease volume or “ +” button to increase volume, so a volume level scale (slider) will be displayed at the middle of the bottom on the screen.

Programme Selection

• Press “P/CH +” button to select the next programme or “P/CH -” button to select the previous programme.

Entering Main Menu

• Press the “MENU” button to enter Main menu. In the Main menu select sub-menu using “P/CH -” or “P/CH

+” buttons and enter the sub-menu using “

+” buttons. To learn the usage of the menus,

“ refer to the Menu System sections.

AV Mode

Press the “TV/AV” button at the control panel on the the TV to switch your TV to AV modes.

Operation with Remote Control

The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.

Functions of the menu system are described in the following sections.

Volume Setting

Press “ V +“ button to increase volume. Press “V -” button to decrease volume. A volume level scale (slider) will be displayed in the middle at the bottom of the screen.

Programme Selection (Previous or next programme)

• Press “P-” button to select the previous programme.

• Press “P+” button to select the next programme.

Programme Selection (direct access):

Press digit buttons on the remote control to select programmes between 0 and 9. TV will switch to the selected programme. To select programmes between 10 - 999 (for IDTV) or 10-99 (for analogue), press the digit buttons consecutively which programme you want to select (eg. for programme 27, first press 2 and then 7). A delay of more than 3 seconds between pressing first and second digit will result in only the first digit being recognized.

-” or

Press directly the programme number to reselect single digit programmes.

Everyday Operation

Pressing the “ ing television programmes will switch the TV set between displaying the digital terrestrial television broadcasting and its normal analogue broadcasting.

Information Banner

Whenever you change channel, using the “P-” / “P+” button or the digit buttons, TV displays the channel pic

ture along with an information banner at the bottom of the screen. This will remain on the screen for approximately three seconds. The information banner can also be displayed at any time while watching TV by pressing the “INFO” button on the remote control.

Now: 50/50 Next: Ace Lighting

1. BBC ONE

The information banner gives a number of facts on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list number and an indication of the strength of the signal received on this tuning channel.

Hint N

ot all channels broadcast the programme data. If the name and times of the programmei are not available then “No Information Available” is displayed in the information banner.

If the selected channel is locked, you must enter the cor

rect four digit code to view the channel.

Electronic Programme Guide (EPG)

Some, but not all, channels send information about the current and next events. Please note that event information is updated automatically. If there is no event information data available in channels, only channel names with “No Information Available” banner is display

• Press “GUIDE” button to view the EPG menu.

•

In EPG Menu, you can easily see the extended help information by pressing “INFO” button and by pressing

this button again you can close this window.

Enter Lock Key

ed.

” button at any time while watch-

09:25 - 11:00 11:00 - 11:25

Signal Level:

13:15

English - 8 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:168

Page 10

51 BBCi

SELECT

ELECTRONIC PROGRAMME GUIDE(Now&Next) Saturday 21/8 13:48

Change

Change Time

Change

Change Time

ITV News 14:00-15.00

Rolling national and international news including breaking news as it happens, business updates, sports results and weather summaries.

Channels Current Programme Next Programme

30. CBBC Channel Chuckle Vision Tracy Beaker

40. BBC NEWS 24 BBC News BBC News

41. ITV News ITV News ITV News

50. Four Text No Information No Information

51. BBCi BBCi BBCi

Current

Navigate

Reminder

7 Day EPG More

• In the EPG Menu all channels are displayed. Current channel is highlighted. Use

channels. Also press

or buttons to change

or buttons to make page

up/down scroll for the channels.

• If you highlight an event, short event description or extended event description, start and finish times of event are displayed on the screen.

• When the current programme is highlighted, the box is switched to the highlighted channel by pressing the “SELECT” button.

•

If you press the “SELECT” button when a next event

highlighted, a reminder is set for the highlighted programme and a clock appears across the highlighted channel line.

Programme reminders can be set to indicate that a programme is about to start when you are watching another channel. If you set reminder to a programme, then you will be asked to confirm your wish to switch to that channel when the reminder time is reached.

• Press the “M” button to view the 7 day EPG.

•

Press

or button to navigate in Channels or

Programmes.

• Press

or button to navigate through the chan-

nel and programme list.

ELECTRONIC PROGRAMME GUIDE(7 Day) Saturday 21/8 13:49

Chuckle Vision 13:00-14:00

Triple bill. In the Ring/Romany Days/On the Radio: Paul and Barry grapple with the world of wrestling; hunt for a mysterious Emperor's underpants; and record their first pop song.

Channels Programmes on Saturday 21/8, 13:00 - 15:00

30. CBBC Channel 13:00 Chuckle Vision (Now)

40. BBC NEWS 24 14:00 Tracy Beaker

41. ITV News 14:55 Newsround

50. Four Text

800. BLUE/LEFT 1k...

801. CCIR17/1kHz...

Navigate

Day

• With “RED/GREEN” buttons you can change sched- ule time. By pressing “YELLOW/BLUE” you can ad- v

ance the schedule backward / forward of a day.

• If you press “INFO” button you can see the detailed he

lp information easily. And by pressing “INFO” but-

ton

again you can exit Help menu.

• The starting time for EPG is the current time.You can see

the event information for the next two hours. By

pressing

or button, you can go to the next/

previous hours while Programmes list is highlighted.

ELECTRONIC PROGRAMME GUIDE(7 Day) Saturday 21/8 13:51

Newsround 16:55-17:00

CBBC joins the Newsround team, keeping you up to date on the latest stories and events happening at home and abroad.

Channels Programmes on Saturday 21/8, 15:00 - 17:00

30. CBBC Channel 15:00 Even Stevens

40. BBC NEWS 24 15:50 Newsround Showbiz

41. ITV News 16:00 Basil Brush

50. Four Text 16:55 Newsround

51. BBCI

800. BLUE/LEFT 1k...

801. CCIR17/1kHz...

Navigate

Day

Displaying The Subtitles

With Digital terrestrial broadcasting (DVB-T), some programmes are broadcast with subtitles. Subtitles can be displayed when watching these programmes.

Press the “M” button to display the Main menu, high-

ght the Configuration line using

or button andpress the “SELECT” button to display the Config

uration menu.

Highlight the “Subtitle” item in Configuration menu and

use

or button to set Subtitle to off or a

language. If “Subtitle” is on via selecting one language option, pr

essing the

button causes the following warn-

ing message display on the screen.

Interactive services cannot be used while subtitles are on. Would you like to turn subtitles off now?

Yes No

Digital Teletext

With Digital terrestrial broadcasting (DVB-T), in addition to pictures and sound, you can also watch digital teletext.

Digital teletext is sometimes broadcast at the same time as normal broadcasting.

1. Press the

The digital teletext information appears.

2. Operate it with the coloured buttons,

/ buttons and OK button.

button.

/ /

English - 9 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:169

Page 11

The operation method may differ depending on the

DTV

Configuration

SELECT

CHANNEL LIST 1 BBC ONE

contents of the digital teletext. Follow the instructions displayed on digital teletext

screen.

• When “Press SELECT” button or similar message appears on the screen, press the “SELECT” button.

• When the

(Text) button is pressed, the TV re-

turns to television broadcasting.

• With Digital terrestrial broadcasting (DVB-T), in addition to digital teletext broadcasting at the same time as normal broadcasting, there are also channels with just digital teletext broadcasting.

• The aspect ratio when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture watched previously.

• When you press the

(Text) button again, the

digital teletext screen is displayed.

Over Air Download

To ensure that your IDTV always has the most up-todate information, please ensure that after use it is set to its standby mode. At 3AM each day, the IDTV automatically searches for any new information which may be broadcast and will download this to your IDTV automatically. This operation will normally take approximately 30 seconds.

If you want to do this, you need to set Automatic Download to “Enabled” in Receiver Upgrade settin

g. For details see page 14.

Widescreen

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats. Press the “WIDE” button repeatedly to select between Auto or 16:9.

When Auto is selected, the format being displayed is de

termined by the picture being broadcast.

Please Note: Menu size changes depending on the chosen image size.

IDTV Menu System

The IDTV menu can only be shown when watching Digital terrestrial broadcasting. Press the “

button to turn IDTV on while TV is in analogue mode. Pre

ss the "M" button. The menu below appears on

the

screen:

Main Menu

Channel List Installation

Timers Language TV Setup Common Interface

Channel List

Using the or button on the remote control in Main menu, make sure that the first item, Channel List, is highlighted and press the “SELECT” button to display

the Channel List.

The

following operations can be performed in this

menu:

1. Navigating the whole list of channels

Deleting channels

3. Renaming channels

4. Adding locks to channels

5. Setting favourites

Channel List is the place where the channels are ma

naged.

1. BBC ONE

2. BBC TWO

3. ITV 8

4. Channel 4

5. BBC THREE

6. Teletext

7. BBC FOUR

8. Sky Travel

9. UKHistory

10. RTL

Select

Delete Edit Name Lock Favourites

Function

Select Channel Watch More

”

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1610

Navigating the whole channel list

Press or button for selecting the previous or next channel. You can press

page up or page down.

English - 10 -

or button to move

Page 12

To watch a specific channel, highlight it using or

SELECT

CHANNEL LIST 1 BBC ONE

SELECT

button and then press “SELECT” button, while the “Select” item on Channel List menu is highlighted by

using

or button.

Then the name and number of the selected channel will be displayed in the top-left and top-right of the channel display at the top-right of the screen, respectively.

Deleting the channels in the channel list

Press or button to select the channel that will be deleted.

Press Channel List menu. As seen on Channel List menu, SELECT is written next to Delete item at the bottom of bu list.

Press the “SELECT’’ button to delete the highlighted channel in the channel list. Then the message below appears on the screen.

or button to select the ‘’Delete’’ item on

the screen to indicate that press the “SELECT”

tton to delete the highlighted channel in the channel

CHANNEL LIST 1 BBC ONE

1. BBC ONE

2. BBC TWO

3. ITV 8

4. Channel 4

5. BBC THREE

6. Teletext

7. BBC FOUR

8. Sky Travel

9. UKHistory

10. RTL

Select

Delete Edit Name Lock Favourites

Function

Select Channel Delete More

1. BBC ONE

2. BBC TWO

3. ITV 8

4. Channel 4

5. BBC THREE

6. Teletext

7. BBC FOUR

8. Sky Travel

9. UKHistory

10. RTL

Select

Delete Edit Name Lock Favourites

Function

Select Channel Edit Name More

Now pressing or button moves to the previous/ next character. Pressing

or button toggles the

current character, i.e., ‘b’ character becomes ‘a’ by

and ‘c’ by . Pressing the numeric buttons ‘0...9’

replaces the highlighted character with the character

s printed above the button one by one as the but-

ton is pressed. Press the "M" button to cancel the editing or “SE-

CT” button to save the new name.

Adding locks to channels

Channel Locking provides a password-protected access to channels selected by parents. In order to lock a channel you should know the Parental Lock password (default value is set to 0000 in the factory and can only be changed from the Configuration Menu).

Sel

ect the channel to be locked by highlighting it and

select the “Lock” option by pressing When the “SELECT” button is pressed, a password bo

x is displayed.

or button.

The selected service will be permanently deleted. Are you sure?

Yes No

Press or button to highlight the desired option. If “SELECT’’ button is pressed while “Yes” is highlig

hted, the highlighted channel is deleted. Selecting

“No” cancels the delete operation.

Renaming channels

To rename a specific channel, the channel must be highlighted via pressing light the Edit Name item by pressing

Press the “SELECT” to activate rename feature.

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1611

or button and then high-

or button.

Enter the password using the digit buttons on the remote control. The Lock icon

played next to the selected channel. Repeat the same operation to cancel the Lock.

English - 11 -

CHANNEL LIST 1 BBC ONE

1. BBC ONE

2. BBC TWO

3. ITV 8

4. Channel 4

5. BBC THREE

6. Teletext

7. BBC FOUR

8. Sky Travel

9. UKHistory

10. RTL

Select

Delete Edit Name Lock Favourites

Function

Select Channel Lock/Unlock More

Enter Lock Key

will now be dis-

Page 13

Setting Favourites

SELECT

Press the SELECT button on your remote cont rol to tune to the

Configuration

First Time Installation

Your previous digital channel list will be destroyed.

You can set various channels as favourites so that only the favourite channels are navigated. To set a favourite you should highlight the “Favourites” item at

bottom of the Channel List menu.

Use the

or button to highlight the “Favourites” item at the base of the screen and then, in turn, highlig

ht each channel you want to add to the favourites

list, using the

and buttons (or / buttons),

and press the “SELECT” button.

A channel selected as a favourite appears in the

main channel list with a favourites icon (

) against

the channel name.

CHANNEL LIST 1 BBC ONE

1. BBC ONE

2. BBC TWO

3. ITV 8

4. Channel 4

5. BBC THREE

6. Teletext

7. BBC FOUR

8. Sky Travel

9. UKHistory

10. RTL

Select

Delete Edit Name Lock Favourites

Function

Select Channel Add/Remove... More

On Screen Help Pressing INFO Button

For all menus press the “INFO” button to display the help information about the menu functions. For Chan-

nel

List menu the following message is displayed on

the

screen.

highlighted channel. Press MENU to exit this screen.

Installation

The Installation menu mainly intends to help you for building a Channel Table in the most efficient way.

Main Menu

Channel List

This menu includes the following items:

1. Add New Channels

2. First Time Installation.

ADD NEW CHANNELS:

This tuning menu consists of two parts:

Automatic Search Manual Search

Installation Add New Channels First Time Installation

Automatic Search Manual Search

Automatic Search:

Automatic search is started by pressing the “OK” button in the auto-search pop up menu. All the services

are searched and a channel table is created

automatically. All channels found are stored in a sorted form with

respect to their channel numbers. Some services may not appear with the correct channel number. At the time of printing, not all broadcasters are sending their channel number information.

Manual Search:

In manual search, the number of the multiplex is enter

ed manually and only that multiplex is searched for the channels. For every valid channel number, signal level, signal quality and network name are shown at the bottom of the screen.

In both manual and auto search any existing channel in the database is not re-stored to avoid redundant duplicates of that channel.

FIRST TIME INSTALLATION

The user can use this item to load default settings, which had been loaded to the receiver at the factory.

To reinstall factory settings into, highlight “First Time

Ins

tallation” menu and press the “OK” button, then

ou will be asked to confirm for deleting all channels

and settings.

Installation Add New Channels

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1612

Installation

Timers Language TV Setup Common Interface

By selecting YES and pressing the “OK” button, the existing channel table will be deleted.

After factory settings is loaded, “First Time Instal-

lat

ion” menu will be displayed.

English - 12 -

Are you sure you want to delete all digita l channels and settings for first time installation?

Yes

Page 14

Please ensure aerial is plugged in. Do you

UKOkCancel

PLEASE CHECK ANTENNA CABLE

Cancel

Configuration

CONFIGURATION

Parental Settings

Change Default Audio Language

want to start first time installation?

Yes

Press the “OK” button to start installation. After search is completed for digital channels, a message asking search for analogue channels appears on the screen.

Do you want to search for analogue channels?

Yes

Press the “OK” button to search for analogue channels.The following menu appears on the screen for analogue channel search.

Country

Language

TXT Language

AUTO PROGRAMMING SYSTEM

see the programme numbers and names assigned to the programmes.

If you do not accept the locations and / or the programme names, you can change them in the Program menu.

Configuration

Press the "M" button to display the Main Menu and

button twice to highlight Configuration, then

the press the “SELECT” button to display the Configura- tio

n menu. Press the "M" button to leave the menu.

Main Menu

Channel List Installation

Timers Language TV Setup Common Interface

The various configuration functions are displayed in a list, along with a quarter-screen image of the currently selected channel. You can select a function by high-

lighting the corresponding menu line using the button.

First of all choose Language,Country and TXT Language by using

/ and / buttons. This will affect the sort process in APS. To start APS press “OK” button:

APS is running...

P 03 - C 04

After APS is finalized, the programme table will appear on the screen. In the programme table you will

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1613

63.75 MHz

Audio Language

Digital terrestrial television channels can broadcast simultaneous soundtracks in more than one language. This function selects which language soundtrack you will hear when switching to a channel broadcasting with the multiple soundtracks.

Highlight the Audio Language line in the Configuratio

n menu and use the

the language options.

Subtitle

Digital terrestrial television channels can broadcast subtitles displayed on-screen for the hard-of-hearing. This function selects the desired subtitle language

English - 13 -

Audio Language Subtitle Favourite Mode EPG Preference Receiver Upgrade

English Off Off Now&Next V.1.5

or button to cycle through

Page 15

and enables the automatic display of subtitles when-

CONFIGURATION

Parental Settings

ever subtitle information is broadcast. Highlight the Subtitle line in the Configuration menu

and use the

or button to cycle through “Off”

and language options.

Favourite mode

This function enables or disables the favourite channel list mode. See Channel List menu Favourites on page 13.

Use

or button to turn on/off favourite mode. If the “Favourite Mode” is on, in normal operating mode

pressing “P+” and “P-” buttons will only navi-

te through the channels that were previously de-

fined as favourites in Channel List.

EPG Preference

Digital terrestrial television channels can broadcast simultaneous Next&Now and 7-Day electronic programme.

Highlight the EPG Preference line in the Configuration menu and use the

or button to select Next&Now

or 7-Day.

Rec

eiver Upgrade

The IDTV can be upgraded via the configuration menu, entered from the main menu.

In the Configuration menu, highlight the “Receiver

Upg

rade” item by pressing

or button and press

the “SELECT” button to start upgrade process. There are two possibilities for Receiver software to

be upgraded: automatic and manual.

Search For New Version (Manual upgrade) Manual upgrade starts if the “Search for New Versio

n” item is highlighted by using

or button and

activated via pressing the “SELECT” button. After “Search for New Version” is activated, the

IDT

V tunes to each frequency that have been stored

in its database and looks for the new software.

Software Upgrad e

Searching for upgrade. Please wait, or press MENU to cancel.

Search Progress:

Parental Settings

Some channels broadcast material which you do not want younger members of the family to watch. Any channel can be ‘locked’ so that it cannot be selected for viewing without first a four-digit PIN code being entered. In this way any channel not suitable for younger viewers can be protected.

This function enables or disables the menu protection system and allows the PIN code to be changed.

Use

or button to go to Parental Settings option. Press the “SELECT” button to enter Parental Settings Menu. A box asking for the lock key is displayed.

Enter Lock Key

There is only one key which is set to “0000” initially. Enter lock key. If wrong Lock key is entered, the following message is displayed on the screen and it is returned back.

Audio Language Subtitle Favourite Mode EPG Preference Receiver Upgrade

Automatic Download Search for New Version

Exit

English Off Off Now&Next V.1.5

Enabled

Automatic Download (Automatic upgrade) Automatic Download can be enabled or disabled

pressing

or button. If it is enabled, then there are two ways for automatic upgrade. The first one is checking the existence of a new software every time the IDTV goes to standby. The second one is waking up at 03:00 a.m. every night, provided that the IDTV is left in standby mode. Both automatic upgrade methods result in standby mode either upgraded or not.

If the automatic upgrade is set to “Disabled” then this function will not work.

English - 14 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1614

Wrong Lock Key

If it is correct, the Parental Settings Menu including following items is displayed:

Menu Lock Installation Set Lock Key

There you can set/reset locking for the Main Menu, or the Installation Menu to restrict access. If the menu lock is disabled, there will be free access to the menu system. Also in this menu you can change the lock key and set/change parental lock mode.

Disabled: All menus are unlocked. Main Menu: Main menu is accessible only with the

cor

rect lock key. So the user cannot add, delete, re-

name, move channels, cannot set timers. Installation: Installation menu is locked, so the user

can

not add channels.

Changes will be updated after exiting Configuration Menu.

Page 16

Timers

Configuration

SELECT

Name:

Configuration

You can set a timer to switch the TV to any channel without your intervention. This is useful when making video recordings of programmes.

Display the Main Menu by pressing the "M" button. Hig

hlight the Timers line by pressing and press the “SELECT” button to display the Timer menu.

Main Menu

Channel List Installation

Timers Language TV Setup Common Interface

Up to five separate timer events can be set and each is displayed in the Timer screen, showing the event number, the channel to be selected, the start time, end time, date and the mode - whether that event is active (and will be acted on) or not.

or button

• The channel name is set using the

or button to

display the channel which broadcasts the programme.

• The start time, end time and date are each set with the digit buttons on the remote control in 24-hour format.

• The frequency mode determines how often the receiver operates this event and is set with the

button to be either Once, Daily, or Weekly.

If an invalid number for the start or end times or the date is entered, “Entered time is not valid” message appears on the menu.

If timer action occurs while the TV is watched, the TV switches to the selected channel. When timer expires, the TV switches to the channel which it is switched from.

Selected digital channel will be output via Scart-2. You should connect your VCR to Scart-2 for recording digital broadcast.

Language

Some programmes are broadcast in two or more languages simultaneously. The language heard can be selected from the Language Menu.

• Press the "M" button to display the Main Menu and use or button to highlight the Language line and press

the“SELECT” button.

Main Menu

TIMER MENU

No Channel Name Start End Date Mode

1. ITV 1 20:00 21:00 12/05/2005 Active

2. BBC ONE 00:00 00:00 01/01/2005 Inactive

3. BBC ONE 00:00 00:00 01/01/2005 Inactive

4. BBC ONE 00:00 00:00 01/01/2005 Inactive

5. BBC ONE 00:00 00:00 01/01/2005 Inactive

6. BBC ONE 00:00 00:00 01/01/2005 Inactive

Toggle Mode

Edit Timer More

Exit

• To set an event, highlight its mode button using the or button and press the “SELECT” button to

display the timer entry window.

3. ITV 1

Start: End: Date: Mode:

00:00 00:00 03/06/2005 Once

• Here the five settings of channel name, start time, end time, date and frequency mode can be set. You

can move freely between each setting using the or buttons.

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1615

Channel List Installation

Timers Language TV Setup Common Interface

• Use the or button to highlight the soundtrack language required and press the “SELECT” button. Normal viewing, with the required language soundtrack, can be resumed by pressing the "M" button.

Languages

English

English - 15 -

Page 17

TV Setup

Configuration


Contrast

Brightness



To be able to go through TV functions, you can use this item.

The digital TV Setup menu screen is accessed from the main menu. Press the "M" button to display the

main

menu and use Setup”, press the “SELECT” button to display TV Set

up menu screen.

or button to highlight “TV

Main Menu

Channel List Installation

Timers Language TV Setup Common Interface

Detailed information about Sound, Picture and Feature menus are in AnalogueTV Menu System section on page 19.

Common Interface

• Press the "M" button to display the Main Menu and use the

Interface” line and press the “SELECT” button.

or button to highlight the “Common

1. Switch off the TV and unplug from the mains. 2

. Insert the CAM, then Viewing Card to the slot that is located in the terminal cover at the left-hand side of the TV (from front view).

• The CAM should be correctly inserted, it is impossib

le to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

3. Connect the TV to the mains supply, switch o

n and then wait for few moments until the

card is activated.

• Some CAMs may require the following set up. Please set

the CAM by entering the IDTV menu, Common Interface then pressing the “SELECT” button. (CAM set up menu is not displayed when it is not required.)

• To see the viewing contract information: Enter IDTV; press the "M" button, then highlight Com-

mon

Interface and press the “SELECT” button.

•

When no module is inserted, “No Common Inter-

ce module detected” message appears on the

creen.

• Refer to the module instruction manual for details of

the settings.

Analogue TV Menu System

Picture Menu

Main Menu

Channel List Installation

Timers Language TV Setup Common Interface

It is required to subscribe to a pay channel company to view the pay channels of the Digital Terrestrial broadcasting.

Obtain the Conditional Access Module (CAM) and the Viewing card by subscribing to a pay channel company, then insert those to the Television using the following procedure.

English - 16 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1616

Mode

Sharpness

Colour

In picture menu if YPbPr or HDMI modes are selected, resolution information is displayed at the bottom of the menu osd.

Mode

By pressing  /  button, select Mode. Press  / button to choose from one of these options: Cinema,

Dynamic and Natural.

Contrast/Brightness/Sharpness/Colour/Hue

By pressing  /  button, select the desired Option.

Page 18

Press  /  button to set the level.









/ 





Sound Mode











Hint: Hue is displayed in picture menu when the TV re

ceives an NTSC signal.

Colour Temp

• By pressing  /  button select Colour Temp.

• Press

/  to choose from one of these options:

Cool, Normal and Warm.

Noise Reduction

By pressing  /  button select Noise Reduction. Press

/  to choose from one of these options:

Low, Medium, High or Off.

Film Mode

Films are recorded at a different number offrames per second to normal television programmes.

By pressing Press

this feature on when you are watchingfilms to see the fast motion scenes clearly.

/  button, select Film Mode.

/  button to set this feature On or Off. Turn

3D Comb

3D Comb is used to improve colour transitions and colour quality of pictures.

By pressing

button to set this feature On or Off.

Note: 3D Comb feature is not functional in NATURAL picture

/  button, select 3D Comb. Press

mode.

Picture Zoom

By pressing  /  button select Picture Zoom. Use

/  buttons, to change picture zoom to Auto,

16:9, 4:3, Panaromic, 14:9 Zoom, Cinema, Subtitle or Zoom.

Reset

By pressing  /  button, select Reset. Press  or “OK” button to reset the picture modes to factory de

fault settings.

Store

• By pressing  /  button select Store.

• Press

or “OK” button to store the adjustments.

“Stored” will be displayed on the screen.

Sound Menu

SOUND

Volume

Equalizer

Balance

Headphone

Volume

By pressing  /  select Volume . Press  / button to change the level of the Volume.

Equalizer

By pressing  /  select Equalizer.Press  / button to change the Equalizer setting. In equalizer menu, the mode can be changed to Pop, Rock, Jazz,

Fla

t, Classic or User. Select the desired frequency

/  button and increase or decrease the fre-

quency gain by pressing

Note: Equalizer menu settings can be altered only whe

n the Equalizer Mode is in User.

Balance

By pressing  /  select Balance.Press  /  button to change the level of the balance.Balance level can be adjusted between -32 and 32.

Headphone

By pressing  /  button, select Headphone. Press

button to enter hedphone menu.

volume

By pressing  /  button, select Volume. Press button to increase hp volume level. Press  button to

decrease hp volume level. Headphone volume level can be adjusted between 0 and 63.

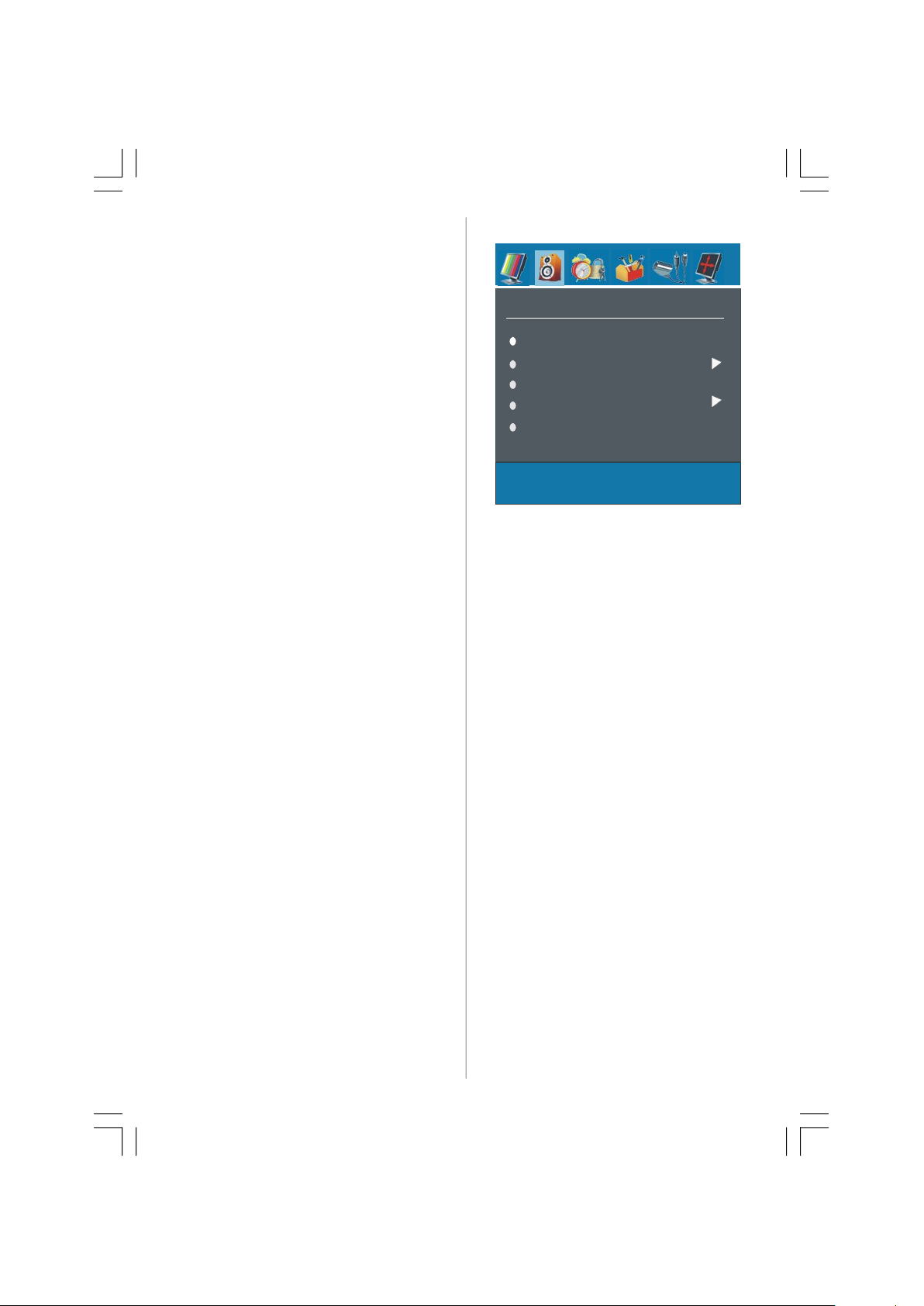

sound mode

By pressing  /  button, select Sound Mode. Press

/  button to change sound mode.

Sound mode is used to identify sound mode of the headphone and can be set to mono, stereo, dual I or dual II according to the transmission.

/  button.

English - 17 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1617

Page 19

balance













FEATURE







/ 



By pressing  /  button, select Balance. Press button to increase balance to the right. Press

button to decrease balance to the left. Balance level can be adjusted between -32 and +31.

Press the “M” button to return to the previous menu.

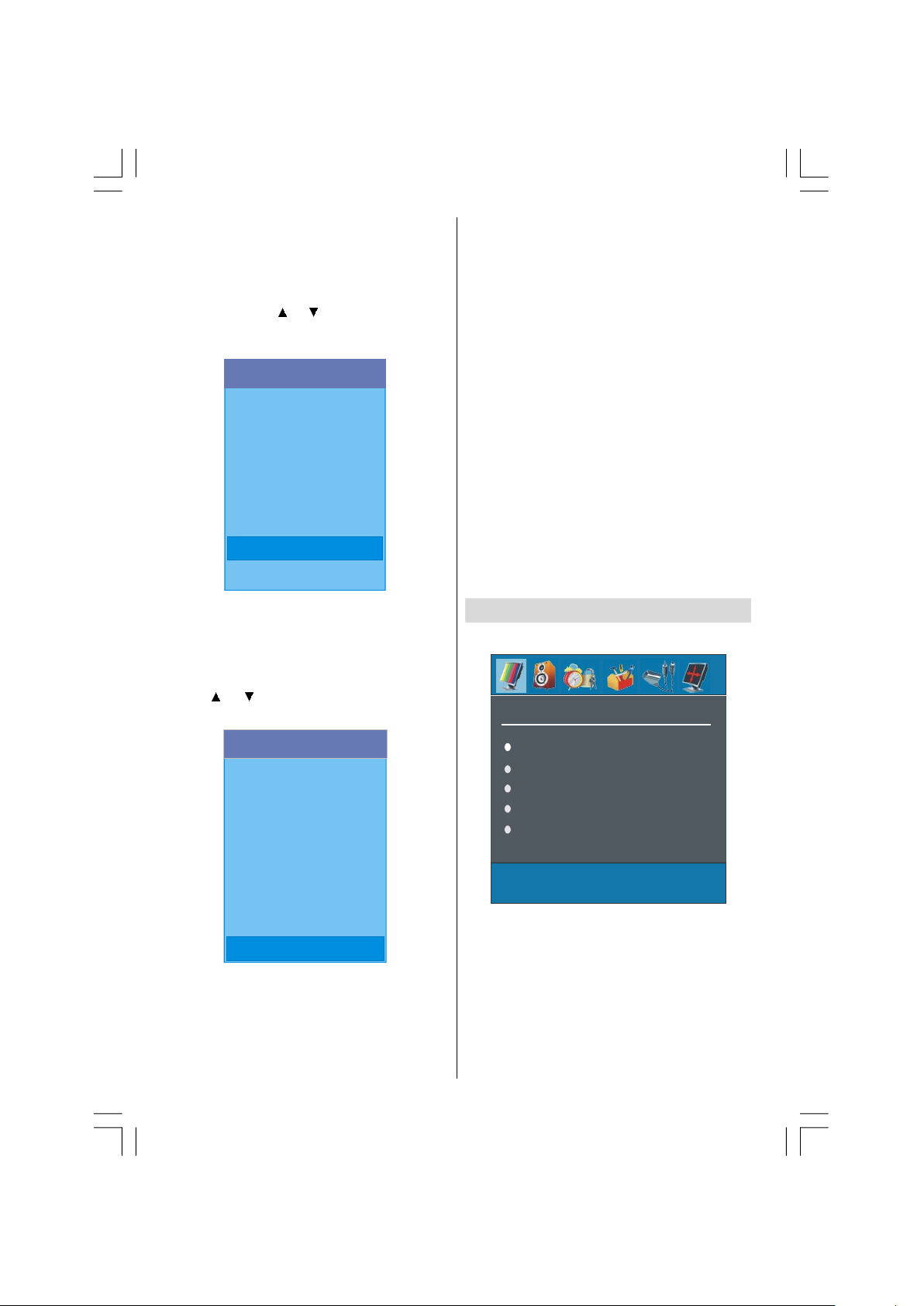

Sound Mode

By pressing  /  select Sound Mode. Press  / button, you can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.

AVL

By pressing  /  select AVLVL.Press  /  button to set the AVL as on or off.

Effect

By pressing  /  select Effect.Press  /  button to set Effect as on or off.

Dynamic Bass

Dynamic Bass is used to increase bass effect of the TV set.

By pressing pressing

or Off. It is not recommended to select High if listening at high volume levels.

/  button, select Dynamic Bass. By

/  button set Dynamic bass to Low, High

virtual dolby

By using  /  button select Virtual Dolby. You can set Virtual Dolby as ON or OFF by pressing

button. Note that when ON is set; Equalizer, AVL and Effect

will be invisible in the Sound Menu.

Store

• By pressing  /  button select Store.

• Press

or “OK” button to store the adjustments.

“Stored” will be displayed on the screen.

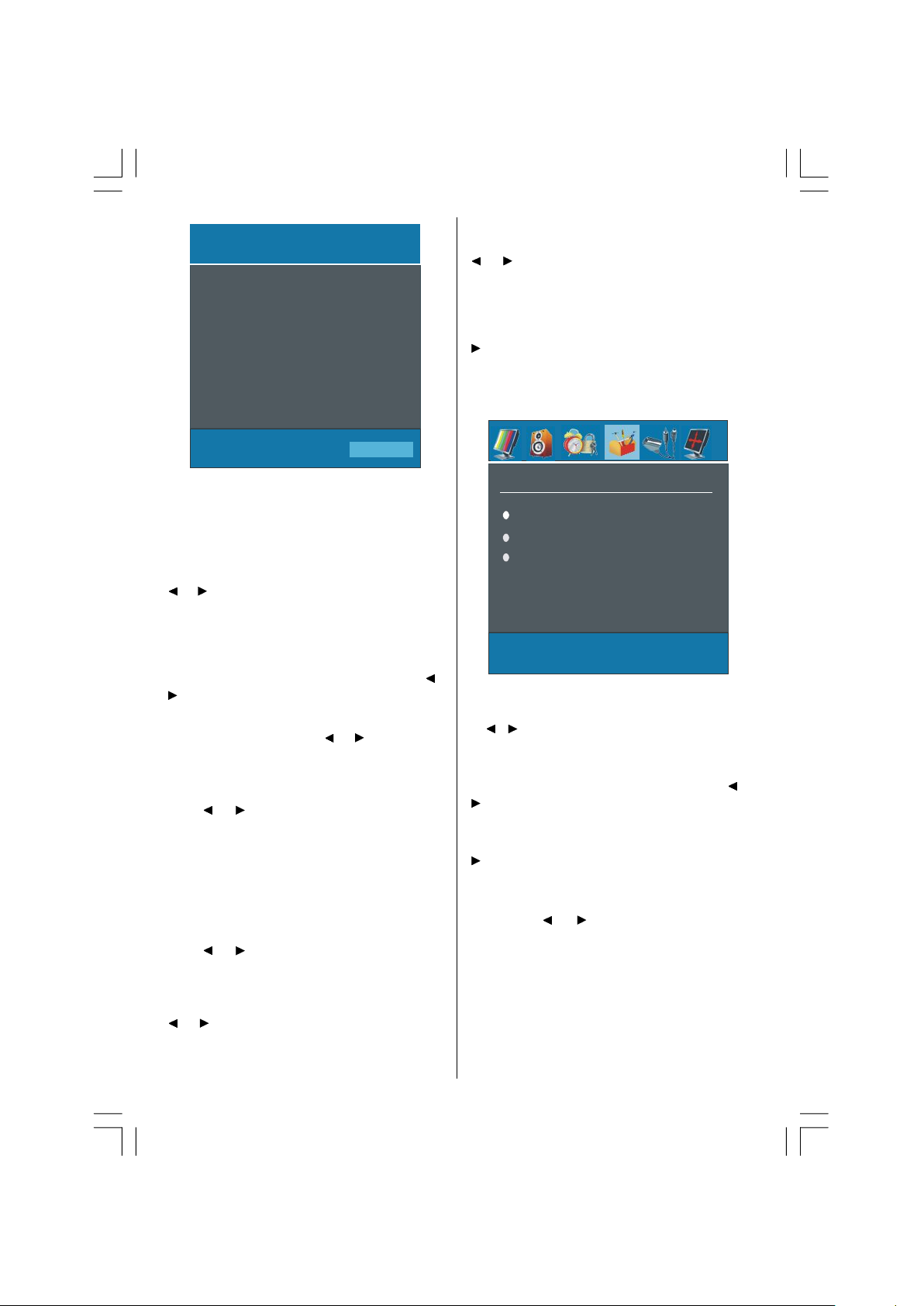

Features Menu

Sleep Timer

Child Lock

Language

Ext-2 Out

Blue Background

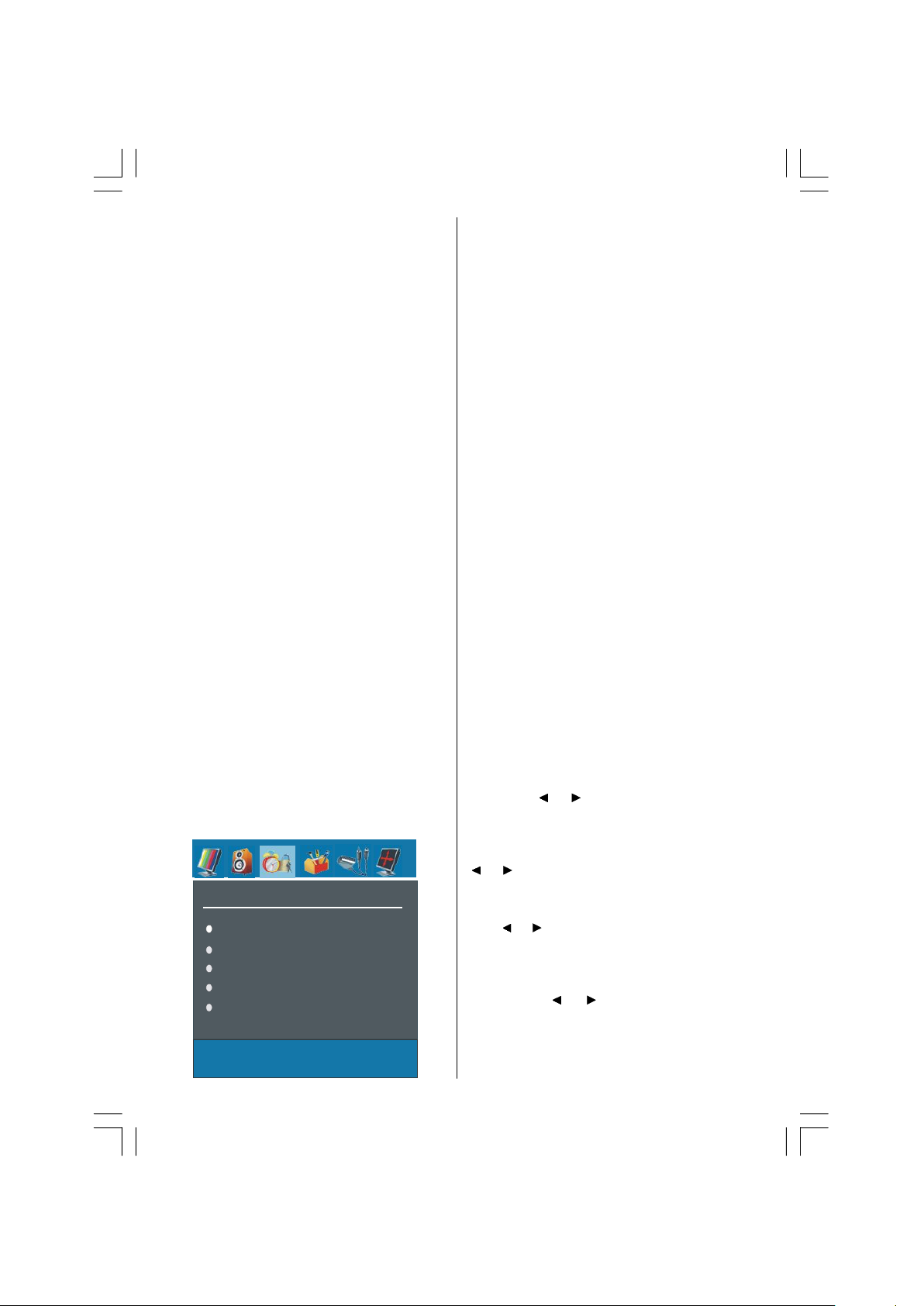

Sleep Timer

By pressing

button to set the Sleep Timer..

The timer can be programmed between Off and 120 minutes in steps of 10 minutes.

/  select “Sleep Timer”.Press  /

Child Lock

By pressing  /  select Child Lock.

/  button to set the Child Lock on or off.When

Press on is selected, the TV can only be controlled by the remote control handset. In this case the control panel buttons will not work. Hence, if one of these buttons is pressed, “Child Lock On” will be displayed on the screen when the Menu screen is not visible.

Language

By pressing  /  button, select Language.Use

button to select the language.

EXT2 Out

By pressing  /  select EXT2 Output.Use  / button, to set Ext-2 Out to TV/DTV, EXT1, FAV or Audio YPbPr.

Note:

•

When TV Source is set to HDMI, HDMI Audio setting will be available among EXT-2 Out options.

• If currently watched source is analogue TV, a con-

nected device displays analogue TV source as well. If this source is set to digital mode, connected device displays digital source. In order to avail this function, EXT-2 Output should be set to TV/DTV.

Blue Background

You can set the TV to automatically change to a blue screen if the signal is weak or absent, or when there is no input from an external device.

The Blue Background feature can be turned on or off by pressing “

” / “ ” button.

Menu Background

By pressing “” / “” button, select Menu Background. Transparency level is adjusted by pressing

“

” / “ ” button.

Menu Timeout

By pressing “” / “” button, select Menu Timeout. Press

sec, 30 sec or 60 sec.

” / “ ” button to change menu timeout to 15

Teletext Language

By pressing “” / “” button, select Teletext Language. Press “

Language to West, East, Turk/Gre,Cyrillic, or Arabic.

” / “ ” button to change Teletext

English - 18 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1618

Page 20

Default Zoom



INSTALL

P02 C 04

P03 C 05

P04 BBC 1

P06 BBC 2

APS



All Prestored Programs

UKOkCancel

Auto Program

Default zoom is a feature that provides the zoom mode of the TV set to be switched to the selected default zoom mode (Panoramic, 4:3, 14:9 zoom,16:9) in case no WSS or 4:3 signal by end-user.

By pressing “

” / “” button, select Default Zoom.

You can set Default Zoom to Panoramic, 4:3, 14:9 Zoom or 16:9 by pressing “

” / “ ” button.

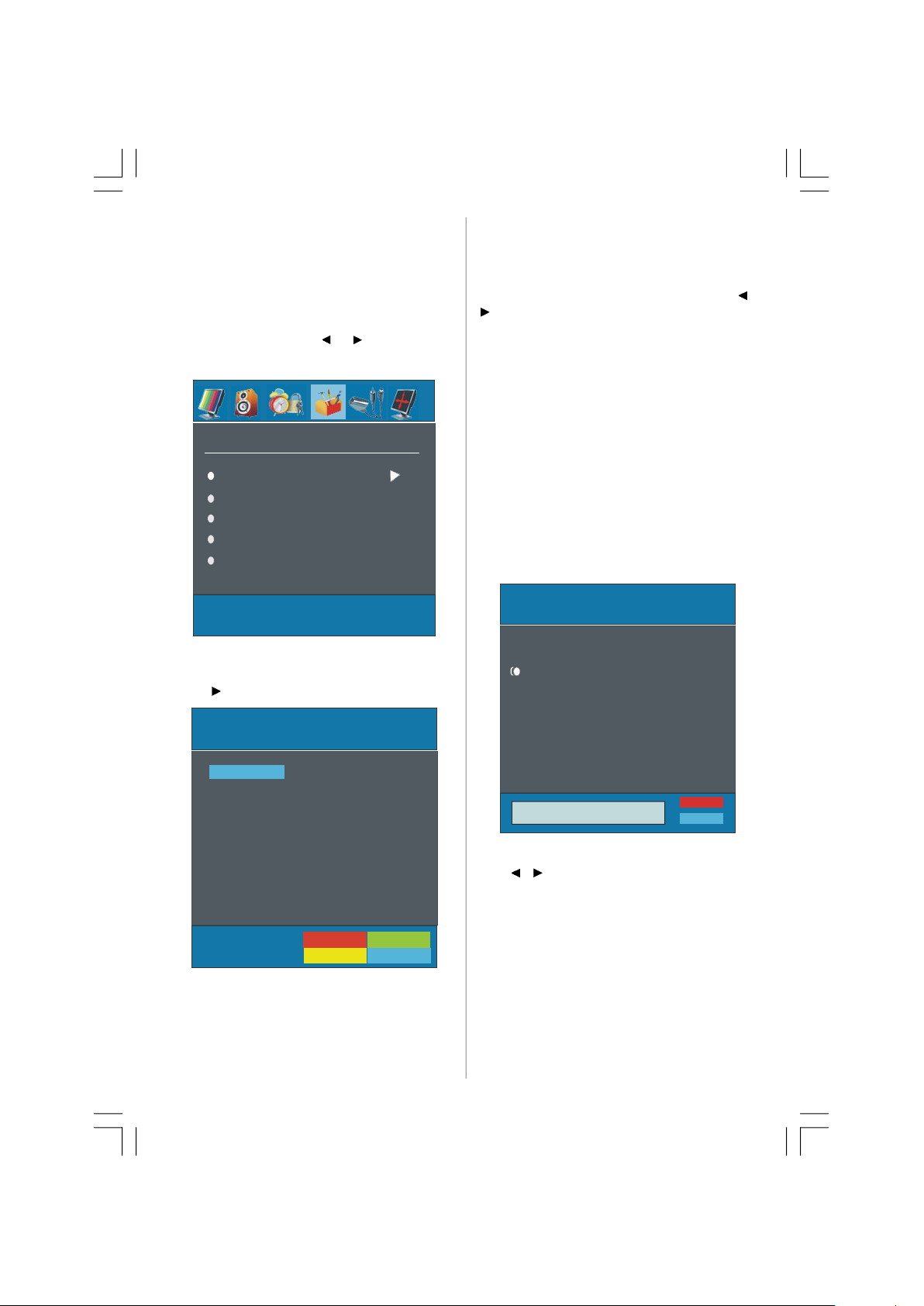

Install Menu

Program Table

Program

Band

Channel

Colour System

Programme Table

By pressing  /  button, select Programme Table. Press “

” to display Programme Table.

Program Table

Name:

To change the name of a chosen programme, select the programme and press the RED button.

The first letter of the selected name will be highlighted. Press “

/  button to change that letter and “ ” /

” button to select the other letters. By pressing

the RED button, you can store the name.

Insert:

Select the programme which you want to insert by navigation buttons. Press the GREEN button. By navigation buttons move the selected programme to the decided programme space and press the GREEN button again.

Delete:

To delete a programme, press the YELLOW button. Pressing the YELLOW button again erases the selected programme from the programme list, and the programmes below shift one up.

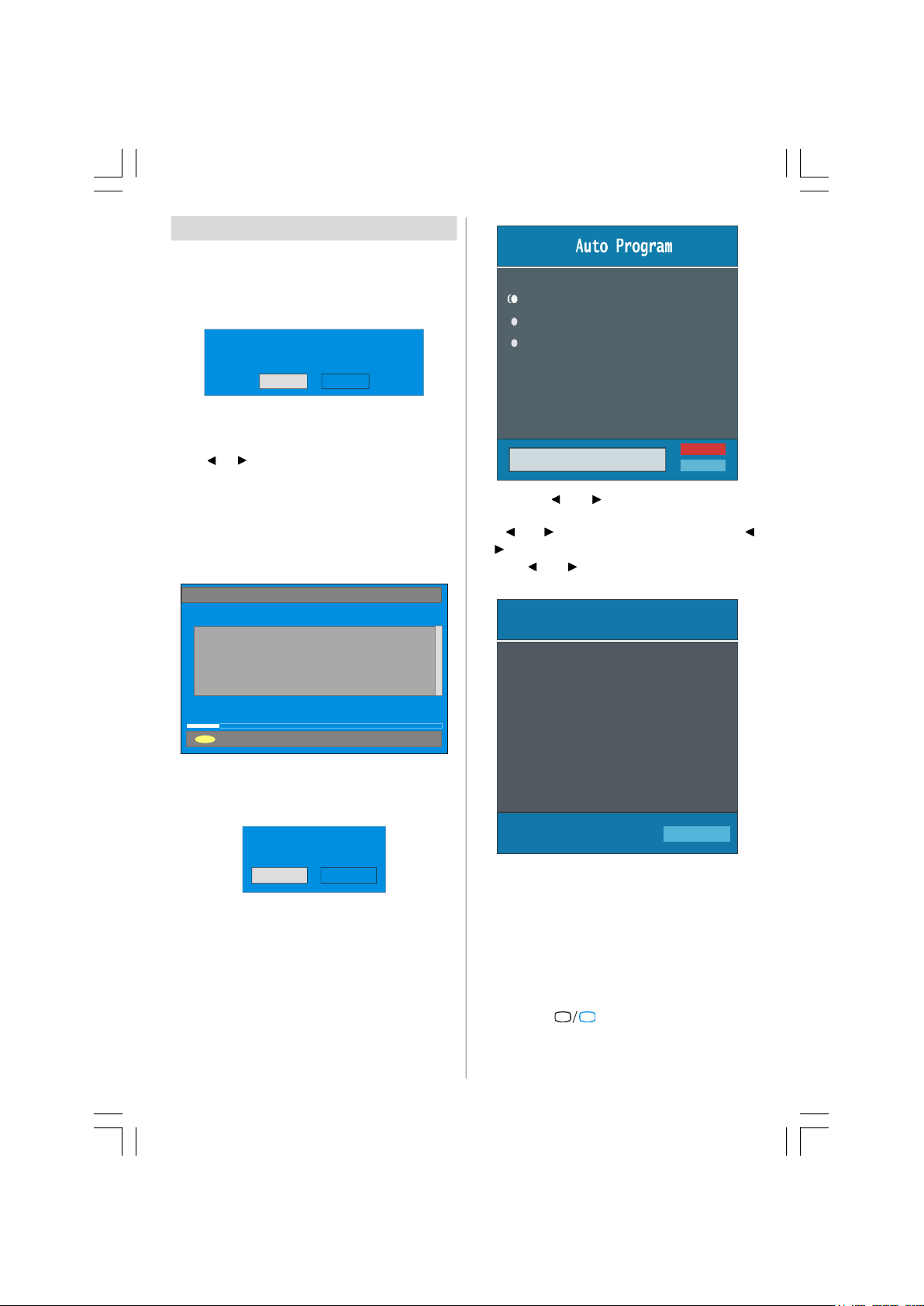

APS (Auto Programming System)

When you press the BLUE button for APS, Auto Programming System Menu will appear on the Screen.

Country

WARNING!

will be deleted

P01 BBC 1

P05 CH 4

P07 C 04 P08 C 07 P09 C 12 P10 C 15

P11 S 18 P12 S 29 P13 S 31 P14 S 33 P15 S 34 P16 S 35 P17 S 36 P18 S 37 P19 S 40 P20 C 21

Name

Delete

Insert

By moving the cursor in four directions you can reach 20 programmes in the same page. You can scroll the pages up or down by pressing the navigation buttons to see all the programmes in TV mode (except the AV mode). By cursor action, programme selection is done automatically.

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1619

A.P.S. (Auto Programming System) Country

Press / button to select your country. If you want to exit from A.P.S. function, press the “BLUE” button.

hen you press OK or RED button for starting APS,

all stored programs will be erased and the following screen will be displayed:

English - 19 -

Page 21

Cancel

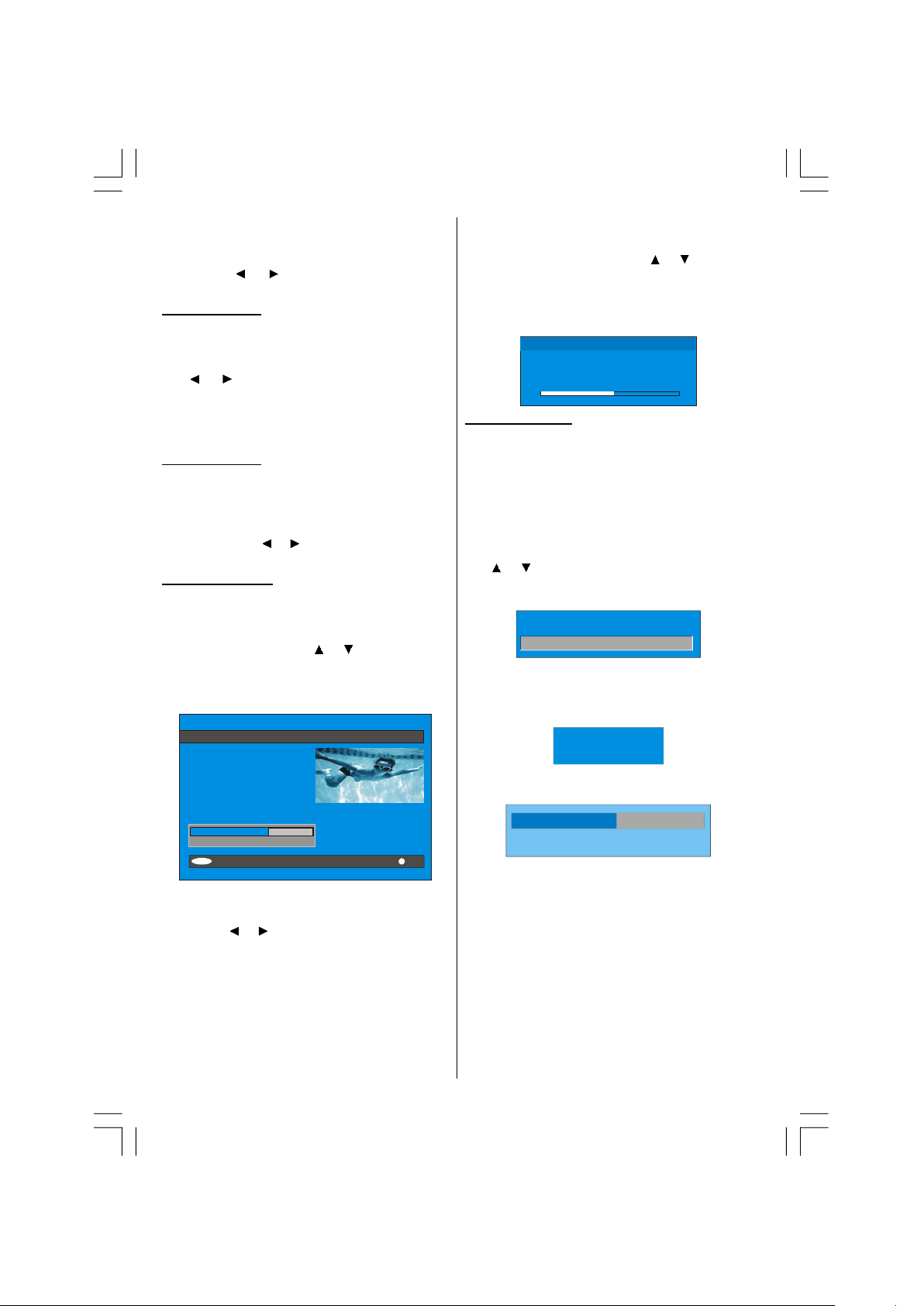

APS is running...

INSTALL

P 03 - C 04

Whenever you press the “BLUE” button, A.P.S. function stops and Program Table appears on the screen.

If you wait until the end of A.P.S., Programme Table is displayed with the programmes found and located.

Programme

By pressing  /  button, select Programme. Press “

” / “ button to select the programme number. Youou can also enter a number via digit buttons on the remote control. There are 100 programme storage locations between 0 and 99.

Band

Band can be selected either “C” or “S” by press“ ” / “

button.

Channel

Channel can be changed by “ ” / “ ” button or Digit Buttons.

Colour System

By pressing  /  button, select Colour System. Press “

to PAL, SECAM, PAL60 or AUTO. If Sound System is set to I, SECAM is not available for

the Colour System. Note: In EXT mode, you can choose NTSC 3.58 and

NTSC 4.43 as well.

” / “ ” button to change the colour system

Sound System

By pressing  /  button, select Sound System. Press “

to BG, I, L, L’, DK.

” / “ ” button to change the sound system

Fine Tune

By pressing  /  button, select Fine Tune. Press “

” / “ ” button to adjust the tuning.

63.75 MHz

By pressing  /  button, select Search. Press “

” / “ ” button to start program searching.You can also enter the desired frequency via digit buttons when search item is highlighted.

Store

By pressing  /  button, select Store. Press “

”or “OK” button to store the adjustments. “Stored...” will be displayed on the screen.

Install menu in AV modes

The following screen appears in the install menu:

Colour System

VCR

Store

Colour System

By pressing  /  select Colour System. By press- ing

/ button, you can change the colour system to

PAL, SECAM, PAL 60, NTSC 4,43, NTSC 3,58 or AUTO.

VCR

By pressing  /  select VCR. By pressing “ ” / “

” button, you can set the VCR to ON or OFF..

Store

By pressing  /  button, select Store. Press “

”or “OK” button to store the adjustments. “Stored...” will be displayed on the screen.

Source menu

By pressing “ ” / “ ” button, select the fifth icon. Source menu appears on the screen.

English - 20 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1620

Page 22

SOURCE



DTV

EXT-1

EXT-2

FAV

In source menu, highlight a source by pressing  /

button and switch to that mode by pressing “ ” or “OK” button. Source options are; TV, DTV, EXT-1, EXT-2, FAV, HDMI and YPBPR.

Note: You can mark desired source options by pressin

g OK button. Therefore, when

only the marked source options will be available.

Note: PC menu will not be active for TV sets without a PC input.

button is pressed,

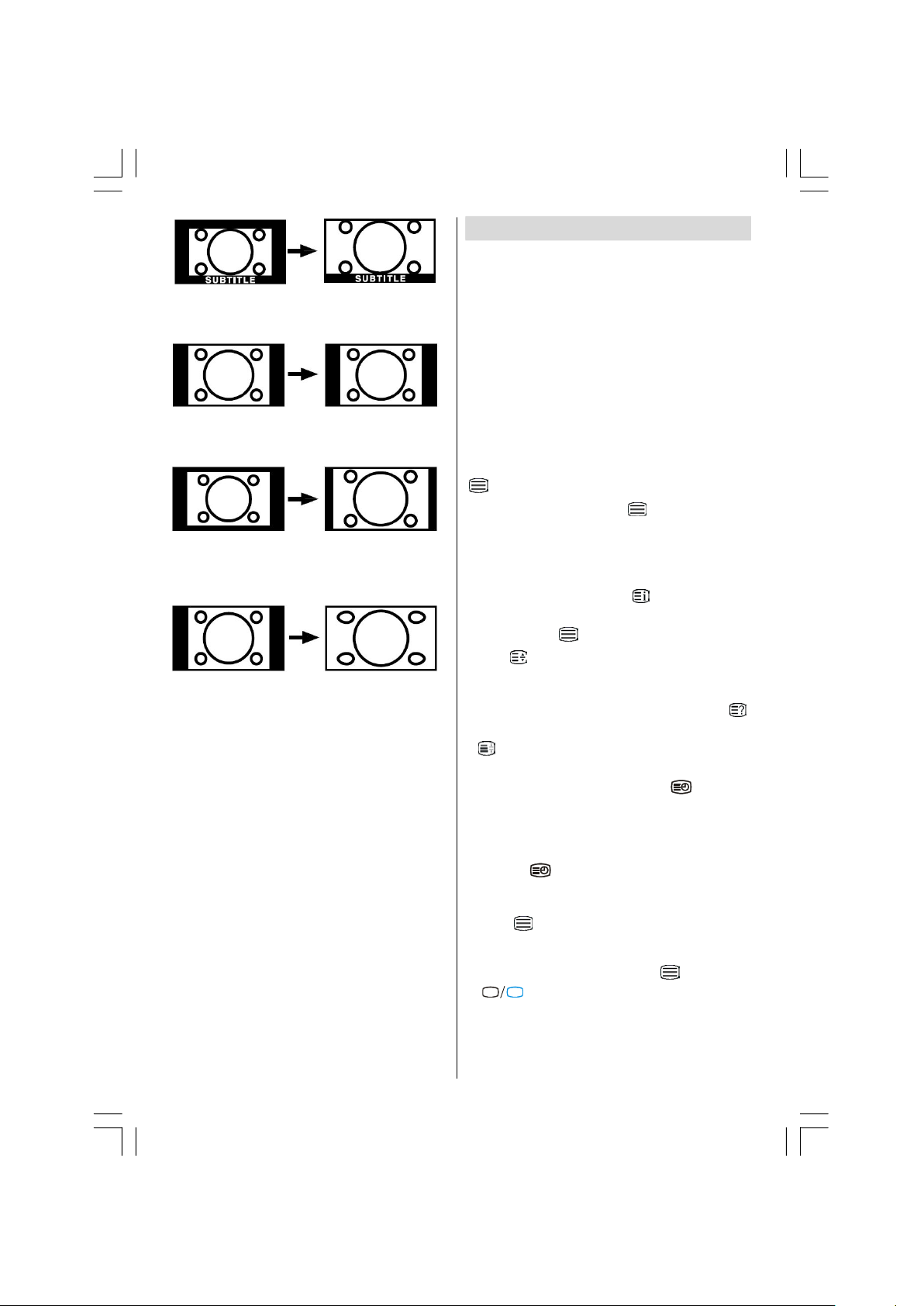

Zoom Modes

Zoom mode can be changed by pressing the WIDE button. You can change the screen size according to the

picture aspect ratio. Select the optimum one from

the following ZOOM modes.

Note:

• In YPBPR and HDMI modes, while in 720p-1080i re

solutions, only FULL mode is available.

Auto:

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode according to the WSS signal.

•

When the AUTO mode does not function correctly

e to poor WSS signal quality or when you want to

cha

nge the ZOOM mode, change to another ZOOM

mode manually.

Zoom:

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

Other Features

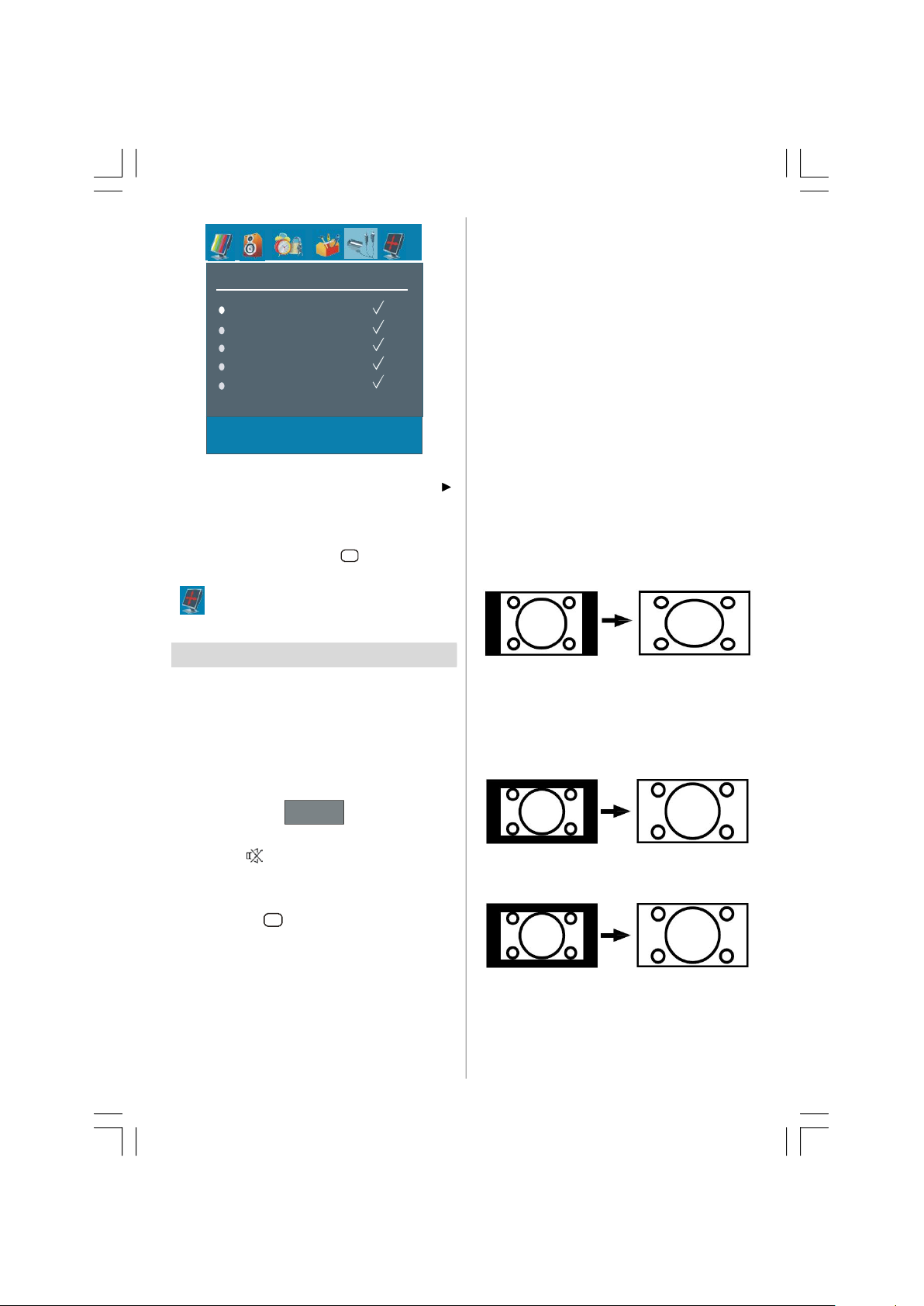

TV Status

Programme Number, Programme Name, Sound Indicator and Zoom Mode are displayed

the screen when a new programme is entered.

Mute Indicator

It is placed in the upper side of the screen when enabled.

Mute

To cancel mute, there are two options; the first one is pressing the

increasing the volume level.

AV Modes

By pressing the AV button you can switch your TV to AV modes (except being in teletext). Pressing this

button consecutively will switch the TV in one of the optional AV modes: TV, DTV, EXT1, EXT2, FAV, HDMI

YPBPR.

Personal Preference

By pressing PP button, you maychange Picture Mode settings.

button and the second one is by

English - 21 -

• For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the Full mode to restore the picture to its original shape

Cinema:

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

16:9 Zoom:

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Subtitle:

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1621

Page 23

4:3

DTV

Use to view a normal picture (4:3 aspect ratio) as this is its original shape.

14:9 Zoom:

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Panoramic:

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

The top and bottom of the picture are slightly cut off.

Freeze Picture

You can freeze the picture on the screen by pressing the “OK” button.

Note: This feature will be unavailable to be used whi

le watching YPBPr and HDMI sources.

Teletext

You can display Teletext information on your TV. Each channel which broadcasts teletext, transmits a page with information on how to use its teletext system (usually page 100). Depending on the TV channel, teletext is transmitted in different systems.The colours used in the options line correspond with the colour buttons of your remote control.

• Ensure that the TV is receiving a good signal, or some text errors may occur.

• When four coloured items appear at the bottom of the text page,Fasttext is available.Fasttext allows you to access pages quickly and easily.Press the corresponding coloured button to access the page.

Special Teletext Functions

“ ” To Display a page of text. The view text services press “

viewing press again.Programmes cannot be changed until text is cancelled.

• To select a page, press the number buttons or program buttons(P+, P-).

• To select index page, press “

•To select superimposed over the programme on the screen, press “

• Press “ again to enlarge the bottom half of the page.Press again to revert normal size.

• To discover solutions on quiz and games press “

• At times it is convenient to hold a page of text.Press “

until the button pressed again.

• To select subcode pages press “ pages are subsections of long Teletext pages that can only be displayed on the screen one section at a time.

• Time information will be displayed on screen after pressing “

have teletext transmission, no information will be displayed.

• When ” the screen will be splitted into two windows, one displaying the teletext and the other displaying the

current channel. Press the “

“

” once to enlarge top half of the page,press

” to hold a page. The page will be held on screen

” button to exit from teletext.

”.

” button.If the programme does not

” button is pressed while in teletext mode,

”. To return normal

” button.

”.Subcode

” button or

”

English - 22 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1622

Page 24

• To exit text press “ ”.





Note: If the signal becomes insufficient, the teletext m

ode will be quitted.

Fastext

Your TV supports the 1000 page Teletext system. When the page number of any of the 1000 pages in memory is entered, the system will not search for the requested page; instead it will display the page automatically. If the requested page is not in memory, the system will search for the requested page number and save the 1000 pages including the requested page into memory after finding it.

• Press the forward one page at a time.

• Press the backward one page at a time.

button to move the Teletext screen

For Fastext

The subject-heading for the information may have a particular colour.

• Press an appropriate RED, GREEN, YELLOW or BLUE button in order to reach the relevant page

ickly.

TOP text

TOP text mode of operation will be activated automatically according to the transmission.

• If TOP text transmission is present, colour coded buttons will appear in status row.

• If TOP text transmission is not present, status row will not appear.

The subject-heading for information may be located in colored box.

In Top mode the “P+” or “P-” commands will request t

he next or previous page respectively. If TOP text transmission is not available, in case of operation of these commands, wraparound occurs. For example page 100 appears to be one greater than page 199.

Connecting Peripheral Equipment

High Definition

Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI socket or Component Socket. These sockets can accept either 720p or 1080i signals.

Note: When it is desired to watch HDMI source with a DV

I to HDMI cable; in order to enable audio, Audio Input (which is located at the left side of the antenna input) is to be used to get DVI device’s audio signals.

Via The Scart

The TV has 2 Scart sockets. If you want to connect peripherals (e.g. video, decoder, etc.) which have Scart sockets to the TV, you can use SCART socket of the TV.

Note: If an external device is connected via the Scart sock

ets, the TV will automatically switch to AV mode. If both sockets are employed at the sime time, SCART 1 becomes the preferential.

Via Aerial Input

If the device you want to connect does not have a Scart socket, you should connect it to the Aerial input of the TV.

If the VCR is connected via Aerial input, it is sug

gested to use Programme 0.

Decoder

If you are subscribed to cable TV offers, the organisation will supply you a corresponding decoder unit to allow the programmes to be unscrambled.

For further information consult your dealer.

Connect a decoder with an aerial socket to the TV

• Connect the aerial cable.

Connect a decoder without an aerial socket to the TV

• Connect the decoder to the EXTERNAL socket of

TV with a RCA cable. Through the SCART/RCA socket of the decoder, you may attain a better display resolution.

TV And Video Recorder

• Connect the aerial cables. Better picture quality can be obtained if you also con-

nect a Scart cable to SCART sockets.

English - 23 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1623

Page 25

Playback NTSC



• Connect NTSC VCR player to a Scart socket of the TV.

Then, press the “

” button to select EXT1 or EXT2.

Copy Facility

Source selection for VCR recording.

• Select Feature menu.

•

Select SCART 2 Out by pressing

• For copying the picture that comes from the tuner, select SCART 1.

Note :Scart-1 socket cannot be used as DTV output. Please use Scart-2 instead.

/  button.

Camera And Camcorder

To Connect To AV Input

Connect your camera or camcorder to AV input of the TV.

• Connect your equipment to the TV via VIDEO (yellow

), AUDIO R (red) and AUDIO L (white) inputs.

ou must connect the jacks into the input with the

same colour.

Connect The Decoder To The Video Recorder

Some video recorders have a special Scart socket for decoder.

• Connect a Scart cable to the Scart socket of your decoder and to the special Scart socket of your video recorder. Refer to the booklet of your video recorder.

Connecting Headphones (optional)

Use the stereo headphone socket of the TV, to connect headphones.

Note: If you want to connect more equipment to your TV

, consult your dealer.)

Audio Lineout

To connect the external speakers to your TV, use the Headphone Line Out of the TV. Additionally, turn “Line out” setting on in the “Sound Menu”.

Note: While watching YPbPr sources, Lineout selection could only be the current source.

Information for users applicable in European Union countries

Produced after 13th August 2005

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

English - 24 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1624

Page 26

Tips

Without foot

DIMENSIONS (mm)

Care Of The Screen

Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the TV screen coating layer.

Poor Picture

Have you selected the correct TV system? Is your TV set or house aerial located too close to non-earthed audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

Is the picture or Teletext unrecognisable? Check if you have entered the correct frequency.

The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.

No Picture means that your TV is not receiving a tra

nsmission. Have you selected the correct button

on the remote control?Try once more.

Sound

You cannot hear any sound. Did you perhaps interrupt the sound, pressing the Sound is coming from only one of the speakers.Is the

balance set to one extreme? See Sound menu.

Remote Control

Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the bottom of the TV.

button?

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

RECEIVING CHANNELS

VHF (BAND I/III) UH

F (BAND U) HYPERBAND CABLE TV (S1-S20/ S21-S41)

NUMBER OF PRESET CHANNELS 10

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50Hz

AUDIO

Virtual Dolby Surround

AUDIO OUTPUT POWER (W

2 x 8

POWER CONSUMPTION (W)

240 W

W (Stand-by)

PANEL

16:9 display, 40” Screen Size

DIMENSIONS (mm)

D L H

RMS.

) (%10 THD)

Weight (kg)

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1625

259

131

English - 25 -

1115 1115

666 615

21,4 19,2

With foot

Page 27

AUDIO IN

OUT

HEADPHONE

SATELLITE RECEIVER

VHF/UHF

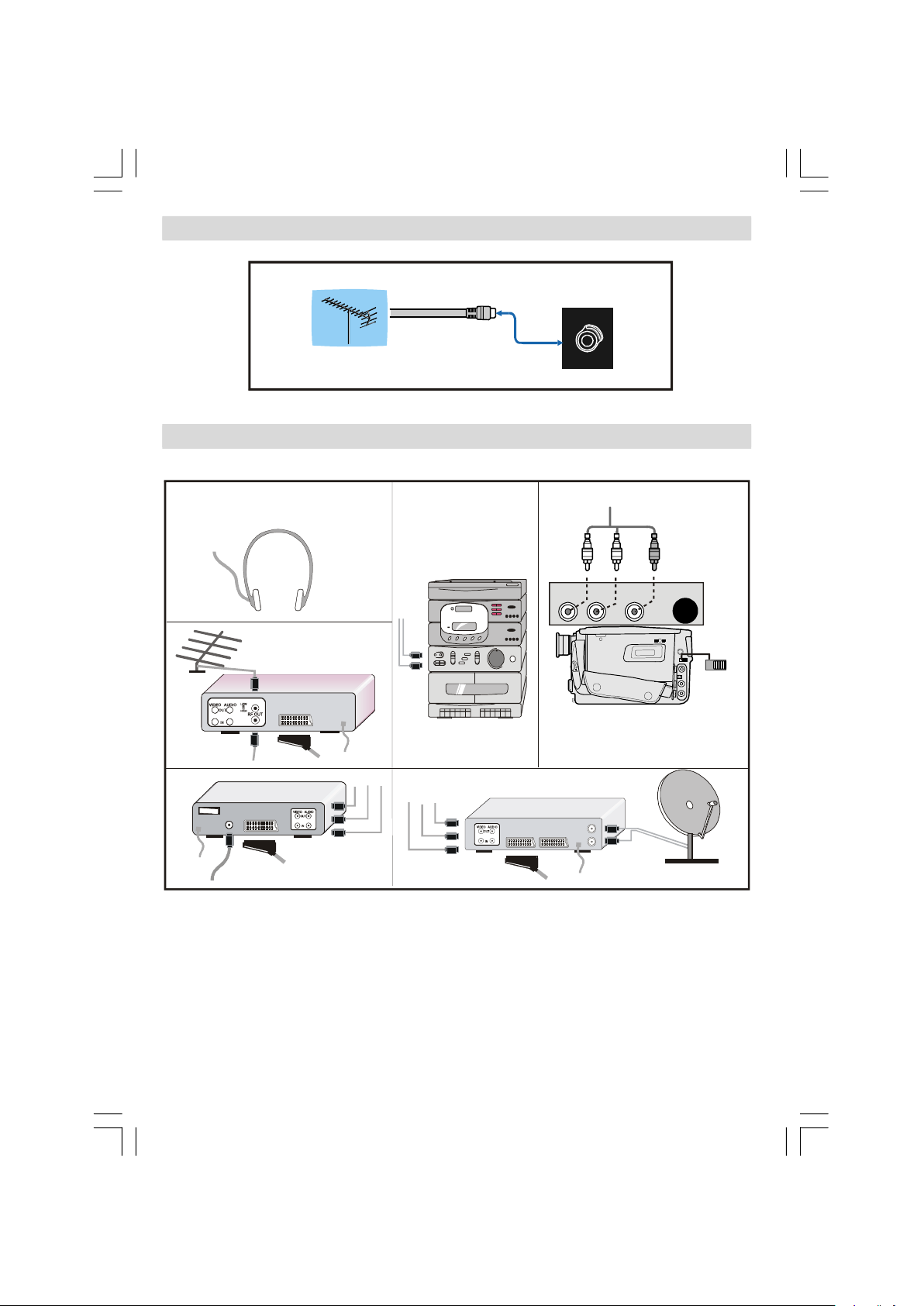

Appendix A: Aerial Connection

Outdoor Aerial Connection

Round 75 ohm coaxial cable

Appendix B: Connect Peripheral Equipment

AUDIO



Rear of TV

VIDEO IN

(R)(L)

ANT.IN

ANTENNA

VIDEO

CAMCORDER

English - 26 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1626

Page 28

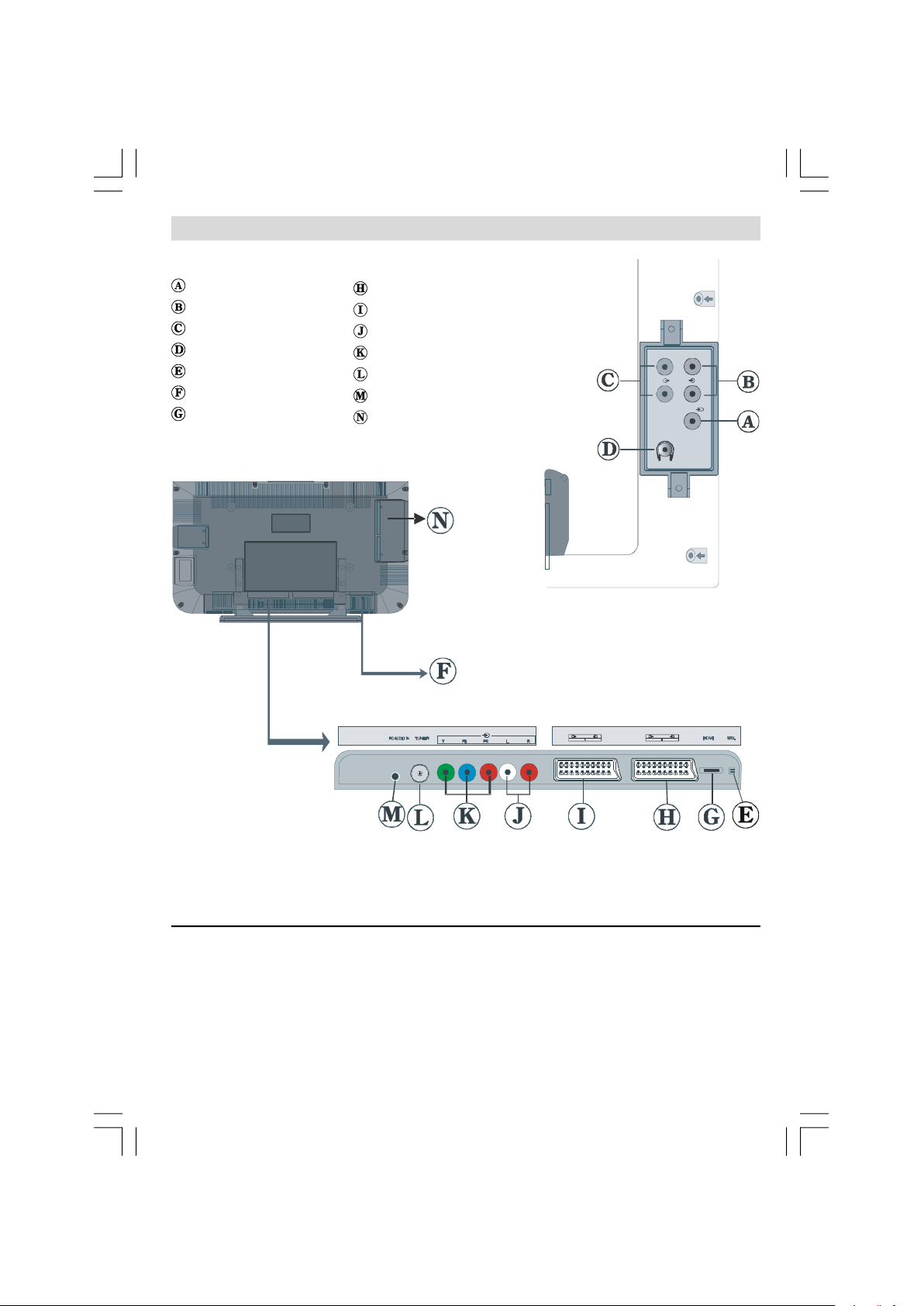

Peripheral Equipment Connections

LRL

Video Input Audio Inputs Audio Line Outs Headphone For Service Use Only Power Cable HDMI Input

SCART 2 SCART 1 Component Audio Inputs Component Video Inputs (YpBpr) RF PC Audio Input CI Slot

Tesco warranty as per below:

Your appliance is covered by a warranty for 12 months from the date of purchase. If a fault develops during thi

s period, please return the unit to your nearest Tesco store together with the original receipt as proof of

purchase.

For assistance, please call our Tesco Electrical Helpline on 0845 4566767

English - 27 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1627

Page 29

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains supply.

MAINS (AC) OPERATION

The wires in the mains lead are coloured in accordance with the following code :

GREEN

YELLOW

(Earth)

(if there is

earth cable)

BLUE (Neutral)

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the letter L or coloured Red.

For continued protection against risk of fire, replace only with same type and rating of fuse (ASTA approved 5A 250VAC fuse).

FUSE

BROWN (Live)

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

English - 28 -

ENG-40756W-1055UK-40 INCH 17MB22 UK IDTV-(VIRTUAL DOLBY-WO PIP-WO PC)-50117255.p6516.10.2007, 09:1628

Page 30
