Page 1

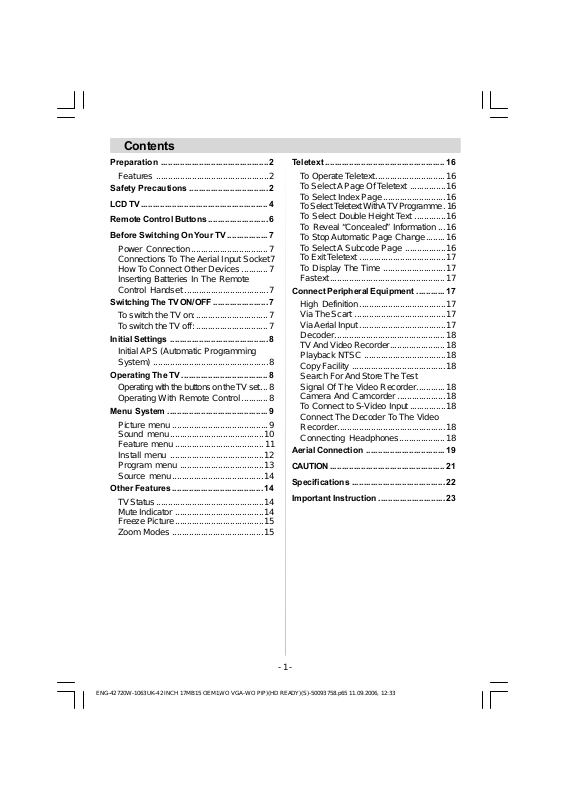

Contents
Preparation ............................................. 2
Features ...............................................2
Safety Precautions .................................2
LCDTV ..................................................... 4
Remote Control Buttons ......................... 6
Before Switching On Your TV................. 7
Power Connection................................7
Connections To The Aerial Input Socket7
How To Connect Other Devices ...........7
Inserting Batteries In The Remote
Control Handset ...................................7
Switching The TV ON/OFF....................... 7
To switch the TV on:..............................7
To switch the TV off:..............................7
Initial Settings .........................................8
Initial APS (Automatic Programming
System) ................................................8
Operating The TV.................................... 8
Operating with thebuttons on theTVset...8
Operating With Remote Control ...........8

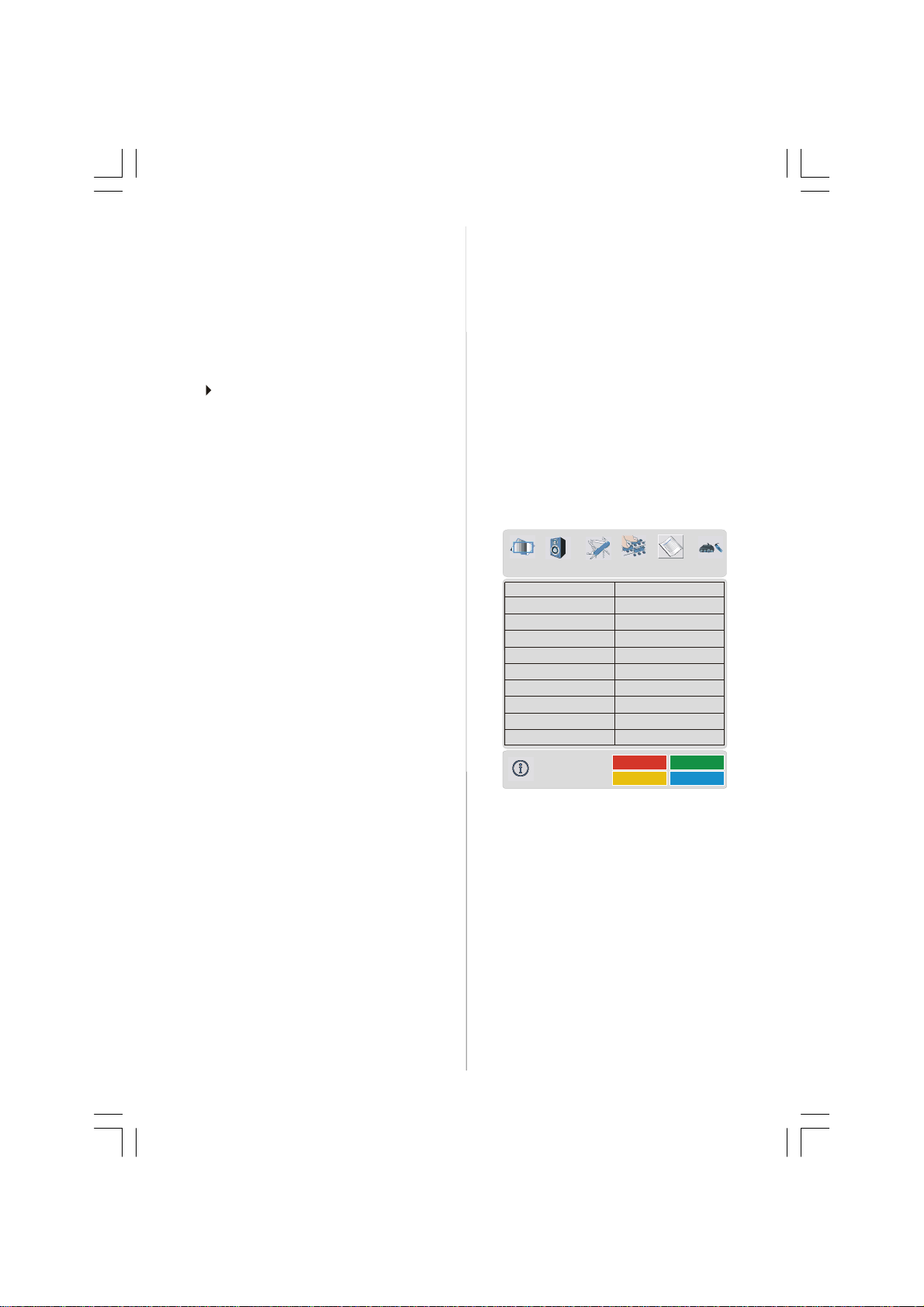

Menu System .......................................... 9
Picture menu ........................................9
Sound menu .......................................10
Feature menu ..................................... 11
Install menu .......................................12
Program menu ...................................13
Source menu......................................14
Other Features...................................... 14
TVStatus.............................................14
Mute Indicator .....................................14
Freeze Picture.....................................15

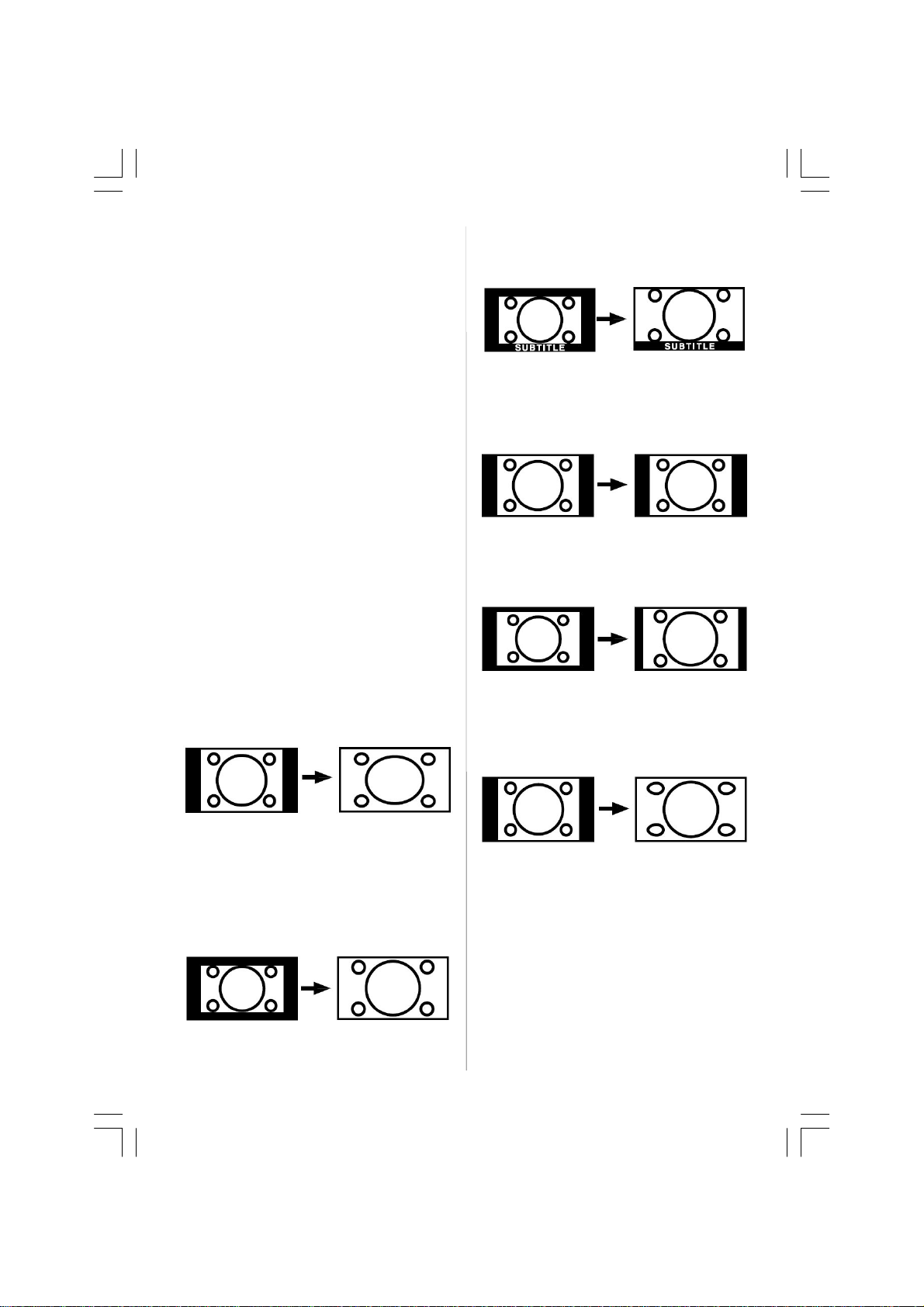

Zoom Modes ......................................15

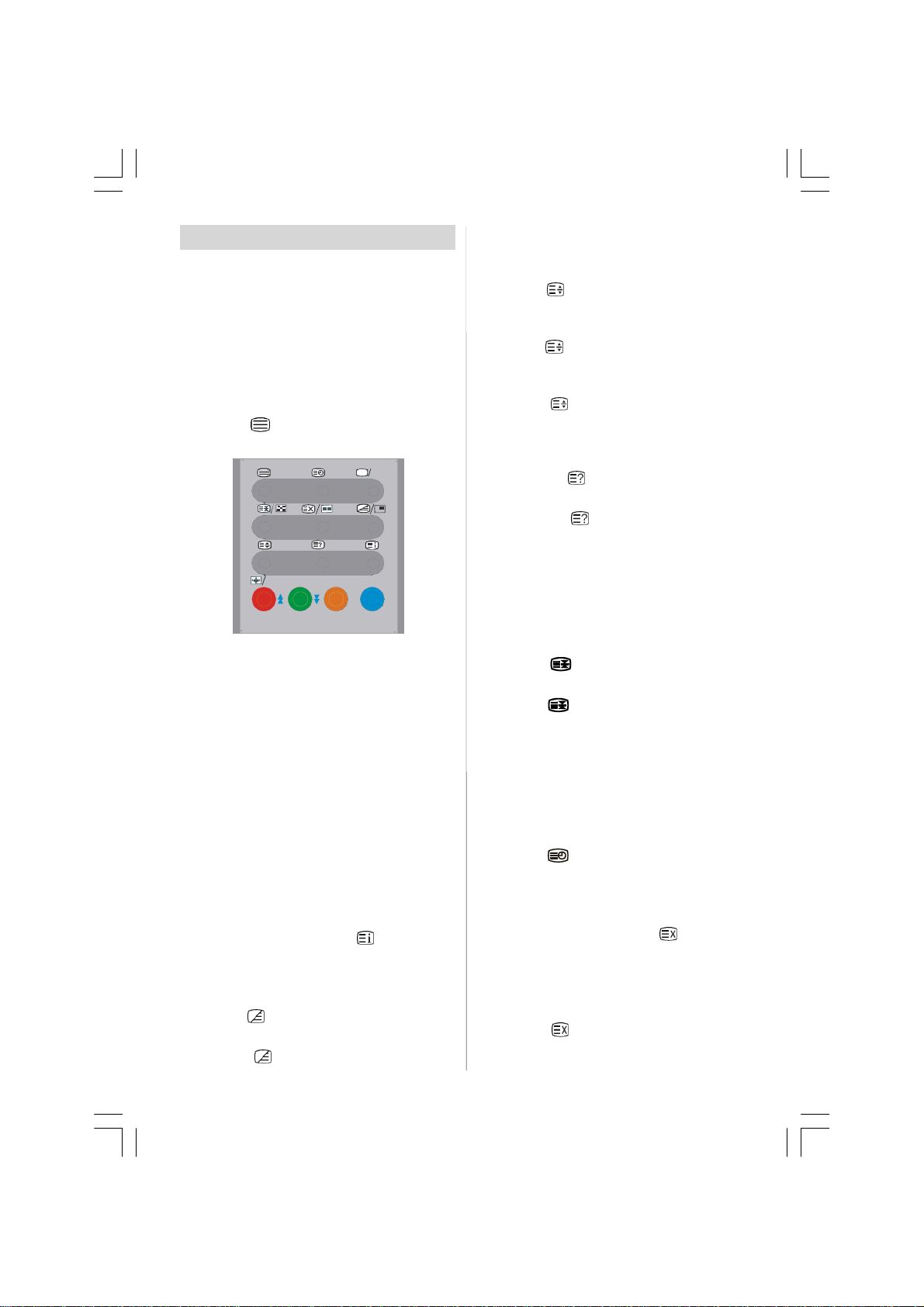

Teletext .................................................. 1 6
To Operate Teletext.............................16
To Select A Page OfTeletext ...............16
To Select Index Page..........................16
ToSelectTeletext WithATV Programme. 16
To Select Double Height Text .............16
To Reveal “Concealed” Information ...16
To Stop Automatic Page Change........16
To SelectASubcode Page .................16
To Exit Teletext ....................................17
To Display The Time ..........................17
Fastext................................................17
Connect Peripheral Equipment ............1 7
High Definition....................................17
Via The Scart ......................................17
ViaAerial Input ....................................17
Decoder..............................................18
TVAnd Video Recorder.......................18
Playback NTSC ..................................18
Copy Facility .......................................18
Search ForAnd Store The Test
Signal Of The Video Recorder............18
Camera And Camcorder ....................18
To Connect to S-Video Input...............18
Connect The Decoder To The Video
Recorder.............................................18
Connecting Headphones...................18
Aerial Connection .................................19

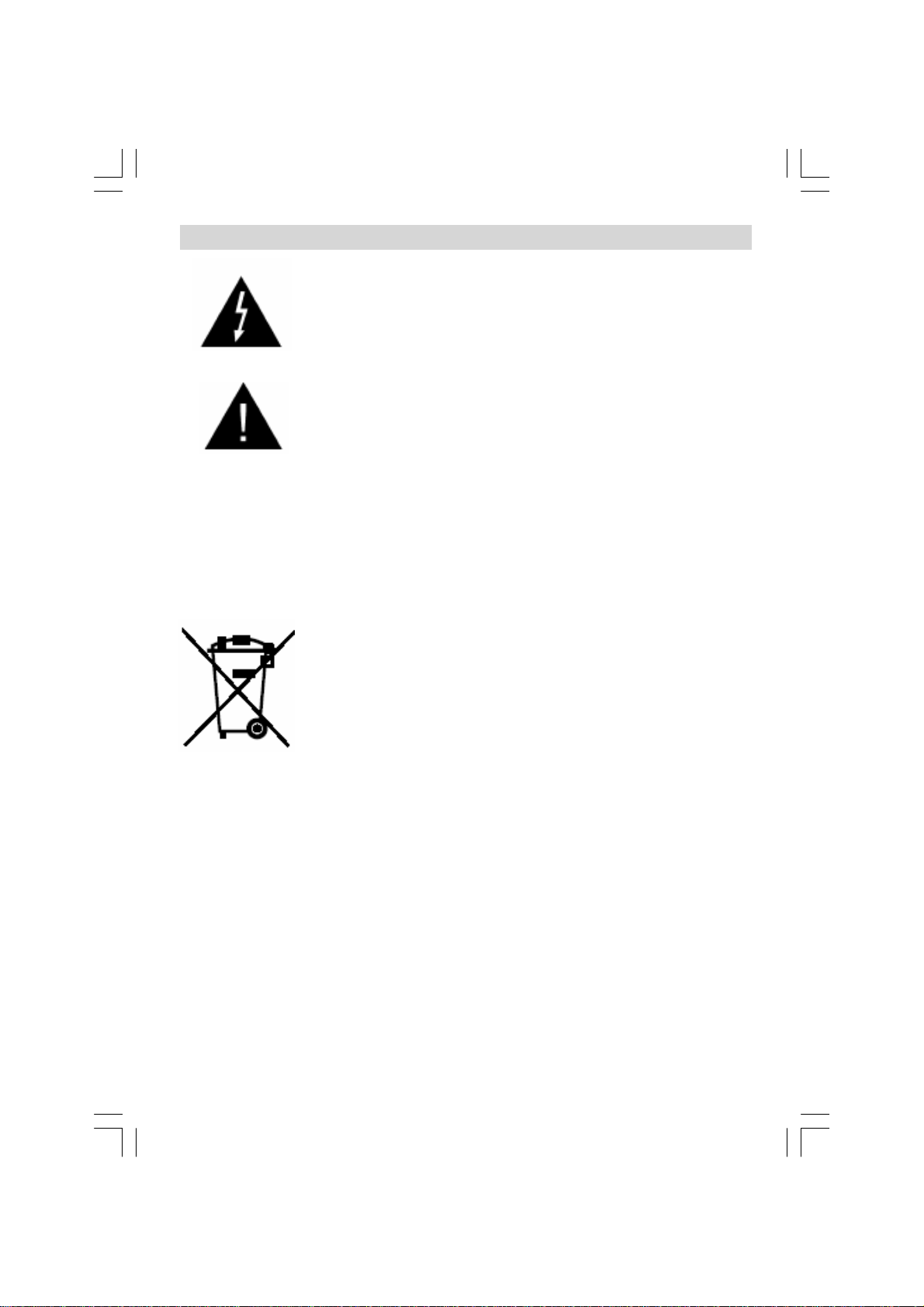

CAUTION ................................................ 2 1
Specifications .......................................22
Important Instruction ............................23
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:331
-1-
Page 2

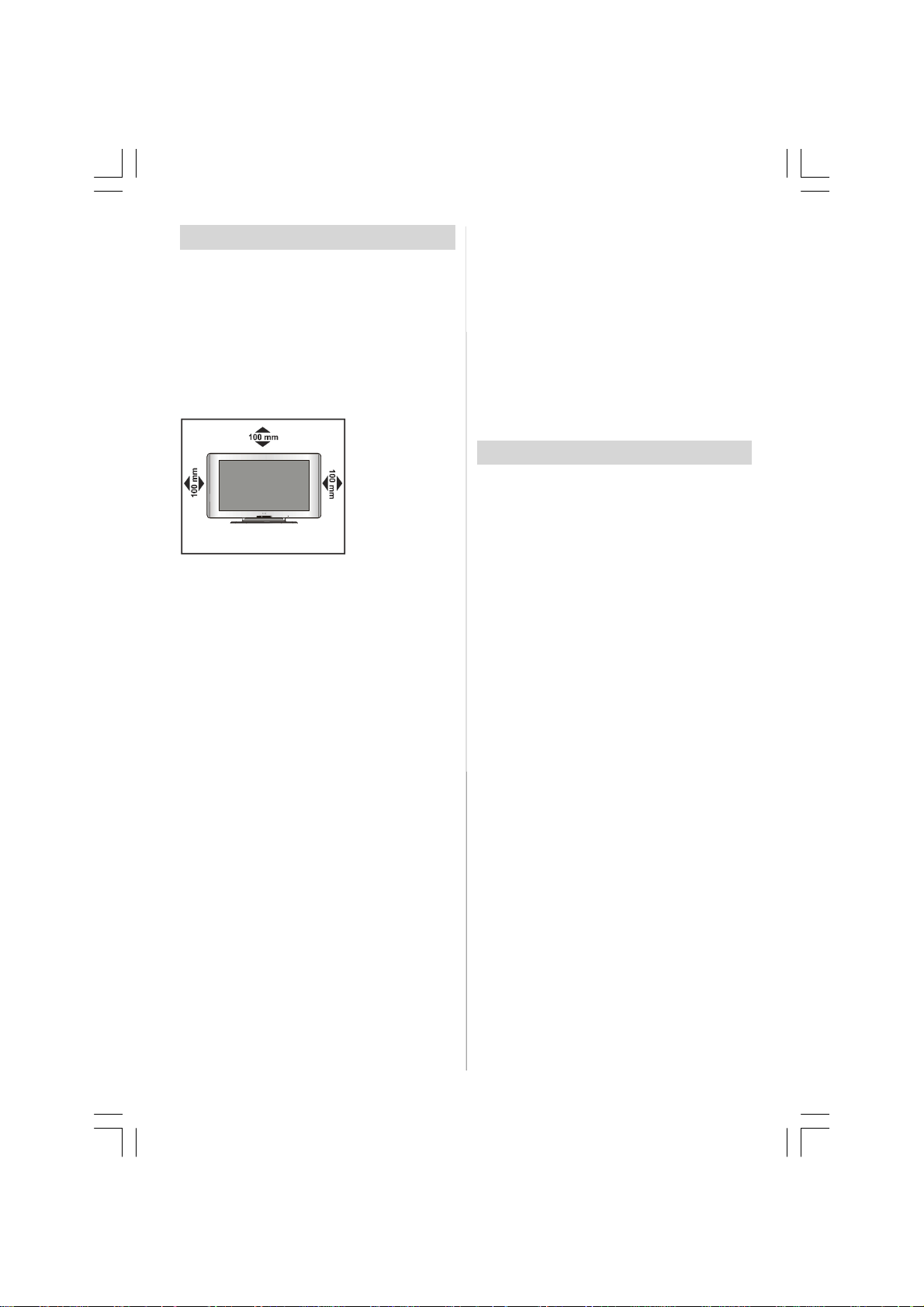

Preparation
Install Display on solid horizontal surface
such as a table or desk.
For ventilation, leave a space of at least 10
cm free all around the set. To prevent any
fault and unsafe situations, please do not
place any objects on top of the set.
This apparatus can be used in tropical and/
or moderate climates.
Features
• Remote controlledcolour television.
• 100 programmes from VHF, UHF bands or
cable channels can be preset.
• It can tune cable channels.
• Controlling the TV is very easy by its menu
driven system.
•Ithas2Scartsocketsfor external devices(such
asvideo,video games, audioset,etc.)
• Stereo sound system (German+Nicam).
• Full functionTeletext .
Fastext (1000Pages),TOPtext.
• Headphone connection.
• Direct channel access.
•A.P.S. (Automatic Programming System).
• All programmes can be named.
• Forward or backward automatic tuning.
• Sleep timer.
• Child Lock.
•Automatic soundmute whennotransmission.
• NTSC Playback.
•AV in and S VIDEOareavailable.
• It has an HDMI connector for Digital Video
and Audio. This connection is also de-
signed to accept High Definition signals.
•AVL (AutomaticVolume Limiting)
• When no valid signal is detected, after 5
minutes the TV switches itself automatically
to stand-by mode.
• StereoPCAudioInput
• PLL (FrequencySearch)
• 3D Comb Filter
SafetyPrecautions
Please read the following recommended
safetyprecautions carefullyfor your safety
1. Power Source
The receiver must only be operated on a
230-240V AC 50 Hz supply.
2. Power Cord
Do not place the set, a piece of furniture,etc.
on the power cord(mains lead) or pinch the
cord.Handle the power cord by the plug.Do
not pull out the plug by tugging the cord and
never touch the power cord when your
hands are wet as this could cause a short
circuit or electric shock.Never make a knot in
the cord or tie it with other cord.The power
cord should be placed in such a way that
they are not likely to be stepped on.
A damaged power cord can cause fire or
give you an electric shock. When it is damaged and need to be changed, it should be
done by qualified personel.
3. Moisture and Water
Do not use this equipment in a humid and
damp place (avoid the bathroom, the sink in
the kitchen, and near the washing machine).
Do not expose this equipment to rain or wa-
ter, as this may be dangerous and do not
place objects filled with liquids,such as
flower vases on top of the set. Avoid from
dripping or splashing.
If any solid object or liquidfalls into the cabinet,
unplugthe set and have it checked by qualified
personnel before operating it any further
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:332
-2-
Page 3

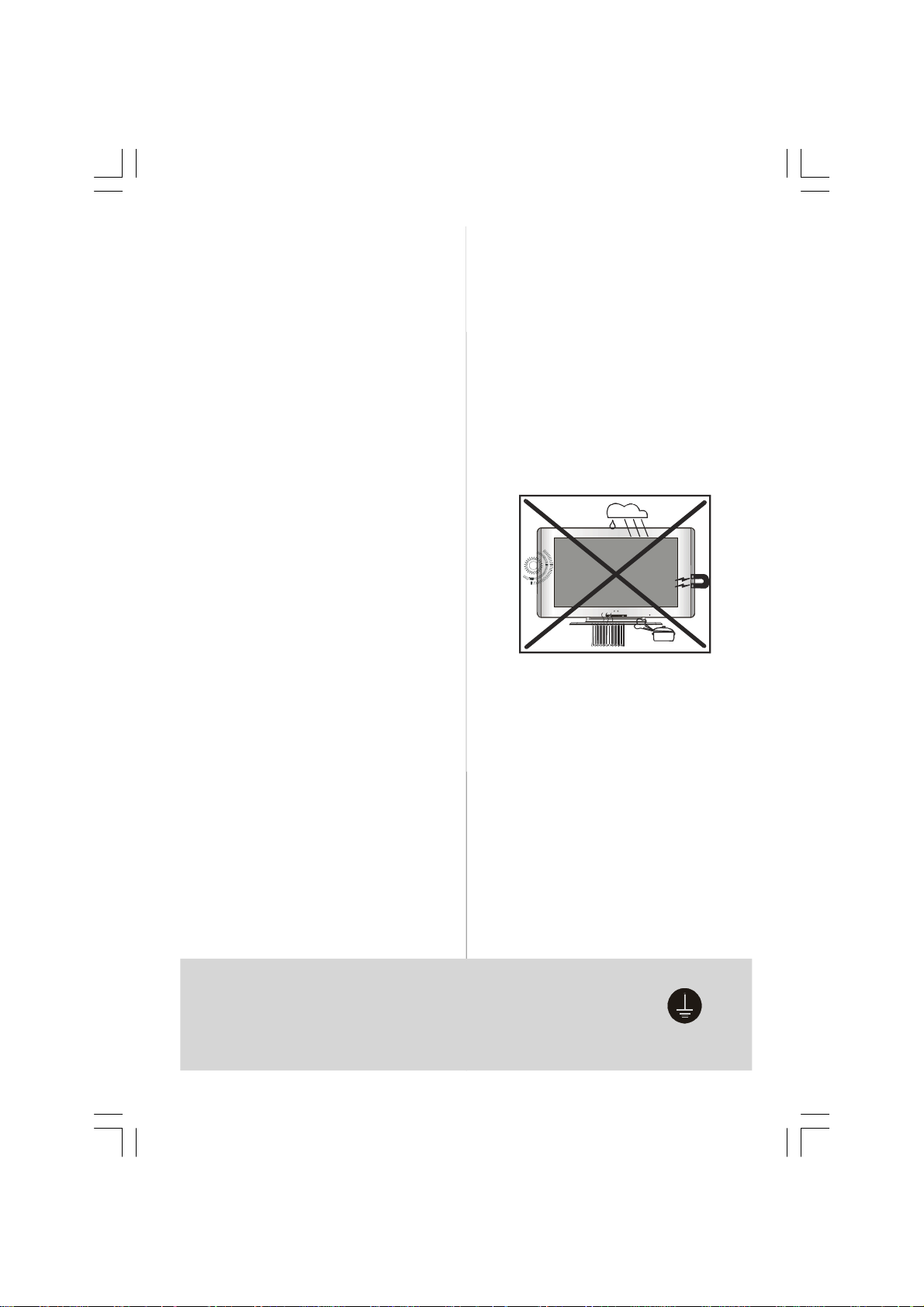

Surely connect
the groundwire.
4. Cleaning
Before cleaning, disconnect the mains supply. Do not use chemical cleaning agents.
Use a dry duster. For sticky stains, use a
damp cloth with a mild detergent.
5. Ventilation
The slots and openings on the back cover
are intended for ventilation and to ensure re-
liable operation. To prevent overheating,
these openings must not be blocked or covered in anyway.
6.Heat and Flames
In the case of a Thunderstorm, or when leaving the Tv for long periods, disconnect the
Aerial lead (if outdoor) and the mains supply
to prevent power surges damaging the Tv.
7. Lightning
In the event of a Thunderstorm or when going on holiday. Disconnect the mains supply
and aerial (if external).
8. Replacement Part
When replacementparts are required, be sure
the service technician has used replacement
parts which are specified by the manufacturer
or have the same specifications as the original one. Unauthorised substitutions may result in fire, electrical shock, or other hazards.
9 . Servicing
Please refer all servicing to qualified personnel. Do not remove the cover yourself as
this may result in an electric shock.
WARNING: When the device is not in use
for a long time, disconnect from power.
Instructions for waste disposal:
• Packaging and packaging aids are recyclable and should principally be recycled.
Packaging materials, such as foil bag, must
be kept away from children.
• Remote control batteries should be disposed of in a safe manner. Do not break
open or throw on a fire. Contact your local
environment office for advice.
• Cold cathode fluoresant lamp in LCD PANEL
contains a small amount of mercury, please follow local ordinates or regulations for disposal.
• The mains plug is used to disconnect the TV
from the mains and therefore it shall remain
readily operable.
Warning: To prevent injury, this device must
be securely attached to the floor/wall in accordance with the installation instrutions.
"The LCD panel is very high technology
product with about a million thin film transistors, giving you fine picture details. Oc-
casionally, a few non-active pixels may appear on the screen as a fixed point of blue,
green or red. Please note that this does
not affect the performance of your product."
“DO NOT LEAVE THE TV IN STANDBY OR
OPERATINGWHEN LEAVING THE HOUSE”
Be sure to ground the connection properly.
Connect the ground terminal of TV with the ground terminal provided
at the power outlet using the enclosed power cord. If theprovided plug
does not fit your outlet, consult an electrician for replacement
of the obsolete outlet.
-3-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:333
Page 4

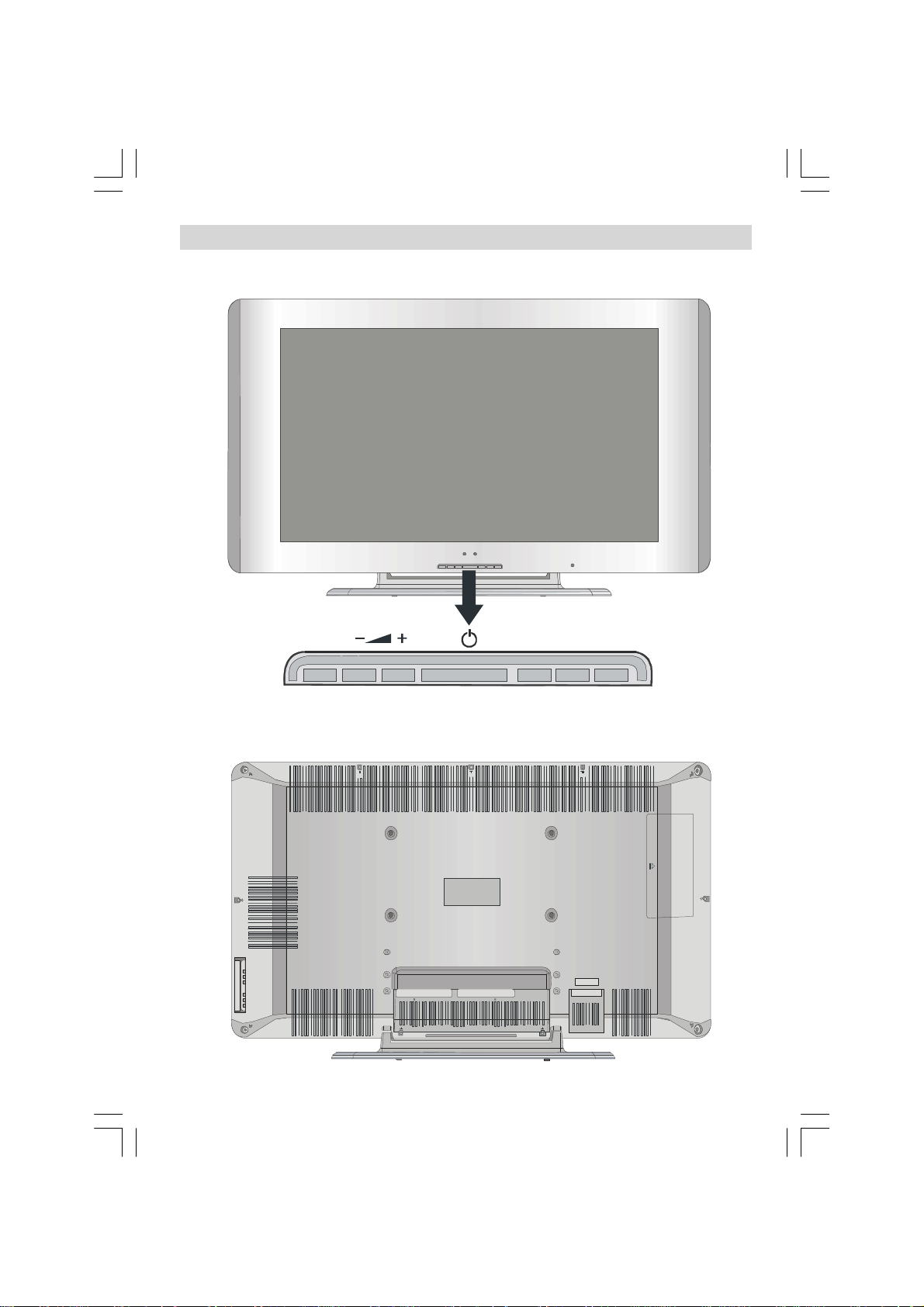

FRONTVIEW
- P/CH +
LCD TV
REARVIEW
MENU
TV/AV
-4-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:334
Page 5

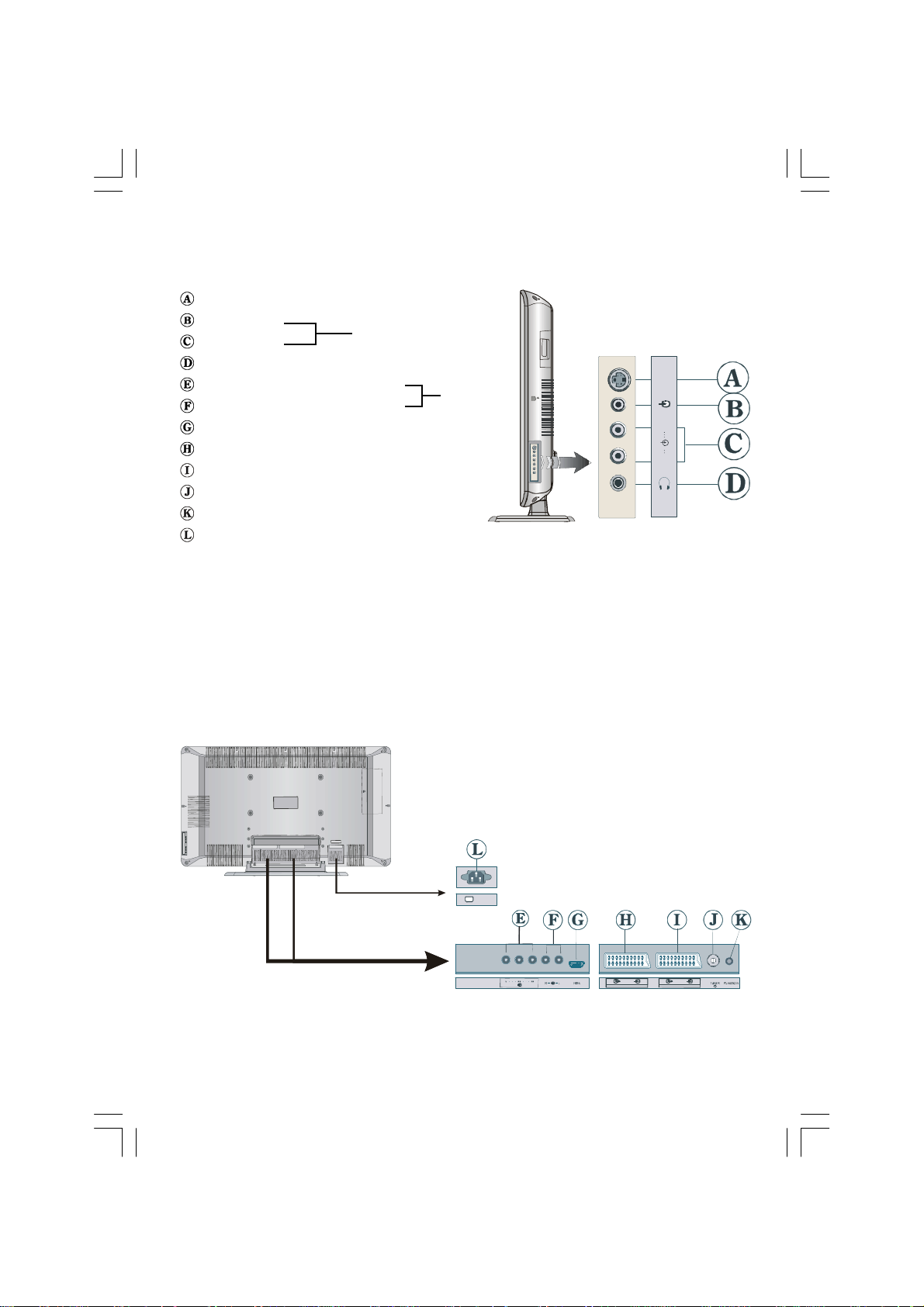

S-Video Input EXT-4S
R
VideoInput
Audio Inputss
EXT-4
Headphone
Component Video (YPbPr) Inputs
Component Audio Inputss
HDMI Input(EXT-5)
Scart1 (EXT-1)
Scart2 (EXT-2)
PCAudioInput
Aerial
Power cord input
EXT-3
AC~50H z
-5-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:335
Page 6

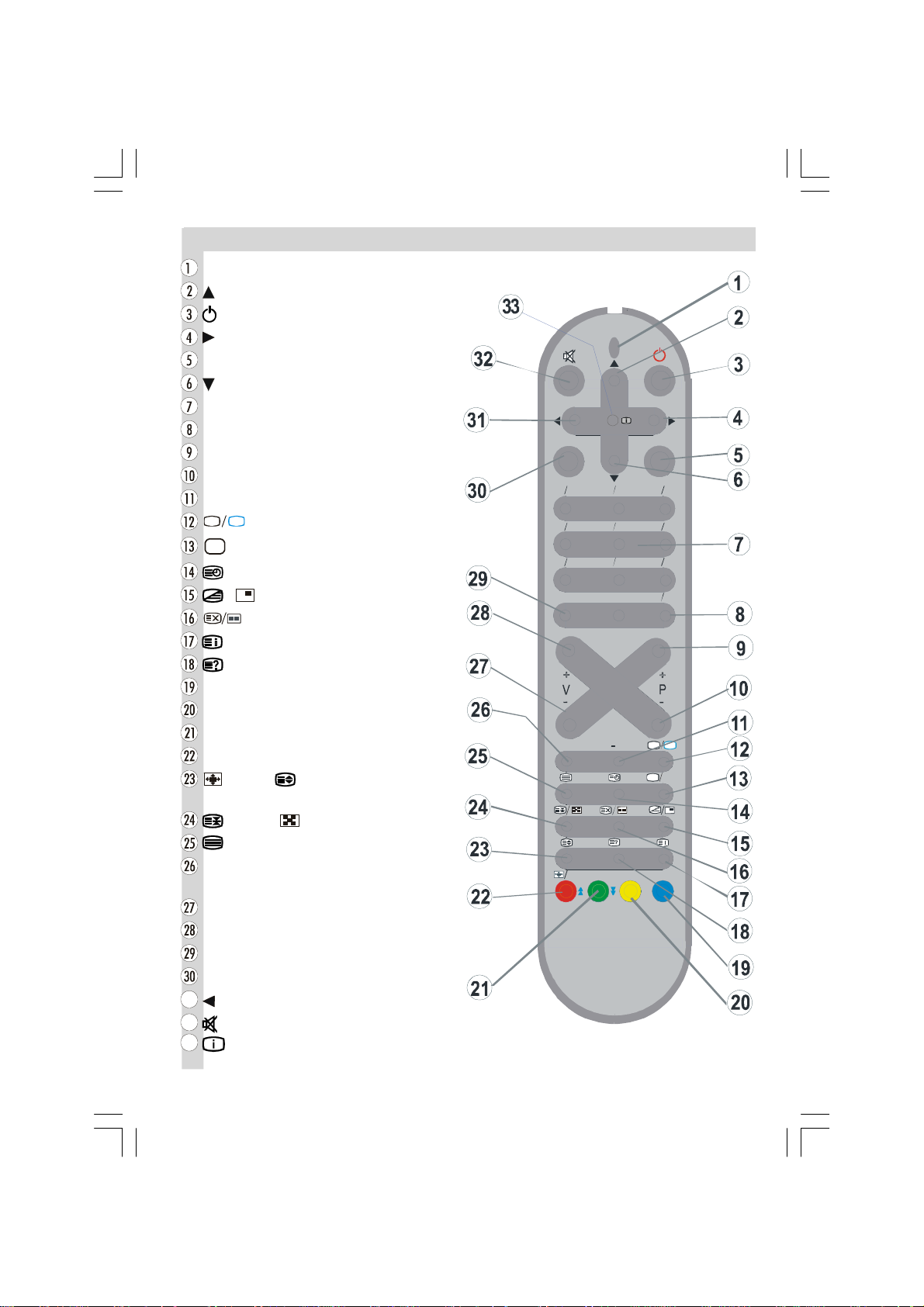

RemoteControlButtons
PQR
DTV
Signal Indicator
= Cursor Up
= Stand By
= Cursor Right
OK/SELECT =Okay, StillPicture
= Cursor Down
0 - 9 = Direct Programme
-/-- / EXIT = No Function
P + = Programme Up
P - = Programme Down
I-II =Mono/Stereo- DualA-B
TV
=TV/ QuitMenu
AV
/SOURCE = SourceSelect
= Time / Subpage
/ = Mix / PIP mode
= Update / PAP Mode
/ GUIDE =IndexPage
=Reveal
BLUE =Install Menu
YELLOW =Feature Menu
GREEN =PictureMenu
RED= SoundMenu
/WIDE / = Wide (Zoom Modes)
/ Expand
= Hold / = PIP Position
= Teletext
PP = Picture Mode Selection
(Natural, Cinema,Dynamic)
V - = Volume Down
V+ = Volume Up
P<P/SWAP=Previous Programme/SWAP
M = Main Menu
= Cursor Left
= Mute
= Information button
M
1
4
JKL MNO
7
STU VWX YZ
P<P/SWAP
+
PP
DEF
I II
-
-/--
-6-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:336
Page 7
BeforeSwitching OnYour TV
Power Connection
IMPORTANT: The TV set is designed to op-
erateon230-240V AC, 50 Hz.
•After unpacking,allow the TV set to reach the
ambient room temperature before you connect the set to the mains.

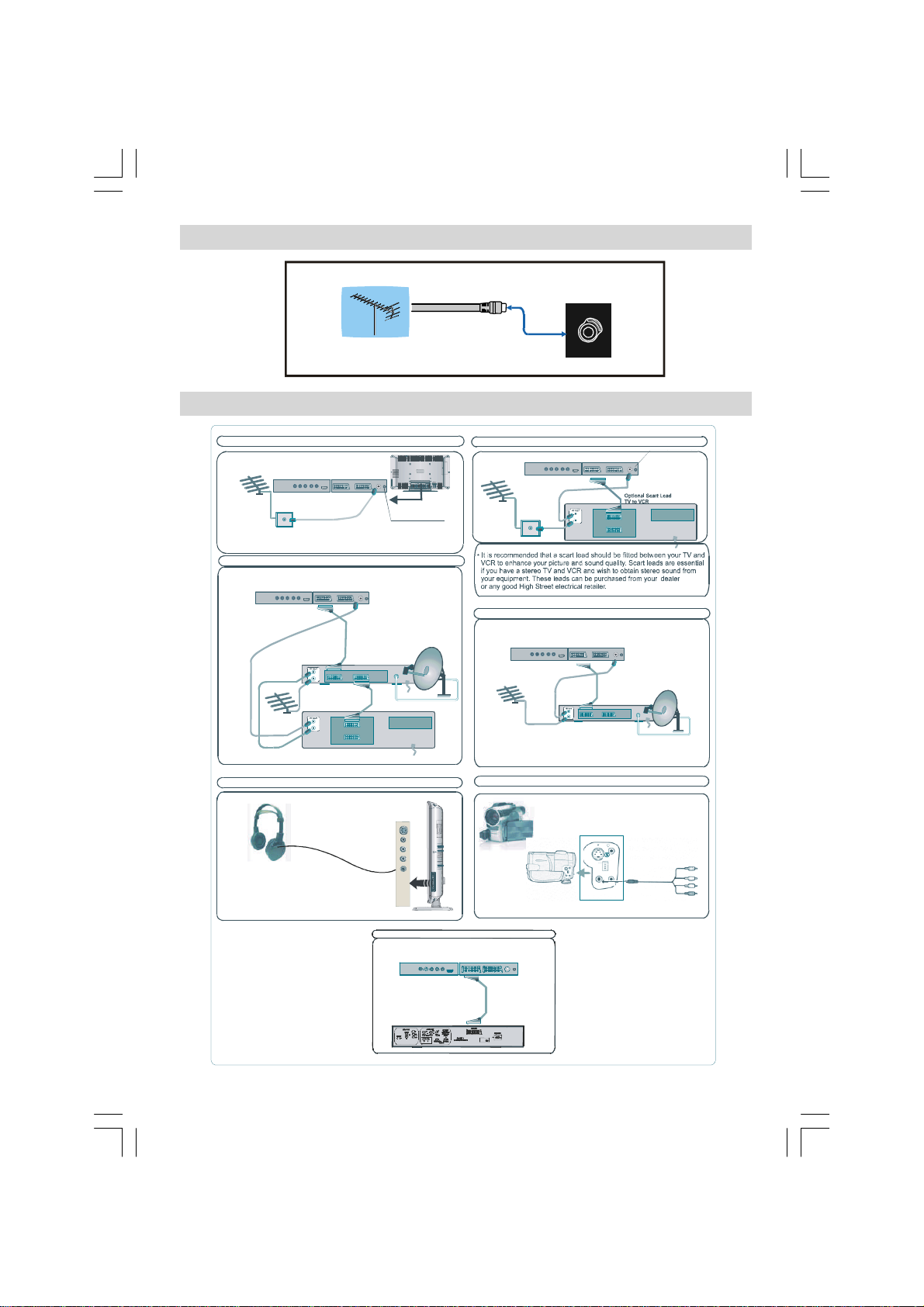

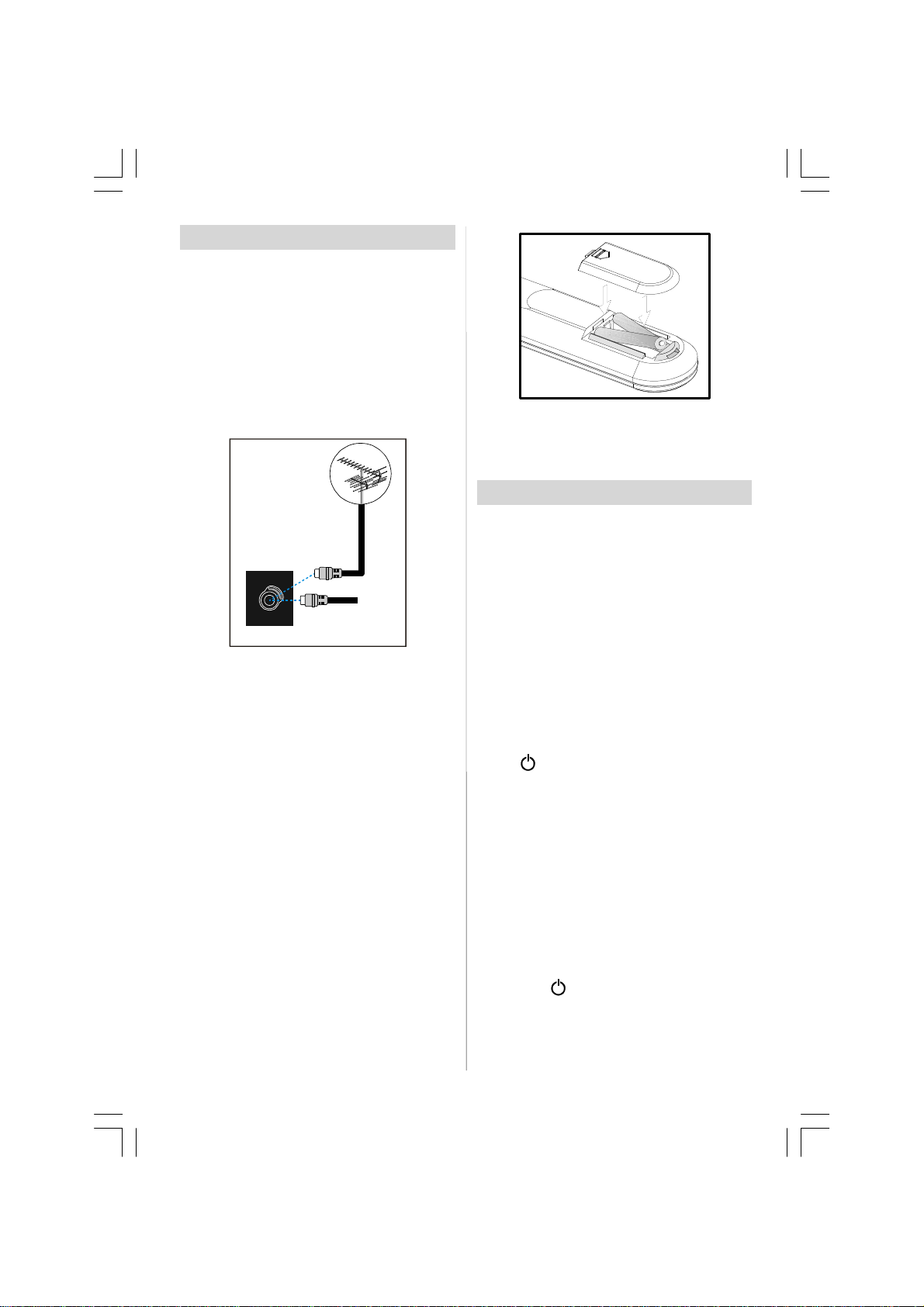

Connections To The Aerial Input
Socket
CABLE TV
VHF/UHF
REAR OF THE TV
•Connect the aerialto the aerial socketon the
Tv, youmayalso connecta VCRor otherbox
at the same time.
How To Connect Other Devices
IMPORTANT: Switch off the TV before con-
nectingany externaldevice.
Sockets for external connections are at the
rear side of the TV. For connection of other
devices via Scart refer to the manuals of the
related devices.
Inserting Batteries In The Remote
Control Handset
• Remove the battery cover located on the
back of the handset by gently pulling down-
wards from the indicated part.
• Inserttwo AA/R6 orequivalenttypebatteries
inside. Place the batteries in the right directions.
• Replace the battery cover.
NOTE: Remove the batteries from remote
control handset when it is not to be used for
a long period.Otherwise it can be damaged
due to any leakage of batteries.
Switching TheTV ON/OFF
To switch the TV on:
Your TV will switch on in two steps:
1- Connect the power supply cord to the sys-
tem. Press On/Off switch at the rear of the
TV. Then the TV switches itself to stand-
by mode and the LED becomes BLUE locatedon the front of the TV.
2- To switch on the TV from stand-by mode
either:
Press a digit button on the remote control so
that a programme number is selected,
or,
Press “
right side of the TV or press “-P/CH” or “P/
CH+” button on the remote control, so that
last switched off programme is selected.
By either ways the TV will switch on and the
LED will turn off.
To switch the TV off:
• Press the “stand-by” button on the remote
control, so the TV will switch to stand-by
mode and the LED will become BLUE,
or,
Press the “
side of the TV, so the TV will switch off and
the LED will become BLUE.
”, "-P/CH" or "P/CH+" button on the
” button located on the right
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:337
-7-
Page 8
To power down the TV completely, press
Cancel
On/Off switch,
or
unplug the power cord from the mains
socket.

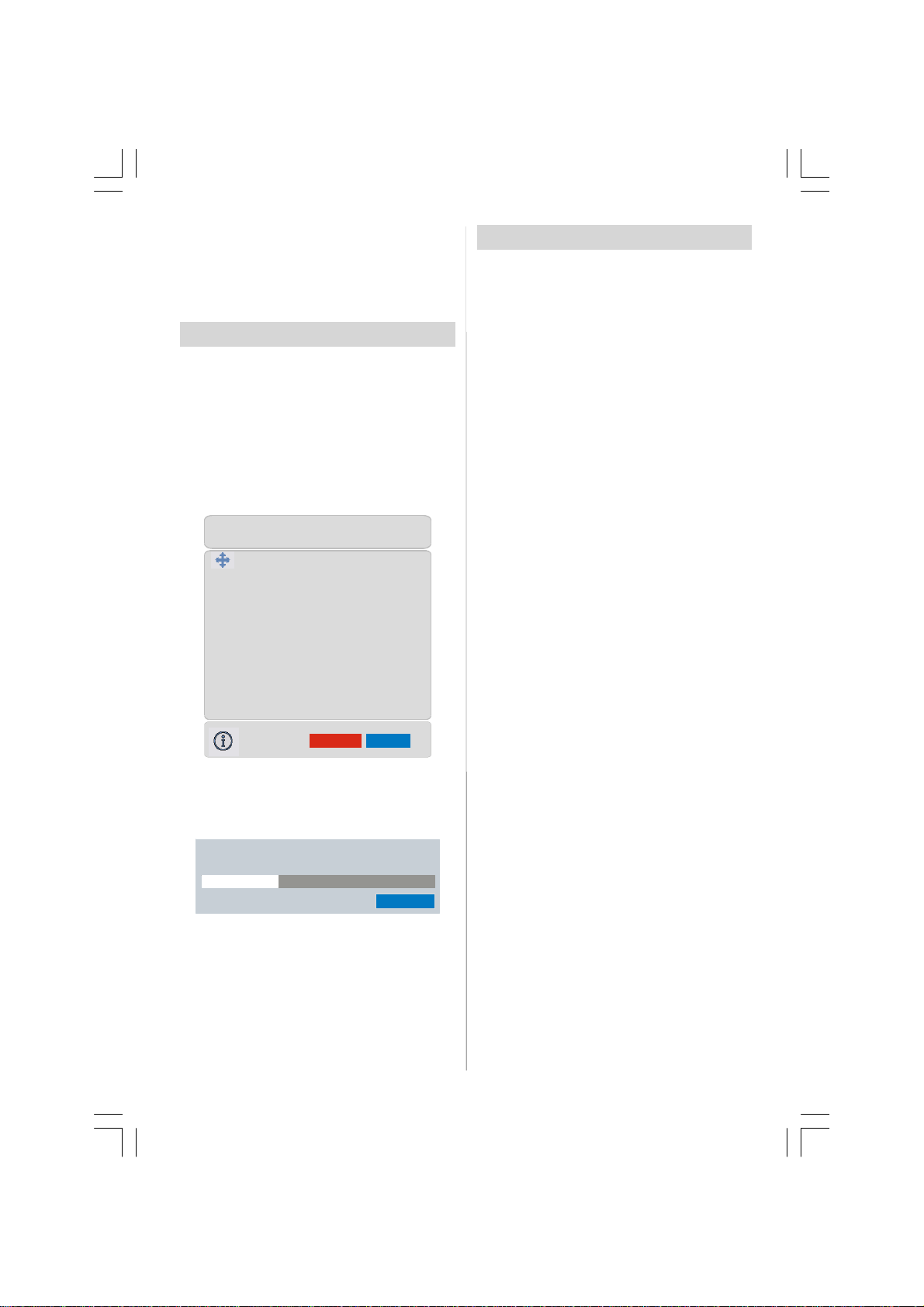

InitialSettings
Initial APS(Automatic Programming
System)

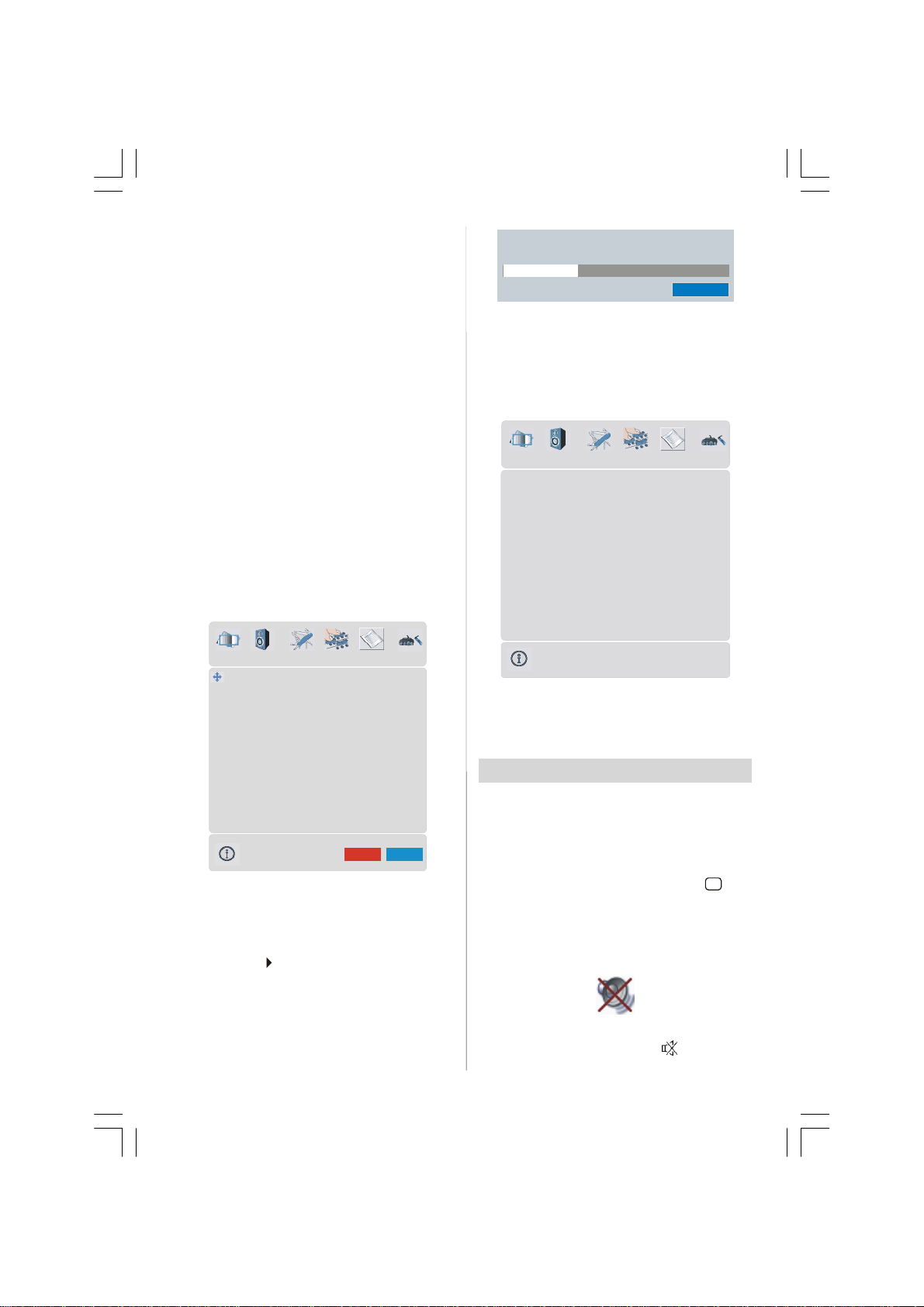

The following menu will be displayed on the
screen when you turn your TV on for the first
time. APS, searches and sorts all channels
and stores them automatically on your TV,
acc ordi ng to the tra nsmission o f
programme systems in your area.
AUTO PROGRAM
Language
Country
PLEASE CHECK ANTENNA CABLE
AUTO. PROGRAMMING SYSTEM
First of all choose Language and Country by
using
fect the sort process in APS. To start APS,
pressthe RED or“OK” button.
After APS is finalized, the programme table
will appear on the screen. In the programme
table you will see the programme numbers
and names assigned to the programmes.
If you do not accept the locations and / or the
programme names of programmes, you
can change them from the Program Menu.
(See page 13)
/
and
/
buttons. This will af-
APS is running...
UK - I 155,25 Mhz
01 - C-01
Operating The TV
You can operate your TV using boththeremote
control handset and thebuttons on the set.
Operating with the buttons on the
TV set
Volume setting and programme selection
can be made by using the buttons on the
controlpanelat the top of the TV.
Volume Setting
Press the"VOLUME -" buttonto decreasevol-
ume or the "+ VOLUME" button to increase
volume, so a volume level scale (slider) will be
displayed at the bottom of the screen.
Programme Selecting
Press the "+P/CH" button to select the next
programme or the "P/CH-" button to select
the previous programme.
Entering The Menu
Press the “MENU” button on the control
panel at the top of the TV to enter the menu.
"+P/CH" / "PCH-" and "VOLUME -" / "+
VOLUME" buttons on the TV are used as
navigation buttons in the menu.
AV Mode
Press the "TV / AV" button on the control
panelat the top of the TV to switchyourTV to
EXT modes.
Operating With Remote Control
The remote control handset of your TV is designed to control all the functions of your TV.
The functions will be described in accordance with the menu system of your TV.
Functions of the menu system are described in Menu System section.
Volume Setting
Press the “V +” button to increase volume.
Press the “- V” button to decrease volume.
A volume level scale (slider) will be displayed at the bottom of the screen.
Programme Selecting
(Previous or next programme)
• Press the “- P” buttonto selectthe previous
programme.
-8-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:338
Page 9
• Press the “P +” button to select the next
programme.
Programme Selecting (direct access):
Press digit buttons on the remote control
handset to select programmes between 0
and 9. The TV will switch to the selected
programme after a short delay.
• For a two digitprogramme numberenter the
second digit after pressing the first digit
within 2 seconds.
MenuSystem
Your TV has been designed with a menu
system to provide easy manipulation of a
multifunction system.
Press the “M” button to enter the menu.
Press
then
You can access the menus directly by pressing the coloured buttons on the remote control:
Red Button Sound Menu
Green Button Picture Menu
Yellow Button Feature Menu
Blue Button Install Menu
• Press the “M” or

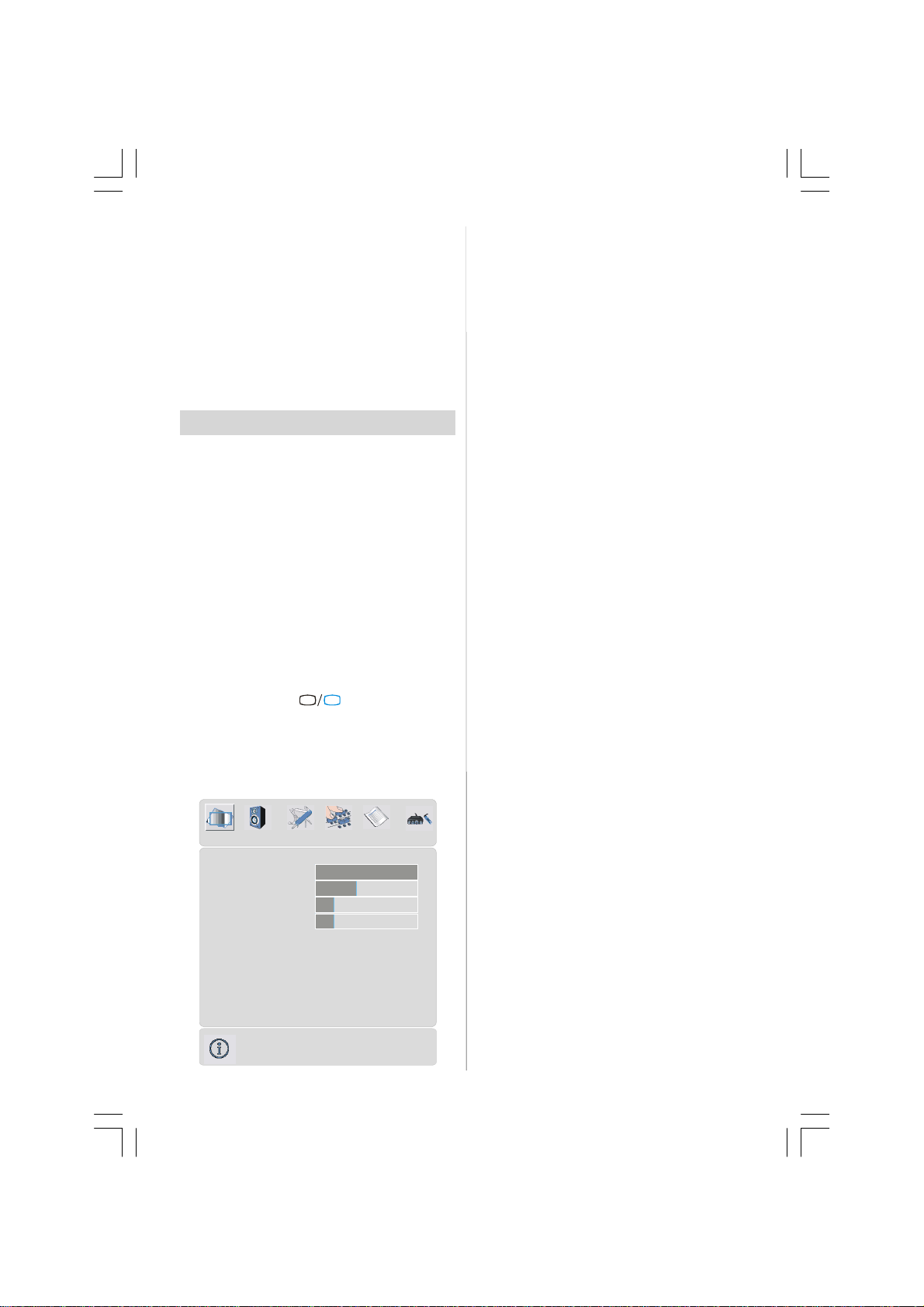

Picture menu
By pressing
Picture menu appears on the screen.
/
button to select a menu title and
/
button to select a menu item and
/
or “OK” button to enter the menu item.
TV
button to return to
the previous menu.
/button, select the first icon.
Contrast
Reset
PAL 50Hz
62
24
10
32
Off
Off
Off
Mode
/
By pressing
Press
/
button to choose one of these
button, select Mode.
options:Natural, Cinema and Dynamic.
Contrast
/
By pressing
Press
button to increase contrast. Press
button, select Contrast.
button to decrease contrast. Contrast level
can be adjusted between 0 and 63.
Brightness
By pressing
Press
/button, select Brightness.
button to increase brightness. Press
button to decrease brightness. Brightness
level can be adjusted between 0 and 63.
Sharpness
/
By pressing
ness. Press
ness. Press
button, select Sharp-
button to increase sharp-
button to decrease sharpness. Sharpness level can be adjusted between 0 and 31.
Colour
By pressing
Press
/button, select Colour.
button to increase colour. Press
button to decrease colour. Colour level can
be adjusted between 0 and 99.
Hue
This item is displayed in picture menu when
the TV receives an NTSC signal. By pressing
/
button, select Hue. Press
to increase hue level. Press
button
button to decrease hue level. Hue level can be adjusted
between -31 and 31.
Colour Temp
By pressing
Temp. Press
/
button, select Colour
/
button to choose one of
these options:Cool, Normal andWarm.
Noise Reduction
This item is used to reduce the image noise
andimprovethepicture qualityatweak signals.
By pressing
duction. Press
/
button, select Noise Re-
/
button to set Noise re-
duction levelto Off,Low, Medium or High.
-9-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:339
Page 10
Film Mode
SOUND
10kHz
0
0
0
0
/
Films are recorded at a different number of
frames per second to normal television
programmes.
By pressing
Press
/
button,selectFilm Mode.
/
button to set this feature On or
Off. Turn this feature on when you are watching films to see the fast motion scenes
clearly.
3D Comb
3D Comb is used to improve colour transitions and colour quality of pictures.
By pressing
Press
/
button, select 3D Comb.
/
button to set this feature On or
Off.
Reset
/
By pressing
Press
/
or “OK” button to reset the picture
button, select Reset.
modes to factory default settings.

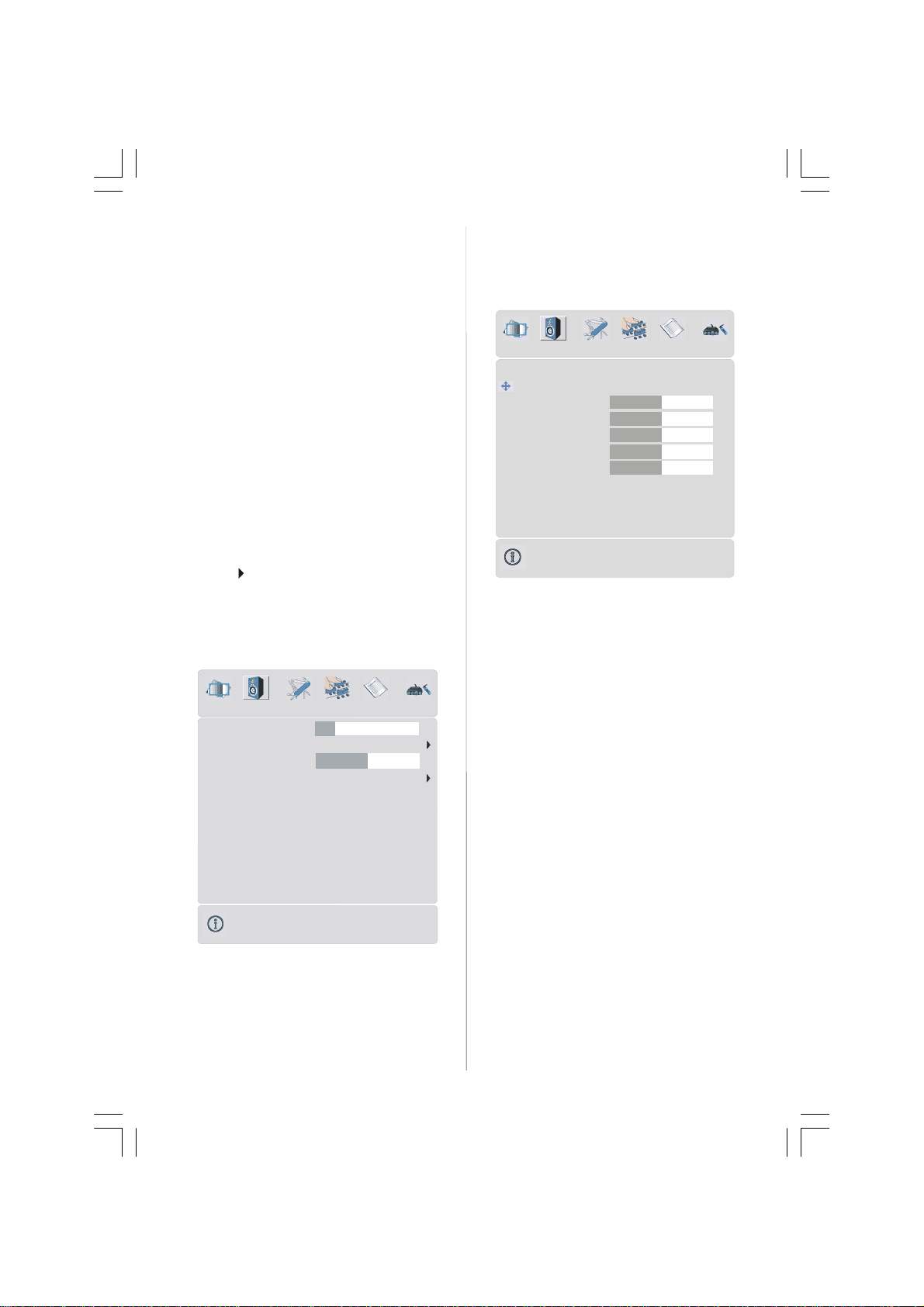

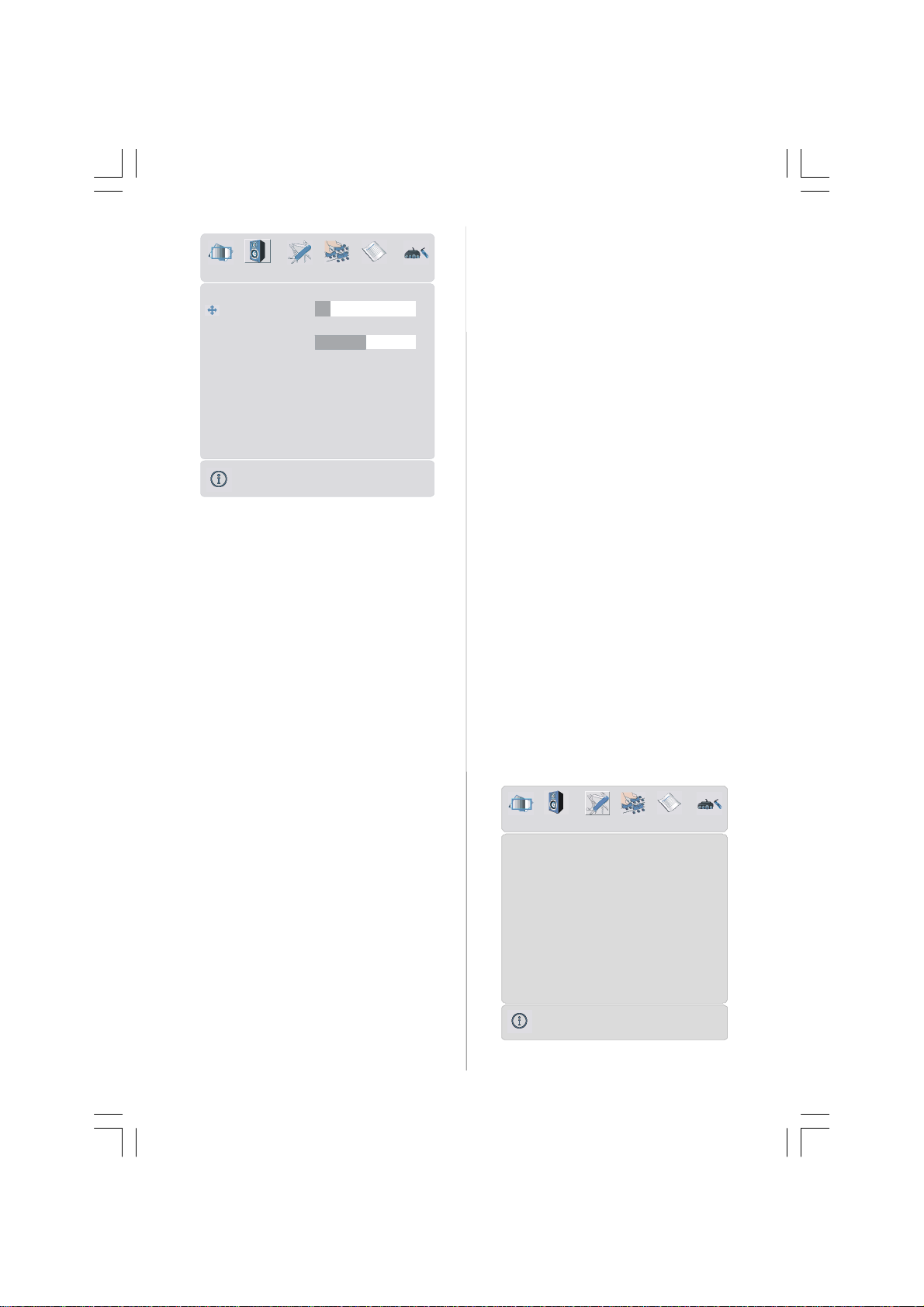

Sound menu
By pressing
icon. Sound menu appears on the screen.
Balance
AVL
Effect
/
button, select the second
10
0
Equalizer
By pressing
Press
/
button, select Equalizer.
/
or “OK” button to enter equalizer
menu.
0
500Hz
1.5kHz
5kHz
In equalizer menu the sound mode can be
changed to User, Pop, Rock, Jazz, Flat and
Classic by pressing
button. Equalizer
menu settings can be changed only when
Sound Mode is User. Select the desired frequency by
crease the frequency gain by pressing
/
button and increase or de-
/
button.
Press the “M” button to return to the previ-
ous menu.
Balance
By pressing
Press
right. Press
/
button, select Balance.
button to increase balance to the
button to increase balance to
the left. Balance level can be adjusted between -31 and 31.
Headphone
Volume
/
By pressing
Press
Press
button to increase volume level.
button to decrease volume level.
button, select Volume.
Volume level can be adjusted between 0
and 63.
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3310
By pressing
phone. Press
hedphone menu.
- 10-
/
button, select Head-
/
or “OK” button to enter
Page 11
Headphone
Volume
Child Lock
Default Zoom
Blue Background
Menu Background
Menu Timeout
Teletext Language
FEATURE
Sound Mode
Balance
10
0
volume
By pressing
Press
Press
/
button, select Volume.
button to increase hp volume level.
button to decrease hp volume level.
Headphone volume level can be adjusted
between 0 and 63.
sound mode
Bypressing
Press
/
button,selectSound Mode.
/
button to changesoundmode.
Sound mode is used to identify sound mode of
the headphone andcanbeset tomono, stereo,
dual a ordual baccordingtothetransmission.
balance
By pressing
Press
right. Press
/
button, select Balance.
button to increase balance to the
button to decrease balance to
the left. Balance level can be adjusted between -31 and 31.
Press the “M” button to return to the previous menu.
Sound Mode
By pressing
Mode. Press
/
button, select Sound
/
buttontochange the mode.
YoucanselectMono, Stereo, Dual A orDual
B mode, only if the selected channel sup-
ports that mode.
In case of bilingual broadcast (Dual Sound),
you can select original or dubbed language
using mode option.
AVL
Automatic Volume Limiting (AVL) function
adjusts the sound to obtain fixed output level
between programs, having different sound
levels.
Pressing
/
button will turn this feature on
oroff.
Effect
You can use this feature to switch the sound
effect on or off. If the current sound system is
Mono and the sound effect is switched on,
then the sound will be heard as if it is Ste-
reo. If the current sound system is Stereo,
switching this effect on will give a more spatialeffect.
Pressing
/
button will turn this feature on
oroff.
Dynamic Bass
Dynamic Bass is used to increase bass effectoftheTVset.
By pressing
Bass. By pressing
/
button, select Dynamic
/
button set Dynamic
bass to Low, High or Off. It is not recommended to select High if listening at high
volume levels.
Feature menu
By pressing
Feature menu appears on the screen.
Sleep Timer
Language
Ext-2 Out
/
button, select the third icon.
English
EXT - 1
Panoramic
Translucent
30 sec
West
Off
Off
On
- 11-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3311
Page 12
Sleep Timer
/
By pressing
button, select Sleep
Timer. The timer can be programmed between Off and 2 hours in steps of 10 minutes by pressing
/
button. If sleep timer
is activated, at the end of the selected time,
the TV automatically goes into stand-by
mode.
Child Lock
You can use this feature to prevent children
from turning the TV on or changing
programmes or adjustments etc. without re-
mote control.
The child lock feature can be set by
/
button to either On or Off. When Off is selected,
there will be no difference in the operation of
your TV. When On is selected, the TV can
only be controlled by the remote control
handset. In this case the control panel buttons, except the Power on/off button, at the
rear side of the TV will not work. If one of
these buttons is pressed, “Child Lock On”
will be displayed on the screen.
Language
By pressing
By pressing
/
button, select Language.
/
button, you can select the
language.
Ext-2 Out
/
By pressing
button, select Ext-2 Out.
You can set Ext-2 Out to TV, EXT-1, EXT-3,
EXT-4 orEXT-5 by pressing
/
button.
Note: Only audio output is available for EXT3 and EXT-5. The other options have both
audio and video outputs.
Blue Background
You can set the TV to automatically change
to a blue screen if the signal is weak or absent, or when there is no input from an exter-
nal device.
The Blue Background featurecan be turned
on or off by pressing
/
button.
Menu Background
/
By pressing
button, select Menu
Background. You can change menu background to Translucent or Opaque by press-
ing
/
button.
Menu Timeout
/
By pressing
Timeout. Press
button, select Menu
/
button to change menu
timeout to 15 sec, 30 sec or60 sec.
Teletext Language
By pressing
Language. Press
/button, select Teletext
/
button to change
Teletext Language to West, East, Cyrillic,
Turk/Gre or Arabic. This will normally be set
to West for Western Europe.

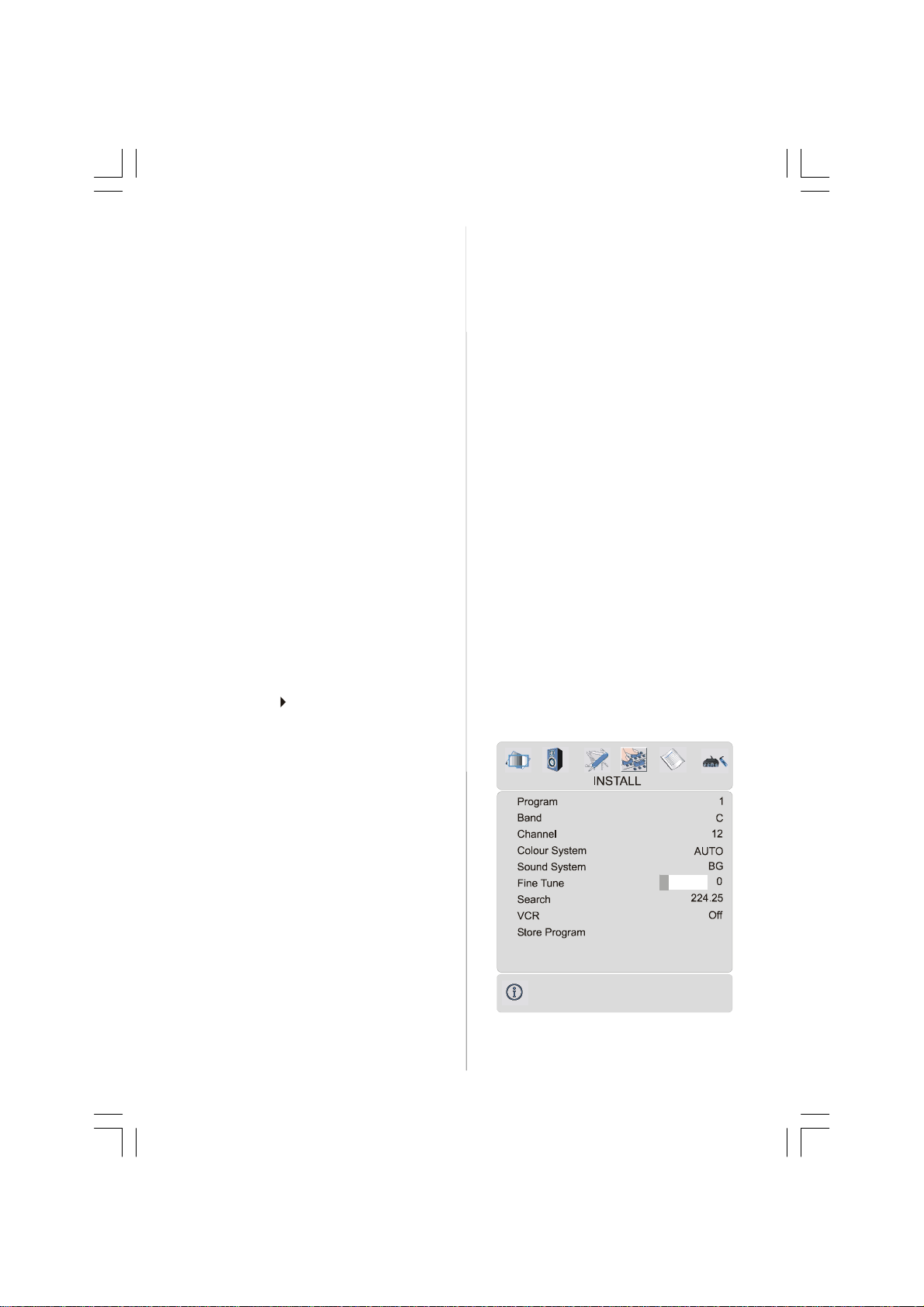

Install menu
By pressing
icon. Install menu appears on the screen.
/
button, select the fourth
Default Zoom
By pressing
/
button, select Default
Zoom. You can set Default Zoom to Panoramic, 4:3 or 14:9 Zoom by pressing
button.
If there is no WSS or aspect ratio (picture
size) information and zoom mode is selected as Auto by pressing the “WIDE” button, then the zoom mode will automatically
change to Default Zoom setting. See also
Zoom Modes on page 15.
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3312
/
- 12-
Page 13
Program
By pressing
Press
/
button, select Program.
/
button to select the program
number. You can also enter a number via
digit buttons on the remote control. There
are 100 program storage between 0 and 99.
Band
Band can be selected either "C" or "S" using
the
/
buttons. "C" is used for "Off Air"
signals. "S" is used for cable connections.
Channel
/
Channel can be changed by
button or
Digit Buttons.
Colour System
/
By pressing
System. Press
button, select Colour
/
button to change the
colour system to PAL, SECAM, PAL60 or
AUTO.
If Sound System is set to I, SECAM is not
available for the Colour System.
Note: In EXT mode, you can choose NTSC
3.58 and NTSC 4.43 as well.
Sound System
By pressing the
Sound System. Press the
/
buttons, select
/
buttons to
select the Sound system. BG "Western
Europe", DK "Eastern Europe", I "UK only" L
and LP "France".
FineTune
By pressing
Press
/
button, select Fine Tune.
/
button to adjust the tuning.
Search
/
By pressing
Press
/
button to start program search-
button, select Search.
ing. The searching will stop when a signal is
found. You can also enter a frequency value
directly by pressing the digit buttons.
VCR (Video Cassette Recorder)
• This item can be seen in all modes except
EXT-3 and EXT-5.
• If you want to watch a VCR sourcefrom one
of these modes, then it will be better to set
VCR mode“on”. For this, while the cursor is
on this item press the
/
buttons to set it
“On”.
• If you want to watch a DVD , then you must
set this item “Off”.
Store Program
By pressing
gram. Press
/
button, select Store Pro-
/
or “OK” button to store the
adjustments. “Program Stored” will be displayed on the screen.
Program menu
By pressing
Program menu appears on the screen.
By moving the cursor in four directions you
can reach 20 programmes in the same
page. You can scroll the pages up or down
by pressing the navigation buttons to see all
the programmes in TV mode (except the AV
mode).
By cursor action, programme selection is
done automatically.
Name:
To change the name of a decided
programme, select the programme and
press the RED button.
The first letter of the selected name starts to
blink. Press
/
button, select thefifth icon.
11 C - 43
12 C - 64
13 C - 68
16 - - - - 17 - - - - -
18 - - - - 19 - - - - -
20 - - - - -
APS
/
button to change that let-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3313
- 13-
Page 14
ter and
WARNING!
UK
Cancel
/
button to select the other letters.
By pressing the RED button, you can store
the name.
Insert:
Select the programme which you want to insert by navigation buttons. Press the
GREEN button. By navigation buttons move
the selected programme to the decided
programme space and press the GREEN
button again.
Delete:
To delete a programme, press the YELLOW
button. Pressing the YELLOW button again
erases the selected programme from the
programme list, and the programmes below
shift one up.
APS (Automatic Programming System)
When you press the BLUE button for APS,
the following warning screen will be dis-
played.
APS is running...
UK - I 155,25 Mhz
01 - C-01
After APS is finalized, the programme table
will appear on the screen.
Source menu
By pressing
icon. Source menu appears on the screen.
EXT - 2
EXT - 3
EXT - 4
EXT - 4S
EXT - 5
/
button, select the sixth
All prestoredprograms
will be deleted
Press the BLUE button to cancel APS if you
do not want to delete your existing
programme list.
To continue APS, first select the country by
pressing
/
button and then press the
RED or “OK”button.
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3314
In source menu, highlight a source by
pressing
mode by pressing
/
button and switch to that
/
or “OK”button.
Other Features
TV Status
Programme Number, Programme Name,
Sound Indicator and Zoom Mode are dis-
played on the upper right side of the screen
when a new programme is entered,
ton is pressed.
Mute Indicator
It is placed in the upper left side of the
screen when enabled.
To cancel mute, there are two alternatives;
the first one is pressing the
- 14-
button and
TV
but-
Page 15
the second one is increasing/decreasing
the volume level.
Freeze Picture
You can freeze the picture on the screen by
pressing the OK button.
Zoom Modes
Zoom mode can be changed by pressing
theWIDE button. You can change the screen
size according to the picture aspect ratio.
Select the optimum one from the following
ZOOM modes.
Auto:
When a WSS (Wide Screen Signalling) sig-
nal, which shows the aspect ratio of the picture, is included in the broadcast signal or
the signal from an external device, the TV
automatically changes the ZOOM mode according to the WSS signal.
• When theAUTO mode doesnotfunctioncor-
rectly due to poor WSS signal quality or
when you want to change the ZOOM mode,
change to another ZOOM mode manually.
Full:
This uniformly stretches the left and right
sides of a normal picture (4:3 aspect ratio)
to fill the wide TV screen.
16:9 Subtitle:
This zooms up the wide picture (16:9 aspect
ratio) with subtitles to the full screen.
“Default Zoom” Modes:
4:3
Use to view a normal picture (4:3 aspect ratio) as this is its original shape.
14:9 Zoom:
This zooms up the wide picture (14:9 aspect
ratio) to the upper and lower limits of the
screen.
Panoramic:
This stretches the left and right sides of a
normal picture (4:3 aspect ratio) to fill the
screen, without making the picture appear
unnatural.
• For 16:9 aspect ratio pictures thathavebeen
squeezed into a normal picture (4:3 aspect
ratio), use the Full mode to restore the picture to its original shape.
Cinema:
This zooms up the wide picture (16:9 aspect
ratio) to the full screen.
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3315
The top and bottom of the picture are slightly
cutoff.
- 15-
Page 16
Teletext
GUIDE
Teletext is an information system that displays text on your TV screen. Using the Teletext information system you can view a page
of information on a subject that is available
in the list of contents (index).
To Operate Teletext
• Select a TV station where Teletext is being
transmitted.
• Press the
tents (index) is displayed on the screen.
button. Usually the list of con-
AV
Teletext page.
To Select Double Height Text
• Press the button for the top half of the information page to be displayed in double
height text.
• Press the
of the information page to be displayed in
double height text.
• Press the
page of normal height text.
button again for the bottomhalf
button once more for the full
To Reveal “Concealed” Information
• Pressing the button once will reveal answers on a quiz or games page.
• Pressing the
the revealed answers.
button again will conceal
WIDE
To Select A Page Of Teletext
• Press the appropriate digit buttons for the
required Teletext page number.
The selected page number is displayed in
the top left corner of the screen. The Teletext
page counter searches until the selected
page number is located, the desired page is
then displayed on the screen.
• Press the
Teletext screen forward one page at a time.
• Press the
text screen backward one page at a time.
or “P +” button to move the
or “- P”button to move the Tele-
To Select Index Page
• To select the pagenumber of the index(generally page 100), press the
button.
To Select Teletext With A TV
Programme
• Pressthe button.Thetextis nowsuperimposed over the programme on the screen.
• Press the
button again to return to the
To Stop Automatic Page Change
The teletext page you have selected may
contain more information than what is on the
screen; the rest of the information will be
displayed after a period of time.
• Press the
page change.
• Press the
page to be displayed.
button to stop the automatic
button again to allow the next
To Select A Subcode Page
Subcode pages are subsections of long
Teletext pages that can only be displayed on
the screen one section at a time.
• Select the required Teletext page.
• Press the
• Select the required subcode page number
by pressing four digit buttons (e.g. 0001).
• If the selected subcode pageis not displayed
in a short time, press the
programme will be displayed on the screen.
• Teletext page number will be displayed on
the upper left corner of the screen when the
selected page is found.
• Press the
Teletext page.
button.
button. TV
button to display the selected
- 16-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3316
Page 17
To Exit Teletext
• Press the button. The screen will switch
to TV mode.
To Display The Time
• While watching a TV programme with Teletext transmission press the
current time information, capturedfrom Teletext will be displayed on the screen.
• If the programme being watched does not
have Teletext transmission, no information
will be displayed.
button. The
If TOP text transmission is not available, in
case of operation of these commands,
wraparound occurs. For example page 100
appears to be one greater than page 199.
ConnectPeripheral
Equipment
There is a wide range of audio and video
equipmentthat can be connected to your TV.
The following connection diagrams show you
where the different (Optional) equipment
shouldbe connected at therear side of theTV.
Fastext
Your TV supports the 1000 page Teletext system. When the page number of any of the
1000 pages in memory is entered, the system
will not search for the requested page; instead
it will display the page automatically. If the requested page is not in memory, the system
will search for the requested page number
and save the 1000 pages including the requestedpageintomemory afterfinding it.
• Press the
screen forward one page at a time.
• Press the
screen backward one page at a time.
For Fastext
The subject-heading for the information may
have a particular colour.
•Pressanappropriate RED,GREEN,YELLOW
or BLUE button in order to reachtherelevant
page quickly.
For TOP text
TOP text mode of operation will be activated
automatically according to the transmission.
• If TOP text transmission is present, colour
coded buttons will appear in status row.
• If TOP text transmission is not present, status row will not appear.
The subject-heading for information may be
located in coloured box.
In Top mode the
quest the next or previous page respectively.
button to move the Teletext
button to move the Teletext
orcommands will re-
High Definition
Your LCD Television is capable of display-
ing High Definition pictures from devices
such as a High Definition Satellite Receiver
or DVD Player. These devices must be connected via the HDMI socket (EXT-5) or Com-
ponent Socket (EXT-3). These sockets can
accept either 720p or 1080i signals.
Note: For proper connection of a device to
HDMI input of your TV via using a DVI-toHDMI cable, use PC Audio In input for sound
connection.
Via The Scart
LCD TV has 2 Scart sockets. If you want to
connect peripherals (e.g. video, decoder,
etc.) which have Scart sockets to the TV, use
SCART 1 or SCART2.
If an external device is connected via the
Scart sockets, the TV will be switched to AV
mode automatically.
• Do not connect Digital Set Top Box devices
via Scart 1. Use Scart 2.
Via Aerial Input
If you want to connect to your TV, peripherals
like video recorders or decoders, but the device you want to connect does not have a
Scart socket, you should connect it to the
Aerial input of the TV.
If the VCR is connected via Aerial input it
is suggested to use Programme 0.
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3317
- 17-
Page 18
Decoder
Cable TV offers you a wide choice of
programmes. Most of them are free, others
are to be paid for by the viewer. This means
that you will need to subscribe to the broadcasting organisation whose programmes
you wish to receive. This organisation will
supply you a corresponding decoder unit to
allow the programmes to be unscrambled.
For further information ask your dealer. See
also the booklet supplied with your decoder.
Connect a decoder with an aerial socket
to the TV
• Connect the aerial cable.
Connect a decoder without an aerial
socket to the TV
• Connect the decoder to the TV with a Scart
cable toSCART 1.
TV And Video Recorder
• Connect the aerial cables.
Better picture quality can be obtained if you
alsoconnect a Scartcable toSCART sockets.
Playback NTSC
To use this option you can;
• Connect an NTSC VCR player to a Scart
socket at the rear side of the TV.
•Connect an NTSC VCR playerto RCA Jacks
at the side of the TV.
Then, press
appropriate source.
AV
/SOURCE button to select
CopyFacility
Source selection for VCR recording.
• Select Feature menu.
• Select Ext-2 Out bypressing
• Select a source to copy the picture from that
source.
/
button.
Search For And Store The Test
Signal Of The Video Recorder
• Unplug the aerial cable from the aerial
socket of your video recorder.
• SwitchonyourTVand put the video recorder
on the test signal. (See the booklet for your
video recorder.)
•Enter the Install menu and select search.
• Search for the test signal of your video recorder in the same way as you searched
for and stored theTV signals. Storethe test
signal under programme number 0.
• Replace the aerialcable in the aerial socket
ofyourvideo recorder once you have stored
the test signal.
Camera And Camcorder
To Connect To AV Input
Connect your camera or camcorder to AV
(EXT-4) inputat therightside of the TV.
• Connectyour equipmenttotheTVviaVIDEO
(yellow),AUDIO R (red) and AUDIO L (white)
inputs. You must connectthe jacks to the input using the same colour.
To Connect to S-Video Input
Connect your camera or camcorder S-Video
output to the inputat the right of the Tv.
Connect the equipment to the Tv via the
S-Video input and audio input via the input
AV-2. Use a S-Video lead and RCA (phono)
lead.
Connect The Decoder To The
Video Recorder
Some video recorders have a special Scart
socket for decoder.
• Connect a Scart cable to theScartsocket of
your decoder and to the special Scart
socket of your video recorder. Refer to the
bookletof your videorecorder.
• To connect your video recorderto the TV, refer to the TV and Video Recorder section.
If you want to connect more equipment to
yourTV, consult your dealer.
Connecting Headphones
Use the stereo headphone socket at the
rightside of the TV, to connect headphones.
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3318
- 18-
Page 19
Aerial Connection
Outdoor Aerial Connection
Round 75 ohm coaxial cable
75
Rear of TV
ConnectPeripheral Equipment
either connect th e aerial straight to your TV...
wall
Aerial (RF)
socket
Lead
Aerial (RF) Socket
...or through a VC R and satellite decoder.
LCD TV
RF Lead from
VCR to TV
RF Lead
from VCR to
Satellite
Aerial
RF Lead to
Aerial
• Scart Lead to
o n TV.EXT-1
TV VCR
ANT.IN
ANT.IN
AV-1
AV-2
...or connect the aeri al through a VCR...
LCD TV
(RF) connector
lead VCR to TV
Aerial (RF) Socket VCR
wall
socket
Aerial (RF)
Lead
Aerial
VCR
RF Lead from
Satellite to TV
ANT.IN
EXT-1o n TV.
TV VCR
Aerial
Aerial (RF) Socket
AV-1
AV-2
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3319
...or through a DVD Player...
LCD TV
EXT-1on TV.
- 19-
Page 20
Trouble Shooting Guide
Should the Tv malfunction, please see below before calling the Customer Help line.
S ym p to m P os si b le c a u se R e m e dy
Se t D ead . N o led lit. N o p ow e r to the Tv
N o P i c ture. Le d R ED Tv in s ta ndb y m od e.
N o P i c ture. Le d G re en . In c o rre c t in pu t s ele cte d . Se le ct TV or ID TV.
N o is y o r Gh os tin g p ictu re
(Ana lo g) s ign al.
Pictu re fre ezin g or b re a kin g u p
(D ig ital) s ig n al
N o Te xt o r co rrup t te xt Po o r s ign al Se e ab ove
N o s ou n d.
So u nd on ly fro m o ne s pe ake r. Ba l a nce in co rre c tly s et.
N o AV s ig na l.
N o o pe ra tio n o r inte rm itten
to p eratio n.
Po o r s ign al.
Po o r s ign al
So u nd s ource m a y be
in co rre c tly s et. Mute m o de m ay
be s electe d.
C o nn e ctro rs lo os e.
Wro ng in pu t s elec ted
R e m ote co ntrol
Po o r I/R s ig nal fro m h and se t.
Sw itc h o n th e w all s ock e t.
U s e e ithe r th e “on s et” co n tro ls o r
th e “de cim a l d ig it” b utto ns o n th e
R /C to bring th e Tv o u t o f s tan dby.
C h eck a ll a e rial co nn e ctio ns .
If u sin g a n ind oo r a eria l it m a y no t
be s uitab le .
D ig ita l Tv re qu ire s a b ette r s ig nal
th a n a n alog . Yo u m a y ne e d a n
ae ria l u pg ra de.
C h eck s ou nd s etting s, volu m e
En ter s ou nd m e nu an d ad ju s t
s o un d b a la nce .
C h eck a ll co n ne c tion s, try
re pla cem e nt le a ds . C he c k c orre ct
in put is s e l e cted .
R e place ba tte rie s . Mo ve o bje cts in
pa th to tv. R edu ce h ig h inc id e nt
lig ht in ro om .
If you are still having difficulty please call the Technical help line. Ring 01422 203676
(Normal rates apply).
OpeninghoursMon-Fri8 am – 8pm. Sat 9 am – 4pm. Sun 11am– 4pm “Bank holidays as Sun”
Care of the Screen.
Do NOT use any solvents or abrasive cleaners on the screen. You may damage the invisible
coating. If the screen is dirty you may use a soft cloth and mild detergent.
- 20-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3320
Page 21
CAUTION
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical &Electronic Equipment (WEEE)
The crossed out “Wheelie bin” is intended to show that this appliance must not be placed
with ordinary household waste at the end of its useful life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal,
please keep separate from other household waste and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where you purchased the product, or their local government office for details of where
and how you can take this item for environmentally safe re-cycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product must not be mixed
with other commercial wastes for disposal
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3321
- 21-
Page 22
Specifications
TVBROADCASTING
PAL/SECAMB/GD/KK'I/I'L/L'
RECEIVINGCHANNELS
VHF(BANDI/III)
UHF (BANDU)
HYPERBAND
CABLETV (S1-S20/ S21-S41)
NUMBER OFPRESETCHANNELS 100
CHANNELINDICATOR
On Screen Display
RFAERIAL INPUT
75 Ohm (unbalanced)
OPERATINGVOLTAGE
230-240VAC, 50 Hz.
AUDIO
German+Nicam Stereo
AUDIOOUTPUT POWER (W
RMS.
2 x 8
POWERCONSUMPTION (W)
210 W
1,2 W (Stand-by)
PANEL
16:9 display, 42” Screen Size
DIMENSIONS (mm)
D L H
285
118
1188
1188
735
680
24,4
21,8
Due to on going developments.
Specifications may be changed without
notice
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 12.09.2006, 16:2022
) (%10 THD)
With foot
- 22-
Page 23
ImportantInstruction
For your own safety read following instruction carefully before attempting to connect this unit
to the mains supply.

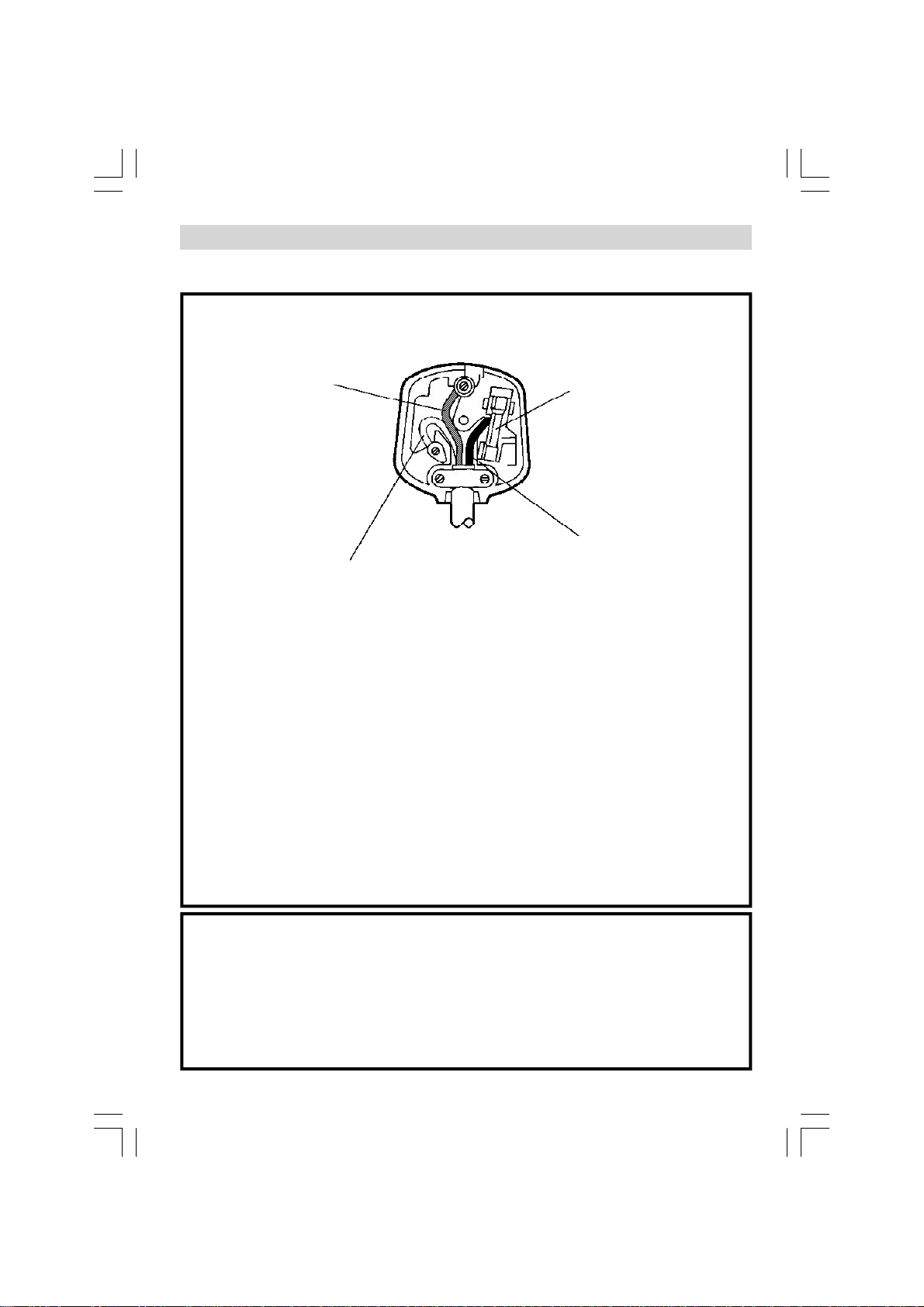

MAINS (AC) OPERATION
The wires in the mains lead are coloured in accordance with the following code :
GREEN
&
YELLOW
(Earth)
BLUE
(Neutral)
IMPORTANT
As the colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal which
is marked with the letter E, or by the earth symbol, or coloured green or green and
yellow.
The wire which is coloured blue or black must be connected to the terminal which is
marked with the letter N or coloured Black.
The wire which is coloured brown or red must be connected to the terminal which is
marked with the letter L or coloured Red.
For continued protection against risk of fire, replace only with same type and rating of
fuse(ASTA approved 5A 250VACfuse).
(If approved by the qualified TV service personel, 13A fuse may also be used)
If your product is fitted with a moulded plug which requires replacement please cut off
and dispose of safely, then rewire as shown above.
FUSE
BROWN
(Live)
CAUTION
TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE
REMOVINGCOVER.NO USER SERVICEABLE PARTS INSIDE. REFERSERVICING TO
QUALIFIEDSERVICE PERSONNEL.
SAFETY PRECAUTION
THISEQUIPMENT MUST BE DISCONNECTED FROMTHE MAINSWHEN NOT IN USE.
DONOTALLOW THISUNIT TO BE EXPOSED TO RAINORMOISTURE.
- 23-
ENG-42720W-1063UK-42 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)-50093758.p65 11.09.2006, 12:3323
Loading...
