INSTRUCTION MANUAL
APTMIC110AR
Customer Help Line 01422 263313
www.ekey.co.uk
Page 2
WARNING
TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING : SHOCK HAZARD-DO NOT OPEN
LIGHTNING FLASH WITH ARROWHEAD SYMBOL -
within an equilateral triangle, is intended to alert t
us e r t o th e pr e sen c e o f un i nsu l ate d da n ger o
voltage within the products enclosure that may be
sufficient m agn itu de to constitu de a r isk of electr
shock to person
The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:
CLA SS 1 LA SE R PRO DU CT
KLA SS 1 LA SE R APP AR
LUO KE N 1 L AI SERLA I
KLA SS E 1 L AS ER PR OD U
s.
AT
TE
KT
he
us
of
ic
CLASS 1 LASER PRODUCT LABEL -
This label is attached to the place as illustrated to inform that t
apparatus contains a laser componen
WARNING LABEL INFORMING OF RADIATION -
This label
warn against further measures on the unit. The equipment contains
a laser radiating laser rays according to the limit of laser product of
class 1.
EXCLAMATION POINT -
is used to indicate that a specific component shall
replaced o nl y by t he c omponent spec if ie d in t h
documentation for safety reaso
is placed inside the unit. As shown in the illustration. To
within an equilateral triangle,
n.
t.
The crossed out “Wheelie bin” is intended to show that this appliance
must
not be placed with ordinary household waste.
Whe
n this appliance has reached the end of its useful life. It must be
disposed
disposal
of in accordance with local by-laws. Consult your local waste
authority. (WEEE Directive)
be
at
he
Page 1
Page 3
SAFETY INSTRUCTIONS
1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTION
3. HEED WARNING
4. FOLLOW INSTRUCTION
5. WATER AND MOISTUR
kitchen sink, laundrytub, swimming pool or in a wet basement.
6. VENTILATION
ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in
installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings
7. HEA
T - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances
(including amplifiers) that produce heat
8. POWER SOURC
operating instructions or as marked on the appliance
9. GROUNDIN
10. POWER CORD PROTECTIO
on or pinched by items placed upon or against them
11. POWER LINES
12. OBJECT and LIQUID ENTRY
the enclosure through openings
13. DAMAGE REQUIRING SERVICE
a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain
d. The appliance has been dropped, or the enclosure damaged
e. The appliance does not appear to operate normally.
14. SERVICING
instructions. All other servicing should be referred to qualified service personnel.
Notes:
a. Dirty or scratched CD may cause a skipping problem. Clean or replace the CD
b. If an error display or malfunction occurs, disconncet the AC cord and remove all the batteries. Then turn the powe
back on.
G - Precautions should be taken to ensure that the grounding means of an appliance is not defeated.
- The user should not attempt to service the appliance beyond that described in the user operating
S - The safety and operating instruction should be retained for future reference.
S - All warnings on the appliance and in the operating instructions should be adhered to.
S - All operating instructions should be followed.
E - The appliance should not be used near water, for example, near a bathtub, washbowl,
- The appliance should be situated so that its location or position does not interfere with its proper
.
.
E - Th e appli an ce shou ld b e conne ct ed to p ow er supply o nly of th e type de sc ribed i n th e
N - Power supply cords should be routed so that they are not likely to be walked
- An outdoor antenna should be located away from power lines.
- Care should be taken so that objects do not fall and liquids are not spilled into
.
- The appliance should be serviced by qualified service personnel when:
.
.
.
.
.
r
BEFORE OPERATION
Notes: CONCERNING COMPACT DISCS.
Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items
a. Usable compact discs. Use only compact disc with the mark shown below
b. CD compact disc only with digital audio signals
.
.
Page 2
:
Page 4
1. POWER INDICATOR
2. FM STEREO INDICATOR
3. PROGRAM
4. REPEAT
5. PLAY / PAUSE
6. SKIP -
7. SKIP +
8. STOP
9. DIAL POINTER
10. BAND SELECTOR
11. FUNCTION SELECTOR
12. VOLUME CONTROL
13. TUNING CONTROL
14. REMOTE SENSOR
15. LED DISPLAY
16. SPEAKER JACKS ( L / R )
17. FM ANTENNA
18. AC CORD

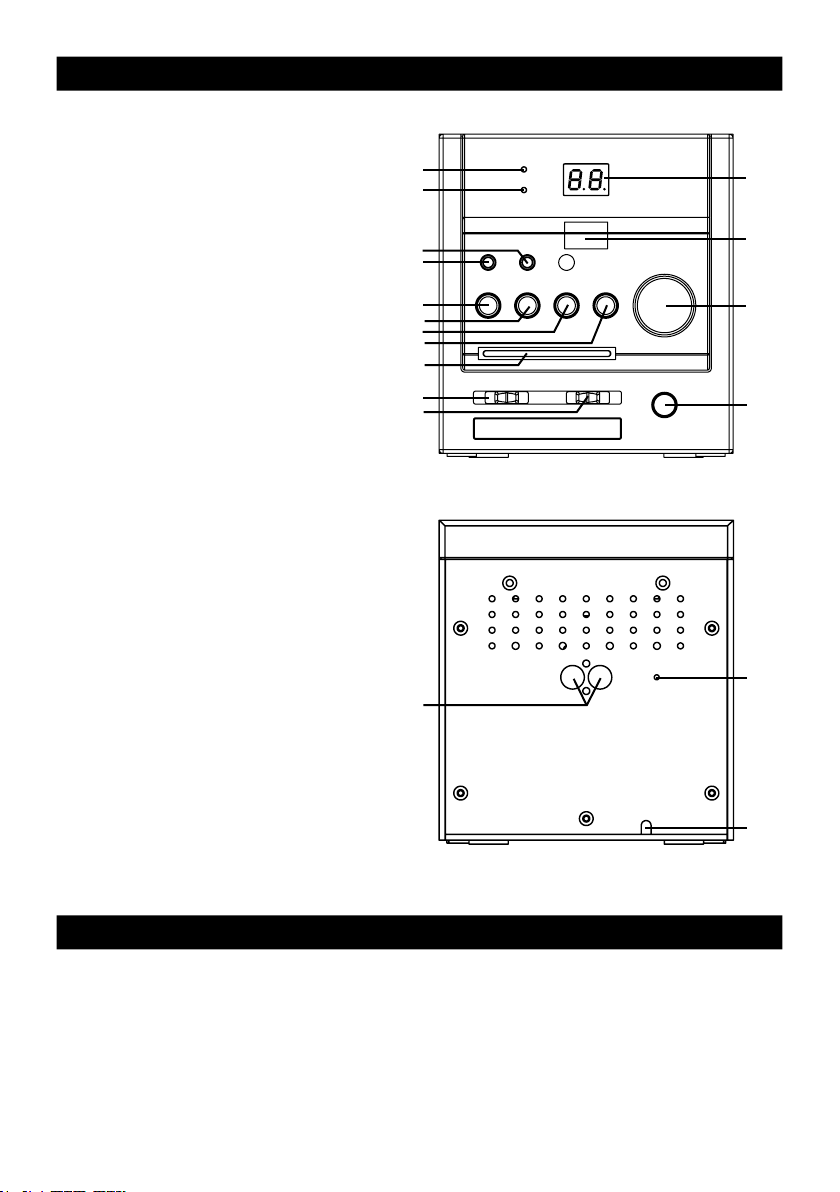

LOCATION OF CONTROL
1
2
3
4
5
6
7
8
9
10
11
15
14
13
12
17
16
18
POWER SOURCE
AC POWER
You can power your appliance by plugging the AC power cord at the back of the appliance into a wall
AC power outlet. Check that the rated voltage of your appliance matches your local voltage.
Page 3
Page 5

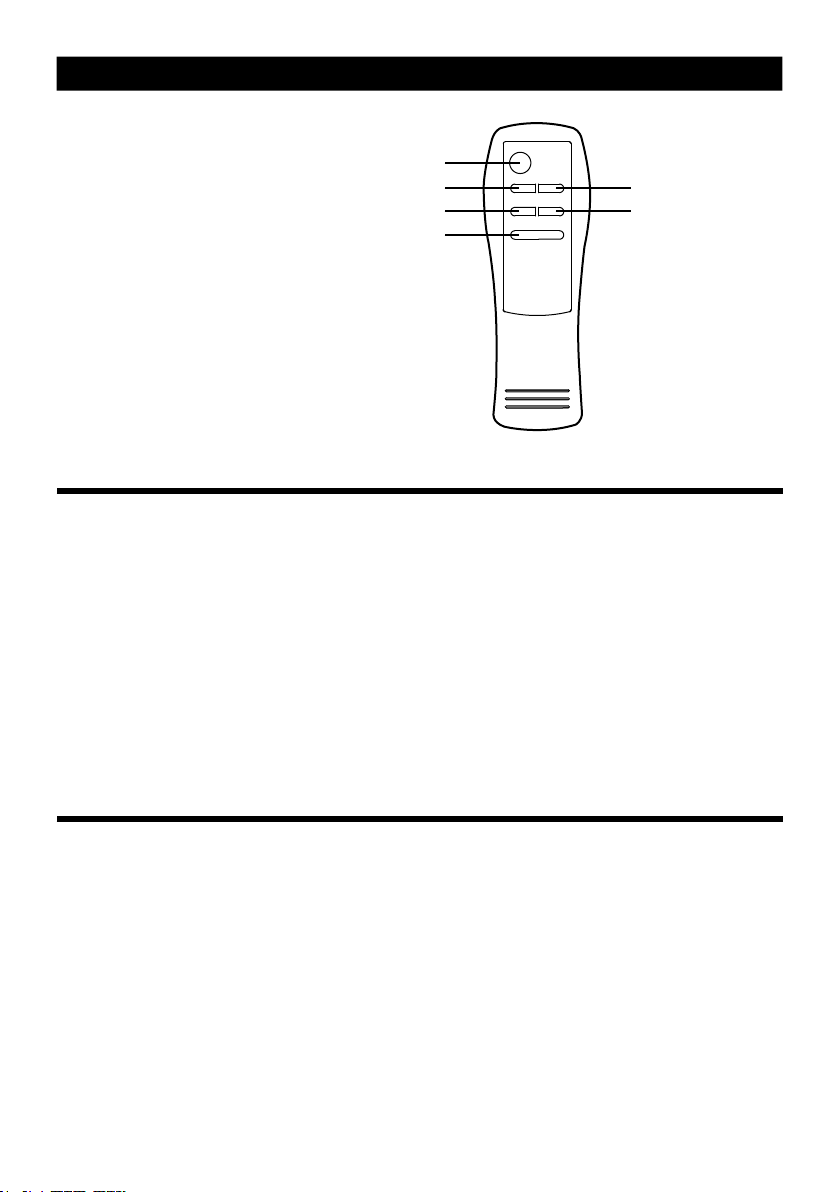

REMOTE CONTROL
1. PLAY / PAUSE
2. SKIP -
3. PROGRAM
4. STOP
5. SKIP +
6. REPEAT
BATTERY INSTALLATION
Insert 2 x “AAA” size batteries into the battery compartment. Be sure that the batteries are inserted
correctly to avoid da mage to t he remote control. Always remove the batteries when the remote
control wi ll not be used for a long peri od of time, as this wil l cause leakage to the batteries a
subsequently damage to your set.
1
2
3
4
5
6
nd
Notes:
- Use batteries of the same type. Never use different types of batteries together.
- If the distance required between the remote control and the appliance decreases, the batteries
are exhausted. In this case replace the batteries with new one.
SENSOR WINDOW OF THE RECEIVER
- Even if the remote control is operated within the effective range, its operation may be impossible if
there are any obstacies between the appliance and the remote control.
- If the remote control is operated near other appliances which generate infrared rays, or if other
remote control devices using infrared rays are used near the appliance, it may operate incorrectly.
Page 4
Page 6
RADIO OPERATION
GENERAL OPERATION
1. Set the “FUNCTION” selector to “RADIO” mode.
2. Select desired band by using the “BAND” selector.
3. Adjust radio frequency to your desired station by using the “TUNING” control.
4. Adjust the “VOLUME” control to the desired level.
FM / FM-STEREO RECEPTION
- Set the “BAND” selector to FM mode for MONO reception.
- Set the “BAND” selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up
to show FM ST. mode.
FOR BETTER RECEPTI
FM - This appliance has a FM antenna located at the rear cabinet. This wire is completely unraveled
and extended for better reception.
AM - This appliance is equipped with a built - in directional ferrite AM antenna. Rotate the appliance
to get better reception.
ON
Page 5
Page 7
CD OPERATION
GENERAL OPERATIO
PLAY / PAUSE Press to start playing CD disc.
Press again to stop playing CD operation temporarily.
Press again to resume playback.
SKIP + & Press to go to the next track or back to the previous track.
SKIP - Press and hold while playing until you find the point of the sound.
STOP Press to stop all CD operation.
N
PLAYBACK
1. Set the “FUNCTION” selector to “CD” mode.
2. Open the CD door and place a CD disc with the label up in the CD compartment.
3. Close the CD door.
4. Focus search is performed if disc is inside. Total number of tracks is read and appears on the display.
5. Press the “PLAY / PAUSE” button to start playing CD disc.
6. Adjust the “VOLUME” control to the desired level
7. Press the “PLAY / PAUSE” button again when you want to stop playback temporarily.
8. Press the “STOP” button when finished.
.
Page 6
Page 8

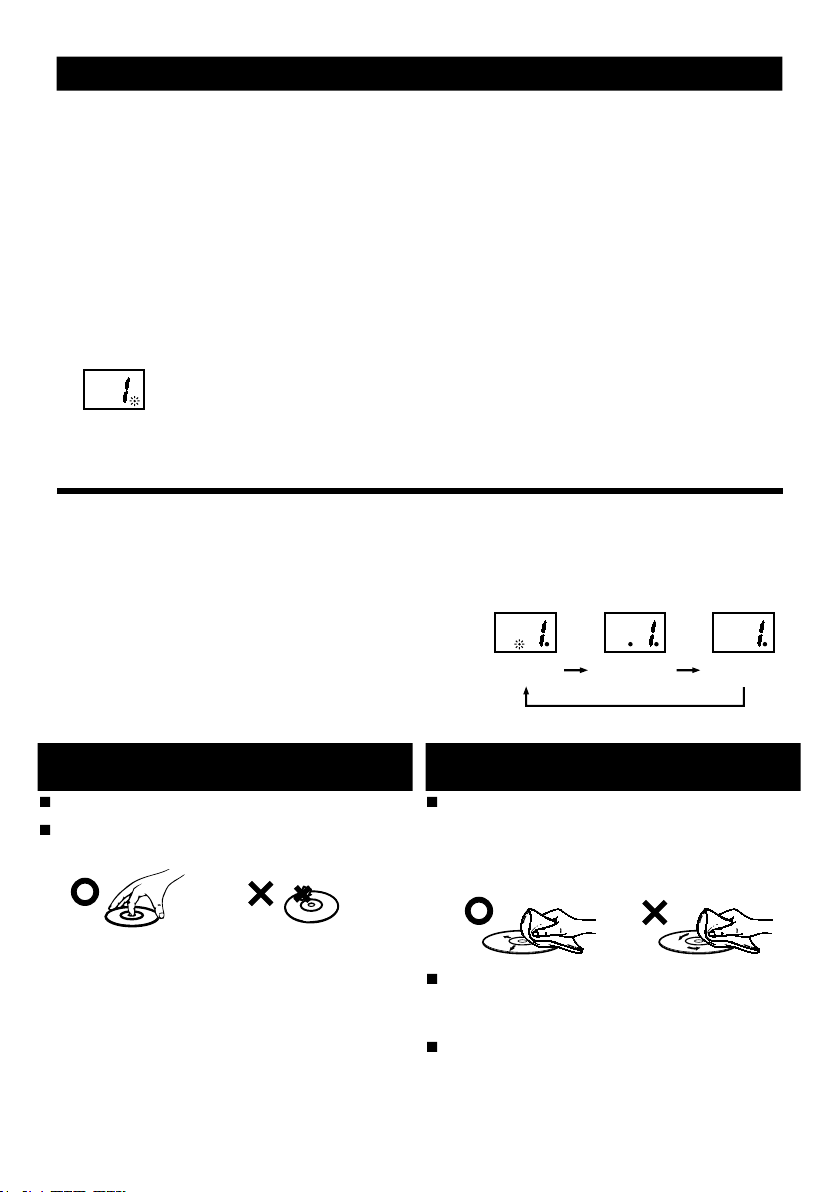

CD OPERATION
PROGRA
Up to 20 tracks can be programmed for disc play in any order.
Be sure to press the “STOP” button before use.
1. Press the “PROGRAM” button, the display will show “01” and flash.
2. Select desired track by using the “SKIP +” or “SKIP -” button.
3. Press the “PROGRAM” button again to confirm desired track into the program memory.
4. Repeat step 2 and 3 to enter additional tracks into the program memory.
5. When all the desired tracks have been programmed. Press the “PLAY / PAUSE” button to play the
disc in the order you have programmed and the program indicator flashes.
6. Press the “STOP” button twice to terminate programmed play and the program indicator will turn off.
M
REPEAT
Press the “REPEAT” button before or during playing CD, a single track or all the tracks can be repeated.
Each press switches the repeat mode as follows:
1 - REPEAT 1 ( The repeat indicator is flashing. )
2 - REPEAT ALL ( The repeat indicator is steadily on. )
3 - NORMAL PLAYBAC
K
REPEAT 1 REPEAT ALL
NORMA
PLAYBAC
L
K
ON HANDLING DISCS ON CLEANING DISCS
Do not touch the playback side of the disc.
Do not attach paper or tape to disc.
Fingerprints and dust on the disc casue picture
and sound deterioration. Wipe the disc from the
centre outwards with a soft cloth. Always keep
the disc clean.
If you can not wipe off the dust with a soft cloth,
wipe the disc lightly with a slightly moistened soft
cloth and finish with a dry cloth.
Do not use any type of solvent such as thinner,
benzine, commercially available cleaners or antistatic spray for vinyl Lps. It may damage the disc.
Page 7
Page 9
Fault Guide.
Should you experience any problems please see guide below before calling the help line
Symptom Fault Action
Dead. No Operations
No Radio operations but Led
lit
No Radio stations on MW Poor signal area Rotate the case of the radio as
No Radio stations on FM Poor signal area Extend and rotate the rod
Not playing CD’s
No power to player. Check the power plug is in
Function switch in incorrect
position.
Function switch set to CD Switch to Radio. Turn up the
Dirty or damaged disc Carefully clean the disc and
firmly and connected to a
power supply.
If batteries are fitted, ensure
they are new and fitted the
correct way round.
Switch to CD or Radio
volume.
the internal aerial is
directional. The extending rod
aerial is not in use on AM
aerial.
place in the player label side
up.
Dirty laser lens Carefully clean the lens with a
If you are still having difficulty please call the Technical help line. Ring 01422 263313 (Normal rates
apply).
Opening hours Mon-Fri 8 am – 8pm. Sat 9 am – 4pm. Sun 11am – 4pm “Bank holidays as Sun”
Or try our website :- www.ekey.co.uk (24Hr)
“cotton bud”.
Specifications
Power Supply : 230V ~ 50Hz
Power Consumption : 13 Watt
Output Power(RMS) : 2 x 2W
erminal impedence : Speaker 4ohms
T
Main Unit Dimensions : 220(L) x 150(W) x 165(H)mm
Speaker Dimensions : 150(L) x 150(W) x 165(H)mm
Net Weight : 3.3kg
Gross Weight : 4kg
uning Frequency : AM: 540-1600 KHz
T
FM: 88-108 MHz
Page 8
Page 10
IMPORTANT

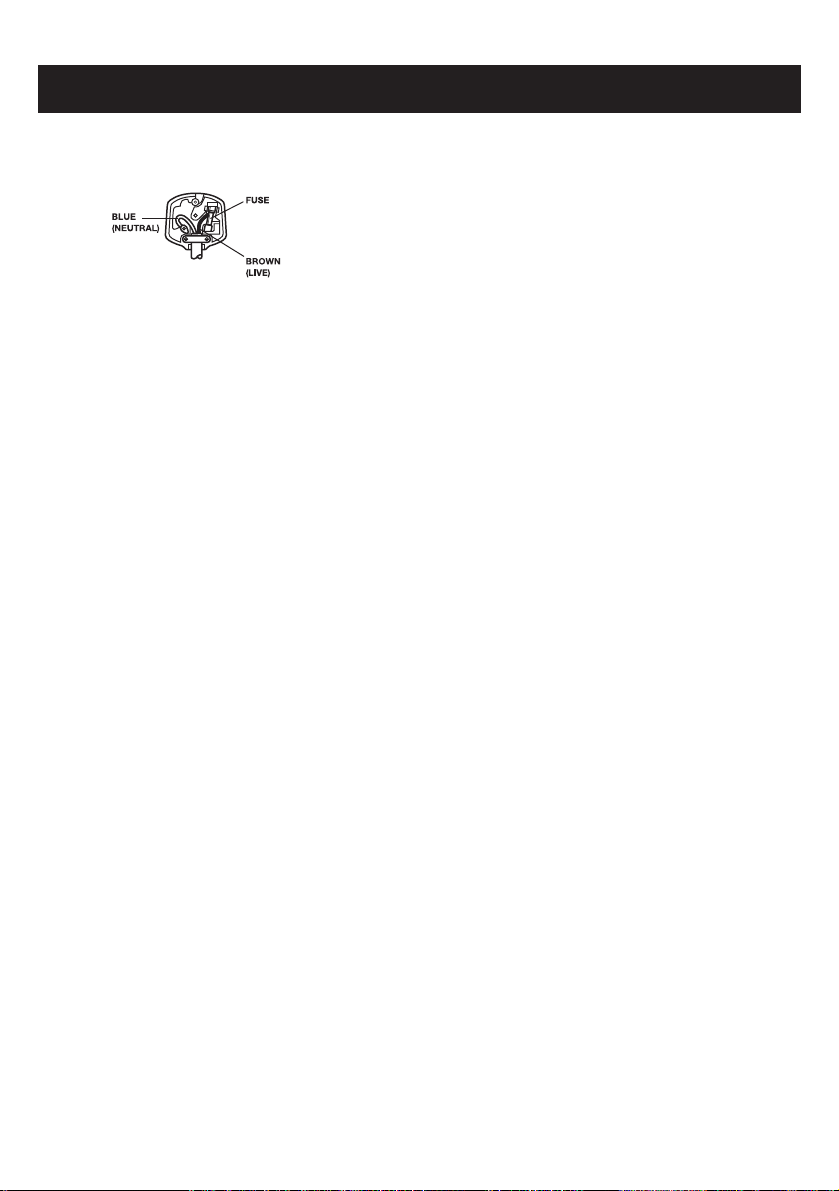

If the mains plug requires replacement, please follow the following instructions.
DO NOT CONNECT THE CENTRE PIN (EARTH).
Connect the Blue wire to the (N) terminal ( this may be
coloured blue).
Connect the Brown wire to the (L) terminal adjacent to
the fuse ( this may be coloured brown).
This appliance must have a 3A fuse fitted.
