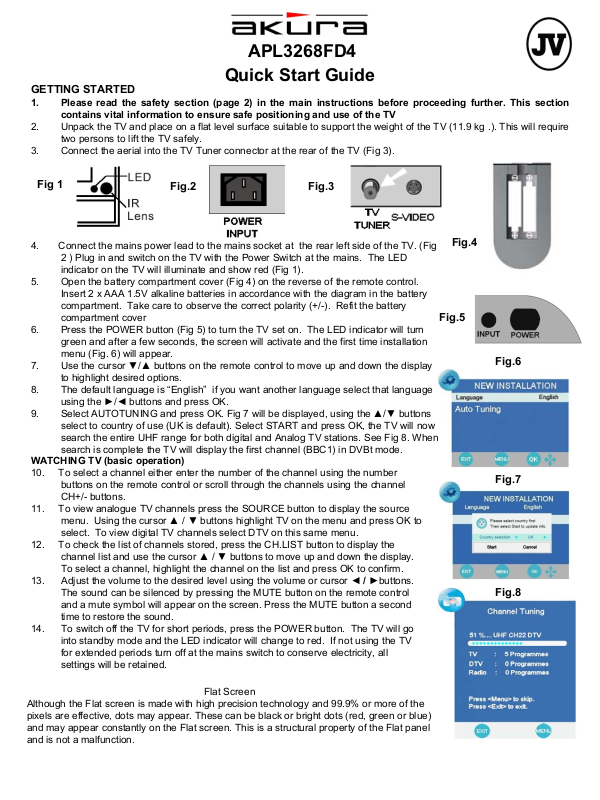

APL3268FD4
Quick Start Guide
GETTING STARTED
1. Please read the safety section (page 2) in the main instructions before proceeding further. This section
contains vital information to ensure safe positioning and use of the TV
2. Unpack the TV and place on a flat level surface suitable to support the weight of the TV (11.9 kg .). This will require
two persons to lift the TV safely.
3. Connect the aerial into the TV Tuner connector at the rear of the TV (Fig 3).
Fig 1
4. Connect the mains power lead to the mains socket at the rear left side of the TV. (Fig
2 ) Plug in and switch on the TV with the Power Switch at the mains. The LED
indicator on the TV will illuminate and show red (Fig 1).
5. Open the battery compartment cover (Fig 4) on the reverse of the remote control.
Insert 2 x AAA 1.5V alkaline batteries in accordance with the diagram in the battery
compartment. Take care to observe the correct polarity (+/-). Refit the battery
compartment cover
6. Press the POWER button (Fig 5) to turn the TV set on. The LED indicator will turn
green and after a few seconds, the screen will activate and the first time installation
menu (Fig. 6) will appear.
7. Use the cursor ▼/▲ buttons on the remote control to move up and down the display
to highlight desired options.
8. The default language is “English” if you want another language select that language
using the ►/◄ buttons and press OK.
9. Select AUTOTUNING and press OK. Fig 7 will be displayed, using the ▲/▼ buttons
select to country of use (UK is default). Select START and press OK, the TV will now
search the entire UHF range for both digital and Analog TV stations. See Fig 8. When
search is complete the TV will display the first channel (BBC1) in DVBt mode.
WATCHING TV (basic operation)
10. To select a channel either enter the number of the channel using the number
buttons on the remote control or scroll through the channels using the channel
CH+/- buttons.
11. To view analogue TV channels press the SOURCE button to display the source
menu. Using the cursor ▲ / ▼ buttons highlight TV on the menu and press OK to
select. To view digital TV channels select DTV on this same menu.
12. To check the list of channels stored, press the CH.LIST button to display the
channel list and use the cursor ▲ / ▼ buttons to move up and down the display.
To select a channel, highlight the channel on the list and press OK to confirm.
13. Adjust the volume to the desired level using the volume or cursor ◄ / ►buttons.
The sound can be silenced by pressing the MUTE button on the remote control
and a mute symbol will appear on the screen. Press the MUTE button a second
time to restore the sound.
14. To switch off the TV for short periods, press the POWER button. The TV will go
into standby mode and the LED indicator will change to red. If not using the TV
for extended periods turn off at the mains switch to conserve electricity, all
settings will be retained.
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8
Flat Screen
Although the Flat screen is made with high precision technology and 99.9% or more of the
pixels are effective, dots may appear. These can be black or bright dots (red, green or blue)
and may appear constantly on the Flat screen. This is a structural property of the Flat panel
and is not a malfunction.
WATCHING TV (basic operation)
15. To select a channel either enter the number of the channel using the number buttons on the
remote control or scroll through the channels using the channel CH+/- buttons either on the
remote or on the side of the TV. (Fig 10)
16. To view analogue TV channels press the SOURCE/INPUT button to display the source
menu. (Fig 11) Using the cursor ▲ / ▼ buttons highlight TV on the menu and press OK to
select. To view digital TV channels select DTV on this same menu. To use other input
sources, select the Input Source required and press OK.
17. Adjust the volume to the desired level using the VOL +/- buttons or the ◄ / ►buttons. The
sound can be silenced by pressing the MUTE button on the remote control and a mute
symbol will appear on the screen. Press the MUTE button a second time to restore the
sound.
18. To switch off the TV for short periods, press the POWER button. The TV will go into
standby mode and the LED indicator will change to red. If not using the TV for extended
periods disconnect from the Mains Supply to conserve electricity, all settings will be
retained.
Wall Mounting
AKURA accepts no responsibility for any damage to the TV or property, caused by,
incorrect mounting of the wall bracket. To mount the TV on a wall you need to
purchase an adjustable bracket to fit 400 x 200mm centres.
Remove the screws as shown below (Fig 12).
Lift the base from the TV.
Keep the screws safe for remounting the base if required
Mount the wall bracket as described by the manufacturer.
Mount the TV to the wall bracket using 4 x 5 mm x 10 mm set screws. (Do NOT use
longer screws as the internal parts of the TV may be damaged).
Fig.10
Fig.11
Fig 12
For advanced operation of this TV please consult the Instruction Manual.
Should you have difficulty in operating this unit, please consult the Trouble Shooting Guide in the Instruction Manual.
If you suspect a fault, please contact the Customer Help Line.
