Akura APL2021W-HDID User's Manual

Model : APL2021W - HDID
20” Digital LCD TV
with DVBt “Freeview” HDMI
LCD Screen
Although the LCD screen is made with high precision technology and 99.9% or more of the pixels are effective, dots may appear. These can be black or bright dots (red, green or blue) and may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.
Contents
LCD SCREEN WARNING Inside cover page
1. Safety Information 2
2. Safety Instructions 3
3. Accessories 4
4. User Controls 4
5. Remote Control 5
6. Connections 7
7. Menu Operation 9
8. Teletext 15

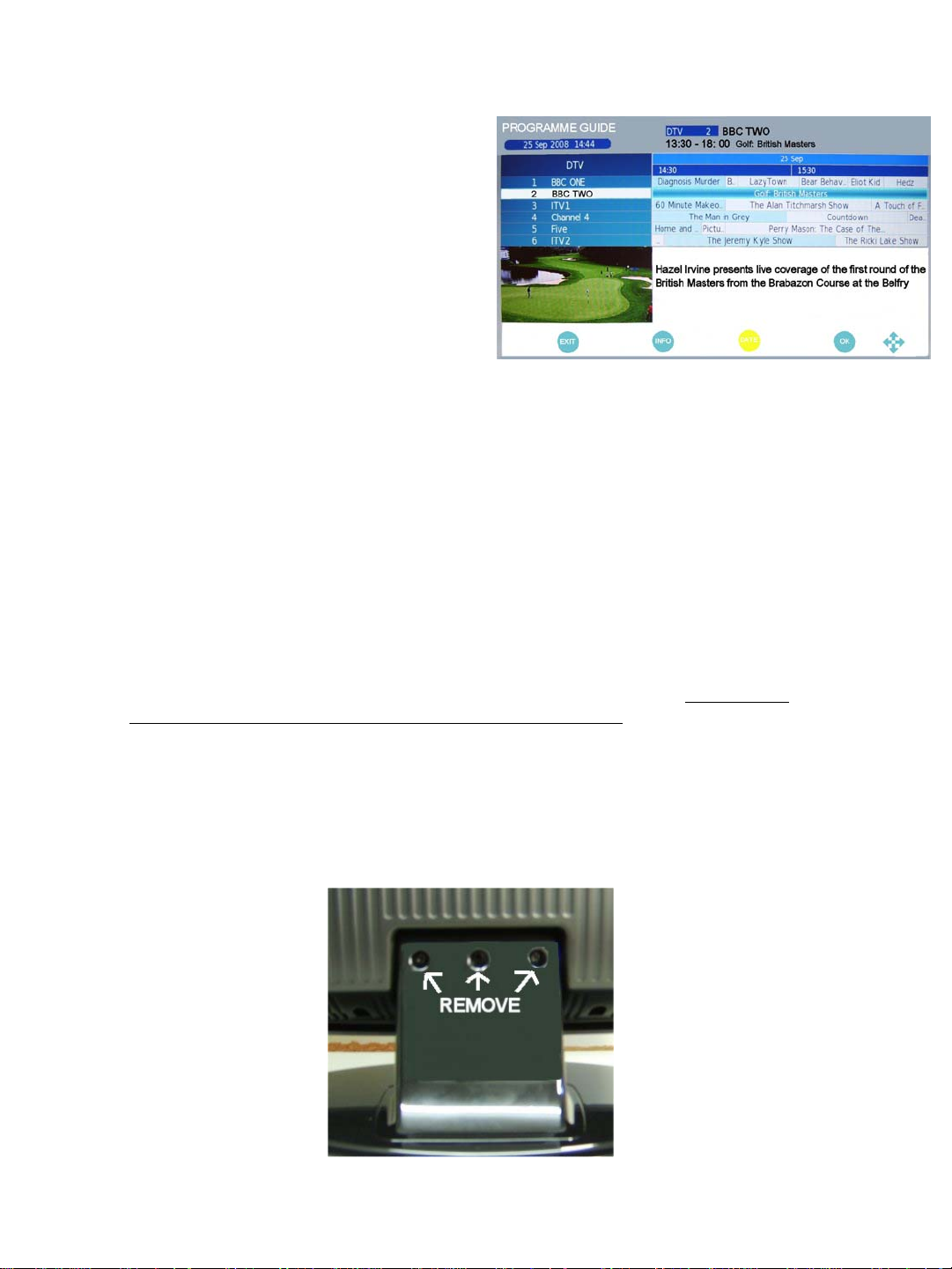

9. EPG (Electronic Programme Guide 16
10. Wall mounting 16
11. Trouble Shooting Guide 17
12. Specifications 18

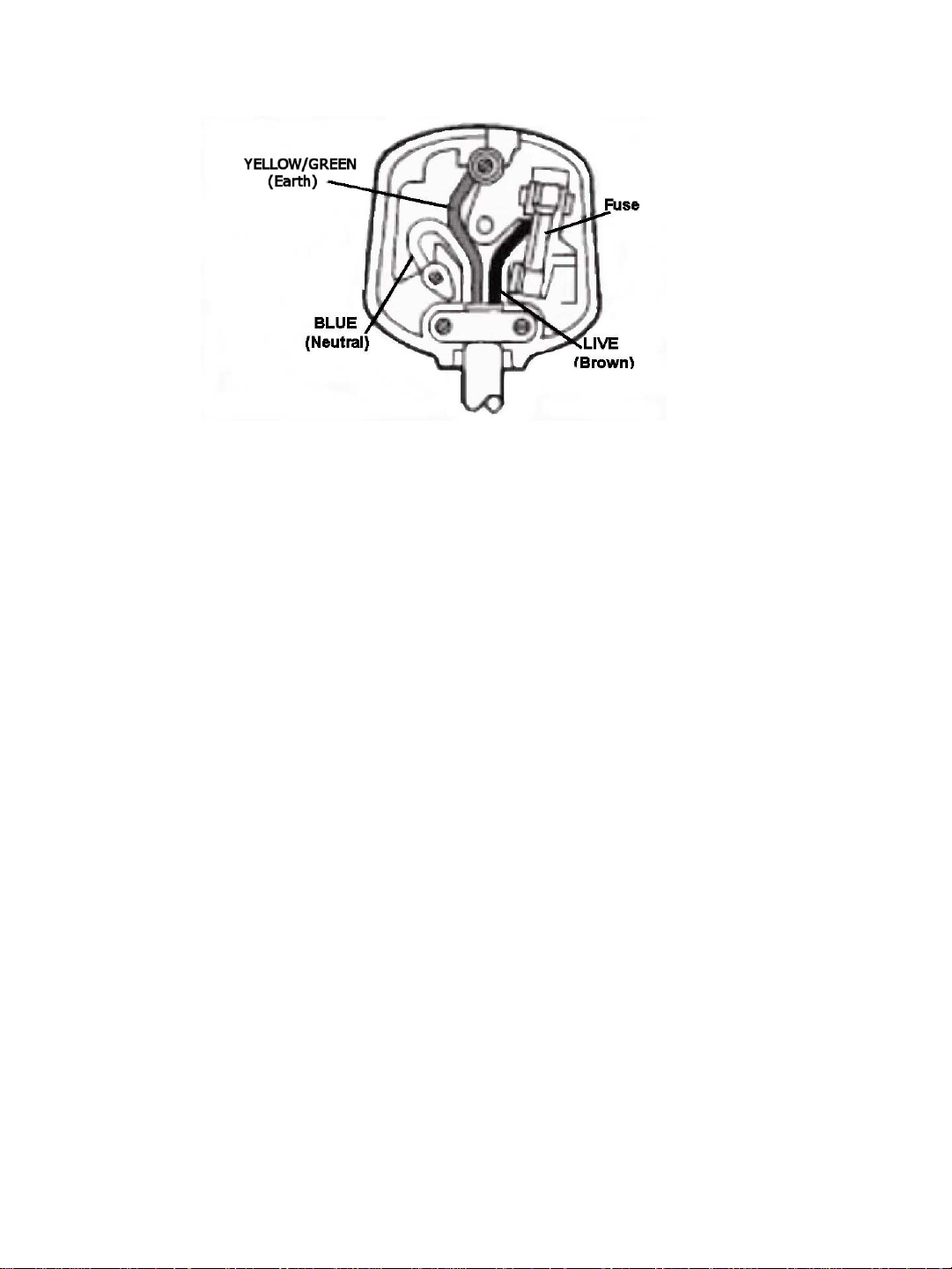

13. Mains Plug Wiring 19
1. Safety Information
The lightning flash with arrowhead symbol, within an equilateral intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE) The crossed out “Wheelie bin” placed with ordinary household waste at the end of its useful life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please keep separate from other household waste and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where you purchased the product, or their local government office for details of where and how you can take this item for environmentally safe re-cycling. Business users should contact their supplier and check the terms the purchase contract. This product must not be mixed with other wastes for disposal
is intended to show that this appliance must not be
triangle, is
and conditions of commercial
This appliance complies with European Safety and Electrical directives
2
2. Safety Instructions
CAUTION. PLEASE READ AND OBSERV E ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This set has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard. The safeguards in this appliance will protect you if you observe the correct procedures for insta ll ation, servicing and operation. There are NO user parts inside. DO NOT REMOVE THE CASE OR OTHER COVERS OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGES OR LASER RADIATION AND WILL INVALIDATE YOUR WARRANTY. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.
Unpacking and Handling. Open the carton carefully and remove the polyfoam packing. Carefully lift
the TV and place onto a firm stable surface. Lift off the Poly bag and retain all packaging for future use. Keep all packaging away from small children and animals.
Placing TV. The TV should be placed on a firm table or shelf. If placing in a cabinet ensure there is
sufficient spacing for air flow and access for the DVD player opening..
Ventilation and Heat Sources. Do not place material over the ventilation slots, this will cause the TV to
overheat and fail. Do not place the TV in direct sunlight or near heat sources such as radiators or fires.
Connections. When connecting the TV to external sources and the mains supply, do not place wires
that can be tripped over. Do not trap or place heavy objects on the mains lead or adaptor.
Moisture. Do not place the TV in wet or damp conditions, such as steamy kitchens, basements or other
damp places. Do not allow water or other fluids to enter the TV. with wet hands. Should moisture enter the TV, disconnect from the supply and call the customer help line.
Do not touch the Mains plug or adaptor
Cleaning. Disconnect the TV from the mains supply. Use a soft dry cloth, for stubborn stains use a soft
moist cloth with a dilute mild detergent.. Do NOT use petrol based fluids or abrasive materials.
LCD Screen. Do not hit or cause impact to the LCD screen. The screen consists of many individual
pixels and is easily damaged. Bright or dark dots may occur and are not covered by warranty.
Lightning.
During a thunderstorm or when leaving the appliance for long periods such as holidays, disconnect the aerial input (if external aerial) and remove the mains plug, This is to prevent power surges damaging the apparatus
DIGITAL SWITCH OVER AND YOUR TV.
WHAT YOU NEED TO DO TO ENJOY WATCHING TV DURING AND FOLLOWING DIGITAL SWITCHOVER.
Starting in 2008 and ending in 2012, television services will go To continue using this digital TV during and following the digital switchover, you will need to “reset” digital TV channels. Users of this digital TV must reset on at least 2 different occasions, normally 1 month apart when your switchover happens. Digital UK, the body leading the digital switchover, and broadcasters, will advise you when to reset your digital channels on each occasion.
If you do not reset your digital channels, you risk loosing some or all of your TV services during and following switchover. Please refer to this instruction manual to retune the Digital TV Do NOT use “ADD” For more information please contact the “Customer Help Line”
channels, you MUST “RESET”
and allow a complete retune. (See page 12)
completely digital, TV region by TV region.
your
services.
(Page 17) or visit www.digitaluk.co.uk
3

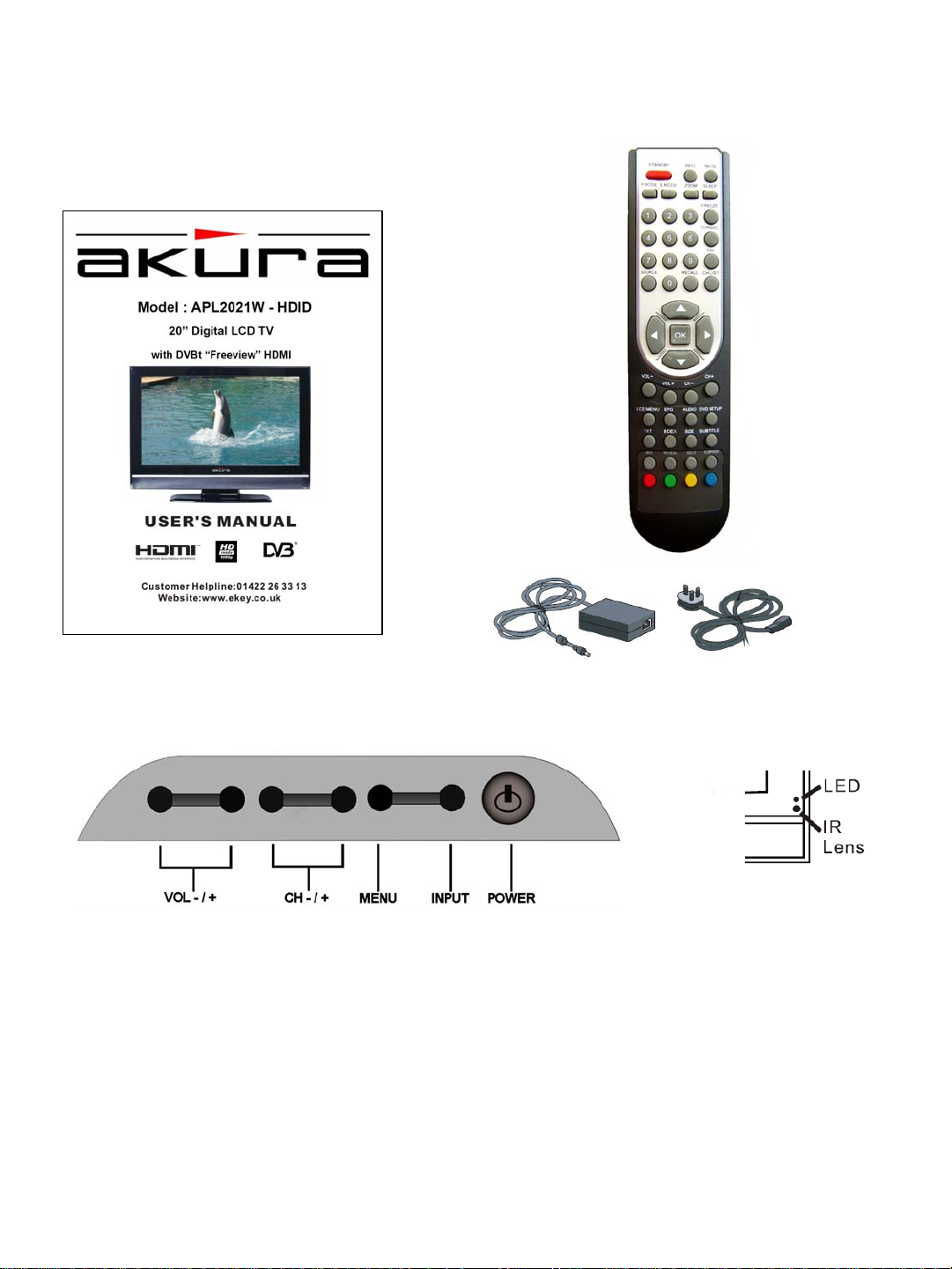

3. Accessories
Please check the contents of the TV before you continue. If any item is missing please contact your point of purchase.
User Manual
Remote Control
4. User Controls.
1. Vol – Reduces Volume level.
being adjusted.
2. Vol + Increases Volume level. In menu mode, will shift the selection to the right, or increase level
being adjusted.
3. CH - Reduces channel selection by 1 with each press. In menu mode
downwards.
4. CH + Increases channel selection by 1 with each press. In menu mode will shift the selection
upwards.
5. Menu. Selects the MENU function. If in a sub menu, will revert to previous level of menu.
6. Input. Selects the different input sources, each press will select another input source.
7. Power. Switches TV On from standby. Also returns TV to standby.
8. LED. Displays Tv status. In standby illuminates Red, in operation illuminates Green.
9. I R Lens. Remote control receiver lens. Do not obstruct or cover.
In menu mode will shift the selection to the left, or decreases level
AC/DC Adaptor Mains lead
will shift the selection
4

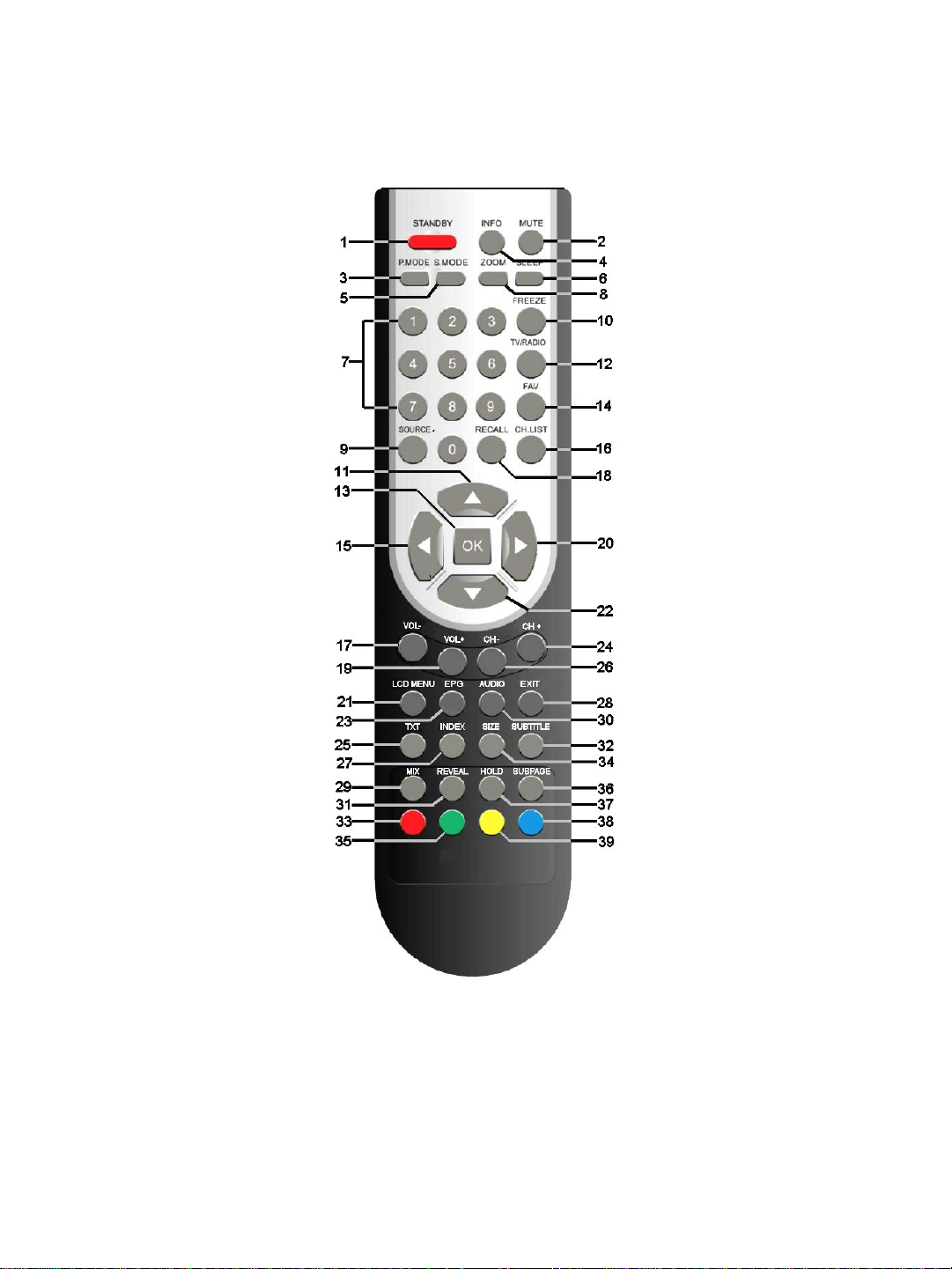

5. Remote Control.
1. STANDBY. Switches TV to Standby
and Operation.
3. P MODE. Selects picture modes.
5. S MODE. Selects sound modes.
7. 0-9. Numeric buttons for direct
channel selection or track/chapter numbers.
9. SOURCE. Selects various input
modes.
11. UP. Navigation button
13. OK. Confirmation button.
15. LEFT. Navigation button.
17. VOL -. Volume down button.
19. VOL +. Volume up button.
21. LCD MENU. Enters Setup menus.
23. EPG. Selects Electronic
Programme Guide..
25. TXT. Selects Teletext.
27. INDEX. Selects Text index.
29. MIX. Shows picture in background
of Text.
31. REVEAL. Reveals hidden answers
in Text quiz pages.
33. RED. Red fast text mode.
35. GREEN. Green fast text mode.
37. HOLD. HOLD freezes text pages.
39. YELLOW. Yellow fast text mode.
2. INFO. Displays TV settings and
channel being viewed.
4. MUTE. Press to mute sound, press
again to restore sound.
6. SLEEP. Sets sleep timer, sets from 3
hrs to 10 minutes.
8. ZOOM. Selects picture sizes and
aspect ratios.
10. FREEZE. Freezes picture. Press
again to restore normal viewing.
12. TV/RADIO. Selects TV or Radio in
DVBt mode.
14. FAV. Displays Favourite program
listing.
16. CH LIST. Displays list of all
received channels.
18. RECALL. Recalls previous channel
viewed.
20. RIGHT. Navigation button.
22. DOWN. Navigation button.
24. CH+. Channel UP select.
26. CH-. Channel DOWN select.
28. EXIT. Exits setup menus
30. AUDIO. Switches between Nicam
and Mono in Analog TV mode. In DVBt mode selects different soundtracks if transmitted.
32.SUBTITLE. Displays subtitles in
Analog, and DVBt modes
34. SIZE. Changes Text size in Analog
text mode.
36. SUBPAGE. Subpage selects
subpage numbers in text mode.
38. BLUE. Blue fast text mode.
5
5. Remote Control.

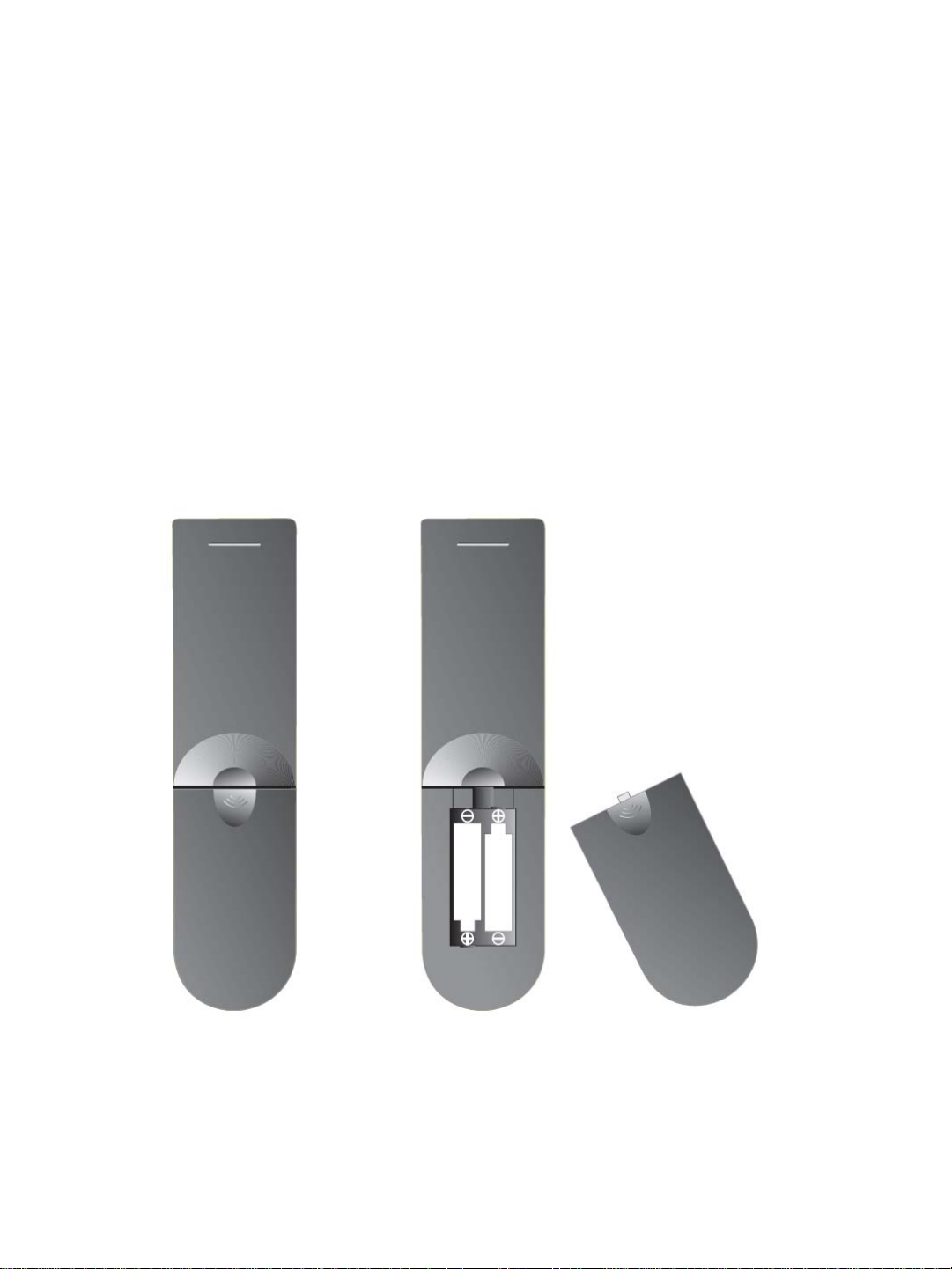

1.
Open the battery cover
2.
Fit two “AAA” and –
to -.
3.
Replace the battery cover
To prevent injury, do NOT break open or throw exhausted batteries in a fire. Do not place in the domestic waste, consult your local waste disposal company.
Do not mix batteries, old and new, Carbon or Alkaline. Do not use re chargeable batteries. Remove batteries if not using the remote control for long periods to prevent leakage. If the batteries do leak, clean the compartment with soapy water from the contacts. To NOT touch or ingest battery residue.
4. In the event that the remote control does not function, the battery terminals are in contact with the connection spring. smaller + VE terminal and may not reach the spring. You can stretch the spring slightly to ensure connection
batteries (Not supplied). Ensure the battery polarities are correct i.e
and scrape any residue
please check that the + VE end of
Some batteries have a
+ to +
6

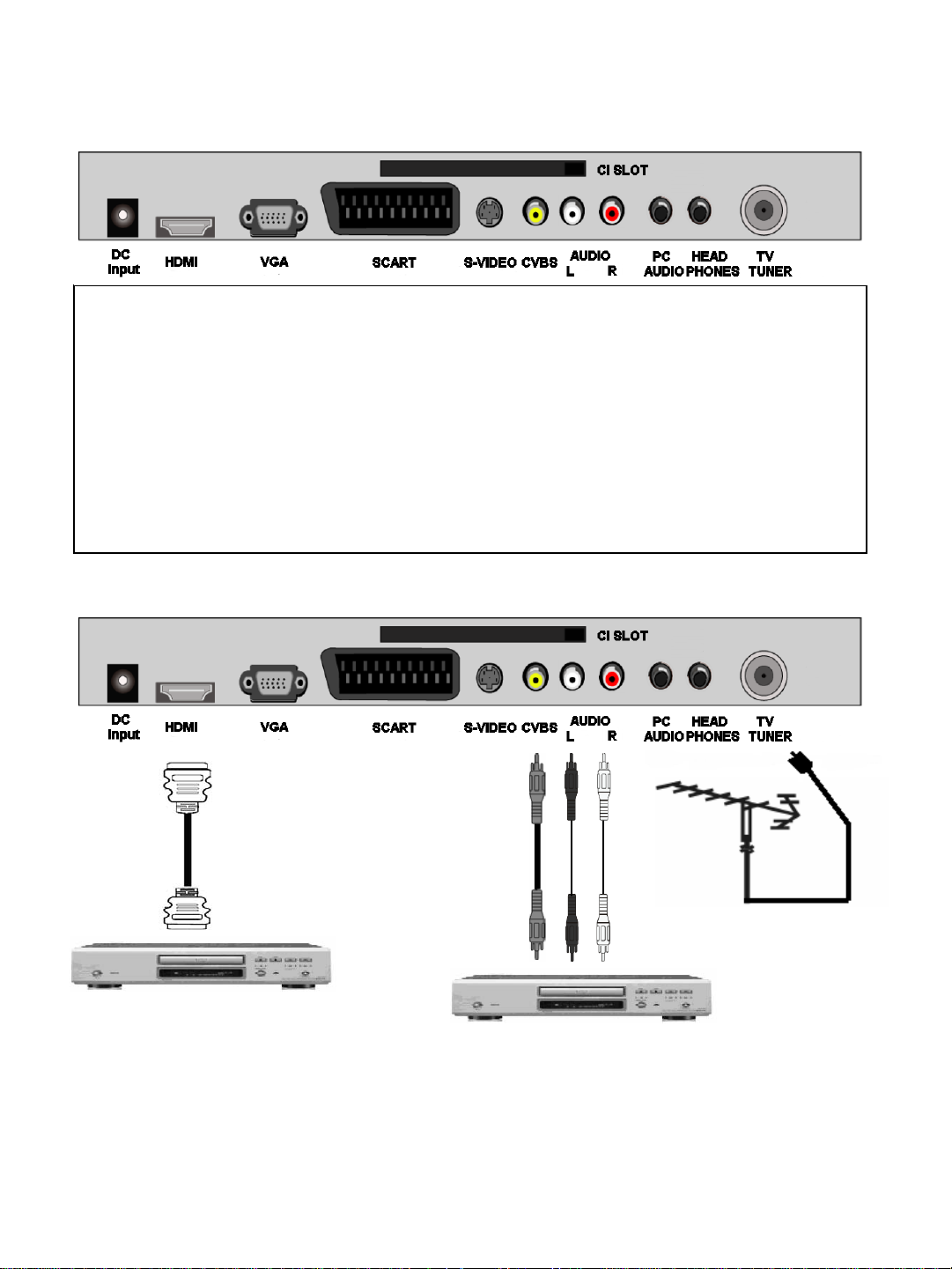

6. Connections.
IMPORTANT. When making connections ensure the TV is disconnected from the DC supply input, and that the appliance being connected is also disc onn ecte d from the mains supply.
DC INPUT. +12V DC 3.3A max. HDMI. Input from HDMI source (High Definition). VGA. PC input (RGB). SCART. Audio /Video input and output. (General quality). S-VIDEO. Suitable for camcorder input. CVBS. Low quality video input (1vPP 75 Ω) AUDIO L/R. Low level audio inputs used in conjunction with CVBS input. PC AUDIO. Stereo audio input from PC (Used in conjunction with VGA input). HEAD PHONES. Stereo output to headphones only. TV TUNER. RF input from TV aerial or cable source.( 1 m/V @ 75 ) typical. CI SLOT. Place a CAM (Conditional Access Module) into this point to allow a “Pay per View”
to be used.
card
HDMI Input
Disconnect TV from mains adaptor. Connect HDMI input. Apply power to both TV and source.
Use SOURCE button to select HDMI.
Typical connections
Antenna or cable
CVBS Input
Disconnect TV from mains adaptor. Connect CVBS and Audio L/R (if required). Apply power to TV and source.
Use SOURCE button to select AV
7
6. Connections.
Mains Adaptor.
Do not connect mains supply until the adaptor is connected to the TV.

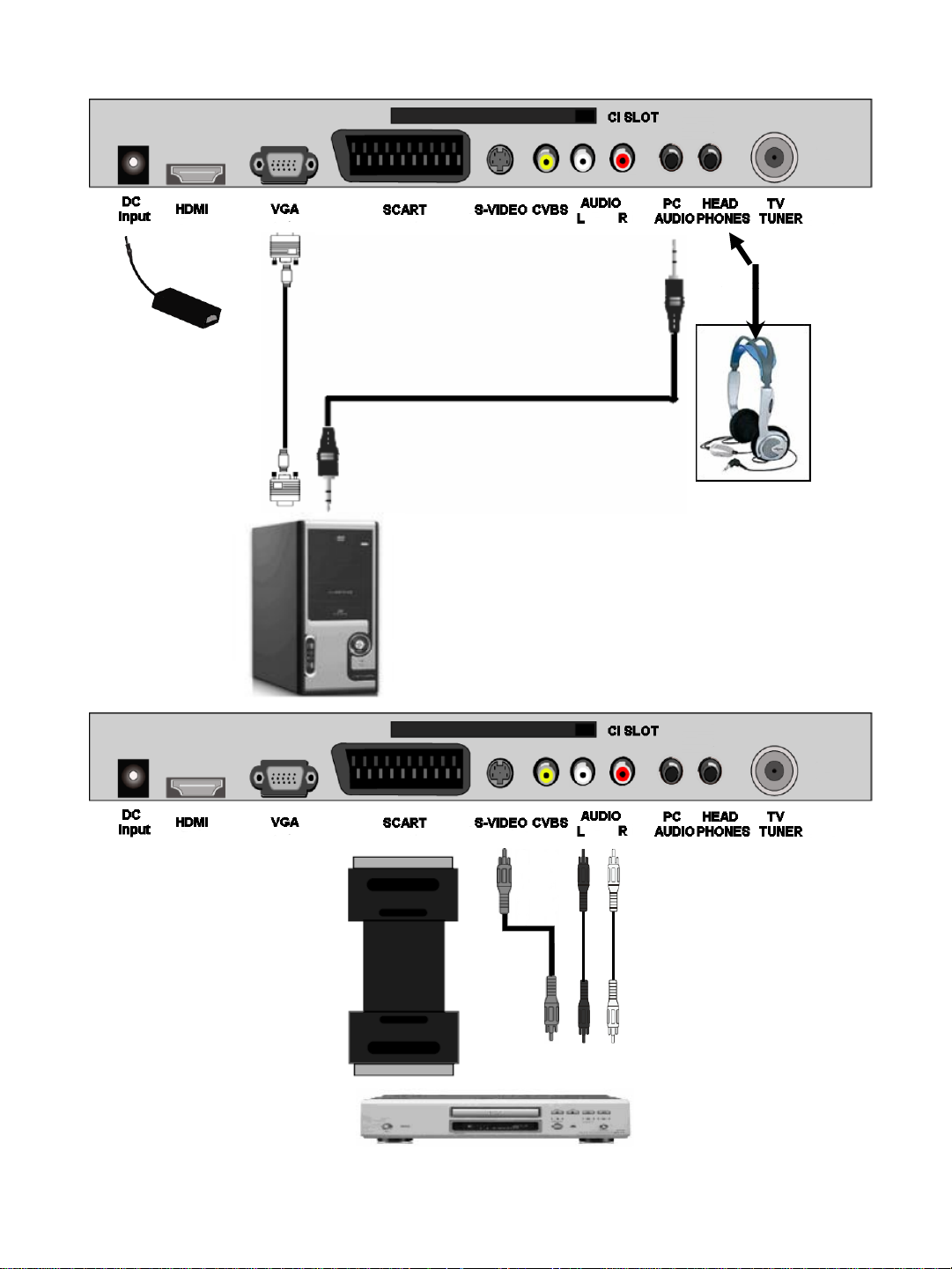

PC connections.
Disconnect TV from mains adaptor. Connect VGA (15 pin) plug to TV and PC. Connect stereo audio lead. Connect supply to TV and PC.
Use SOURCE button to select VGA.
Headphones.
Disconnect TV from mains adaptor. Plug in headphones. Re connect adaptor. Turn on TV. Set volume level for comfortable listening. Note :­volume levels for prolonged periods.
Do NOT use headphones at high
SCART.
Disconnect TV from mains adaptor. Connect scart lead to TV and appliance. Connect adaptor to TV and power to appliance.
Use SOURCE to select
SCART. In some circumstances the TV will automatically select scart when the appliance is used.
S-VIDEO.
Disconnect TV from mains adaptor. Connect S-VIDEO lead and Audio L/R leads to TV and appliance. Connect adaptor to TV and power to appliance.
Use SOURCE to select S-
VIDEO.
8
7. Menu Operation.
Connect the TV/DVD to the Mains adaptor and suitable aerial. It is advisable not to connect other apparatus until you have established that the TV is working correctly. If using the TV for DVBt (Freeview) viewing the existing aerial may not be suitable. Indoor aerials received stations. If stations are missing, freeze or break up, sufficient.
Turn on the power and a Red led will be displayed in the lower right corner.
Press either the Standby button on the remote control or the Power button on the TV.
The led will now turn Green and the screen will light up after approx 5 seconds.
At this stage no stations will be stored.

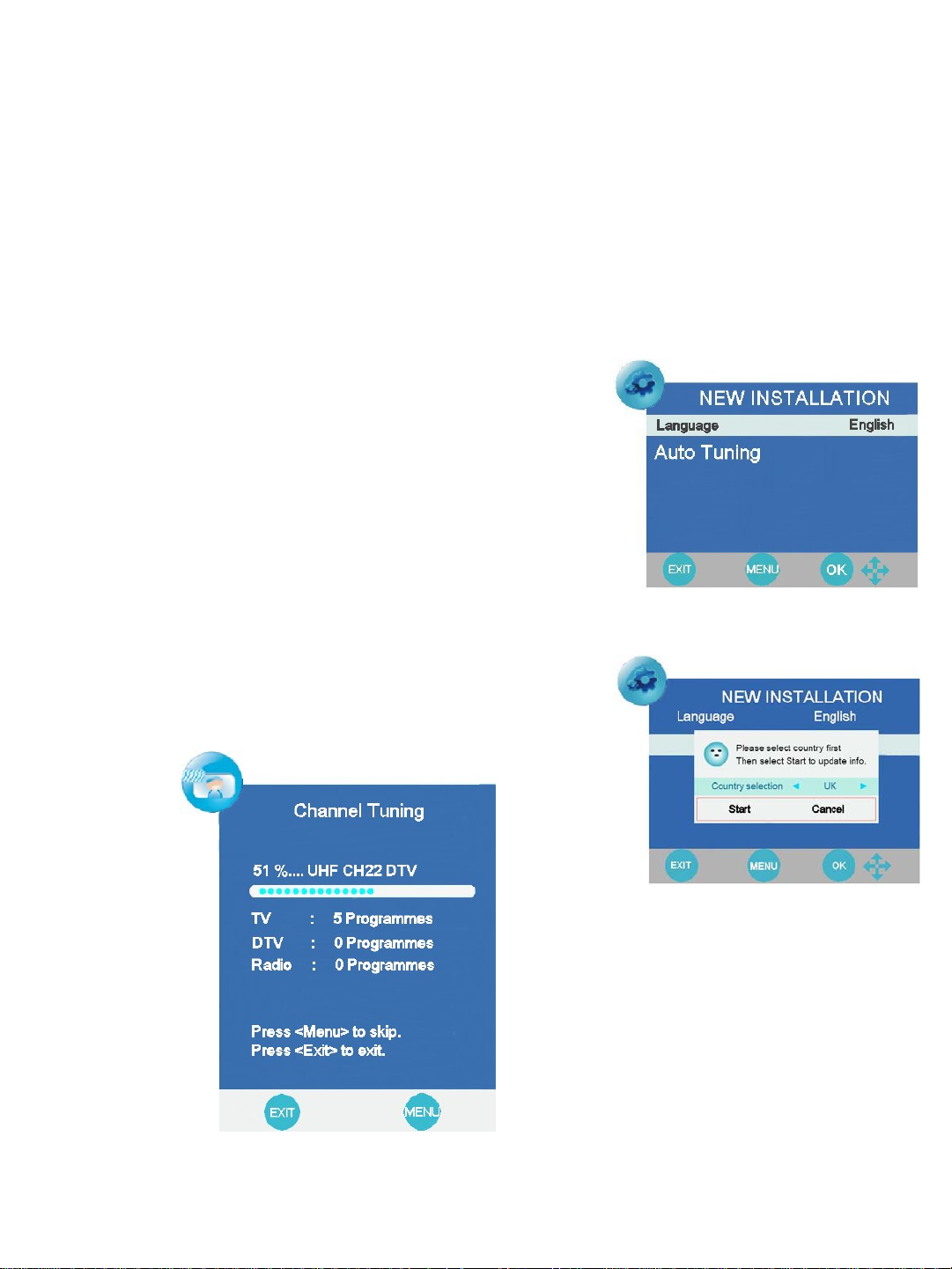

Basic Tuning
Press the LCD MENU button on the Remote Control. The menu as in Fig 1 will be shown.
(set top) may not be suitable for some of the
it is certainly the aerial signal that is not
Fig 1
Using the ▲/▼ buttons select “AUTOTUNING”
Menu Fig 2 will be displayed. If you are in another country other than UK, use the ►/◄ buttons to select the correct country, otherwise press to select START and press OK.
Menu fig 3 will be displayed and when tuning is complete the TV will display the first channel (BBC1) in DVBt mode. All received channels will be stored, both Analog and Digital.
Fig 3
and press OK.
Fig 2
9
7. Menu Operation.
OSD Menu.
Press the LCD MENU button to display the main menu, Fig 4 will be displayed.
To select the other menu’s press the button and the menu’s will rotate in the sequence :­To enter each menu press the button.

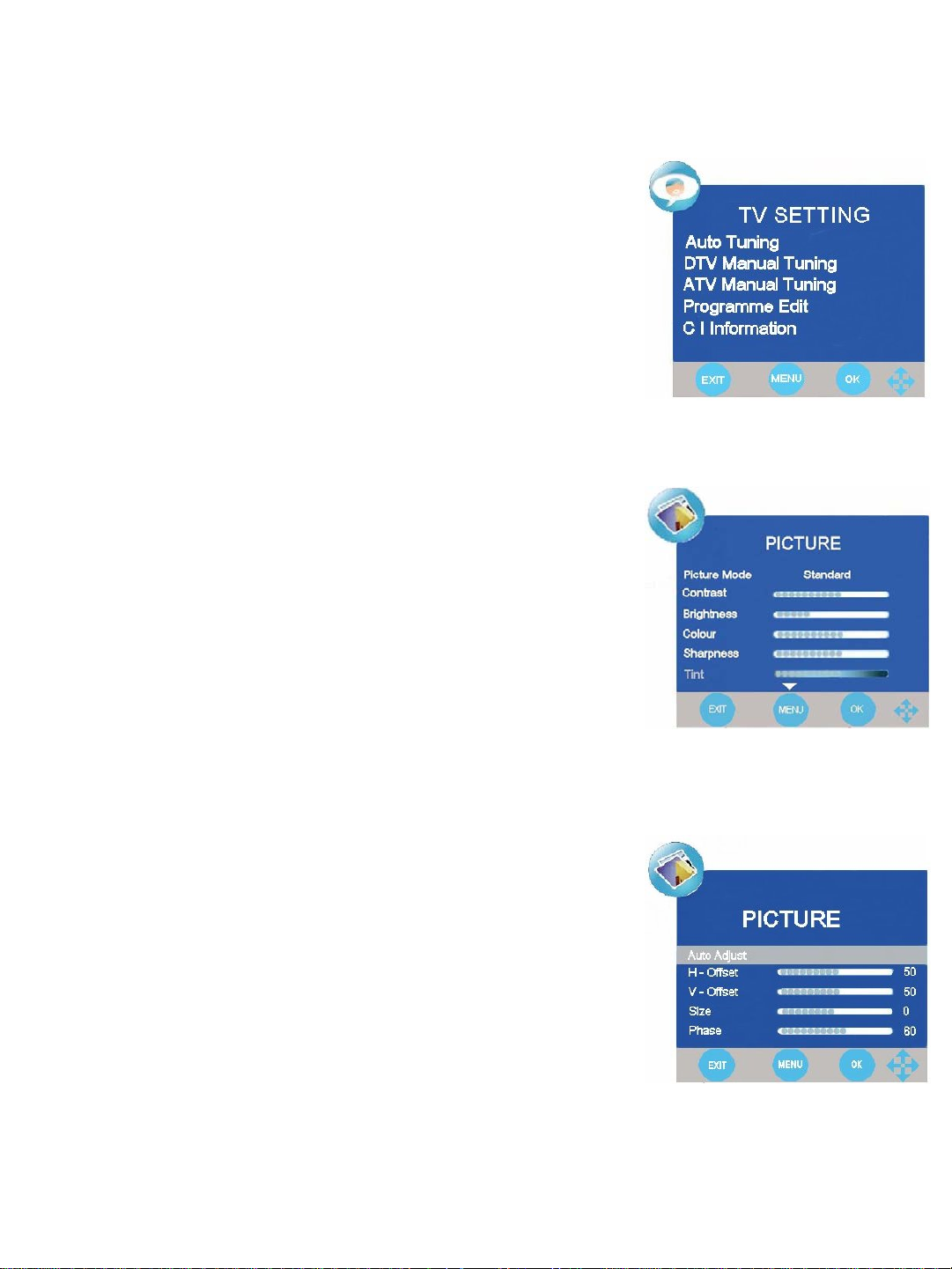

Picture Menu. (Fig 5).
To change the picture settings use the ▲/▼ buttons to select the feature and then use the ◄/► buttons to change the levels.
Picture Mode. Select from Personal, Dynamic, Standard and Soft modes.
Personal is an adjustable location to set the picture settings to your choice. Dynamic is set as a vibrant picture. Standard is set as the average picture setting. Soft is set as a easy viewing setting.
Picture, Sound, Time, Setup, Lock, TV Setting.
Fig 4
Contrast. Adjusts the ratio of dark to light. Brightness. Adjusts the overall picture brightness. Colour. Adjusts the colour saturation (colour depth). Sharpness. Adjusts the clarity of the picture. If the signal is noisy (analog) then
this setting should be reduced to mask the noise.
Tint. Only available when using NTSC sourced material from the AV inputs Colour Temperature. Adjusts the colour hardness, select between Normal,
Warm, Cold.
Aspect Ratio. Allows selection of screen sizes, this is the same function as
ZOOM on the remote control.
Noise Reduction. If the picture is noisy you may reduce the noise, but may
affect picture clarity.
PC Mode. (Fig 6).
The picture settings are different for PC Mode.
Auto Adjust. Adjusts the PC to the TV automatically. When selected the
picture may “jitter” optimised.
H-Offset. Adjusts the picture horizontally. V-Offset. Adjusts the picture vertically. Size. Adjusts the height. Phase. Adjusts the clock phase to minimise picture jitter.
and jump for a few seconds until the adjustments are
Fig 5
Fig 6
10
7. Menu Operation.

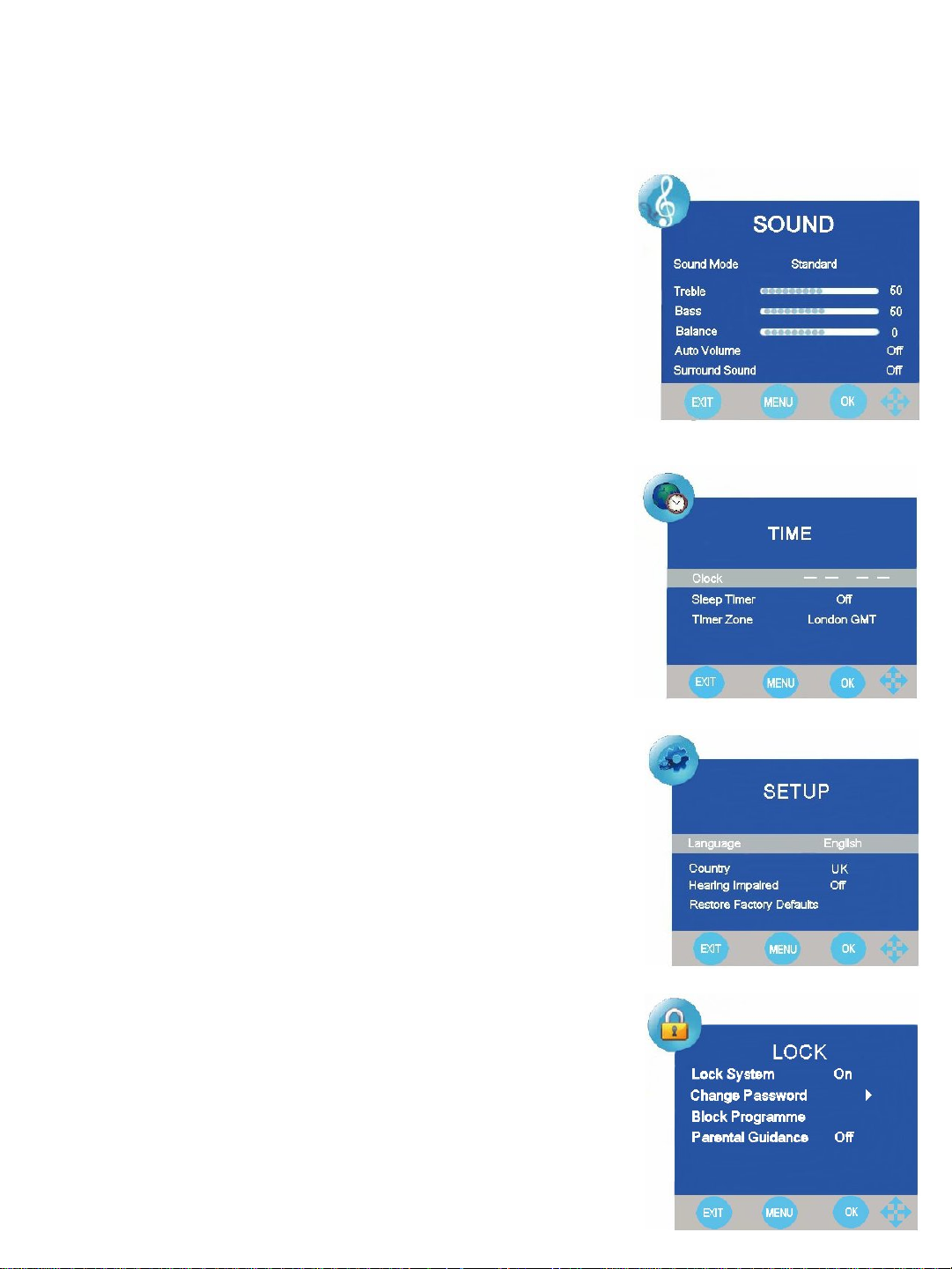

Sound. (Fig 7)
Sound Mode. Select from :- Standard. Used for general viewing. Music. Selected for enhanced music appreciation. Movie. A more dynamic setting suitable for movie viewing. Sports. Suitable for sports viewing. Personal. Adjust for your personal listening.
Treble. Adjusts higher register frequencies. Bass. Adjusts lower register frequencies. Balance. Adjusts the level of the left and right speaker. Auto Volume. When selected, this feature averages the sound levels, as
when adverts are shown the volume level is maintained.
Surround Sound. Select when viewing Movies or Sport for a more “Live”
feel. Not recommended for general viewing.
Time. (Fig 8).
Clock. Once the TV is tuned to a DVBt signal the clock time is automatically
set.
Sleep Time. This may be set as follows :-
90 min, 120 min, 180 min, 240 min, Off.
Time Zone. The clock is able to be set to different world time zones, select the
time zone to suit.
Standard, Music, Movie, Sports and Personal.
Off, 10 min, 20 min, 30 min, 60 min,
Fig 7
Fig 8
Setup (Fig 9). Language. English only available. Country. UK. This is set in the Tuning Menu (Auto Tuning). Hearing Impaired. (Digital TV only). Sets Subtitles when transmitted Restore Factory Default. Restores all factory settings. The password is
required for this feature (0000).
Lock. (Fig 10). Lock System. When this is selected you will be required to enter the
password. If this feature is selected all functions in the TV Setting menu are locked.
Change Password. Enter a new 4 digit number and then enter again to
confirm. You MUST ensure this number is kept safe.
Block Program. When this is selected a list of programmes is displayed, use
the ▲/▼ to select the programme you wish to lock and press the Green button. A lock will be displayed by that station. You may lock as many programmes as you wish. To unlock re select the channel and press the Green button, the lock will be removed. Each time a locked station is requested you will be asked for the password. Entering the password will allow that station to be viewed.
Parental Guidance. (DVBt only). You may set the parental guidance level
from :­password will be required.
OFF to 18. Thus if a selected station has unsuitable material, a
Fig 9
Fig 10
11
7. Menu Operation.

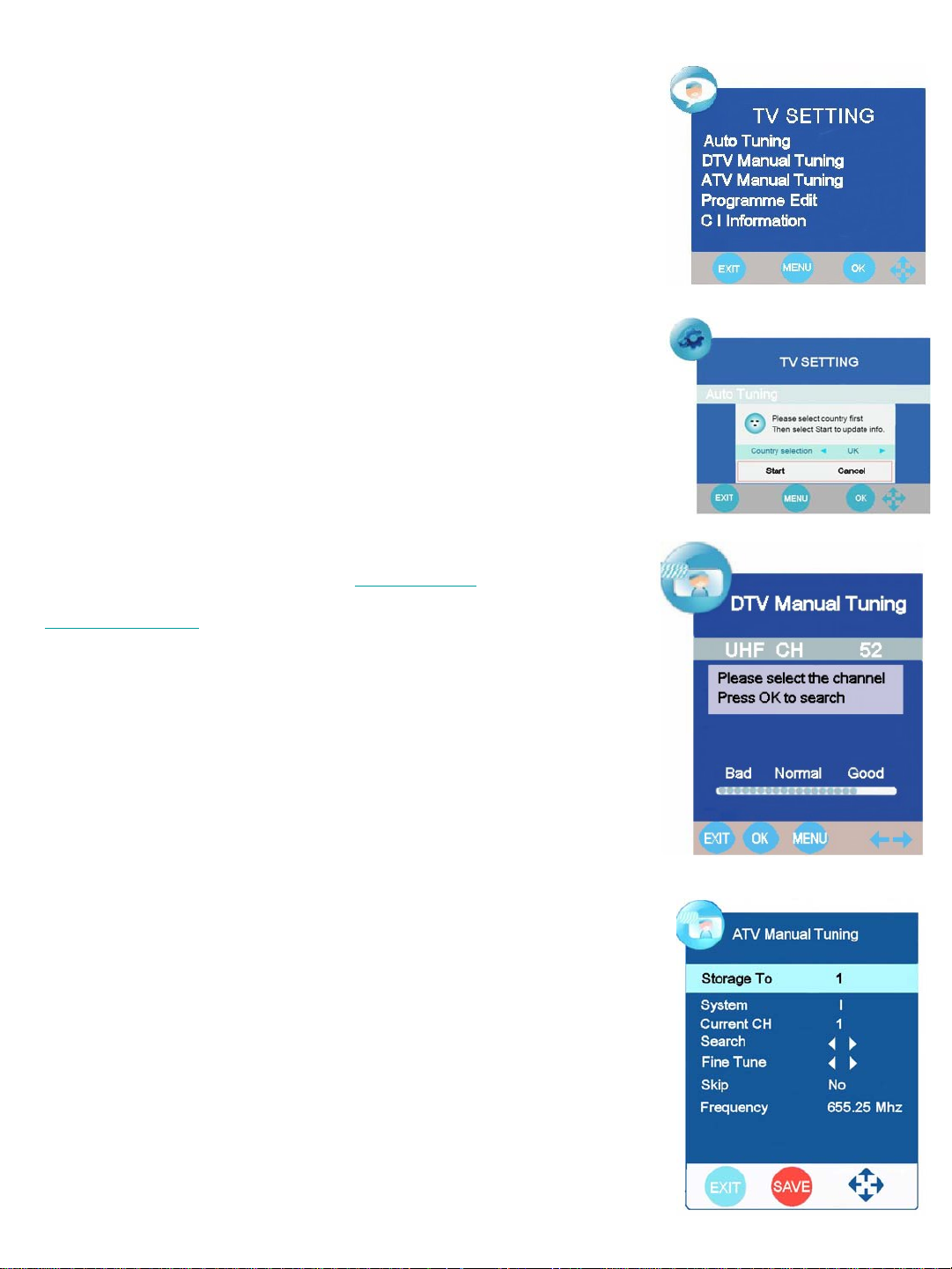

TV Setting. (Fig 11). Auto Tuning. After initial installation it may be necessary to re install all the
stations. Select Auto Tuning and press OK. The sub menu (Fig 12) shown. If using in the UK select Start with the button and press OK. If using in another country, select the country using the ►/◄ buttons then select Start.
The TV will now tune the entire TV spectrum (see Fig 3). When tuning is complete the TV will display the first channel (BBC1) in DVBt mode. All received channels will be stored, both Analog and Digital. The Analog stations are stored in station order i.e certain circumstances a station may be out of order, these stations will need to be correctly ordered, see page 15. As the number of areas in the UK switch to “Digital only” are turned off, there is a possibility of the TV storing stations that may not be the “Primary” freezing or breaking up. To ensure you have the correct stations tuned in you may need to refer to DTV Manual Tuning , (see next).
DTV Manual Tuning. (Fig 13).
It may be necessary to add more digital channels as they are provided by the programme providers or manually tune stations for reasons (above). Select DTV Manual Tuning and press Ok. Using the ►/◄ buttons select the channel number of the multiplex (channel) required. The correct channel numbers are available from the website www.dtg.org.uk “Transmitters”. If you do not know which region you are in, go to website
www.digitaluk.co.uk
region you are in. At the bottom of the menu you will see a bar scale showing the quality of the signals on that channel. Press OK to start the search. When complete the menu will display the number of TV and Radio stations received.
station, this normally is shown by programmes being missing,
and Insert your postcode, you will then be shown which
BBC1, BBC2 etc, however in
and “Analog”
, and select
will be
stations
Fig 11
Fig 12
Fig 13
ATV Manual Tuning. (Fig 14).
It may be necessary to add a channel for a TV game or similar without fully retuning the TV. If you are adding a TV game to be used on the aerial, unplug the insert the game. Ensure the game is turned on. Using the SOURCE button select TV (Analog). Select “Storage to” Select “Search” TV game. When found, and is satisfactory, press RED to SAVE.
and use the ►/◄ buttons to select an un used location.
and press the ► or ◄ buttons. The TV will now search for the
12
TV aerial and
Fig 14
7. Menu Operation.

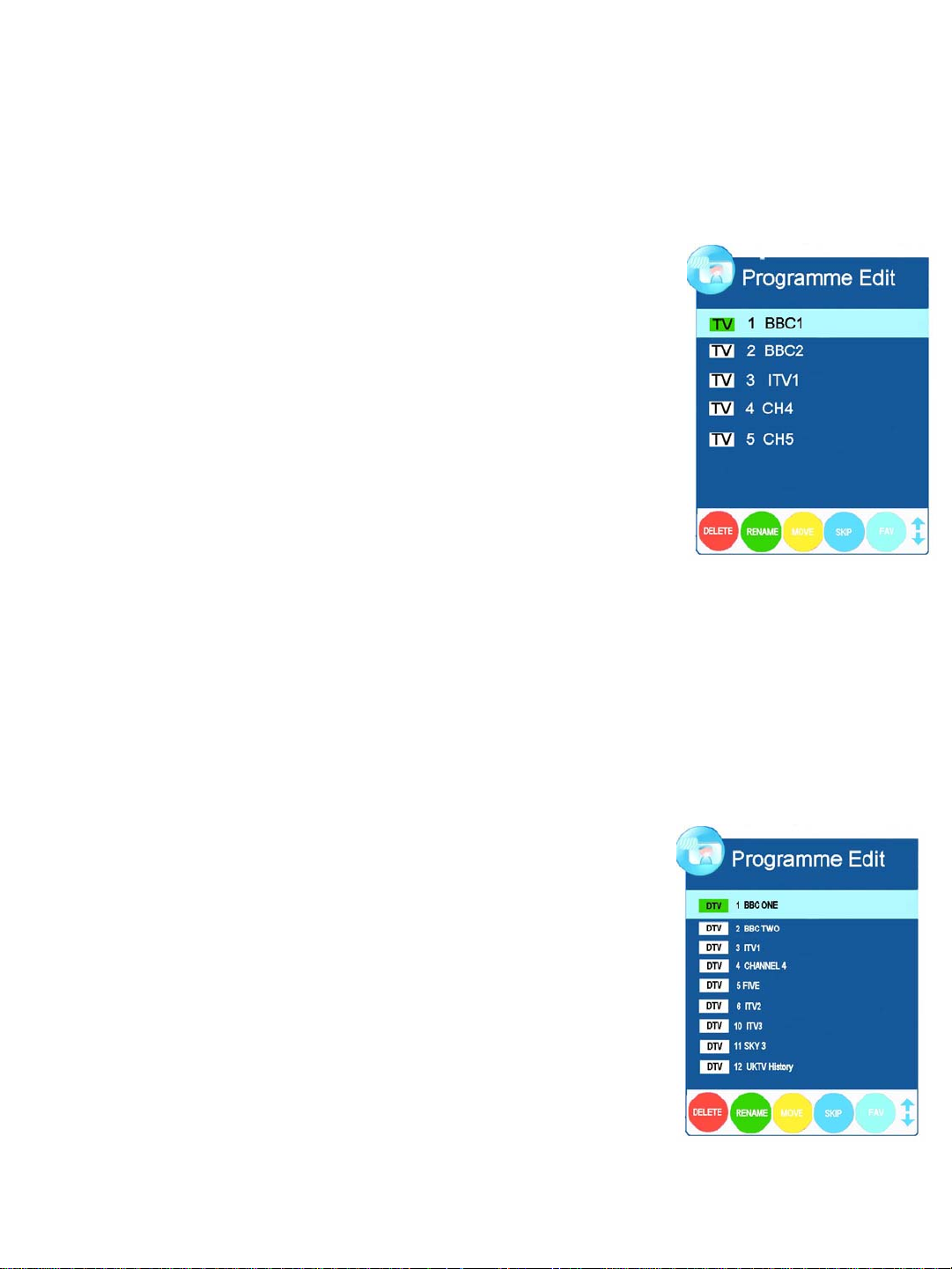

Programme Edit. (Analog) (Fig 15). Delete “Red” Should it be necessary to Delete a station, use the cursors to
the station to be deleted. Press the RED button, this will put a the station to be deleted, press RED again and the station will be deleted, to exit delete press the Menu button. Note :­memory and must be retuned if required.
Rename. “Green”. To rename any channel, select the channel to be renamed
using the cursor buttons. Press the GREEN button. Using the ►/◄ buttons, select the letter or digit to be changed, using the ▲/▼ buttons change the latter to the required one. When the renaming is complete, press Menu to exit.
Move “Yellow”. If one of the stations has been incorrectly placed in the station
listing, you may move it to the correct position, i.e, BBC1, BBC2, ITV, Channel 4, Channel 5. Using the cursor select the channel to be moved, press Yellow, move the station to the new location and press OK, this will move the location. To exit press LCD menu.
Any deleted station is removed from the
RED marker next to
station to the new
select
Fig 15
Skip “Blue”. You may wish to “Skip”
buttons. Use the cursor buttons to select the channel you wish to Skip. Press Blue and a Blue dot will be shown next to the channel selected. To remove the skip function, press the Blue button again. When a channel has been selected to Skip, you still may select that channel with the numeric buttons.
Fav. To add channels to your Favourite library, use the cursor buttons to select the
channel you wish to add. Press the FAV button. A “FAV” side of the selected channel. To remove the channel from the Favourite library, simply press the FAV button again.
Programme Edit. (Digital) (Fig 16). Delete “Red” Should it be necessary to Delete a station, use the cursors to
the station to be deleted. Press the RED button, this will put a the station to be deleted, press RED again and the station will be deleted, to exit delete press the Menu button. Note :­memory and must be retuned if required.
Move “Yellow”. If one of the stations has been incorrectly placed in the station
listing, you may move it to the correct position, i.e, BBC1, BBC2, ITV, Channel 4, Channel 5. Using the cursor select the channel to be moved, press Yellow, move the station to the new location and press OK, this will move the location. To exit press LCD Menu
certain channels when using the CH+/CH-
logo will be shown at the
select
RED marker next to
Any deleted station is removed from the
station to the new
Fig 16
Skip “Blue”. You may wish to “Skip”
buttons. Use the cursor buttons to select the channel you wish to Skip. Press Blue and a Blue dot will be shown next to the channel selected. To remove the skip function, press the Blue button again. When a channel has been selected to Skip, you still may select that channel with the numeric buttons.
certain channels when using the CH+/CH-
13
7. Menu Operation.

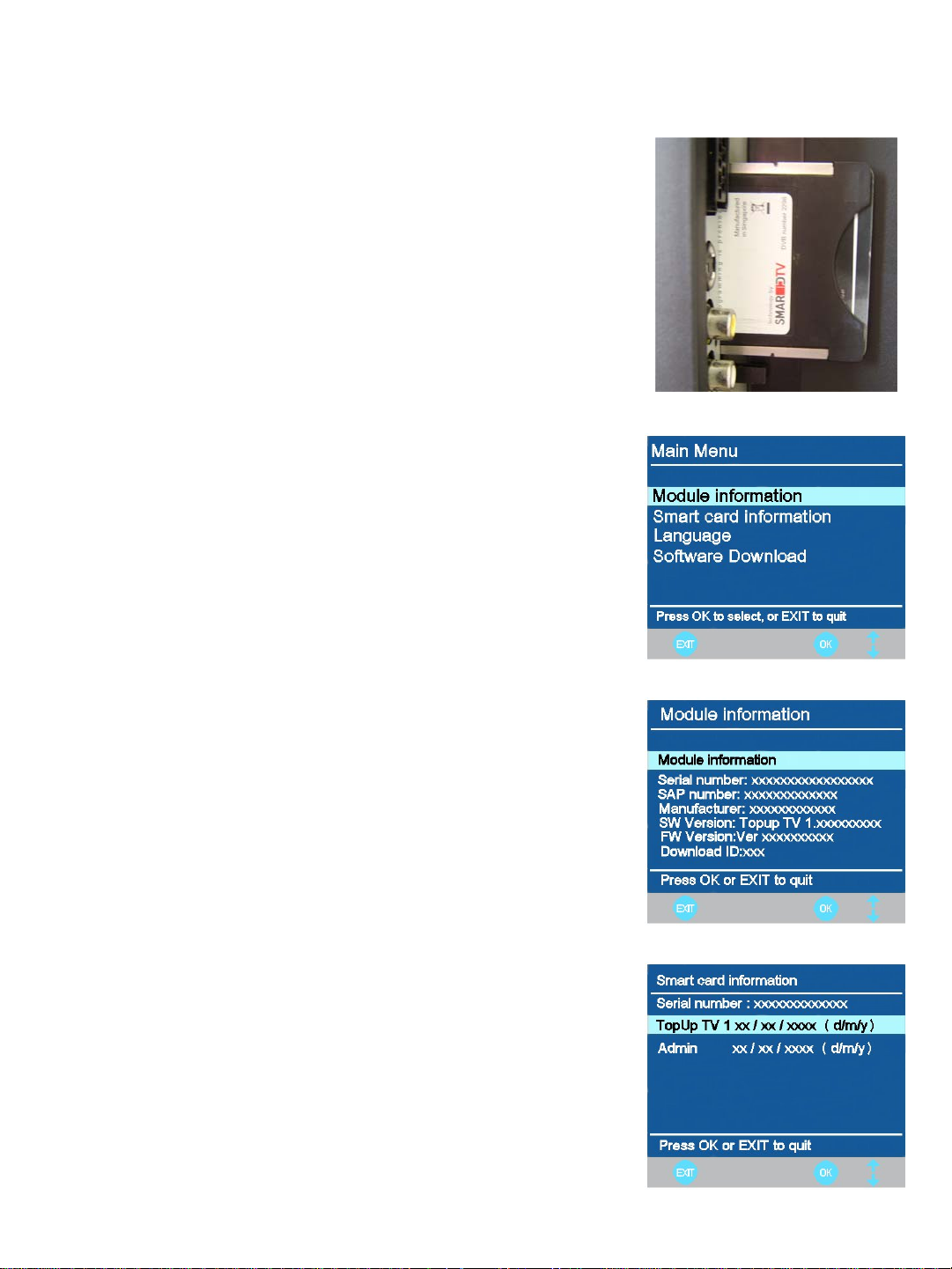

Using a CAM (Conditional Access Module) (CI Slot).
This feature allows the user to access digital terrestrial “pay per view” channels. To use this facility a conditional access module (CAM) viewing card need to be obtained by subscribing to a pay channel
To insert the module. Ensure the TV is fully disconnected from the power source.
Insert the CAM into the CI slot with the specification label facing the rear of the TV (Fig 17). A positive stop should be felt if correctly fitted. DO NOT force the module.
To release the CAM push the button adjacent to the card and slide the module away from the TV.
Reconnect the TV and switch on. Select DTV.
and
company.
Fig 17
Fig 18
Insert your “Pay per view”
Press the LCD Menu button and select TV Setting menu. Select CI Information and press ►.
If everything is working ok you will see (Fig 18). Use the cursor buttons to select Module Information and press OK. If things are working Ok should see the information as in Fig 19.
To check the card is working Ok select Smart Card Information and press OK. Again if everything is ok you will see a list as Fig 20. If the information is not present, remove the card reverse and reinsert. This information should now be seen.
Exit the menu’s by pressing LCD menu and you are ready to view “Pay per view”
channels.
To obtain the CAM and pay per view card, these may be purchased from good high street stores.
card. “Do NOT touch the gold contacts”
you
Fig 19
Fig 20
14
8. Teletext. (Analog) TV
Teletext is an information system broadcast by certain programme
Subtitles for viewers hard of hearing. Weather, Travel information, games and many other services.
Below is a description of the buttons associated with Teletext.
TEXT. Press to select Teletext, press again to exit. MIX Press to mix the video information to the text page. Press INDEX. Press to access the index page directly. SIZE. Press to increase the text size in the top half of the page, press again to increase the text
size in the lower half of the page, press again to return to normal text size.
REVEAL. Press to reveal hidden answers in quizzes or puzzles. SUBPAGE. Some text pages may contain several sub pages. To access these
and then enter the page number using the numeric buttons. Press again to exit the feature.
COLOUR BUTTONS. Red, Green, Yellow, Blue are used as fast access buttons to pages of text
which are highlighted at the bottom of each text page.
HOLD. Press to hold any text page for easy viewing. Press again to
providers. It can provide
again to turn off.
press this button
return to normal.
Fig 21

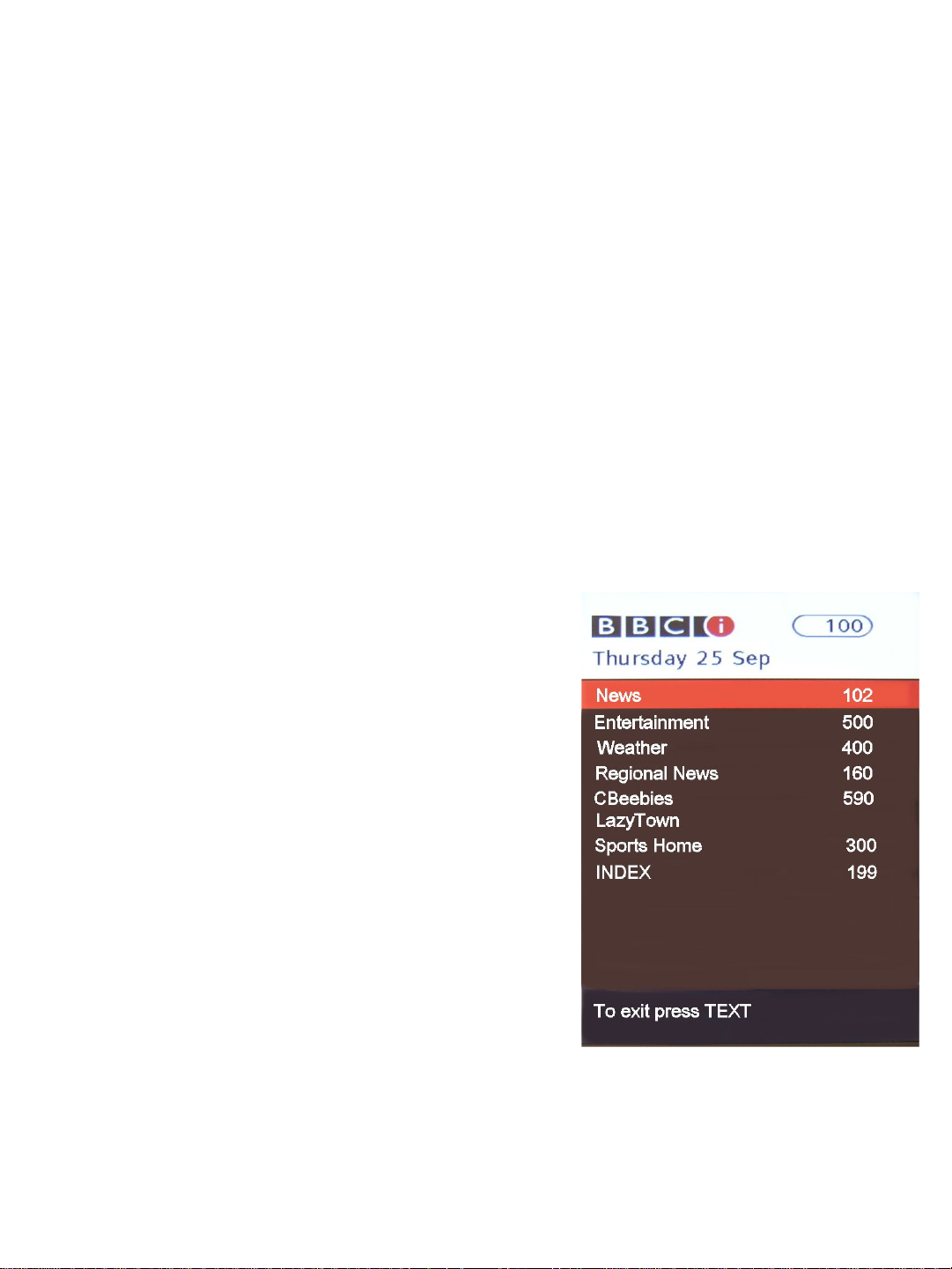

8. Teletext. (Digital) TV (Fig 21)
Teletext is provided in the DVBt service and operates differently from Analog TV
To enter TELETEXT, press the RED Button.
Use the ▲/▼ buttons to select the category you require and press OK to enter. In each category there will be sub pages. Use the /buttons and OK button to select.
To exit Teletext. Press the TEXT button.
15
9. EPG (Electronic Programme Guide) (DVBt only).
An “Electronic Programme Guide” the programme providers. To access this press the EPG button on the remote control.
The EPG provides programme information for the next 7 days. (Fig 22)
Press▲/▼to move up and down the list and ►/◄ to move across the list.
To access any programme highlight and press OK
For more information about a programme press INFO.
To see programmes for the next day or further, press the Yellow button and use the ►/◄ buttons to increment the date.
Some boxes may be blank, the data may not available.
To exit the EPG, press the EPG button again.
EPG is provided by
10. Wall Mounting
Fig 22
To mount the TV on a wall you need to purchase VESA bracket 100 x 100mm centres.
Remove the screws as shown below (Fig 23).
Slide the base from the TV.
Mount the wall bracket as described by the manufacturer.
Mount the TV to the wall bracket using 4 x 4 mm x 10 mm set screws. (Do NOT use
longer screws as the internal parts of the TV may be damaged).
Akura Ltd accepts no responsibility for any damage, caused to or of the wall bracket.
Fig 23
by, incorrect mounting
16
11. Trouble shooting guide.
Should you experience difficulties operating this product please
consult the guide below before calling
the Customer Help Line.
SYMPTOM POSSIBLE CAUSE REMEDY
Dead. No led lit
No Picture. Led lit Red TV in standby.
No picture. Dark screen Led lit Green
No picture. Blue screen. No signal displayed
TV Picture noisy and ghosting (Analog)
TV Picture freezing and breaking up (Digital).
Teletext freezing or breaking up Poor aerial signal
Digital Signals missing Poor aerial signal
Bright dots or Dark dots Pixel damage This is not uncommon. It is not covered by warranty
Power not connected to TV
Backlight faulty Call customer help line.
Incorrect input setting Ensure the input selected has an input connected to
Aerial not connected Ensure aerial is connected
TV not tuned in Follow instructions on page 12/13
Poor aerial signal
Poor aerial signal
Check power lead and mains adaptor connections
Press Power button on TV or Standby button on remote control.
it and is turned on.
Have aerial signal checked. If indoor aerial it may need an outdoor aerial.
Have aerial signal checked. If indoor aerial it may need an outdoor aerial.
Have aerial signal checked. If indoor aerial it may need an outdoor aerial.
Have aerial signal checked. If indoor aerial it may need an outdoor aerial.
PC OPERATION
No picture. Blue screen. No signal displayed
Poor PC Picture TV not matched to PC See page 11 and enter setup menu
No or intermittent operation Exhausted batteries Replace batteries every six months or when required
No connection from PC to TV.
PC resolution incorrectly set
REMOTE CONTROL
Check all connections carefully
Enter Display setup of PC and set resolution to 800x600. Increase in steps until the required resolution is selected
If you are still having difficulty please call the Technical help line. Ring 01422 263313 (Normal rates apply).
Opening hours Mon-Fri 8 am –
Or try our website :-
www.ekey.co.uk
8pm. Sat 9 am –
4pm. Sun 11am –
4pm “Bank holidays as Sun”
(24Hr) Emails should be responded to within 3 -
4 hours should the
consumer have difficulty getting through.
17
15. Specifications.
Power Requirements TV 12V DC @ 3.3 A Max (40W)
Standby Power 2W
ITEM DESCRIPTION
Mains Adaptor
Screen Size 20”
Case dimensions 520mm x 420mm x 190mm inc base
Weight 5.3 Kg's
Mains adaptor weight 0.46 Kg,s
Screen resolution 1366 x 768 pixels
Viewing angle V 140º
Colour Systems PAL, SECAM
Sound Systems BG, I, DK, L
Audio Output 2W per channel
Tuning Analog. Band 1, Band 3, UHF
Inputs Scart, HDMI, VGA, CVBS,S-Video,
Outputs Scart, Headphones.
OSD Language English
100-240V AC 50/60 Hz 1.3A Output 12V 5A DC
(51cm) diagonal
inc Mains lead
H 125º
Digital UHF
L/R audio .PC Audio.
Audio Nicam
Wall Mounting Vesa
Remote Control Infra Red
Remote Control batteries 2 x "AAA" cells
Specifications may be changed without notice
.Firmware version MSD106
stereo/Mono (Analog)
Standard (100 x 100mm)
18
16. Mains Plug Wiring Diagram
If it becomes necessary to replace the Mains Plug, it should be wired in accordance with the diagram as in Fig 24.
The Brown wire (Live) should be connected to the terminal (L)
Fig 24
The Blue wire (Neutral) should be connected to the terminal (N) The Green/Yellow wire (Earth) should be connected to the
terminal (E). This TV Mains adaptor is a “CLASS 1” apparatus and MUST be
earthed
19
Loading...
