Akura AKDVB705B Operation Instructions

Operation Instructions

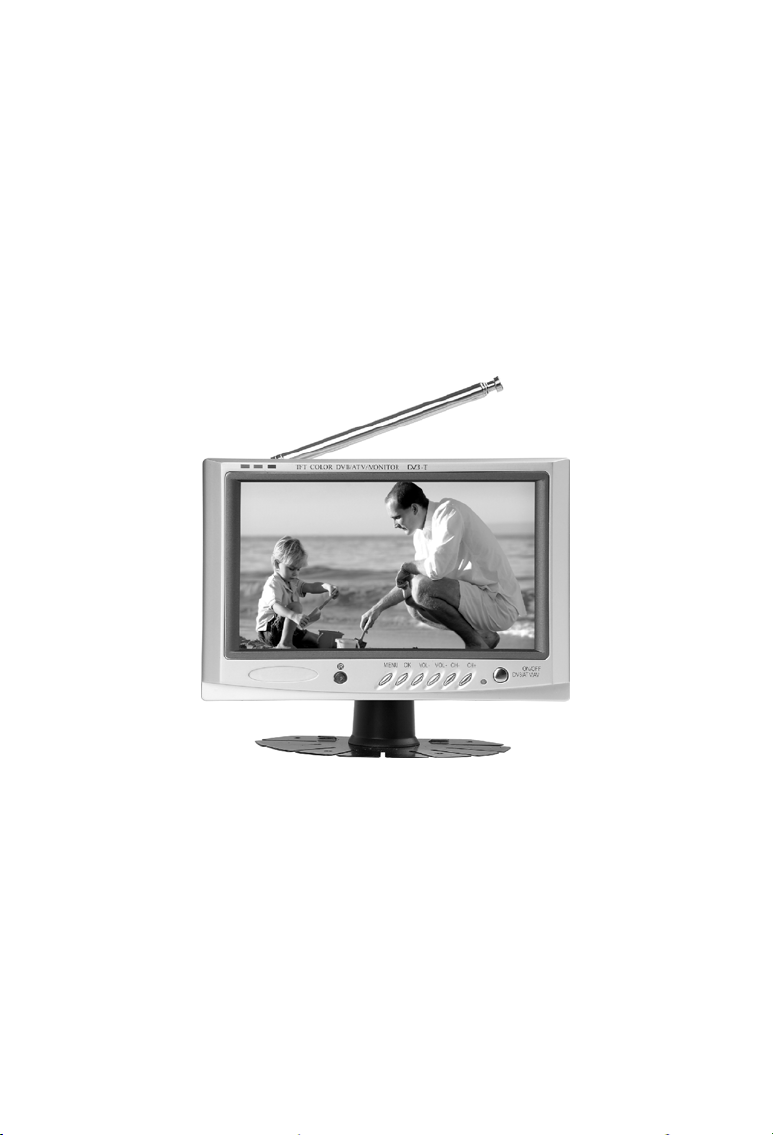

Digital LCD Color TV Receiver

Table of Contents

1.Precautions

2.Accessories

3.Appearance

4.Remote Control Application

5.Basic Operation Methods

6.DVB-T Menu Operation

6.1.Auto installation

6.2.Installation setup

6.3.Program receive and shift

6.4.Program search function

6.5.Main menu option

6.6.Parental control

6.7.System setup option

Accessory Setting

6.8.

6.9.Game menu option

1

3

4

5

8

10

10

14

17

19

21

24

26

32

34

6.10.DIY menu setting

6.11.Error message

6.12.Menu Analog quantity

6.13.Off-time setting

7.ATV Menu Operation

8.In Order to Receive clearer picture

9.Before you request for repair

10.Technical parameters

35

37

38

39

40

45

46

47

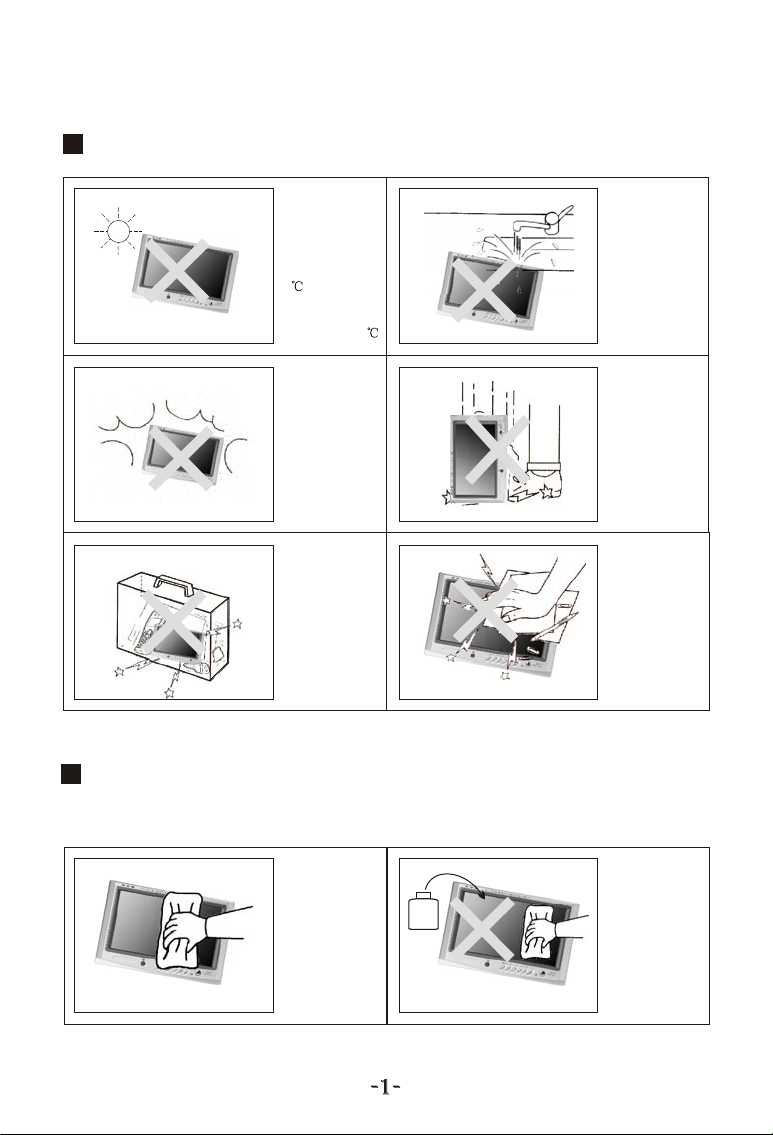

1. Precautions

Storage and Keeping

Keep this machine
away from too hot
or too cold places.
The storage
temperature of this
machine is -20~
60 , the
application
temperature of this
machine is 5~35 .

Never make the
TV set under
effect of moisture,
dust or oil smoke
etc. environment.

Never put this
machine within
certain box at
your will or place
it at too­oscillating place
and under further
severe collision.

Never use this
machine near
bathtub,
washbasin, and
kitchen, etc places
with water or at
damp basement,
swimming pool or
similar places.

Avoid this
machine from
dropping or
impacting.

Never extrude
or chafe this
machine with
sharp objects.

Maintenance

Please plug off all connection wires before you start cleaning this machine.

Please wipe the
machine cover,
display screen
and buttons with
soft cloth
dipped with
little soft
abluent.

Alcohol

Never wipe this
machine with
abrasion cloth,
abstergent
powder, alcohol
and benzene etc.
various
propellants or
chemical
cleaning media.

Operation Precautions

1.Only the attached AC adapter and the automobile adapter (12V) are suitable.

2.For the sake of safety, when you do not intend to use the display, please
unplug the AC adapter or automobile adapter.

Earphone Operation Precautions

1.Please don't tune your headphone / earphone at too high volume, otherwise,
it may lead inconvenience and danger to yourself and other people.

2.For open-designed earphone, to avoid influencing your periphery, please
tune down the volume.

3.In case of any tinnitus, please tune down the volume or stop using this
machine.

4.It is recommended by the aurists that the earphone should not be
continuously used for a prolong period.

Warning!

!

1. For the sake of safety for yourself and others, please do not watch
or turn on the TV set while driving.

2. It is very dangerous to watch or operate TV while driving.

!

Special Notice

A few highlights or dark spots may occur on the LCD screen. It is a very
common phenomenon of the active matrix display technology, and does
not mean any defects or faults. Never try to repair this machine by yourself.
In case of any fault or failure, please turn off the display at once, and notify
our Company or the corresponding dealer. The display is made up of many
precision electronic components. Any disassembly or modification may lead
to further damage.

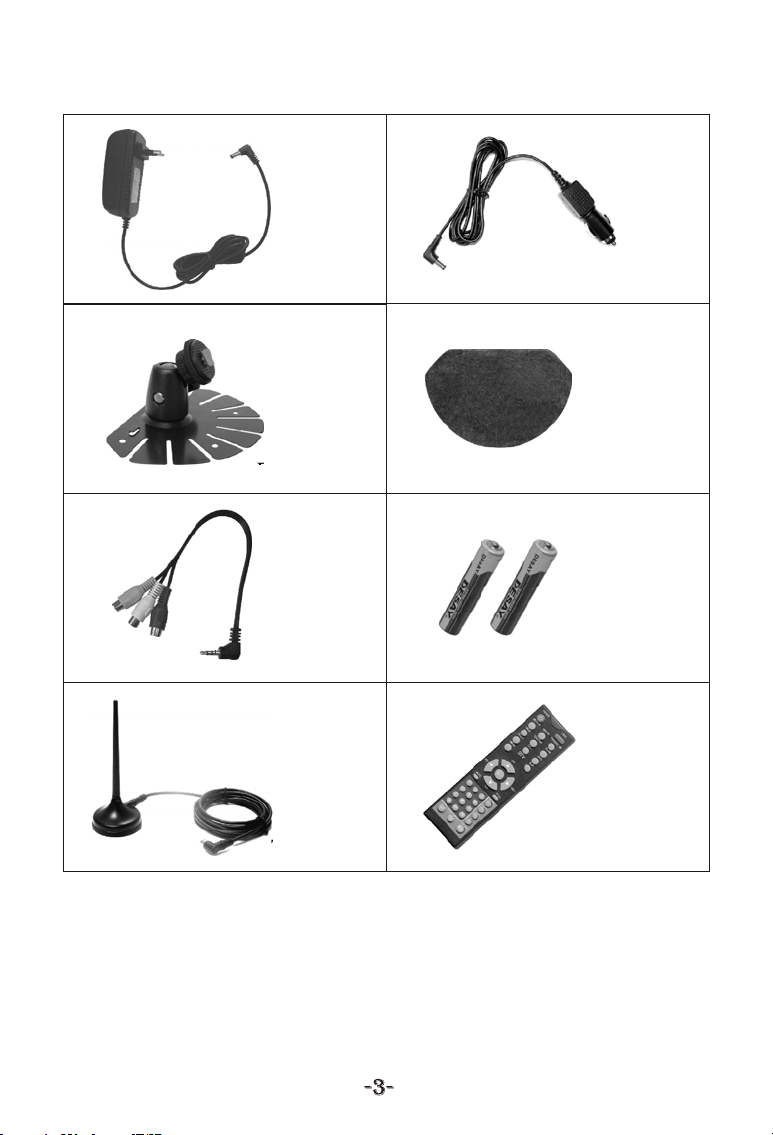

2. Accessories

AC adapter

Base support

AV in/out
cord

Digital
TV antenna

Car adapter

Double-side
adhesive tape
for base support

AAA type
batteries

Remote
control

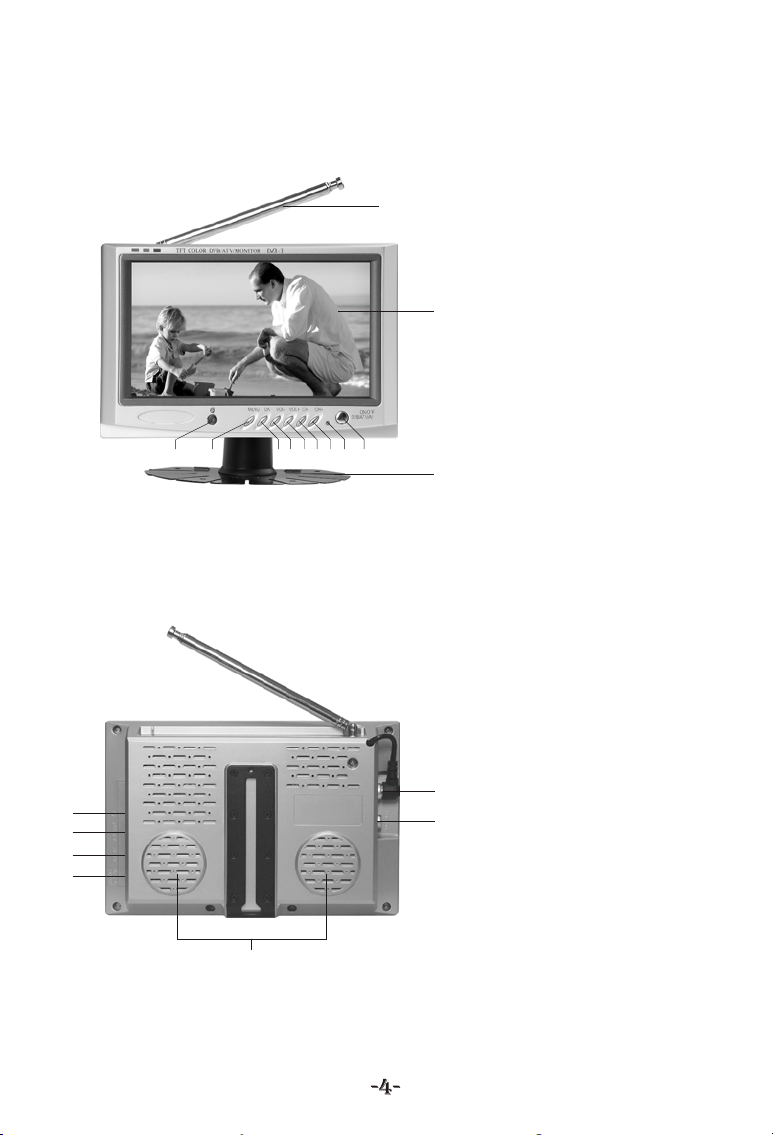

3. Appearance

13
14

15
16

10

1.Remote receiving window

2.Menu

3.Confirm OK (DTV mode)/
Auto search (TV mode)

4.Volume - /Leftward

11

5.Volume+/Rightward

6.Channel - /Downward

7.Channel+ /Upward

8.Power indicator

9. ON/OFF
DVB/ATV/AV

4

3

1

5 6 7 829

Press and hold for 3 seconds

12

to turn off TV set

Shift

10.Telescopic antenna

11.TFT-LCD screent

12.Base support

13.Stereo Earphone jack

14.DVB-T AV Output jack

15.AV Input jack

18

16.12V DC Input jack

19

17.Loudspeaker

18.Antenna input jack

19.Antenna output jack

17

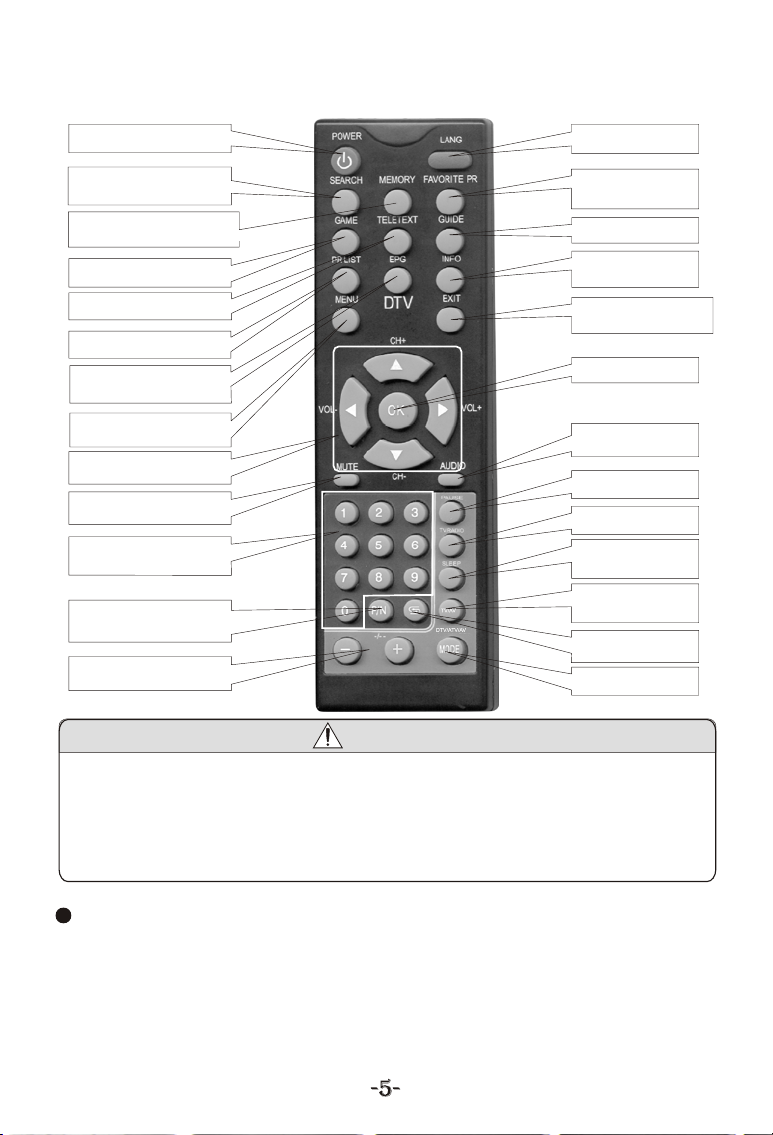

4. Remote Control Operation

Power on/off /Standby

Auto Search/
Auto adjust

Add the current program
to My Favourite Channel

Enter Game menu

Turn on Teletext

Program Edit Table

Display Electronic
Program Guide

Main Menu

Volume Adjust
/CH+ -/Direction

Mute

Input numbers/
Channel keys

Output Video Signal
PAL/NTSC Select

Analog quantity adjust

OSD Language
Select

My Favourite
Channel on/off

Nine Picture Guide

Information
Display

Return to Last
Program/Menu(Exit)

DVB Confirm

L/R Sound Output
Shift

Pause

DVB Music Shift

Sleep timer/
Clock setup

DVB/ATV/AV
Shift

Return to the
previous program

Picture Mode

Caution

1.Please align the remote control with the infrared-receiving window on TV set in
operation.

2.Never oppress, drop, wet or disassemble the remote control.

3.Never press any button continuously and swiftly. Operation interval is at least 2 seconds.

4.Press Power to turn on the TV before pressing CH+, CH- for channel selection.

5.If the remote control were not to be used for a long time, please remove batteries.

Channel keys (digit keys (0-9) and - / - - ): There are 0 ~ 255 in total of 256
channels available on the remote control for your option by the 11 buttons
of 0-9 and - / - - on the remote control. When the channel is a one-digit
figure, just press the corresponding digit key. If the channel is a tw o-di git
figure, you should press - / - - first to show - - on the display screen before
further pressing the corresponding digit keys. (ATV mode only)

POWER (Power On / Off):
Press this button to turn off the TV , press it again to turn on the TV.
LANG:
Press this button to realize the switch of German, French, Dutch, English,
Spanish, Portuguese and Italian OSD menu language(Under DVB mode,
volume OSD language English).

SEARCH: (Auto adjust)
a. Start Auto search in DVB mode.
b. Press and hold for 5 seconds to realize auto search in ATV mode.
MEMORY: Add the current program to my favourite program(DVB mode only)
Press this button to add the current program to My favourite channel list.
FAVORITE PR: My Favourite Channel option on/off (DVB mode only).
GAME: Press this button to enter the game menu(DVB mode only).
TELETEXT: Turn on the teletext option to watch teletext information
(DVB mode only).
GUIDE: Enter nine picture guide function (DVB mode only).
PRLIST: Enter the Program Edit List function (DVB mode only).
EPG: Press this button to display (DVB mode only) Electronic Program Guide .
INFO: Press this button to display the information of current program.
MENU: Press this button to display the main menu.(Press MENU to select
analog level when using AV function.)
EXIT: Return to last program or menu.
CH / (Channel select):
Press CH ,the number of TV channel increases.
Press CH , the number of TV channel decreases.
VOL-/+ (Volume adjust):
Press VOL-, the volume of TV set decreases.
Press VOL+, the volume of TV set increases.
OK: Confirm key (DVB mode only).
MUTE (Mute):Press this button, the sound will disappear. Press it again or
pressVOL+ to resume the normal sound.
AUDIO: Press this button to realize the switch of L/R sound output .
0,1,2,3,...,9: Channel keys: Press to chose the corresponding channel.
Pause (DVB mode only): Press it to pause the picture or sound.

TV/RADIO: Shift between TV and Radio (DVB mode only).
Sleep: Off-time setup. You can set Sleep Timer to automatically turn off
the TV set within 120 minutes.
P/N(-/--)

a. Press this button to to color system of output video signal

(in DVB mode)

b. Press this button to select channels in ATV mode. Press the button, then
press 0-9 digital keys to chose a two-digit or three- digit channel.
Return: Press this button to return to the previous channel. Press it again
to return to the current channel.
DVB/ATV/AV shift: Press this button to shift between Digital TV,
analogue TV and Vedio/Audio(AV).

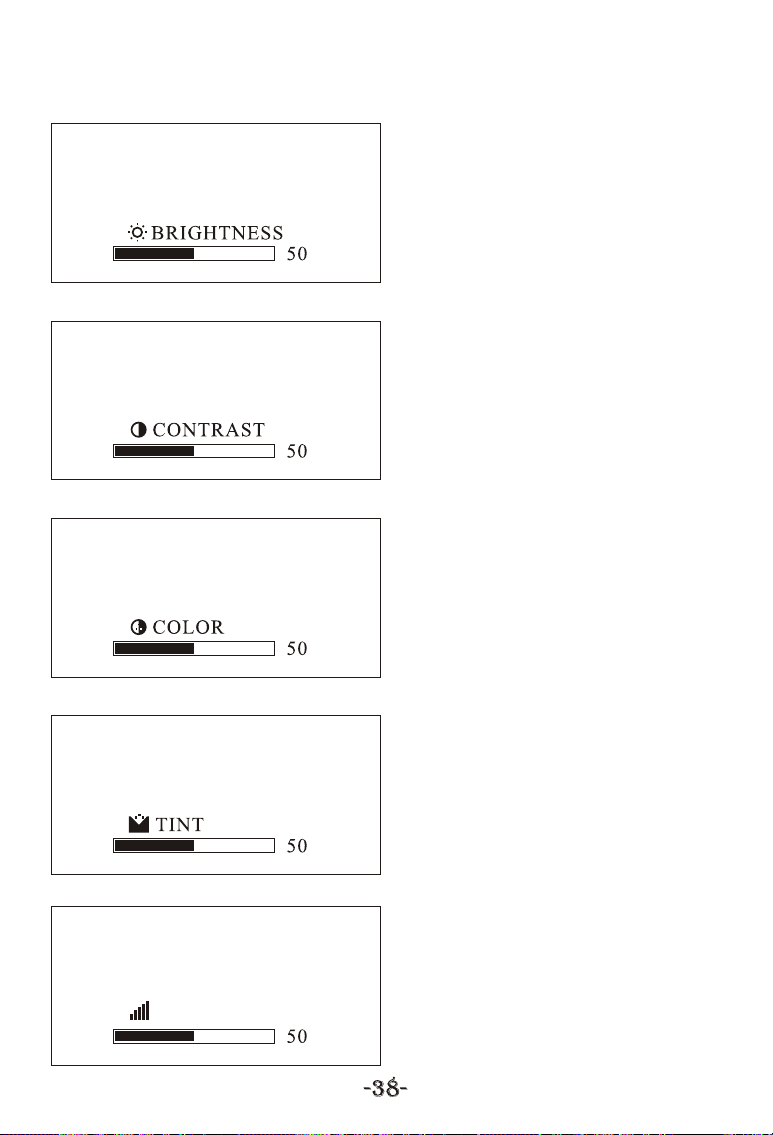

+/-: Bright, contrast. Color, and TINT analog quantity adjust.(Only DVB mode)
Press Mode, then press +/- to adjust the analog quantity of bright, contrast ,
color or TINT.
Mode:(Picture mode)
a. In DVB mode, press this button to select the items between bright, contrast,
color and TINT. Then press +/- to adjust the analog quantity of the chosen
item .
b. In ATV mode, press this button to realize the five picture modes: Standard,
Soft, Vivid, Light and Personal.
c. In AV mode, this button has no use. To adjust the picture mode, please use
Menu button.

:

switch

.

5. Basic Operation Methods

Basic interface connection

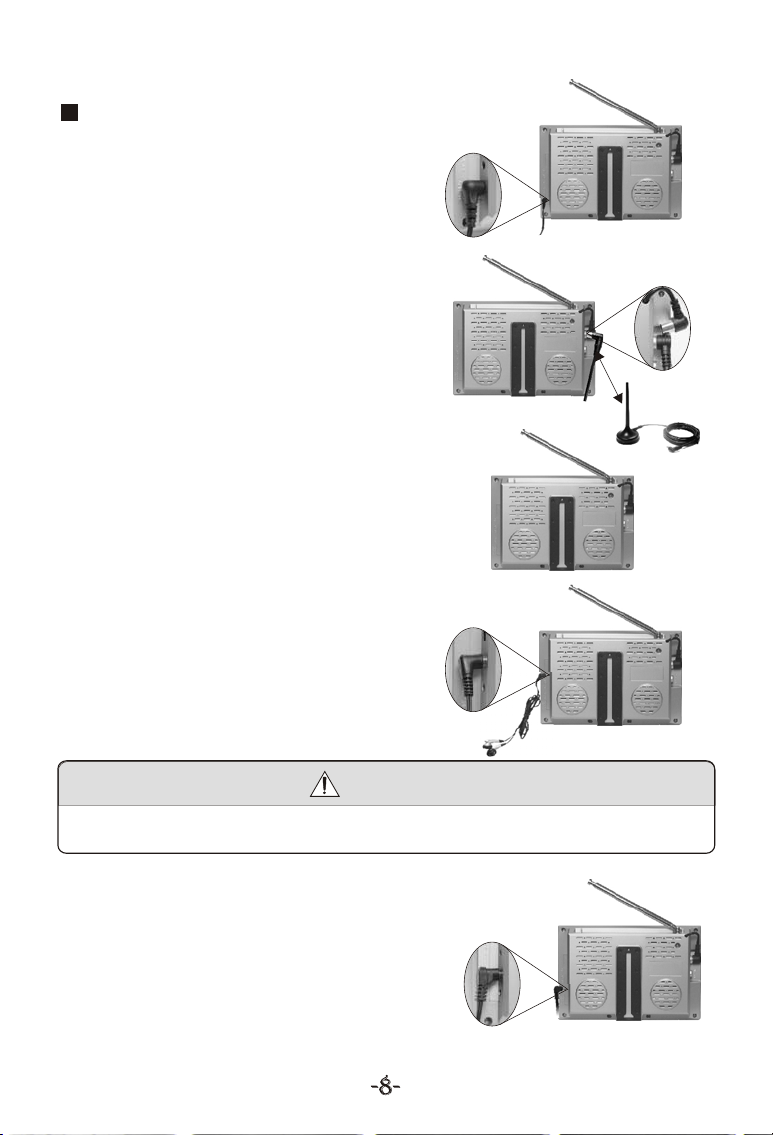

5.1.Connection of Power Supply:

Align the power supply plug on AC

adapter with the jack on the machine

cover marked with DC12V.

5.2.Connection of External Antenna:
Unplug the telescopic antenna plug,

then plug the attached antenna plug into
the antenna jack on the TV set

5.3.Connection of Telescopic Antenna:

Align the telescopic antenna plug with
the antenna jack on the TV set, and
just plug in .

5.4.Connection of Stereo Earphone:

Align the earphone plug with the
earphone jack on the TV set, and
just plug in .

Notice

If the earphone is applied, the sound only transmits through the earphone,
and no sound is available from the loudspeaker of the TV set.

5.5.Connection of AV Input

Just insert the plug of the external
video cord into the yellow port of the
AV exchange head and the audio left
track plug into the white port and
audio right track plug into the red port.
Then insert the AV head into AV/IN
jack of the TV set.

5.6.Connection of AV Output

Connect the yellow port of the AV
output head to video jack, the white
port to the audio left track plug, the
red port to the audio right track plug.
Then insert the AV head into the
AV/OUT jack.

Notice

1.The AV output function is available when using DVB function only.

2.OSD language is locked as English when using AV function.

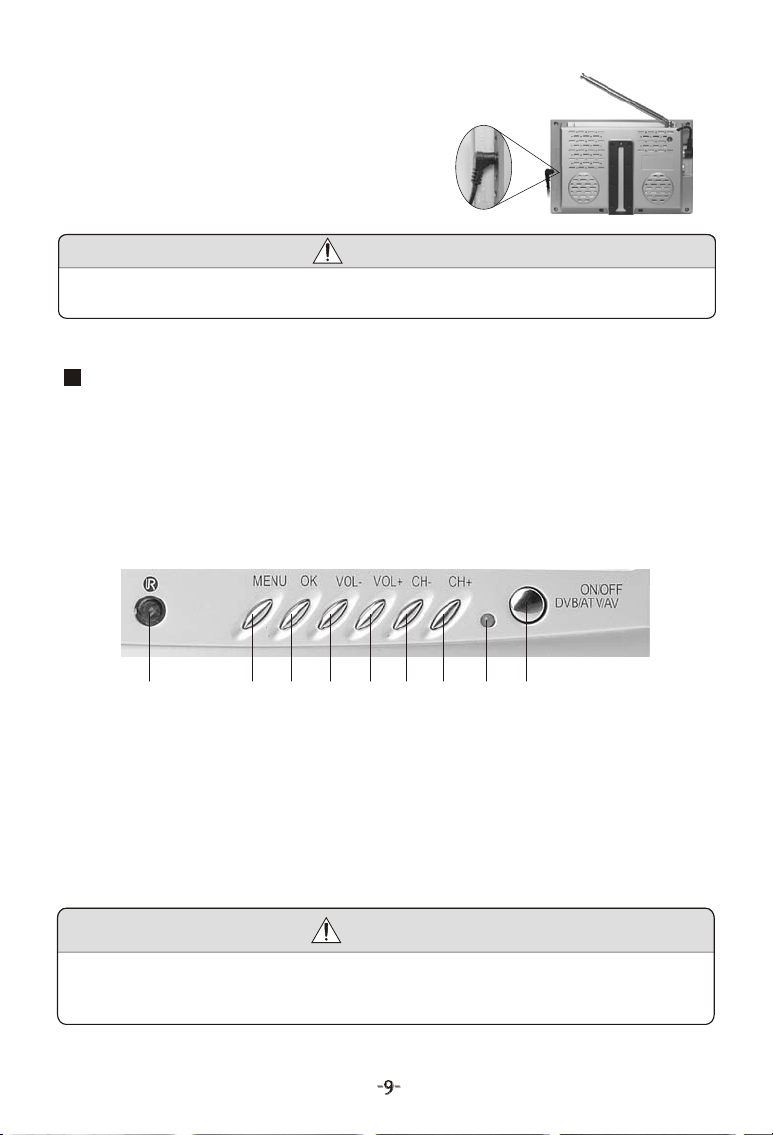

Basic operation methods of TV set

1. Connect with power supply and press the power key. In normal status, the
power light is green. If the light is red, press the Power key to turn on the
TV set.

2. Pull out the telescopic antenna.

3. Press CH-/CH+ to choose the desired channel.

4. Adjust the sound volume of the TV set.

1 2 3 4 5 6 7 8 9

1.Remote receiving window

2.Menu

DVB Confirm OK key/ATV Auto Search

3.

4.Volume decreases

5.Volume increases

6.Change in the order of 3, 2, 1, …

7.Change in the order of 1, 2, 3, …

8.Power indicator

9. ON/OFF
DVB/ATV/AV
Press and hold for 3 seconds
to turn off TV set

Shift

Notice

The OK/Auto key on panel is available as confirm OK only when DVB function
is operating. In ATV mode, press and hold for 5 seconds to realize auto search; In
AV mode, this key does not work.

6. Menu Operation

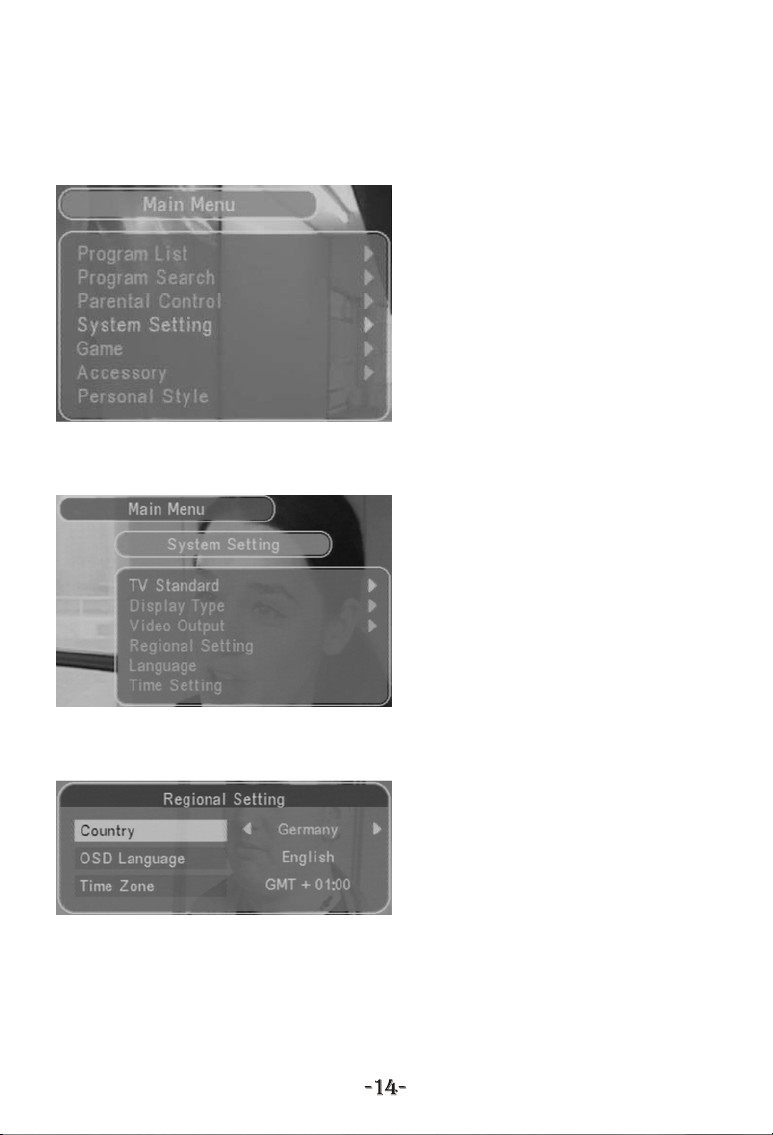

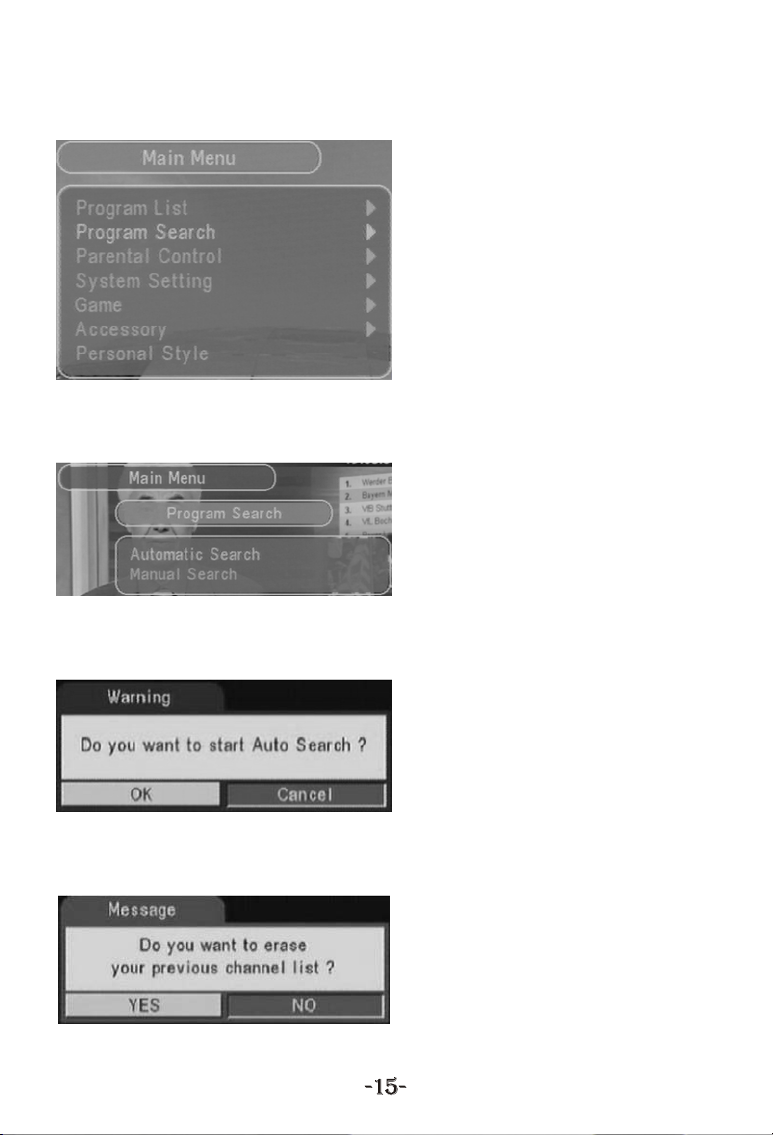

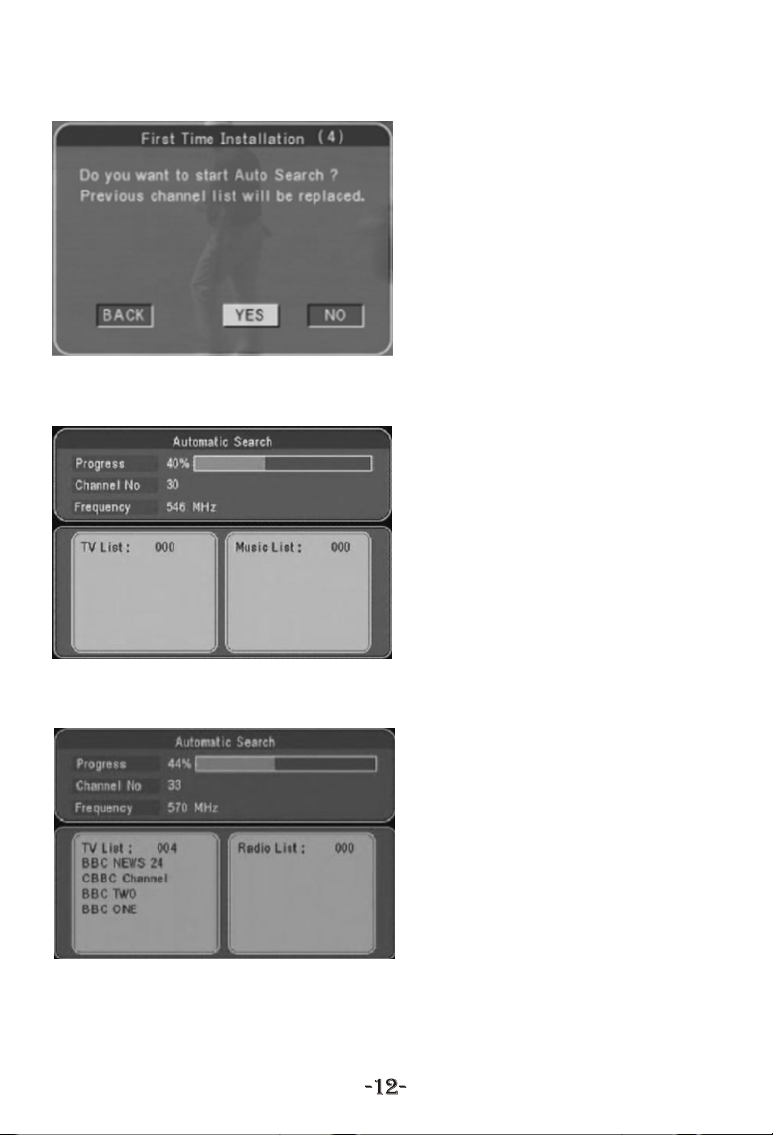

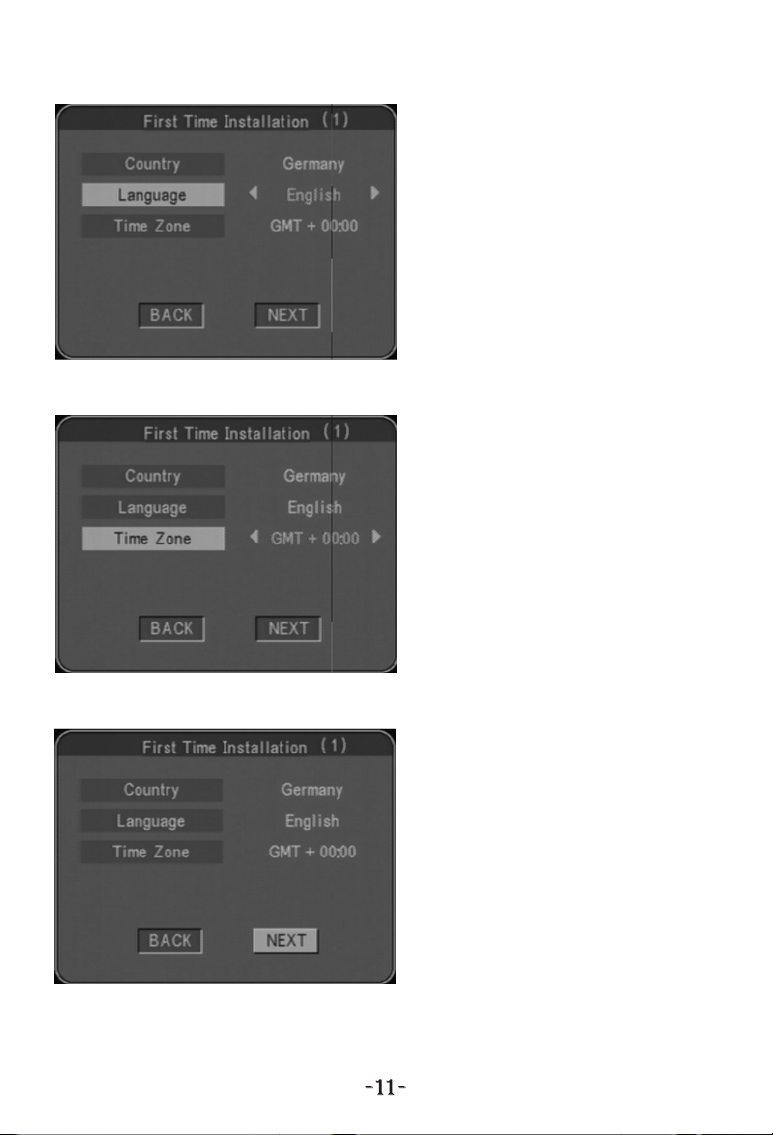

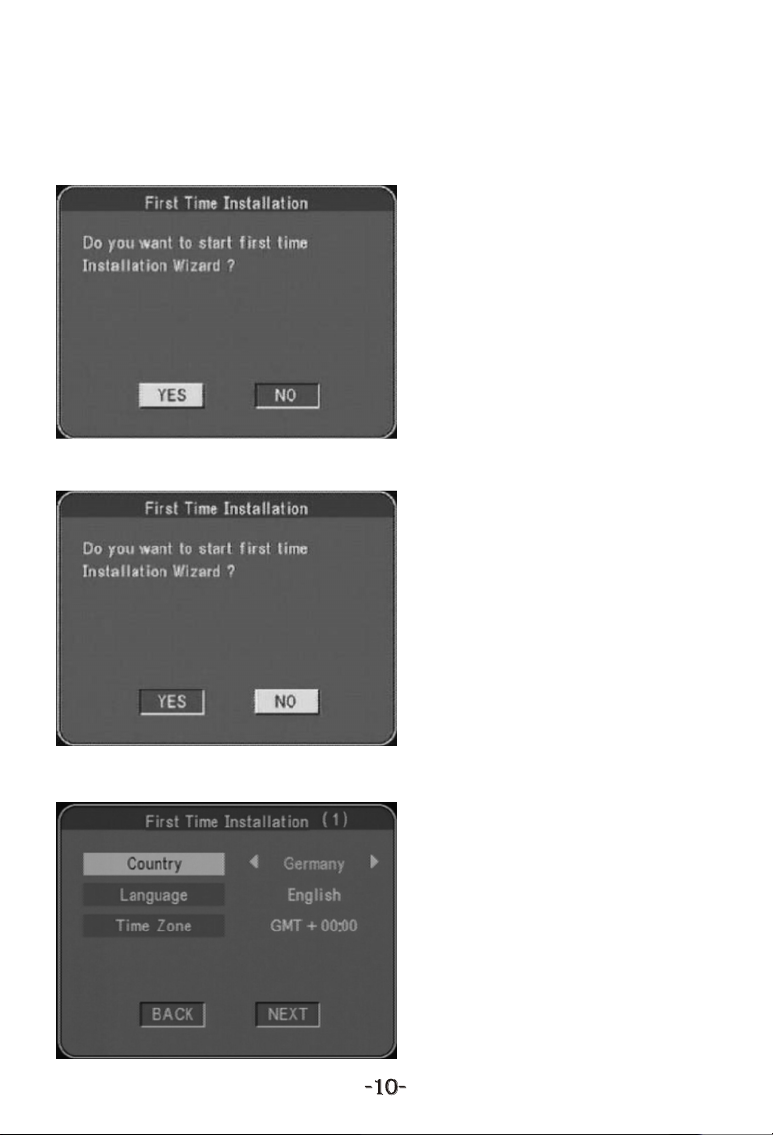

6.1. DVB-T TV receiver automatic installation

First Time Installation.
(The Program table does not exist.)

Cancel first time installation

The system will automatically start
the First Time Installation when the
TV is turned on . Please set up the
installation as illustrated. The system
may not start the First Time
Installation at status as below:

1.The First Time installation has been
set before.

2.The Program table is not empty.
If you want to start the First Time
Installation again, please do as below:

1.Delete all channels in the program list.

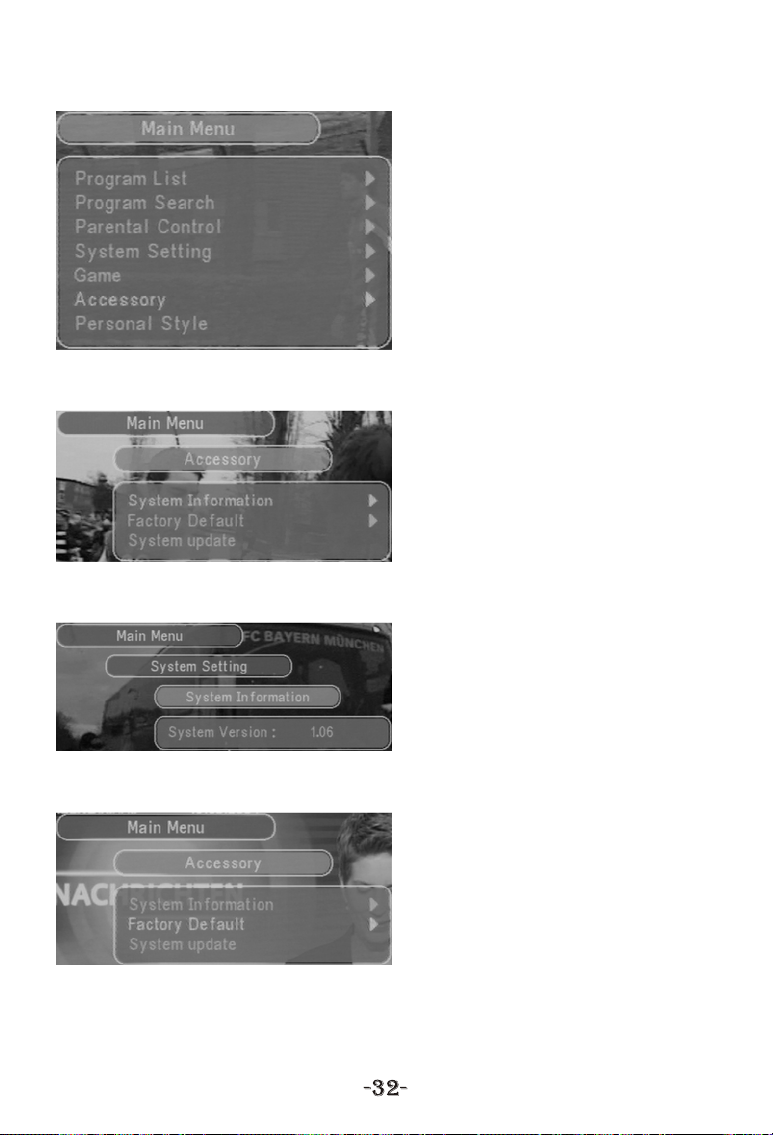

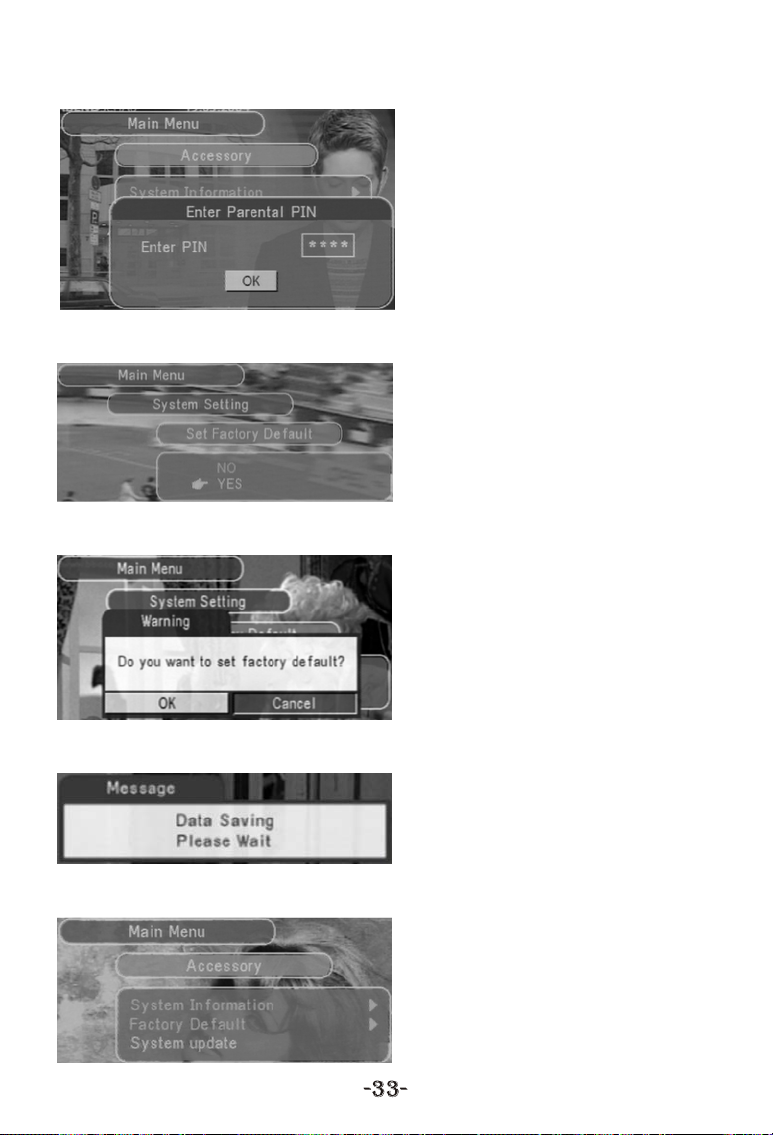

2.Set Factory Default at additional option
setting.

Notice:

You need to enter PIN number, to delete
all programs to enter search or start the
first time installation while parental
control lock is in ON status. But in OFF
status, no PIN is required. After returning
to the factory default, the parental lock is
set in OFF status.

Press VOL+/VOL- to move the cursor
to YES or No . Press OK key to confirm.

YES: Start First Time Installation.
NO: Cancel First Time Installation.

Select country
(Receiving the local system)

Press VOL+ or VOL- o
remote control
the standard of local TV system.
Press CH+ or CH- on the remote
control to move the cursor to made
other selection.

key n the

to select Country at

key

Select language menu

Set time zone

Press VOL+/VOL- to select language
menu.
Press CH+ or CH- to move the cursor

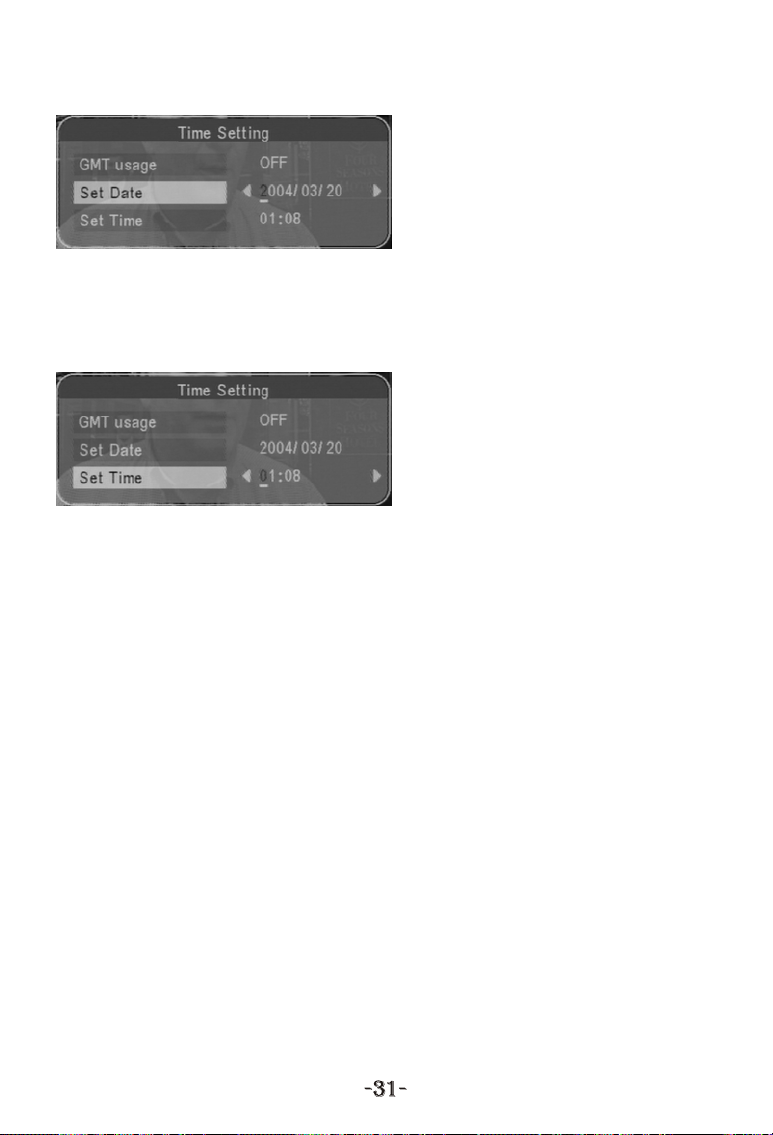

to other items.

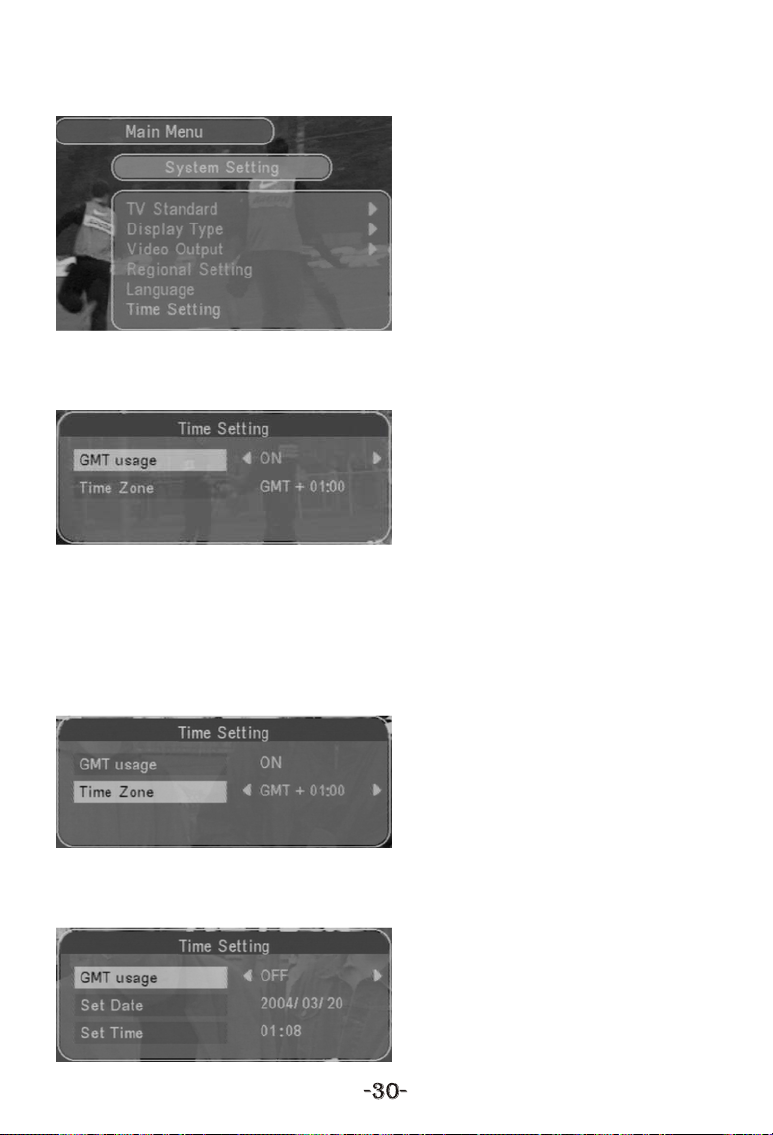

Press VOL+/VOL- to set local time
zone. Press CH+ or CH- to move the
cursor to set other items.

Skip to the next menu page

Press VOL+/VOL- to move the cursor
to BACK or NEXT item. Press OK
key to confirm.

BACK: Skip to the last menu page.
NEXT: Skip to the next menu page.

Start program auto search Step 1

Step 2

Press VOL+/VOL- key to move the
cursor to BACK , YES or NO item,
Press OK key to confirm.

BACK: Skip to the last menu page.

YES: Delete program list and start

Auto Search.
NO: Cancel Auto Search and return
to the main menu.

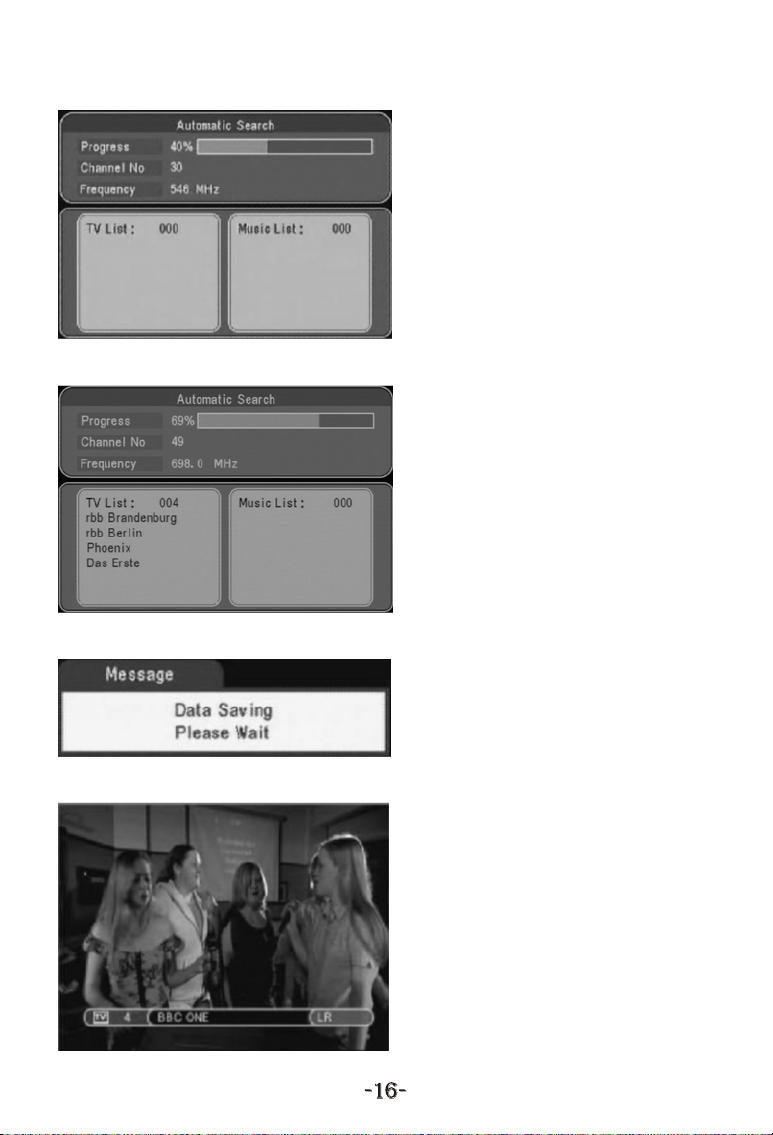

Auto searching......

Notice:
During auto searching, do not press any
key on the remote control or panel.
Otherwise it may interrupt the search
progress.

Step 3

Auto searching......

The program list display.

Step 4

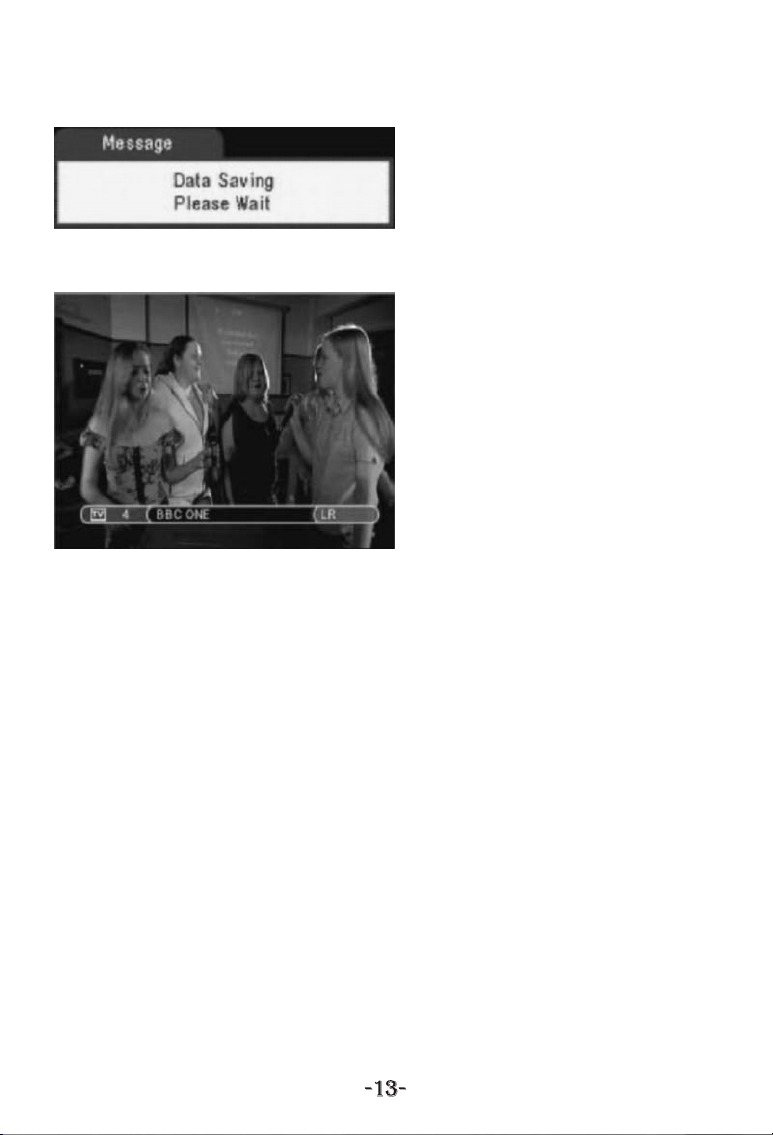

Step 5

Auto Search has been finished.
Data saving...

Auto Search has been finished.
Press CH+/CH- to watch the program.

6.2.Installation Setup

Please follow the steps below to
set up:

Step 1

Step 2

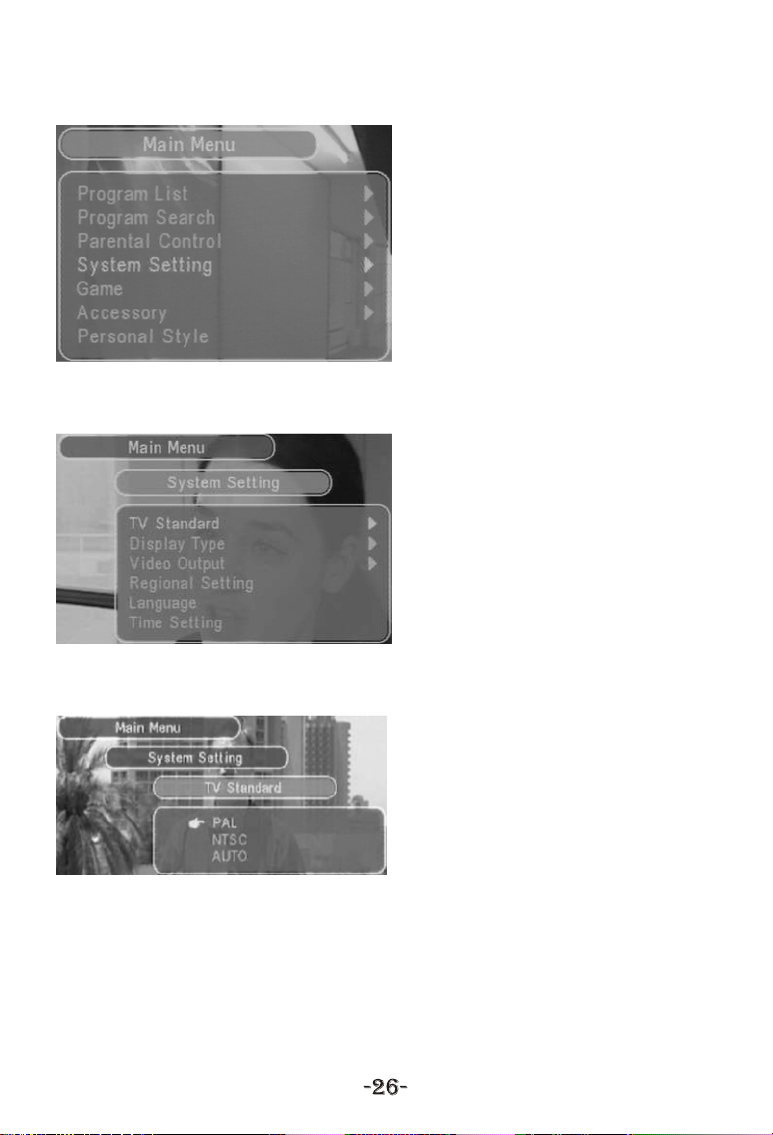

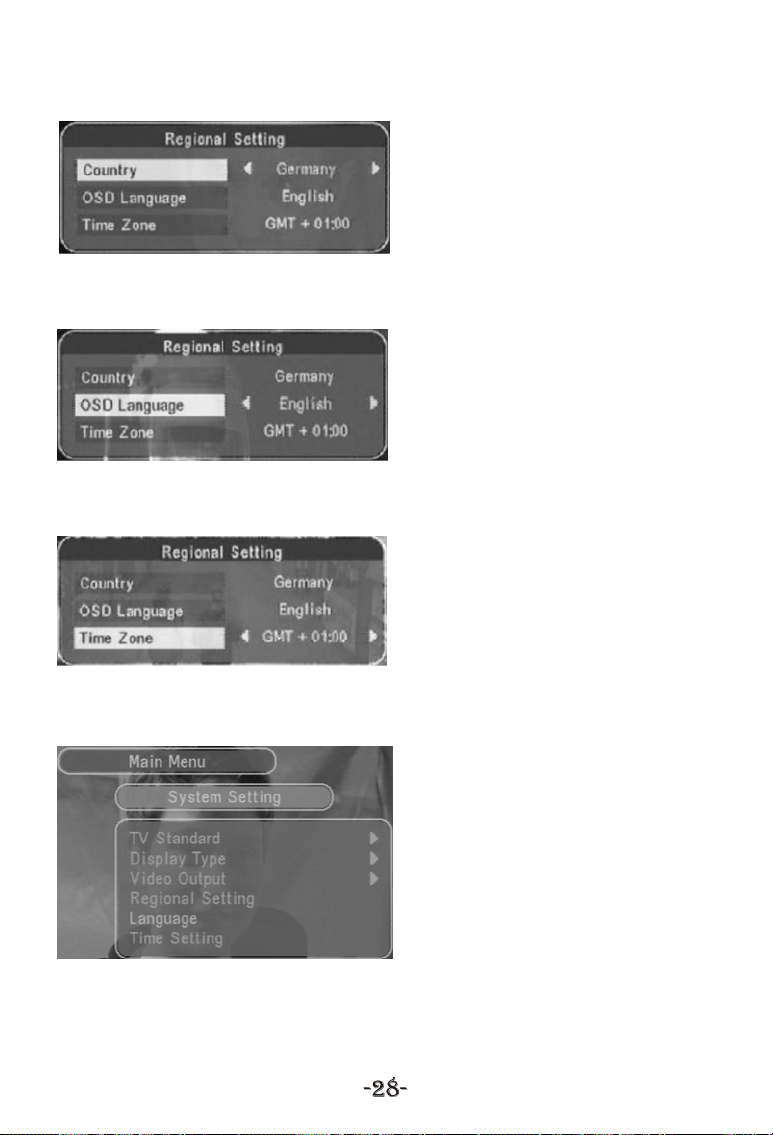

1.Press MENU key to display Main Menu.

2.Press CH+ or CH- key to move the
cursor to select System Setting sub-menu.

3.Press OK key to enter System Setting
menu.

Press CH+ or CH- key to move the

4.
cursor to select Regional Setting menu.

5.Press OK button to confirm.

Step 3

6.Press CH+ or CH- key to move the
cursor to select Country item.

7.Press VOL+ or VOL- key to set
the located Country.

8.After setting, press EXIT key twice to
return to Main Menu.

Step 4

Step 5

Step 6

9.Press CH+ or CH- key to move the
cursor to select Program Search item.

10.Press VOL+ key to enter the program
search menu.

11.Press CH+ or CH- key to move the
cursor to select Automatic Search item.

12.Press OK key to continue the next step.

Manual search can be used to search
the certain frequency which is existent.
It is suitable for professionals to operate.

Step 7

13.Press VOL+/VOL- key to move the
cursor to select OK item, then press
OK key to continue next step.

14.Press VOL+/VOL- key to move the
cursor to select YES or NO item. Press
OK key to start Auto Search.
YES: Delete channel list and start auto
search.
NO: Keep channel list and start auto
search.

Step 8

Step 9

Step 10

15.Auto searching......

16.Auto searching......

The channel list display.

Step 11

17.Auto Search has been finished.

Data saving......

18.Auto Search has been finished.
Press CH+/CH- to watch the TV
program.

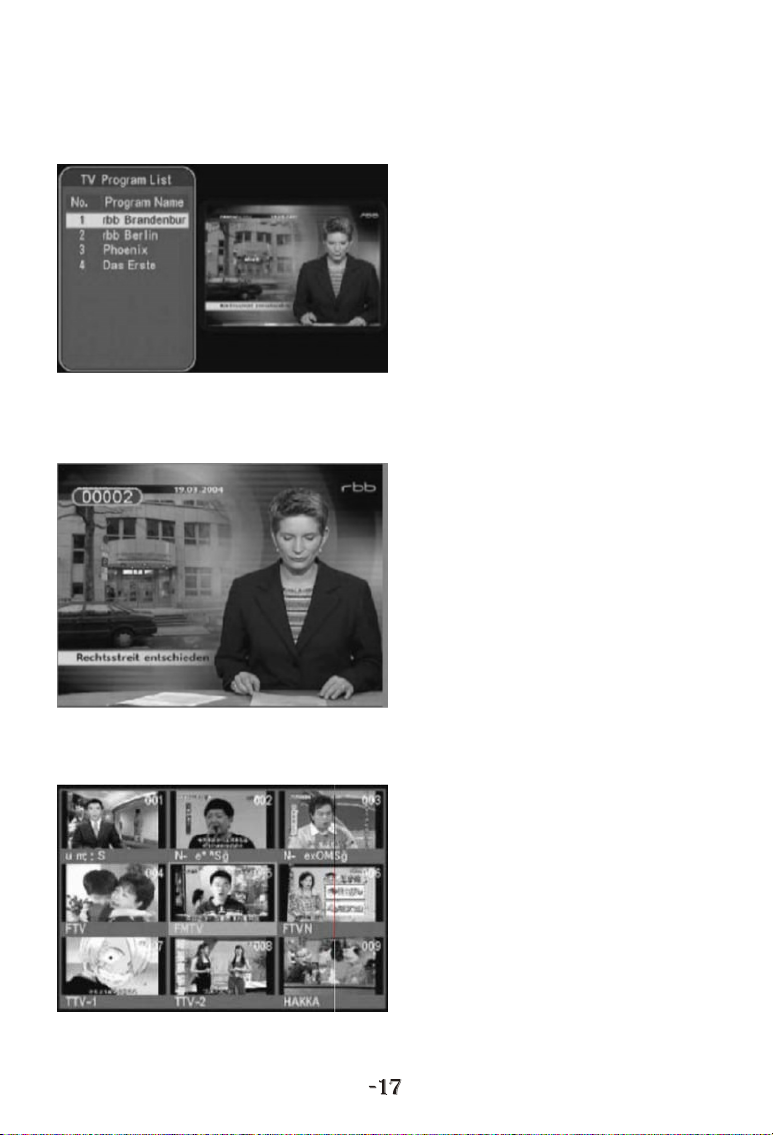

6.3.Program receive and shift

Program preview

Input the channel number on the remote
control

After finishing auto search, you can
enjoy watching high quality TV programs.

Press OK key , and program preview
picture will be displayed as illustrated.
Press CH+ or CH- key to move the cursor
to select channels in the Program list.
Press OK button to confirm.

You can input the channel number on
the remote control to select your desired
programs.
Press OK to confirm.

Nine Pictures Guide

This DVB-T TV set provides Nine
Picture Guide function. Press GUIDE
key to start the function and press
CH+/CH- or VOL+/VOL- key to move
the cursor to select program image.
Press OK button to confirm.

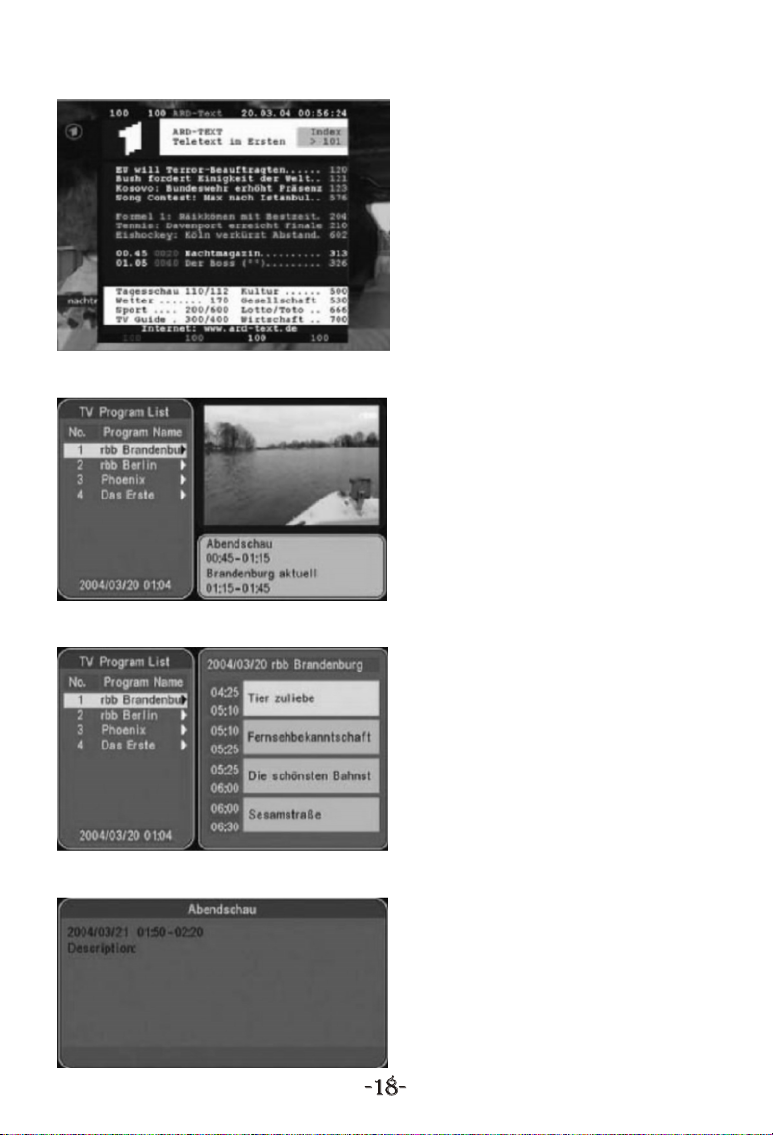

Teletext Display

Electronic Program Guide

EPG Time Table

This DVB-T TV set supports Teletext
Display. Press Teletext key to start the
function.
Press CH+/CH- key or input the page
number on the remote control to change
display pages.
Press EXIT key to return to normal
playback.

To display Teletext, the program signal
must contain teletext data.

This digital TV set supports Electronic
Program Guide (EPG) function. Press
EPG key to start the function.

To run EPG, the program signal must
contain EPG data.

Program details

Press VOL+ key to enter EPG Time Table.
You can browse the program guide of that
day. Press VOL+ key to move the cursor
to choose the program items.

Press EXIT button to return to the
previous page.

While program items list is displayed ,
press OK key to browse the program
details.

Press EXIT key to return to the previous
page.

Press EXIT key several times to return to
normal playback.

6.4.Program Search Function

Program Search Menu

For the first installation of the TV set,
it is recommended to perform program
search function. So you can renew the
channel list and receive program picture
normally.

If program parameters have been
renewed, you must run program search
function again and renew the channel
list of the TV set.

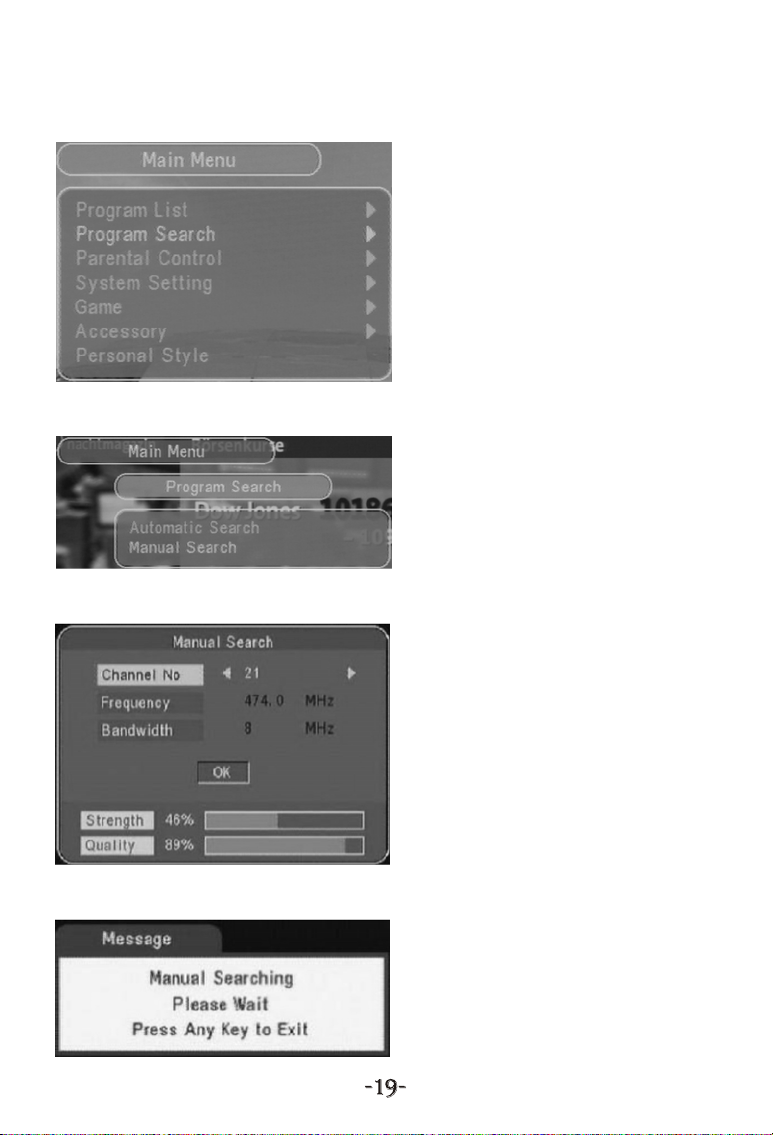

Manual Search

Manual Search Setup

Manual Searching

Under the Installation Menu, press
CH+ or CH- key to move the cursor
to select Manual Search item. Press
OK key to continue the next step.

Manual search can be used to search
the certain frequency which is existent.
. It is suitable for the professional to
operate.

Under the main menu, press CH+ or
CH- key to move the cursor to select
the Channel Number.
Press VOL+ or VOL- to change to the
desired channel number.
Press CH+ or CH- key to move the
cursor to select OK item.
Press OK key to start Manual Search.

Manual Searching ......

(Press any key on the remote control
to exit manual search.)

Finish Manual Search

System Saving

Manual Search is finished.
The TV program is displayed directly.

Press MENU key to save the setting
and return to normal playback.

6.5.Main Menu Operation

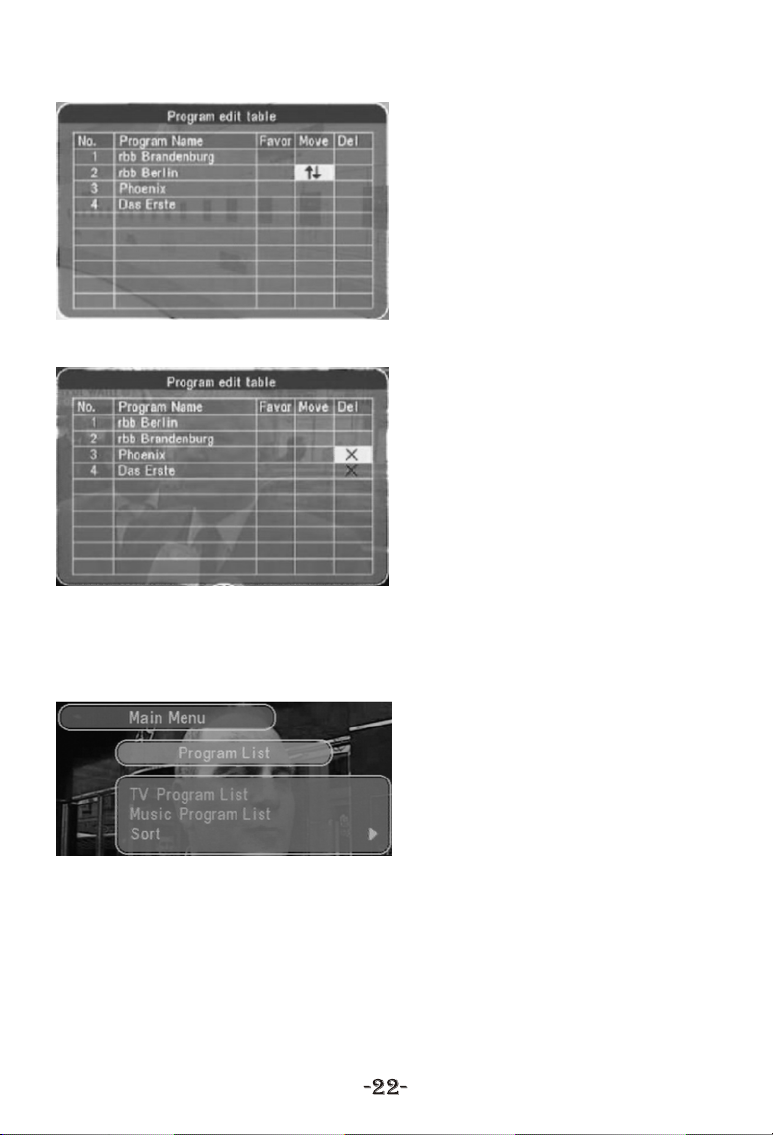

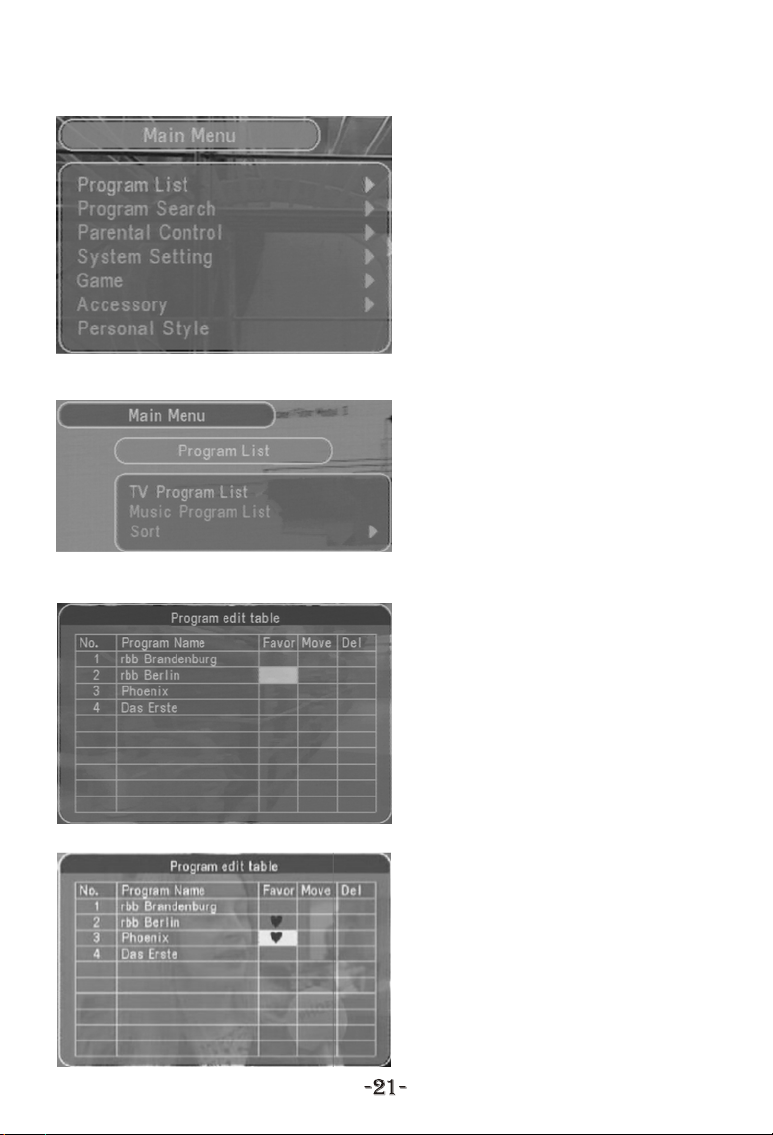

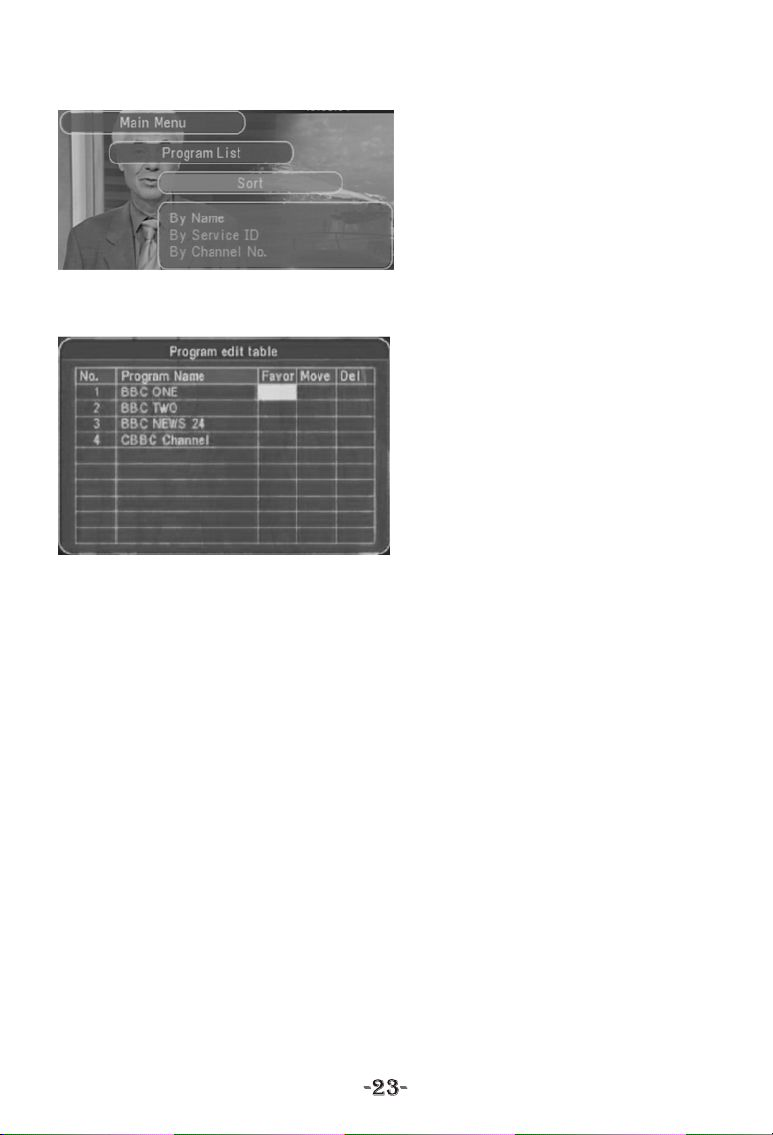

Program Edit Table

There are three options in Program List

There are three options in TV Program
List or Radio Program List

Press MENU key to display Main Menu,
then press CH+ or CH- key to move the
cursor to select Program Editing item.
Press VOL+ to enter Program Editing
function.
There are three options in it :TV program
list, Radio program list and the sort of
order for programs.

Press CH+ or CH- key to move the
cursor to select TV Program List
or Radio Program List. Press OK to
enter.
(The setting for Radio program list is the
same as for TV program list. Below is an
examples for TV program list setting)

For the three options, press CH+/CH- key
to move the cursor to select the item you
like. Press OK to confirm and press OK
again to cancel..

Edit My Favorite Program

This digital TV set supports My Favorite
Program function. You can mark programs
you like to be My Favorite Program. Press
OK key to confirm and press again to
cancel. After marking, press MENU key
several times until the system saves setting
and return to normal playback.
Press Favorite PR key My Favorite
Program, then press CH+ or CH- to
choose programs among all My Favorite
Programs. Press Favorite PR key again to
exit. When My Favorite Program is
started, press PR List key to display My
Favorite Progran List.

to start

Move Program

Delete Program

Sort for Programs

Under Program Edit Table menu, press
VOL+ or VOL- key to move the cursor
to the Move row of program table,
Press CH+ or CH- to move the cursor
to the desired position.
Press OK key to confirm. And press OK
key again to cancel. After setting, press
MENU key then the system will save
the setting automatically and return
to normal playback.

Under Program Edit Table menu, press
VOL+ or VOL- key to move the cursor
to the Del row of program table, Press
CH+ or CH- to move the cursor to the
program you want to delete. Press OK
key to confirm. And press OK key
again to cancel. (More than one can be
selected.)After setting, press MENU key
then the system may save the setting
automatically and return to normal
playback.
The deleted program can not be resumed
unless the Program Search function is
restarted.

Notice:

You need to enter PIN number to delete
all programs to enter search or start the
first time installation while parental
control lock is in ON status. But in
OFF status, no PIN is required. After
returning to the factory default, the
parental lock is set in OFF status.

Under Program Edit Table menu, press
CH+ or CH- key to move the cursor to
Sort item. Press OK to enter Sort menu.

Select methods for sort

After Sorted

Press CH+ or CH- to move the cursor
to the desired position.
Press OK key to confirm.

Display as left after sorted. Press Exit to
return to last page. Press MENU key
several times to save the setting and return
to normal playback.

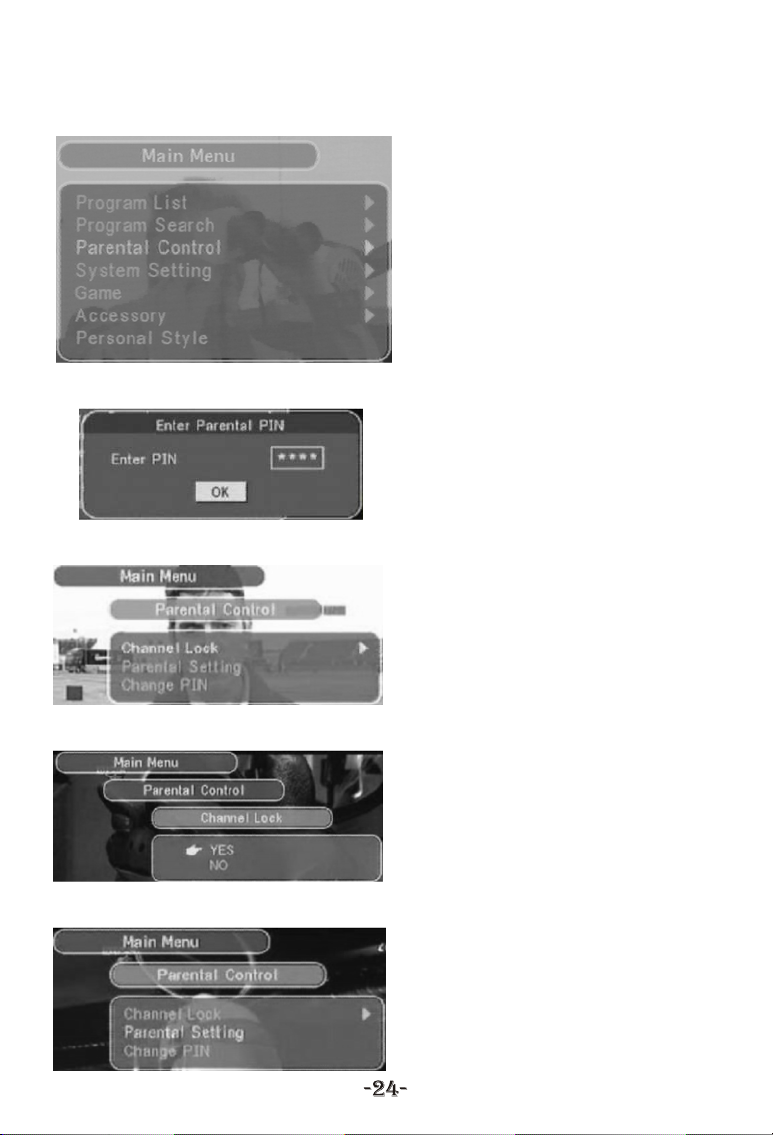

6.6.Parental Control Setup

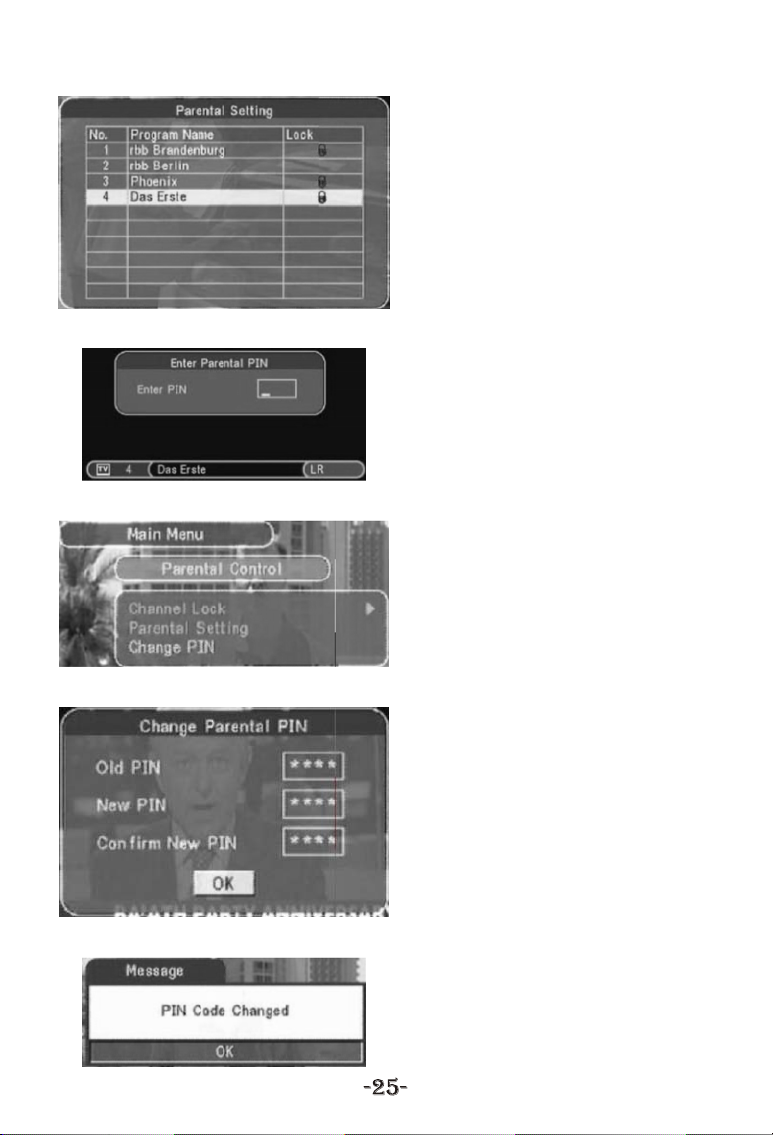

Parental Control

Set PIN

Channel Lock

Start Channel Lock

Some program is not suitable for kids
or youth. Parents can start Parental
Control function to lock and restrict
some program to be displayed.

Press MENU key to display Main menu,
then press CH+ or CH- key to move the
cursor to select Parental Control item.
Press OK key to continue the next step.

Input a four- PIN, then press OK
key to confirm. If the PIN is correct,
Parental Control function starts.

The default PIN of this DVB-T TV set
is preset as 8888.

Under Parental Control menu, press
CH+ or Ch- key to move the cursor to
Channel Lock item. Press OK key to
continue the next step.

Press CH+ or CH- key to move the
cursor to YES or NO item.
Press OK key to confirm. The system
will return to Parental Control menu.

YES: Start Channel Lock.
NO : Cancel Channel Lock.

digit

Parental Setting

Notice: While the Channel Lock
function has been set up, fast
installation or first time installation
will not work till the correct PIN is
entered.

Lock up the programs on Parental
Setting list.

Press CH+ or CH- key to move the
cursor to Parental Setting item.
Press OK key to confirm and then
continue the next step.

Select Programs To Be Locked

Protected Program

Change PIN

Press CH+ or CH- key to move the
cursor to select the program to be locked.
(More than one can be selected.)
Press OK key to confirm or press OK
key again to cancel.
Press MENU key several times till the
system saves the setting and returns to
normal playback.

To protect programs, you must start
Channel Lock function,

To display protected programs, you
must input the correct PIN.
Please input four digit number and
press OK key to confirm.

All system PIN can be set under this
menu.

Press CH+ or CH- key to move the
cursor to select Change PIN.
Press OK key to confirm and get into
the next step.

Confirm Renew

PIN Code Change

Input old PIN and new PIN in order.
(Press OK key to confirm) Then press
OK key to realize OK item.

Press OK key to confirm.
Press MENU key till the
system saves the setting and returns to
normal playback.
Notice: Please remember the new PIN
after the change. After
delete all channels, i
PIN number to enter search start
installation or first time installation.

several times

setting default or

t is necessary to enter

or Fast

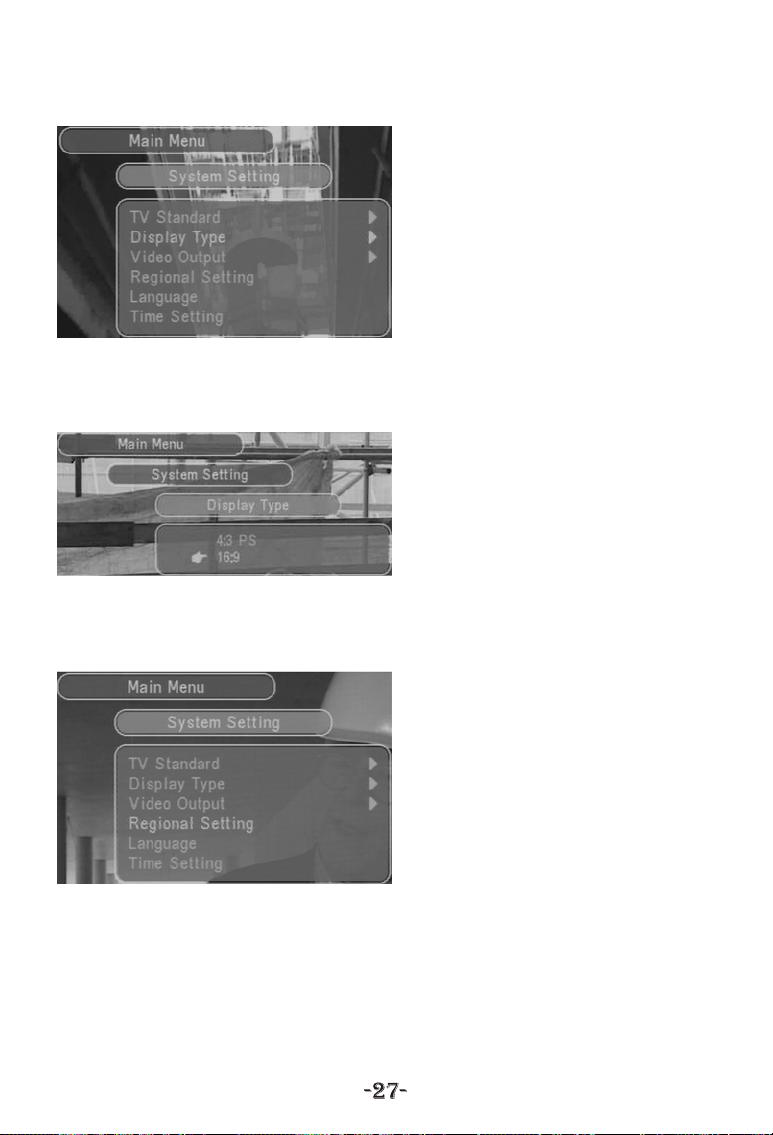

6.7.System Setting

TV System Setting

Press MENU key to display Main Menu,
then press CH+ or CH- key to move the
cursor to select System Setting item.
Press OK key to access System Setting
sub-menu.

Under the Main Menu, press CH+ or
CH- key to move the cursor to select
TV Standard. Press OK key to enter
TV Standard menu.

TV Output System Setting

Under the TV Standard Menu, press
CH+ or CH- key to move the cursor
to select correct color system item.
Press OK key to confirm, then the
system may returns to normal playback.

PAL: Europe TV System
NTSC: America TV System
AUTO: Auto choose correct System

If the picture turns into black and white
after the setting, it means that new
setting system is not suitable for your
TV or monitor. You can Press P/N key
to choose the correct TV output system.

Display Type

Under the System Setting Menu, press
CH+ or CH- key to move the cursor
to select Display Type item. Press OK
key to enter Display Type menu.

Display Type Setting

Regional Setting

Under the Display Type Menu, press
CH+ or CH- key to move the cursor
to select desired display type. Press OK
key to confirm and the system returns
to System Setting menu.

If the picture gets into distortion after
the setting, it means that new Display
Type setting is not suitable for the TV
or the monitor.

Under the System Setting Menu, press
CH+ or CH- key to move the cursor
to select Regional Setting item. Press
OK key to enter.

Country Setting

OSD Language

Time Zone

Under the Regional Setting Menu,
press CH+ or CH- key to move the
cursor to select Country item. Press
VOL+ or VOL- key to select country.
Press CH+ or CH- key to move the
cursor to select other items or
press OK key to confirm. Then the
system will return to System Setting
menu.

Under the Regional Setting Menu,
press CH+ or CH- key to move the
cursor to select OSD Language item.
Press VOL+ or VOL- key to move the
cursor to select language.
Press CH+ or CH- key to move the
cursor to select other items or press
OK key to confirm. Then the system
will return to System Setting menu.

Under the Regional Setting Menu,
press CH+ or CH- key to move the
cursor to select Time Zone item. Press
VOL+ or VOL- key to select time zone.
Press CH+ or CH- key to move the
cursor to select other items or press
OK key to confirm. Then the system
will return to System Setting menu.

Language

Under the System Setting Menu, press
CH+ or CH- key to move the cursor
to select Language item. Press OK key
to confirm.

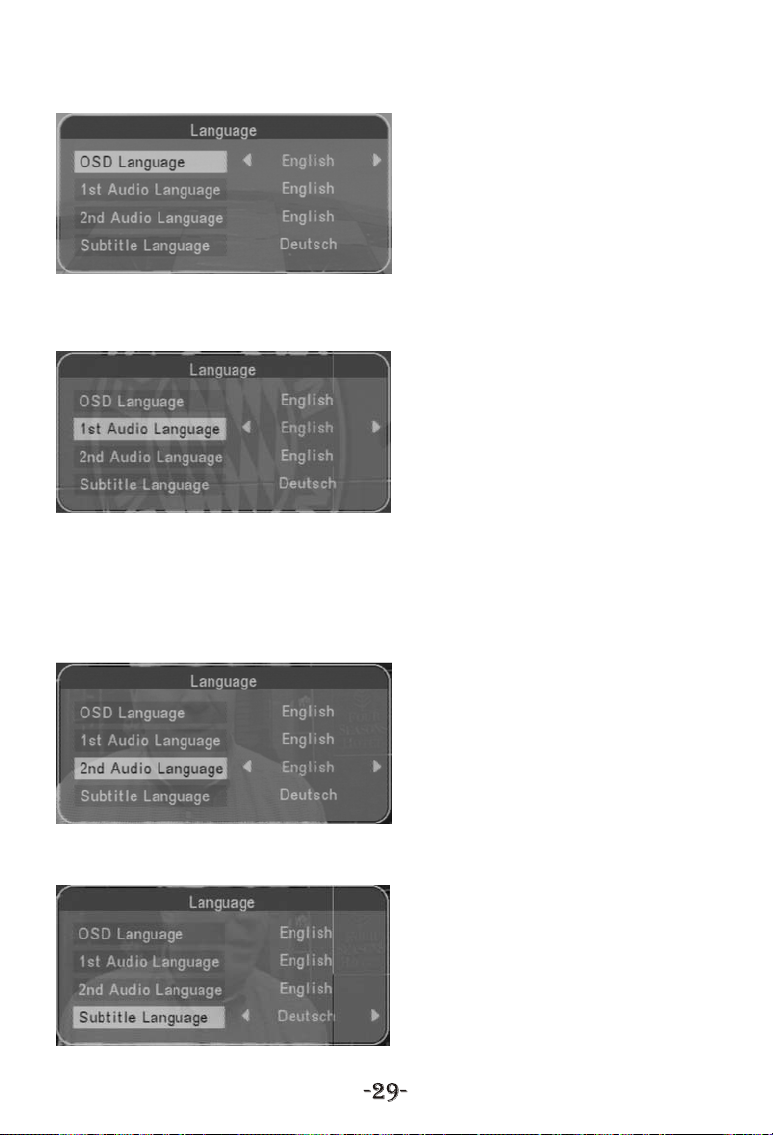

OSD Language

The first Audio language setting

Under the Language Menu, press CH+ or
CH- key to move the cursor to select OSD
language item. Press VOL+ or VOL- key
to select OSD language. Press CH+ or
CH- key to move the cursor to select
other items or press OK key to confirm.
Then the system will return to System
Setting menu.

Under the Language Menu, press CH+ or
CH- key to move the cursor to select 1st
Audio Language item. Press VOL+ or
VOL- key to select language. Press CH+
or CH- key to move the cursor to select
other items or press OK key to confirm.
Then the system will return to System
Setting menu.

The audio language depended on the
sender of program. If the program does
not support multi-language, the TV set
can select language automatically.

The second Audio language setting

The Subtitle language setting

Under the Language Menu, press CH+ or
CH- key to move the cursor to select 2nd
Audio Language item. Press VOL+ or
VOL- key to select language. Press CH+
or CH- key to move the cursor to select
other items or press OK key to confirm.
Then the system will return to System
Setting menu.

Under the Language Menu, press CH+ or
CH- key to move the cursor to select
Subtitle Language item. Press VOL+ or
VOL- key to select language. Press CH+
or CH- key to move the cursor to select
other items or press OK key to confirm.
Then the system will return to System
Setting menu.
The subtitle language depended on the
sender of program. If the program does
not support selected language, the TV set
should display no subtitle language.

Time Setting

Under the System Setting Menu,
press CH+ or CH- key to move the
cursor to select Time Setting item.
press OK key to confirm.

GMT Standard Time Usage

GMT Standard Time Zone

Turn Off GMT Standard Time

Under the Time Setting Menu, press
CH+ or CH- key to move the cursor to
select GMT usage item. Press VOL+ or
VOL- key to select ON or OFF.
ON: start using
OFF: no using
Press CH+ or CH- key to move the
cursor to select other items or
press OK key to confirm. Then the
system will return to System Setting
menu.

Under the Time Setting Menu, press
CH+ or CH- key to move the cursor to
select Time Zone item. Press VOL+ or
VOL- key to select desired time zone.
Press CH+ or CH- key to move the
cursor to select other items or
press OK key to confirm. Then the
system will return to System Setting
menu.

If you selected OFF in GMT usage item,
The date and time can be set.
Press CH+ or CH- key to move the
cursor to select other items or
press OK key to confirm. Then the
system will return to System Setting
menu.

Date setting

Time setting

Press CH+ or CH- key to move the cursor
to Set Date item. Press VOL+ or VOL-
key to move the cursor to desired position.
And enter correct Date. Press OK key to
confirm. Press CH+ or CH- key to move
the cursor to select other items. Then
press MENU key, the system will save
the setting and return to System Setting
menu.

Press CH+ or CH- key to move the cursor
to Set Time item. Press VOL+ or VOL-
key to move the cursor to desired position.
And enter correct Time. Press OK key to
confirm. Then press MENU key, the
system will save setting and return to
System Setting menu.
Press MENU key several times, the
system will save the setting and returns
to normal playback.

6.8.Accessory Setting

System Information

System Version

Under the System Setting Menu,
press CH+ or CH- key to move the
cursor to select Accessory item. Press
VOL+ to enter Accessory menu.

Under the Accessory Menu, press CH+
or CH- key to move the cursor to select
System Information item. Press OK key
to enter next step.

Display the Version of TV set.
Press EXIT key then the system return
to Accessory menu. Press MENU key
several times return to normal playback.

Set Factory Default

Under the Accessory Menu, press CH+
or CH- key to move the cursor to select
Factory Default item. Press OK key
to enter next step.

Enter PIN

Set Factory Default

Input a four-digit PIN number. If the PIN
is correct, you can enter the Set Factory
Default menu.
The default .
The parameters in factory default may
be unsuitable for local system. It is
recommended to start First Time
Installation or manual installation under
main menu after turn on the TV set.

To set factory default, select YES
item and press OK key to confirm.

PIN is preset as 8888

Step 1

Step 2

System update

Select OK item under Warning menu
and press OK key to confirm to enter
factory default.

Notice: The PIN is preset as 8888.
If you has changed the PIN , then
when you want to set factor default,
the PIN will not be 8888 ,but the
PIN changed by the user.
Please do fix the PIN.

Data Saving, please wait......

Keep down the function
(For the professional to reference)

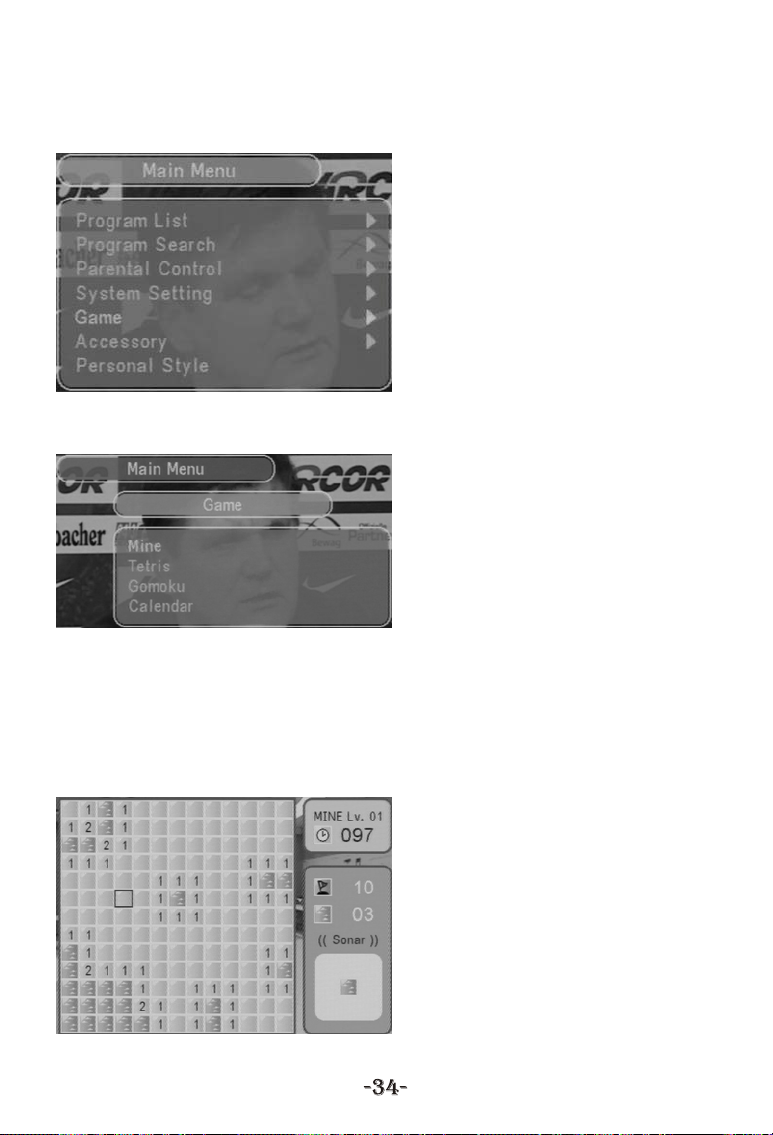

6.9.Game Menu

Game Menu

Under Main Menu, press CH+ or CH­key to move the cursor to select Game
item.
Press OK key to enter Game menu.

Game Item

In Game Status

Press CH+ or CH- key to move the
cursor to select Game item. Press OK
key to start game.

Mine.
Tetris.
Gomoku.
Calender

Press EXIT key to return to Game
menu.

Press EXIT several times till the system
saves data and returns to normal playback.

Enter game status.

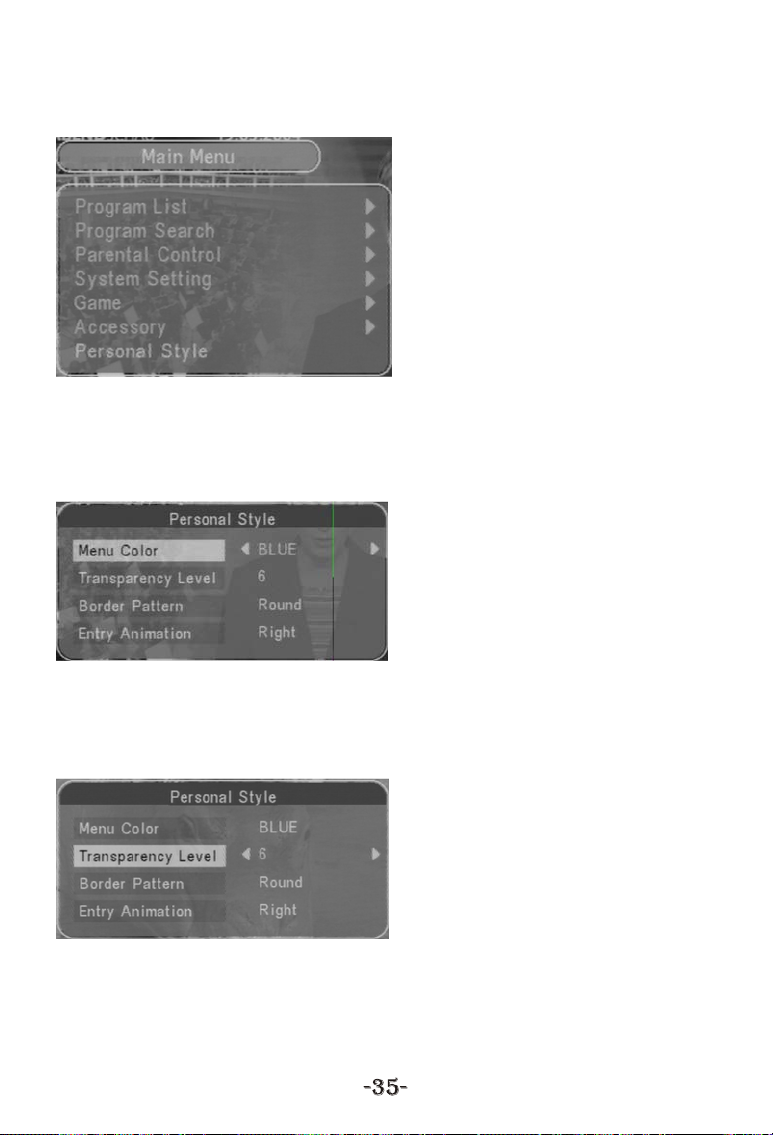

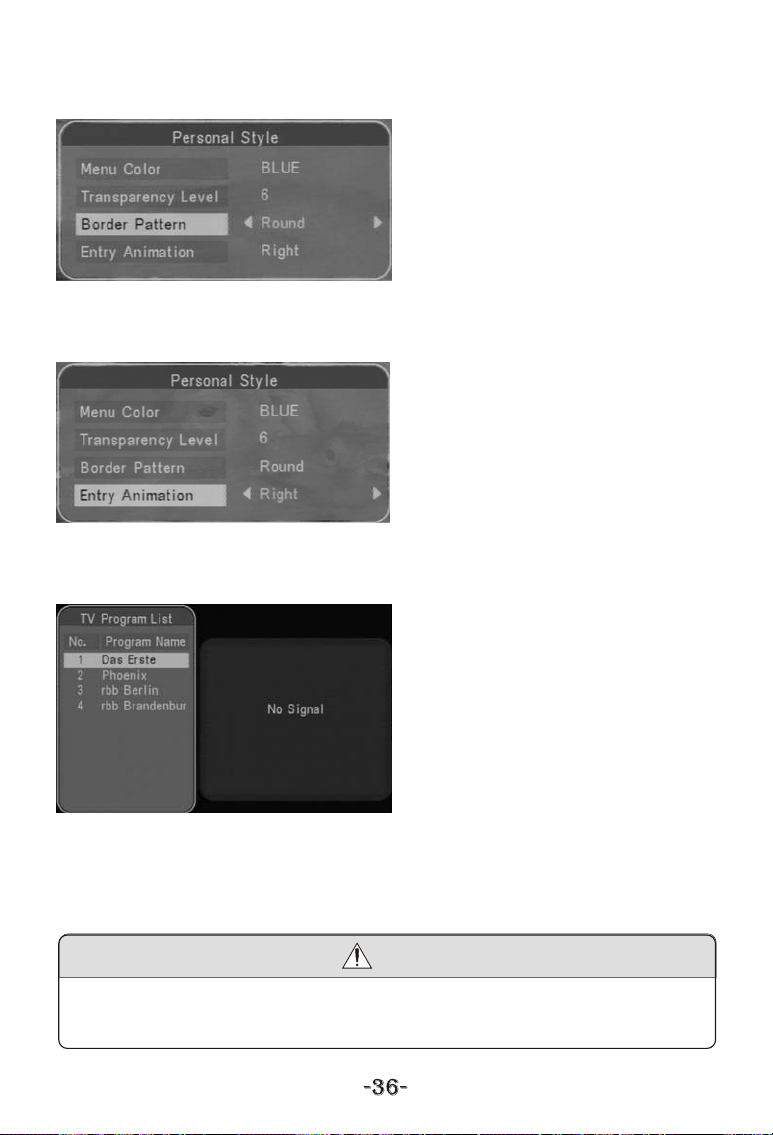

6.10.DIY Menu Setting

You can set up a personal menu in
this function.
Under Main Menu, Press CH+ or CH­key to move the cursor to select P
Style item. Press OK key to confirm.

ersonal

Menu Color Setting

Transparent Level

Press CH+ or CH- key to move the
cursor to select Menu Color.
Press VOL+ or VOL- to select color.
Press CH+ or CH- key to move
the cursor to set other items.
Then press EXIT key to save setting
and return to Main Menu. Press EXIT
key several times till the system saves
the setting and returns to normal playback.

Press CH+ or CH- key to move the
cursor to select Transparent Level item.
Press VOL+ or VOL- to select level
data. Press CH+ or CH- key to move
the cursor to set other items. Then
press EXIT key to save setting and
return to Main Menu. Press EXIT key
several times till the system saves the
setting and returns to normal playback.

Border Pattern

Press CH+ or CH- key to move the
cursor to select Border Pattern..
Press VOL+ or VOL- to select Round
or right-angle item.
Press CH+ or CH- key to move the cursor
to set other items.
Then press EXIT key to save the setting
and return to Main Menu. Press EXIT
key several times till the system saves
the setting and returns to normal playback.

Cover Style

Program No. Type

Press CH+ or CH- key to move the
cursor to select Cover Style item.
Press VOL+ or VOL- to select cover style.
Press CH+ or CH- key to move
the cursor to set other items.
Then press EXIT key to save the setting
and return to Main Menu. Press EXIT
key several times till the system saves
the setting and returns to normal playback.

Display only while no signal.

Warning

It is necessary to enter PIN number to delete all programs to enter search or start the
first time installation while parental control lock is in ON status. But in OFF status,
no PIN is required. After setting factory default, the parental lock is set in OFF status.

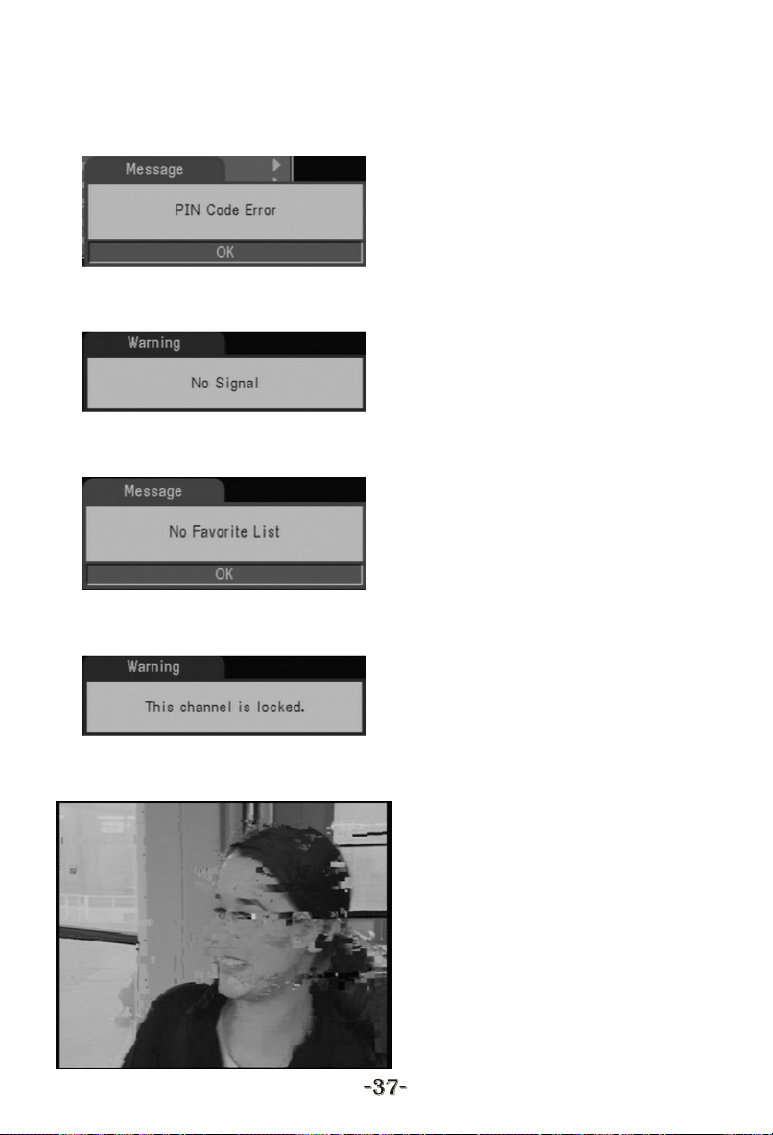

6.11.Error message

Input a wrong PIN

No Signal

My Favorite List is not exist.

The channel is locked.

In some option setting, it is necessary
to enter PIN number. If the image is
displayed, it means your PIN is wrong.
Please check you PIN and set the option
again.
The default PIN is preset as 8888.

This image displayed means no signal
can be received..
Please check if the antenna is connected
correctly. Or adjust the direction and
angle of antenna may be help.

If My Favorite List is not exist, while
press Favorite PR key to start My
Favorite List function, system will
display this image.

The channel is locked

Mosaic in picture continually

This image displayed means the signal
received is too weak. The TV set can not
output a clear TV picture. Please check
if the antenna is connected correctly. Or
adjust the direction and angle of antenna
may be help.

6.12.Analog Quantity Setting in DVB mode

Brightness

Press MODE key to enter Analog
Quantity Setting.
Brightness: Press + or - key to adjust.

Contrast

Press MODE key repeatedly to enter
Contrast menu. Press + or - key to
adjust contrast.

Color

Press MODE key repeatedly to enter
Color menu. Press + or - key to
adjust color.

TINT (Only in NTSC system)

VOLUME

VOLUME

Press MODE key repeatedly to enter
TINT menu. Press + or - key to
adjust TINT.

Press MODE key repeatedly to enter
VOLUME menu. Press + or - key to
adjust volume.

RESET

6.13.Off-time Setting

Off-time setting

Press MODE key repeatedly to enter
Reset menu. Press + or - key to
reset the Brightness, contrast, color, TINT
and Volume to 50.

Press Sleep key to enter the
Off-time screen. Press the Sleep
key repeatedly to set the time. The
maximum is 120 minutes.

Notice

In case the signal intensity is too weak, the image will appear mosaic
like diamonds and sound halts, which is not TV fault. If the image
remains mosaic when using telescopic antenna, please try to use the
external antenna or CATV.

7. ATV Menu Operation

Press MENU to display options as follows:

PICTURE SYSTEM
PRESET

MAIN MENU


SYSTEM

PRESET

7.1. Picture

Press CH+ or CH- to select Picture item. Press VOL- or VOL+, Bright,

Contrast, Saturation and Reset will displays on the screen as illustrated below:


BRIGHT

50

CONTRAST 50

SATURATION 50

RESET

Press CH+ or CH- to select the item Bright. Press VOL+ or VOL- to adjust
the analog quantity of Bright. Press CH+ or CH- in turn to select Contrast,
Color ,to adjust the analog quantity of Contrast and Color. Press CH+ or CH­to select the item Reset. Press VOL+ or VOL- to reset the quantity of Bright,
Contrast, Color to 50.

7.2. System

Press CH+ or CH- to select System item, press VOL- or VOL+ then
(language), Time, (picture mode) and Blue back will display on the
screen as illustrated below:

SYSTEM

ENGLISH
TIME OFF
16:9
BLUE BACK ON

Press CH+ or CH- to select item

SYSTEM

ENGLISH
TIME OFF
16:9
BLUE BACK ON

Press VOL - / VOL + to realize the selection of German, French, Dutch,
English, Spanish, Portuguese, Italian OSD menu language.

Press CH+ or CH- to select Time item.

SYSTEM

ENGLISH

TIME

16:9
BLUE BACK ON

Press VOL - / VOL + to realize Off-time within 120 minutes..

OFF

Press CH+ or CH- to select item.

SYSTEM

ENGLISH
TIME OFF
16:9
BLUE BACK ON

Press VOL - / VOL + to shift the screen mode betweem 16:9 and 4:3.

Press CH+ or CH- to select Blue back item.

SYSTEM

ENGLISH
TIME OFF
16:9

ONBLUE BACK

Press VOL - / VOL + to realize the ON/OFF of Blue Back under no signal.

7.3.Preset

Press CH+ or CH- to select Preset item, and Position, Remember, Auto
search, Swap, Fine, Manul search, Sound system and Color System will
display as illustrated below:

PRESET

POSITION 1

REMEMBER ON
AUTO SEARCH
SWAP 1
FINE 0
MANUAL SEARCH 551MHZ
SOUND SYSTEM DK
COLOR SYSTEM PAL

Press CH+ or CH- to select Remember item

PRESET

POSITION 1

REMEMBER

ON
AUTO SEARCH
SWAP 1
FINE 0
MANUAL SEARCH 551MHZ
SOUND SYSTEM DK
COLOR SYSTEM PAL

Press VOL- or VOL+ to choose ON under the item Remember, and then it
will display this channel upon changing program. In Off status, it will not
display the Channel Number.

Press CH+ or CH- to select Auto search item

PRESET

POSITION 1

REMEMBER ON

AUTO SEARCH

SWAP 1
FINE 0
MANUAL SEARCH 551MHZ
SOUND SYSTEM DK
COLOR SYSTEM PAL

Press VOL- or VOL+ to start Auto Search, and it will put into automatic memory
and storage upon completion of A uto Search. And then return to Program No. 0
upon completion

Notice

1.Auto Search Start from Program No. 0.

2.When the signal is received under Manul Search, the indication frequency will
stop, which means the optimum position for signal storage. If the signal is too
weak , the system will automatically identify it as no signal.

Press CH+ or CH- to select Sound system item

PRESET

POSITION 1

REMEMBER ON
AUTO SEARCH
SWAP 1
FINE 0
MANUAL SEARCH 551MHZ

SOUND SYSTEM

COLOR SYSTEM PAL

Then press VOL+, the Sound System will display in the order of I, DK
and BG.

Notice

1.Notes on Sound System: 6.0M means I, 6.5M stands for DK(L) ,
and 5.5M is BG, please set the Sound System at local one.

2.Color system
A. When the sound system is I, the color system is PAL-I
B. When the sound system is DK, the color system is PAL-DK or SECAM-DK
C. When the sound system is BG, the color system is PAL-BG or ECAM-BG
D. When the sound system is L, the color system is SECAM-L.

3.If there is picture with no sound or with noise, please check that the
Sound System is set correctly first.

DK

8. In order to receive a clearer picture

Adjust the length, angle and direction of the telescopic antenna to obtain
optimum image. Draw back the antenna from the butt end after using it .

Caution

!

In case the signal intensity is too weak, the image will remain inferior

whatever you adjust the antenna, and cause loud noise wave, shaking

image and inferior sound, etc., which is not TV fault. If the image remains

inferior when using telescopic antenna, please try to use the external

antenna or CATV.

9. Before you request for repair

Phenomena below does not necessarily mean the failure with the TV set.
Please check the following before you request for repair.

Phenomena

No picture, no sound

No image

No sound

Diamonds in picture

No signal

Dark picture

Diamonds in picture or
inferior sound during
driving.

Possible Causes

Improper connection with AC adapter or
Car adapter. Use of unauthorized power
supply. Power Switch is on OFF position.

The antenna is not adjusted correctly;
The Channel or Country is not selected.
If so, reset it.

The sound is turned to minimum . The
earphone is not plugged in. ERASE functions
are under too weak signal. Sound system is
not correctly set in ATV mode.

The antenna is not adjusted correctly;
The signal at the receiving place is too
weak

The correct Country is not selected;
Maybe the signal is too weak.

Adjust Brightness, Contrast correctly

The signal is too weak at that place

10. Technical Parameters

Input:

Input Frequency: VHF 177.5MHz 226.5MHz UHF 474MHz 858MHz~~

General Technical Parameters

Display Device: Color TFT-LCD
Receiving Channel: DK/I 49.75MHz~847.25MHz
BG 48.25MHz~847.25MHz
Sound System: DK I BG L
Screen Size: 7 inches
Loudspeaker: two 40mm round loudspeaker.
Power Supply: DC12V 14W
Connecting Terminal:
External antenna input/output jack, stereo earphone jack,
Audio / Video (AV) input jack, DVB-T AV output jack,
External power supply input jack.
Applicable Power Supply: Two options:

1.AC Power supply : AC adapter

2.Automobile storage battery (12V) : Car adapter
Outer Dimension: mm mm mm
Weight: about g
Application Temperature: 5~35
Storage Temperature: -40~60
Dot Matrix: 0.107(H) 0.372 (V)

196 130 41

Warning

This operation instruction is only intended for reference. No further notice
is available to any modification of all information contained therein. Due
to continuing improvements, the features and design are subject to change
without notice.

Warning

No repairable components exist in the machine. Do not try to dismantle and

improve the monitor, and the high voltage in the machine may cause danger.

Maintenance and adjustment of the monitor is subject to professionals.
