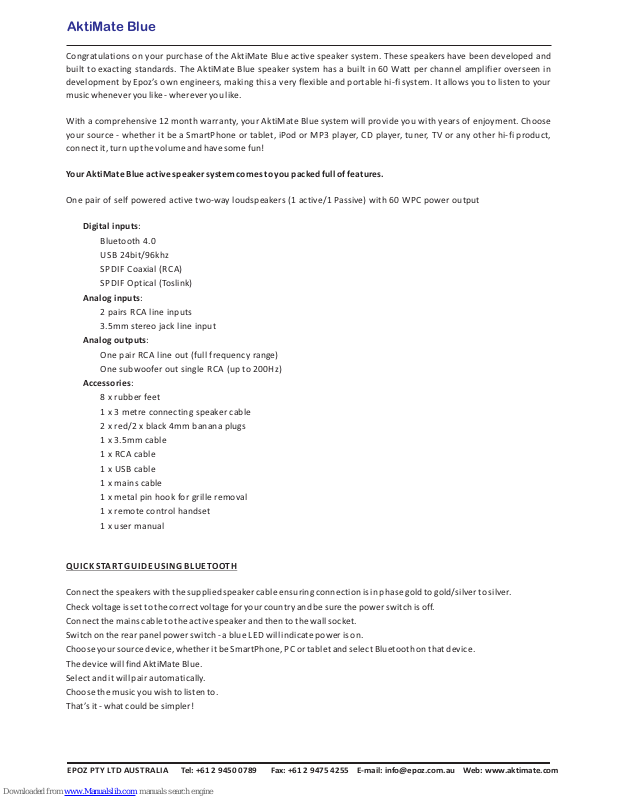

Congratulations on your purchase of the AktiMate Blue active speaker system. These speakers have been developed and
built to exacting standards. The AktiMate Blue speaker system has a built in 60 Watt per channel amplifier overseen in
development by Epoz’s own engineers, making this a very flexible and portable hi-fi system. It allows you to listen to your
music whenever you like - wherever you like.
With a comprehensive 12 month warranty, your AktiMate Blue system will provide you with years of enjoyment. Choose
your source - whether it be a SmartPhone or tablet, iPod or M P3 player, CD player, tuner, T V or any other hi-fi product,
connect it, turn up the volume and have some fun!
Your AktiMate Blue active speaker system comes to you packed full of features.
One pair of self powered active two-way loudspeakers (1 active/1 Passive) with 60 W PC power output
Digital inputs:
Bluetooth 4.0
USB 24bit/96khz
SPD IF Coaxial (RC A)
SPD IF Optical (Toslink)
Analog inputs:
2 pairs RC A line inputs
3.5mm stereo jack line input
Analog outputs:
One pair RCA line out (full frequency range)
One subwoofer out single RC A (up to 200Hz)
Accessories:
8 x rubber feet
1 x 3 metre connecting speaker cable
2 x red/2 x black 4mm banana plugs
1 x 3.5mm cable
1 x RCA cable
1 x USB cable
1 x mains cable
1 x metal pin hook for grille removal
1 x remote control handset
1 x user manual
QU ICK STAR T GUI DE US ING BLU ETOOTH
Connect the speakers with the supplied speaker cable ensuring connection is in phase gold to gold/silver to silver.
Check voltage is set to the correct voltage for your country and be sure the power switch is off.
Connect the mains cable to the active speaker and then to the wall socket.
Switch on the rear panel power switch - a blue LED will indicate power is on.
Choose your source device, whether it be SmartPhone, PC or tablet and select Bluetooth on that device.
The device will find AktiMate Blue.
Select and it will pair automatically.
Choose the music you wish to listen to.
That ’s it - what could be simpler!
EPOZ PT Y LTD AUSTRALIA Tel: +61 2 9450 0789 Fax: +61 2 9475 4255 E-mail: [email protected] Web: www.aktimate.com
AktiMate Blue
Page 2
RU NNI NG IN
Although a running in period is not required, AktiMate Blue speakers, like all good quality hi-fi speakers, will undoubtedly
improve after some use. We recommend that you play between 12 and 24 hours of music before doing any critical listening.
You'll be surprised at the result!
CL EAN ING
We wouldn't recommend the use of any commercial solvents or household cleaners. All you need to do is to wipe them
over with a soft, dry cloth.
EPOZ PT Y LTD AUSTRALIA Tel: +61 2 9450 0789 Fax: +61 2 9475 4255 E-mail: [email protected] Web: www.aktimate.com
Page 2
RE MOTE CO NTR OL
Whilst you have control of your AktiMate Blue
via the front panel control knob, you will no
doubt fin d it easier to use the hand held
remote.
All selections are clearly described. In addition
to input selection you also have basic control of
your music selection when using the Bluetooth
option in conjunction with your smart device.
Volume up and down plus mute also feature on
this remote.

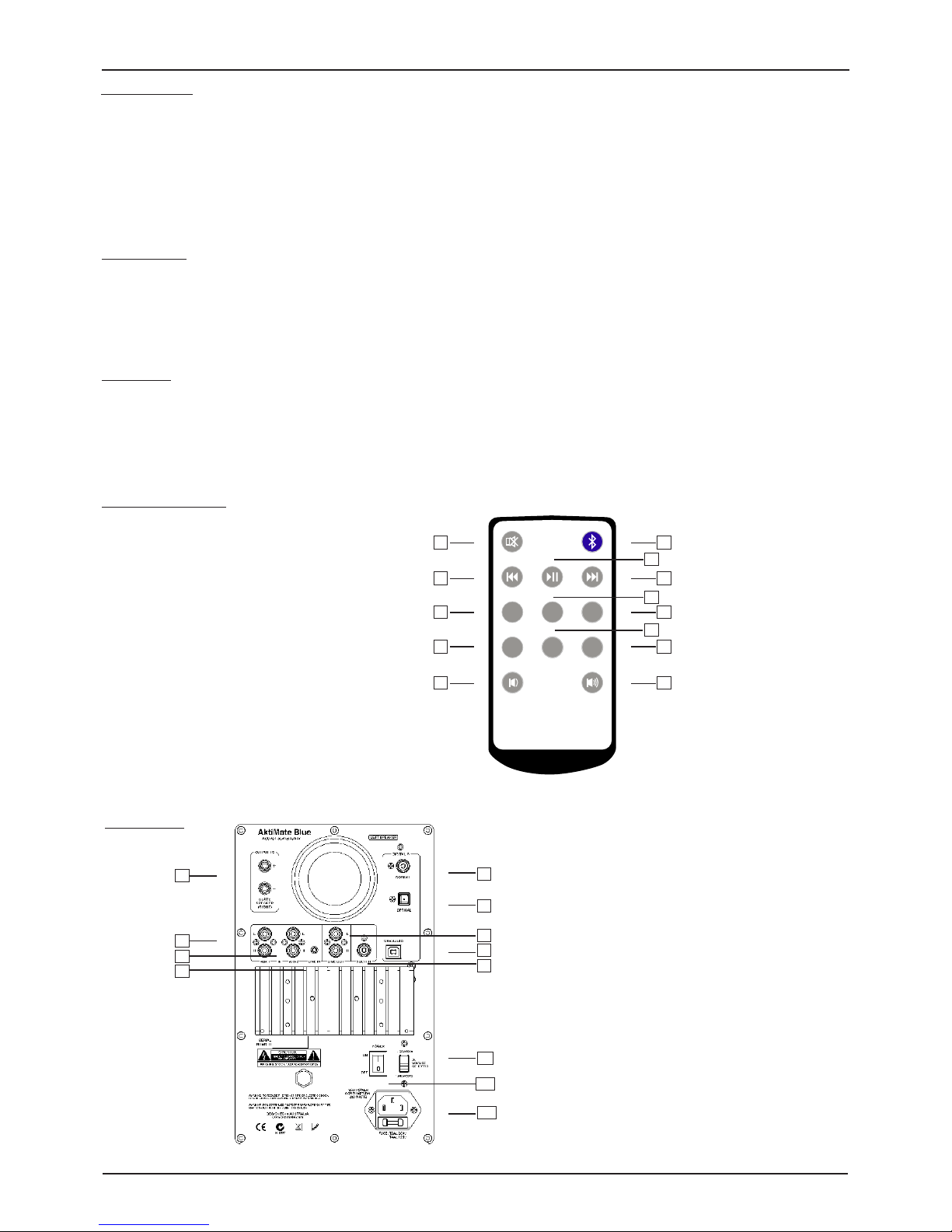

REAR PANEL
1. Connection to slave speaker
2. RCA Stereo input (Aux 1)
3. RCA Stereo input (Aux 2)
4. USB Input - for PC connection only
5. S/P DIF Coax Input
6. S/P DIF Optical Input
7. Line in 3.5 mm stereo jack
8 Sub woofer Output
9 Line Out Stereo Output
10. Power on/off switch
11. Voltage selection
12. Mains cable connection
AktiMate Blue
Active Loudspeaker
OPT
AUX 1 AUX 2
USB COA
LINE
w
w
w
w
w
v
v
v
v
v
v
v
v
PO SIT ION ING
It is always worth remembering when positioning hi-fi speakers, that your room acoustics have a huge impact on the
overall sound quality. As a consequence, there are no hard and fast rules when specifying placement, so we would always
recommend that you try a few different locations to see what works best for your particular taste. As a general rule, your
speakers should be at least 15 – 30 cm (6 -12 ins) from a rear wall. The ideal height is when tweeters are at eye or ear level
when listening. If you can place your AktiMate Blue speakers on dedicated stands, all the better!
AktiMate Blue
ww
w
w
w
v
v
v
v
v
v
v
v
1
2
3
7
5
6
9
4
8
11
10
12
1. Mute
2. Track Back
3. USB (PC Use)
4. Aux 1
5. Bluetooth
6. Play/Pause
7. Track Forward
8. SPDIF (Coax)
9. SPDIF (Optical)
10. Aux 2
11 Line In
12. Volume Down
13. Volume Up
13
11
10
9
8
7
6
5
12
4
3
2
1
Page 3
AktiMate Blue
EPOZ PT Y LTD AUSTRALIA Tel: +61 2 9450 0789 Fax: +61 2 9475 4255 E-mail: [email protected] Web: www.aktimate.com
CO NNECTI ONS
AktiMate Blue has a choice of analog or digital inputs. The use of these is determined by the source equipment which you
are connecting to the active speaker.
Analog inputs
Two RCA inputs are provided if you wish to use an anlog connection from your source. These are very straightforward and
can be used for most devices. In addition there is a 3.5mm stereo jack input.
Digital inputs
The speaker also has two S/P DIF digital inputs - one COAX and one OPTICA L. It is better to use a digital input if you are
connecting a digital source as you will receive better audio quality. An S/PD IF connection will carry compressed digital
audio signals. A common use is to carry two channels of uncompressed digital audio from a CD player to the amplifier.
Signals transmitted over consumer-grade optical S/PDIF connections are identical in content to those transmitted over
coaxial S/PDIF connectors.
For example, if you have a high grade CD player you would use the Optical out of that player to the Optical in of the
speaker. What you cannot do is to connect from the Coaxial connection on one product to the Optical connection on the
other. The use of a digital input is ideal if you are connecting these speakers to your television.
The USB input on the AktiMate Blue is for use with a PC only. It does not accommodate an MP3 player (you would use the
3.5mm line in option), nor does it accommodate a USB stick.
TH E BAS ICS
Switch the system on with the power switch on the rear panel. The blue power on LED will light. The active speaker
features a volume/control knob on the lower right hand side of the front of the speaker and an infrared sensor on the
lower left, which contains 3 indicator L ED's – Blue when the system is on and operating, White when the system is in
Bluetooth mode and Red when in Mute.
Choose your desired input from the remote control or from the volume/control knob on the front of the speaker.
Subsequent presses progress from input to input in the following sequence:
bluetooth → US B → coaxial → optical → aux1 → aux2 → line →bluetooth
WARR ANT Y
AktiMate Blue has a 12 month warranty, applicable in the country of purchase and to the original purchaser only. Proof of
purchase is required at the time any warranty service is sought.
If you believe your speaker system requires service please contact the dealer from whom you purchased the product. They
will be able to (a) verify warranty and (b) provide details of the AktiMate service centre closest to you. It is your
responsibility to get your speakers to the nearest service centre.
Repair cost inclusive of labour and parts if required, plus cost of return is covered by the warranty.
International distributors can be found at www.aktimate.com/distributors.html
Page 3
Page 4
AktiMate Blue
EPOZ PT Y LTD AUSTRALIA Tel: +61 2 9450 0789 Fax: +61 2 9475 4255 E-mail: [email protected] Web: www.aktimate.com
Configuration
Output
Woofer
Tweeter
Frequency Response
Power Amplifier
Transformer
DAC (For USB & SPDIF inputs)
Inputs
Outputs
THD
Crosstalk
Input Impedance
Passive Speaker Impedance
Protection
Mains Voltage
Inclusions
Remote handset
Finish
Size
Weight
Packed
2-way active bookshelf/standmount - 1 passive/1 active speaker
60 Watts into its own 4 Ohm speaker load
165 mm (6 ½” ) mid bass with polypropylene cone. Shielded magnet
25 mm (1”) soft dome with neodymium magnet
48 Hz - 22 kHz +/- 1.5dB
Type Class AB (built in) 60W per channel R MS
National Semiconductors L M4780 Overture
PGA 2311 digitally controlled analog volume control
160 Watt toroidal power transformer
Wolfson WM8761 24bit/192kHz Sigma-Delta
2 x Pairs Stereo R CA sockets
1 x 3.5mm stereo jack (line)
1 x USB 24 bit/96 Hz for PC use
1 x S/P DIF (Optical)
1 x S/P DIF (Coaxial)
1 Pair R CA sockets (unfiltered)
1 Subwoofer Out (up to 200 Hz)
<0.05%
<50dB
22 kOhms unbalanced
4 Ohms
Output current limiting. Thermal over temperature. Power on/off
transient protection.
Replaceable external mains fuse. 240/120V 50/60Hz
IEC mains power cord. Connecting speaker wire. 3.5mm connection
cable. US B Cable. RCA cable. Rubber feet. 4mm banana plugs. Remote
control handset. Metal pin hook.
Uses 2 x AAA batteries
High gloss black, red or white
320 x 210 x 260 mm (12 ½” x 8 ” x 10 ”) ¼ ¼
16 kgs (35 ¼ lbs) per pair
1 pair per carton
SPECIFICATIONS
