akt AK 110 User Manual

Catálogo de partes

1

E-00

ENGINE

REF NO

ENGINE

PART

NUMBER

1 DE01-01 ENGINE ASSY 1
2 DE01-02 ENGINE SIDE COVER 1
3 DE01-03 BOLT GB5787 M6X30 2
4 DE01-08 DRIAN TUBE 1

DESCRIPTION QTY / MCLE

Catálogo de partes

2

E-01

CYLINDER HEAD

COVER

CYLINDER HEAD COVER

REF NO

1 E010100 COVER, CYLINDER HEAD 1
2 E010200 RH COVER, CYLINDER HEAD 1
3 E010300 LH COVER, CYLINDER HEAD 1
4 E010400 CAP, VALVE ADJUSTING HOLE
5 E010500 GASKET, CYL HEAD COVER 1
6 E010600 GASKET, RH CYL HEAD COVER 1
7 E010700 GASKET, LH CYL HEAD COVER
8 E010800 NUT, CAP 7 MM 4

9 E010900 WASHER, SEALING 7MM 3
10 E011000 WASHER A, SEALING 7 MM 1
11 E011100 WASHER SEALING 6.5 X 12 1
12 E011200 O-RING 30.8 X 3.2 2
13 E011300 BOLT FLANGE M6 X 110 1
14 E011400 BOLT FLANGE M6 X 20 2
15 E011500 SPARK PLUG, U22 FS-U 1

PART

NUMBER

DESCRIPTION QTY / MCLE

2

1

Catálogo de partes

3

E-02

CYLINDER HEAD

CYLINDER HEAD

REF NO

1 E020100 HEAD COMP, CYLINDER 110 CC 1
2 E020101 GUIDE, IN VALVE 1
3 E020102 GUIDE, EX VALVE 1
4 E020400 GASKET, CYLINDER HEAD 110 CC
5 E020700 GASKET, INSULATOR SEALING 1
6 E021700 GASKET INSULATOR 1
7 E021200 INSULATOR, CARBURETOR 1
8 E020600 PIPE, IN 1

9 E020800 BOLT, STUD M6 X 38 2
10 E020900 BOLT, M6 X 23 1
11 E021000 COLLAR 9.5 MM 1
12 E021701 O-RING 25 X 2.4 1
13 E020103 O-RING 9 X 1.6 2
14 E021400 O-RING 9 X 1.6 1
15 E021201 O-RING 25 X 2.4 1
16 E021600 BOLT GB5783 M6 X 25 2
17 E021500 BOLT M6 X 28 2

PART

NUMBER

DESCRIPTION QTY / MCLE

1

Catálogo de partes

4

E-03

CAMSHAFT/
VALVE

CAMSHAFT/VALVE

REF NO

1 E030100 OIL SEAL, VALVE 2
2 E030200 CAMSHAFT, COMP 1
3 E030300 PLATE COMP, STOPPER 1
4 E031600 ARM, VALVE ROCKER 2
5 E030500 SHAFT, VALVE ROCKER ARM 2
6 E030600 VALVE, IN 1
7 E030700 VALVE, EX 1
8 E030800 SPRING, VALVE OUTER 2

9 E030900 SPRING, VALVE INNER 2
10 E031000 RETAINER, VALVE SPRING 2
11 E031100 SEAT, VALVE SPRING 2
12 E031200 COLLET, SPLIT VALVE KEEPER
13 E031601 SCREW, VALVE ADJUSTER 2
14 E031602 NUT, SCREW VALVE ADJ 2

PART

NUMBER

DESCRIPTION QTY / MCLE

4

Catálogo de partes

5

E-04

CAM CHAIN/ TENSIONER

CAM CHAIN/TENSIONER

REF NO

1 E040100 SPROCKET, CAM 28T 1
2 E040300 ARM COMP, CAM CHAIN TENSIONER 1
3 E040400 ROLLER, CAM CHAIN TENSIONER 1
4 E040500 PIVOT, CAM CHAIN TENSIONER 1
5 E040600 PIVOT, CAM CHAIN TENSIONER 1
6 E040700 ROD COMP, CAM CHAIN TENSIONER PUSH
7 E040800 HEAD, CAM CHAIN TENSIONER PUSH ROD
8 E040900 ROLLER COMP, CAM CHAIN GUIDE 1

9 E041000 PIN, CAM CHAIN GUIDE ROLLER 1
10 E041100 SPROCKET, CAM CHAIN GUIDE 25T 1
11 E041200 SPINDLE, CAM CHAIN GUIDE SPROCKET 1
12 E040200 CHAIN, CAM 25H X 84L 1
13 E041300 BOLT, SEALING 14MM 1
14 E041400 BOLT, KNOCK M5 X 12 3
15 E041500 WASHER, SEALING 14MM 1
16 E041600 WASHER 6MM 1
17 E041700 WASHER 8MM 1
18 E041800 BOLT, FLANGE M6 X 18 1

PART

NUMBER

DESCRIPTION QTY / MCLE

1
1

Catálogo de partes

6

E-05

CYLINDER

CYLINDER

REF NO

1 E050100 CYLINDER-110 CC 1
2 E050200 GASKET, CYLINDER 110 CC
3 E020900 BOLT M6 X 23 1
4 E050400 COLLAR 8MM 1
5 E050500 PIN, DOWEL 8 X 14 4
6 E050600 WASHER, SEAL 14.5 X 2 1
7 E050700 WASHER, SEAL 11.5 X 2.1 1

PART

NUMBER

DESCRIPTION QTY / MCLE

1

Catálogo de partes

7

E-06
RIGHT
CRANKCASE
COVER

REF NO

RIGHT CRANKCASE COVER

PART

NUMBER

1 E070100 COVER COMP, RH CRANKCASE 1
2 E070200 GASKET, RH CRANKCASE COVER 1
3 E070300 GAUGE, OIL LEVEL 1
4 E070400 LEVER COMP, CLUTCH 1
5 E070500 PLATE COMP, CLUTCH CAM 1
6 E070600 BOSS, CLUTCH LIFTER 1
7 E070610 ROLLER, CLUTCH LIFTER 1
8 E070800 BOLT, CLUTCH ADJUSTING 1

9 E070900 CLIP, DINAMO CORD 1
10 E071000 WASHER 8MM 1
11 E070602 WASHER, PLAIN 4 X 8 3
12 E071200 PIN, DOWEL 8 X 12 2
13 E071300 OIL SEAL 13.8 X 25 X 5 1
14 E071400 O-RING 8 X 1.6 1
15 E070301 O-RING 18 X 3 1
16 E071600 NUT, HEX 8 MM 1
17 E070603 E-RING 3MM 3
18 E071800 BOLT FLANGE M6 X 40 5
19 E071900 BOLT FLANGE M6 X 65 1
20 E072000 BOLT FLANGE M6 X 80 2

DESCRIPTION QTY / MCLE

Catálogo de partes

8

E-07

ONE WAY
CLUTCH

REF NO

1 E080100 COVER, OIL FILTER 1
2 E080200 GASKET, OIL FILTER 1
3 E080801 SPRING, ONE WAY RETAINER 6
4 E080802 PLATE COMP, PRIMARY DRIVE 1
5 E080803 INNER COMP, ONE WAY CLUTCH
6 E080804 WEIGHT, PRIMARY CLUTCH 3
7 E080805 SPRING, PRIMARY CLUTCH 3
8 E080800 OUTER ASSY, PRIMARY CLUTCH

9 E080806 RUBBER, CLUTCH DAMPER 3
10 E080807 SUB GEAR 17T 1
11 E080808 COLLAR, SIDE 1
12 E080809 SPRING, SUB GEAR 1
13 E080811 PIN, DOWEL 2
14 E081500 NUT B, LOCK 14MM 1
15 E080812 WASHER 30 X 45 X 0.8 1
16 E081700 WASHER, LOCK 1
17 E081800 WASHER B, LOCK 1
18 E080813 WASHER 8MM 3
19 E082000 WASHER, THRUST 1
20 E080814 CIRCLIP, INTERNAL 45MM 1
21 E080815 CIRCLIP 7MM 3
22 E080816 ROLLER 5 X 8 6
23 E082400 SCREW, PAN 5 X 8 3

NUMBER

PART

ONE WAY CLUTCH

DESCRIPTION QTY / MCLE

1

1

Catálogo de partes

9

E-08

CLUTCH

CLUTCH

REF NO

1 E090100 PLATE, OIL SEPARATOR 1
2 E090201 OUTER, COMP CLUTCH 69T
3 E090202 CENTER COMP, CLUTCH 1
4 E090203 DISK, CLUTCH FRICTION 4
5 E090204 PLATE, CLUTCH 3
6 E090205 PLATE, CLUTCH PRESSURE
7 E090206 PLATE, CLUTCH LIFTER 1
8 E090207 SPRING CLUTCH 1

9 E090900 COLLAR CLUTCH CENTER 1
10 E091100 SET RING 1
11 E090208 BOLT M6 X 22 4
12 E091300 NUT LOCK M14 1
13 E081800 WASHER B, LOCK 1
14 E091500 WASHER B, SPLINE 17 MM 1
15 E091600 BOLT, HEX M6 X 20 2
16 E091700 BEARING RADIAL BALL 1
17 E090200 CLUTCH SET 1
18 E091000 WASHER 1

PART

NUMBER

DESCRIPTION QTY / MCLE

1

1

Catálogo de partes

10

E-09

OIL PUMP

OIL PUMP

REF NO

1 E101500 PUMP, ASSY OIL 1
2 E100200 GASKET, OIL PUMP BODY
3 E101501 BODY, OIL PUMP 1
4 E101502 COVER, OIL PUMP 1
5 E101503 ROTOR OIL PUMP INNER 1
6 E101504 ROTOR OIL PUMP OUTER
7 E101505 DRIVE SHAFT OIL PUMP 1
8 E101000 PIVOT OIL PUMP 1

9 E101100 OIL FILTER COMP 1
10 E101506 SCREW, PAN M5 X 10 1
11 E101300 SCREW, PAN M6 X 16 3
12 E101400 SCREW, PAN M6 X 22 2

PART

NUMBER

DESCRIPTION QTY / MCLE

1

1

Catálogo de partes

11

E-10

LEFT
CRANKCASE
COVER

LEFT CRANKCASE COVER

REF NO

1 E110100 COVER L CRANKCASE 1
2 E110200 CAVER L REAR CRANKCASE 1
3 E110300 GASKET L CRANKCASE COVER 1
4 E110400 CLAMPER 1
5 E173600 SWITCH ASSY CHANGE 1
6 E110500 CAP AC GENERATOR 1
7 E110600 CAP 30 MM 1
8 E071200 PIN DOWEL 8 X 12 2

9 E110800 O-RING 27 X 2.0 1
10 E110900 O-RONG 13.8 X 2.5 1
11 E173300 BOLT FLANGE M6 X 16 1
12 E111000 BOLT FLANGE M6 X 16 1
13 E111100 BOLT FLANGE M6 X 28 2
14 E111200 BOLT FLANGE M6 X 32 2
15 E111300 BOLT FLANGE M6 X 50 1
16 E111400 BOLT FLANGE M6 X 70 1
17 E173200 PLATE SWITCH CHANGE PRESSURE

PART

NUMBER

DESCRIPTION QTY / MCLE

1

Catálogo de partes

12

E-11

GENERATOR

GENERATOR

REF NO

PART

NUMBER

1 E060100 FLYWHEEL COMP 1

2 E060200 STATOR COMP 1

3 E111500 CLAMPER A.C. GENERATOR CORD 1

4 E060400 WASHER 10MM 1

5 E111600 BOLT HEX M5X8 1

6 E060700 BOLT HEX M5X16 2

7 E060500 NUT FLANGE M10 1

8 E060600 BOLT FLANGE M6X22 2

DESCRIPTION QTY / MCLE

Catálogo de partes

13

E-12

STARTING
CLUTCH

STARTING CLUTCH

REF NO

1 E120100 PLATE, OIL SEPARATE 1
2 E120200 CHAIN, STARTING 25HX62L 1
3 E120300 GUIDE, STARTER CHAIN 1
4 E120400 PROTECTOR, STARTER CHAIN 1
5 E120500 SPROCKET COMP, STARTING 1
6 E120600 PLATE, STARTING SPROCKET SETTING 1
7 E120700 OUTER, STARTING CLUTCH 1
8 E120701 SPRING, STARTING CLUTCH ROLLER 3

9 E120702 CAP, STARTING CLUTCH ROLLER SPRING 3
10 E121000 PLATE STARTING CLUTCH SIDE 1
11 E120501 CIRCLIP, INTERNAL 23MM 2
12 E120502 BEARING, NEEDLE 19X23X13 1
13 E120703 ROLLER 10X10 3
14 E121400 ROLLER 5X11.8 1
15 E121500 OIL SEAL 30X42X4.5 1
16 E121600 OIL SEAL 18.9X30X5 1
17 E121700 O-RING 107X2 1
18 E121800 O-RING 6X1.7 2
19 E121900 SCREW M6X16 2
20 E122000 BOLT FLAT M6X10 1
21 E122100 BOLT M6X12 3

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

14

E-13

STARTING
MOTOR

STARTING MOTOR

REF NO

1 E131600 MOTOR ASSY, STARTER 1
2 E131601 BRUSH SET 1
3 E130200 SPROCKET 1
4 E131602 SPRING BRUSH 2
5 E131603 PACKING 1
6 E131604 MOTOR ONLY 1
7 E131605 CASE A FRONT 1
8 E131606 GEAR COMP, DRIVEN 1

9 E130900 SUB HARNESS A 1
10 E131607 O-RING A 1
11 E131608 O-RING B 1
12 E131200 BOLT FLAT M6X45 3
13 E131609 SCREW M4X6 1
14 E131611 SCREW M5X30 4
15 E131612 CIRCLIP EXTERNAL 1
16 E131613 BEARING BALL 6001 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

15

E-14

CRANKCASE

CRANKCASE

REF NO

1 E140100 CRANKCASE COMP RH 1
2 E140200 GASKET CRANKCASE 1
3 E140300 CRANKCASE COMP LH 1
4 E140400 TUBE BREATHER 5X320 1
5 E140600 CLAMPER OVERFLOW PIPE 1
6 E140700 BOLT A CYLINDER STUD M6X198 2
7 E140800 BOLT B CYLINDER STUD M6X205.5 2
8 E140900 WASHER DRAIN PLUG 1

9 E141000 PIN 10X14 2
10 E141100 BOLT M12X1.5 1
11 E141200 CLIP TUBE 1
12 E141300 BOLT M6X50 1
13 E141400 BOLT M6X60 2
14 E071900 BOLT M6X65 4
15 E140500 CLIP OVERFLOW TUBE 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

16

E-15

CRANKSHAFT/

PISTON

CRANKSHAFT/PISTON

REF NO PART NUMBER DESCRIPTION QTY / MCLE

1 E150100 CRANKSHAFT COMP 1
2 E150200 RING SET PISTON STD 110CC 1

E150200-0.25 RING SET PISTON 0.25 1
E150200-0.50 RING SET PISTON 0.50 1
E150200-0.75 RING SET PISTON 0.75 1

3 E150300 PISTON STD 110 CC 1

E150300-0.25 PISTON 0.25 1
E150300-0.25 PISTON 0.50 1

E150300-0.75 PISTON 0.75 1
4 E150400 PIN PISTON 1
5 E150500 CLIP PISTON PIN 13MM 2
6 E150600 ROD CONNECTING 1
7 E150700 CRANKSHAFT COMP RH 1
8 E150800 CRANKSHAFT COMP LH 1
9 E150104 PIN CRANK 1

10 E150105 SPROCKET TIMING 1
11 E150106 KEY WOODRUFF 1
12 E150107 BEARING CONNECTING ROD 1
13 E150108 BEARING BALL 6304 2

Catálogo de partes

17

E-16

TRANSMISSION

TRANSMISSION

REF NO

1 E160101 MAINSHAFT TRANSMISSION 12T 1
2 E160201 COUNTERSHAFT 1
3 E160202 GEAR COUNTERSHAFT LOW 34T 1
4 E160203 BUSH 1
5 E160102 GEAR MAINSHAFT SECOND 17T 1
6 E160204 GEAR COUNTERSHAFT SECOND 29T 1
7 E160103 GEAR MAINSHAFT THIRD 21T 1
8 E160205 GEAR COUNTERSHAFT THIRD 26T 1
9 E160104 GEAR MAINSHAFT FOURTH 23T 1

10 E160206 GEAR COUNTERSHAFT FOURTH 23T 1
11 E161100 SPROCKET DRIVE 15T 1
12 E161200 PLATE FIXING 1
13 E160207 COLLAR 1
14 E160208 SPRING 1
15 E160209 PLATE GEAR SHIFT DRUM LOCK 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

18

E-16

TRANSMISSION

TRANSMISSION

REF NO

16 E160211 WASHER 1
17 E160212 WASHER 1
18 E160105 WASHER 2
19 E160213 WASHER 2
20 E160106 CIRCLIP 2
21 E160214 CIRCLIP 2
22 E162200 OIL SEAL 17X29X5 1
23 E162300 BOLT 2
24 E162400 BEARING BALL 6001 1
25 E162500 BEARING BALL 6201 1
26 E162600 BEARING BALL 6203 2
27 E160100 MAINSHAFT SET 1
28 E160200 COUNTERSHAFT SET 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

19

E-17

GEARSHIFT
DRUM

REF NO

PART

NUMBER

GEARSHIFT DRUM

DESCRIPTION QTY / MCLE

1 E172801
2 E172802
3 E172803
4 E172804
5 E173400
6 E172805
7 E172806
8 E170700
9 E170800

10 E170900
11 E172901
12 E172902
13 E172903
14 E171300
15 E172807
16 E172100
17 E172808
18 E172809
19 E173100
20 E172900
21 E173000

FORK GEARSHIFT 2
PIN GEARSHIFT FORK GUIDE 2
CLIP GEARSHIFT FORK GUIDE PIN 2
DRUM GEARSHIFT 1
PIECE CHANGE SWITCH DRIVER 1
PLATE GEARSHIFT DRUM STOPPER 1
PIN GEARSHIFT DRUM 4
STOPPER COMP GEARSHIFT DRUM 1
SPRING SHIFT DRUM STOPPER 1
SPINDLE COMP GEARSHIFT 1
ARM COMP GEARSHIFT 1
SPRING GEARSHIFT ARM 1
SPRING GEARSHIFT RETURN 1
PIN SHIFT RETURN SPRING 1
SCREW 6MM 1
OIL SEAL 11.6X24X10 1
ROLLER 3X8.5 2
ROLLER 4X10 1
BOLT SOCKET M6X20 1
ARM GEARSHIFT SET 1
DRUM GEARSHIFT SET 1

Catálogo de partes

20

E-18

KICK STARTER

KICK STARTER

REF NO

1 E180101 PINION KICK STARTER 1
2 E180102 RATCHET STARTER DRIVE 1
3 E180103 SPINDLE KICK STARTER 1
4 E180108 RETAINER KICK SPRING 1
5 E180104 SPRING STARTER PINION FRICTION 1
6 E180109 SPRING KICK STARTER 1
7 E180105 WASHER 17MM 1
8 E180106 WASHER 20MM 1
9 E180107 SET RING 20MM 2

10 E180111 CIRCLIT EXTERNAL 16MM 1
11 E180100 KICK STARTER SET 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

21

E-19

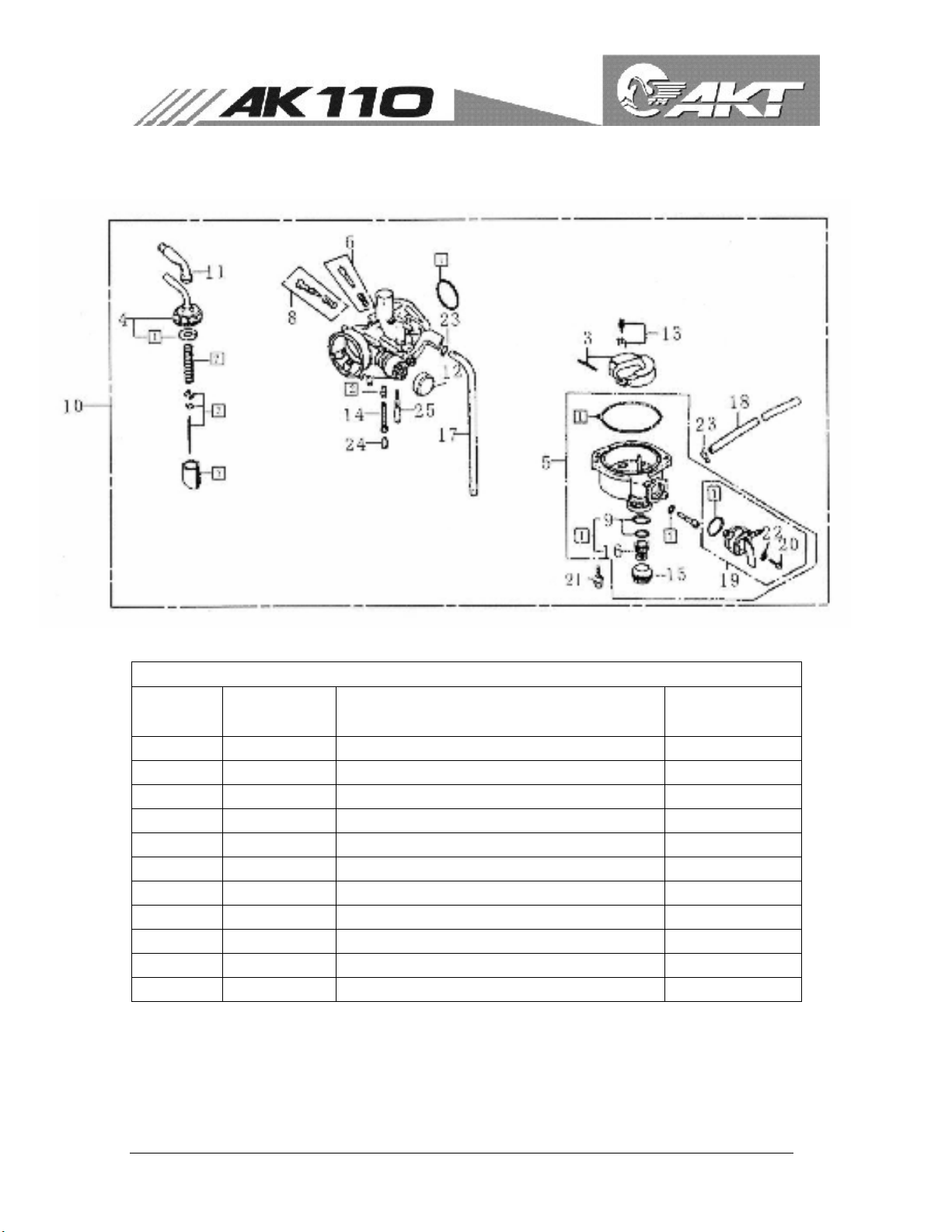

CARBURETTOR

CARBURETTOR

REF NO

1 E190101 GASKET SET 1
2 E190102 NEEDLE SET JET 1
3 E190103 FLOAT SET 1
4 E190104 TOP SET 1
5 E190105 CHAMBER SET FLOAT 1
6 E190106 SCREW SET 1
7 E190107 VALVE SET THROTTLE 1
8 E190108 SCREW SET A 1

9 E190109 GASKET SET 1
10 E190110 CARBURETTOR ASSY 1
11 E190111 CAP CABLE SEALING 1
12 E190112 CAP CHOKE DUST 1
13 E190113 VALVE COMP FLOAT 1
14 E190114 HOLDER NEEDLE JET 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

22

E-19

CARBURETTOR

CARBURETTOR

REF NO

15 E190115 CAP FUEL STRAINER 1
16 E190116 SCREEN FUEL STRAINER 1
17 E190117 TUBE AIRVENT 1
18 E190118 TUBE AIRFLOW 1
19 E190119 BODY COMP COCK 1
20 E190120 SCREW PAN M3X12 1
21 E190121 SCREW WASHER M4X18 2
22 E190122 WASHER SPRING 2
23 E190123 CLIP TUBE B 6.5 2
24 E190124 JET MAIN No 72 1
25 E190125 JET SLOW No 38 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

23

E-20

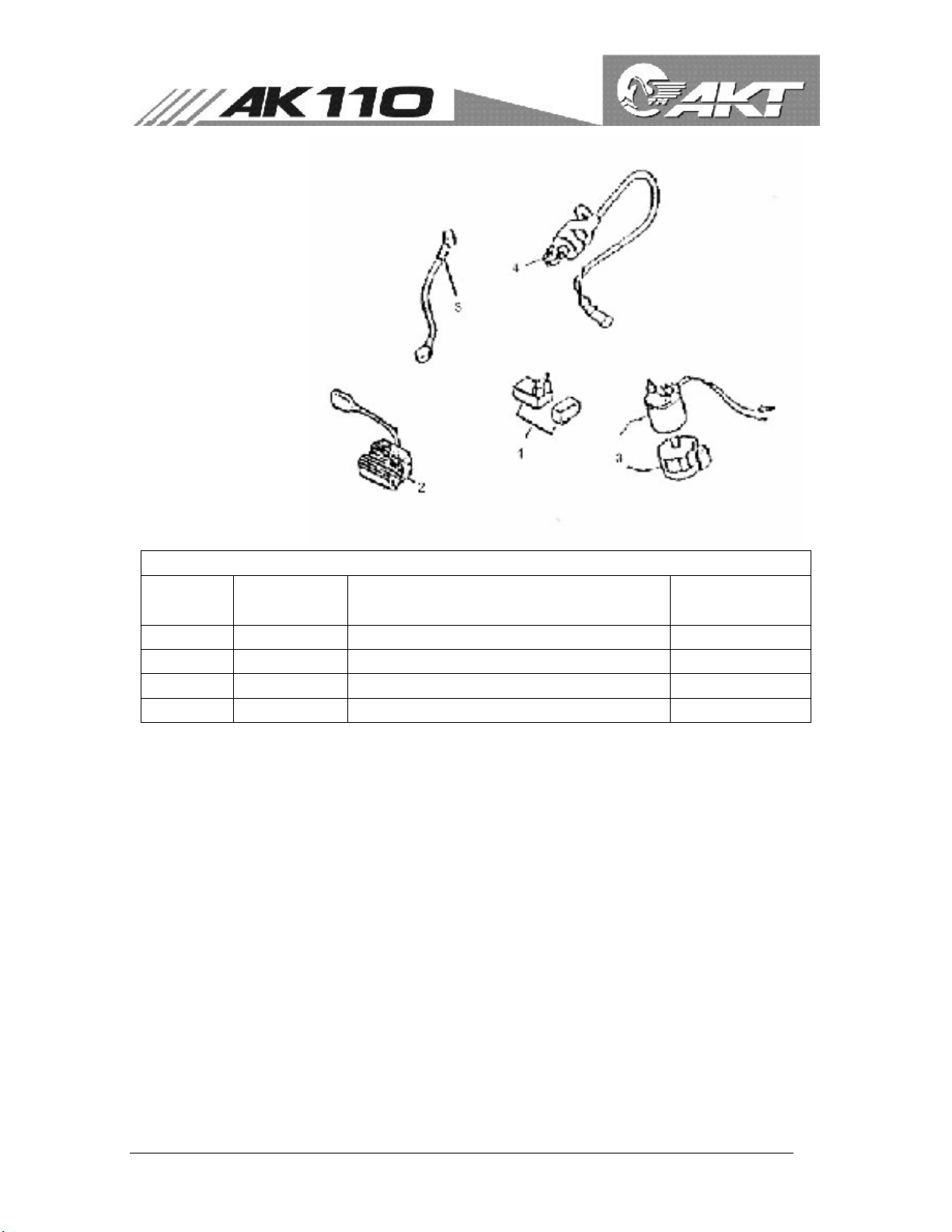

ELECTRICAL

EQUIPMENT

ELECTRICAL EQUIPMENT

REF NO

PART

NUMBER

1 DF26-2 UNIT ASSY CDI 1
2 DF26–5 RECTIFIER COMP REGUL 1
3 DF26–12 RELAY ASSY STARTER 1
4 DF26-3 INGNITION COIL 1

DESCRIPTION QTY / MCLE

Catálogo de partes

24

F-01

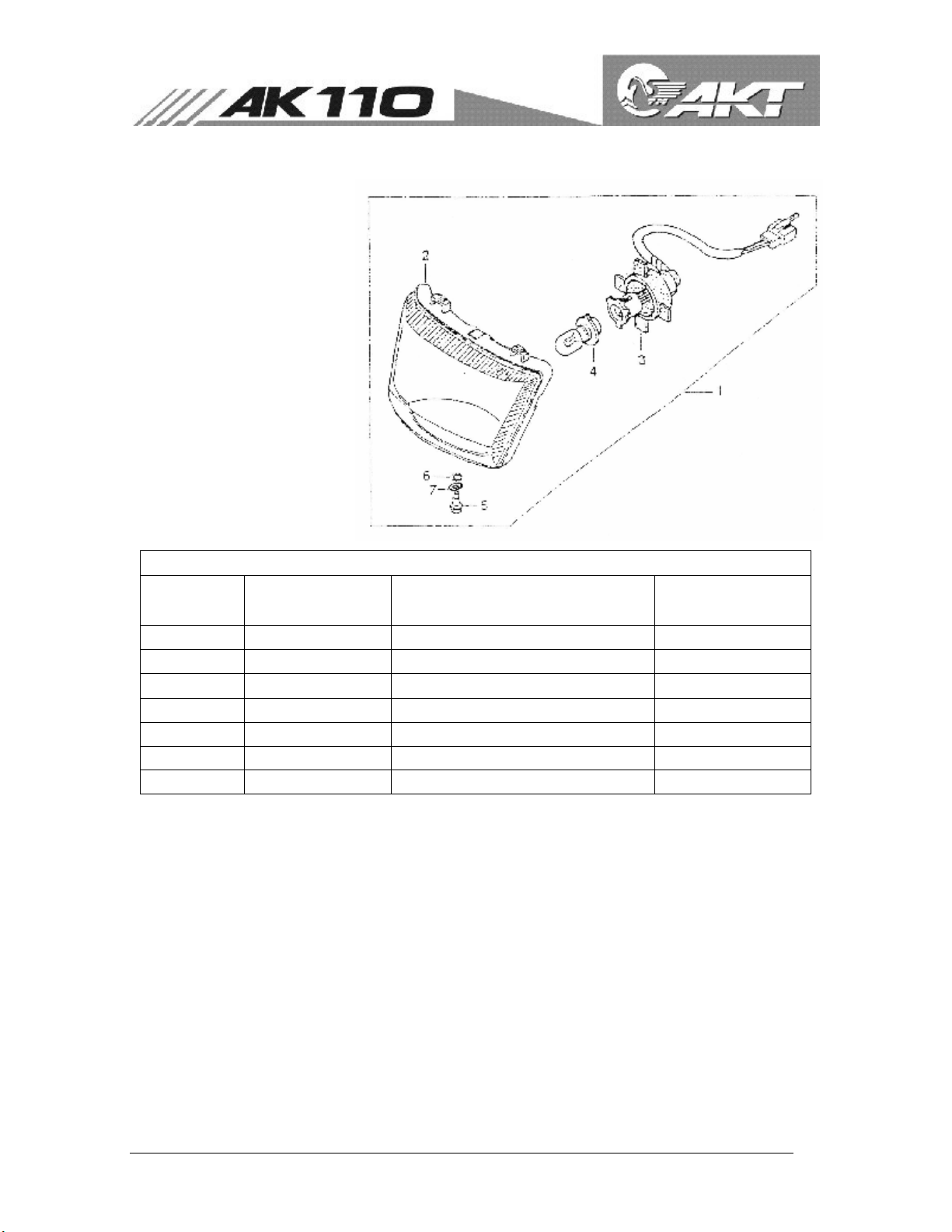

HEAD LAMP

HEAD LAMP

REF NO PART NUMBER

1 CF01-01 HEAD LAMP ASSY 1
2 CF01-02 HEAD LAMP 1
3 CF01-03 BULB BASE 1
4 CF01-04 BULB 1
5 GB818 SCREW M5X12 1
6 GB39 NUT M5 1
7 GB96 WASHER 1

DESCRIPTION QTY / MCLE

Catálogo de partes

25

F-02

HEAD LAMP

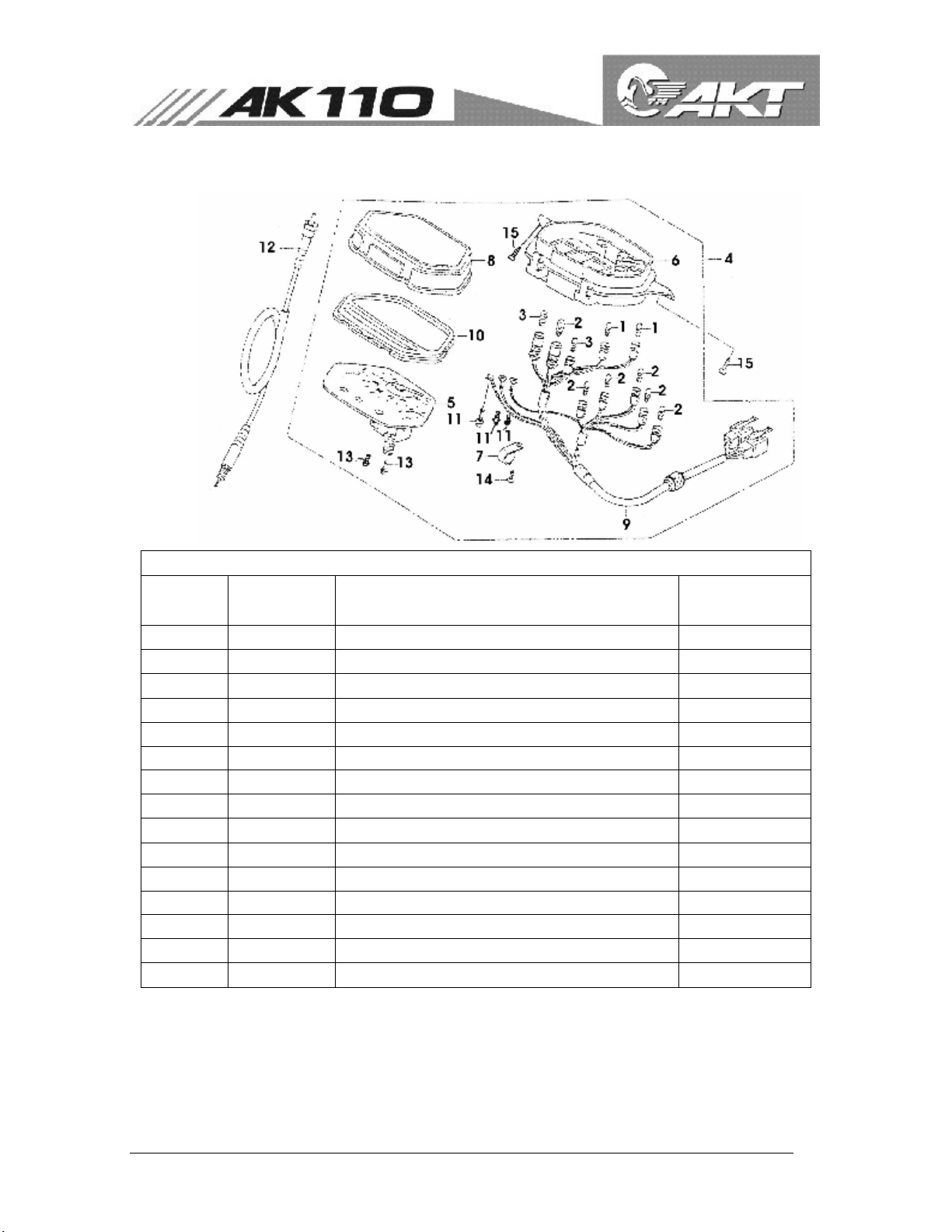

METER

REF NO

1 CF02-01 BULB 2
2 CF02-02 BULB 6
3 CF02-03 BULB 2
4 CF02-04 METER ASSY 1
5 CF02-05 SPEEDOMETER ASSY 1
6 CF02-06 SPEEDOMETER BOX 1
7 CF02-07 CORD CLIP 1
8 CF02-08 SPEEDOMETER GLASS 1

9 CF02-09 BULB RETAINER 1
10 CF02-10 REFLECTOR 1
11 M3X22 SCREW M3X22 3
12 CF02-11 SPEEDOMETER CABLE ASSY 1
13 M4X10 SCREW M4X10 2
14 M4X16 SCREW M4X16 1
15 GB845 TAPPING SCREW ST4.2X16 2

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

26

F-03

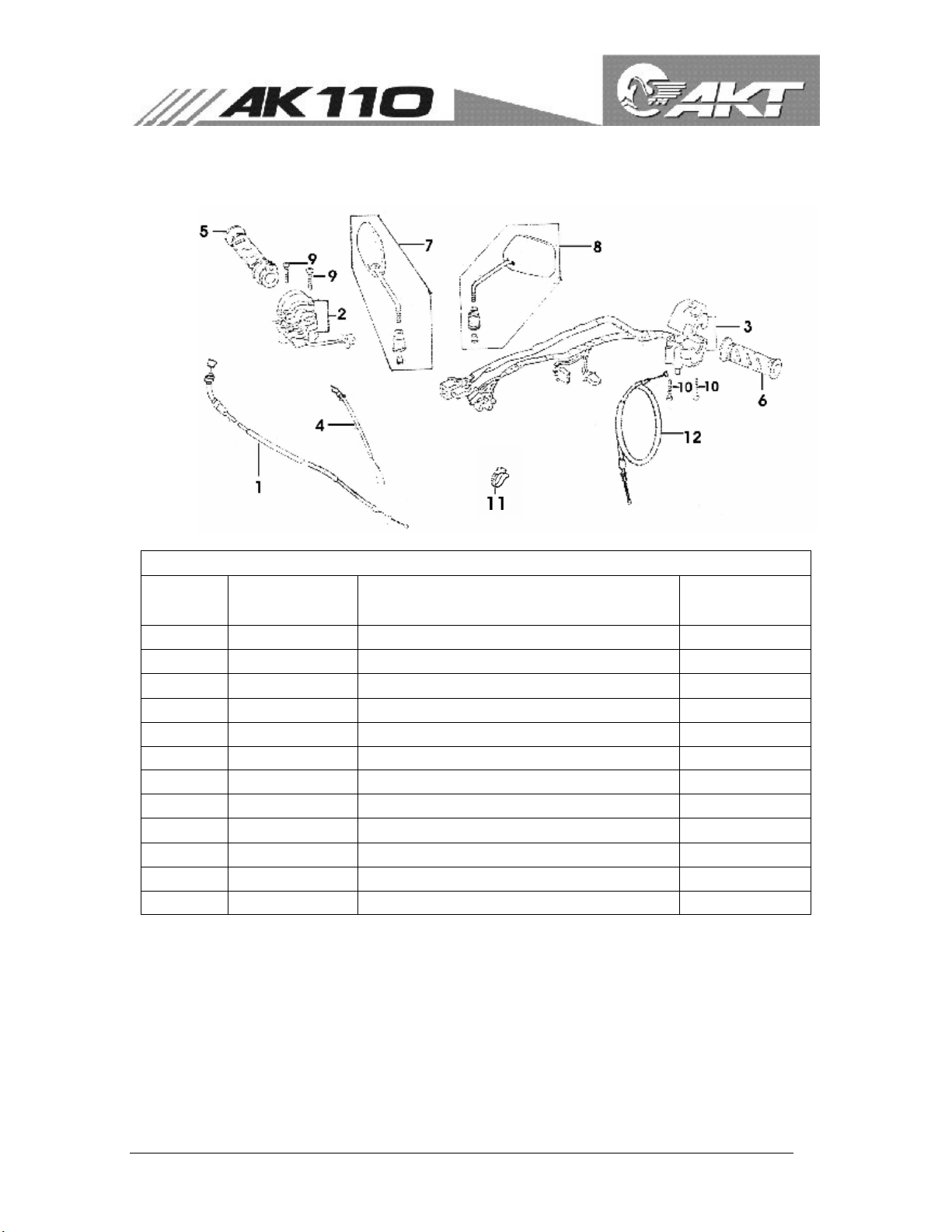

HANDLEBAR CONTROLS

HANDLEBAR CONTROLS

REF NO

1 CF03-01 THROTTLE CABLE ASSY 1

2 CF03-02 STARTING BUTTON ASSY 1

3 CF03-03 L HANDLE SWITCH 1

4 CF26-02 (d) FR BRAKE CABLE SWITCH 1

5 CF03-05 R THROTTLE GRIP 1

6 CF03-06 L GRIP 1

7 CF03-09 R MIRROR 1

8 CF03-11 L MIRROR 1

9 M5X20 BOLT M5X20 2
10 M5X25 BOLT M5X25 2
11 CF03-12 BAND 1
12 CF0314 CHOKE CABLE 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

27

F-04

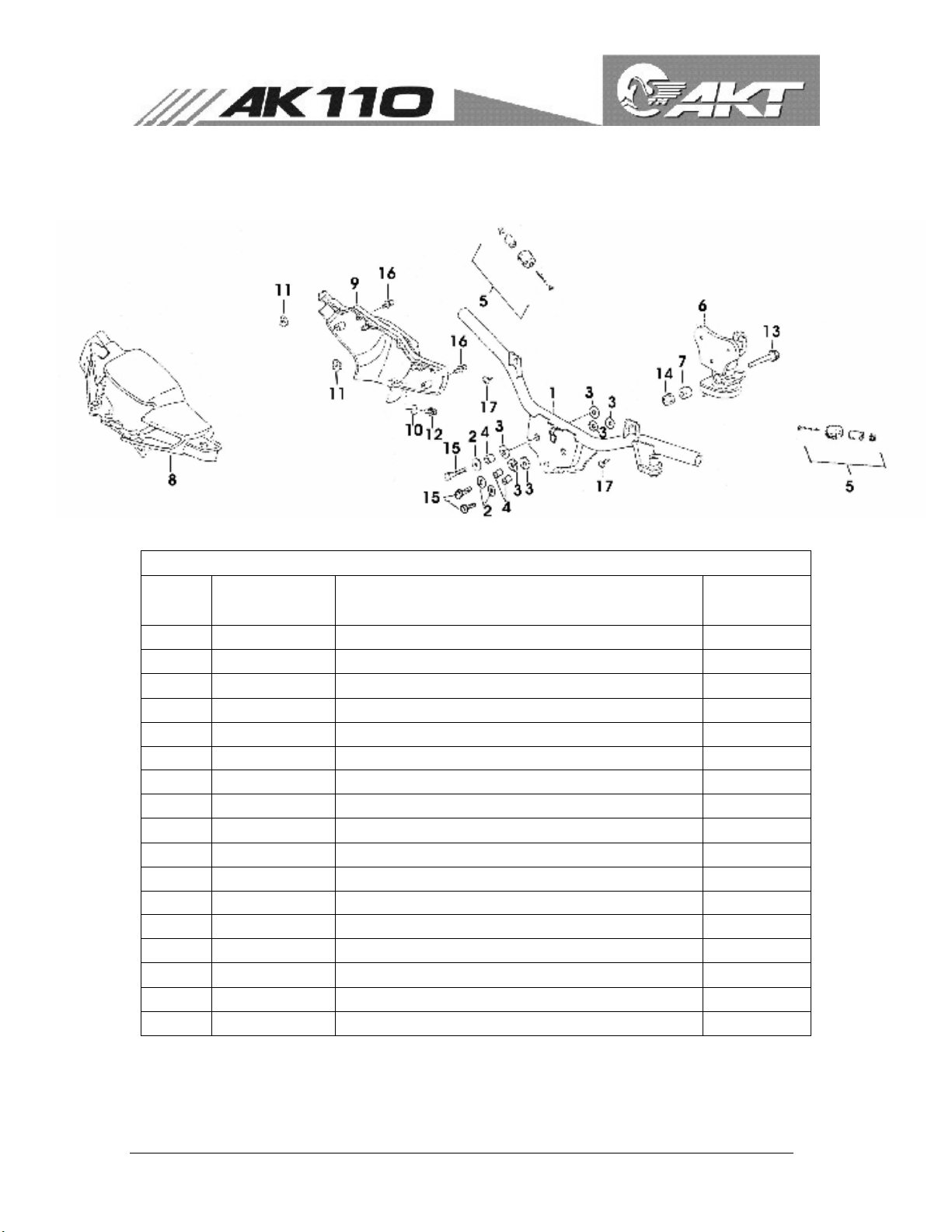

HANDLEBAR

HANDLEBAR

REF NO

1 CF04-01 HANDLE BAR ASSY 1
2 CF04-02 WASHER 3
3 CF04-03 RUBBER BUSH 3
4 CF03-04 BUSH 3
5 CF04-07 BALANCER ASSY 2
6 CF04-08 HANDLEBAR STAND ASSY 1
7 CF04-09 LOCATING BUSH 1
8 CF04-10 (d) HANDLE FRONT COVER (DISC BRAKE) 1

9 CF04-11 HANDLE REAR COVER 1
10 CF04-12 WASHER 1
11 SF07-12 ADJUST NUT ST4.2 2
12 CF04-13 BOLT M5X12 1
13 GB5787 BOLT M10X1.25X50 1
14 GB6187 NUT M10X1.25 1
15 BOLT 3
16 CF04-15 TAPPING SCREW ST4.8X16 2
17 CF04-14 TAPPING SCREW ST4.2X12 2

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

28

F-05

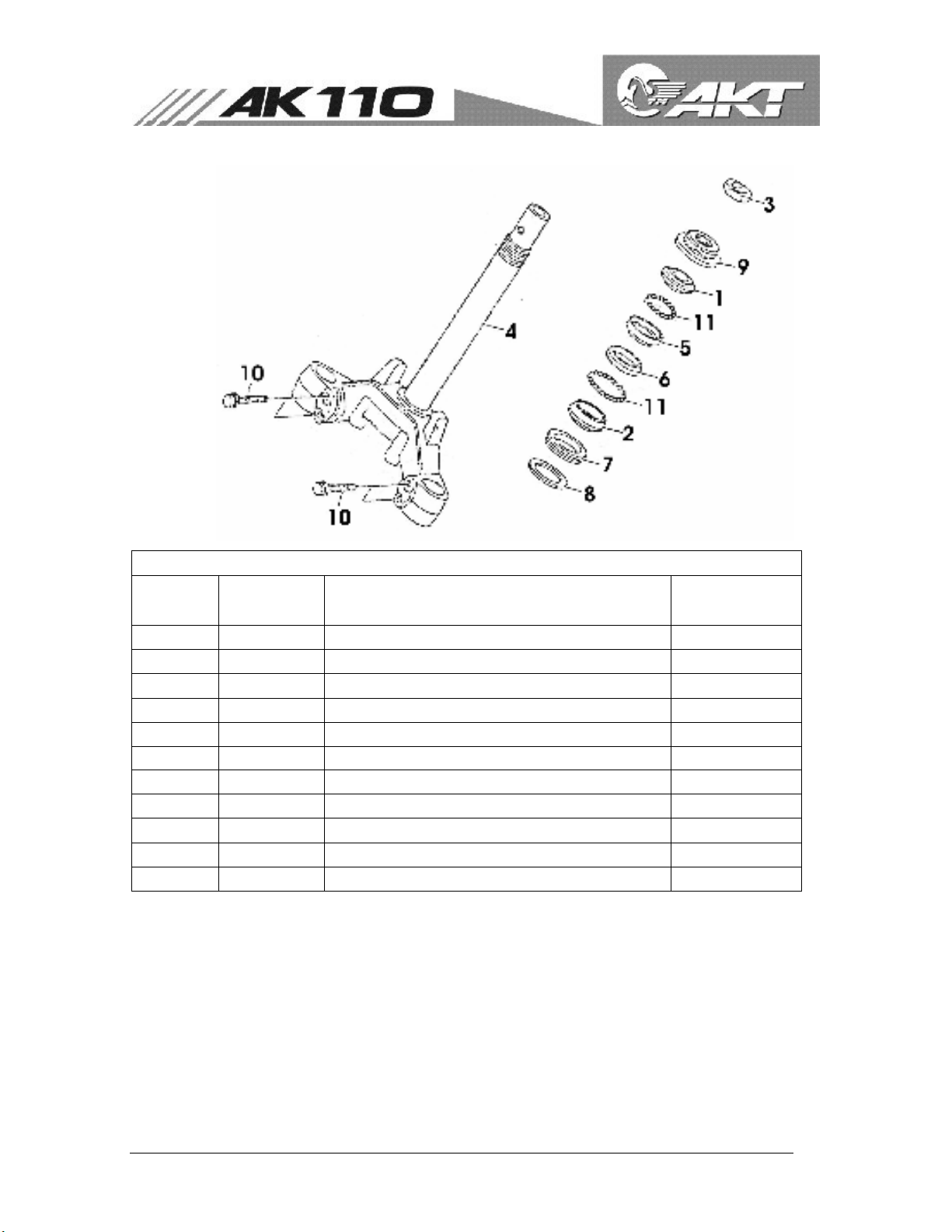

FRONT FORK

FRONT FORK

REF NO

1 DF05-01 TOP BEARING RACE INNER 1

2 DF05-02 BOTTOM ONE RACE INNER 1

3 CF05-01 LOCK NUT 1

4 CF05-02 FORK ASSY 1

5 DF05-05 TOP CONE RACE OUTER 1

6 DF05-06 BOTTON CONE RACE OUTER 1

7 DF05-07 DUST SEAL COVER 1

8 DF05-08 SPACER 1

9 CF05-03 LOCK NUT 1

10 GB57-87 BOLT M10X1.25X45 4
11 DF05-12 STEELL BALL 52

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

29

F-06

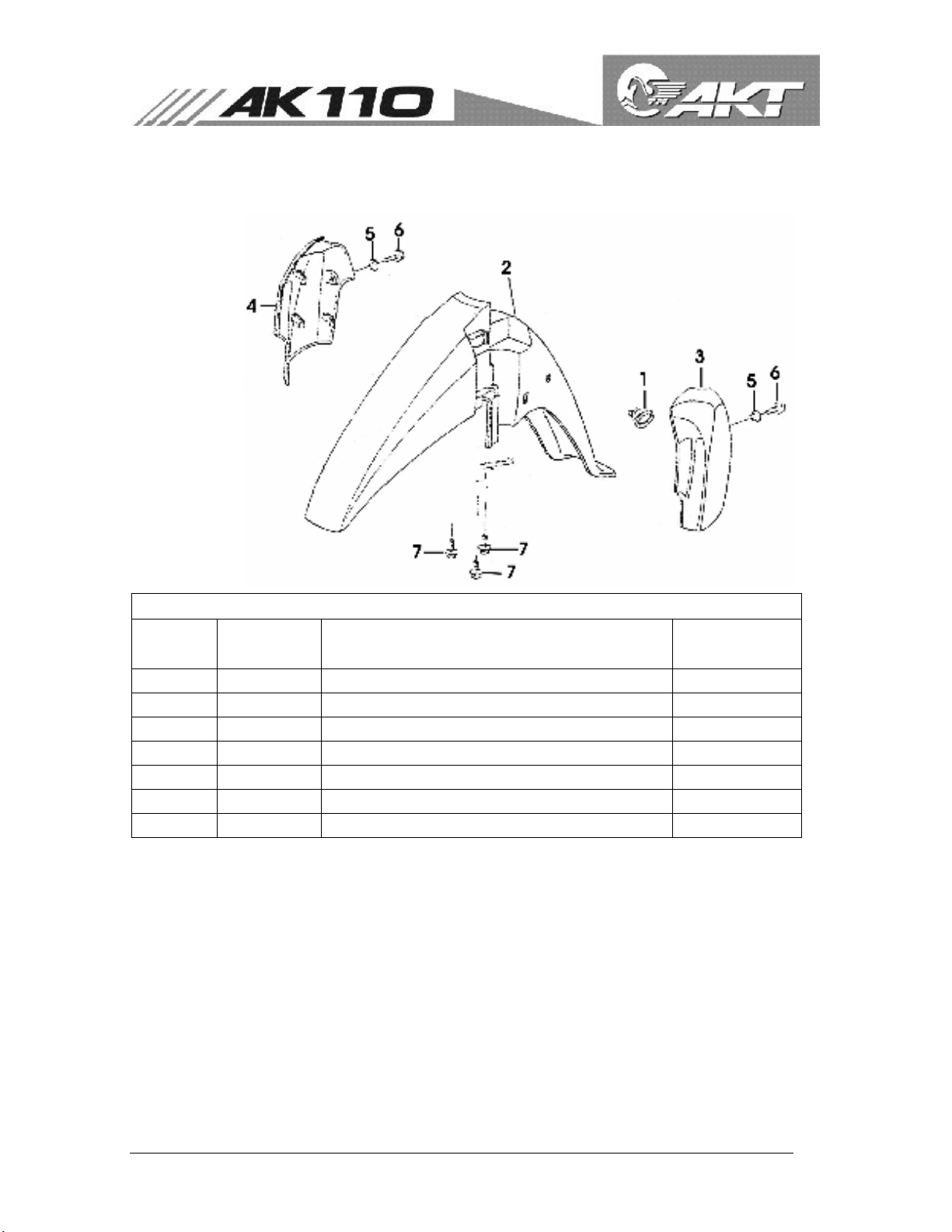

FRONT FENDER

REF NO

PART

NUMBER

FRONT FENDER

DESCRIPTION QTY / MCLE

1 DF06-01 SPEEDO CABLE WASHER 1
2 CF06-02 FRONT MUDGUARD 1
3 CF06-03 L FRONT MUDGUARD COVER 1
4 CF06-04 R FRONT MUDGUARD COVER 1
5 CF06-05 WASHER 2
6 GB5787 BOLT M6X16 2
7 GB5787 BOLT M6X16 3

Catálogo de partes

30

F-07

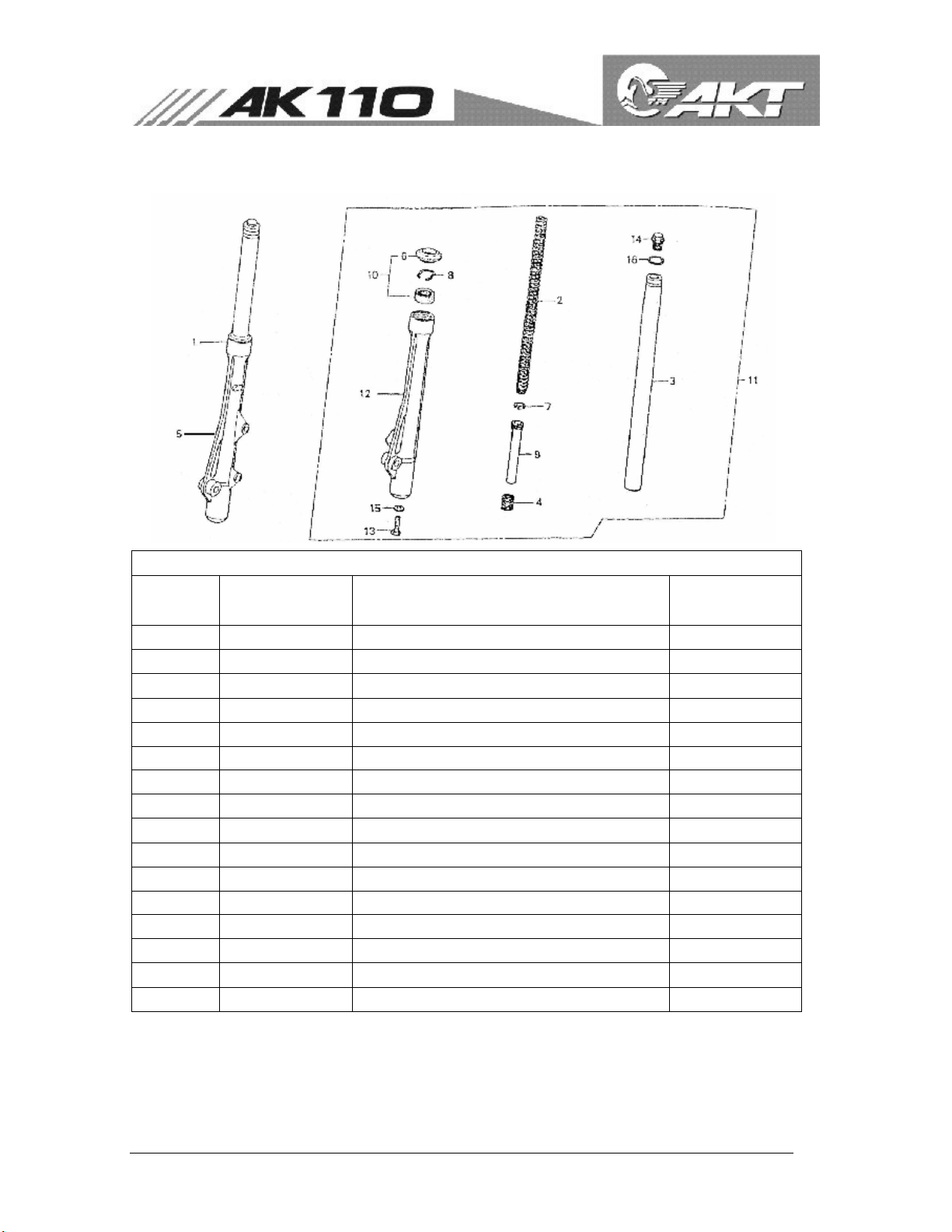

FRONT SUSPENSION

FRONT SUSPENSION

REF NO

1 CF07-01 (d) RH FRONT DAMPER ASSY 1

2 CF07-02 (d) FRONT DAMPER SPRING 2

3 CF07-03 (d) UPPER PIPE 2

4 CF07-04 (d) REBOUND SPRING 2

5 CF07-05 (d) RH LOWER PIPE 1

6 CF07-06 (d) DUST SEAL 2

7 CF07-07 (d) RING 2

8 CF07-08 (d) OIL SEAL STOPPER RING 2

9 CF07-09 (d) SEAT PIPE 2

10 CF07-10 (d) OIL SEAL SET 2
11 CF07-11 (d) LH FRONT DAMPER ASSY 1
12 CF07-12 (d) LH LOWER PIPE 1
13 CF07-13 (d) DRAIN BOLT 2
14 CF07-14 (d) UPPER BOLT 2
15 CF07-15 (d) WASHER 2
16 CF07-16 (d) ORING 2

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

31

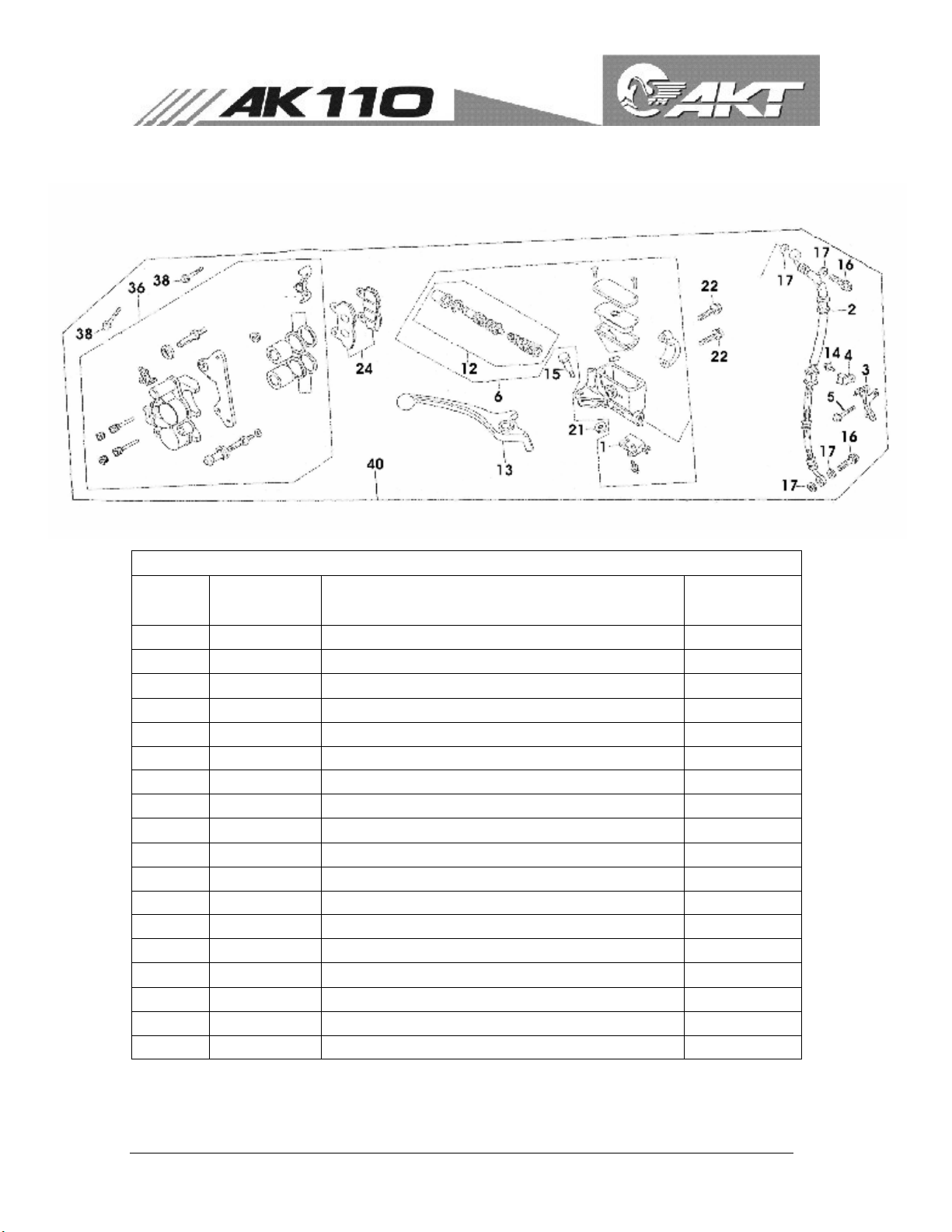

F-08

FRONT BRAKE DISC ASSY

FRONT BRAKE DISC ASSY

REF NO

1 CF09-06 (d) FR STOP SWITCH ASSY 1
2 CF09-07 (d) FR BRAKE HOSE COMP 1
3 CF09-08 (d) BRAKE HOSE CLAMPER 1
4 CF09-09 (d) BRAKE HOSE CLAMPER B 1
5 BOLT MGX 28 1

6 CF09-11 (d) FRONT BRAKE MASTER SUB ASSY 1
12 CF09-17 (d) MASTER CYLINDER SET 1
13 CF09-18 (d) FRONT BRAKE LEVER (DISC) 1
14 CF09-19 (d) FLANGE BOLT 1
15 CF09-20 (d) FR BRAKE LEVER PIVOT BOLT 1
16 CF09-21 (d) OIL BOLT M10X22 2
17 CF09-22 (d) OIL WASHER 4
21 CF09-26 (d) FLANGE NUT M6 1
22 CF09-27 (d) FLANGE BOLT M6X22 2
24 CF09-29 (d) FRONT PAD SET 1
36 CF09-41 (d) FR CALIPER SUB ASSY 1
38 CF09-43 (d) FLANGE BOLT M8X25 2
40 CF09-05 (d) FR BRAKE DISC ASSY 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

32

F-09

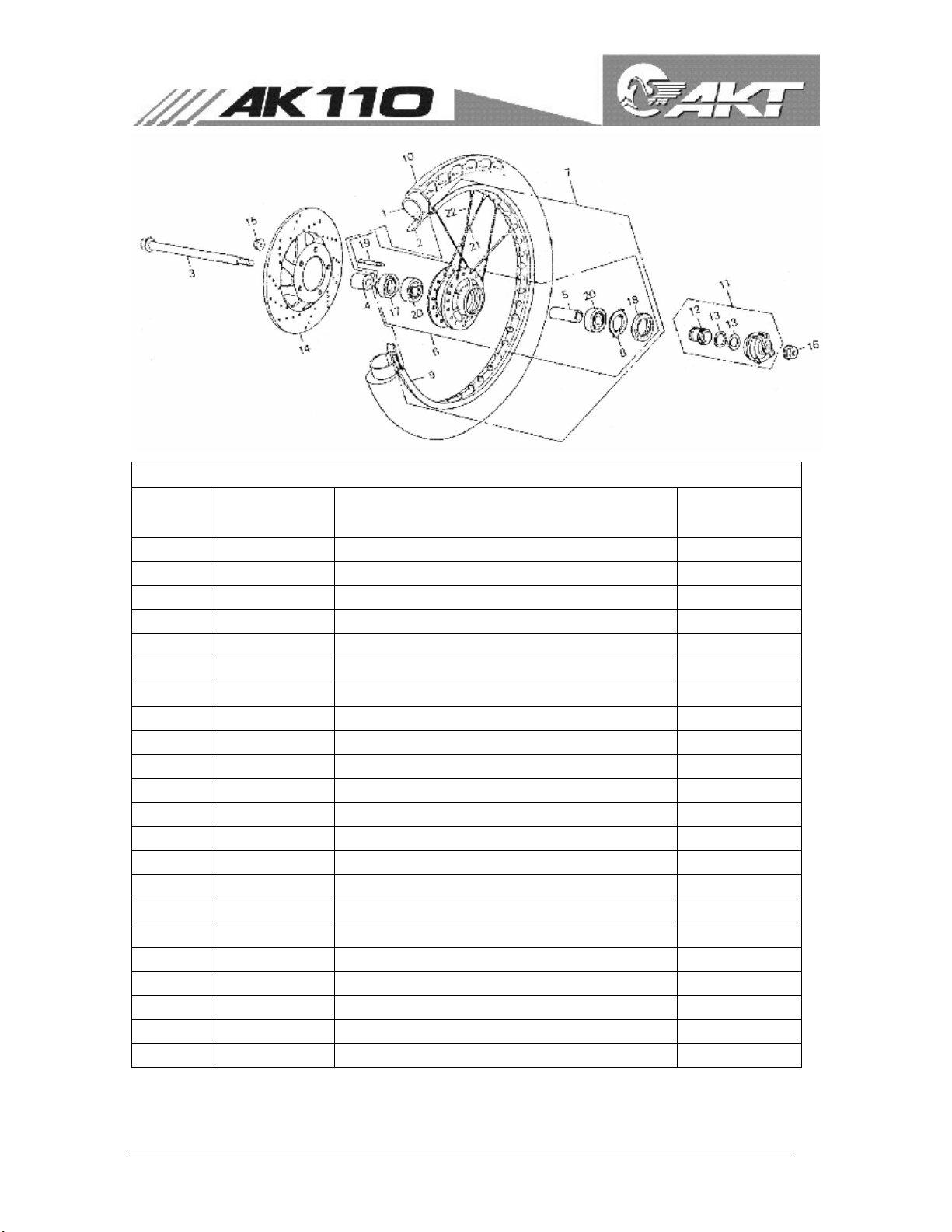

FRONT WHEEL
ASSY

REF NO

PART

NUMBER

FRONT WHEEL ASSY

DESCRIPTION QTY / MCLE

1 CF09-45 (d)
2 CF09-46 (d)
3 CF09-47 (d)
4 CF09-48 (d)
5 CF09-49 (d)
6 CF09-50 (d)
7 CF09-51 (d)
8 CF09-52 (d)

9 CF09-53 (d)
10 CF09-54 (d)
11 CF09-55 (d)
12 CF09-56 (d)
13 CF09-57 (d)
14 CF09-58 (d)
15 CF09-59 (d)
16 CF09-60 (d)
17 CF09-61 (d)
18 CF09-62 (d)
19 CF09-63 (d)
20 CF09-64 (d)
21 CF09-65 (d)
22 CF09-66 (d)

FRONT TUBE 1
TUBE PROTECTOR 1
FRONT WHEEL AXLE 1
RH SIDE COLLAR 1
DISTANCE COLLAR 1
FR WHEEL HUB ASSY 1
FR WHEEL ASSY 1
SPEEDO GEARBOX RETAINER 1
FR RIN 1
FR TIRE 1
SPEEDO GEAR BOX ASSY 1
SPEEDO GEAR 1
SPEEDO GEAR WASHER 2
FR BRAKE DISC 1
NUT 5
FLANGE NUT 1
OIL SEAL 1
DUST SEAL 1
STUD BOLT 5
BEARING 2
SPOKE SET INSIDE 18
SPOKE SET OUTSIDE 18

Catálogo de partes

33

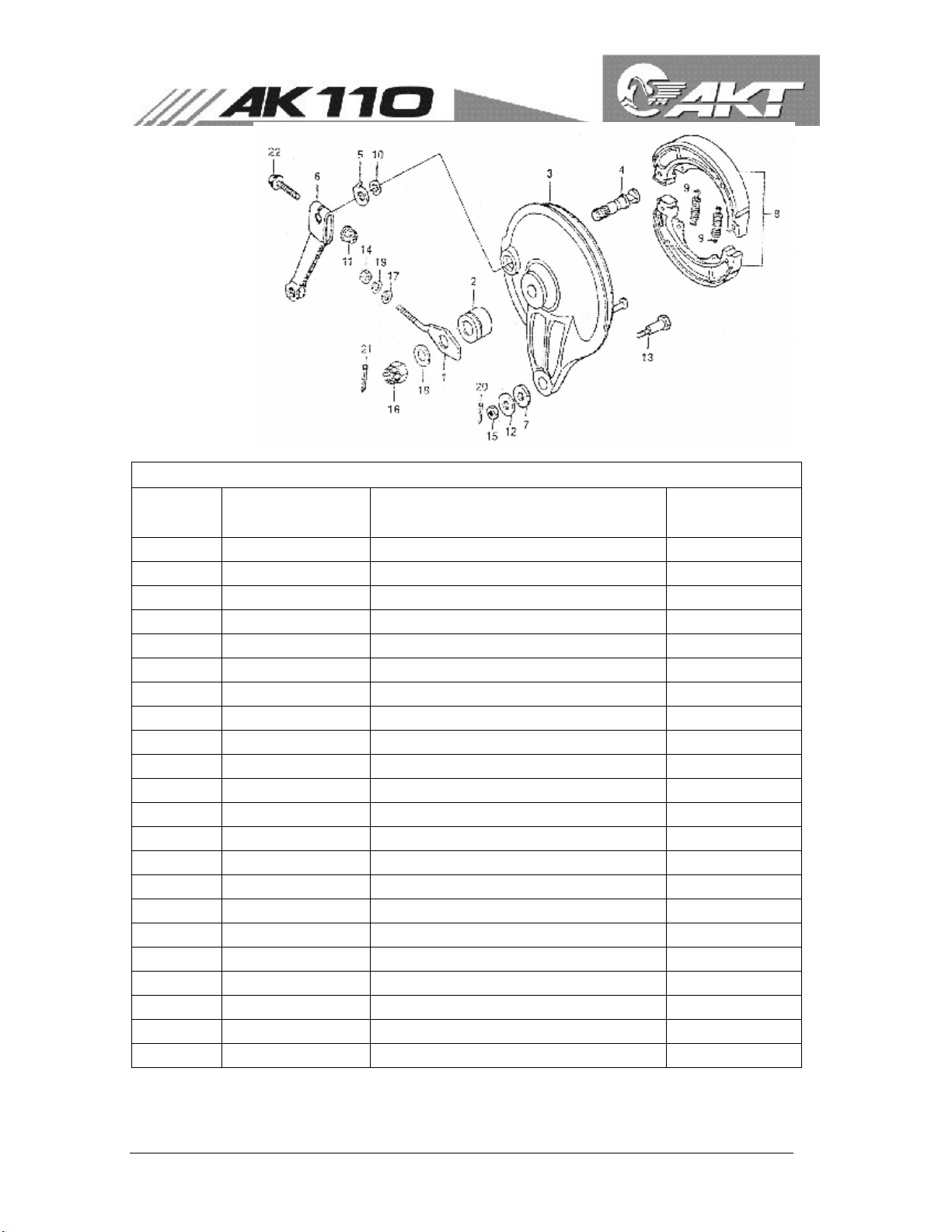

F-10

REAR
BRAKE
PANEL

REAR BRAKE PANEL

REF NO PART NUMBER

1 DF10-02 RH CHAIN ADJUSTER 1
2 DF10-04 R RH SPACER 1
3 DF10-05 R RH BRAKE PANEL 1
4 DF10-09 REAR BRAKE CAM 1
5 DF10-06 R BRAKE INDICATOR 1
6 DF10-07 R BRAKE ARM ROCKER 1
7 CF10-01 WASHER 1
8 DF08-17 R BRAKE SHOE 1

9 DF10-10 RETURN SPRING 2
10 DF10-11 DUST WASHER 1
11 M6 NUT M6 1
12 GB96 SPACER 1
13 GF20-13 HEX BOLT M8X25 1
14 GB6170M6 NUT M6 1
15 GB6170 NUT M8 1
16 M12CASTLE AXLE NUT M12 1
17 PWAS6 PLAIN WASHER 6 1
18 PWAS12 PLAIN WASHER 12 1
19 WAS6 WASHER 6 1
20 GB91 SPLIT PIN 2.0X16 1
21 SP3X25 SPLIT PIN 3.0X25 1
22 M6X35 BOLTM6X35 1

DESCRIPTION QTY / MCLE

Catálogo de partes

34

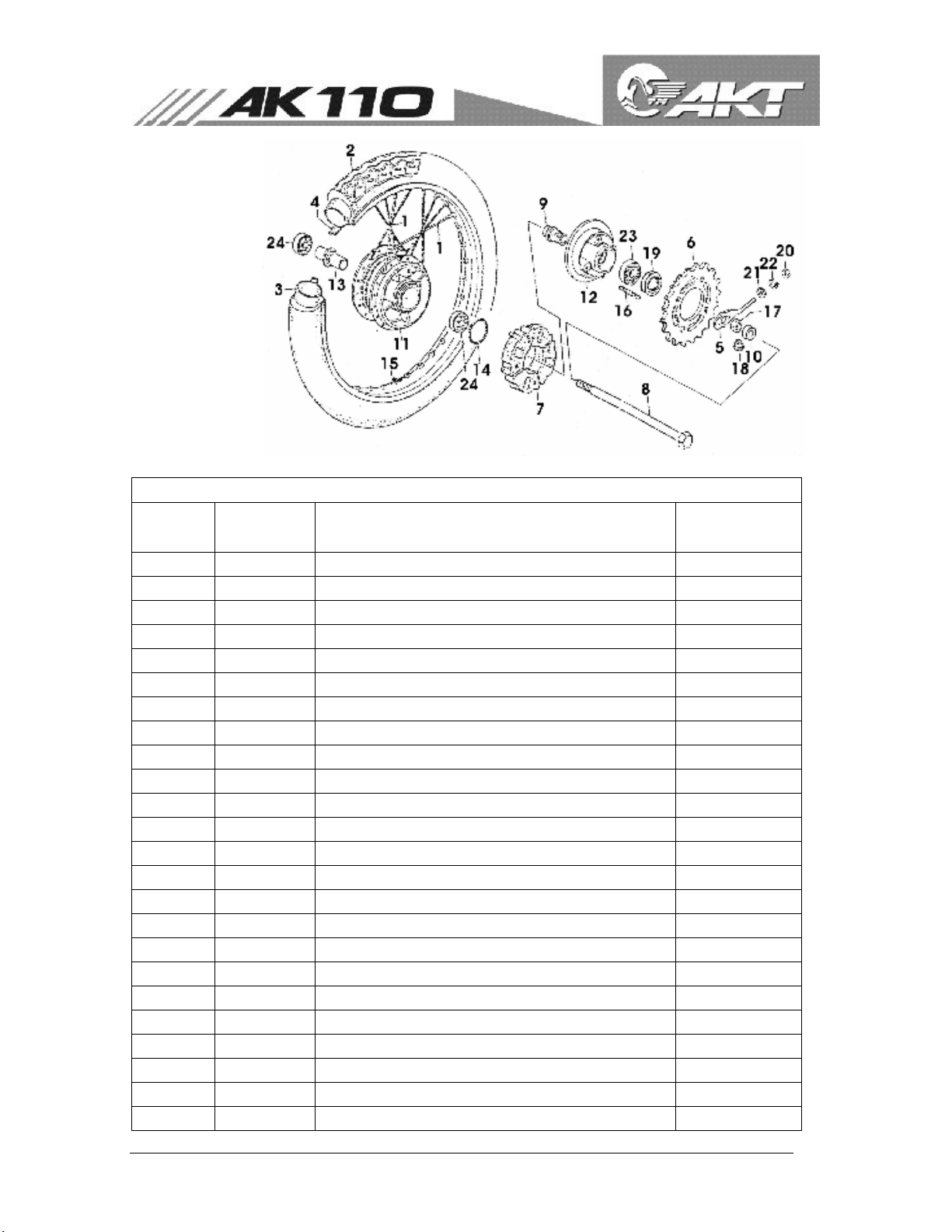

F-11

REAR
WHEEL
ASSY

REAR WHEEL ASSY

REF NO

1 DF11-7 SPOKES KIT 1
2 DF11-13 REAR TIRE 1
3 DF11-14 REAR TUBE 1
4 DF11-15 TUBE PROTECTOR 1
5 DF11-27 LH CHAIN ADJUSTER 1
6 DF11-02 SPROCKET 1
7 DF11-03 SPROCKET BASE DAMPER 1
8 DF10-03 R WHEEL AXLE 1

9 DF11-04 R W BEARING SPACER COLLAR 1
10 DF11-05 R WHEEL SPACER COLLAR 1
11 DF11-06 R WHEEL HUB 1
12 DF11-09 SPROCKET BASE 1
13 DF11-10 R WHEEL DISTANCE COLLAR 1
14 DF11-11 ORING 1
15 DF11-12 R RIM 1
16 DF11-16 STUD BOLT M8X43 4
17 GB6187 NUT M12X1.25 1
18 M8 NUT M8 4
19 DF11-20 OIL SEAL 27X40X6 1
20 M6 NUT M6 1
21 PWAS6 PLAIN WASHER 6 1
22 WAS6 WASHER 6 1
23 GB297 BEARING 6203 1
24 BEA6301

PART

NUMBER

DESCRIPTION QTY / MCLE

BEARING 6301 2

Catálogo de partes

35

F-12

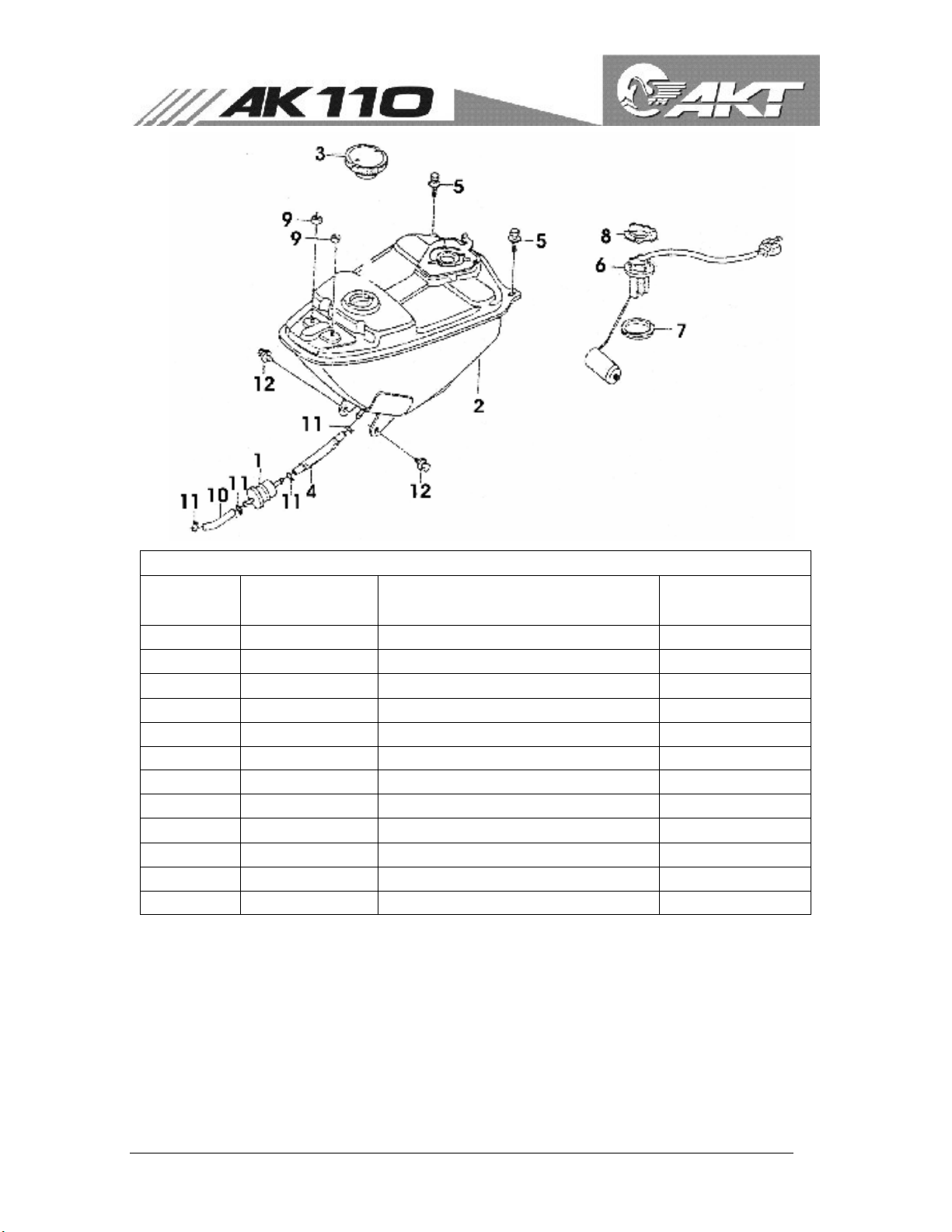

FUEL
TANK

FUEL TANK

REF NO

PART

NUMBER

1 CF12-01 FUEL FILTER 1
2 CF12-02 FUEL TANK 1
3 CF12-03 FUEL CAP 1
4 CF12-04 FUEL HOSE 1
5 GB5787 SCREW M8X16 2
6 CF12-05 FUEL SENSOR UNIT 1
7 CF12-06 GASKET 1
8 CF12-07 SENSOR UNIT LOCK 1

9 M6 NUT M6 2
10 CF12-08 FUEL HOSE 1
11 CF12-09 HOSE CLIP 4
12 GB5787 SCREW M6X16 2

DESCRIPTION QTY / MCLE

Catálogo de partes

36

F-13

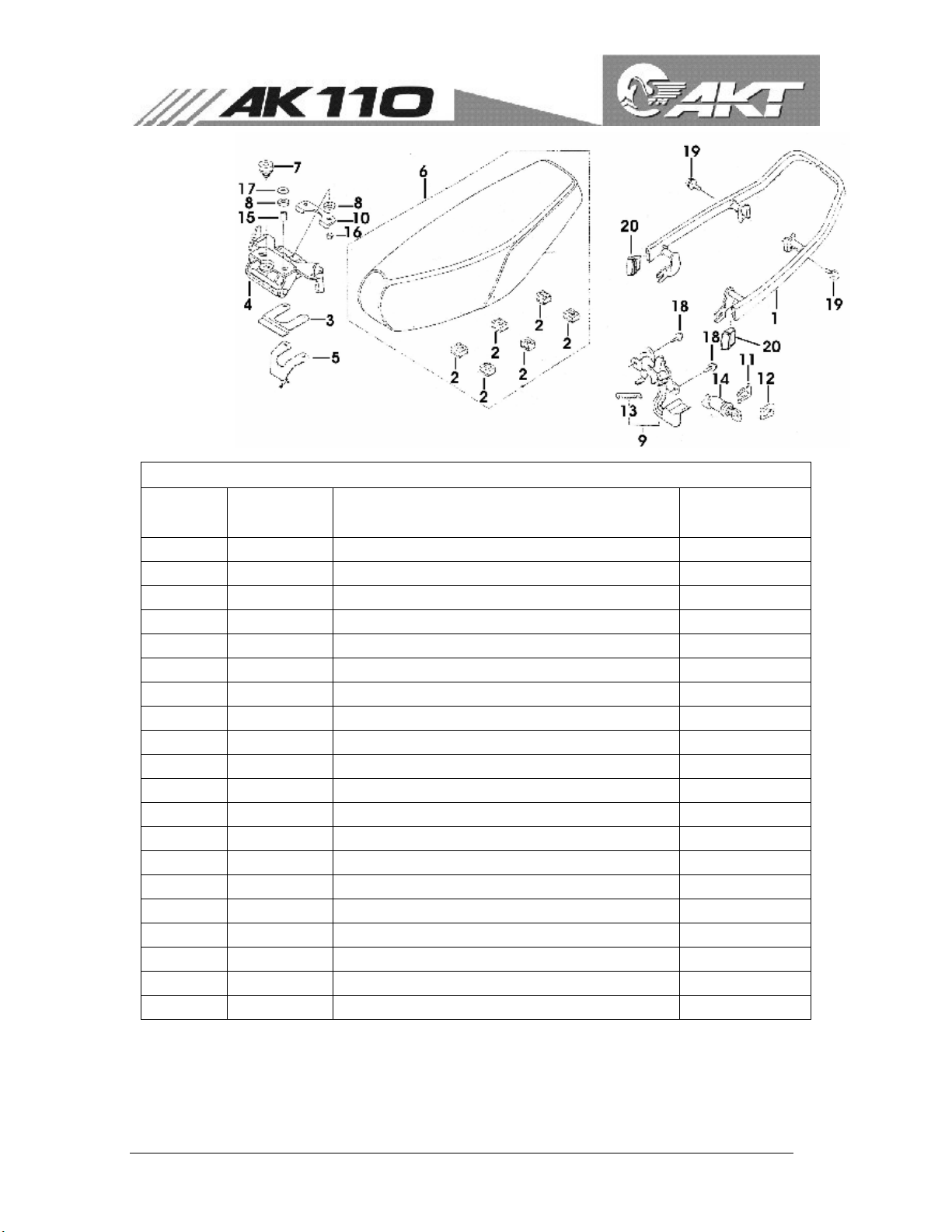

SEAT

SEAT

REF NO

1 CF13-01 SUB CARRIER ASSY 1
2 CF13-02 SEAT DAMPER 6
3 CF13-03 FUEL TANK CONNECTION 1
4 CF13-04 HINGE ASSY 1
5 CF13-05 SEAT SPACER 1
6 CF13-06 SEAT ASSY 1
7 CF13-07 CUSHION RUBBER 1
8 CF13-08 WASHER 4
9 CF13-09 LOCK HOOK 1

10 CF13-10 SEAT HINGE SPACING 1
11 CF13-11 CIRCLIP 1
12 CF13-12 SPACER 1
13 CF13-13 SEAT LOCK RETURN SPRING 1
14 CF13-14 SEAT LOCK ASSY 1
15 CF13-15 BUSH 2
16 NUT 2
17 PLAIN WASHER 2
18 GB5787 SCREW M6X12 2
19 M8X16 BOLT M8X16 2
20 SUB CARRIER RUBBER 2

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

37

4

F-14

RR &
SIDE
COVERS

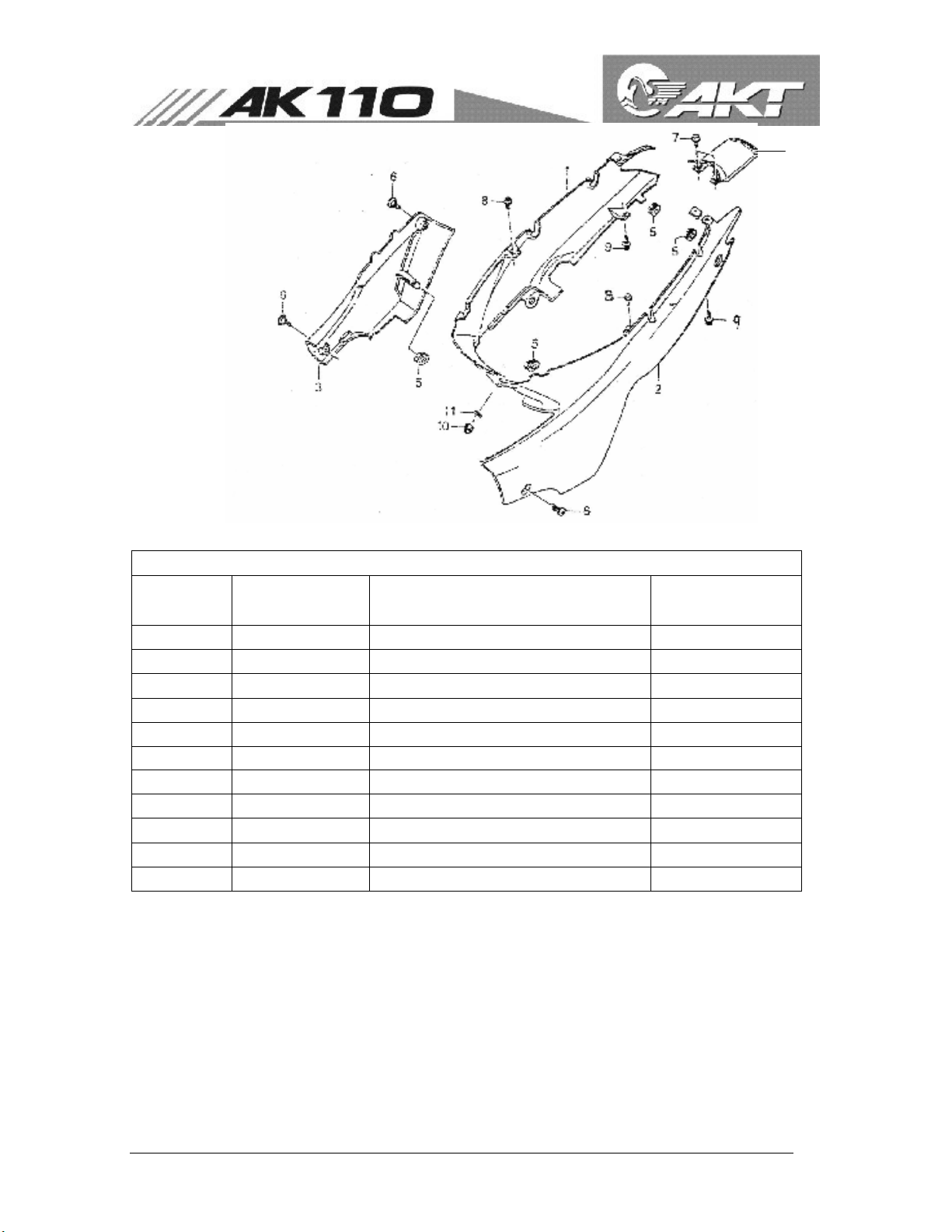

RR & SIDE COVERS

REF NO

1 CF14-01 RH BODY COVER 1
2 CF14-02 LH BODY COVER 1
3 CF14-03 RH SIDE COVER 1
4 CF14-04 R CENTER COVER 1
5 DF14-01 WASHER 2
6 DF14-08 PAN SCREW M6X20 3
7 GB5787 SCREW M6X16 2
8 CF14-06 SCREW M5X16 2

9 GB5787 SCREW M6X16 2
10 GB923 NUT M5 1
11 GB95 PLAIN WASHER 5 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

38

F-15

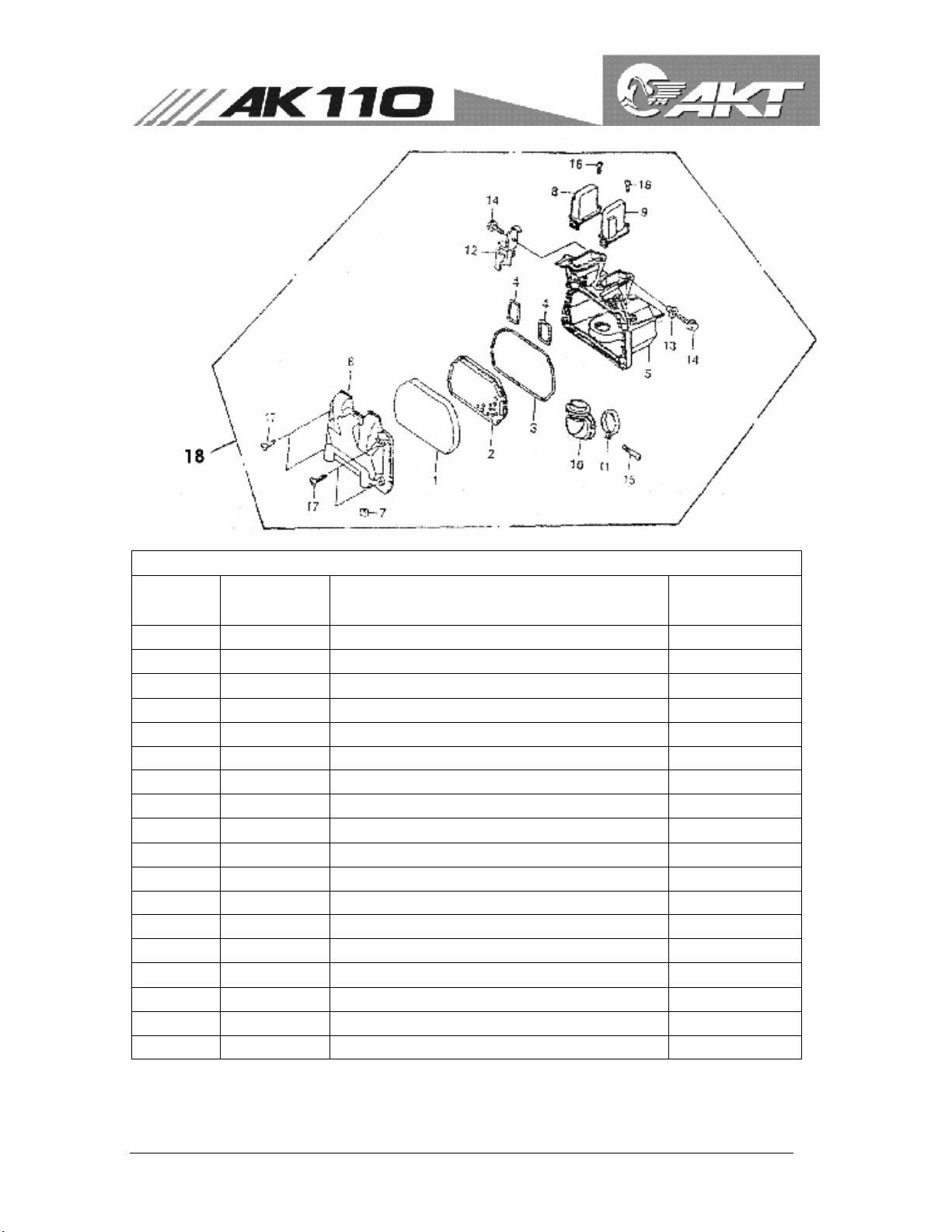

AIR
FILTER

AIR FILTER

REF NO

1 CF15-01 AIR CLEANER ELEMENT 1
2 CF15-02 FLAME TRAP 1
3 CF15-03 AIR CLEANER CAP GASKET 1
4 CF15-04 COVER SEAL 1
5 CF15-05 AIR CLEANER COVER 1
6 CF15-06 AIR CLEANER CASE COVER 1
7 CF15-07 AC DRAIN PLUG 1
8 CF15-08 RH CAP 1
9 CF15-09 LH CAP 1

10 CF15-10 AC CONNECTING TUBE 1
11 CF15-11 CUNNECTING TUBE BAND 1
12 CF15-12 TUBE GUIDE CLIP 1
13 CF15-13 BOLT M6X12 2
14 CF15-14 SCREW M5X20 1
15 CF15-15 SCRE ST4X12 2
16 CF15-16 SCREW M5X16 4
17 CF15-17 TAP SCREW 4
18 CF15-18 AIR FILTER COMP 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

39

F-16

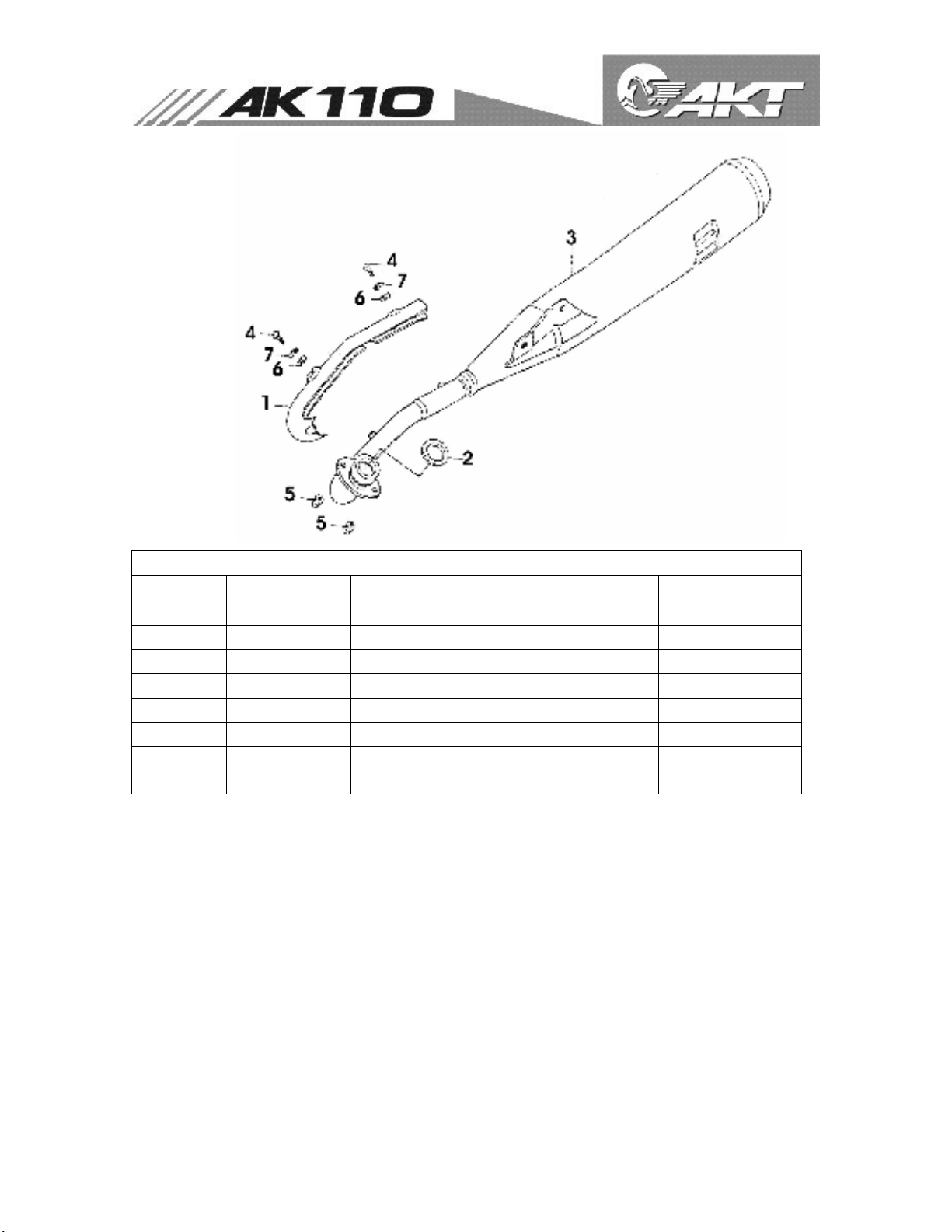

MUFFLER

MUFFLER

REF NO

1 CF16-01 MUFFLER PROTECTOR 1
2 CF16-02 GASKET 1
3 CF16-03 MUFFLER COMP 1
4 SCREW 2
5 GB6177 NUT M6 2
6 PLAIN WASHER 2
7 WASHER 2

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

40

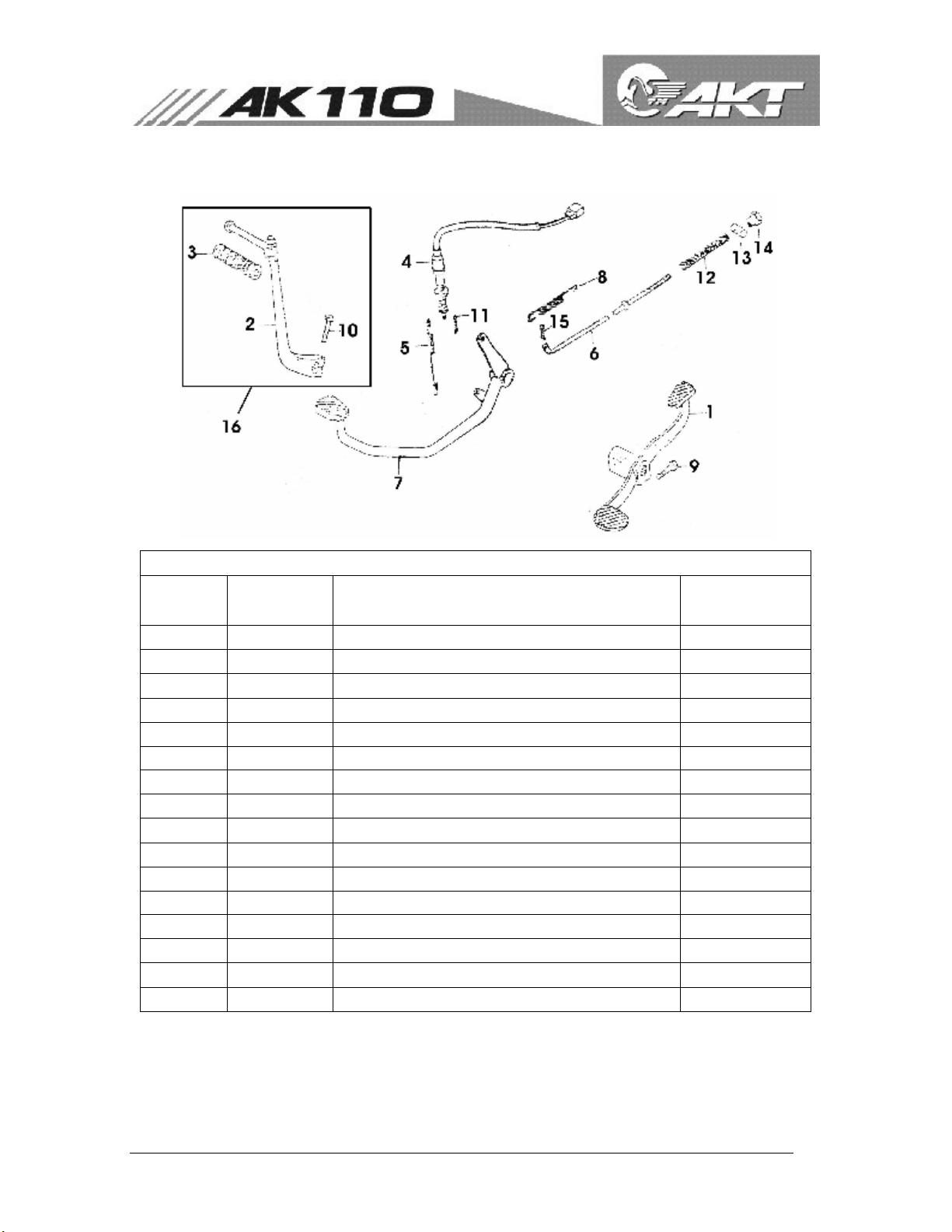

F-17

PEDALS

PEDALS

REF NO

1 RF20-15 PEDAL GEAR CHANGE COMP 1
2 RF20-01 ARM KICK STARTER 1
3 RF20-02 RUBBER KICK STARTER 1
4 DF17-04 REAR BRAKE SWITCH 1
5 CF17-01 RB SWITCH SPRING 1
6 DF17-06 BRAKE LEVER COMP 1
7 CF17-02 BRAKE PEDAL COMP 1
8 CF1703 BRAKE PEDAL SPRING 1

9 GB5781 BOLT HEX M6X20 1
10 GB5781 BOLT HEX M6X22 1
11 GB91 SPLIT PIN 2.0X16 1
12 CF17-04 BRAKE LEVER SPRING 1
13 DF17-16 PIN 1
14 DF17-07 ADJUSTING NUT 1
15 GB91 SPLIT PIN 2.0X16 1
16 E210500 KICK STARTER COMP 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

41

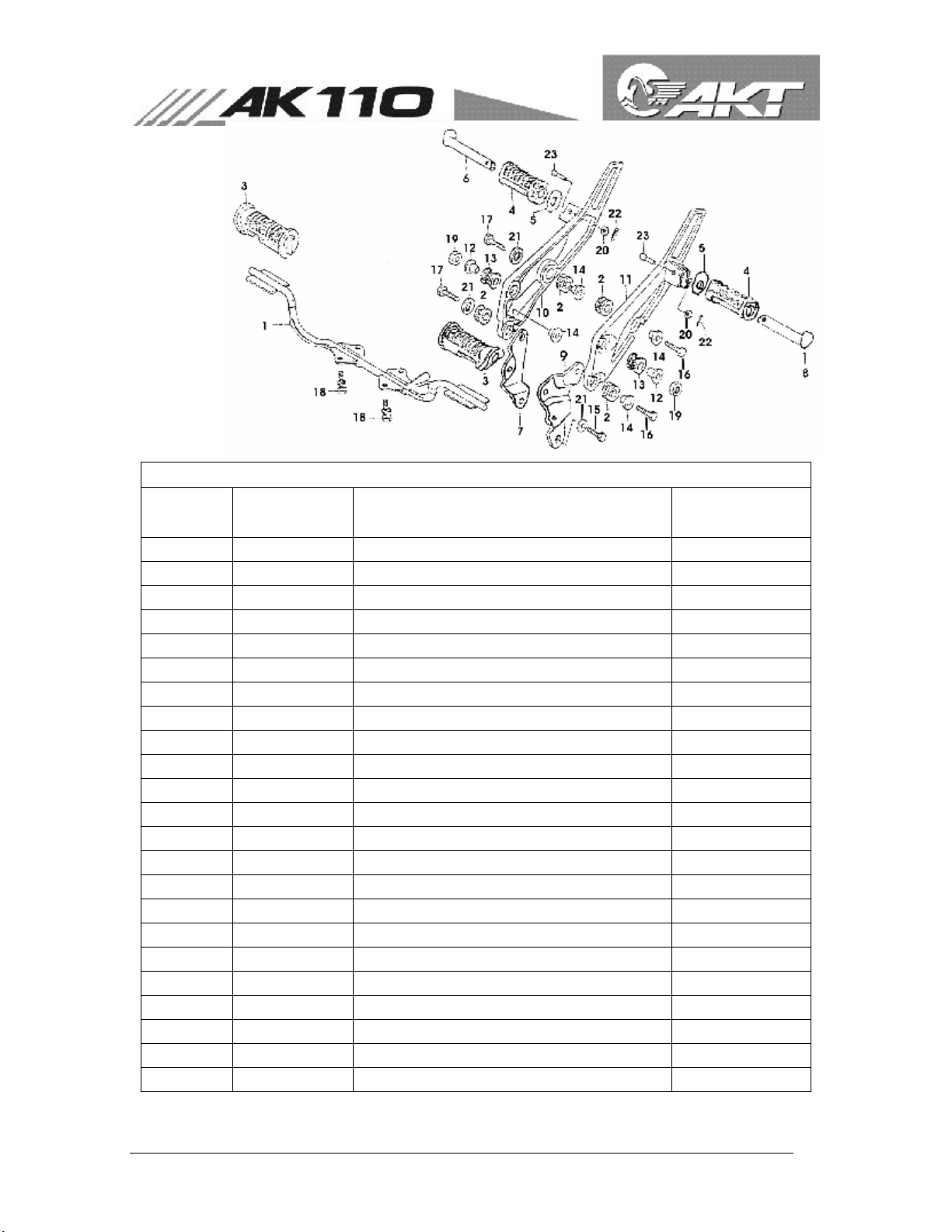

F-18

STEPS

STEPS

REF NO

1 RF18-01 FR HOLDER STEP 1
2 CF18-01 BUSH 4
3 CF18-02 FR FOOTREST DAMPER 2
4 CF18-03 R FOOTREST DAMPER 2
5 CF18-04 SPACER 2
6 CF18-05 R RH FOOTREST TUBE 1
7 CF18-06 R RH FOOTREST PLATE 1
8 CF18-07 R LH FOOTREST TUBE 1

9 CF18-08 R LH FOOTREST PLATE 1
10 CF18-09 RH FOOTREST BRACKET 1
11 CF18-10 LH FOOTREST BRACKET 1
12 CF18-11 BUSH 2
13 CF18-11B RUBBER BUSH 2
14 CF18-12 BUSH 4
15 GB5787 BOLT M8X16 1
16 M8X30 BOLT M8X30 2
17 M8X30 BOLT M8X30 2
18 GB5787 BOLT M8X16 4
19 GB6171 NUT M10X1.25 2
20 PWAS6 PLAIN WASHER 6 2
21 PWAS8 PLAIN WASHER 8 3
22 SP1.6X15 SPLIT PIN 1.6X15 2
23 SPLIT PIN 2

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

42

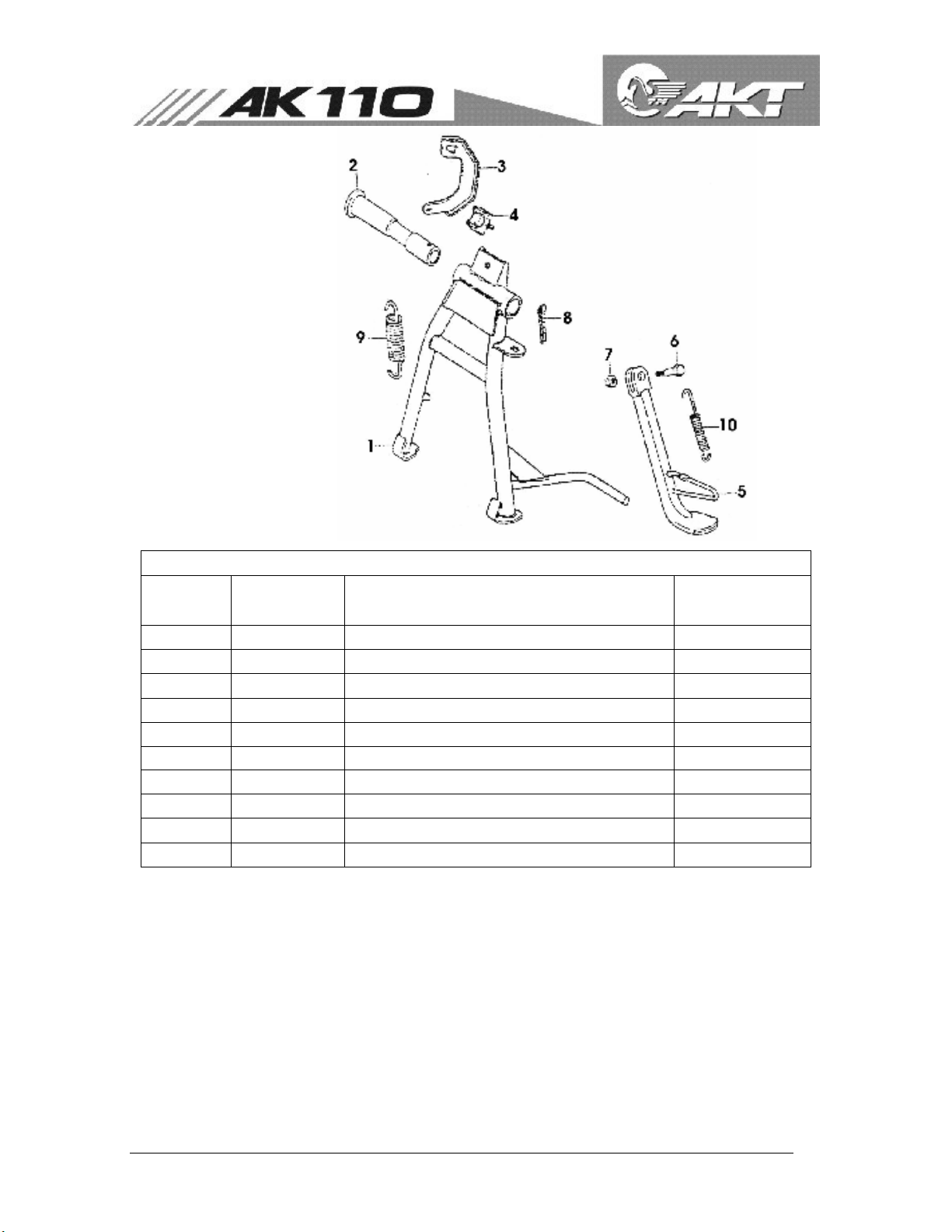

F-19

STANDS

STANDS

REF NO

1 CF19-01 MAIN STAND 1

2 CF19-02 MAIN STAND AXLE 1

3 CF19-03 SPRING HOOK 1

4 GF19-03 STAND STOPPER RUBBER 1

5 RF21-02 SIDE STAND 1

6 GB5787 BOLT M10X1.25X50 1

7 GB6171 NUT M10X1.25 1

8 GB91 SPLIT PIN 3.0X25 1

9 CF19-05 MAIN STAND SPRING 1

10 CF19-06 SIDE STAND SPRING 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

43

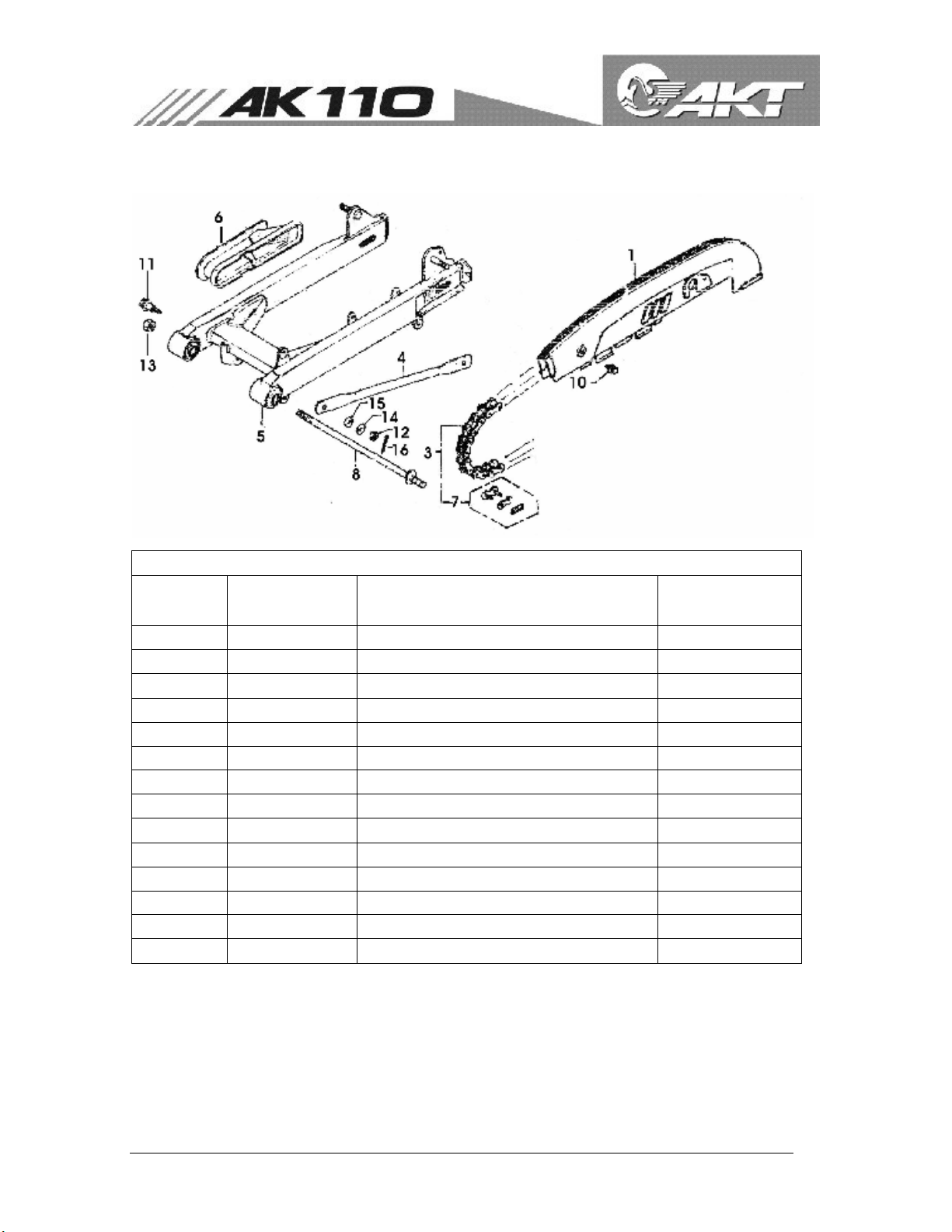

F-20

SWING ARM & CHAIN

SWING ARM & CHAIN

REF NO

1 DF20-01S SINGLE CHAIN CASE 1
3 DF20-03 CHAIN 1
4 DF20-07 R TORQUE LINK 1
5 DF20-08 SWING ARM 1
6 DF20-06 CHAIN SLIDER 1
7 DF20-04 CHAIN JOINT 1

8 CF20-01 SWING ARM AXLE 1
10 DF20-09 BOLT M6X8 2
11 DF20-12 HEX BOLT M8X25 1
12 DF20-14 NUT M8 1
13 SWING ARM AXLE NUT 1
14 GB97.1 PLAIN WASHER 8 MM 1
15 CF20-02 WASHER 1
16 GB91 SPLIT PIN 2.0X16 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

44

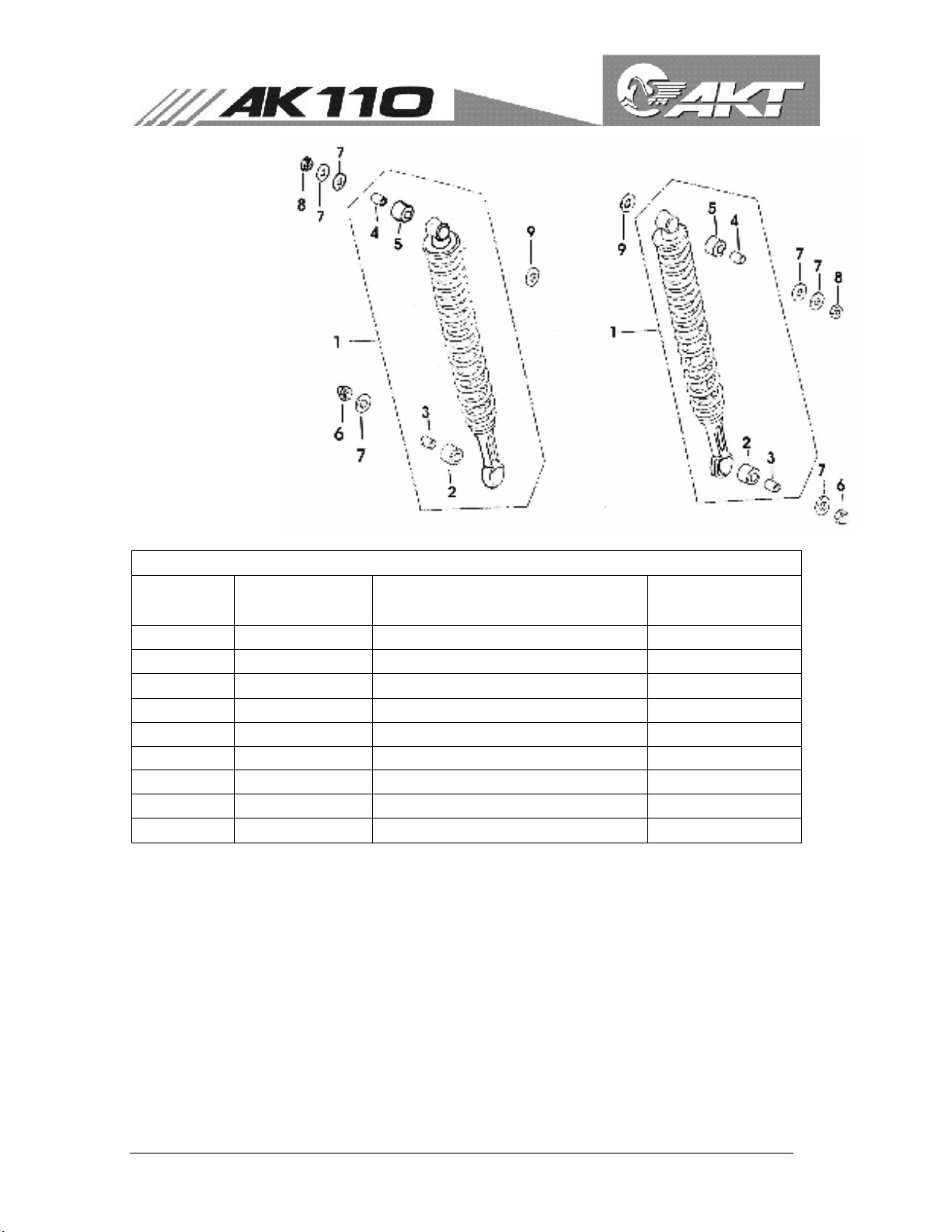

F-21

REAR
SHOCK
ABSORBERS

REAR SHOCK ABSORBERS

REF NO PART NUMBER

1 CF21-01 REAR SHOCK ABS 2
2 CF21-02 RUBBER BUSH 2
3 CF21-03 BUSH 2
4 CF21-04 BUSH 2
5 CF21-05 RUBBER BUSH 2
6 GB923 CAP NUT M10X1.25 2
7 GB96 SPACER 10 2
8 GB6187 NUT M10X1.25 2
9 GB97 PLAIN WASHER 10 2

DESCRIPTION QTY / MCLE

Catálogo de partes

45

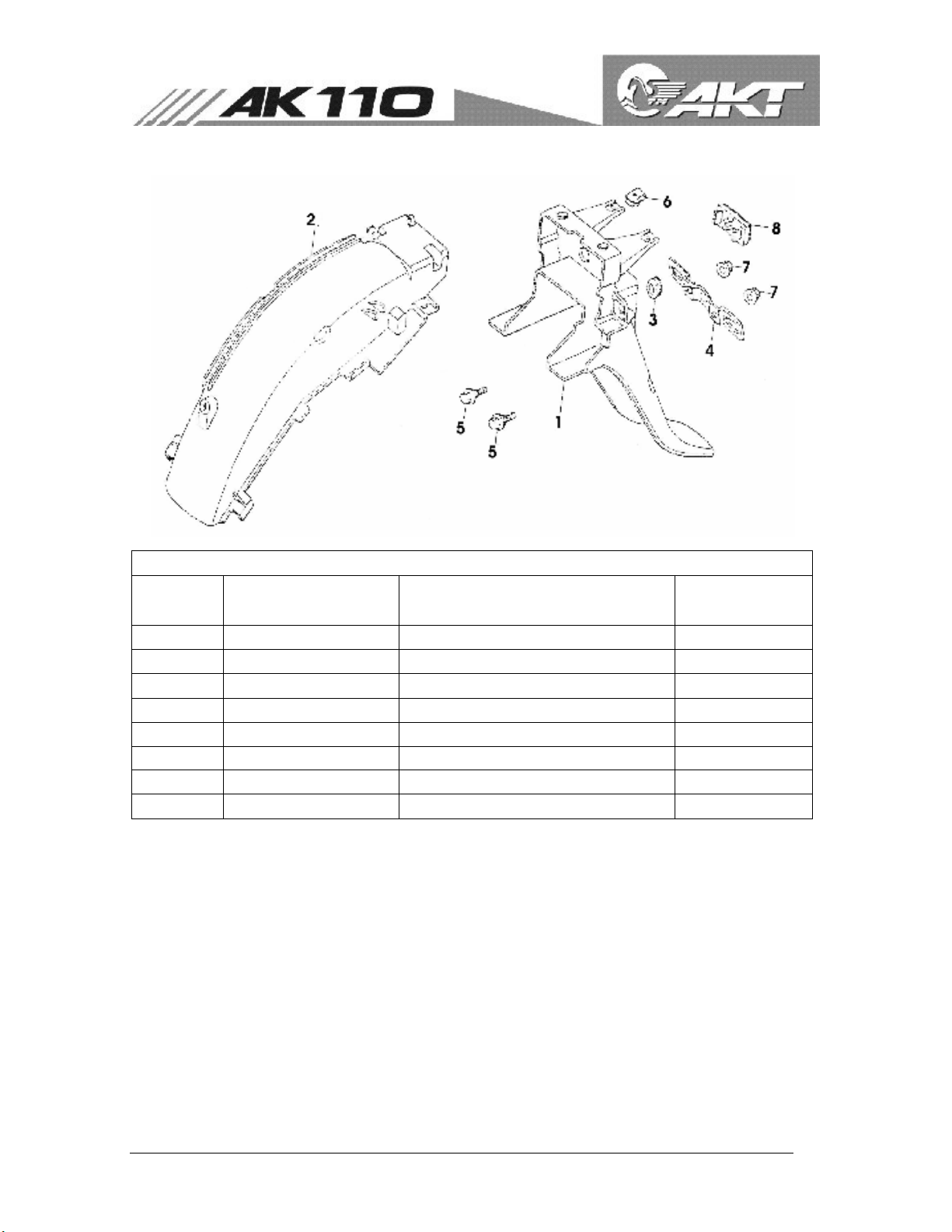

F-22

REAR MUDGUARD

REAR MUDGUARD

REF NO PART NUMBER DESCRIPTION QTY / MCLE

1 CF22-01 REAR MUDGUARD RR 1
2 CF22-02 REAR MUDGUARD FR 1
3 DF14-01 RUBBER BUSH 2
4 CF22-04 LICENSE BRKT 1
5 GB5787M6X16 BOLT M6X16 2
6 DF14-10 ADJUST NUT M5 2
7 GB6177M6 NUT M6 2
8 CF22-05 REFLECTOR 1

Catálogo de partes

46

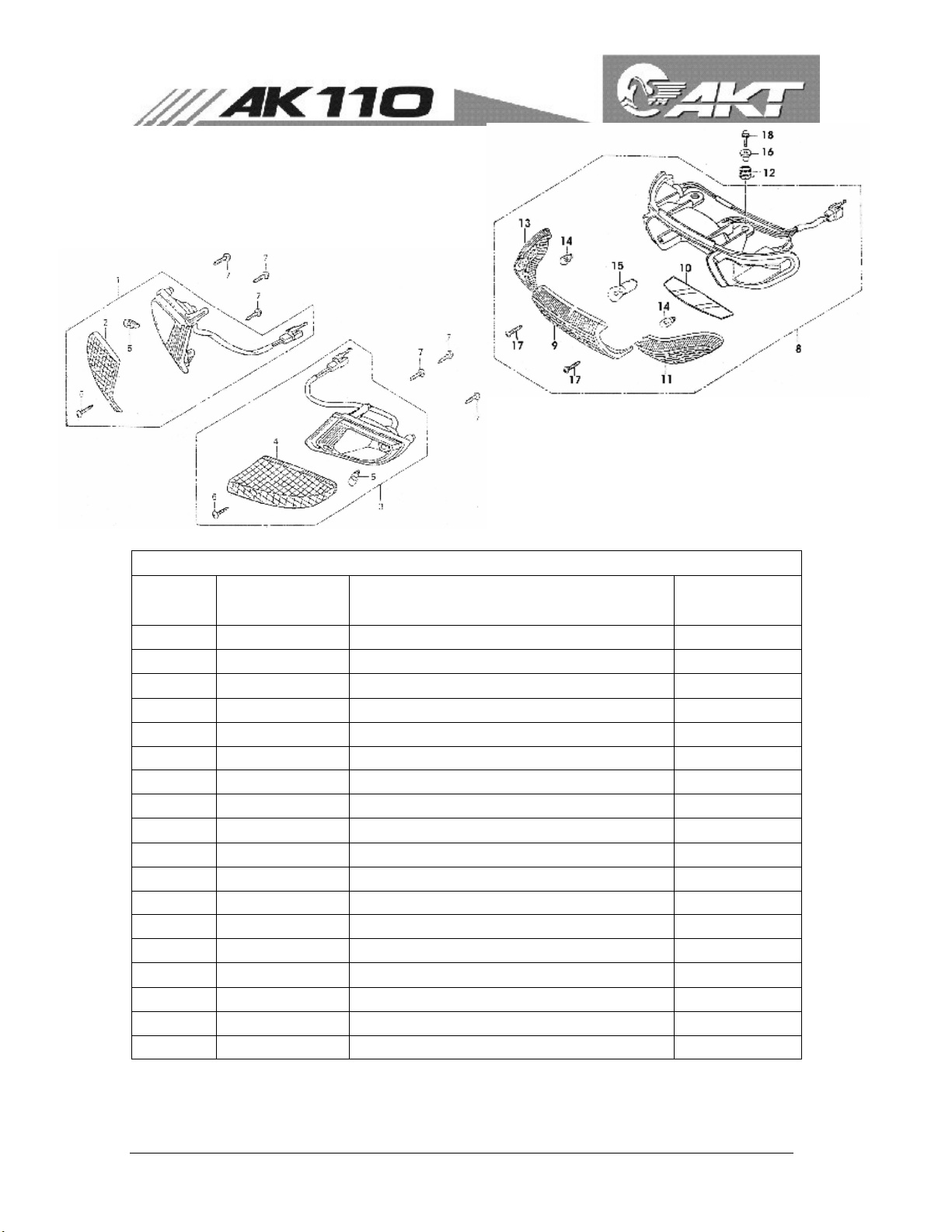

F-23

SIGNALS

F-24

TAIL LIGHT

SIGNALS & TAIL LIGHT

REF NO

1 CF23-01 FRONT RIGHT SIGNAL 1
2 CF23-02 FRONT RIGHT SIGNAL LENS 1
3 CF23-03 FRONT LEFT SIGNAL 1
4 CF23-04 FRONT LEFT SIGNAL LENS 1
5 CF23-05 BULB 2
6 TSST4X16 TAPPING SCREW ST4X16 2
7 GB845 TAPPING SCREW ST4.2X12 6
8 CF24-01 TAIL LIGHT ASSY 1
9 CF24-02 TAIL LIGHT LENS 1

10 CF24-03 LICENSE LINS 1
11 CF24-04 REAR RIGHT SIGNAL LENS 1
12 CF24-05 WASHER 2
13 CF24-06 REAR LEFT SIGNAL LENS 1
14 CF24-07 BULB 12V10W 2
15 CF24-08 BULB 1
16 CF24-09 BUSH 2
17 TSST4.2X20 TAPPING SCREW ST4.2X20 2
18 GB818 SCREW M5X25 2

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

47

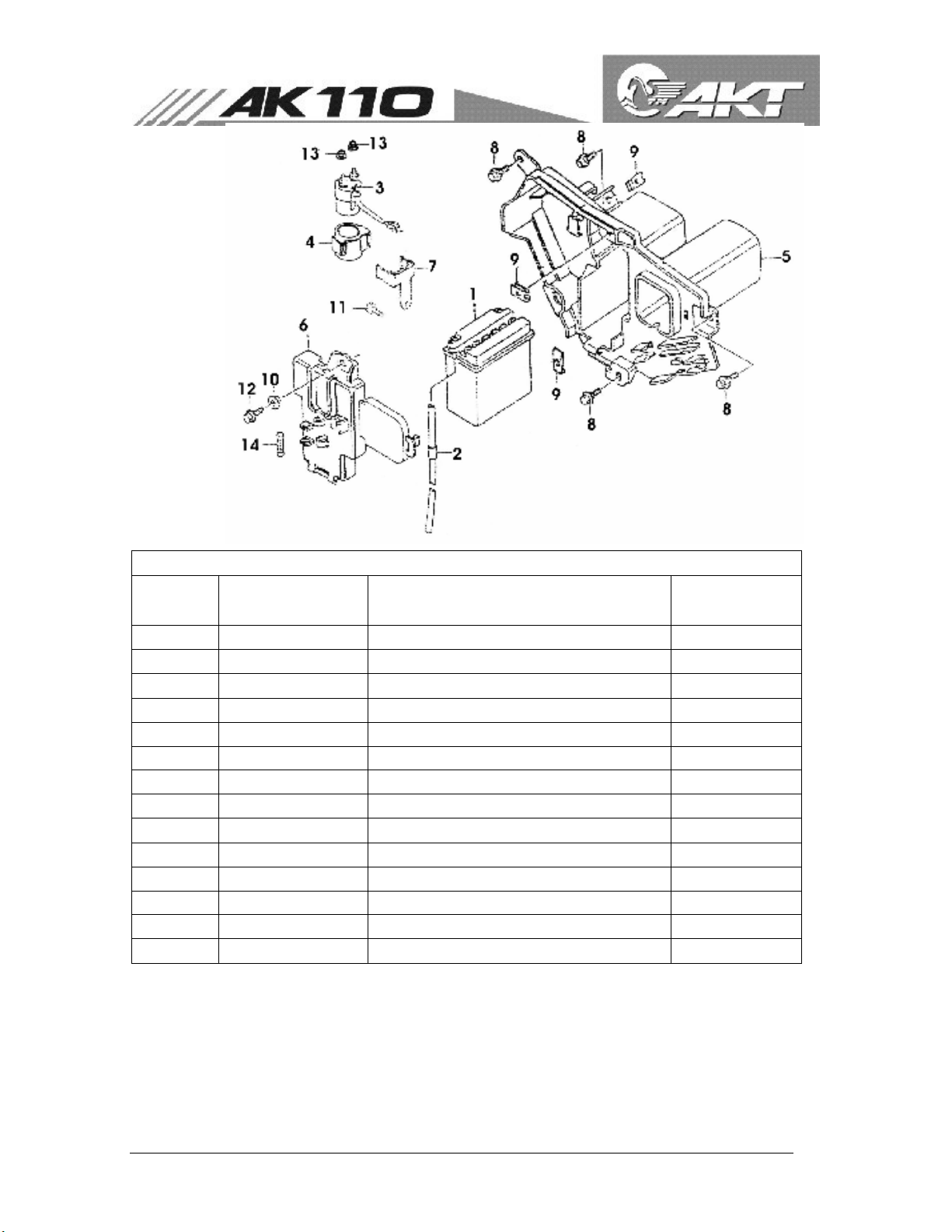

F-25

BATTERY
CASE

BATTERY CASE

REF NO PART NUMBER

1 DF25-01 BATTERY 1
2 DF25-02 TUBE 1
3 DF26-12 STARTING RELAY 1
4 DF26-13 STARTING RELAY BUSH 1
5 CF25-01 BATTERY CASE 1
6 CF25-02 BATTERY CASE COVER 1
7 CF25-03 STARTING RELAY STAND 1
8 GB818M6X16 BOLT M6X16 4

9 DF25-08 ADJUST NUT M6 3
10 CF25-04 BUSH 1
11 GB818M5X16 BOLT M5X16 1
12 GB818DF2 BOLT M6X16 1
13 M6 NUT M6 2
14 DF26-17 FUSE 10AMP 1

DESCRIPTION QTY / MCLE

Catálogo de partes

48

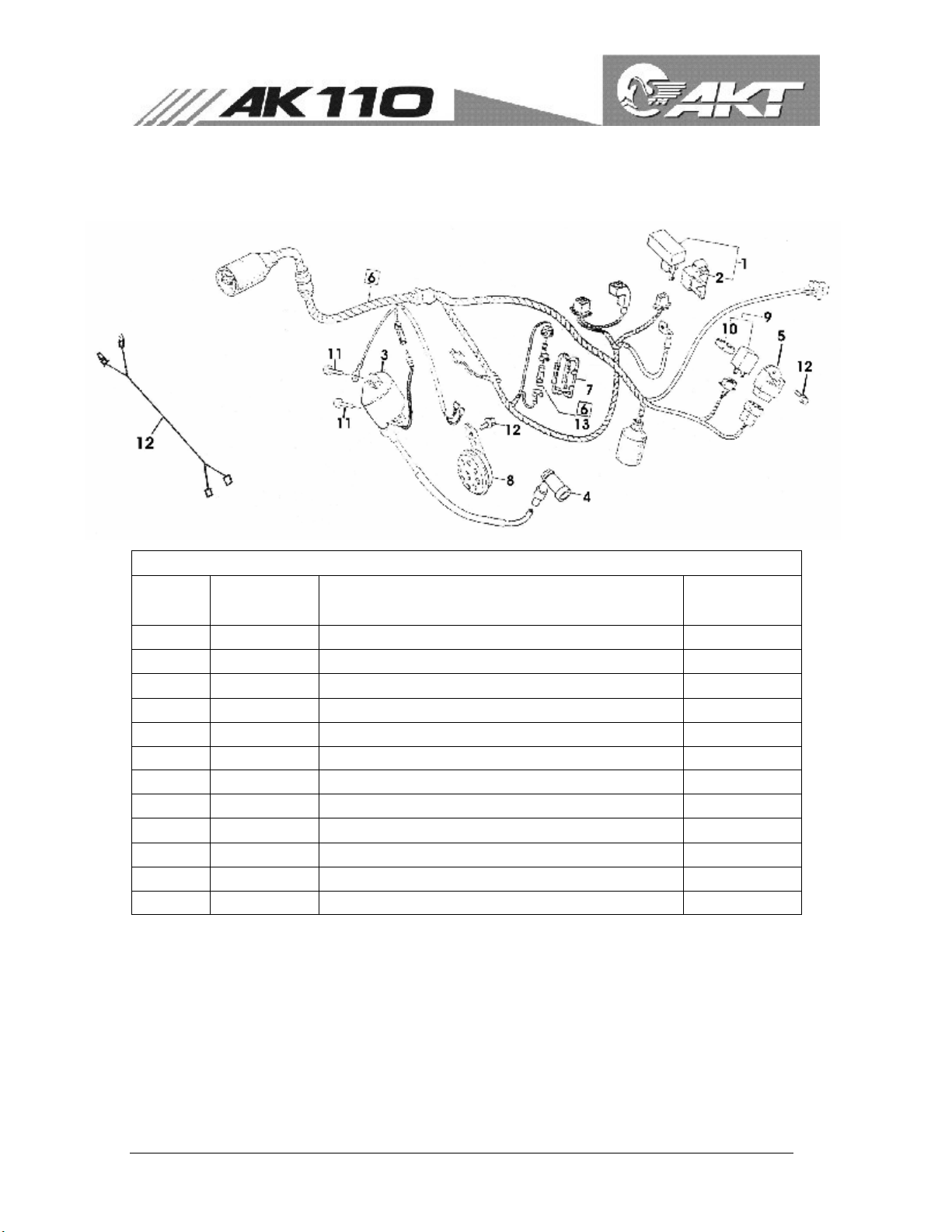

F-26

ELECTRIC
COMPONENTS

ELECTRIC COMPONENTS

REF NO

1 DF26-02 CDI ASSY 1
2 DF26-01 CDI RUBBER 1
3 DF26-03 IGNITION COIL ASSY 1
4 DF26-04 SPARK PLUG CAP 1
5 DF26-05 RECTIFIER REGULATOR 1
6 CF26-01 WIRE HARNESS 1
7 DF26-09 FUSE 1
8 DF27-01 HORN 1

9 DF26-10 FLASHER RELAY 1
10 GB818 BOLT M5X20 2
11 GB5787 BOLT M6X16 2
12 CF26-02(d) BRAKE SWITCH WIRE DISC BRAKE 1

PART

NUMBER

DESCRIPTION QTY / MCLE

Catálogo de partes

49

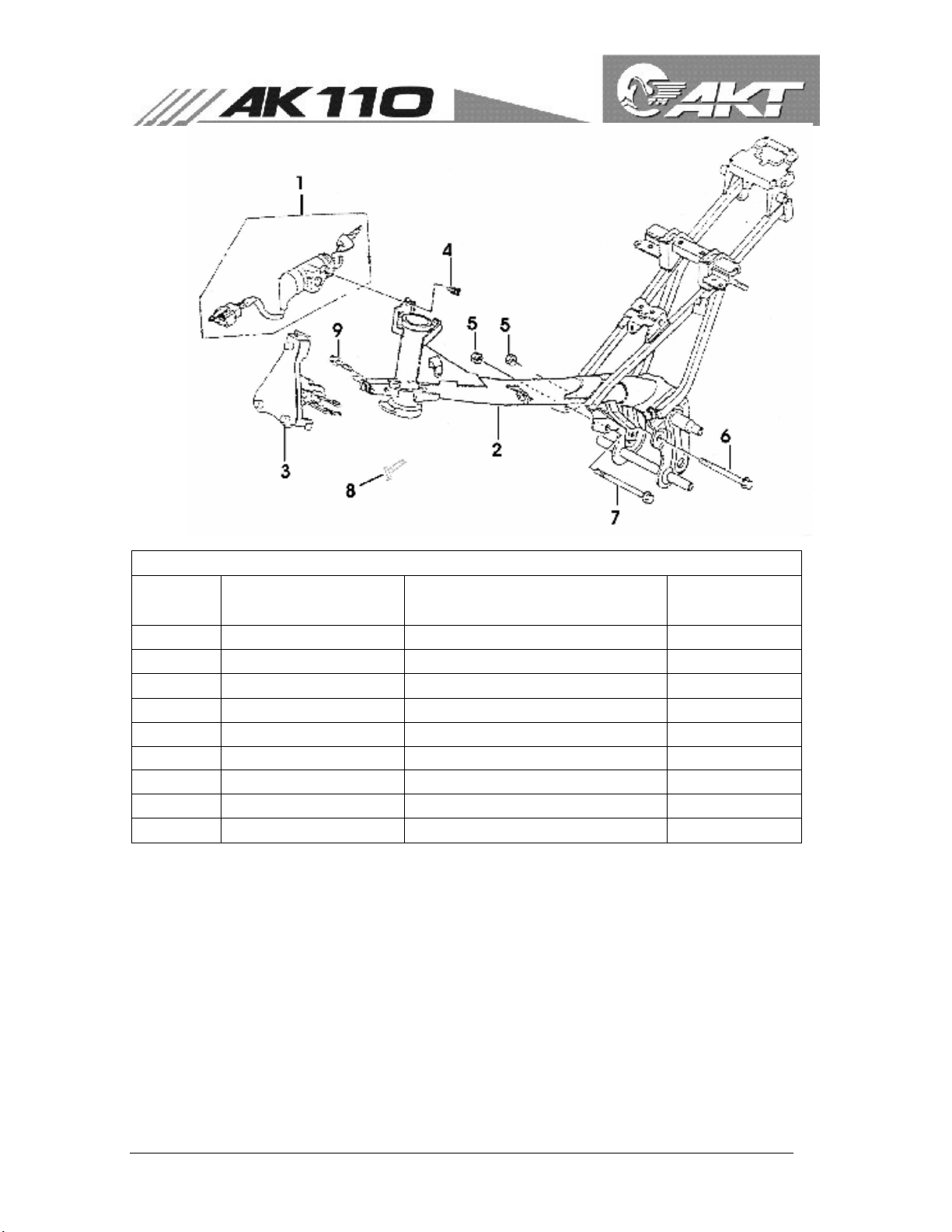

F-27

FRAME

FRAME

REF NO

1 CF27-01 IGNITION LOCK ASSY 1
2 CF27-02 FRAME ASSY 1
3 CF27-03 COLLAR STAND 1
4 GB819M6X10 SCREW M6X10 2
5 GB6187M8 NUT M8 2
6 GB5783M8X120 BOLT M8X120 1
7 DF27-04 BOLT M8X110 1
8 M6X12 BOLT M6X12 1
9 GB5787M8X35 BOLT M8X35 2

PART NUMBER DESCRIPTION QTY / MCLE

Catálogo de partes

50

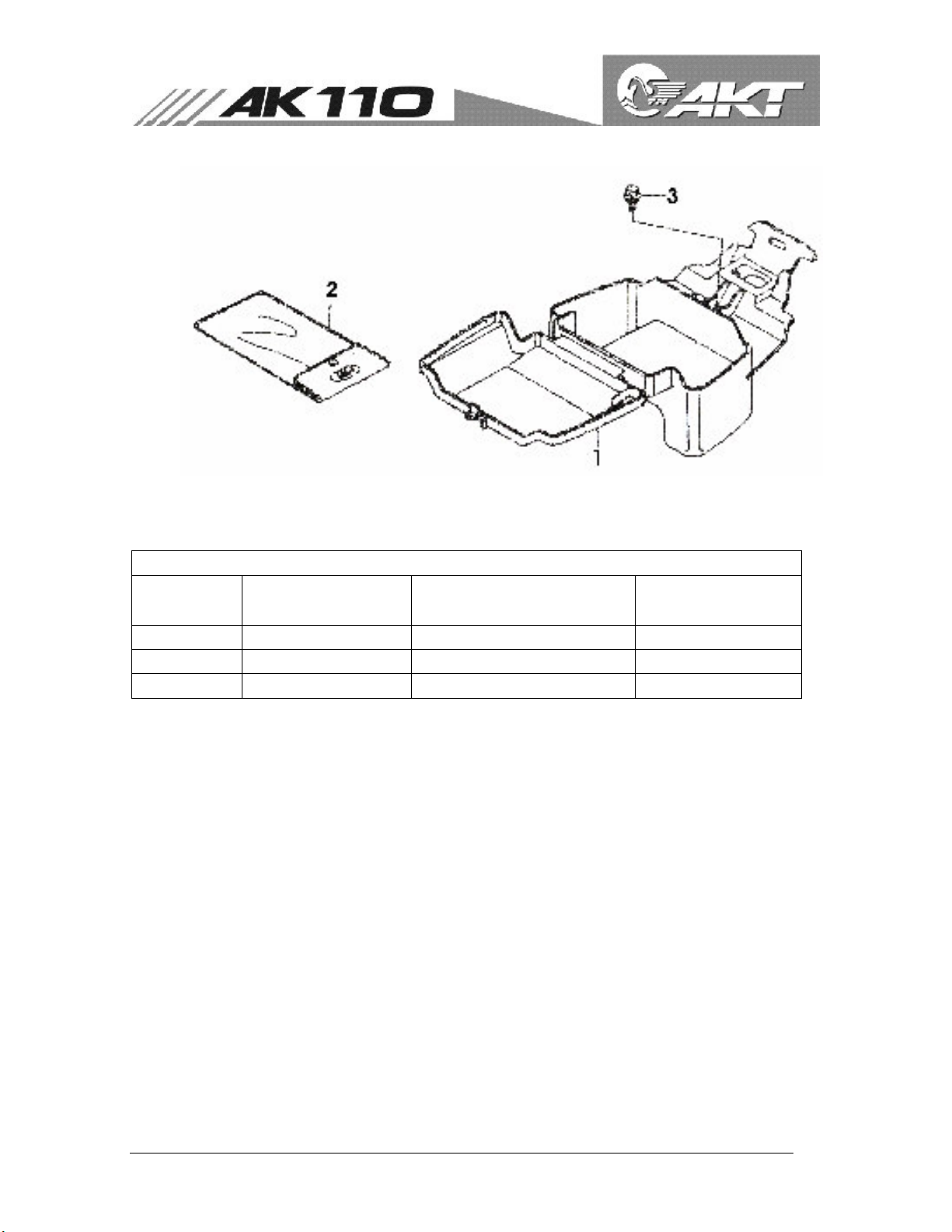

F-28

TOOLS

TOOLS

REF NO PART NUMBER DESCRIPTION QTY / MCLE

1 DF28-01 TOOL CASE 1
2 DF28-03 TOOL SET 1
3 DF28-07 GB5787M6X12 1

Catálogo de partes

51

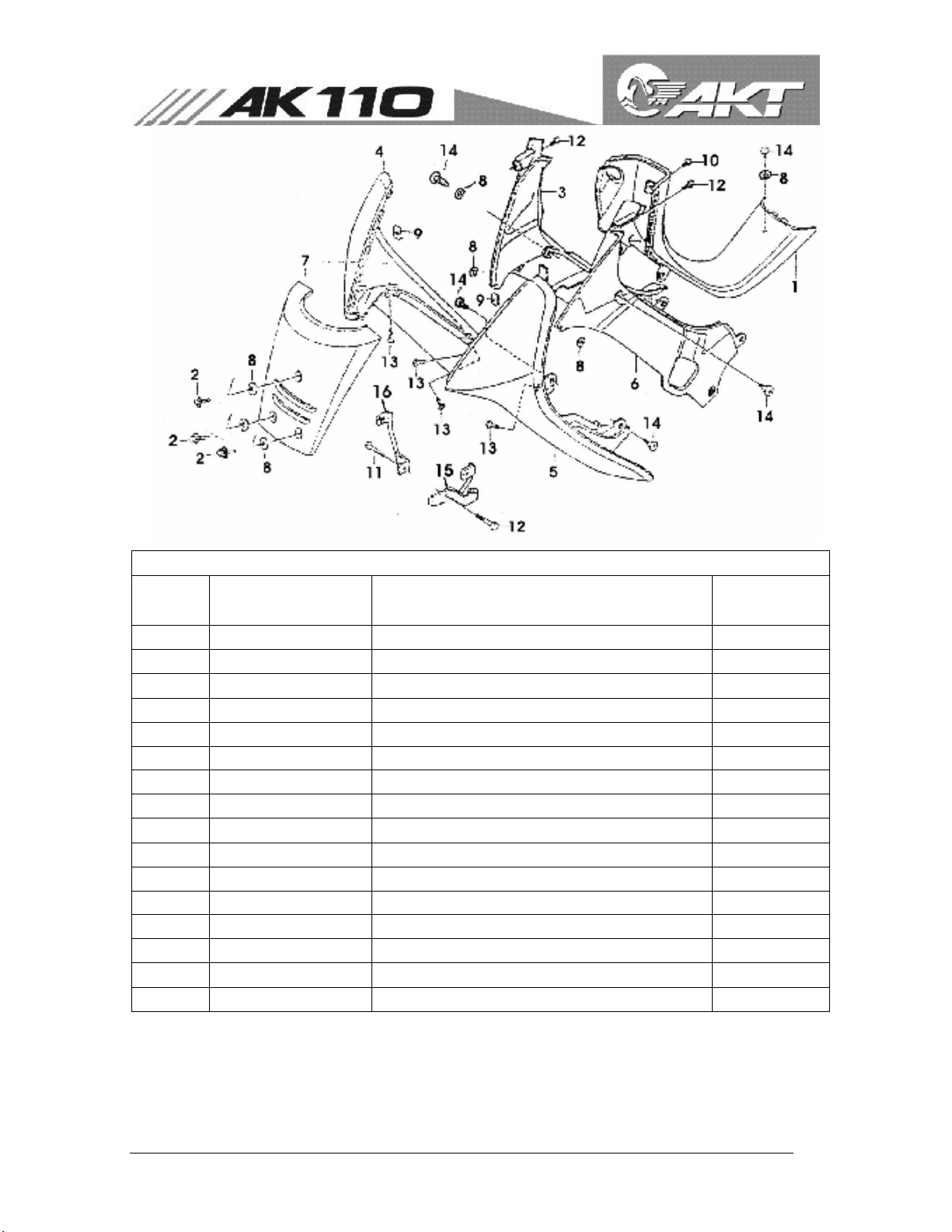

F-29

SHIELDS

SHIELDS

REF NO PART NUMBER DESCRIPTION QTY / MCLE

1 CF29-01 CENTER SHIELD 1
2 GB5787M6X16 BOLT M6X16 3
3 CF29-02 RH WIND SCREEN PLATE 1
4 CF29-03 RH FRONT WIND SCREEN PLATE 1
5 CF29-04 LH FRONT WIND SCREEN PLATE 1
6 CF29-05 LH WIND SCREEN PLATE 1
7 CF29-06 FRAME HEAD COVER 1
8 CF29-07 WASHER 5

9 SF07-12 ADJUST NUT 2
10 M5X10 SCREW M5X10 1
11 GB5787M6X16 BOLT M6X16 2
12 GB845ST4.8X19 TAPPING NUT ST4.8X19 2
13 GB845ST4.2X9.5 TAPPING NUT ST4.2X9.5 6
14 DF18-05 SCREW M6X20 5
15 CF29-08 LEFT WINDSCREEN BRACKET 1
16 CF29-09 RIGHT WINDSCREEN BRACKET 1

Catálogo de partes

52

PART NUMBER INDEX AK110

PART NUMBER

BEA6301 BEARING 6301 2 35 24

CF01-01 HEAD LAMP ASSY 1 25 1
CF01-02 HEAD LAMP 1 25 2
CF01-03 BULB BASE 1 25 3
CF01-04 BULB 1 25 4
CF02-01 BULB 2 26 1
CF02-02 BULB 6 26 2
CF02-03 BULB 2 26 3
CF02-04 METER ASSY 1 26 4
CF02-05 SPEEDOMETER ASSY 1 26 5
CF02-06 SPEEDOMETER BOX 1 26 6
CF02-07 CORD CLIP 1 26 7
CF02-08 SPEEDOMETER GLASS 1 26 8
CF02-09 BULB RETAINER 1 26 9
CF02-10 REFLECTOR 1 26 10
CF02-11 SPEEDOMETER CABLE ASSY 1 26 12
CF03-01 THROTTLE CABLE ASSY 1 27 1
CF03-02 STARTING BUTTON ASSY 1 27 2
CF03-03 L HANDLE SWITCH 1 27 3
CF03-04 BUSH 3 28 4
CF03-05 R THROTTLE GRIP 1 27 5
CF03-06 L GRIP 1 27 6
CF03-09 R MIRROR 1 27 7
CF03-11 L MIRROR 1 27 8
CF03-12 BAND 1 27 11

CF0314 CHOKE CABLE 1 27 12
CF04-01 HANDLE BAR ASSY 1 28 1
CF04-02 WASHER 3 28 2
CF04-03 RUBBER BUSH 3 28 3
CF04-07 BALANCER ASSY 2 28 5
CF04-08 HANDLEBAR STAND ASSY 1 28 6
CF04-09 LOCATING BUSH 1 28 7

CF04-10 (d) HANDLE FRONT COVER (DISC BRAKE) 1 28 8

CF04-11 HANDLE REAR COVER 1 28 9
CF04-12 WASHER 1 28 10
CF04-13 BOLT M5X12 1 28 12
CF04-14 TAPPING SCREW ST4.2X12 2 28 17

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

53

PART NUMBER INDEX AK110

PART NUMBER

CF04-15 TAPPING SCREW ST4.8X16 2 28 16

CF04-15B BOLT 3 28 15

CF05-01 LOCK NUT 1 29 3
CF05-02 FORK ASSY 1 29 4
CF05-03 LOCK NUT 1 29 9
CF06-02 FRONT MUDGUARD 1 30 2
CF06-03 L FRONT MUDGUARD COVER 1 30 3
CF06-04 R FRONT MUDGUARD COVER 1 30 4
CF06-05 WASHER 2 30 5

CF07-01 (d) RH FRNT DAMPER ASSY 1 31 1
CF07-02 (d) FRNT DAMPER SPRING 2 31 2
CF07-03 (d) UPPER PIPE 2 31 3
CF07-04 (d) REBOUND SPRING 2 31 4
CF07-05 (d) RH LOWER PIPE 1 31 5
CF07-06 (d) DUST SEAL 2 31 6
CF07-07 (d) RING 2 31 7
CF07-08 (d) OIL SEAL STOPPER RING 2 31 8
CF07-09 (d) SEAT PIPE 2 31 9
CF07-10 (d) OIL SEAL SET 2 31 10
CF07-11 (d) LH FRNT DAMPER ASSY 1 31 11
CF07-12 (d) LH LOWER PIPE 1 31 12
CF07-13 (d) DRAIN BOLT 2 31 13
CF07-14 (d) UPPER BOLT 2 31 14
CF07-15 (d) WASHER 2 31 15
CF07-16 (d) ORING 2 31 16
CF09-05 (d) FR BRAKE DISC ASSY 1 32 40
CF09-06 (d) FR STOP SWITCH ASSY 1 32 1
CF09-07 (d) FR BRAKE HOSE COMP 1 32 2
CF09-08 (d) BRAKE HOSE CLAMPER 1 32 3
CF09-09 (d) BRAKE HOSE CLAMPER B 1 32 4
CF09-11 (d) FRONT BRAKE MASTER SUB ASSY 1 32 6
CF09-17 (d) MASTER CYLINDER SET 1 32 12
CF09-18 (d) FRONT BRAKE LEVER (DISC) 1 32 13
CF09-19 (d) FLANGE BOLT 1 32 14
CF09-20 (d) FR BRAKE LEVER PIVOT BOLT 1 32 15
CF09-21 (d) OIL BOLT M10X22 2 32 16
CF09-22 (d) OIL WASHER 4 32 17
CF09-26 (d) FLANGE NUT M6 1 32 21

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

54

PART NUMBER INDEX AK110

PART NUMBER

CF09-27 (d) FLANGE BOLT M6X22 2 32 22
CF09-29 (d) FRONT PAD SET 1 32 24
CF09-41 (d) FR CALIPER SUB ASSY 1 32 36
CF09-43 (d) FLANGE BOLT M8X25 2 32 38
CF09-45 (d) FRONT TUBE 1 33 1
CF09-46 (d) TUBE PROTECTOR 1 33 2
CF09-47 (d) FRONT WHEEL AXLE 1 33 3
CF09-48 (d) RH SIDE COLLAR 1 33 4
CF09-49 (d) DISTANCE COLLAR 1 33 5
CF09-50 (d) FR WHEEL HUB ASSY 1 33 6
CF09-51 (d) FR WHEEL ASSY 1 33 7
CF09-52 (d) SPEEDO GEARBOX RETAINER 1 33 8
CF09-53 (d) FR RIN 1 33 9
CF09-54 (d) FR TIRE 1 33 10
CF09-55 (d) SPEEDO GEAR BOX ASSY 1 33 11
CF09-56 (d) SPEEDO GEAR 1 33 12
CF09-57 (d) SPEEDO GEAR WASHER 2 33 13
CF09-58 (d) FR BRAKE DISC 1 33 14
CF09-59 (d) NUT 5 33 15
CF09-60 (d) FLANGE NUT 1 33 16
CF09-61 (d) OIL SEAL 1 33 17
CF09-62 (d) DUST SEAL 1 33 18
CF09-63 (d) STUD BOLT 5 33 19
CF09-64 (d) BEARING 2 33 20
CF09-65 (d) SPOKE SET INSIDE 18 33 21
CF09-66 (d) SPOKE SET OUTSIDE 18 33 22

CF10-01 WASHER 1 34 7
CF12-01 FUEL FILTER 1 36 1
CF12-02 FUEL TANK 1 36 2
CF12-03 FUEL CAP 1 36 3
CF12-04 FUEL HOSE 1 36 4
CF12-05 FUEL SENSOR UNIT 1 36 6
CF12-06 GASKET 1 36 7
CF12-07 SENSOR UNIT LOCK 1 36 8
CF12-08 FUEL HOSE 1 36 10
CF12-09 HOSE CLIP 4 36 11
CF13-01 SUB CARRIER ASSY 1 37 1
CF13-02 SEAT WASHER 6 37 2

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

55

PART NUMBER INDEX AK110

PART NUMBER

CF13-03 FUEL TANK CONNECTION 1 37 3
CF13-04 HINGE ASSY 1 37 4
CF13-05 SEAT SPACER 1 37 5
CF13-06 SEAT ASSY 1 37 6
CF13-07 CUSHION RUBBER 1 37 7
CF13-08 WASHER 4 37 8
CF13-09 LOCK HOOK 1 37 9
CF13-10 SEAT HINGE SPACING 1 37 10
CF13-11 CIRCLIP 1 37 11
CF13-12 SPACER 1 37 12
CF13-13 SEAT LOCK RETURN SPRING 1 37 13
CF13-14 SEAT LOCK ASSY 1 37 14
CF13-15 BUSH 2 37 15
CF13-16 NUT 2 37 16
CF13-17 PLAIN WASHER 2 37 17
CF13-20 SUB CARRIER RUBBER 2 37 20
CF14-01 RH BODY COVER 1 38 1
CF14-02 LH BODY COVER 1 38 2
CF14-03 RH SIDE COVER 1 38 3
CF14-04 R CENTER COVER 1 38 4
CF14-06 SCREW M5X16 2 38 8
CF15-01 AIR CLEANER ELEMENT 1 39 1
CF15-02 FLAME TRAP 1 39 2
CF15-03 AIR CLEANER CAP GASKET 1 39 3
CF15-04 COVER SEAL 1 39 4
CF15-05 AIR CLEANER COVER 1 39 5
CF15-06 AIR CLEANER CASE COVER 1 39 6
CF15-07 AC DRAIN PLUG 1 39 7
CF15-08 RH CAP 1 39 8
CF15-09 LH CAP 1 39 9
CF15-10 AC CONNECTING TUBE 1 39 10
CF15-11 CUNNECTING TUBE BAND 1 39 11
CF15-12 TUBE GUIDE CLIP 1 39 12
CF15-13 BOLT M6X12 2 39 13
CF15-14 SCREW M5X20 1 39 14
CF15-15 SCRE ST4X12 2 39 15
CF15-16 SCREW M5X16 4 39 16
CF15-17 TAP SCREW 4 39 17

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

56

PART NUMBER INDEX AK110

PART NUMBER

CF15-18 AIR FILTER COMP 1 39 18
CF16-01 MUFFLER PROTECTOR 1 40 1
CF16-02 GASKET 1 40 2
CF16-03 MUFFLER COMP 1 40 3
CF16-04 SCREW 2 40 4
CF16-05 PLAIN WASHER 2 40 6
CF16-06 WASHER 2 40 7
CF17-01 RB SWITCH SPRING 1 41 5
CF17-02 BRAKE PEDAL COMP 1 41 7

CF1703 BRAKE PEDAL SPRING 1 41 8
CF17-04 BRAKE LEVER SPRING 1 41 12
CF18-01 BUSH 4 42 2
CF18-02 FR FOOTREST DAMPER 2 42 3
CF18-03 R FOOTREST DAMPER 2 42 4
CF18-04 SPACER 2 42 5
CF18-05 R RH FOOTREST TUBE 1 42 6
CF18-06 R RH FOOTREST PLATE 1 42 7
CF18-07 R LH FOOTREST TUBE 1 42 8
CF18-08 R LH FOOTREST PLATE 1 42 9
CF18-09 RH FOOTREST BRACKET 1 42 10
CF18-10 LH FOOTREST BRACKET 1 42 11
CF18-11 BUSH 2 42 12

CF18-11B RUBBER BUSH 2 42 13

CF18-12 BUSH 4 42 14
CF18-23 SPLIT PIN 2 42 23
CF19-01 MAIN STAND 1 43 1
CF19-02 MAIN STAND AXLE 1 43 2
CF19-03 SPRING HOOK 1 43 3
CF19-05 MAIN STAND SPRING 1 43 9
CF19-06 SIDE STAND SPRING 1 43 10
CF20-01 SWING ARM AXLE 1 44 8
CF20-02 WASHER 1 44 15
CF21-01 REAR SHOCK ABS 2 45 1
CF21-02 RUBBER BUSH 2 45 2
CF21-03 BUSH 2 45 3
CF21-04 BUSH 2 45 4
CF21-05 RUBBER BUSH 2 45 5
CF22-01 REAR MUDGUARD RR 1 46 1

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

57

PART NUMBER INDEX AK110

PART NUMBER

CF22-02 REAR MUDGUARD FR 1 46 2
CF22-04 LICENSE BRKT 1 46 4
CF22-05 REFLECTOR 1 46 8
CF23-01 FRONT RIGHT SIGNAL 1 47 1
CF23-02 FRONT RIGHT SIGNAL LENS 1 47 2
CF23-03 FRONT LEFT SIGNAL 1 47 3
CF23-04 FRONT LEFT SIGNAL LENS 1 47 4
CF23-05 BULB 2 47 5
CF24-01 TAIL LIGHT ASSY 1 47 8
CF24-02 TAIL LIGHT LENS 1 47 9
CF24-03 LICENSE LINS 1 47 10
CF24-04 REAR RIGHT SIGNAL LENS 1 47 11
CF24-05 WASHER 2 47 12
CF24-06 REAR LEFT SIGNAL LENS 1 47 13
CF24-07 BULB 12V10W 2 47 14
CF24-08 BULB 1 47 15
CF24-09 BUSH 2 47 16
CF25-01 BATTERY CASE 1 48 5
CF25-02 BATTERY CASE COVER 1 48 6
CF25-03 STARTING RELAY STAND 1 48 7
CF25-04 BUSH 1 48 10
CF26-01 WIRE HARNESS 1 49 6

CF26-02 (d) FR BRAKE CABLE SWITCH 1 27 4

CF26-02(d) BRAKE SWITCH WIRE DISC BRAKE 1 49 12

CF27-01 IGNITION LOCK ASSY 1 50 1
CF27-02 FRAME ASSY 1 50 2
CF27-03 COLLAR STAND 1 50 3
CF29-01 CENTER SHIELD 1 52 1
CF29-02 RH WIND SCREEN PLATE 1 52 3
CF29-03 RH FRONT WIND SCREEN PLATE 1 52 4
CF29-04 LH FRONT WIND SCREEN PLATE 1 52 5
CF29-05 LH WIND SCREEN PLATE 1 52 6
CF29-06 FRAME HEAD COVER 1 52 7
CF29-07 WASHER 5 52 8
CF29-08 LEFT WINDSCREEN BRACKET 1 52 15
CF29-09 RIGHT WINDSCREEN BRACKET 1 52 16
DE01-01 ENGINE ASSY 1 2 1
DE01-02 ENGINE SIDE COVER 1 2 2

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

58

PART NUMBER INDEX AK110

PART NUMBER

DE01-03 BOLT GB5787 M6X30 1 2 3
DE01-08 DRIAN TUBE 1 2 4
DF05-01 TOP BEARING RACE INNER 1 29 1
DF05-02 BOTTOM ONE RACE INNER 1 29 2
DF05-05 TOP CONE RACE OUTER 1 29 5
DF05-06 BOTTOM CONE RACE OUTER 1 29 6
DF05-07 DUST SEAL COVER 1 29 7
DF05-08 SPACER 1 29 8
DF05-12 STEELL BALL 52 29 11
DF06-01 SPEEDO CABLE WASHER 1 30 1
DF08-17 R BRAKE SHOE 1 34 8
DF10-02 RH CHAIN ADJUSTER 1 34 1
DF10-03 R WHEEL AXLE 1 35 8
DF10-04 R RH SPACER 1 34 2
DF10-05 R RH BRAKE PANEL 1 34 3
DF10-06 R BRAKE INDICATOR 1 34 5
DF10-07 R BRAKE ARM ROCKER 1 34 6
DF10-09 REAR BRAKE CAM 1 34 4
DF10-10 RETURN SPRING 2 34 9
DF10-11 DUST WASHER 1 34 10
DF11-02 SPROCKET 1 35 6
DF11-03 SPROCKET BASE DAMPER 1 35 7
DF11-04 R W BEARING SPACER COLLAR 1 35 9
DF11-05 R WHEEL SPACER COLLAR 1 35 10
DF11-06 R WHEEL HUB 1 35 11
DF11-09 SPROCKET BASE 1 35 12
DF11-10 R WHEEL DISTANCE COLLAR 1 35 13
DF11-11 ORING 1 35 14
DF11-12 R RIM 1 35 15
DF11-13 REAR TIRE 1 35 2
DF11-14 REAR TUBE 1 35 3
DF11-15 TUBE PROTECTOR 1 35 4
DF11-16 STUD BOLT M8X43 4 35 16
DF11-20 OIL SEAL 27X40X6 1 35 19
DF11-27 LH CHAIN ADJUSTER 1 35 5

DF11-7 SPOKES KIT 1 35 1
DF14-01 WASHER 2 38 5
DF14-01 RUBBER BUSH 2 46 3

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

59

PART NUMBER INDEX AK110

PART NUMBER

DF14-08 PAN SCREW M6X20 3 38 6
DF14-10 ADJUST NUT M5 2 46 6
DF17-04 REAR BRAKE SWITCH 1 41 4
DF17-06 BRAKE LEVER COMP 1 41 6
DF17-07 ADJUSTING NUT 1 41 14
DF17-16 PIN 1 41 13
DF18-05 SCREW M6X20 5 52 14

DF20-01S SINGLE CHAIN CASE 1 44 1

DF20-03 CHAIN 1 44 3
DF20-04 CHAIN JOINT 1 44 7
DF20-06 CHAIN SLIDER 1 44 6
DF20-07 R TORQUE LINK 1 44 4
DF20-08 SWING ARM 1 44 5
DF20-09 BOLT M6X8 2 44 10
DF20-12 HEX BOLT M8X25 1 44 11
DF20-13 SWING ARM AXLE NUT 1 44 13
DF20-14 NUT M8 1 44 12
DF25-01 BATTERY 1 48 1
DF25-02 CABLE 1 48 2
DF25-08 ADJUST NUT M6 3 48 9
DF26-01 CDI RUBBER 1 49 2
DF26-02 CDI ASSY 1 49 1
DF26-03 IGNITION COIL ASSY 1 49 3
DF26-04 SPARK PLUG CAP 1 49 4
DF26-05 RECTIFIER REGULATOR 1 49 5
DF26-09 FUSE 1 49 7
DF26-10 FLASHER RELAY 1 49 9
DF26-12 STARTING RELAY 1 48 3
DF26-13 STARTING RELAY BUSH 1 48 4
DF26-17 FUSE 10AMP 1 48 14
DF27-01 HORN 1 49 8
DF27-04 BOLT M8X110 1 50 7
DF28-01 TOOL CASE 1 51 1
DF28-03 TOOL SET 1 51 2
DF28-07 GB5787M6X12 1 51 3

E010100 COVER, CYLINDER HEAD 1 3 1
E010200 RH COVER, CYLINDER HEAD 1 3 2
E010300 LH COVER, CYLINDER HEAD 1 3 3

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

60

PART NUMBER INDEX AK110

PART NUMBER

E010400 CAP, VALVE ADJUSTING HOLE 2 3 4
E010500 GASKET, CYL HEAD COVER 1 3 5
E010600 GASKET, RH CYL HEAD COVER 1 3 6
E010700 GASKET, LH CYL HEAD COVER 1 3 7
E010800 NUT, CAP 7 MM 4 3 8
E010900 WASHER, SEALING 7MM 3 3 9
E011000 WASHER A, SEALING 7 MM 1 3 10
E011100 WASHER SEALING 6.5 X 12 1 3 11
E011200 O-RING 30.8 X 3.2 2 3 12
E011300 BOLT FLANGE M6 X 110 1 3 13
E011400 BOLT FLANGE M6 X 20 2 3 14
E011500 SPARK PLUG, U22 FS-U 1 3 15
E020100 HEAD COMP, CYLINDER 110 CC 1 4 1
E020101 GUIDE, IN VALVE 1 4 2
E020102 GUIDE, EX VALVE 1 4 3
E020103 O-RING 9 X 1.6 2 4 13
E020400 GASKET, CYLINDER HEAD 110 CC 1 4 4
E020600 PIPE, IN 1 4 8
E020700 GASKET, INSULATOR SEALING 1 4 5
E020800 BOLT, STUD M6 X 38 2 4 9
E020900 BOLT, M6 X 23 1 4 10
E020900 BOLT M6 X 23 1 7 3
E021000 COLLAR 9.5 MM 1 4 11
E021200 INSULATOR, CARBURETTOR 1 4 7
E021201 O-RING 25 X 2.4 1 4 15
E021400 O-RING 9 X 1.6 1 4 14
E021500 BOLT M6 X 28 2 4 17
E021600 BOLT GB5783 M6 X 25 2 4 16
E021700 GASKET INSULATOR 1 4 6
E021701 O-RING 25 X 2.4 1 4 12
E030100 OIL SEAL, VALVE 2 5 1
E030200 CAMSHAFT, COMP 1 5 2
E030300 PLATE COMP, STOPPER 1 5 3
E030500 SHAFT, VALVE ROCKER ARM 2 5 5
E030600 VALVE, IN 1 5 6
E030700 VALVE, EX 1 5 7
E030800 SPRING, VALVE OUTER 2 5 8
E030900 SPRING, VALVE INNER 2 5 9

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

61

PART NUMBER INDEX AK110

PART NUMBER

E031000 RETAINER, VALVE SPRING 2 5 10
E031100 SEAT, VALVE SPRING 2 5 11
E031200 COLLET, SPLIT VALVE KEEPER 4 5 12
E031600 ARM, VALVE ROCKER 2 5 4
E031601 SCREW, VALVE ADJUSTER 2 5 13
E031602 NUT, SCREW VALVE ADJ 2 5 14
E040100 SPROCKET, CAM 28T 1 6 1
E040200 CHAIN, CAM 25H X 84L 1 6 12
E040300 ARM COMP, CAM CHAIN TENSIONER 1 6 2
E040400 ROLLER, CAM CHAIN TENSIONER 1 6 3
E040500 PIVOT, CAM CHAIN TENSIONER 1 6 4
E040600 PIVOT, CAM CHAIN TENSIONER 1 6 5
E040700 ROD COMP, CAM CHAIN TENSIONER PUSH 1 6 6
E040800 HEAD, CAM CHAIN TENSIONER PUSH ROD 1 6 7
E040900 ROLLER COMP, CAM CHAIN GUIDE 1 6 8
E041000 PIN, CAM CHAIN GUIDE ROLLER 1 6 9
E041100 SPROCKET, CAM CHAIN GUIDE 25T 1 6 10
E041200 SPINDLE, CAM CHAIN GUIDE SPROCKET 1 6 11
E041300 BOLT, SEALING 14MM 1 6 13
E041400 BOLT, KNOCK M5 X 12 3 6 14
E041500 WASHER, SEALING 14MM 1 6 15
E041600 WASHER 6MM 1 6 16
E041700 WASHER 8MM 1 6 17
E041800 BOLT, FLANGE M6 X 18 1 6 18
E050100 CYLINDER-110 CC 1 7 1
E050200 GASKET, CYLINDER 110 CC 1 7 2
E050400 COLLAR 8MM 1 7 4
E050500 PIN, DOWEL 8 X 14 1 7 5
E050600 WASHER, SEAL 14.5 X 2 1 7 6
E050700 WASHER, SEAL 11.5 X 2.1 1 7 7
E060100 FLYWHEEL COMP 1 13 1
E060200 STATOR COMP 1 13 2
E060400 WASHER 10MM 1 13 4
E060500 NUT FLANGE M10 1 13 7
E060600 BOLT FLANGE M6X22 2 13 8
E060700 BOLT HEX M5X16 2 13 6
E070100 COVER COMP, RH CRANKCASE 1 8 1
E070200 GASKET, RH CRANKCASE COVER 1 8 2

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

62

PART NUMBER INDEX AK110

PART NUMBER

E070300 GAUGE, OIL LEVEL 1 8 3
E070301 O-RING 18 X 3 1 8 15
E070400 LEVER COMP, CLUTCH 1 8 4
E070500 PLATE COMP, CLUTCH CAM 1 8 5
E070600 BOSS, CLUTCH LIFTER 1 8 6
E070602 WASHER, PLAIN 4 X 8 3 8 11
E070603 E-RING 3MM 3 8 17
E070610 ROLLER, CLUTCH LIFTER 1 8 7
E070800 BOLT, CLUTCH ADJUSTING 1 8 8
E070900 CLIP, DINAMO CORD 1 8 9
E071000 WASHER 8MM 1 8 10
E071200 PIN, DOWEL 8 X 12 2 8 12
E071200 PIN DOWEL 8 X 12 2 12 8
E071300 OIL SEAL 13.8 X 25 X 5 1 8 13
E071400 O-RING 8 X 1.6 1 8 14
E071600 NUT, HEX 8 MM 1 8 16
E071800 BOLT FLANGE M6 X 40 5 8 18
E071900 BOLT FLANGE M6 X 65 1 8 19
E071900 BOLT M6X65 4 16 14
E072000 BOLT FLANGE M6 X 80 2 8 20
E080100 COVER, OIL FILTER 1 9 1
E080200 GASKET, OIL FILTER 1 9 2
E080800 OUTER ASSY, PRIMARY CLUTCH 1 9 8
E080801 SPRING, ONE WAY RETAINER 6 9 3
E080802 PLATE COMP, PRIMARY DRIVE 1 9 4
E080803 INNER COMP, ONE WAY CLUTCH 1 9 5
E080804 WEIGHT, PRIMARY CLUTCH 3 9 6
E080805 SPRING, PRIMARY CLUTCH 3 9 7
E080806 RUBBER, CLUTCH DAMPER 3 9 9
E080807 SUB GEAR 17T 1 9 10
E080808 COLLAR, SIDE 1 9 11
E080809 SPRING, SUB GEAR 1 9 12
E080811 PIN, DOWEL 2 9 13
E080812 WASHER 30 X 45 X 0.8 1 9 15
E080813 WASHER 8MM 3 9 18
E080814 CIRCLIP, INTERNAL 45MM 1 9 20
E080815 CIRCLIP 7MM 3 9 21
E080816 ROLLER 5 X 8 6 9 22

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

63

PART NUMBER INDEX AK110

PART NUMBER

E081500 NUT B, LOCK 14MM 1 9 14
E081700 WASHER, LOCK 1 9 16
E081800 WASHER B, LOCK 1 9 17
E081800 WASHER B, LOCK 1 10 13
E082000 WASHER, THRUST 1 9 19
E082400 SCREW, PAN 5 X 8 3 9 23
E090100 PLATE, OIL SEPARATOR 1 10 1
E090200 CLUTCH SET 1 10 17
E090201 OUTER, COMP CLUTCH 69T 1 10 2
E090202 CENTER COMP, CLUTCH 1 10 3
E090203 DISK, CLUTCH FRICTION 4 10 4
E090204 PLATE, CLUTCH 3 10 5
E090205 PLATE, CLUTCH PRESSURE 1 10 6
E090206 PLATE, CLUTCH LIFTER 1 10 7
E090207 SPRING CLUTCH 1 10 8
E090208 BOLT M6 X 22 4 10 11
E090900 COLLAR CLUTCH CENTER 1 10 9
E091100 SET RING 1 10 10
E091300 NUT LOCK M14 1 10 12
E091500 WASHER B, SPLINE 17 MM 1 10 14
E091600 BOLT, HEX M6 X 20 2 10 15
E091700 BEARING RADIAL BALL 1 10 16
E100200 GASKET, OIL PUMP BODY 1 11 2
E101000 PIVOT OIL PUMP 1 11 8
E101100 OIL FILTER COMP 1 11 9
E101300 SCREW, PAN M6 X 16 3 11 11
E101400 SCREW, PAN M6 X 22 2 11 12
E101500 PUMP, ASSY OIL 1 11 1
E101501 BODY, OIL PUMP 1 11 3
E101502 COVER, OIL PUMP 1 11 4
E101503 ROTOR OIL PUMP INNER 1 11 5
E101504 ROTOR OIL PUMP OUTER 1 11 6
E101505 DRIVE SHAFT OIL PUMP 1 11 7
E101506 SCREW, PAN M5 X 10 1 11 10
E110100 COVER L CRANKCASE 1 12 1
E110200 CAVER L REAR CRANKCASE 1 12 2
E110300 GASKET L CRANKCASE COVER 1 12 3
E110400 CLAMPER 1 12 4

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

64

PART NUMBER INDEX AK110

PART NUMBER

E110500 CAP AC GENERATOR 1 12 6
E110600 CAP 30 MM 1 12 7
E110800 O-RING 27 X 2.0 1 12 9
E110900 O-RONG 13.8 X 2.5 1 12 10
E111000 BOLT FLANGE M6 X 16 1 12 12
E111100 BOLT FLANGE M6 X 28 2 12 13
E111200 BOLT FLANGE M6 X 32 2 12 14
E111300 BOLT FLANGE M6 X 50 1 12 15
E111400 BOLT FLANGE M6 X 70 1 12 16
E111500 CLAMPER A.C. GENERATOR CORD 1 13 3
E111600 BOLT HEX M5X8 1 13 5
E120100 PLATE, OIL SEPARATE 1 14 1
E120200 CHAIN, STARTING 25HX62L 1 14 2
E120300 GUIDE, STARTER CHAIN 1 14 3
E120400 PROTECTOR, STARTER CHAIN 1 14 4
E120500 SPROCKET COMP, STARTING 1 14 5
E120501 CIRCLIP, INTERNAL 23MM 2 14 11
E120502 BEARING, NEEDLE 19X23X13 1 14 12
E120600 PLATE, STARTING SPROCKET SETTING 1 14 6
E120700 OUTER, STARTING CLUTCH 1 14 7
E120701 SPRING, STARTING CLUTCH ROLLER 3 14 8
E120702 CAP, STARTING CLUTCH ROLLER SPRING 3 14 9
E120703 ROLLER 10X10 3 14 13
E121000 PLATE STARTING CLUTCH SIDE 1 14 10
E121400 ROLLER 5X11.8 1 14 14
E121500 OIL SEAL 30X42X4.5 1 14 15
E121600 OIL SEAL 18.9X30X5 1 14 16
E121700 O-RING 107X2 1 14 17
E121800 O-RING 6X1.7 2 14 18
E121900 SCREW M6X16 2 14 19
E122000 BOLT FLAT M6X10 1 14 20
E122100 BOLT M6X12 3 14 21
E130200 SPROCKET 1 15 3
E130900 SUB HARNESS A 1 15 9
E131200 BOLT FLAT M6X45 3 15 12
E131600 MOTOR ASSY, STARTER 1 15 1
E131601 BRUSH SET 1 15 2
E131602 SPRING BRUSH 2 15 4

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

65

PART NUMBER INDEX AK110

PART NUMBER

E131603 PACKING 1 15 5
E131604 MOTOR ONLY 1 15 6
E131605 CASE A FRONT 1 15 7
E131606 GEAR COMP, DRIVEN 1 15 8
E131607 O-RING A 1 15 10
E131608 O-RING B 1 15 11
E131609 SCREW M4X6 1 15 13
E131611 SCREW M5X30 4 15 14
E131612 CIRCLIP EXTERNAL 1 15 15
E131613 BEARING BALL 6001 1 15 16
E140100 CRANKCASE COMP RH 1 16 1
E140200 GASKET CRANKCASE 1 16 2
E140300 CRANKCASE COMP LH 1 16 3
E140400 TUBE BREATHER 5X320 1 16 4
E140500 CLIP OVERFLOW TUBE 1 16 15
E140600 CLAMPER OVERFLOW PIPE 1 16 5
E140700 BOLT A CYLINDER STUD M6X198 2 16 6
E140800 BOLT B CYLINDER STUD M6X205.5 2 16 7
E140900 WASHER DRAIN PLUG 1 16 8
E141000 PIN 10X14 2 16 9
E141100 BOLT M12X1.5 1 16 10
E141200 CLIP TUBE 1 16 11
E141300 BOLT M6X50 1 16 12
E141400 BOLT M6X60 2 16 13
E150100 CRANKSHAFT COMP 1 17 1
E150104 PIN CRANK 1 17 9
E150105 SPROCKET TIMING 1 17 10
E150106 KEY WOODRUFF 1 17 11
E150107 BEARING CONNECTING ROD 1 17 12
E150108 BEARING BALL 6304 2 17 13

E150200 RING SET PISTON STD 110CC 1 17 2
E150200-0.25 RING SET PISTON 0.25 1 17
E150200-0.50 RING SET PISTON 0.50 1 17
E150200-0.75 RING SET PISTON 0.75 1 17

E150300 PISTON STD 110 CC 1 17 3
E150300-0.25 PISTON 0.25 1 17
E150300-0.25 PISTON 0.50 1 17
E150300-0.75 PISTON 0.75 1 17

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

66

PART NUMBER INDEX AK110

PART NUMBER

E150400 PIN PISTON 1 17 4

E150500 CLIP PISTON PIN 13MM 2 17 5

E150600 ROD CONNECTING 1 17 6

E150700 CRANKSHAFT COMP RH 1 17 7

E150800 CRANKSHAFT COMP LH 1 17 8

E160100 MAINSHAFT SET 1 19 27

E160101 MAINSHAFT TRANSMISSION 12T 1 18 1

E160102 GEAR MAINSHAFT SECOND 17T 1 18 5

E160103 GEAR MAINSHAFT THIRD 21T 1 18 7

E160104 GEAR MAINSHAFT FOURTH 23T 1 18 9

E160105 WASHER 2 19 18

E160106 CIRCLIP 2 19 20

E160200 COUNTERSHAFT SET 1 19 28

E160201 COUNTERSHAFT 1 18 2

E160202 GEAR COUNTERSHAFT LOW 34T 1 18 3

E160203 BUSH 1 18 4

E160204 GEAR COUNTERSHAFT SECOND 29T 1 18 6

E160205 GEAR COUNTERSHAFT THIRD 26T 1 18 8

E160206 GEAR COUNTERSHAFT FOURTH 23T 1 18 10

E160207 COLLAR 1 18 13

E160208 SPRING 1 18 14

E160209 PLATE GEAR SHIFT DRUM LOCK 1 18 15

E160211 WASHER 1 19 16

E160212 WASHER 1 19 17

E160213 WASHER 2 19 19

E160214 CIRCLIP 2 19 21

E161100 SPROCKET DRIVE 15T 1 18 11

E161200 PLATE FIXING 1 18 12

E162200 OIL SEAL 17X29X5 1 19 22

E162300 BOLT 2 19 23

E162400 BEARING BALL 6001 1 19 24

E162500 BEARING BALL 6201 1 19 25

E162600 BEARING BALL 6203 2 19 26

E170700 STOPPER COMP GEARSHIFT DRUM 1 20 8

E170800 SPRING SHIFT DRUM STOPPER 1 20 9

E170900 SPINDLE COMP GEARSHIFT 1 20 10

E171300 PIN SHIFT RETURN SPRING 1 20 14

E172100 OIL SEAL 11.6X24X10 1 20 16

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

67

PART NUMBER INDEX AK110

PART NUMBER

E172801 FORK GEARHIFT 2 20 1

E172802 PIN GEARSHIFT FORK GUIDE 2 20 2

E172803 CLIP GEARSHIFT FORK GUIDE PIN 2 20 3

E172804 DRUM GEARSHIFT 1 20 4

E172805 PLATE GEARSHIFT DRUM STOPPER 1 20 6

E172806 PIN GEARSHIFT DRUM 4 20 7

E172807 SCREW 6MM 1 20 15

E172808 ROLLER 3X8.5 1 20 17

E172809 ROLLER 4X10 2 20 18

E172900 ARM GEARSHIFT SET 1 20 20

E172901 ARM COMP GEARSHIFT 1 20 11

E172902 SPRING GEARSHIFT ARM 1 20 12

E172903 SPRING GEARSHIFT RETURN 1 20 13

E173000 DRUM GEARSHIFT SET 1 20 21

E173100 BOLT SOCKET M6X20 1 20 19

E173200 PLATE SWITCH CHANGE PRESSURE 1 12 17

E173300 BOLT FLANGE M6 X 16 1 12 11

E173400 PIECE CHANGE SWITCH DRIVER 1 20 5

E173600 SWITCH ASSY CHANGE 1 12 5

E180100 KICK STARTER SET 1 21 11

E180101 PINION KICK STARTER 1 21 1

E180102 RATCHET STARTER DRIVE 1 21 2

E180103 SPINDLE KICK STARTER 1 21 3

E180104 SPRING STARTER PINION FRICTION 1 21 5

E180105 WASHER 17MM 1 21 7

E180106 WASHER 20MM 1 21 8

E180107 SET RING 20MM 2 21 9

E180108 RETAINER KICK SPRING 1 21 4

E180109 SPRING KICK STARTER 1 21 6

E180111 CIRCLIT EXTERNAL 16MM 1 21 10

E190101 GASKET SET 1 22 1

E190102 NEEDLE SET JET 1 22 2

E190103 FLOAT SET 1 22 3

E190104 TOP SET 1 22 4

E190105 CHAMBER SET FLOAT 1 22 5

E190106 SCREW SET 1 22 6

E190107 VALVE SET THROTTLE 1 22 7

E190108 SCREW SET A 1 22 8

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

68

PART NUMBER INDEX AK110

PART NUMBER

E190109 GASKET SET 1 22 9

E190110 CARBURETOR ASSY 1 22 10

E190111 CAP CABLE SEALING 1 22 11

E190112 CAP CHOKE DUST 1 22 12

E190113 VALVE COMP FLOAT 1 22 13

E190114 HOLDER NEEDLE JET 1 22 14

E190115 CAP FUEL STRAINER 1 23 15

E190116 SCREEN FUEL STRAINER 1 23 16

E190117 TUBE AIRVENT 1 23 17

E190118 TUBE AIRFLOW 1 23 18

E190119 BODY COMP COCK 1 23 19

E190120 SCREW PAN M3X12 1 23 20

E190121 SCREW WASHER M4X18 2 23 21

E190122 WASHER SPRING 2 23 22

E190123 CLIP TUBE B 6.5 2 23 23

E190124 JET MAIN No 72 1 23 24

E190125 JET SLOW No 38 1 23 25

E210100 UNIT ASSY CDI 1 24 1

E210200 RECTIFIER COMP REGUL 1 24 2

E210300 RELAY ASSY STARTER 1 24 3

E210400 CAP ASSY NOISE SUPPRESSOR 1 24 4

E210500 KICK STARTER COMP 1 41 16

GB297 BEARING 6203 1 35 23

GB39 NUT M5 1 25 6
GB5781 BOLT HEX M6X20 1 41 9
GB5781 BOLT HEX M6X22 1 41 10

GB5783M8X120 BOLT M8X120 1 50 6

GB5787 BOLT M10X1.25X50 1 28 13
GB5787 BOLT M6X16 2 30 6
GB5787 BOLT M6X16 3 30 7
GB5787 SCREW M8X16 2 36 5
GB5787 SCREW M6X16 2 36 12
GB5787 SCREW M6X12 2 37 18
GB5787 SCREW M6X16 2 38 7
GB5787 SCREW M6X16 2 38 9
GB5787 BOLT M8X16 1 42 15
GB5787 BOLT M8X16 4 42 18
GB5787 BOLT M10X1.25X50 1 43 6

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

69

PART NUMBER INDEX AK110

PART NUMBER

GB5787 BOLT M6X16 2 49 11

GB57-87 BOLT M10X1.25X45 4 29 10
GB5787M6X16 BOLT M6X16 2 46 5
GB5787M6X16 BOLT M6X16 3 52 2
GB5787M6X16 BOLT M6X16 2 52 11
GB5787M8X35 BOLT M8X35 2 50 9

GB6170 NUT M8 1 34 15

GB6170M6 NUT M6 1 34 14

GB6171 NUT M10X1.25 2 42 19
GB6171 NUT M10X1.25 1 43 7
GB6177 NUT M6 2 40 5

GB6177M6 NUT M6 2 46 7

GB6187 NUT M10X1.25 1 28 14
GB6187 NUT M12X1.25 1 35 17
GB6187 NUT M10X1.25 2 45 8

GB6187M8 NUT M8 2 50 5

GB818 SCREW M5X12 1 25 5
GB818 SCREW M5X25 2 47 18
GB818 BOLT M5X20 2 49 10

GB818DF2 BOLT M6X16 1 48 12
GB818M5X16 BOLT M5X16 1 48 11
GB818M6X16 BOLT M6X16 4 48 8
GB819M6X10 SCREW M6X10 2 50 4

GB845 TAPPING SCREW ST4.2X16 2 26 15
GB845 TAPPING SCREW ST4.2X12 6 47 7

GB845ST4.2X9.5 TAPPING NUT ST4.2X9.5 6 52 13

GB845ST4.8X19 TAPPING NUT ST4.8X19 2 52 12

GB91 SPLIT PIN 2.0X16 1 34 20
GB91 SPLIT PIN 2.0X16 1 41 11
GB91 SPLIT PIN 2.0X16 1 41 15
GB91 SPLIT PIN 3.0X25 1 43 8

GB91 SPLIT PIN 2.0X16 1 44 16
GB923 NUT M5 1 38 10
GB923 CAP NUT M10X1.25 2 45 6

GB95 PLAIN WASHER 5 1 38 11

GB96 WASHER 1 25 7

GB96 SPACER 1 34 12

GB96 SPACER 10 2 45 7

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

70

PART NUMBER INDEX AK110

PART NUMBER

GB97 PLAIN WASHER 10 2 45 9

GB97.1 PLAIN WASHER 8 MM 1 44 14
GF19-03 STAND STOPPER RUBBER 1 43 4
GF20-13 HEX BOLT M8X25 1 34 13

M12CASTLE AXLE NUT M12 1 34 16

M3X22 SCREW M3X22 3 26 11
M4X10 SCREW M4X10 2 26 13
M4X16 SCREW M4X16 1 26 14
M5X10 SCREW M5X10 1 52 10
M5X20 BOLT M5X20 2 27 9
M5X25 BOLT M5X25 2 27 10

M6 NUT M6 1 34 11
M6 NUT M6 1 35 20
M6 NUT M6 2 36 9

M6 NUT M6 2 48 13
M6X12 BOLT M6X12 1 50 8
M6X35 BOLTM6X35 1 34 22

M8 NUT M8 4 35 18
M8X16 BOLT M8X16 2 37 19
M8X30 BOLT M8X30 2 42 16
M8X30 BOLT M8X30 2 42 17

PWAS12 PLAIN WASHER 12 1 34 18

PWAS6 PLAIN WASHER 6 1 34 17
PWAS6 PLAIN WASHER 6 1 35 21
PWAS6 PLAIN WASHER 6 2 42 20

PWAS8 PLAIN WASHER 8 3 42 21
RF18-01 FR HOLDER STEP 1 42 1
RF20-01 ARM KICK STARTER 1 41 2
RF20-02 RUBBER KICK STARTER 1 41 3
RF20-15 PEDAL GEAR CHANGE COMP 1 41 1
RF21-02 SIDE STAND 1 43 5
SF07-12 ADJUST NUT ST4.2 2 28 11
SF07-12 ADJUST NUT 2 52 9

SP1.6X15 SPLIT PIN 1.6X15 2 42 22

SP3X25 SPLIT PIN 3.0X25 1 34 21

TSST4.2X20 TAPPING SCREW ST4.2X20 2 47 17

TSST4X16 TAPPING SCREW ST4X16 2 47 6

WAS6 WASHER 6 1 34 19

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

71

PART NUMBER INDEX AK110

PART NUMBER

WAS6 WASHER 6 1 35 22

DESCRIPTION QTY / MCLE PAG REF NO

Catálogo de partes

72
