Akiles WireMac E Electric
Wire Binding Machine
Instruction Manual
For Models:
WireMac E 2:1
WireMac E 3:1
Page 2
WireMac -E
OPERATIONAL MANUAL
INTRODUCTION
CONGRATULATIONS ON THE PURCHASE OF YOUR NEW WireMac-E, A PROFESSIONAL AND HEAVYDUTY WIRE PUNCH AND BINDING MACHINE. YOUR WireMac-E WAS DESIGNED WITH A FULL RANGE
OF FUNCTION AND PREMIUM QUALITY COMPONENTS TO GUARANTEE YOU AN EFFORTLESS AND
PROFESSIONAL BIND, AS WELL AS MANY YEARS OF TROUBLE-FREE SERVICE.
IMPORTANT
WE RECOMMEND THAT YOU TAKE A FEW MINUTES TO FAMILIARIZE YOURSELF WITH THE FUNCTIONS OF
YOUR NEW WireMac-E. YOU WILL FIND THAT WITH JUST A LITTLE PRACTICE, ANY PERSON CAN
ACHIEVE PROFESSIONAL RESULTS.
FEATURES
Closer Handle
Die Disengagement Pins
Side Margin Control
Power Switch
Reverse Control
MASTER SELECTOR
Pitch
Wire Size
Wire Closure
Depth Margin
Wire Closer
Diameter Scale
Waste Drawer
1-1/4"
1-1/4"
1"
7/
8"
1"
7/8"
2
3
/4
"
5/
8"
9
1
"
1 2"
7 1"
1
3
3/4
1
"
5 8"
9
1
6"
1/2
"
7 1
6"
3 "
5 "
3 "
5 16"
"
1 4"
"
3 16"
Depth Margin Control
Punch Throat & Ruler
Continuous Punch Guide
Wire Closer Control
Wire Snatch
Foot Pedal Control
ASSEMBLY & SAFETY INSTRUCTION

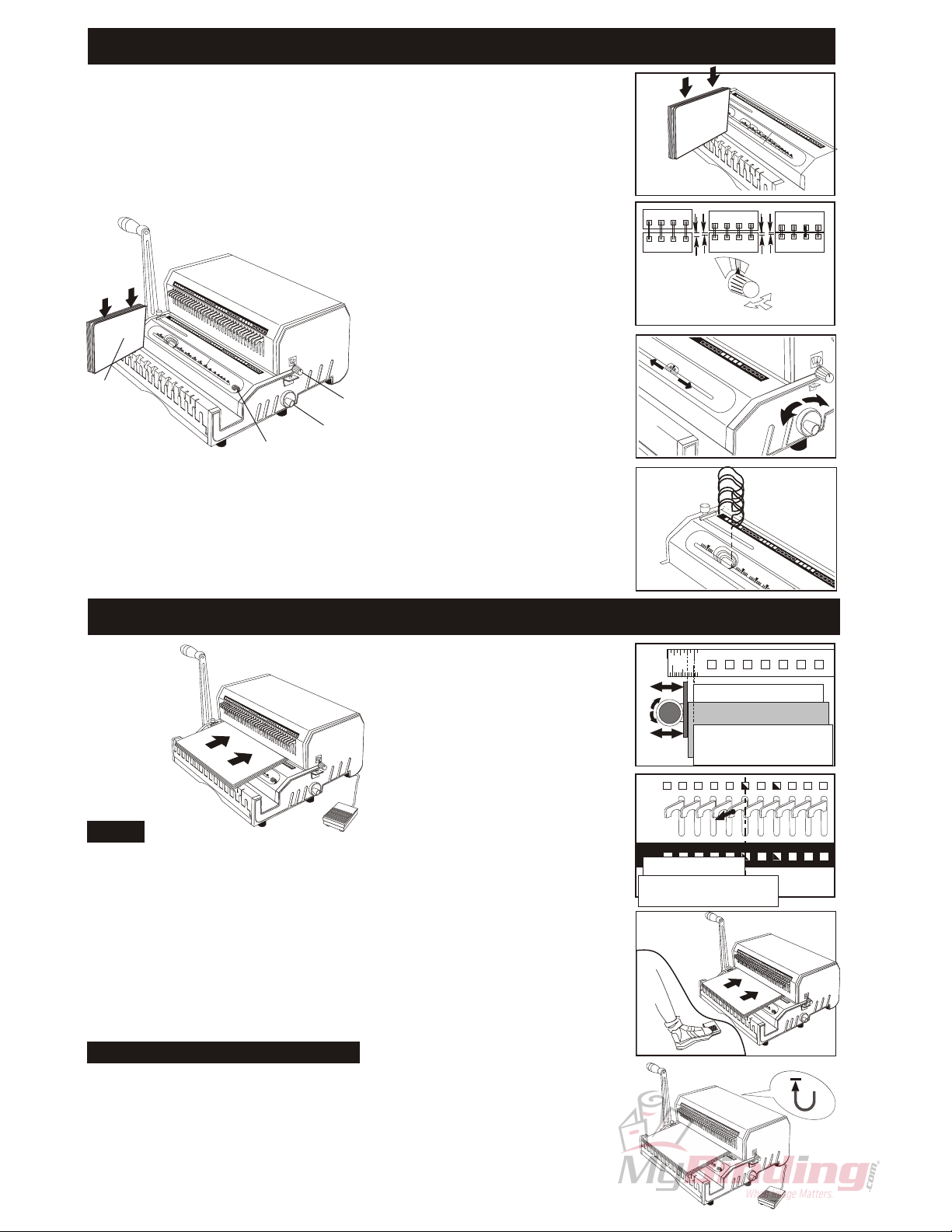

1. Place your new WireMac-E on top of a sturdy working table. See picture 1
2. Plug the power cord and foot pedal cord to the back of machine See picture 2
3. Remove the screw from Closing Axle clockwise as indicated, connect the Closing Handle in a
vertical position onto the Closing Axle. Tighten-back the screws counter clockwise. See picture 3.
4. Turn on Power switch and press foot pedal to test punching . See picture 4.
1.
2.
4.3.
5. Always turn switch-off and place Foot Pedal out of reach when machine is not in use.
6. To reduce the risk of electric shock, never operate the WireMac-E near water.
7. Do not use the WireMac-E if power cord is damaged.
8. Do not allow the electric cord to be in contact with hot surfaces.
9. In case of malfunction, return the unit to your distributor for service. This equipment does not contain
any part that can be serviced by the consumer or operator.
Page 3
Insert a full unbound
document into Diameter Scale.
1
4"
"
7
8
"
7 8"
2
1
3
3
:
1
"
"
"
"
"
7
"
"
2.
3.
4.
1.
3
"
58"
SET-UP
1. Based on Diameter Scale
reading, on the Master
Selector you will see :
-- Depth Margin
-- Wire Closure
-- Wire Size
2. Set Depth Margin Control
to the color determined
from Step 1. Color indicated
on Depth Margin Control
should match color on Master
Selector.
3. Set Wire Closer Control
to the wire closure size
determined from Step 1.
1.
2.
3.
4.
1"
2
7
1
8"
"
5 "
9/
1
6"
3
3
"
1
5
"
"
TIPS
Maximum single punching capacity:
23 sheets (20 lbs paper)
Recommended number of sheets per
punch (for maximum equipment
durability): 15 sheets ( 20 lbs paper )
4. ( If needed ) Use Master
Selector to identify the size
of your wire.
PUNCHING
1. Align Side Margin
Control to proper
sheet & cover size.
Note: There are different
side margins for 11" sheets
& their 11-1/4" covers.
2. Pull out Disengagement
Pins to avoid partially
punched holes.
3. Insert sheets and
press foot pedal to punch.
1.
2.
3.
1-1/4"
1 1"
A
4
11"
11-1/4" COVER
A4
11" Sheet
A4 Sheet
1"
7/8
32 34
32 34
2
5
Empty the Waster Drawer from time
to time. Overfilled Waste Drawer
may cause machine to malfunction.
IN CASE OF PAPER JAM
The punching action will automatically stop in case the punch
sheets are overloaded or too heavy. When this occurs,
simply press the Reverse Button in the back of the machine
repeatedly, until all the punching dies return to their original,
home position. Now you can pull out some of the sheets and
re-start the punching action by pressing the Foot Pedal again.
Page 4

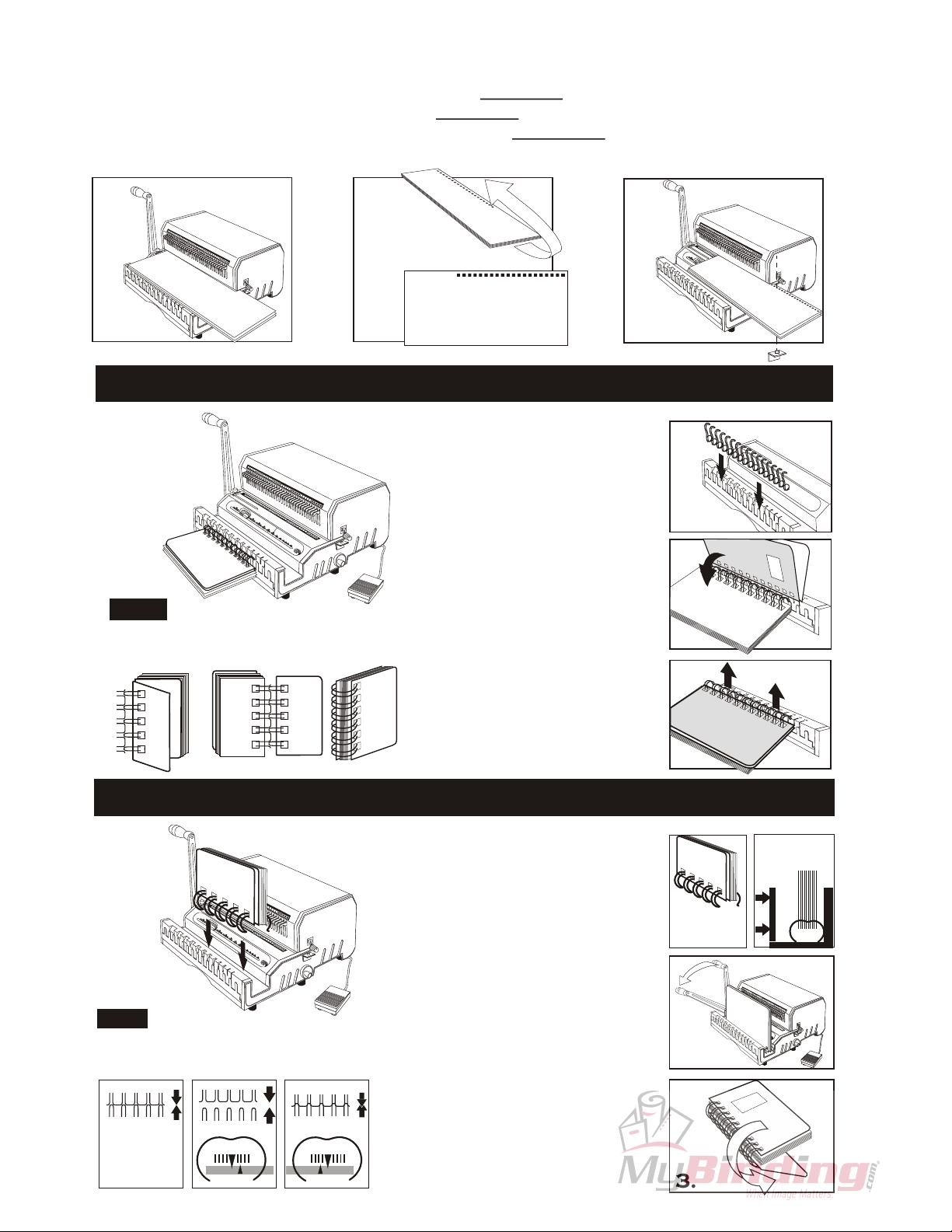

FOR PUNCHING DOCUMENT LARGER THAN 14" (356MM)
1. Align sheets as indicated on punch throat ruler. Make sure all dies disengagement pins are pushed in. Insert
sheets and press Foot Pedal to punch the left part first. See Picture 1
2. Remove sheets and flip them over as illustrated. See Picture 2.
3. Insert sheet from right-hand-side. Press Foot Pedal to punch. See picture 3. IMPORTANT: Document must be
inserted in such a way as to place one of the already perforated holes onto the Continuous Punch Guide.
1.
2.
14" Longer
INSERTING
"
"
1
7
"
78"
2
1
"
3:
Back Cover
"
TIPS
The seam of closed wire should be inside the book.
Follow step No.2 instruction for best results.
Front Cover
Front Cover
Back Cover
Last Page
14"
Longer
14" Longer
1. Insert pre-selected wire
into Wire Snatch
2. Insert document from
last pages to first
pages then insert front
cover.
The back cover should
be inserted last with
inside facing up.
3. Take out inserted
document from
Wire Snatch to close
the wire.
3.
1.
2.
3.
"
Back Cover
14" Longer
Front
ver
Co
PR
SO
O
J
9
E
0
C
0
T
2
Back
Cover
"
"
"
7 "
"
1
"
2
"
:
1
3
:
1
TIPS
The seam of closed wire should be just touching.
Slightly adjust the Closer Control a little left or
right for the under-closed or over- closed seam.
OK
CLOSING
1. Put inserted document
into Wire Closer.
The wire element must
stand horizontally at
the bottom of Wire Closer.
2. Pull Closer Handle
forward to close.
3. Take out document
and turn back cover
over. The binding is
complete.
1.
2.
3.
Page 5

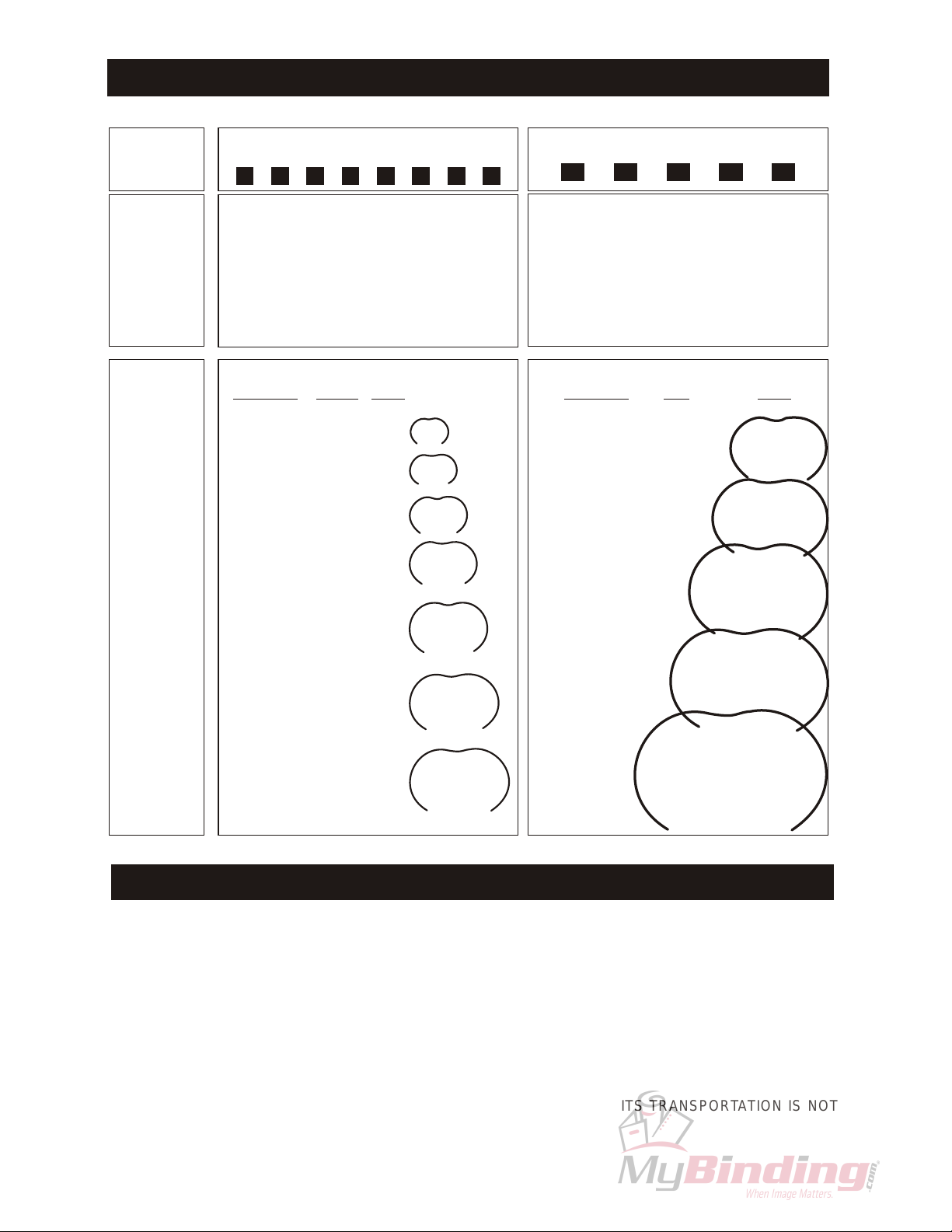

TECHNICAL INFORMATION
Size
Punching
Length
Binding
Capacity
Size 3 : 1 ( 3 HOLES PER INCH )
14" 14" = 40 Holes = 27 Holes
LEGAL LEGAL = 38 Holes = 26 Holes
A4 A4 = 34 Holes = 23 Holes
11" 11" = 32 Holes = 21 Holes
8.5" 8.5" = 24 Holes = 16 Holes
A5 A5 = 24 Holes = 16 Holes
Sheets
70-80 g/m
20
30
50
60
Diameters
2 2
Inch
3/16
1/4
5/16
3/8
mm mm
4.5
6
8
9
Size 2 : 1 (2 HOLES PER INCH )
Sheets
70-80 g/m
140
160
190
Diameters
Inch
5/8
3/4
7/8
16
19
22
80
100
120
7/16
1/2
9/16
10
12
15
220
280
1
1-1/4
25
32
WARRANTY POLICY
YOUR WireMac-E HAS A WARRANTY OF ONE YEAR FROM DATE OF PURCHASE. IN THE EVENT
OF A MANUFACTURER'S DEFECT, YOUR DISTRIBUTOR (AT OPTION) WILL REPAIR OR REPLACE IT.
IMPORTANT: THIS WARRANTY DOES NOT COVER DAMAGES DUE TO IMPROPER USE OR MISS
TREATMENT OF THE UNIT, INCLUDING ANY EXTRAORDINARY EVENT LEADING TO THE DAMAGE OF
THE MACHINE, WHETHER IT IS REVERSIBLE OR NOT.
IF THE WireMac-E IS NOT WORKING PROPERLY, FIRST FOLLOW THE CORRECTIVE ACTIONS
ABOVE. IF THE PROBLEM PERSISTS, PLEASE CONTACT YOUR DEALER FOR FURTHER
INSTRUCTIONS. PLEASE HAVE YOUR MACHINE'S SERIAL NUMBER AND THE PURCHASE DATE READY.
IF THE MACHINE MUST BE RETURNED TO YOUR DISTRIBUTOR, IT IS YOUR RESPONSIBILITY TO
PROPERLY PACK AND SHIP IT. AS ANY DAMAGES INCURRED DURING ITS TRANSPORTATION IS NOT
COVERED BY OUR WARRANTY POLICY.
