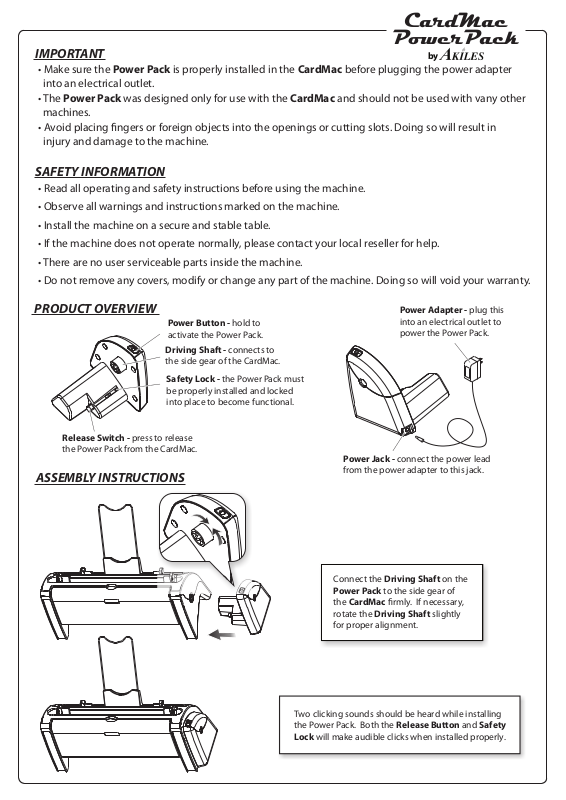

Akiles PowerPack User Manual

CardMac

PowerPack

IMPORTANT

• Make sure the Power Pack is properly installed in the CardMac before plugging the power adapter
into an electrical outlet.

• The Power Pack was designed only for use with the CardMac and should not be used with vany other
machines.

• Avoid placing fingers or foreign objects into the openings or cutting slots. Doing so will result in
injury and damage to the machine.

SAFETY INFORMATION

• Read all operating and safety instructions before using the machine.

• Observe all warnings and instructions marked on the machine.

• Install the machine on a secure and stable table.

• If the machine does not operate normally, please contact your local reseller for help.

• There are no user serviceable parts inside the machine.

• Do not remove any covers, modify or change any part of the machine. Doing so will void your warranty.

by

PRODUCT OVERVIEW

Power Button - hold to
activate the Power Pack.

Driving Shaft - connects to
the side gear of the CardMac.

Safety Lock - the Power Pack must
be properly installed and locked
into place to become functional.

Release Switch - press to release
the Power Pack from the CardMac.

ASSEMBLY INSTRUCTIONS

Power Adapter - plug this
into an electrical outlet to
power the Power Pack.

Power Jack - connect the power lead
from the power adapter to this jack.

Connect the Driving Shaft on the
Power Pack to the side gear of
the CardMac firmly. If necessary,
rotate the Driving Shaft slightly
for proper alignment.

Two clicking sounds should be heard while installing
the Power Pack. Both the Release Button and Safety

Lock will make audible clicks when installed properly.
