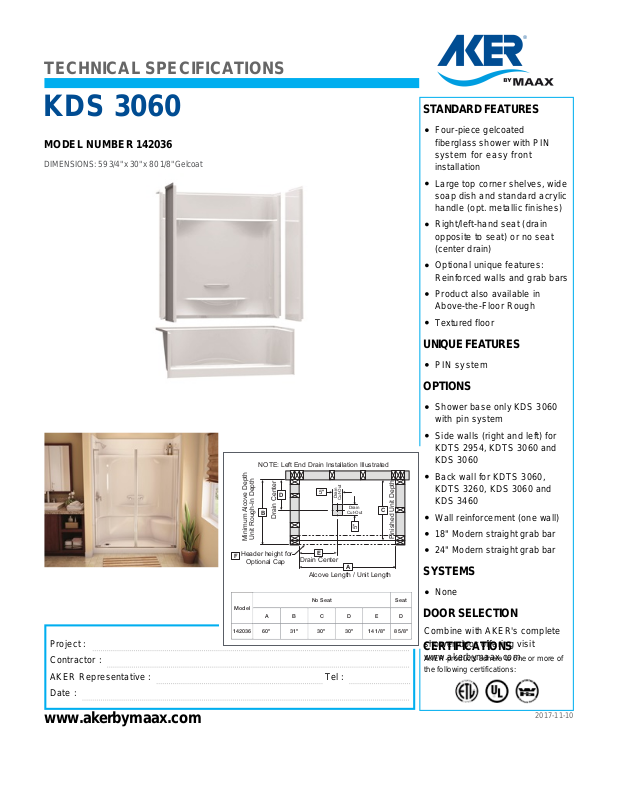

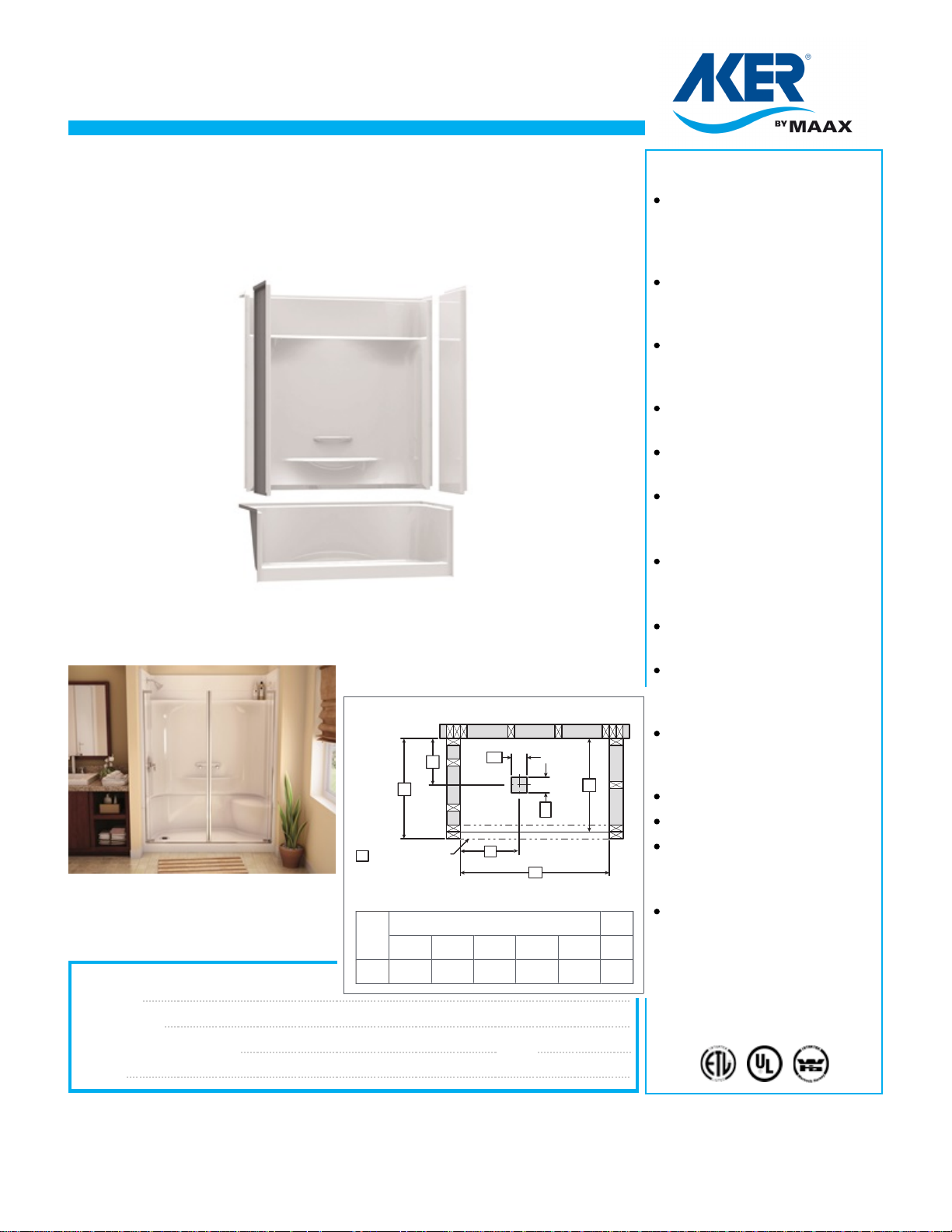

Page 1
TECHNICAL SPECIFICATIONS
KDS 3060
MODEL NUMBER 142036
DIMENSIONS: 59 3/4" x 30" x 80 1/8" Gelcoat
Project :
Contractor :
AKER Representative : Tel :
Date :
www.akerbymaax.com
2017-11-10
STANDARD FEATURES
Four-piece gelcoated
fiberglass shower with PIN
system for easy front
installation
Large top corner shelves, wide
soap dish and standard acrylic
handle (opt. metallic finishes)
Right/left-hand seat (drain
opposite to seat) or no seat
(center drain)
Optional unique features:
Reinforced walls and grab bars
Product also available in
Above-the-Floor Rough
Textured floor
UNIQUE FEATURES
PIN system
OPTIONS
Shower base only KDS 3060
with pin system
Side walls (right and left) for
KDTS 2954, KDTS 3060 and
KDS 3060
Back wall for KDTS 3060,
KDTS 3260, KDS 3060 and
KDS 3460
Wall reinforcement (one wall)
18" Modern straight grab bar
24" Modern straight grab bar
SYSTEMS
None
DOOR SELECTION
Combine with AKER's complete
shower door offering visit
www.akerbymaax.com
CERTIFICATIONS
AKER products adhere to one or more of
the following certifications:
Model
142036
No Seat
A B C D
E
60" 31" 30" 30" 14 1/8"
Seat
D
8 5/8"
Finished Unit Depth
Minimum Alcove Depth
Unit Rough-In Depth
Drain Center
Drain Center
Alcove Length / Unit Length
Drain
Cut-Out
B
C
D
5"
Drain
Cut-Out
5"
Header height for
Optional Cap
E
A
F
NOTE: Left End Drain Installation Illustrated
Page 2
2017-11-10

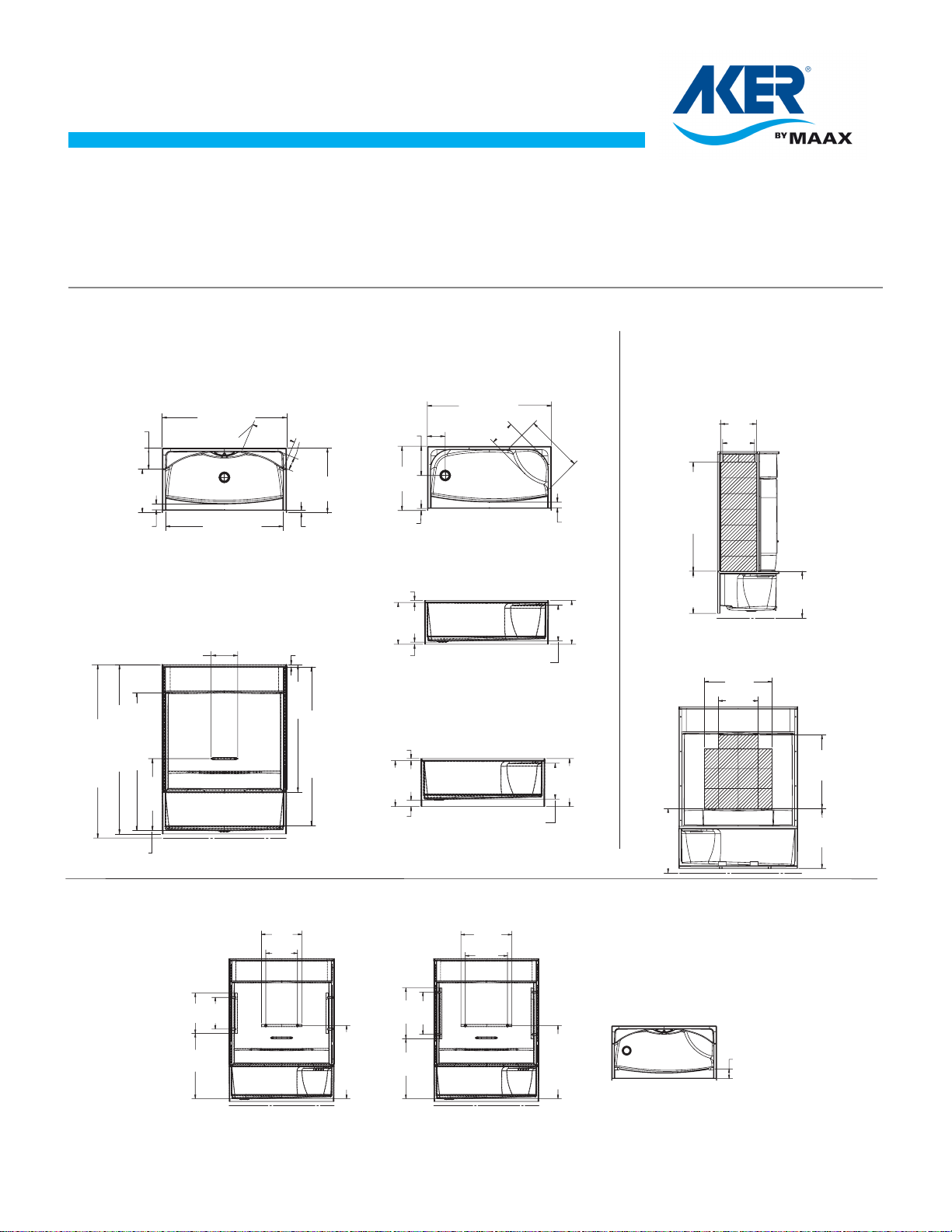

TECHNICAL DRAWINGS
TECHNICAL SPECIFICATIONS
KDS 3060
MODEL NUMBER 142036
All dimensions are approximate. Structure measurements
must be veried against the unit to ensure proper t.
REINFORCEMENT BACKING
STANDARD
RIGHT SEAT SHOWN
LEFT SEAT SYMMETRICAL
NO SEAT
GRAB BARS
1"
8 5/8"
14 1/8"
31"
59 7/8"
27 1/2"
12"
2 3/4"
17 1/4"
21 1/8"
1"
1"
20 1/8"
17 1/4"
23 1/8"
1"
3"
22 1/8"
ABOVE-THE-FLOOR
NOT ABOVE-THE-FLOOR
81 1/8"
66 3/8"
1"
76 1/4"
61"
83 1/8"
AFR
OPTION
MAX DOOR HEIGHT
34 1/2"
12 3/4"
56 1/2"
Door Opening
1"
31"
59 3/4"
20 7/8"
10 1/4"
21 5/8"
6 3/8"
2 3/4"
24"
41 1/2"
29"
29"
24"
34"
18"
41 1/2"
23"
23"
18"
37"
5 1/2"
OPTION 20204
OPTION
20203-20204
OPTION 20203
37"
20"
34"
30 1/8"
32 3/8"
AFR
18"
54 3/4"
21 1/8"
16"
23 3/8"
AFR
OPTION 20212-L Shown
OPTION 20212-R Symetrical
OPTION 20212-B
