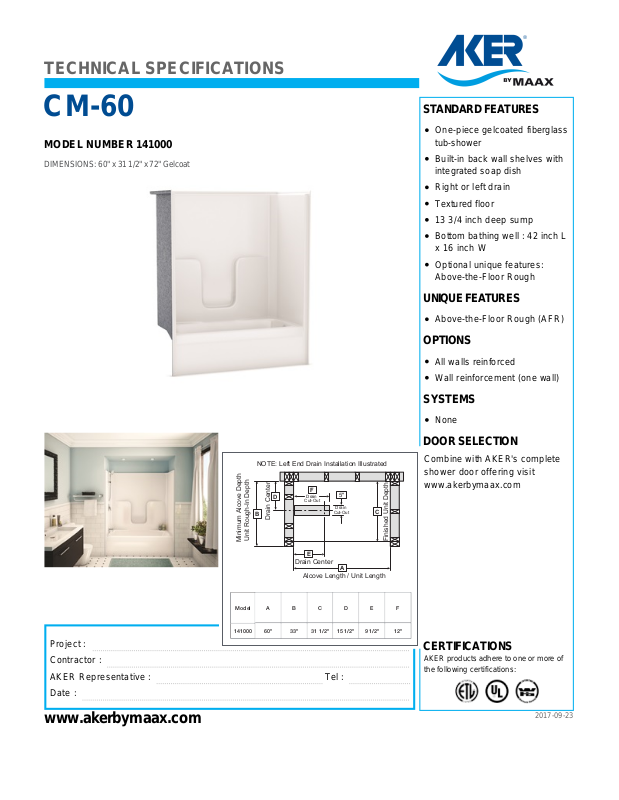

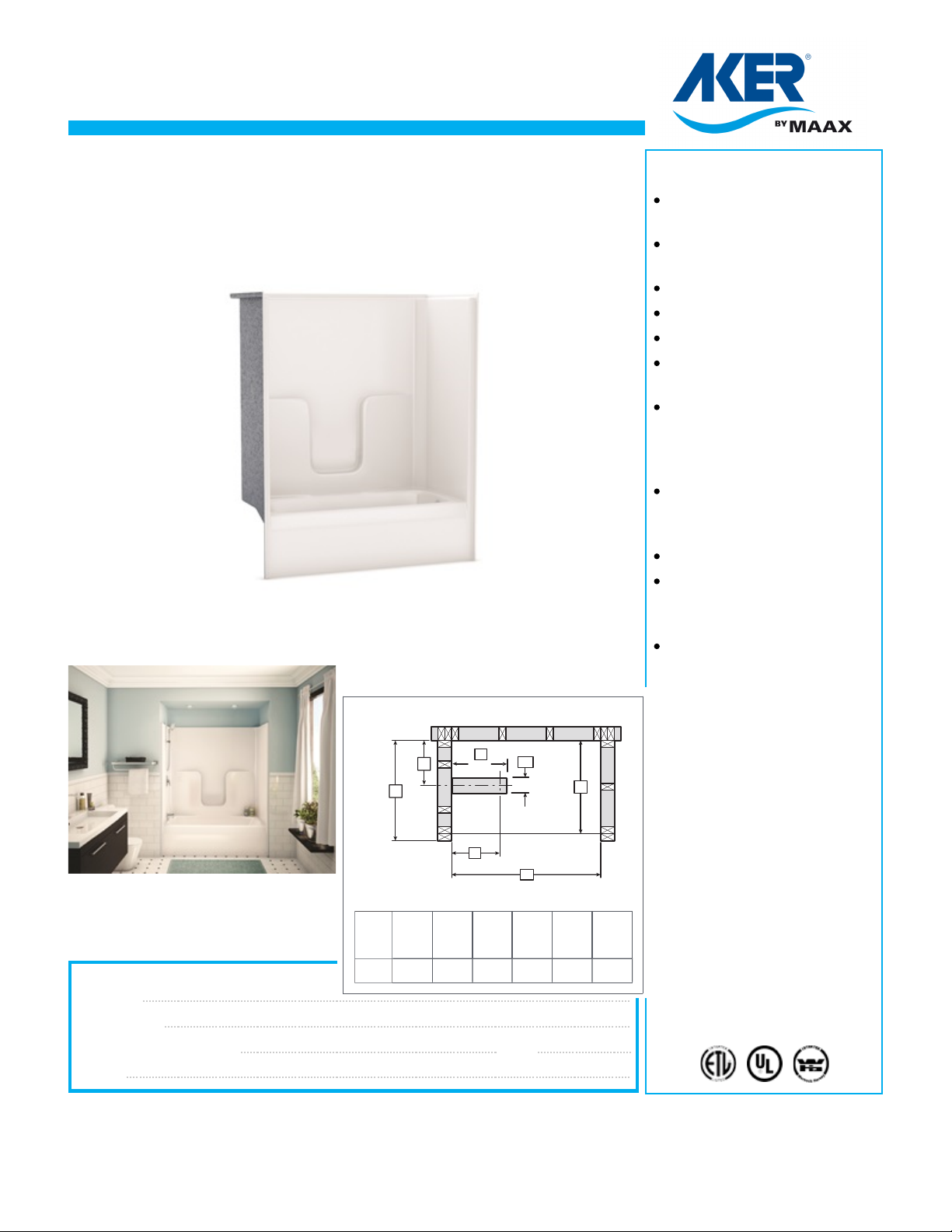

TECHNICAL SPECIFICATIONS
CM-60
MODEL NUMBER 141000
DIMENSIONS: 60" x 31 1/2" x 72" Gelcoat
Project :
Contractor :
AKER Representative : Tel :
Date :
www.akerbymaax.com
2017-09-23
STANDARD FEATURES
One-piece gelcoated fiberglass
tub-shower
Built-in back wall shelves with
integrated soap dish
Right or left drain
Textured floor
13 3/4 inch deep sump
Bottom bathing well : 42 inch L
x 16 inch W
Optional unique features:
Above-the-Floor Rough
UNIQUE FEATURES
Above-the-Floor Rough (AFR)
OPTIONS
All walls reinforced
Wall reinforcement (one wall)
SYSTEMS
None
DOOR SELECTION
Combine with AKER's complete
shower door offering visit
www.akerbymaax.com
CERTIFICATIONS
AKER products adhere to one or more of
the following certifications:
Model
141000
A B C D
E
F
60" 33" 31 1/2" 15 1/2" 9 1/2" 12"
Finished Unit Depth
Minimum Alcove Depth
Unit Rough-In Depth
Drain Center
Drain Center
Alcove Length / Unit Length
Drain
Cut-Out
B
C
D
Drain
Cut-Out
5"
E
A
F
NOTE: Left End Drain Installation Illustrated
Page 2
2017-09-23

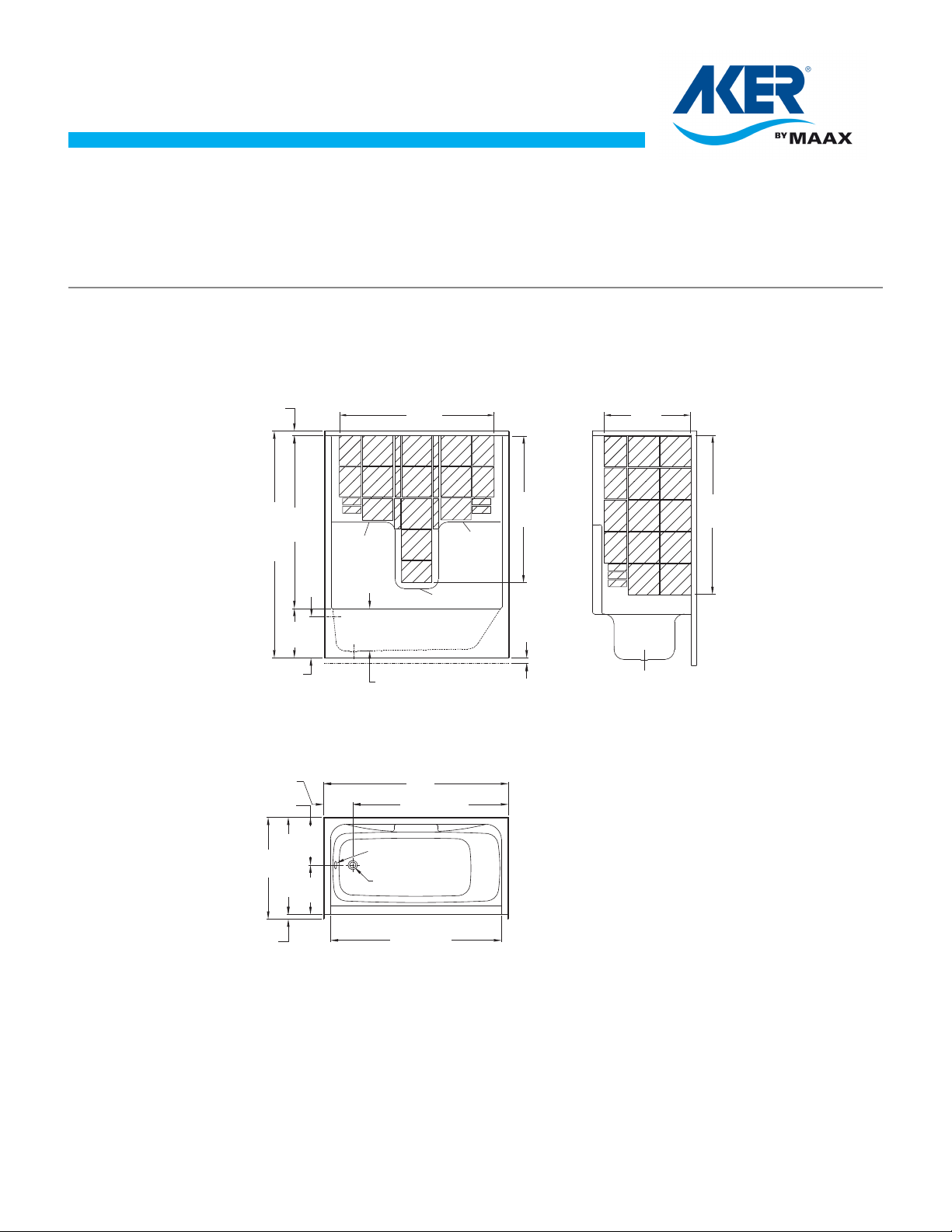

TECHNICAL DRAWINGS
TECHNICAL SPECIFICATIONS
CM-60
MODEL NUMBER 141000
73 1/2"
60"
50 1/2"
Ø 2-1/2" Overow
55 1/2"
9 1/2"
15 1/2"
31 1/2"
33"
1 1/2"
16"
Ø 2" Drain
56"
13 3/4"
16"
13 1/4"
1 1/2"
1 3/4"
AFR
27"
50"
48"
47"
All dimensions are approximate. Structure measurements
must be veried against the unit to ensure proper t.
Elevated
Shelf
Elevated
Shelf
Soap Ledge
