AKAI ALED2222BK User manual

Contents

Notications & Features & Accessories ................24

Features ...............................................................24

Connect Power .................................................... 25

Remote Control ...................................................26

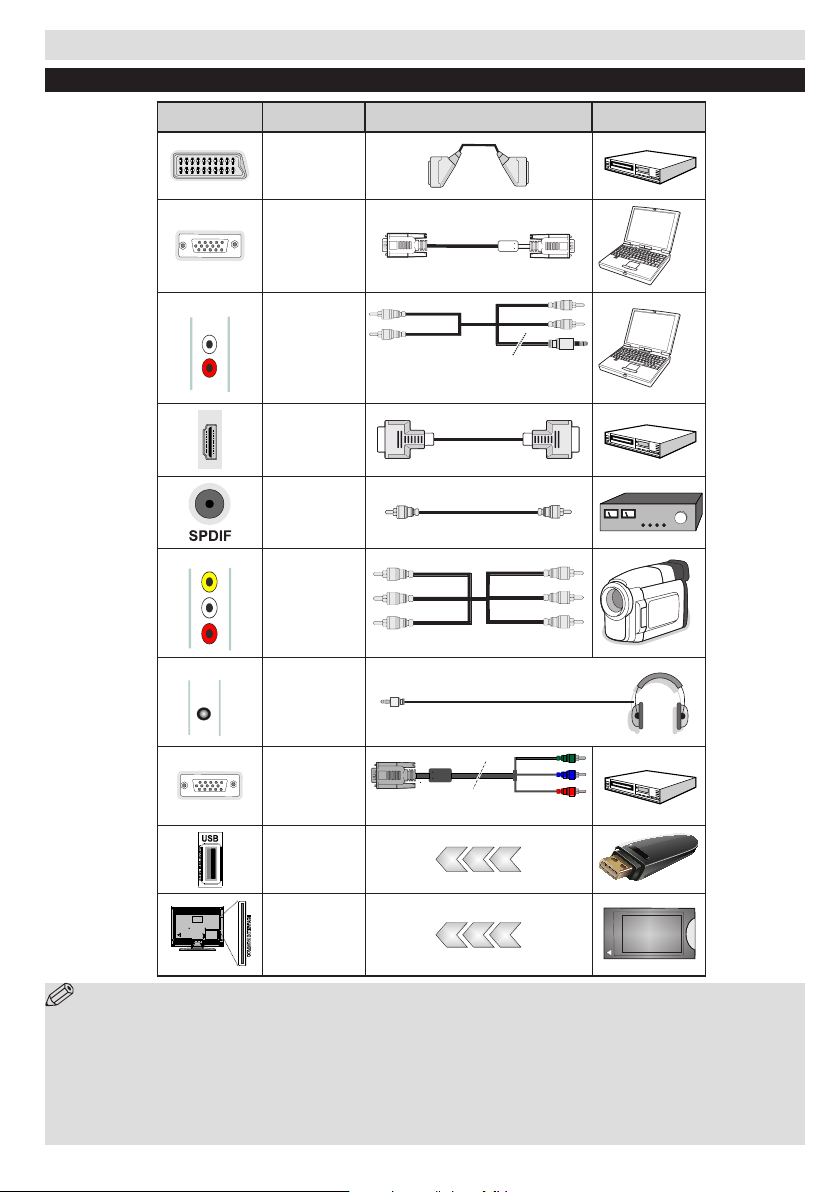

Connections..........................................................27

Media Browser Menu............................................29

TV Menu Features and Functions ........................ 30

Using the Channel List .........................................32

Conguring Parental Settings ............................... 32

Electronic Programme Guide (EPG) ....................32

Software Upgrade.................................................33

Troubleshooting & Tips ......................................... 33

PC Input Typical Display Modes ..........................34

Supported File Formats for USB Mode ................34

AV and HDMI Signal Compatibility ......................34

DVD Control Panel Buttons .................................. 36

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO

To operate your TV in extreme ambient conditions
may cause the damage of the device.

Note : Follow the on screen instructions for operating the
related features.

instructions fully before installing or
operating

children) with reduced physical, sensory or

NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

If there is lightning or storms, or if the TV is not

going to be used for a while (e.g. if going away
on holiday), disconnect the TV set from the
mains. The mains plug is used to disconnect TV
set from the mains and therefore it must remain
readily operable.

The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

IMPORTANT - Please read these

WARNING: Never let people (including

English - 23 -

mental capabilities or lack of experience and / or
knowledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at
least 10 cm all around the set.

•Do not block ventilation holes.

•Do not place the TV on sloping or unstable surfaces,

the TV may tip over.

• Use this device in moderate climates.

• The power cord plug should be easily accessible. Do

not place the TV, furniture, etc. on the power cord.

A damaged power cord/plug can cause re or give

you an electric shock. Handle the power cord by the
plug, do not unplug the TV by pulling the power cord.
Never touch the power cord/plug with wet hands
as this could cause a short circuit or electric shock.
Never make a knot in the power cord or tie it with
other cords. When damaged it must be replaced,

this should only be done by qualied personnel.

•Do not use this TV in a humid or damp place. Do
not expose the TV to liquids. If any liquid falls into
the cabinet unplug the TV and have it checked by

qualied personnel before operating it any further.

•Do not expose the TV to direct sunlight or other heat
sources.

• The TV should not be placed near to open
ames or sources of intense heat such as

an electric heater.

• Excessive sound pressure from earphones and
headphones can cause hearing loss.

• Ensure that no open ame sources, such

as lit candles, are placed on top of the TV.

• To prevent injury, this TV must be securely
attached to the wall in accordance with the
installation instructions (if the option is available).

• Occasionally, a few non-active pixels may appear
on the screen as a xed blue, green or red point.

Please note that this does not affect the performance
of your product. Take care not to scratch the screen

with ngernails or other hard objects.

• Before cleaning, unplug the TV from the wall socket.

Only use a soft, dry cloth while cleaning.

Warning

Risk of electric shock

Caution

Important

Notice

Serious injury or death risk

Dangerous voltage risk

Injury or property damage risk

Correctly the system operate

Additional notes marked

Getting Started

Getting Started

Notications&Features&Accessories

Environmental Information

This television is designed to consume less energy
to help save the environment. To reduce energy
consumption, you should take the following steps:

If you set the Power Save Mode as Eco, the TV will
switch to energy-saving mode. The Power Save Mode
settings can be found In the ‘Picture’ section of the
Main Menu. Note that some picture settings will be
unavailable to be changed.

If Picture Off is selected, “Screen will be off in
3 seconds.” message will be displayed. Select
PROCEED and press OK to continue. The screen

will be off immediately.
When the TV is not in use, please switch off or

disconnect the TV from the mains plug. This will also
reduce energy consumption.

StandbyNotications

1. If the TV does not receive any input signal (e.g.

from an aerial or HDMI source) for 5 minutes, the
TV will go into standby. When you next switch­on, the following message will be displayed:
“Standby Cause No Signal” Press OK to
continue.

2. If the TV has been left on and not been operated

for a while, the TV will go into standby. When
you next switch-on, the following message will
be displayed. “Standby Cause No Operation”
Press OK to continue.

Features

• Remote controlled colour TV.

• Fully integrated digital/cable TV (DVB-T/C)

• HDMI inputs are for connecting a device that has

a HDMI socket.

• USB input.

• OSD menu system.

• Scart socket for external devices (such as DVD

Players, PVR, video games, etc.)

• Stereo sound system.

• Teletext.

• Headphone connection.

• Automatic programming system.

• Manual tuning.

• Automatic power down after up to six hours.

• Sleep timer.

• Child lock.

• Automatic sound mute when no transmission.

• NTSC playback.

English - 24 -

• AVL (Automatic Volume Limiting).

• PLL (Frequency Search).

• PC input.

• Plug&Play for Windows 98, ME, 2000, XP, Vista,

Windows 7.

• Game Mode (Optional).

Accessories Included

• Remote Control

• Batteries: 2 x AAA

• Instruction Book

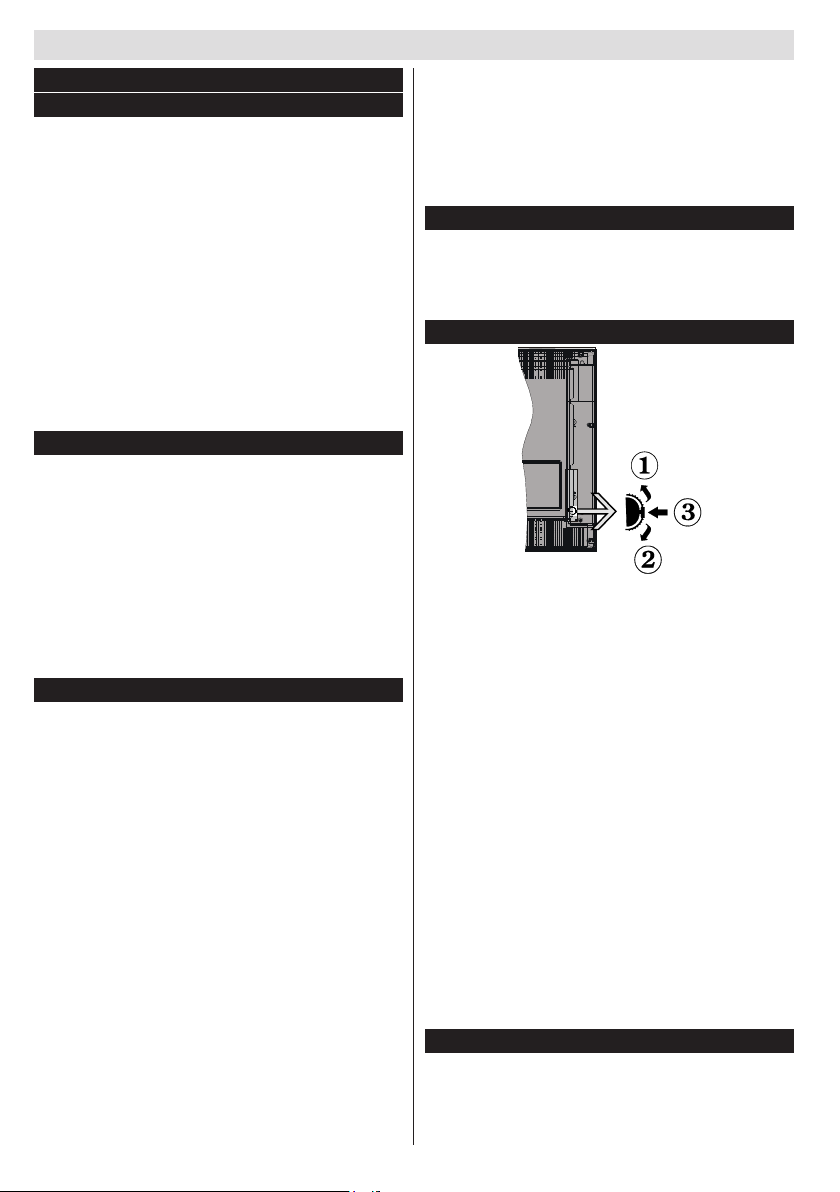

TVControlSwitch&Operation

1. Up direction

2. Down direction

3. Programme/Volume / AV / Standby-On selection

switch

The Control button allows you to control the Volume/
Programme/ Source and Standby-On functions of
the TV.

To change volume: Increase the volume by pushing
the button up. Decrease the volume by pushing the
button down.

To change channel: Press the middle of the button,
the channel information banner will appear on screen.
Scroll through the stored channels by pushing the
button up or down

To change source: Press the middle of the button
twice, the source list will appear on screen. Scroll
through the available sources by pushing the button
up or down.

To turn the TV off: Press the middle of the button down
and hold it down for a few seconds, the TV will turn
into standby mode.

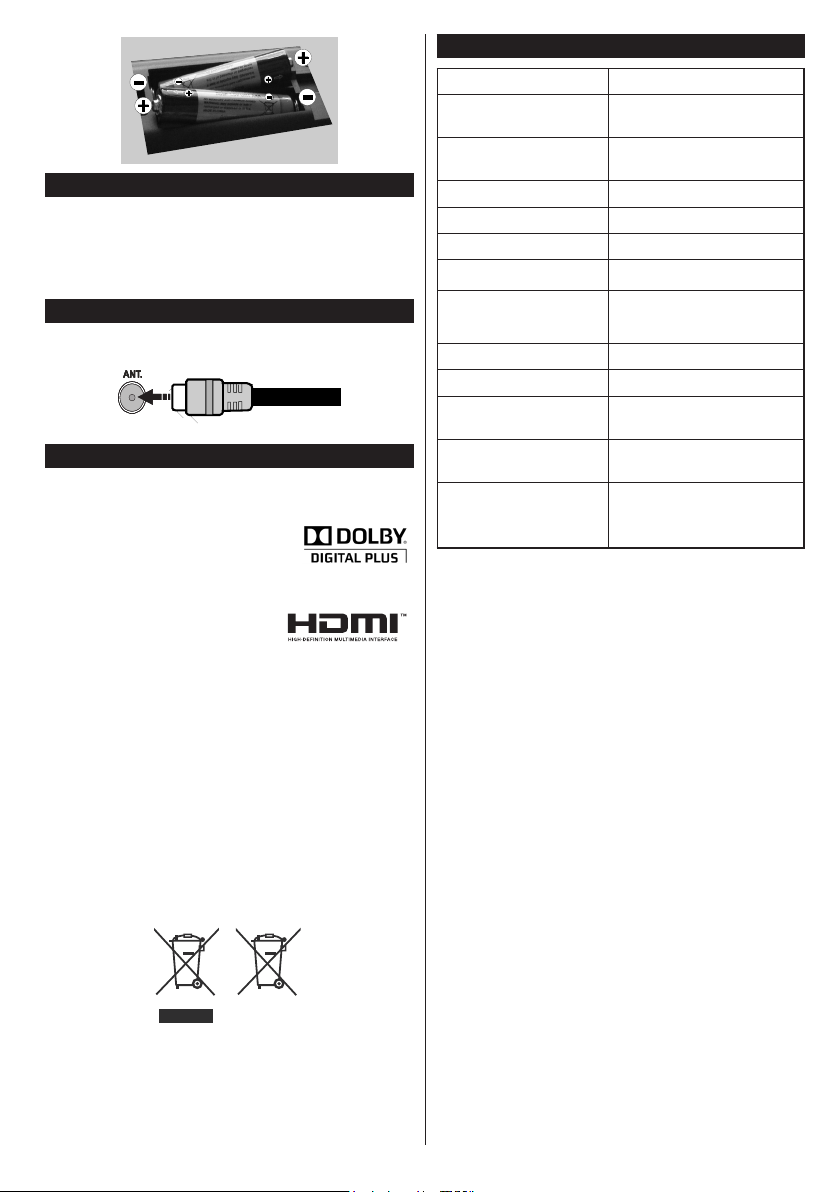

Inserting the Batteries into the Remote

Lift the cover on the back of the remote upward gently.
Install two AAA batteries. Make sure to match the +
and - ends of the batteries in the battery compartment
(observe the correct polarity) Replace the cover.

Connect Power

IMPORTANT: The TV set is designed to operate on
220-240V AC, 50 Hz socket. After unpacking, allow

the TV set to reach the ambient room temperature
before you connect the set to the mains. Plug the
power cable to the mains socket outlet.

Antenna/Cable Connection

Connect the “aerial” or “cable TV” plug to the AERIAL
INPUT (ANT) socket located on the back of the TV.

Notication

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.

“HDMI, the HDMI logo and High-Denition Multimedia

Interface are trademarks or
registered trademarks of HDMI
Licensing LLC.”

Specication

TV Broadcasting PAL B/G D/K K

Receiving Channels

Number of Preset
Channels

Channel Indicator On Screen Display

RF Aerial Input 75 Ohm (unbalanced)

Operating Voltage 220-240V AC, 50Hz.

Audio German+Nicam Stereo

Audio Output Power
(WRMS.) (10% THD)

Power Consumption 45W

Weight 3,70

TV Dimensions DxLxH
(with foot)

TV Dimensions DxLxH
(without foot)

Operation temperature
and operation
humidity:

VHF (BAND I/III) - UHF
(BAND U) - HYPERBAND

1000

2 x 2,5

134 x 516 x 352

55 x 516 x 317

0ºC up to 40ºC, 85%

humidity max

Information for Users on Disposal of Old
Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these
symbols should not be disposed of as general
household waste. If you want to dispose of the product
or battery, please consider the collection systems or
facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates
that this battery contains lead.

Battery

Products

English - 25 -

Getting Started

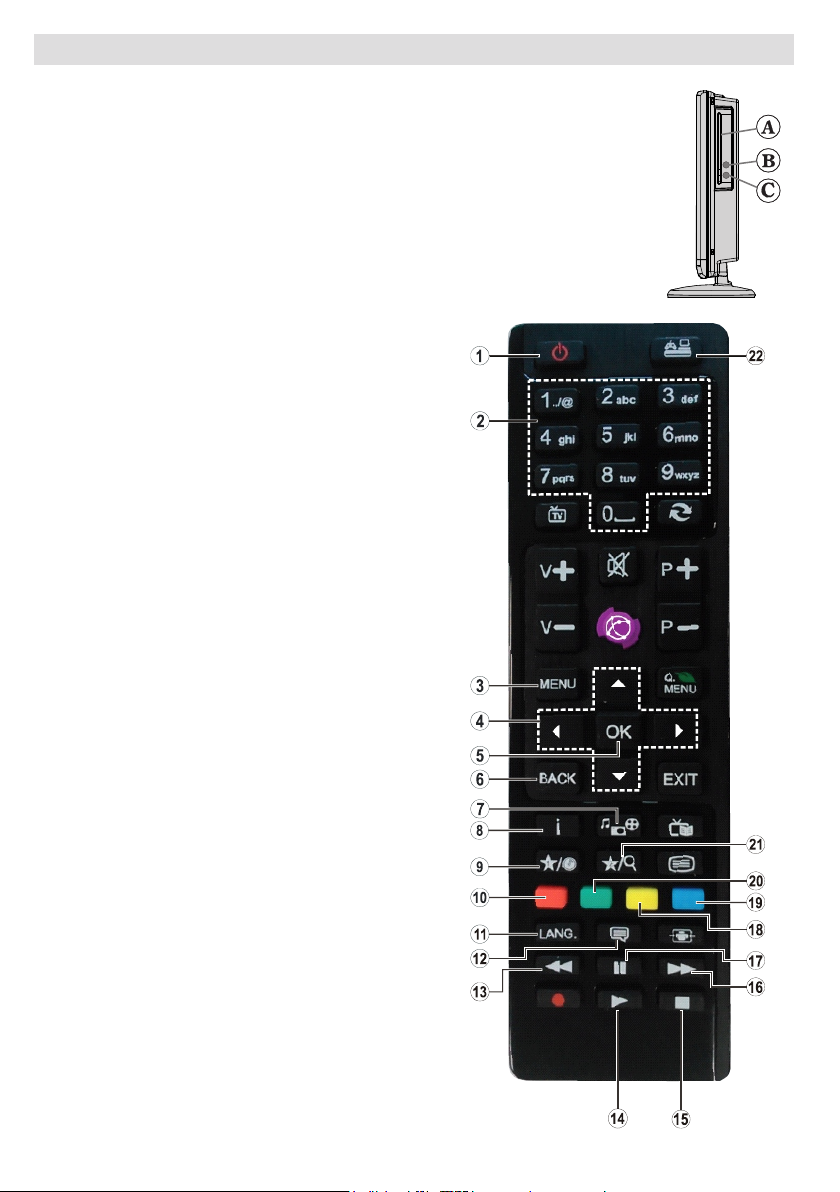

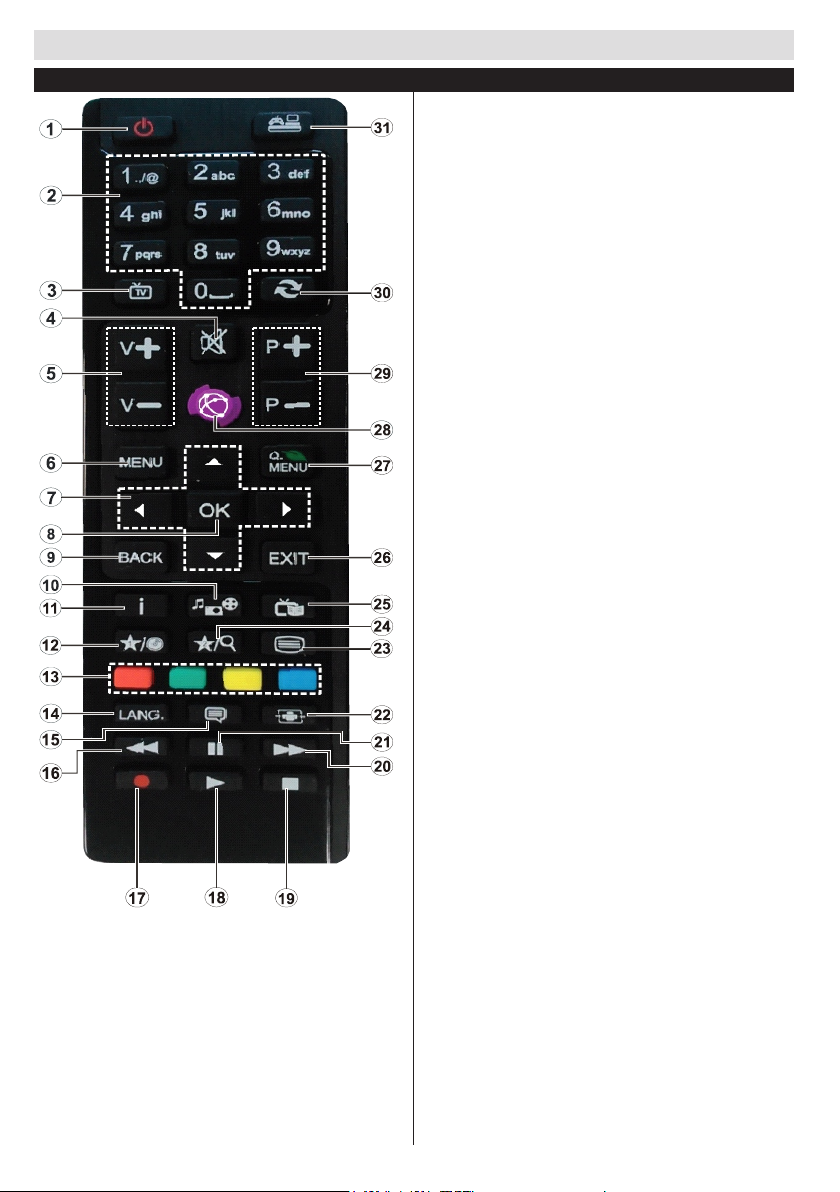

Remote Control

Teletext

Press TXT button to enter. Press again to activate mix
mode. Press once more to exit. Follow the instructions
displayed on digital teletext screen.

Digital Teletext (for UK only)

Press TXT button to view digital teletext information.
Operate it with the coloured buttons, cursor buttons
and the OK button. The operation method may differ
depending on the contents of the digital teletext. Follow
the instructions displayed on the digital teletext screen.
When the TXT button is pressed again, the TV returns
to television broadcast.

English - 26 -

1.Standby: On / Off switch of the TV

2.Numeric buttons: Used to navigate channels and enter
passwords, text etc.

3.TV: Displays channel list / Switches among broadcast
types

4.Mute: Completely turns off the volume of the TV

5.Volume +/-

6.Menu: Displays TV menu

7.Navigation buttons: Helps navigate menus, content

etc. and displays the subpages in TXT mode when

pressed Right

8.OK: Conrms user selections, holds the page (in TXT

mode), views channel list (DTV mode)

9.Back: Returns to previous screen, opens index page (in

TXT mode)

10.Media browser: Opens the media browsing screen

11.Info: Displays information about on-screen content,

shows hidden information (reveal - in TXT mode)

12.My button 1 (*)

13.Coloured Buttons

14.Language: Switches between sound modes
(analogue TV), displays and changes audio/
subtitle language (where available)(digital TV)

15.Subtitles: Turns subtitles on and off (where available)

16.Rapid reverse: Moves frames backwards in media

such as movies

17.Record: Records programmes

18.Play: Starts to play selected media

19.Stop: Stops the media being played

20.Rapid advance: Moves frames forward in media such
as movies

21.Pause: Pauses the media being played, starts timeshift
recording

22.Screen: Changes the aspect ratio of the screen

23.Text: Displays teletext (where available), press again
to superimpose the teletext over a normal broadcast
picture (mix)

24.My button 2 (*)

25.EPG (Electronic programme guide): Displays the
electronic programme guide

26.Exit: Closes and exits from displayed menus or returns
to previous screen

27.Quick Menu: Displays a list of menus for quick access

28.No function

29.Programme +/-

30.Swap: Quickly cycles between previous and current
channels

31.Source: Shows all available broadcast and content
sources

Getting Started

Connections

Connector Type Cables Device

Scart

Connection

(back)

VGA

Connection

(back)

SIDE AV

SIDE AV

HEADPHONE

HEADPHONE

PC/YPbPr

Audio

Connection

(side)

HDMI

Connection

(back)

SPDIFF

Connection

(back)

Side AV

(Audio/Video)

Connection

(side)

Headphone
Connection

(side)

YPbPr Video

Connection

(back)

USB

Connection

(side)

CI

Connection

(side)

Side Audio
YPbPr or PC Connection Cable
(Not supplied)

(Not supplied)

PC to YPbPr Connection Cable (Not supplied)

CAM

module

NOTE: When connecting a device via the YPbPr or Side AV input, you must use the supplied connection

cables to enable connection. See the illustrations above. | You can use YPbPr to VGA cable (not supplied) to

enable YPbPr signal via VGA input. |You cannot use VGA and YPbPr at the same time. | To enable PC audio, you
will need to use the SIDE AV CONNECTION cable’s WHITE & RED inputs. | If an external device is connected via
the SCART socket, the TV will automatically switch to AV mode.| When receiving DTV channels (Mpeg4 H.264)
or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting
kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. |
Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction
manual for details of the settings.

English - 27 -

Getting Started

First Time Installation - USB Connections

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz.
To switch on the TV from standby mode either:
Press the “ ” button, P+ / P- or a numeric button on

the remote control.
Press the side function switch until the TV comes on

from standby.

To Switch the TV Off

Press the “ “ button on the remote control or press
the side function switch until the TV switches into
standby mode.

To power down the TV completely, unplug the
power cord from the mains socket.

Note: When the TV is switched to standby mode, the standby
LED can blink to indicate that features such as Standby
Search, Over Air Download or Timer is active. The LED can
also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language
selection screen is displayed. Select the desired
language and press OK.

The First Time Installation (FTI) screen will be
displayed next. Set your preferences using the

navigation buttons and when nished, press OK to

continue.
You can activate Store mode option to be available

in “Other settings” menu and your TV’s features will

be illustrated on the top of the screen. A conrmation

screen will be displayed. Select YES to proceed.
If Home Mode is selected, Store mode will not be

available after the First Time Installation. Press OK
button to continue.

Default PIN code can change depending on the
selected country.

If you are asked to enter a PIN code for viewing a
menu option, use one of the following codes: 4725,
0000 or 1234.

Aerial Installation

If you select AERIAL option from the Search Type
screen, the television will search for digital terrestrial
TV broadcasts.

NOTE: You can press MENU button to cancel.

After all the available stations are stored, the Channel
List will be displayed on the screen. If you like how the
channels are sorted according to the LCN (*), please
select “Yes” and than press OK.

Press MENU button to quit channel list and watch TV.
(*) LCN is the Logical Channel Number system that

organizes available broadcasts in accordance with a
recognizable channel sequence (if available).

Cable Installation

If you select CABLE option and press OK button on
the remote control. To continue, please select YES
and press OK. To cancel operation, select NO and
press OK. You can select frequency ranges from
this screen.

Enter the frequency range manually by using the
numeric button.

Note: Searching duration will change depending on the
selected search step.

Media Playback via USB Input

You can connect a 2.5” and 3.5” inch (hdd with external power
supply) external hard disk drives or USB memory stick to your
TV by using the USB inputs of the TV.

IMPORTANT! Back up your files before making
any connections to the TV. Manufacturer will not be

responsible for any le damage or data loss. Certain

types of USB devices (e.g. MP3 Players) or USB hard
disk drives/memory sticks may not be compatible
with this TV. The TV supports FAT32 and NTFS disk
formatting but recording will not be available with
NTFS formatted disks.

While formatting a USB hard disk that has 1TB (Tera
Byte) or more file capacity, you can experience
problems with the formatting process. Do not
repeatedly quickly plug and unplug the drive. This
may cause physical damage to the USB player and
USB device itself. Do not pull out USB module while

playing a le.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive,

it is recommended that you rst format the disk using

your TV’s “Format Disk” option.
Note : To record a programme, you should first

connect a USB disk to your TV while the TV is
switched off. You should then switch on the TV to
enable the recording feature.

To use the recording function, you need to connect
a USB disk or an external hard disk drive to the TV
and the connected USB disk should have at least 1
GB capacity and should have 2.0 speed compatibility.
If the connected USB device does not support 2.0
speed, an error message will be displayed.

Note: Recorded programmes are saved into the
connected USB disk. If desired, you can store/copy

recordings onto a computer; however, these les will

English - 28 -

not be available to be played on a computer. You can
play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting.
Radio record is supported. The TV can record
programmes up to ten hours.

Recorded programmes are split into 4GB partitions.
If the writing speed of the connected USB disk is not

sufcient, the recording may fail and the timeshifting

feature may not be available.
It is recommended to use USB hard disk drives for

recording HD programmes.
Do not plug out the USB/HDD during a recording. This

may harm the connected USB/HDD.
Multipartition support is available. The maximum of two

different partitions are supported. The rst partition of the

USB disk is used for PVR ready features. It also must
be formatted as the primary partition to be used for the
PVR ready features.

Some stream packets may not be recorded because
of signal problems, so sometimes video may freezes
during playback.

Record, Play, Pause, Display (for PlayListDialog) keys
can not be used when teletext is ON. If a recording starts
from timer when teletext is ON, teletext is automatically
turned off. Also teletext usage is disabled when there is
an ongoing recording or playback.

Timeshift Recording

Press (PAUSE) button while watching a broadcast to
activate timeshifting mode. In timeshifting mode, the
programme is paused and simultaneously recorded to
the connected USB disk.

Press (PLAY) button again to resume the paused
programme from where you stopped. Press the STOP
button to stop timeshift recording and return to the live
broadcast.

Note: Timeshift cannot be used while in radio mode.
Note : You cannot use the timeshift fast reverse feature

before advancing the playback with the fast forward
option.

Instant Recording

Press (RECORD) button to start recording an event
instantly while watching a programme. You can press

(RECORD) button on the remote control again to
record the next event on the EPG. In this case, an OSD
will be displayed, indicating the programmed events for
recording. Press (STOP) button to cancel instant
recording.

Note: You can not switch broadcasts or view the Media
Browser during the recording mode. While recording a
programme or during the timeshifting, a warning message
appears on the screen if your USB device speed is not

sufcient.

Watching Recorded Programmes

Select the Recordings Library from the Media Browser
menu. Select a recorded item from the list (if previously

English - 29 -

recorded). Press the OK button to view the Play
Options. Select an option then press OK button.

Note: Viewing main menu and menu items will not be
available during the playback.

Press the (STOP) button to stop a playback and return
to the Recordings Library.

Slow Forward

If you press (PAUSE) button while watching recorded
programmes, the slow forward feature will be available.
You can use button to slow forward. Pressing
button consecutively will change slow forwarding speed.

RecordingConguration

Select the Recording Conguration item in the Settings
menu to congure the recording settings.

Format Disk: You can use Format Disk feature for
formatting the connected USB disk. Your pin is required
to use the Format Disk feature (default pin is 0000).

Default PIN code can change depending on the
selected country.

If you are asked to enter a PIN code for viewing a menu
option, use one of the following codes: 4725, 0000 or

1234.

IMPORTANT: Note that ALL the data stored on the USB
disk will be lost and the disk format will be converted
to FAT32 if you activate this feature. If your USB disk
malfunctions, you can try formatting the USB disk. In
most cases formatting the USB disk will restore normal
operation; however, ALL the data stored on the USB disk
will be lost in such a case.

Note: If “USB is too slow” message is displayed on
the screen while starting a recording, try restarting the
recording. If you still get the same error, it is possible that
your USB disk does not meet the speed requirements.

Try connecting another USB disk.

Media Browser Menu

You can play photo, music, and movie les stored on a

USB disk by connecting it to your TV. Connect a USB
disk to one of the USB inputs located on the side of
the TV. Pressing the MENU button while in the Media
Browser mode will access the Picture, Sound and
Settings menu options. Pressing the MENU button

again will exit from this screen. You can set your Media
Browser preferences by using the Settings Menu.

Loop/Shufe Mode Operation

Start playback with and
activate

Start playback with OK and
activate

Start playback with OK/ and
activate

TV plays next file and loop
the list.

the same le will be played in a

loop (repeat).

the le will be played in a shufe.

TV Menu Features and Functions

Picture Menu Contents

Contrast

Advanced Settings

Dynamic Contrast

mode)

mode)

mode)

Mode

Brightness
Sharpness
Colour

Power Save Mode

Backlight
(Optional)

Noise Reduction

Colour Temp

Picture Zoom

Film Mode

Skin Tone
Colour Shift
RGB Gain
Reset
Autoposition (in

PC mode)
H Position (in PC

V Position (in PC

You can change the picture mode to suit your preference or requirements. Picture mode
can be set to one of these options: Cinema, Game, Sport, Dynamic and Natural.

Sets the lightness and darkness values of the screen.

Sets the brightness value for the screen.

Sets the sharpness value for the objects displayed on the screen.

Sets the colour value, adjusting the colors.
To set the Power Save Mode as Eco, Picture Off and Disabled.

(When the Mode is Dynamic, Power Save mode is automatically set as disabled.)
This setting controls the backlight level. The backlight function will be inactive if the

Power Save Mode is set to Eco. The backlight cannot be activated in VGA, Media
Browser mode or while the picture mode is set to Game.

If the broadcast signal is weak and the picture is noisy, use the Noise Reduction
setting to reduce the amount of noise.

You can change the Dynamic Contrast ratio to desired value.

Sets the desired colour tone.
Sets the desired picture size from picture zoom menu.

Note: Auto (Only available in Scart mode with SCART PIN8 high voltage/low voltage
switching)

Films are recorded at a different number of frames per second to normal television

programmes. Turn this feature on when you are watching lms to see the fast motion

scenes clearly.

Skin tone can be changed between -5 and 5.

Adjust the desired colour tone.

You can congure the colour temperature values using the RGB Gain feature.

Resets the picture settings to factory default settings.(Except Game Mode)

Automatically optimizes the display. Press OK to optimize.

This item shifts the image horizontally to the right hand side or left hand side of the
screen.

This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock (in PC

Phase (in PC
mode)

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the
Picture Settings while in PC mode.

Dot Clock adjustments correct the interference that appear as vertical banding in dot
intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Depending on the resolution and scan frequency that you input to the TV set, you may
see a hazy or noisy picture on the screen. In such a case you can use this item to get a
clear picture by trial and error method.

English - 30 -

TV Menu Features and Functions

Sound Menu Contents

Headphone

Settings Menu Contents

Sources

Other Settings: Displays other setting options of the TV set:

Channels

Hard of Hearing

Volume
Equalizer
Balance

Sound Mode
AVL (Automatic

Volume Limiting)

SRS TruSurround HD

Digital Out

Conditional Access

Language

Parental

Timers

Recording

Conguration

Date/Time

Adjusts the volume level.

Selects the equalizer mode. Custom settings can be made only when in user mode.

This setting is used for emphasizing left or right speaker balance.

Sets headphone volume.

You can select a sound mode. (If the selected channel supports).

Function sets the sound to obtain xed output level between programmes.

Enables or disables the SRS TruSurround HD. When activated, some features in
the Sound menu can not be altered.

Sets digital out audio type.

Controls conditional access modules when available.

Congures language settings (may change depending on the country selected)

Preferred and current settings will be available. Current settings can be changed
only if the broadcaster supports.

Enter correct password to change parental settings. You can easily adjust menu
lock, maturity lock (may change depending on the country selected) and child lock
in this menu. You can also set new pin number.

Sets sleep timer to turn off the TV after a certain time. Sets timers for selected
programmes. (USB Record)

Displays the recording conguration menu (Usb connection required)

Sets date and time.

Enables or disables selected source options.

Menu Timeout
Scan Encrypted

Blue Background

Software Upgrade
Application Version

Audio Description

Auto TV Off

Broadcast Type Selects the desired broadcast type.

Changes timeout duration for menu screens.

When this setting is on, the search process will locate the encrypted channels as
well.

Activates or deactivates the blue background system when the signal is weak or
absent.

To ensure that your TV always has the most up to date rmware.

Displays application version.

Enables any special feature sent from the broadcaster.

Audio description refers to an additional narration track for blind and visually
impaired viewers of visual media, including television and movies. You can use this
feature, only if the broadcaster supports that additional narration track.

Note: Audio description sound feature cannot be available in recording or time shifting mode.

You can set the timeout value of auto off feature. When the timeout value is
reached and the TV has not been operated for a selected time, the TV will go into
standby mode.

English - 31 -

TV Menu Features and Functions

Install and Retune Menu Contents

First Time Installation

Standby Search
(Optional)

Store Mode

Power Up Mode

Automatic Channel
Scan (Retune)

(If available)

Manual Channel Scan
Network Channel

Scan

Analogue Fine Tune

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active
stations to be listed by using the Channel List options.

ConguringParentalSettings

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

To display parental lock menu options, the PIN number should be entered. The factory default PIN number is

0000. After coding the correct PIN number, parental settings menu will be displayed.
Menu Lock: Menu lock setting enables or disables the menu access.
Maturity Lock: When set, this option gets the maturity information from the broadcast and if this maturity level is

disabled, disables access to the broadcast.
Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control

panel buttons will not work.

Set PIN: Denes a new PIN number.

Default PIN code can change depending on the selected country.
If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the GUIDE button
to view the EPG menu.

Red button (Prev Day): Displays the programmes of previous day.
Green button (Next day): Displays the programmes of the next day.
Yellow button (Zoom): Expands programme information.
Blue button (Filter): Views ltering options.
SUBTTL: Press SUBTITLE button to view Select Genre menu. Using this feature, you can search the programme

guide database in accordance with the genre. Info available in the programme guide will be searched and results
matching your criteria will be listed.

INFO: Displays, in detailed, information on the programme selected.

If the Standby Search is set to On, when the TV is in standby mode, available
broadcasts will be searched. If the TV locates any new or missing broadcasts,
a menu screen will be displayed, asking you whether or not to execute these
changes. Channel list will be updated and changed after this process.

If you are displaying the TV in a store, you can activate this mode. Whilst Store
Mode is enabled, some items in the TV menu may not be available.

This setting congures the power up mode preference.

Displays automatic tuning options. Digital Aerial: Searches and stores aerial
DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue:

Searches and stores analogue stations. Digital Aerial & Analogue: Searches and
stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and

stores cable DVB and analogue stations.

This feature can be used for direct broadcast entry.

Searches for the linked channels in the broadcast system.

You can use this setting for ne tuning analogue channels. This feature is not

available if no analogue channels are stored.

Deletes all stored channels and settings, resets TV to factory settings.

English - 32 -

Numeric buttons (Jump): Jumps to the preferred
channel directly via numeric buttons.

OK: Displays programme options.
Text (Search): Displays “Guide Search” menu.

(Now) : Shows the current programme.

(RECORD): The TV will start to record the selected

programme. You can press again to stop the recording.

P+P- : More event info
IMPORTANT: Connect a USB disk to your TV while the

TV is switched off. You should then switch on the TV to
enable the recording feature.

Note: Switching to a different broadcast or source is not
available during a recording.

Programme Options

In EPG menu, press the OK button to enter the Event
Options menu.

Select Channel

In EPG menu, using this option, you can switch to the
selected channel.

Record / Delete Record Timer

After you have selected a programme in the EPG menu,
press the OK button. Select the Record option and
press the OK button. After this operation, a recording
will be scheduled for the selected programme.

To cancel an already set recording, highlight that
programme and press the OK button and select the
option Delete Rec. Timer. The recording will be
cancelled.

Set Timer / Delete Timer

After you have selected a programme in the EPG menu,
press the OK button. Select the Set Timer on Event
option and press the OK button. You can set a timer
for future programmes. To cancel an already set timer,
highlight that programme and press the OK button. Then
select “Delete Timer” option. The timer will be cancelled.

Note: It is not possible to record two channels at the
same time.

Software Upgrade

Your TV is capable of nding and updating automatically

via the Aerial/Cable signal.

Software upgrade search via user interface

Simply navigate on your main menu. Choose Settings
and select Other Settings menu. In Other Settings
menu navigate on to the Software for Upgrade item and
press OK button to check for a new software upgrade.

3 AM search and upgrade mode

While the TV is connected to an aerial signal. If
Automatic scanning in the Upgrade Options menu
is enabled, the TV wakes up at 03:00 and searches
broadcast channels for new software upgrades. If
new software is found and downloaded successfully,
the next time the TV powers up , it will have the new
software version.

English - 33 -

Note: If the TV fails to come on after the upgrade unplug
the TV for 2 minutes and plug in again.

Troubleshooting&Tips

Tv will not turn on

Make sure the power cord is plugged in securely to
wall outlet. The batteries in the remote control may be
exhausted. Press the Power button on the TV.

Poor picture

• Have you selected the correct TV system?

• Low signal level can cause picture distortion. Please

check antenna access.

• Check if you have entered the correct channel

frequency if you have done manual tuning.

• The picture quality may degrade when two devices

are connected to the TV at the same time. In such a
case, disconnect one of the devices.

No picture

• No Picture means that your TV is not receiving a
transmission. Have you selected the correct button on
the remote control? Try once more. Also make sure
the correct input source has been selected.

• Is the antenna connected properly?

• Is the antenna cable damaged?

• Are suitable plugs used to connect the antenna?

• If you are in doubt, consult your dealer.

No sound

• Has the TV been set to mute? To cancel mute, press
the “ ” button, or increase the volume level.

• Sound is coming from only one speaker. Is the balance
set to one extreme? See Sound Menu section.

Remote control - does not operate

• The batteries may be exhausted. Replace the
batteries.

Input sources - can not be selected

• If you cannot select an input source, it is possible that
no device is connected. if not

• Check the AV cables and connections if you have tried
to connect a device.

Recording unavailable

To record a programme, you should rst connect a USB

disk to your TV while the TV is switched off. You should
then switch on the TV to enable recording feature. If
you cannot record, try switching off the TV and then
re-inserting the USB device.

USB is too slow

If a “USB is too slow” message is displayed on the
screen while starting a recording, try restarting the
recording. If you still get the same error, it is possible that
your USB disk does not meet the speed requirements.
Try connecting another USB disk.

Source

Supported Signals

Available

PC Input Typical Display Modes

Format

Remarks

Video

Audio

(Maximum resolution/Bit rate etc.)

MPEG1: 768x576 @30P

MPEG2:1920x1080 @ 30P

H.264/VP6:1920x1080 @ 30P

Sorenson: 352x288 @30P

MPEG 1 Layer 1 /

32Kbps ~ 320Kbps(Bit rate)

.jpg .jpeg

Baseline JPEG

-

max WxH = 17000x10000 4147200bytes

.

Progressive JPEG

-

max WxH = 4000x4000 3840000bytes

Subtitle

.sub .srt--

-

The following table is an illustration of some of the
typical video display modes. Your TV may not support
all resolutions. Your TV supports up to 1920x1080.

Index Resolution Frequency

1 640x480 60 Hz

2 800x600 56 Hz

3 800x600 60 Hz

4 1024x768 60 Hz

5 1024x768 66 Hz

6 1280x768 60 Hz

7 1280x960 60 Hz

8 1280x1024 60 Hz

9 1360x768 60 Hz

10 1400x1050 60 Hz

11 1600x1200 60 Hz

12 1920x1080 60 Hz

AV and HDMI Signal Compatibility

PAL 50/60 O

EXT
(SCART)

NTSC 60 O
RGB 50 O
RGB 60 O

Side AV

PAL 50/60 O
NTSC 60 O
480I, 480P 60Hz O
576I, 576P 50Hz O

PC/
YPbPr

720P 50Hz,60Hz O

1080I 50Hz,60Hz O
1080P 50Hz,60Hz O
480I 60Hz O
480P 60Hz O

576I, 576P 50Hz O

HDMI1

720P 50Hz,60Hz O
1080I 50Hz,60Hz O

24Hz, 25Hz

1080P

30Hz, 50Hz,

O

60Hz

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed
properly. The problem may be an inconsistency with standards
from the source equipment (DVD, Set-top box, etc. ). If you
do experience such a problem please contact your dealer and
also the manufacturer of the source equipment.

Supported File Formats for USB Mode

Media File Extension

mpg, mpeg MPEG1, MPEG2

vob MPEG2

mp4 MPEG4, Xvid , H.264

mkv H.264, MPEG4,VC-1

Movie

Music


avi MPEG2, MPEG4, Xvid , H.264

v H.264/VP6/Sorenson

3gp MPEG4 , H.264 1920x1080 @ 30P

wmv,asf MPEG4 , VC-1 1920x1080 @ 30P

.mp3 -

.bmp - - max WxH = 5760x4096 3840000bytes

English - 34 -

2 (MP3)

1920x1080 @ 30P

32K, 44.1k, 48k Hz,16K, 22.05K, 24K

Hz,8K, 11.025K, 12K Hz(Sampling rate)

DVD Mode

Safety Information
CAUTION

DVD Player is a class 1 laser product. However this
product uses a visible laser beam which could cause
hazardous radiation exposure. Be sure to operate the
player correctly as instructed.

CLASS 1

LASER PRODUCT

RISK OF ELECTRIC SHOCK

The lightning ash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of sufcient

magnitude to constitute a risk of electric shock of
persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

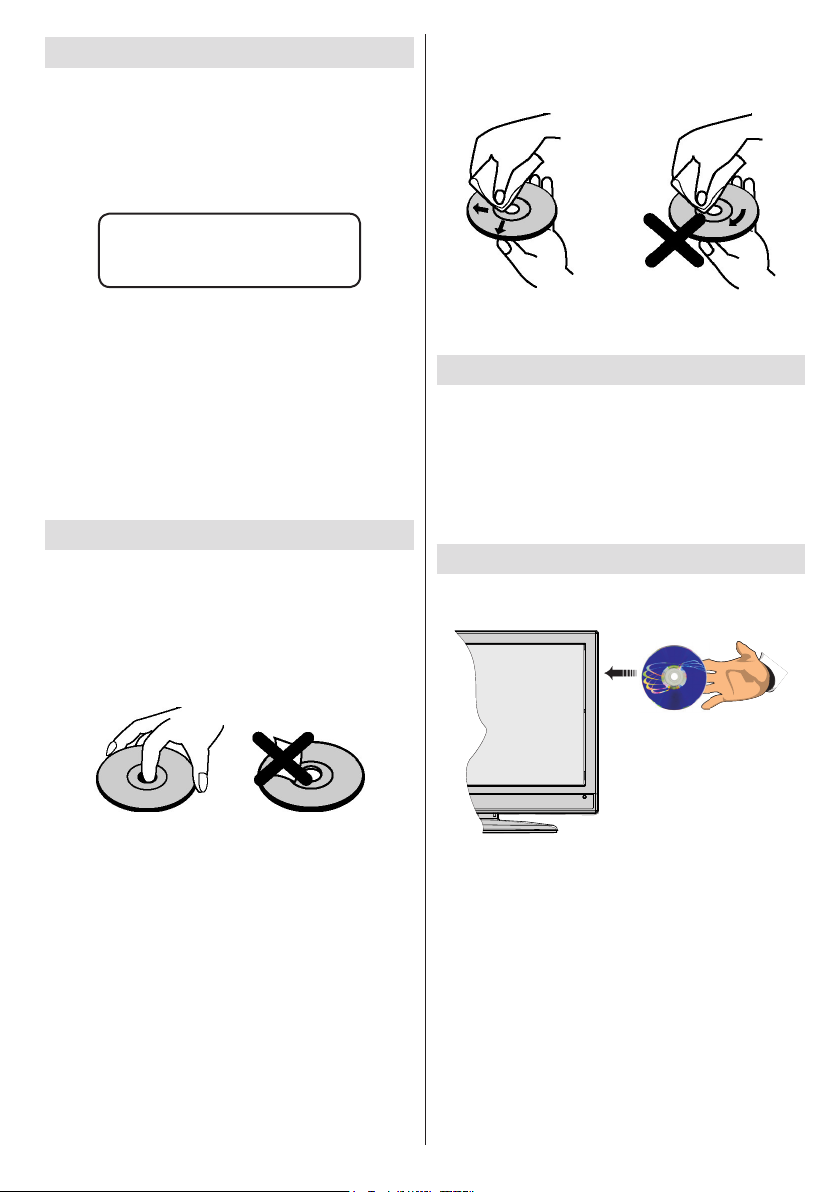

Notes on Discs

On handling discs

• To keep the disc clean, handle the disc by its edge.
Do not touch the surface.

• Do not stick paper or tape on the disc.

• If the disc is contaminated with any substance like

glue remove before using it.

On cleaning

• Before playing, clean the disc with a cleaning cloth.
Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner,
commercially available cleaners or anti-static spray
intended for vinyl LPs.

LicenceNotication

• This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Rovi Corporation, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Rovi Corporation. Reverse
engineering and disassembly are prohibited.

How to Watch a DVD

When placing a disc into the loader, labeled side of
the disc should be on the front:

• Do not expose the disc to direct sunlight or heat
sources such as hot air ducts, or leave it in a car
parked in direct sunlight as the temperature can rise
quickly and damage the disc.

• After playing, store the disc in its case.

English - 35 -

When TV set is turned on, rst switch to DVD source

by using the SOURCE button on the remote control.
Press play on the remote control, or directly press play
button at the front panel. If there is no disc inside the

loader, place a DVD rst and press play.

Note: If you switch to another source by pressing
SOURCE, SWAP or P+/P- buttons on the remote
control, DVD playback will be paused automatically.
You should press PLAY and resume the playback
manually when you switch to DVD mode.

DVD Control Panel Buttons

A. Disc loader
B. Play / Pause

Plays/pauses the disc. When DVD menu (root menu) is active, this button functions as
“button select” (selects the highlighted item in menu) if this is not prohibited by the disc.

C. Stop / Eject

Stop playing disc / Eject or Load the disc Note:

• You cannot eject the disc via the remote control.

• While playing a le, you should press STOP button three times to eject.

1.Standby

2.Numeric buttons

3.TV Menu

4.Navigation buttons

5.OK / Select

6.Back

7.Angel

8.Info

9.Display / DVD Menu

10.Zoom

11.Language selection

12.Subtitle

13.Rapid reverse

14.Play

15.Stop

16.Rapid advance

17.Pause

18.Root

19.Title

20.Repeat

21.Search mode

22.Source

English - 36 -

General Operation

Remote Control

DVD
Playback

Movie
Playback

Playback

Playback

/

C

Display

LANG.

MENU

OK / SELECT

REPEAT

RETURN

ZOOM

Other Functions – Button Combinations (During playback)

You can operate DVD, movie CD, music or picture CD’s content by using the proper buttons on your remote control. Below
are main functions of commonly used remote control buttons.

Buttons on the

/

/

/

INFO

ROOT

SEARCH MODE (*)

SUBTITLE

Play Play Play Play

Pause Pause Pause Pause

Stop Stop Stop Stop

Skip backward/
forward

Skip backward/
forward

Highlights a menu item / Shifts the zoomed picture up or down (if available).

Fast reverse / Fast forward

Clears digit (if available).

Displays time / Views main setup menu

Time counter mode selection (during playback). Press repeatedly to switch between
modes.

Audio language. X X

Displays TV menu.

Enter / View / Play

Displays repeat options.

Returns back to the previous menu (if available).

Goes back to the root folder (if available).

Direct selection of scenes or time.

Subtitle on-off. Press repeatedly to switch
between subtitle options.

Skip backward/
forward

Skip backward/
forward


Previous / Next Previous / Next

Rotate

Selects the

desired le.

X X

Music

Skip backward/
forward

Selects the

desired le.

TITLE

+

[ + ] +

+

+

+

+

(*) You can switch to title by pressing numeric keys directly. You need to press 0 and then digit key to switch
one digit titles (example: to select 5, press 0 and 5).

Displays disc menu
(if available).

Zooms picture. Press repeatedly to switch between zoom options.

Displays disc menu
(if available).

Slow forward.

Sets slow forward speed.

Sets fast forward speed.

Sets fast reverse speed.

Conrms stop command.

Press repeatedly to advance manually.

English - 37 -

X X

General Playback

Basic Play

1. Press on the power button

2. Please insert a disc to the loader.

The disc will be automatically loaded and play
commences if the disc does not have any menus
recorded on it.

A menu may appear on the TV screen after a few

moments or the lm may start immediately after the

introduction of the Film Company. This behaviour
depends on the disc content and may change.

Note: Step 3 and 4 is available only when a menu is recorded
on the disc.

3. Press “ ” / “ ” / / or the number button (s)

to select the preferred title.

4. Press OK.
Play of the selected items now starts. The played

item may be a motion picture, a still picture or another
submenu depending on the disc.

For your reference:

If an action corresponding to a button is prohibited the “
” symbol appears.

Notes on Playback:

1. No sound will be heard during Rapid advance

or Rapid reverse.

2. No sound will be heard during Slow motion play.

3. Reverse slow motion play is not available.

4. In some cases, the subtitle language is not

changed immediately to the selected one.

5. When the preferred language is not selected even

after pressing the button several times, it means
that the language is not available on the disc.

6. When the player is restarted or the disc is

changed, the subtitle selection is automatically
changed back to the initial settings.

7. If a language is selected, not supported by the

disc, the subtitle language will automatically be
set to the disc’s priority language.

8. Usually a circulation will happen while switching

to another language, that is you can cancel
the subtitle by pressing this button a number of
times until “Subtitle Off” appears on the screen.

9. When the power is turned on or the disc is

removed, the language heard is the one
selected at the initial settings. If this language
is not recorded on the disc, only the available
language on the disc will be heard.

10. Some DVDs may not contain root and/or title

menus.

11. Reverse stepping is not available.

12. For your convenience:

If you attempt to enter a number greater than the total
time of the current title, the time search box disappears

English - 38 -

and “ Input Invalid” message appears on up-left
corner of screen.

13. Slide Show is disabled when the ZOOM mode

is on.

DVD Troubleshooting

The picture quality is poor (DVD)

• Make sure the DVD disc surface is not damaged.
(Scratch, ngerprint etc.)

• Clean the DVD disc and try again.

See instructions described in “Notes on Discs” to clean your
disc properly.

• Ensure that the DVD disc is in the drawer with the
label uppermost.

• A damp DVD disc or condensation may effect the
equipment. Wait for 1 to 2 hours in Stand-by to dry
the equipment.

Disc does not play

• No disc in the machine. Place a disc into the loader.

• Disc incorrectly loaded.

Ensure that the DVD disc is in the drawer with the label
uppermost.

• Wrong type of disc. The machine cannot play CD-
ROMS etc.• The region code of the DVD must match

the player.

Wrong OSD language

• Select the language in the set-up menu.

• The language for the sound or subtitles on a DVD

cannot be changed.

• Multilingual sound and/or subtitles not recorded on
the DVD.

• Try to change the sound or subtitles using DVD’s
title menu. Some DVD’s do not allow the user to
change these settings without using the disc’s menu

• These functions are not available on the DVD.

No picture

• Have you pressed the correct buttons on the remote
control? Try once more.

No sound

• Check the volume is set to an audible level.

• Make sure you have not switched the sound off

accidentally.

Distorted sound

• Check that the appropriate listening mode setting
is correct.

If nothing works

If you have tried the above solutions and none seem to work,
try switching your TV-DVD off and on again. If this does not
work, contact your supplier or TV-DVD repair technician.
Never attempt to repair a defective TV-DVD yourself.

Disc Types Compatible with This Unit

(Logos)

MPEG Multichannel Decoding
LPCM

24 bit /48, 44.1kHz down-sampling DAC

Disc Types

DVD

AUDIO-CD

MP3-CD

PICTURE-CD

For proper operation, only 12 cm discs must be used.

Recording
Types

Audio
+
Video

Audio 12 cm 74 min.

Audio
(xxxx.mp3)

Video
(still picture)

Disc
Size

12 cm

12 cm

12 cm

Specications

DVD: SS/SL 4.7” (DVD-5)

Types of Discs
Supported

Video Type

SS/DL 4.7” (DVD-9)
DS/SL 4.7” (DVD-10)

DS/DL 4.7” (DVD-18)

MPEG-2 Video Standard Decoding (MPEG-1 supported)

Full-Screen Video Display of 720 x 576 (PAL) & 720 x 480 (NTSC) pixels
50 and 60 Hz frame refresh rates (PAL & NTSC)
Digital bit-stream processing rate up to 108Mbits/sec

Line resolution more than 500 lines

Max. Playing
Time

Single­sided; 240 min.
Double-

sided; 480 min.

It depends
on MP3
quality.

It depends
on JPEG
quality.

Characteristics

• DVD contains excellent sound and video
due to Dolby Digital and MPEG-2 System.

• Various screen and audio functions can
be easily selected through the on screen
menu.

• An LP is recorded as an analog signal
with more distortion. CD is recorded as
a Digital Signal with better audio quality,
Iess distortion and less deterioration of
audio quality over time.

• MP3 is recorded as a Digital Signal with
better audio quality, less distortion and
less deterioration of audio quality over
time.

• JPEG is recorded as a Digital Signal with
better picture quality over time.

CD-DA
CD-R
CD-RW
MP-3/JPEG

Audio Type

Audio Output

Analog Outputs:

English - 39 -
