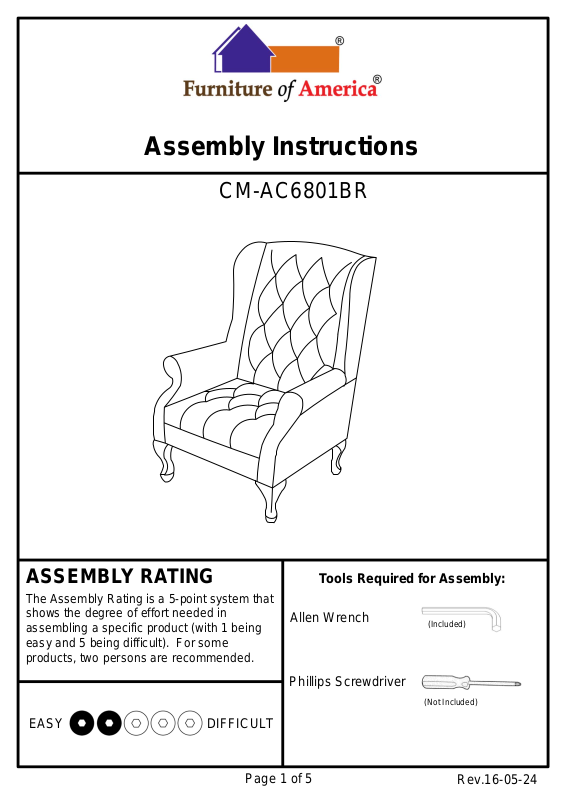

Assembly Instructions
CM-AC6801BR
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY
DIFFICULT
Page 1 of 5
Tools Required for Assembly:
Allen Wrench
Phillips Screwdriver
(Included)
(Not Included)
Rev.16-05-24

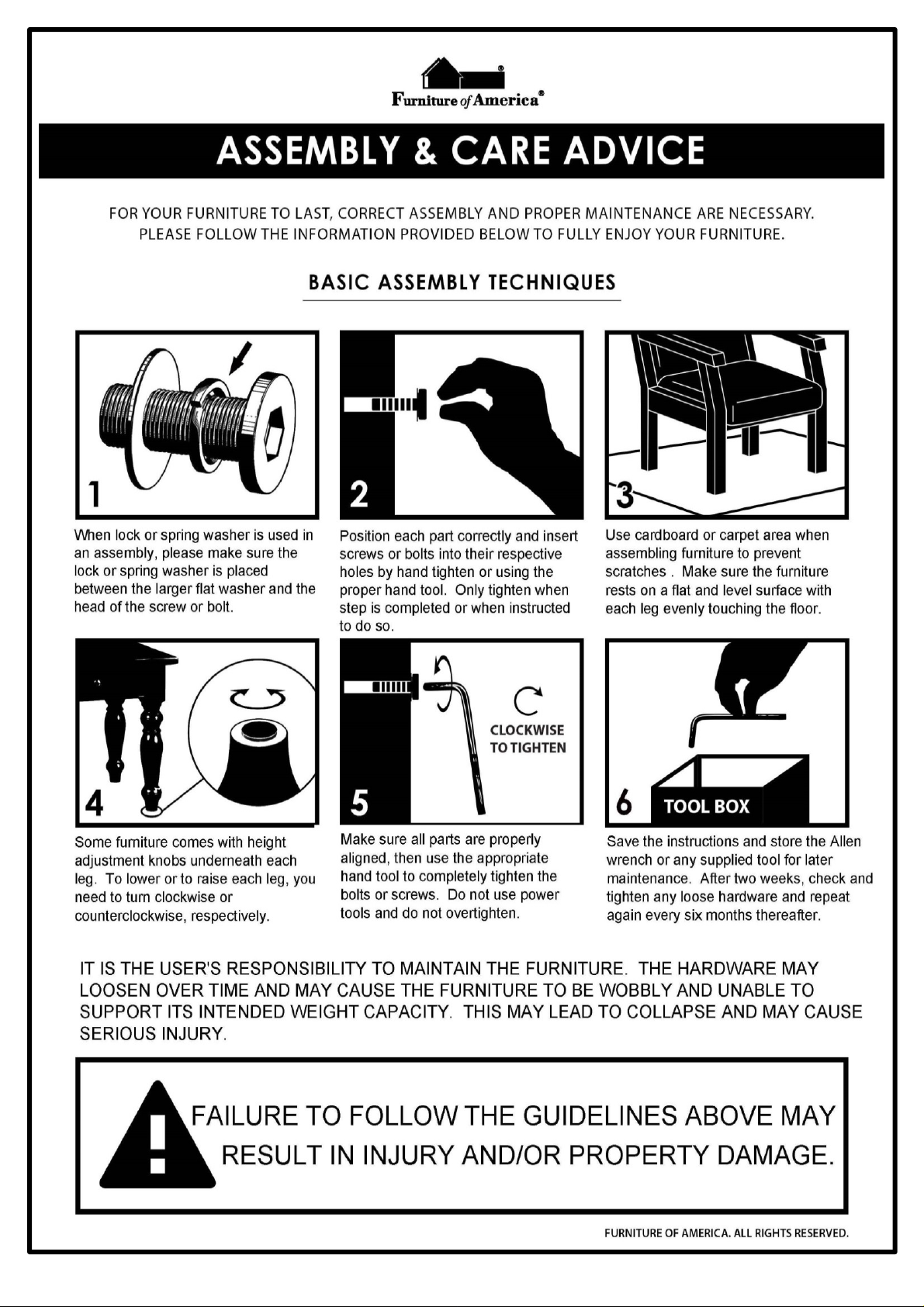

Page 2
Page 2 of 5
Page 3
MD
Before you begin, please read Page 2
of “Assembly and Care Advice”.
And remember, do not tighten until
each step is completed or instructed.

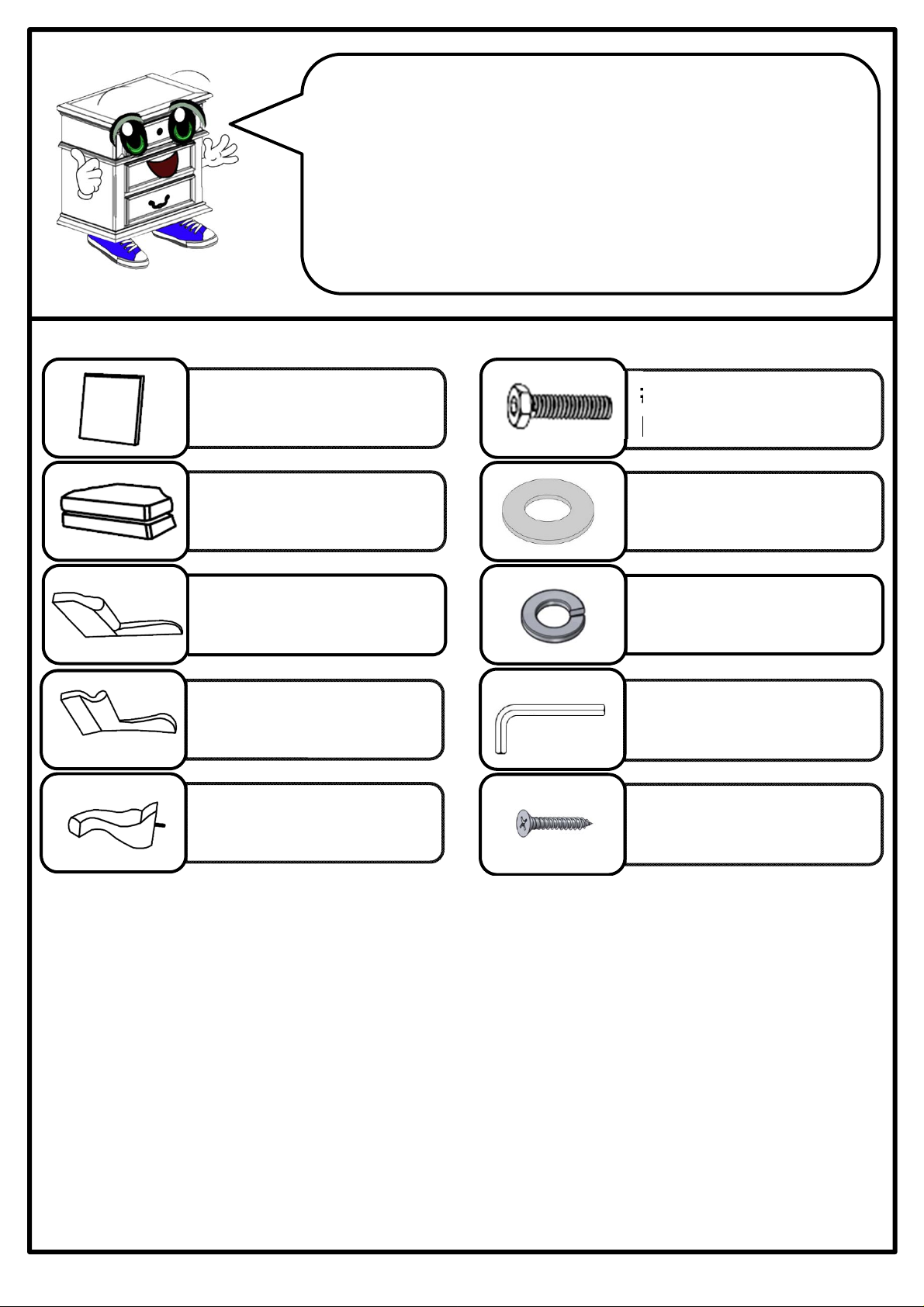

Parts List
#1 x 1 pc
Backrest
#2 x 1 pc
Chair Seat
#3 x 1 pc
Right Armrest
#4 x 1 pc
Left Armrest
Hardware List
#A x 15 pcs
Bolt
#B x 15 pcs
Flat W asher
#C x 15 pcs
Lock W asher
#D x 1 pc
Allen Wrench
#5 x 4 pcs
Leg
#E x 8 pcs
Screw
Page 3 of 5
Page 4
#A x 3 pcs
#B x 3 pcs
#C x 3 pcs

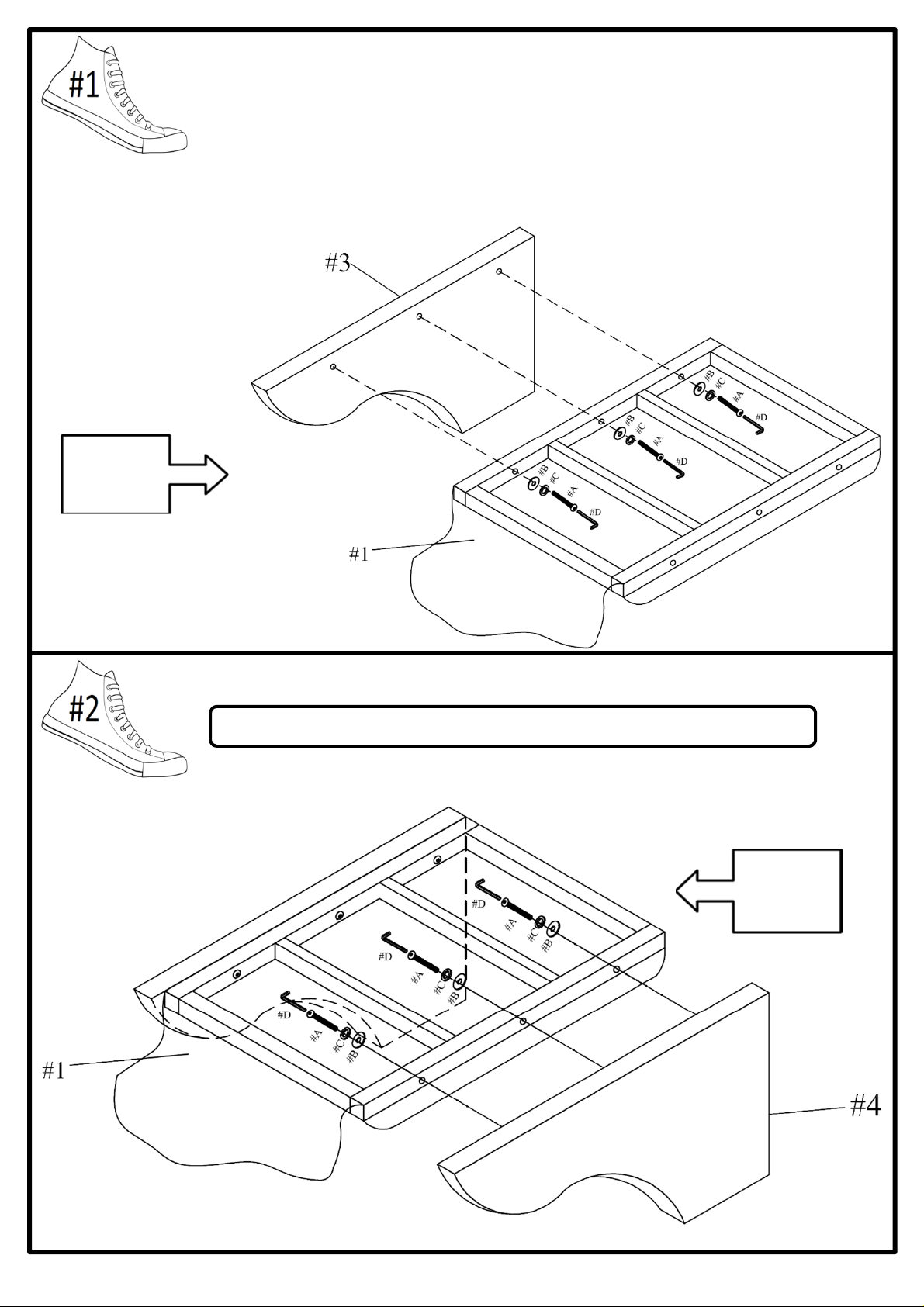

I. Place the backrest (#1) facing down on a protected surface.
II. Align the right armrest (#3) with the pre-drilled holes of the backrest (#1).
III. Prepare 3 bolt assemblies by inserting FIRST the lock washer (#C) onto the
bolt (#A) and then the flat washer (#B) onto the SAME bolt (#A), in that
order.
IV. Insert the bolt assemblies through the pre-drilled holes of the backrest (#1)
and secure those bolts using the Allen wrench (#D) to lock them in with the
right armrest (#3).
Note: Right and left are
determined by standing
BEHIND the chair.
Repeat Step 1 to assemble the left armrest (#4) onto the backrest (#1).
Turn right (clockwise) to tighten
#A x 3 pcs
#B x 3 pcs
#C x 3 pcs
Turn right (clockwise) to tighten
Page 4of 5
Page 5
Turn right (clockwise) to tighten
#A x 9 pcs
#B x 9 pcs
#C x 9 pcs
Enlarged
I. Align the chair seat (#2) with
the pre-drilled holes of the
backrest (#1), the right
armrest (#3) and left armrest
(#4).
II. Prepare 9 bolt assemblies by
inserting FIRST the lock
washer (#C) onto the bolt (#A)
and then the flat washer (#B)
onto the SAME bolt (#A), in
that order.
III. Insert the 6 bolt assemblies
through the inside of the chair
seat (#2) AND 3 bolt
assemblies through the
bottom of the chair seat (#2)
using the Allen wrench (#D) to
lock them in with the backrest
(#1), the right armrest (#3)
and left armrest (#4).
I. Align the legs (#5) with the pre-drilled holes on the bottom of the
chair seat (#2).
II. Insert a screw (#E) through the pre-drilled hole of each leg (#5)
and using the Phillips screwdriver to lock it in with the chair seat
(#2).
#5
#5
#E
#5
#E x 8 pcs
Page 5 of 5
